1-31 — AIR DUCT (#63353) — 139 parça

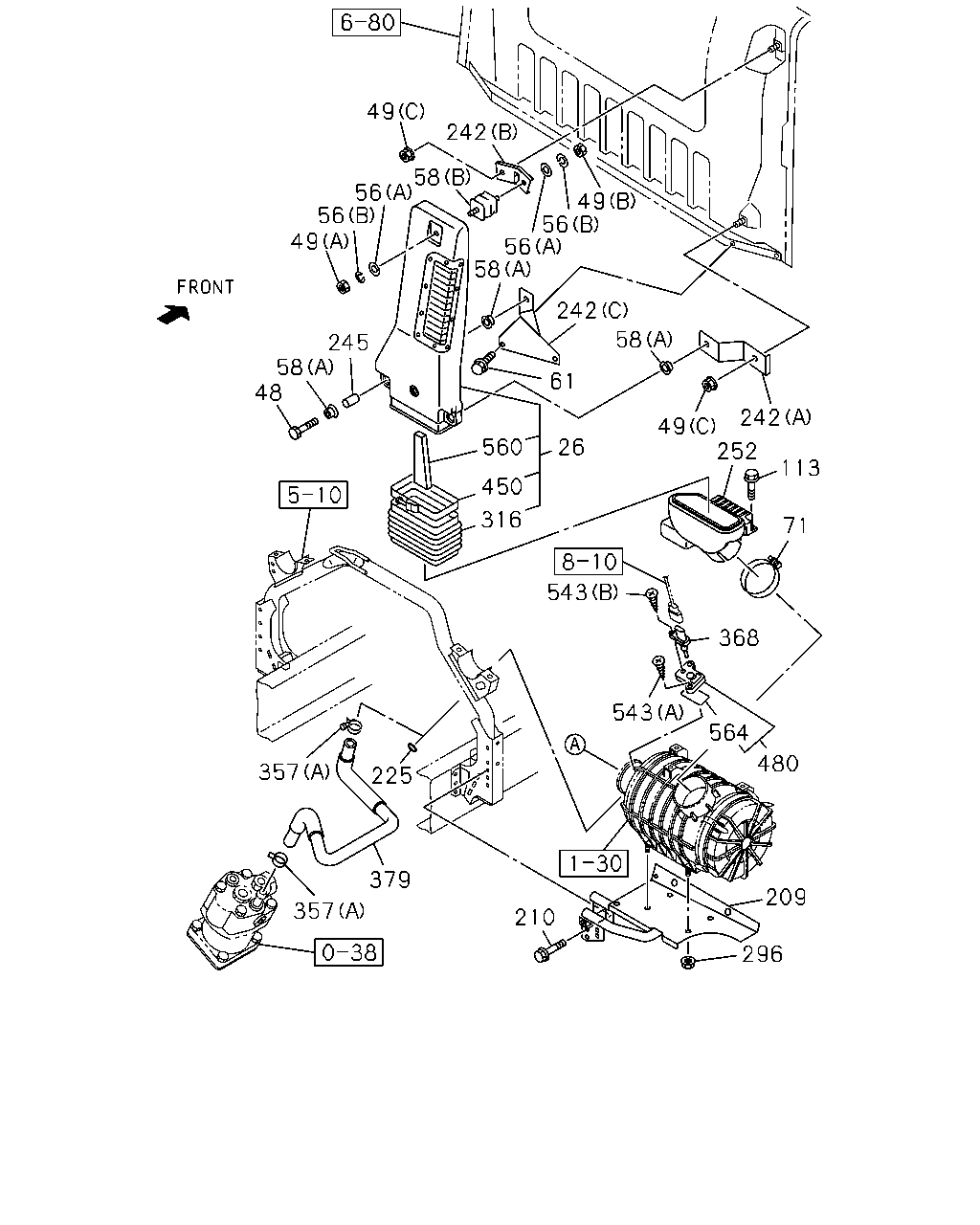

çizim 162211
49 242 58 56 56 49 49 56 56 58 242 58 245 61 58 48 242 49 252 26 560 113 450 316 71 543 368 543 564 480 357 225 379 209 357 210 296
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT 8-98010-361-2 01 1 1001-1011 ●
26 DUCT; AIR INT 8-98010-361-2 01 1 1012- ● ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1001-1011 ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1012- ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE SOU 		1-09984-122-0 01 1 1001-1011 ●
49 NUT; AIR DUCT
(B) M8 FLANGE SOU 		1-09984-122-0 01 1 1012- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1001-1011 ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1012- ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE SOU 		8-94279-517-0 02 1 1001-1011 ●
49 NUT; AIR DUCT
(C) M8 FLANGE SOU 		8-94279-517-0 02 1 1012- ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 SOU 		1-09985-177-0 02 1 1001-1011 ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 SOU 		1-09985-177-0 02 1 1012- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1001-1011 ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1012- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1001-1011 ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1012- ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1001-1011 ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1012- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1001-1011 ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1012- ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1001-1011 ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1012- ● ●
113 BOLT; RESONATOR
M6X16 W/PL WASHER 		8-98094-071-0 03 1 1001-1011 ●
113 BOLT; RESONATOR
M6X16 W/PL WASHER 		8-98094-071-0 03 1 1012-1012 ● ●
113 BOLT; RESONATOR
EXC. VIN MODEL YEAR 2011<VZB> M6X16 W/PL WASHER 		8-98094-071-0 03 1 1012-1112 ● ●
113 BOLT; RESONATOR
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> M6X16 W/PL WASHER 		8-98094-071-0 03 1 1201- ● ●
113 BOLT; RESONATOR
EURO3 SPECIFICATION<NT3> M6X16 W/PL WASHER 		8-98094-071-0 03 1 1201- ● ●
209 BRACKET; ACL 8-98010-343-4 01 1 1001-1011 ●
209 BRACKET; ACL 8-98010-343-4 01 1 1012- ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE SOU 		0-28651-025-0 04 1 1001-1011 ●
210 BOLT; ACL BRKT
M10X25 FLANGE SOU 		0-28651-025-0 04 1 1012- ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1001-1011 ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1001-1011 ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1012-1112 ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1012-1112 ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1201- ● ●
225 GASKET; AIR PIPE
EURO2 SPECIFICATION<NT2> ID=24.4 		1-09623-057-0 01 1 1201- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1001-1011 ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1012- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1001-1011 ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1012- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98019-303-1 01 1 1001-1011 ●
242 BRACKET; AIR DUCT
(A) 		8-98019-303-1 01 1 1012- ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1001-1011 ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1012- ● ●
252 DUCT; AIR INT
VIN MODEL YEAR 2011<VZB> 		8-98010-639-1 01 1 1012-1112 ● ●
252 DUCT; AIR INT
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> 		8-98010-639-1 01 1 1201- ● ●
252 DUCT; AIR INT 8-98095-778-0 01 1 1001-1011 ●
252 DUCT; AIR INT 8-98095-778-0 01 1 1012-1012 ● ●
252 DUCT; AIR INT
EXC. VIN MODEL YEAR 2011<VZB> 		8-98095-778-0 01 1 1012-1112 ● ●
252 DUCT; AIR INT
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> 		8-98095-778-0 01 1 1201- ● ●
252 DUCT; AIR INT
EURO3 SPECIFICATION<NT3> 		8-98095-778-0 01 1 1201- ● ●
296 NUT; ACL
M8 FLANGE SOU 		0-91180-108-0 04 1 1001-1011 ●
296 NUT; ACL
M8 FLANGE SOU 		0-91180-108-0 04 1 1012- ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1001-1011 ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1012- ● ●
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1001-1011 ●
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1012- ● ●
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 02 1 1001-1011 ●
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 02 1 1012- ● ●
357 CLIP; RUBBER HOSE
(B) ID=75-95 		8-98133-357-0 01 1 1001-1011 ●
357 CLIP; RUBBER HOSE
(B) ID=75-95 		8-98133-357-0 01 1 1012- ● ●
368 SENSOR; TEMP 8-98065-377-0 01 1 1001-1011 ●
368 SENSOR; TEMP 8-98065-377-0 01 1 1012- ● ●
379 HOSE; RUBBER 8-98075-713-1 01 1 1001-1011 ●
379 HOSE; RUBBER 8-98075-713-1 01 1 1012- ● ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1001-1011 ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1012- ● ●
480 ADAPTER 8-98086-417-0 01 1 1001-1011 ●
480 ADAPTER 8-98086-417-0 01 1 1012- ● ●
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1001-1011 ●
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1012- ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1001-1011 ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1001-1011 ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1012- ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1012- ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1001- ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1001-1011 ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1012- ● ●

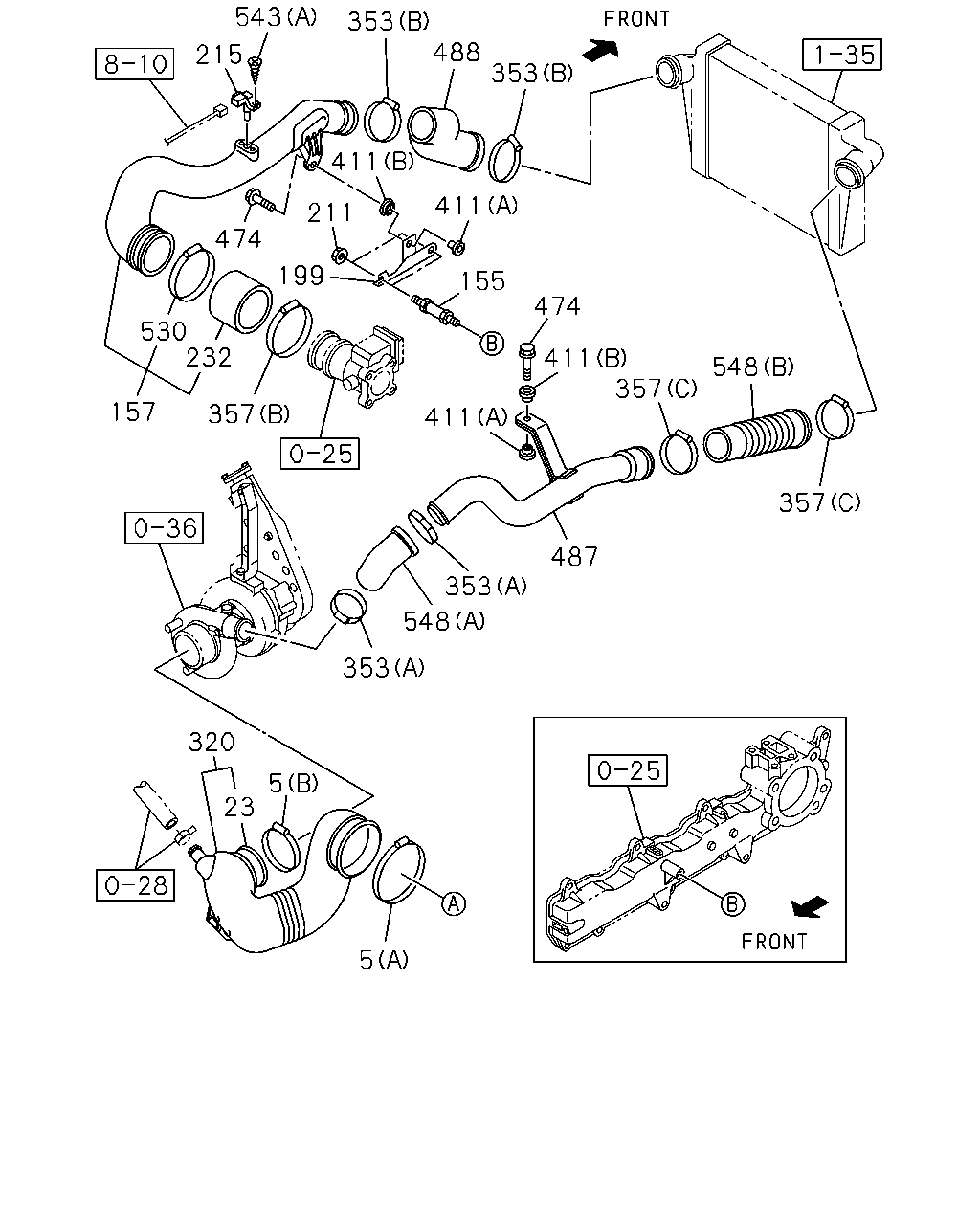

çizim 162237
543 353 488 353 215 411 411 211 474 199 155 474 530 232 411 357 548 157 357 411 357 487 353 548 353 320 5 23 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(B) ID=55-75 		8-98133-349-0 01 1 1001-1011 ●
5 CLIP; AIR DUCT
(B) ID=55-75 		8-98133-349-0 01 1 1012- ● ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 1001-1011 ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 1012- ● ●
23 CLIP; HOSE
ID=87-116 		1-09707-144-0 01 1 1102-1112 ●
23 CLIP; HOSE
ID=87-116 		1-09707-144-0 01 1 1201- ● ●
155 BOLT; BRKT
M10X17,M10X30 L=105 		8-97233-428-0 02 1 1001-1011 ●
155 BOLT; BRKT
M10X17,M10X30 L=105 		8-97233-428-0 02 1 1012- ● ●
157 PIPE; AIR 8-98010-719-3 01 1 1001-1011 ●
157 PIPE; AIR 8-98010-719-3 01 1 1012- ● ●
199 BRACKET; PIPE 8-97385-293-1 01 1 1001-1011 ●
199 BRACKET; PIPE 8-97385-293-1 01 1 1012- ● ●
211 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 02 1 1001-1011 ●
211 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 02 1 1012- ● ●
215 SENSOR; MAP 8-98009-418-0 01 1 1001-1011 ●
215 SENSOR; MAP 8-98009-418-0 01 1 1012- ● ●
232 HOSE; CONN 8-98067-929-0 01 1 1001-1011 ●
232 HOSE; CONN 8-98067-929-0 01 1 1012- ● ●
320 HOSE; CONN,ACL
EURO3 SPECIFICATION<NT3> 		8-98073-540-3 01 1 1201- ●
320 HOSE; CONN,ACL 8-98073-539-3 01 1 1001-1011 ●
320 HOSE; CONN,ACL 8-98073-539-3 01 1 1012-1112 ● ●
320 HOSE; CONN,ACL
EURO2 SPECIFICATION<NT2> 		8-98073-539-3 01 1 1201- ● ●
353 CLIP; RUBBER HOSE
(A) ID=60-65 		8-98096-418-0 02 1 1001-1011 ●
353 CLIP; RUBBER HOSE
(A) ID=60-65 		8-98096-418-0 02 1 1012- ● ●
353 CLIP; RUBBER HOSE
(B) ID=55-75 		8-98133-349-0 02 1 1001-1011 ●
353 CLIP; RUBBER HOSE
(B) ID=55-75 		8-98133-349-0 02 1 1012- ● ●
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1001-1011 ●
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1012- ● ●
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 02 1 1001-1011 ●
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 02 1 1012- ● ●
357 CLIP; RUBBER HOSE
(B) ID=75-95 		8-98133-357-0 01 1 1001-1011 ●
357 CLIP; RUBBER HOSE
(B) ID=75-95 		8-98133-357-0 01 1 1012- ● ●
411 RUBBER; CUSHION
(A) OD=32 		8-94395-766-0 02 1 1001-1011 ●
411 RUBBER; CUSHION
(A) OD=32 		8-94395-766-0 02 1 1012- ● ●
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 1001-1011 ●
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 1012- ● ●
474 BOLT; PIPE
M8X40 FLANGE SOU 		0-28650-840-0 02 1 1001-1011 ●
474 BOLT; PIPE
M8X40 FLANGE SOU 		0-28650-840-0 02 1 1012- ● ●
487 PIPE; TURBO TO CHARGE AIR COOLER 8-98073-592-0 01 1 1001-1011 ●
487 PIPE; TURBO TO CHARGE AIR COOLER 8-98073-592-0 01 1 1012- ● ●
488 HOSE; RUBBER,PIPE 8-98010-723-0 01 1 1001-1011 ●
488 HOSE; RUBBER,PIPE 8-98010-723-0 01 1 1012- ● ●
530 CLAMP; AIR DUCT
ID=75-95 		8-98133-357-0 01 1 1001-1011 ●
530 CLAMP; AIR DUCT
ID=75-95 		8-98133-357-0 01 1 1012- ● ●
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1001-1011 ●
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1012- ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1001-1011 ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1001-1011 ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1012- ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1012- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EXC. EURO2 SPECIFICATION<NT2> (A) 		8-98061-809-1 01 1 1201- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EXC. EURO2 SPECIFICATION<NT2> (B) 		8-98061-810-0 01 1 1201- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98061-809-1 01 1 1001-1011 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98061-809-1 01 1 1012-1101 ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98181-971-1 01 1 1102-1112 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-98181-971-1 01 1 1201- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98061-810-0 01 1 1001-1011 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98061-810-0 01 1 1012-1101 ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98181-972-1 01 1 1102-1112 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-98181-972-1 01 1 1201- ● ●
