2 |

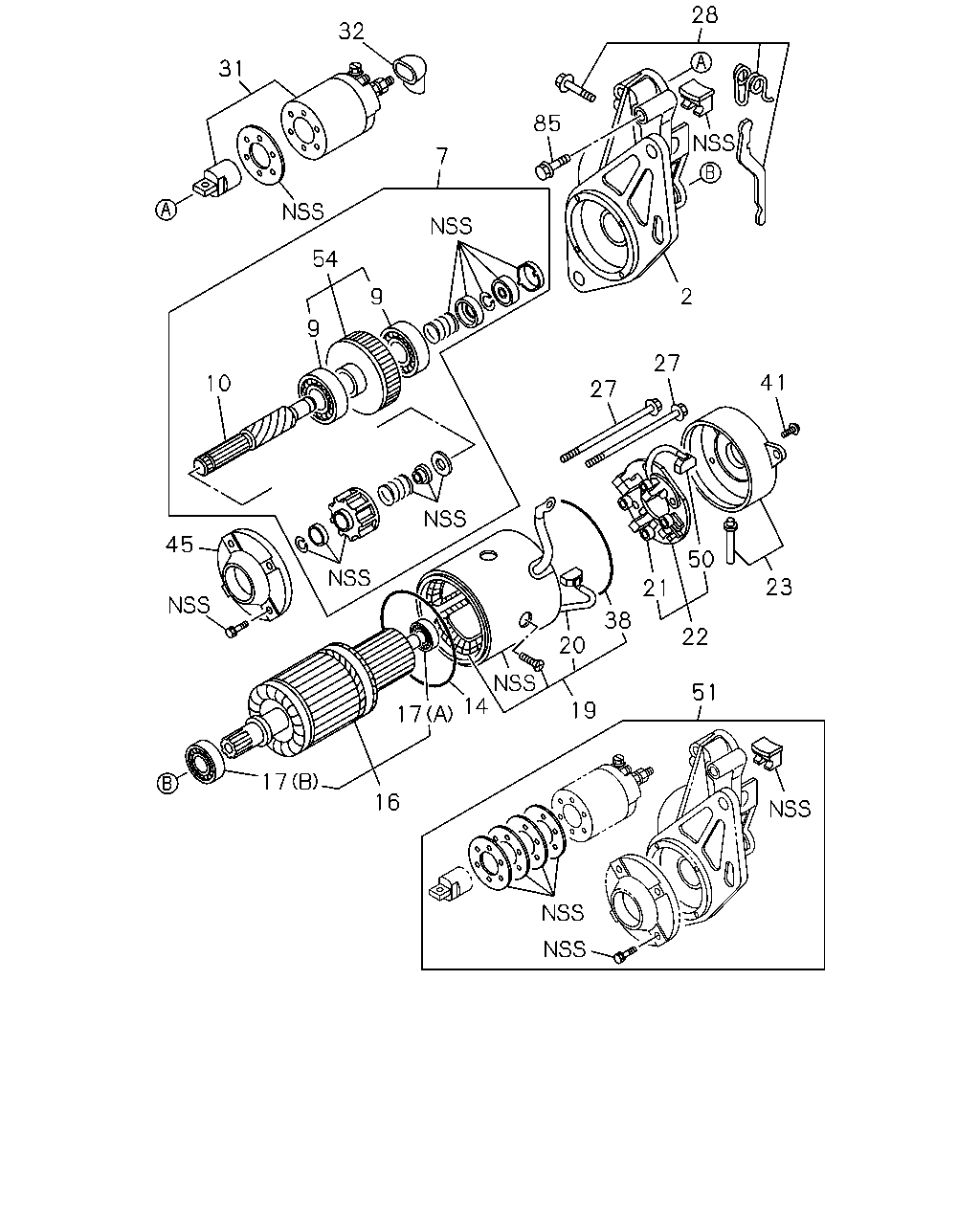

CASE; PINION,STARTER
ASM PART: A = 8-98009-043-2, D = 8-98222-023-0
|
8-97329-348-0 |
01 |
1 |
- |
| |
2 |
CASE; PINION,STARTER
ASM PART: B = 8-98179-204-1, C = 8-98222-021-0
|
8-98022-776-0 |
01 |
1 |
- |
| |
2 |
CASE; PINION,STARTER
ASM PART: E = 8-98245-258-0
|
8-98246-368-0 |
01 |
1 |
- |
| |
2 |
CASE; PINION,STARTER
ASM PART: F = 8-98245-260-1
|
8-98251-559-0 |
01 |
1 |
- |
| |
7 |
CLUTCH ASM; PINION,STARTER
ASM PART: B = 8-98179-204-1
|
8-98159-731-0 |
01 |
1 |
- |
| |
7 |
CLUTCH ASM; PINION,STARTER
ASM PART: A = 8-98009-043-2
|
8-98159-732-0 |
01 |
1 |
- |
| |
7 |
CLUTCH ASM; PINION,STARTER
ASM PART: C = 8-98222-021-0, E = 8-98245-258-0
|
8-98222-104-0 |
01 |
1 |
- |
| |
7 |
CLUTCH ASM; PINION,STARTER
ASM PART: D = 8-98222-023-0, F = 8-98245-260-1
|
8-98222-105-0 |
01 |
1 |
- |
| |
9 |
BEARING; GEAR SHAFT STARTER
ASM PART: A = 8-98009-043-2, B = 8-98179-204-1,
C = 8-98222-021-0, D = 8-98222-023-0,
E = 8-98245-258-0, F = 8-98245-260-1
|
8-97025-673-0 |
02 |
1 |
- |
| |
10 |
SHAFT; GEAR STARTER
ASM PART: A = 8-98009-043-2, B = 8-98179-204-1,
C = 8-98222-021-0, D = 8-98222-023-0,
E = 8-98245-258-0
|
8-98159-734-0 |
01 |
1 |
- |
| |
10 |
SHAFT; GEAR STARTER
ASM PART: F = 8-98245-260-1
|
8-98259-739-0 |
01 |
1 |
- |
| |
14 |
GASKET; YOKE,STARTER
ASM PART: A = 8-98009-043-2, B = 8-98179-204-1,
C = 8-98222-021-0, D = 8-98222-023-0,
E = 8-98245-258-0, F = 8-98245-260-1
|
8-97377-691-0 |
01 |
1 |
- |
| |
16 |
ARMATURE; STARTER
ASM PART: A = 8-98009-043-2, B = 8-98179-204-1,
C = 8-98222-021-0, D = 8-98222-023-0,
E = 8-98245-258-0, F = 8-98245-260-1
|
8-97230-557-0 |
01 |
1 |
- |
| |
17 |
BEARING; ARMATURE,STARTER
(A) ASM PART: A = 8-98009-043-2, D = 8-98222-023-0,
F = 8-98245-260-1
|
8-94228-436-0 |
01 |
1 |
- |
| |
17 |
BEARING; ARMATURE,STARTER
ASM PART: B = 8-98179-204-1, C = 8-98222-021-0,
E = 8-98245-258-0
|
8-97025-676-0 |
01 |
1 |
- |
| |
17 |
BEARING; ARMATURE,STARTER
(B) ASM PART: A = 8-98009-043-2, B = 8-98179-204-1,
C = 8-98222-021-0, D = 8-98222-023-0,
E = 8-98245-258-0, F = 8-98245-260-1
|
8-97030-387-0 |
01 |
1 |
- |
| |
19 |
COIL; FIELD,STARTER
ASM PART: A = 8-98009-043-2, B = 8-98179-204-1,
C = 8-98222-021-0, D = 8-98222-023-0
|
8-97377-688-0 |
01 |
1 |
- |
| |
19 |
COIL; FIELD,STARTER
ASM PART: E = 8-98245-258-0, F = 8-98245-260-1
|
8-98253-306-0 |
01 |
1 |
- |
| |
20 |
BRUSH; (+),STARTER
ASM PART: A = 8-98009-043-2, B = 8-98179-204-1,
C = 8-98222-021-0, D = 8-98222-023-0,
E = 8-98245-258-0, F = 8-98245-260-1
|
8-97230-560-0 |
02 |
1 |
- |
| |
21 |
SPRING; BRUSH HOLDER STARTER
ASM PART: A = 8-98009-043-2, B = 8-98179-204-1,
C = 8-98222-021-0, D = 8-98222-023-0,
E = 8-98245-258-0, F = 8-98245-260-1
|
8-94152-972-0 |
04 |
1 |
- |
| |
22 |
HOLDER; BRUSH STARTER
ASM PART: A = 8-98009-043-2, B = 8-98179-204-1,
C = 8-98222-021-0, D = 8-98222-023-0,
E = 8-98245-258-0, F = 8-98245-260-1
|
8-97230-562-0 |
01 |
1 |
- |
| |
23 |
COVER; RR COVER STARTER
ASM PART: A = 8-98009-043-2, D = 8-98222-023-0
|
8-97377-689-0 |
01 |
1 |
- |
| |
23 |
COVER; RR COVER STARTER
ASM PART: B = 8-98179-204-1, C = 8-98222-021-0
|
8-98022-772-0 |
01 |
1 |
- |
| |
23 |
COVER; RR COVER STARTER
ASM PART: E = 8-98245-258-0, F = 8-98245-260-1
|
8-98246-366-0 |
01 |
1 |
- |
| |
27 |
BOLT; THROUGH,STARTER
ASM PART: A = 8-98009-043-2, B = 8-98179-204-1,
C = 8-98222-021-0, D = 8-98222-023-0,
E = 8-98245-258-0, F = 8-98245-260-1
|
8-97192-423-0 |
02 |
1 |
- |
| |
28 |
LEVER; SHIFT,STARTER
ASM PART: A = 8-98009-043-2, D = 8-98222-023-0,
F = 8-98245-260-1
|
8-98159-690-0 |
01 |
1 |
- |
| |
28 |
LEVER; SHIFT,STARTER
ASM PART: B = 8-98179-204-1, C = 8-98222-021-0,
E = 8-98245-258-0
|
8-98179-218-0 |
01 |
1 |
- |
| |
31 |
SWITCH; ENGAGE STARTER
ASM PART: A = 8-98009-043-2, B = 8-98179-204-1,
C = 8-98222-021-0, D = 8-98222-023-0
|
8-97217-569-0 |
01 |
1 |
- |
| |
31 |
SWITCH; ENGAGE STARTER
ASM PART: E = 8-98245-258-0, F = 8-98245-260-1
|
8-98246-367-0 |
01 |
1 |
- |
| |
32 |
COVER; RUBBER,STARTER
ASM PART: A = 8-98009-043-2, B = 8-98179-204-1,
C = 8-98222-021-0, D = 8-98222-023-0
|
8-97217-570-0 |
01 |
1 |
- |
| |
32 |
COVER; RUBBER,STARTER
ASM PART: E = 8-98245-258-0, F = 8-98245-260-1
|
8-98253-307-0 |
01 |
1 |
- |
| |
38 |
GASKET; RR COVER,STARTER
ASM PART: A = 8-98009-043-2, B = 8-98179-204-1,
C = 8-98222-021-0, D = 8-98222-023-0,
E = 8-98245-258-0, F = 8-98245-260-1
|
8-97230-559-0 |
01 |
1 |
- |
| |
41 |
SCREW; RR COVER,STARTER
ASM PART: A = 8-98009-043-2, B = 8-98179-204-1,
C = 8-98222-021-0, D = 8-98222-023-0,
E = 8-98245-258-0, F = 8-98245-260-1
|
8-97117-107-0 |
02 |
1 |
- |
| |
45 |
RETAINER; BEARING,STARTER
ASM PART: A = 8-98009-043-2, B = 8-98179-204-1,
C = 8-98222-021-0, D = 8-98222-023-0
|
8-97030-401-0 |
01 |
1 |
- |
| |
45 |
RETAINER; BEARING,STARTER
ASM PART: E = 8-98245-258-0, F = 8-98245-260-1
|
8-98246-369-0 |
01 |
1 |
- |
| |
50 |
BRUSH; (-),STARTER
ASM PART: B = 8-98179-204-1, C = 8-98222-021-0,
E = 8-98245-258-0
|
8-97230-560-0 |
02 |
1 |
- |
| |
50 |
BRUSH; (-),STARTER
ASM PART: A = 8-98009-043-2, D = 8-98222-023-0,
F = 8-98245-260-1
|
8-97230-563-0 |
02 |
1 |
- |
| |
51 |
COVER SET; DUST ENGAGE SW STARTER
ASM PART: A = 8-98009-043-2, D = 8-98222-023-0,
F = 8-98245-260-1
|
8-97377-690-0 |
01 |
1 |
- |
| |
51 |
COVER SET; DUST ENGAGE SW STARTER
ASM PART: B = 8-98179-204-1, C = 8-98222-021-0,
E = 8-98245-258-0
|
8-98022-789-0 |
01 |
1 |
- |
| |
54 |
CLUTCH; PINION,STARTER
ASM PART: A = 8-98009-043-2, B = 8-98179-204-1
|
8-97115-816-0 |
01 |
1 |
- |
| |
54 |
CLUTCH; PINION,STARTER
ASM PART: C = 8-98222-021-0, D = 8-98222-023-0,
E = 8-98245-258-0, F = 8-98245-260-1
|
8-98222-106-0 |
01 |
1 |
- |
| |
85 |
BOLT; ENGAGE SW FIX,STARTER
ASM PART: A = 8-98009-043-2, B = 8-98179-204-1,
C = 8-98222-021-0, D = 8-98222-023-0,
E = 8-98245-258-0, F = 8-98245-260-1
|
8-94408-500-0 |
02 |
1 |
- |
