Sayfa 0-61 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11160 - FRR SCAB S.AFRICA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶

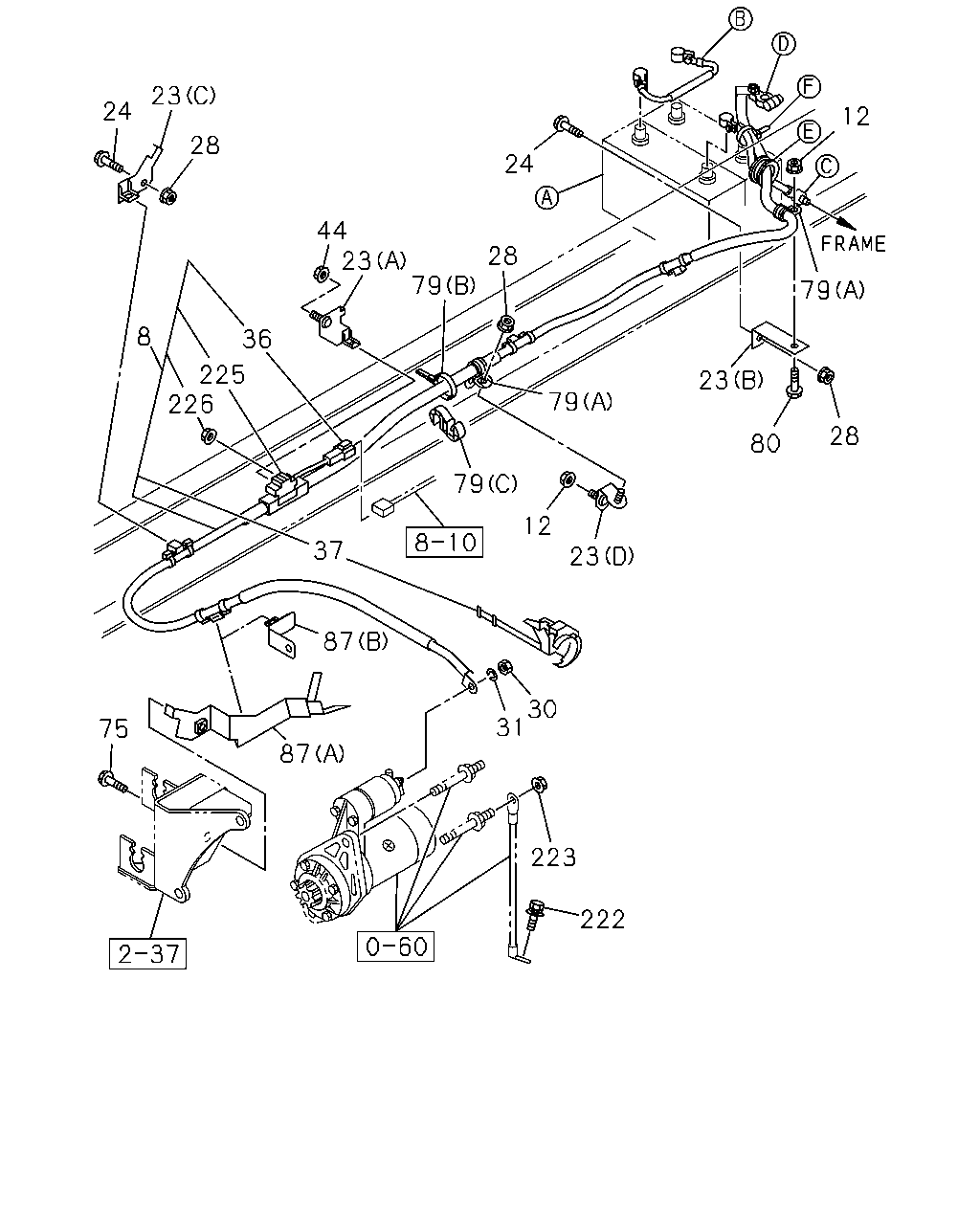

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#63344) — 119 parça

23 24 12 28 24 44 23 28 79 79 8 36 225 226 23 79 28 80 79 12 37 23 87 30 31 75 87 223 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=2530	8-97619-325-5	01	1	1201-1502
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=2530	8-98295-325-1	01	1	1503-
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> TRANSMISSION CONTROL-SMOOTHER(8GF) L=2770	8-97619-326-5	01	1	1201-1502
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> TRANSMISSION CONTROL-SMOOTHER(8GF) L=2770	8-98295-326-1	01	1	1503-
8	CABLE; BATTERY,STARTER MZZ6W M/T(RSA) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8> L=2385	8-98171-731-1	01	1	1012-1502
8	CABLE; BATTERY,STARTER MZZ6W M/T(RSA) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98295-331-1	01	1	1503-
8	CABLE; BATTERY,STARTER MZZ6W M/T(RSA) BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8> L=2625	8-98171-732-1	01	1	1012-1502
8	CABLE; BATTERY,STARTER MZZ6W M/T(RSA) BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98295-332-1	01	1	1503-
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> L=2610	8-97618-943-5	01	1	1001-1011
8	CABLE; BATTERY,STARTER MLD6S M/T(X7W) BATTERY 115E41L<8MA> L=2610	8-97618-943-5	01	1	1001-1011
8	CABLE; BATTERY,STARTER MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> L=2610	8-97618-943-5	01	1	1012-1502
8	CABLE; BATTERY,STARTER MLD6S M/T(X7W) BATTERY 115E41L<8MA> L=2610	8-97618-943-5	01	1	1012-1502
8	CABLE; BATTERY,STARTER MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> L=2610	8-98295-322-1	01	1	1503-
8	CABLE; BATTERY,STARTER MLD6S M/T(X7W) BATTERY 115E41L<8MA> L=2610	8-98295-322-1	01	1	1503-
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8> L=2640	8-98111-675-3	01	1	1001-1112
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2640	8-98111-675-3	01	1	1201-1502
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2650	8-98295-330-1	01	1	1503-
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> L=2370	8-97618-942-5	01	1	1001-1011
8	CABLE; BATTERY,STARTER MLD6S M/T(X7W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2370	8-97618-942-5	01	1	1001-1011
8	CABLE; BATTERY,STARTER MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> L=2370	8-97618-942-5	01	1	1012-1502
8	CABLE; BATTERY,STARTER MLD6S M/T(X7W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2370	8-97618-942-5	01	1	1012-1502
8	CABLE; BATTERY,STARTER MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> L=2370	8-98295-321-1	01	1	1503-
8	CABLE; BATTERY,STARTER MLD6S M/T(X7W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2370	8-98295-321-1	01	1	1503-
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8> L=2400	8-98111-674-3	01	1	1001-1112
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2400	8-98111-674-3	01	1	1201-1502
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2410	8-98295-329-1	01	1	1503-
12	NUT; BATTERY CABLE CLIP 4HK1-TCC ENG(RDV) M8 FLANGE SOU	0-91180-108-0	02	1	1012-
12	NUT; BATTERY CABLE CLIP M8 FLANGE SOU	0-91180-108-0	01	1	1001-1011
12	NUT; BATTERY CABLE CLIP 4HK1-TCS ENG(RJS) M8 FLANGE SOU	0-91180-108-0	01	1	1012-
23	BRACKET; CABLE CLIP TO FRAME 4HK1-TCC ENG(RDV) MZZ6W M/T(RSA) (E)	8-98077-904-1	01	1	1012-
23	BRACKET; CABLE CLIP TO FRAME 4HK1-TCC ENG(RDV) (D)	8-98051-381-2	01	1	1012-
23	BRACKET; CABLE CLIP TO FRAME (B) L=95	1-82699-085-0	01	1	1001-
23	BRACKET; CABLE CLIP TO FRAME (C)	8-98047-277-1	01	1	1001-
23	BRACKET; CABLE CLIP TO FRAME MLD6S M/T(X7W) (A)	8-98044-882-0	01	1	1001-1112
23	BRACKET; CABLE CLIP TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98044-882-0	01	1	1201-
23	BRACKET; CABLE CLIP TO FRAME MLD6S M/T(X7W) (A)	8-98044-882-0	01	1	1201-
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	01	1	1001-
24	BOLT; BRKT TO FRAME M10X30 FLANGE SOU	0-28651-030-0	01	1	1001-
28	NUT; BRKT TO FRAME M8 FLANGE SOU	0-91180-108-0	01	1	1001-1011
28	NUT; BRKT TO FRAME M8 FLANGE SOU	0-91180-108-0	01	1	1012-
28	NUT; BRKT TO FRAME 4HK1-TCC ENG(RDV) M8 FLANGE SOU	0-91180-108-0	01	1	1012-
28	NUT; BRKT TO FRAME M10 FLANGE SOU	0-91180-210-0	01	1	1001-1112
28	NUT; BRKT TO FRAME M10 FLANGE SOU	0-91180-210-0	01	1	1201-
28	NUT; BRKT TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE SOU	0-91180-210-0	01	1	1201-
30	NUT; CABLE,STARTER TO BATTERY M8 SOU	0-91110-508-0	01	1	1001-
31	WASHER; LK,CABLE,STARTER TO BATTERY ID=8.2 SOU	0-91510-508-0	01	1	1001-
36	FUSIBLE LINK; BATTERY	8-97615-498-1	01	1	1001-1502
36	FUSIBLE LINK; BATTERY	8-98295-762-0	01	1	1503-
37	CAP; TERMINAL,BATTERY CABLE	8-98042-507-0	01	1	1001-
44	NUT; BRKT 4HK1-TCC ENG(RDV) MZZ6W M/T(RSA) M10 FLANGE SOU	0-91180-210-0	02	1	1012-
44	NUT; BRKT MLD6S M/T(X7W) M10 FLANGE SOU	0-91180-210-0	01	1	1001-1112
44	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE SOU	0-91180-210-0	01	1	1201-
44	NUT; BRKT MLD6S M/T(X7W) M10 FLANGE SOU	0-91180-210-0	01	1	1201-
75	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1001-1112
75	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE	0-28650-820-0	01	1	1201-
79	CLIP; BATTERY CABLE 4HK1-TCC ENG(RDV) (A) ID=21 L=24	8-98019-191-0	02	1	1012-
79	CLIP; BATTERY CABLE (C) ID=4.76 & 15	1-09709-307-0	01	1	1001-
79	CLIP; BATTERY CABLE (A) ID=21 L=24	8-98019-191-0	01	1	1001-1011
79	CLIP; BATTERY CABLE 4HK1-TCS ENG(RJS) (A) ID=21 L=24	8-98019-191-0	01	1	1012-
79	CLIP; BATTERY CABLE (B) ID=20 L=50 SOU	9-09917-430-0	01	1	1001-1011
79	CLIP; BATTERY CABLE 4HK1-TCS ENG(RJS) (B) ID=20 L=50 SOU	9-09917-430-0	01	1	1012-
79	CLIP; BATTERY CABLE MZX6P M/T(RSW),MZW6P M/T(RSZ) (C) ID=6.35 & 15	1-09709-276-1	01	1	1001-1011
79	CLIP; BATTERY CABLE 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (C) ID=6.35 & 15	1-09709-276-1	01	1	1012-1112
79	CLIP; BATTERY CABLE 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=6.35 & 15	1-09709-276-1	01	1	1201-
80	BOLT; BATTERY CABLE CLIP M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-
87	BRACKET; HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98045-617-1	01	1	1201-
87	BRACKET; HARNESS 4HK1-TCC ENG(RDV) MZZ6W M/T(RSA) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98171-733-0	01	1	1012-
87	BRACKET; HARNESS ASSISTOR SHIFT CONTROL<WX8> (A)	8-98053-927-1	01	1	1001-
87	BRACKET; HARNESS MLD6S M/T(X7W) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98121-187-0	01	1	1001-
87	BRACKET; HARNESS MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98126-428-0	01	1	1001-1112
87	BRACKET; HARNESS MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98126-428-0	01	1	1201-
222	BOLT; EARTH CABLE M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1001-
223	NUT; EARTH CABLE M10 FLANGE SOU	0-91180-210-0	01	1	1001-
225	BLOCK; TERMINAL	8-98029-689-0	01	1	1001-1502
225	BLOCK; TERMINAL	8-98294-524-0	01	1	1503-
226	NUT; FUSIBLE LINK M6 W/LK WASHER	8-94424-179-0	01	1	1001-1502
226	NUT; FUSIBLE LINK M6 FLANGE STAINLESS	8-98297-112-0	01	1	1503-

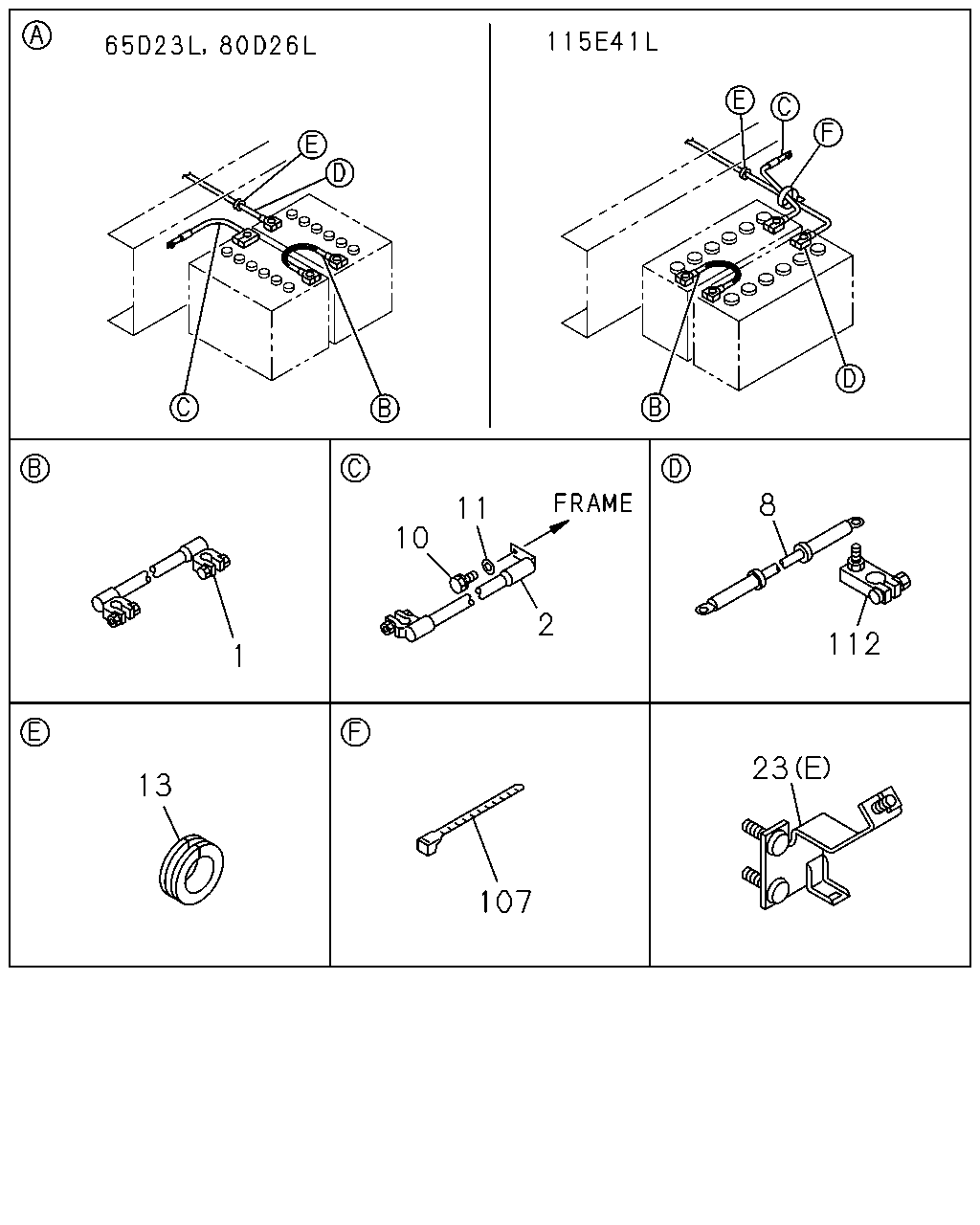

8 11 10 2 112 1 23 13 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY L=280	8-98025-412-3	01	1	1001-
2	CABLE; BATTERY BATTERY 115E41L<8MA> L=400	8-97619-733-1	01	1	1001-
2	CABLE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=240	8-97619-727-1	01	1	1001-
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=2530	8-97619-325-5	01	1	1201-1502
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=2530	8-98295-325-1	01	1	1503-
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> TRANSMISSION CONTROL-SMOOTHER(8GF) L=2770	8-97619-326-5	01	1	1201-1502
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> TRANSMISSION CONTROL-SMOOTHER(8GF) L=2770	8-98295-326-1	01	1	1503-
8	CABLE; BATTERY,STARTER MZZ6W M/T(RSA) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8> L=2385	8-98171-731-1	01	1	1012-1502
8	CABLE; BATTERY,STARTER MZZ6W M/T(RSA) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98295-331-1	01	1	1503-
8	CABLE; BATTERY,STARTER MZZ6W M/T(RSA) BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8> L=2625	8-98171-732-1	01	1	1012-1502
8	CABLE; BATTERY,STARTER MZZ6W M/T(RSA) BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98295-332-1	01	1	1503-
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> L=2610	8-97618-943-5	01	1	1001-1011
8	CABLE; BATTERY,STARTER MLD6S M/T(X7W) BATTERY 115E41L<8MA> L=2610	8-97618-943-5	01	1	1001-1011
8	CABLE; BATTERY,STARTER MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> L=2610	8-97618-943-5	01	1	1012-1502
8	CABLE; BATTERY,STARTER MLD6S M/T(X7W) BATTERY 115E41L<8MA> L=2610	8-97618-943-5	01	1	1012-1502
8	CABLE; BATTERY,STARTER MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> BATTERY 115E41L<8MA> L=2610	8-98295-322-1	01	1	1503-
8	CABLE; BATTERY,STARTER MLD6S M/T(X7W) BATTERY 115E41L<8MA> L=2610	8-98295-322-1	01	1	1503-
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8> L=2640	8-98111-675-3	01	1	1001-1112
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2640	8-98111-675-3	01	1	1201-1502
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) BATTERY 115E41L<8MA> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2650	8-98295-330-1	01	1	1503-
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> L=2370	8-97618-942-5	01	1	1001-1011
8	CABLE; BATTERY,STARTER MLD6S M/T(X7W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2370	8-97618-942-5	01	1	1001-1011
8	CABLE; BATTERY,STARTER MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> L=2370	8-97618-942-5	01	1	1012-1502
8	CABLE; BATTERY,STARTER MLD6S M/T(X7W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2370	8-97618-942-5	01	1	1012-1502
8	CABLE; BATTERY,STARTER MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> L=2370	8-98295-321-1	01	1	1503-
8	CABLE; BATTERY,STARTER MLD6S M/T(X7W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2370	8-98295-321-1	01	1	1503-
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8> L=2400	8-98111-674-3	01	1	1001-1112
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2400	8-98111-674-3	01	1	1201-1502
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) L=2410	8-98295-329-1	01	1	1503-
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1001-
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22 T=2.0 SOU	1-09503-265-0	01	1	1001-
13	GROMMET; BATTERY CABLE ID=28 OD=35 T=17	9-09956-256-2	01	1	1001-
23	BRACKET; CABLE CLIP TO FRAME 4HK1-TCC ENG(RDV) MZZ6W M/T(RSA) (E)	8-98077-904-1	01	1	1012-
23	BRACKET; CABLE CLIP TO FRAME 4HK1-TCC ENG(RDV) (D)	8-98051-381-2	01	1	1012-
23	BRACKET; CABLE CLIP TO FRAME (B) L=95	1-82699-085-0	01	1	1001-
23	BRACKET; CABLE CLIP TO FRAME (C)	8-98047-277-1	01	1	1001-
23	BRACKET; CABLE CLIP TO FRAME MLD6S M/T(X7W) (A)	8-98044-882-0	01	1	1001-1112
23	BRACKET; CABLE CLIP TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98044-882-0	01	1	1201-
23	BRACKET; CABLE CLIP TO FRAME MLD6S M/T(X7W) (A)	8-98044-882-0	01	1	1201-
107	CLIP; BAND L=140 SOU	5-09707-031-1	01	1	1001-
112	TERMINAL; BATTERY <+>	8-97365-771-0	01	1	1001-1408
112	TERMINAL; BATTERY <+>	8-98290-356-0	01	1	1409-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
