Isuzu WW
▶
TRUCKS
▶
FRR
▶
11350 - FRR(MIDEAST)4H ENG
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-52 - PIPING; AIR CONDITIONING
▶
8-52 — PIPING; AIR CONDITIONING
(#63333) — 28 parça
◀

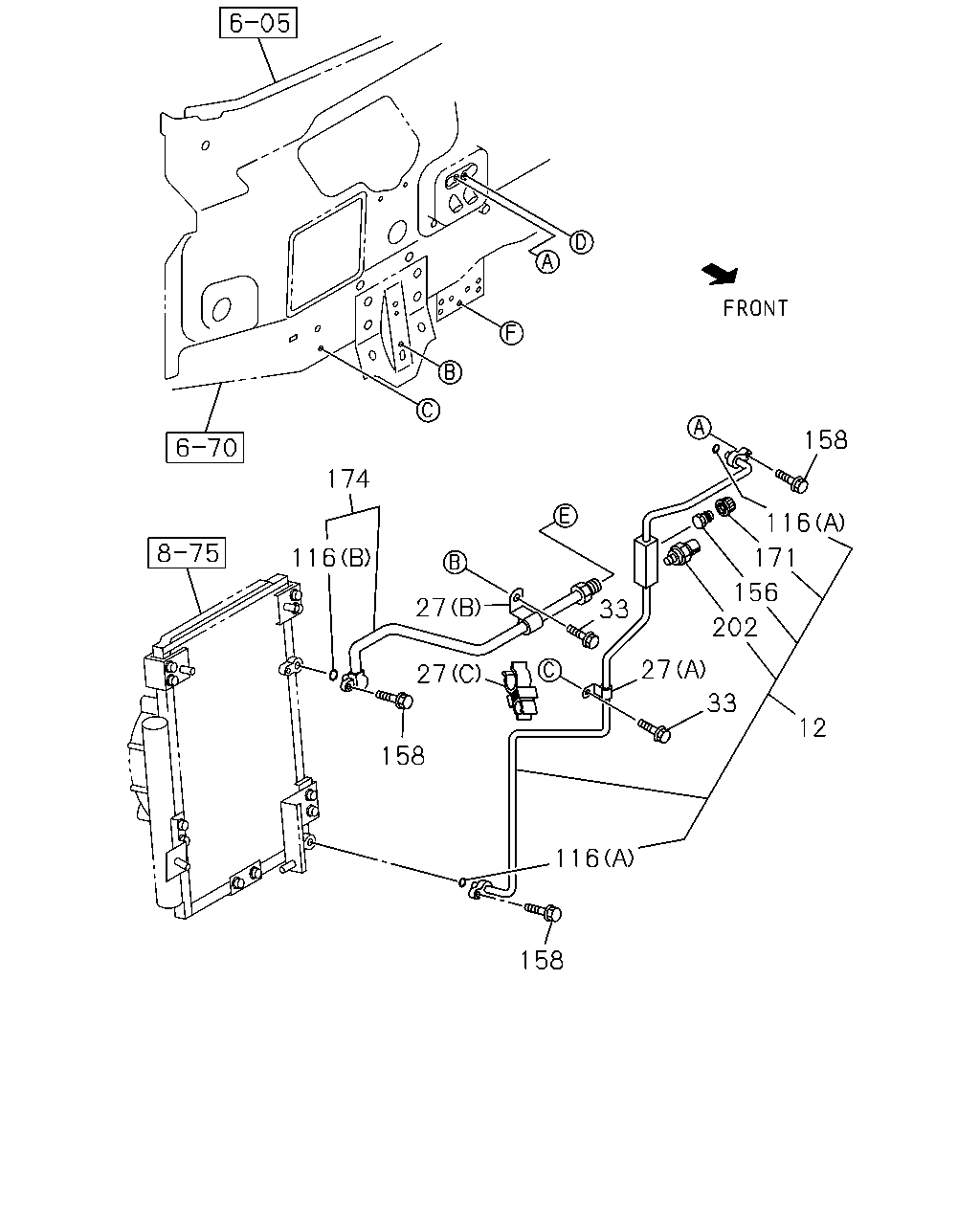

[852A] CAB SIDE (12 parça)
[852A] FRAME SIDE (16 parça)
▶
158
174
116
171
116
156
27
33
202
27
27
33
12
158
116
158
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60)
8-98062-772-0
01
1
0809-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=9 H=20 L=20
0-95207-308-0
01
1
0809-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=16 H=24 L=20
0-95207-315-0
01
1
0809-
27
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.8 & 7.5
1-09709-182-0
01
1
0809-
33
BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 FLANGE
0-28650-616-0
02
1
0809-
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4
8-97095-906-0
02
1
0809-
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11.7
8-97095-907-0
01
1
0809-
156
VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98151-702-0
01
1
0809-
158
BOLT; PIPE FIX
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE
0-28050-625-0
03
1
0809-
171
CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H
8-97095-911-0
01
1
0809-
174
PIPE; COOLER,CONDENSER TO FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98062-774-0
01
1
0809-
202
SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83564-391-0
01
1
0809-
162
91
162
40
25
43
41
23
34
40
23
21
50
50
43
147
150
148
150
67
150
91
67
150
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98010-187-0
01
1
0809-
23
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE
0-28650-825-0
03
1
0809-
25
NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
01
1
0809-
34
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98043-673-0
01
1
0809-1011
40
BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE
0-28650-825-0
02
1
0809-
41
BRACKET; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60)
8-98032-049-0
01
1
0809-
43
HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
8-98065-052-1
01
1
0809-1011
50
GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5
8-97095-908-0
02
1
0809-1011
67
GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7
8-97095-907-0
02
1
0809-1011
91
HOSE; FLEX,CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
8-98065-051-2
01
1
0809-1011
147
CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L
1-83539-331-0
01
1
0809-1011
148
VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60)
8-97095-909-0
01
1
0809-1011
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83574-249-0
01
1
0809-1011
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83574-264-0
03
1
0809-1011
162
BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X25 FLANGE
0-28050-625-0
02
1
0809-
162
BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X25 FLANGE
0-28650-625-0
01
1
0809-
