Isuzu WW
▶
TRUCKS
▶
FRR
▶
11350 - FRR(MIDEAST)4H ENG
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#63328) — 34 parça
◀

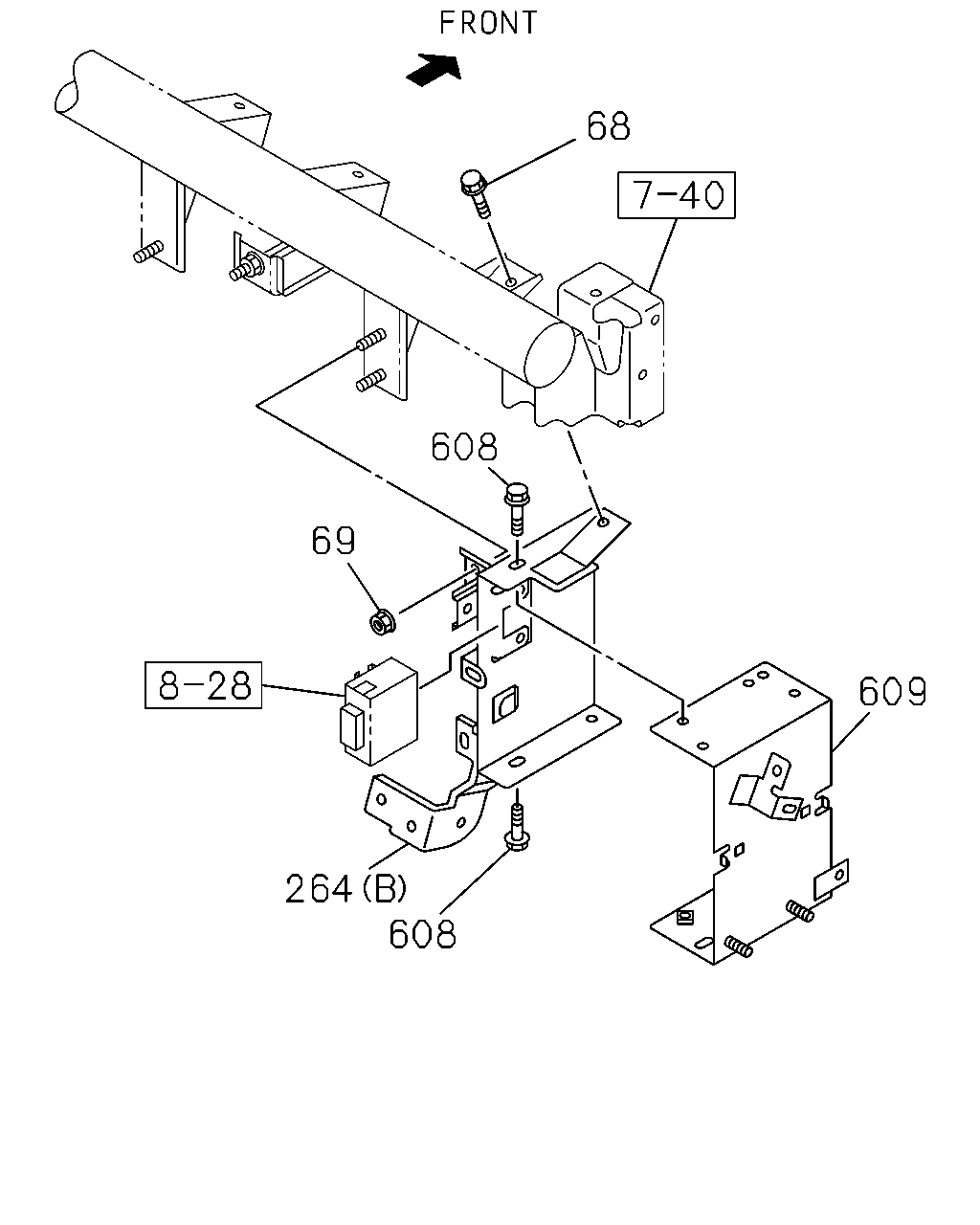

[826A] INST PANEL SIDE NO.2 (7 parça)

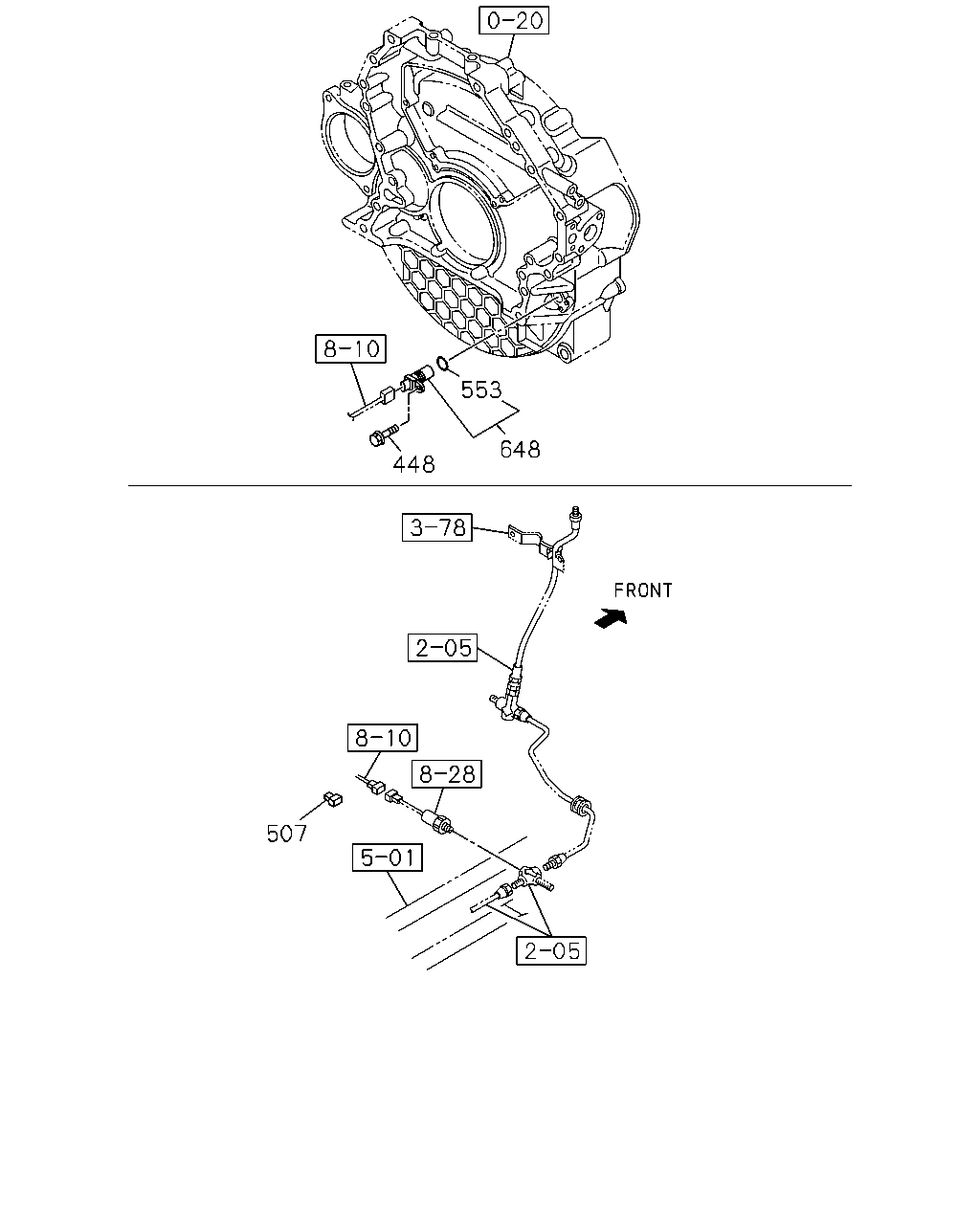

[826A] SENSOR;CRANK ANGLE AND CONNECTOR (4 parça)

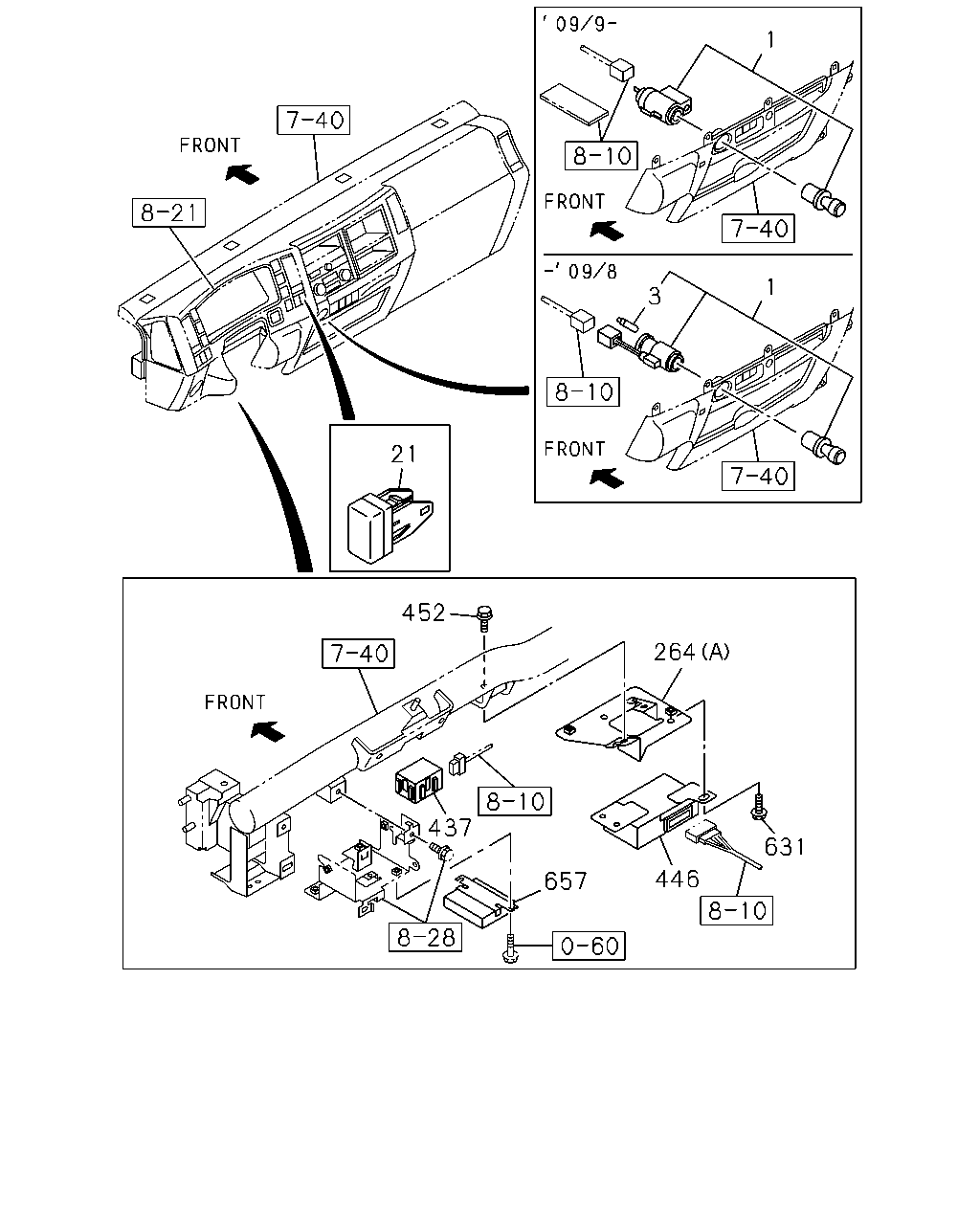

[826A] INST PANEL SIDE NO.1 (14 parça)

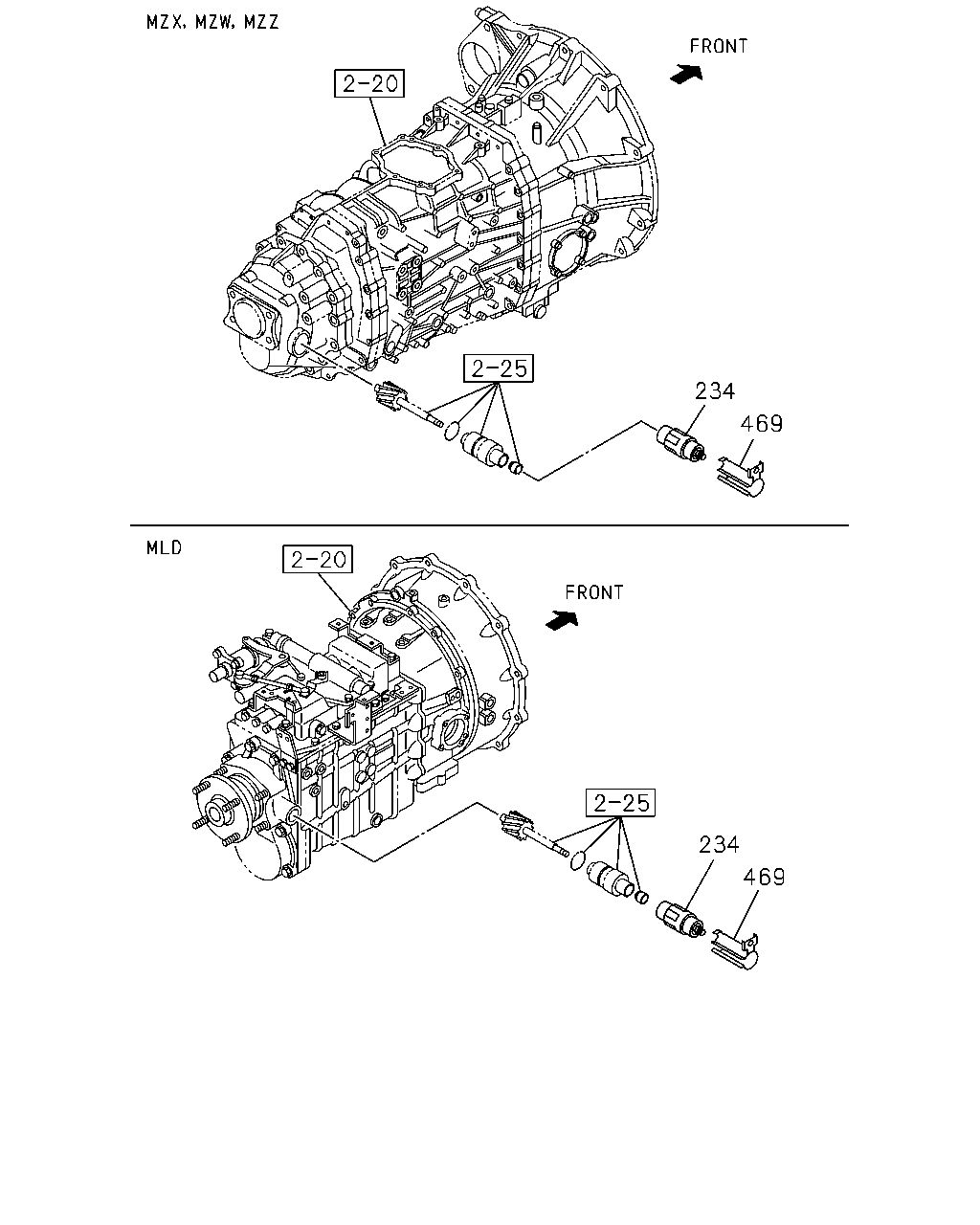

[826A] SENSOR;VEHICLE SPEED (3 parça)

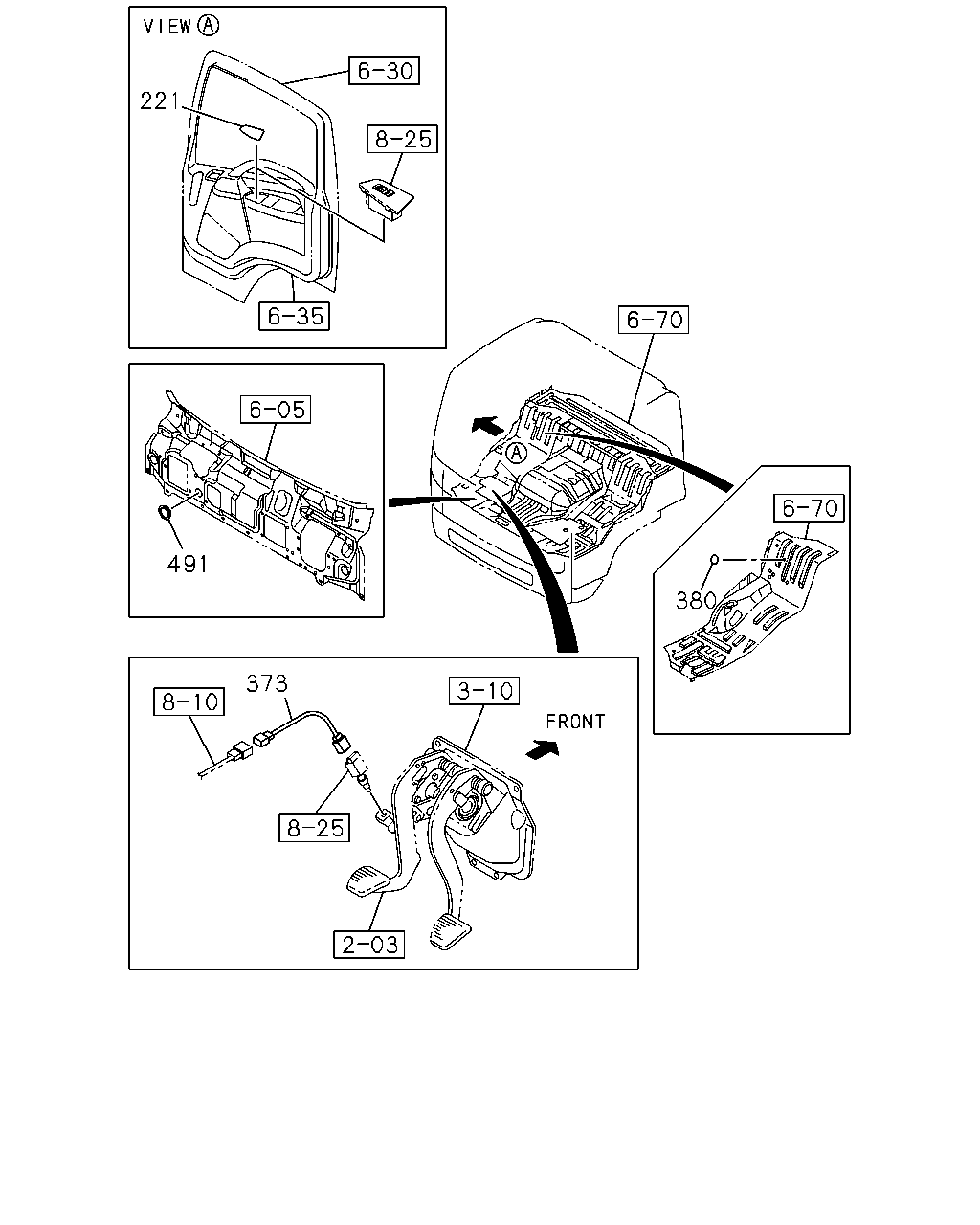

[826A] CAB SIDE (6 parça)
▶
68
608
69
609
264
608
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
68
BOLT; BRKT
M6X16 FLANGE
0-28650-616-0
01
1
0809-
69
NUT; BRKT
M6 FLANGE
0-91180-106-0
01
1
0809-
264
BRACKET; CONT UNIT
(B)
8-97616-354-5
01
1
0809-
264
BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A)
8-98088-654-0
01
1
0809-
608
BOLT; CONT UNIT,AIR SUS
AUTO DOOR LOCK<AU4> M6X16 FLANGE
0-28650-616-0
05
1
0809-
609
BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4>
8-98095-336-0
01
1
0809-1308
609
BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4>
8-98226-231-1
01
1
1309-
553
648
448
507
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
448
BOLT; SENSOR
M6X16 FLANGE
0-28050-616-0
01
1
0809-
507
CONNECTOR
EXC. H.S.A SYSTEM<6EP>
1-82690-666-0
01
1
1008-
553
GASKET
ID=14.2 OD=18.8
8-97369-404-0
01
1
0809-
648
SENSOR; CRANK ANGLE
8-97606-943-0
01
1
0809-
21
1
3
1
452
437
264
657
446
631
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LIGHTER; CIGAR
8-98076-255-0
01
1
0809-0908
1
LIGHTER; CIGAR
8-98142-962-0
01
1
0909-
3
BULB; CIGAR LIGHTER
28V 1.8W
8-97173-159-0
01
1
0809-0908
21
COVER; HOLE
8-98025-954-1
01
1
0809-
264
BRACKET; CONT UNIT
(B)
8-97616-354-5
01
1
0809-
264
BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A)
8-98088-654-0
01
1
0809-
437
CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO
8-97359-129-0
01
1
0809-
446
CONTROL UNIT; HSA
H.S.A SYSTEM<6EP>
1-80111-116-2
01
1
0809-
452
BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE
0-28650-616-0
02
1
0809-
631
BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE
0-28650-616-0
02
1
0809-0812
631
BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0901-0906
631
BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE
0-28650-616-0
02
1
0907-
657
CONTROL UNIT; MIMAMORI
8-98013-144-8
01
1
0809-1401
657
CONTROL UNIT; MIMAMORI
8-98260-912-1
01
1
1402-
234
469
234
469
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
234
SENSOR; VEHICLE SPD
25 PULSE ALUMINUM
8-97328-058-1
01
1
0809-
469
PROTECTOR; SPEED SENSOR
8-97168-308-0
01
1
0809-0809
469
PROTECTOR; SPEED SENSOR
8-98119-901-0
01
1
0809-
221
491
380
373
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
221
COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32>
8-98029-915-2
01
1
0809-
221
COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32>
8-98029-916-2
01
1
0809-
373
HARNESS; CLU SWITCH
H.S.A SYSTEM<6EP>
8-98110-719-0
01
1
0809-
373
HARNESS; CLU SWITCH
EXC. H.S.A SYSTEM<6EP>
8-98110-720-0
01
1
0809-
380
SEAL
OD=25 BLACK
1-76798-019-0
01
1
0809-
491
PLUG; HOLE,CONT UNIT
OD=60
8-98054-651-0
01
1
0809-
