◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11350 - FRR(MIDEAST)4H ENG ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#63325) — 393 parça
çizim 173203
47 184 524 219 294 515 525 219 294 524 127 139
BalonParca AdiParca NoAdetTipApplied Date
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 0809-
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0809-
139 BOLT; BRKT
(D) M8X25 FLANGE 		0-28050-825-0 01 1 0809-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-1011
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-1011
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1012-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1012-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0809-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0809-
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0809-
139 BOLT; BRKT
(G) M10X30 FLANGE 		0-28651-030-0 01 1 0809-
139 BOLT; BRKT
(G) M10X30 FLANGE 		0-28651-030-0 01 1 0809-
139 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (H) M8X65 FLANGE 		1-09044-072-1 01 1 0809-
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0809-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0809-
219 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 0809-
219 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 0809-0809
219 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 0809-0809
219 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0809-
219 NUT
MLD6S M/T(X7W) (A) M10 FLANGE 		0-91180-210-0 01 1 0809-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 03 1 0809-1010
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 1011-1011
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 1011-1011
294 NUT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6S M/T(X7W) (B) M10 FLANGE 		0-91180-210-0 01 1 1012-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 1012-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0901
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0902-1011
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0902-1011
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1012-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1012-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0809-0901
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0902-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0809-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 0809-1010
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1011-
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-
524 NUT; HARNESS
(A) M6 FLANGE 		0-91180-106-0 04 1 0809-
524 NUT; HARNESS
(B) M10 FLANGE 		0-91180-110-0 01 1 0809-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0809-0901
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0902-0905
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0906-
525 NUT; CLIP
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 02 1 0809-0901
525 NUT; CLIP
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 01 1 1009-1011
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1012-

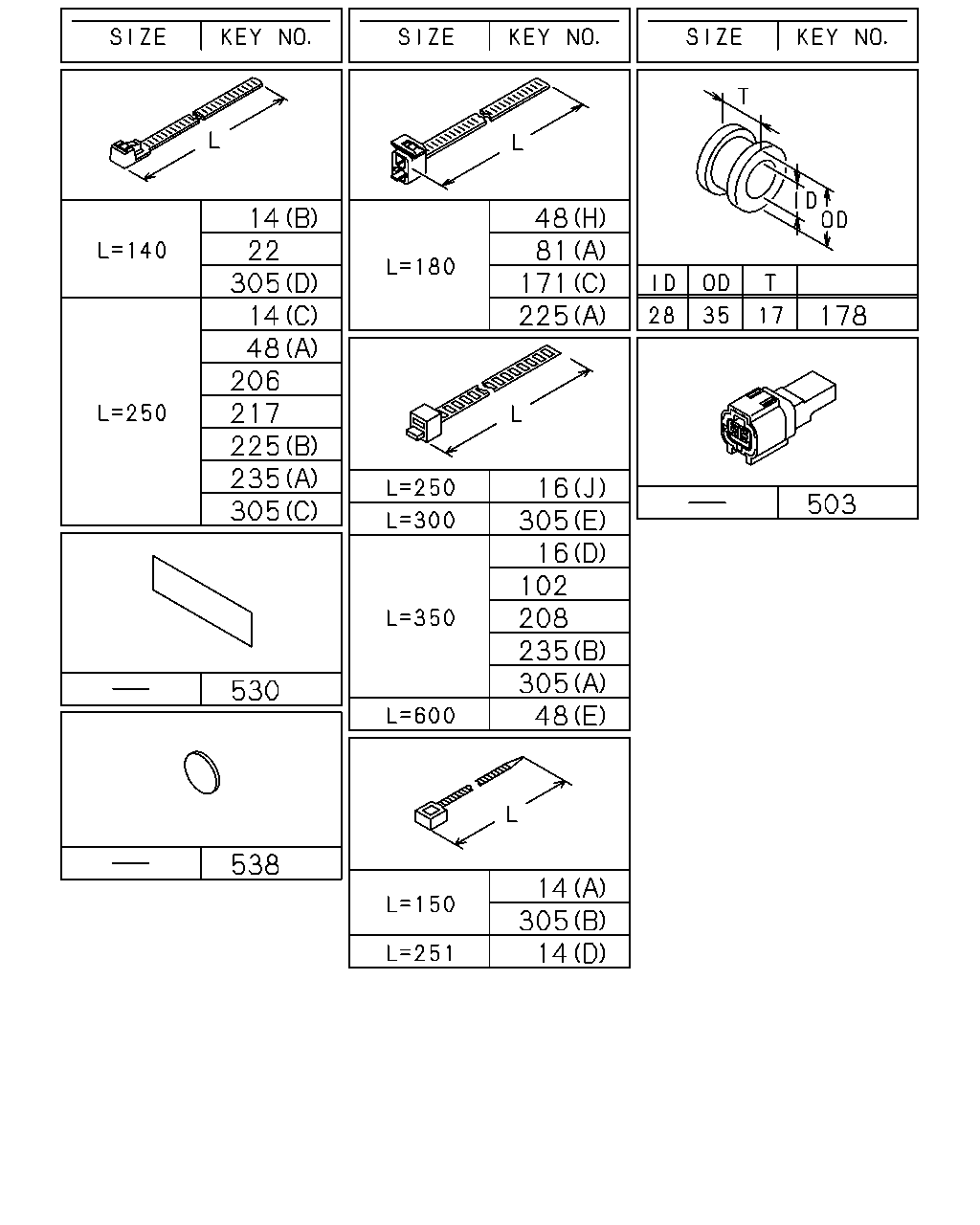

çizim 173204
14 22 305 14 48 206 217 225 235 305 48 81 171 225 178 16 305 16 102 208 235 305 48 503 530 538 14 305 14
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
EURO2 SPECIFICATION<NT2> (B) L=140 		5-09707-031-1 01 1 1201-
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 01 1 0809-1011
14 CLIP; BAND,HARNESS
(D) L=251 		8-97619-917-0 01 1 1012-
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 02 1 0809-
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 02 1 0809-0809
14 CLIP; BAND,HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 02 1 0809-1107
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 02 1 1108-
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 04 1 0809-1007
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 05 1 1008-1011
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 04 1 1012-1109
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 05 1 1110-1112
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 04 1 1201-
14 CLIP; BAND,HARNESS
(A) L=150 		8-97355-273-0 01 1 0809-
14 CLIP; BAND,HARNESS
(D) L=251 		8-97619-917-0 01 1 0809-1011
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 01 1 1012-1109
14 CLIP; BAND,HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) L=140 		5-09707-031-1 01 1 1012-1109
14 CLIP; BAND,HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) L=140 		5-09707-031-1 01 1 1110-1110
16 CLIP; HARNESS
(D) L=350 		1-09707-183-0 03 1 0809-0907
16 CLIP; HARNESS
(D) L=350 		1-09707-183-0 02 1 0908-
16 CLIP; HARNESS
(L) ID=31 L=30 		1-09700-969-0 01 1 0809-0809
16 CLIP; HARNESS
(N) ID=31 H=30 L=35 		1-09700-994-0 01 1 0809-
16 CLIP; HARNESS
(M) ID=24 L=24 		1-09701-001-1 01 1 0809-0809
16 CLIP; HARNESS
(M) ID=24 L=24 		1-09701-001-1 02 1 0809-1007
16 CLIP; HARNESS
(O) ID=28 L=32 		1-09701-107-1 02 1 1008-
16 CLIP; HARNESS
(J) L=250 		1-09707-126-0 02 1 0809-
16 CLIP; HARNESS
(H) ID=10 & 10 		1-09709-277-1 02 1 0809-0809
16 CLIP; HARNESS
(H) ID=10 & 10 		1-09709-277-1 01 1 0810-
16 CLIP; HARNESS
(E) ID=10 & 12 		1-09709-278-1 02 1 0809-0811
16 CLIP; HARNESS
(G) ID=10 & 15 		1-09709-279-1 03 1 0809-0811
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0809-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0809-
16 CLIP; HARNESS
(I) L=40.6 		8-97229-357-0 02 1 0809-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0809-
16 CLIP; HARNESS
(F) ID=25 L=55 		9-09917-573-0 01 1 0809-0811
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (K) OD=9 H=6 		1-09709-178-0 01 1 0809-
22 CLIP; ENG HARNESS
L=140 		5-09707-031-1 02 1 0809-
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 0809-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0809-0901
48 CLIP; FRAME HARNESS
(F) ID=5.5X2 L=35 		1-09700-974-0 01 1 0809-
48 CLIP; FRAME HARNESS
(I) ID=32 L=50 		1-09701-055-1 01 1 0809-
48 CLIP; FRAME HARNESS
(E) L=600 		1-09707-107-1 01 1 0809-
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 03 1 0809-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0809-1002
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0809-1002
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1003-1011
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) EXC. EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=250 		5-09707-030-1 01 1 1012-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1012-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 06 1 0809-0809
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 05 1 0810-1007
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 1008-1201
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 01 1 1202-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 10 1 0809-1007
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 04 1 1008-1011
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 10 1 1012-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1003-1011
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1012-
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 10 1 1008-1011
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 04 1 1012-
48 CLIP; FRAME HARNESS
MLD6S M/T(X7W) (H) L=180 		1-09707-162-1 01 1 0809-0809
48 CLIP; FRAME HARNESS
MLD6S M/T(X7W) (A) L=250 		5-09707-030-1 04 1 0809-0809
81 CLIP; HARNESS
(B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0809-
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (A) L=180 		1-09707-162-1 01 1 0809-0901
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (C) OD=9 H=6 		1-09709-178-0 01 1 0809-1007
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (C) OD=9 H=6 		1-09709-178-0 01 1 1008-1011
81 CLIP; HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1008-1011
81 CLIP; HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1012-
102 CLIP; BAND
L=350 		1-09707-183-0 01 1 0809-0809
102 CLIP; BAND
L=350 		1-09707-183-0 01 1 0810-0911
102 CLIP; BAND
L=350 		1-09707-183-0 01 1 0810-0911
102 CLIP; BAND
L=350 		1-09707-183-0 02 1 0912-
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 0809-
171 CLIP; STARTER HARNESS
MLD6S M/T(X7W) (C) L=180 		1-09707-162-1 01 1 0809-
171 CLIP; STARTER HARNESS
MLD6S M/T(X7W) (D) OD=9 H=6 		1-09709-178-0 01 1 0809-
171 CLIP; STARTER HARNESS
MLD6S M/T(X7W) (E) L=36 		8-94224-891-1 01 1 0809-
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0809-0906
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0907-1011
171 CLIP; STARTER HARNESS
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 1012-
178 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0809-
178 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 04 1 0809-
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 0809-0810
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 01 1 0809-0810
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 03 1 0811-
208 CLIP; HARNESS,MAG VLV
L=350 		1-09707-183-0 01 1 0809-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0809-
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 0809-
225 CLIP; AIR TANK HARNESS
(B) L=250 		5-09707-030-1 01 1 0809-0811
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=250 		5-09707-030-1 01 1 0809-0809
235 CLIP; HARNESS,SPD SENSOR,SSPS
FRONT STABILIZER SHAFT<F59> (B) L=350 		1-09707-183-0 01 1 0809-0907
305 CLIP; ENG HARNESS
(D) L=140 		5-09707-031-1 01 1 0809-0905
305 CLIP; ENG HARNESS
(D) L=140 		5-09707-031-1 01 1 0809-0905
305 CLIP; ENG HARNESS
(D) L=140 		5-09707-031-1 02 1 0906-
305 CLIP; ENG HARNESS
(A) L=350 		8-94152-256-1 01 1 0809-0905
305 CLIP; ENG HARNESS
(E) L=300 		1-09707-001-1 01 1 0906-
305 CLIP; ENG HARNESS
(B) L=150 		8-97355-273-0 01 1 0809-0905
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (D) L=140 		5-09707-031-1 01 1 0906-1011
305 CLIP; ENG HARNESS
(D) L=140 		5-09707-031-1 01 1 1012-
305 CLIP; ENG HARNESS
EURO3 SPECIFICATION<NT3> (C) L=250 		5-09707-030-1 01 1 1012-
305 CLIP; ENG HARNESS
MZX6P M/T(RSW) (C) L=250 		5-09707-030-1 01 1 0809-0809
503 CONNECTOR
EXC. H.S.A SYSTEM<6EP> 		1-82691-191-0 01 1 0809-
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 0809-1305
530 SEAL; HARNESS
180X40 		1-72498-019-1 15 1 1306-
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 0809-1305
530 SEAL; HARNESS
EXC. H.S.A SYSTEM<6EP> 180X40 		1-72498-019-1 01 1 1306-
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0809-

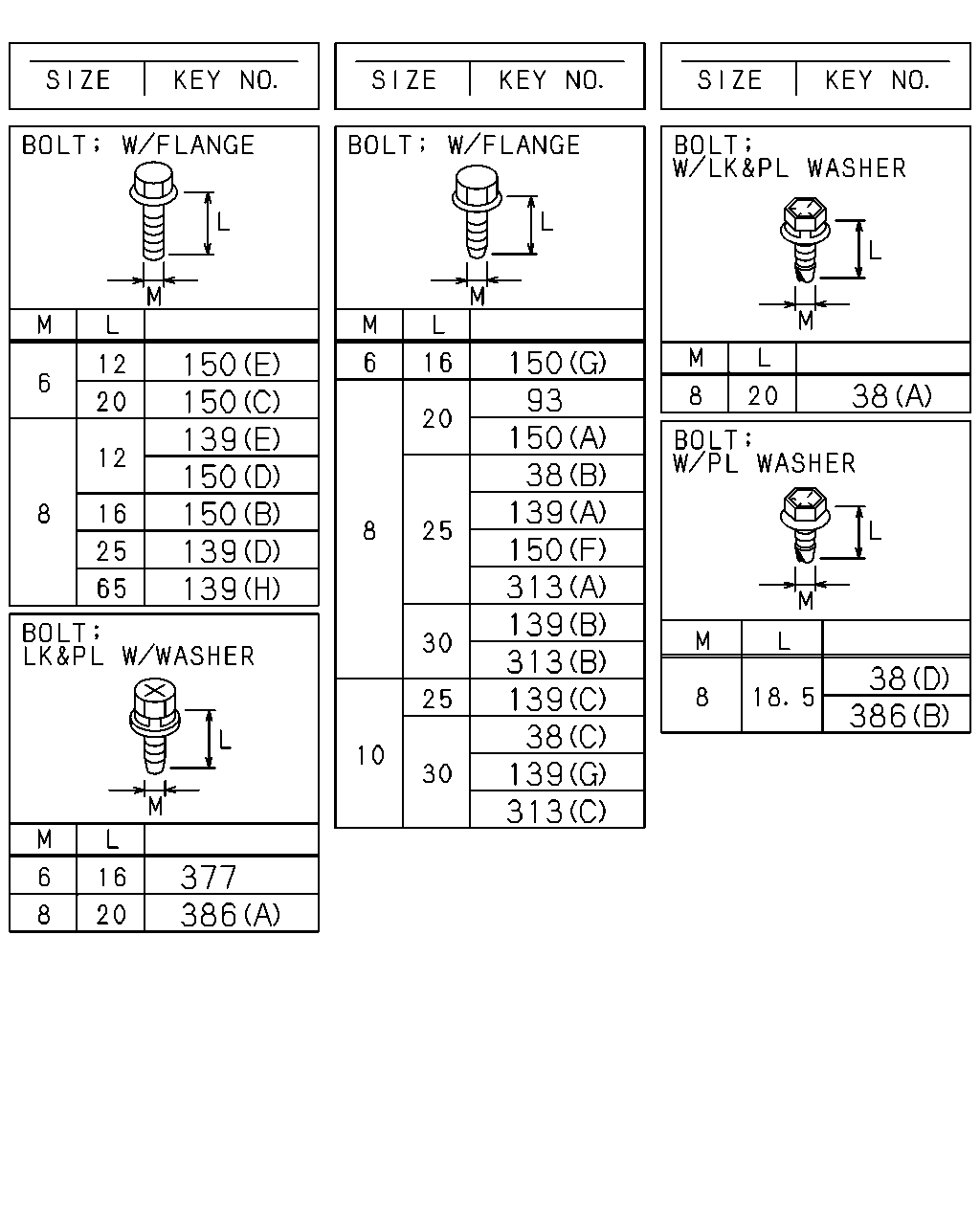

çizim 173214
150 150 139 150 150 139 139 377 386 150 93 150 38 139 150 313 139 313 139 38 139 313 38 38 386
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0809-0809
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 0809-0809
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0809-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0809-
38 BOLT; CLIP,HARNESS
(C) M10X30 FLANGE 		0-28651-030-0 01 1 0809-
38 BOLT; CLIP,HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0809-1201
38 BOLT; CLIP,HARNESS
(D) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202-
93 BOLT; ECM HARNESS CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0809-0809
93 BOLT; ECM HARNESS CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0809-
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0809-
139 BOLT; BRKT
(D) M8X25 FLANGE 		0-28050-825-0 01 1 0809-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-1011
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-1011
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1012-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1012-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0809-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0809-
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0809-
139 BOLT; BRKT
(G) M10X30 FLANGE 		0-28651-030-0 01 1 0809-
139 BOLT; BRKT
(G) M10X30 FLANGE 		0-28651-030-0 01 1 0809-
139 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (H) M8X65 FLANGE 		1-09044-072-1 01 1 0809-
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0809-
150 BOLT; CLIP
EURO2 SPECIFICATION<NT2> (G) M6X16 FLANGE 		0-28650-616-0 01 1 1401-
150 BOLT; CLIP
EURO3 SPECIFICATION<NT3> (C) M6X20 FLANGE 		0-28050-620-0 01 1 1201-
150 BOLT; CLIP
(C) M6X20 FLANGE 		0-28050-620-0 01 1 0809-1007
150 BOLT; CLIP
(E) M6X12 FLANGE 		0-28050-612-0 02 1 1008-1011
150 BOLT; CLIP
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (E) M6X12 FLANGE 		0-28050-612-0 02 1 1012-1109
150 BOLT; CLIP
(E) M6X12 FLANGE 		0-28050-612-0 02 1 1110-1112
150 BOLT; CLIP
EURO2 SPECIFICATION<NT2> (E) M6X12 FLANGE 		0-28050-612-0 02 1 1201-1312
150 BOLT; CLIP
EURO2 SPECIFICATION<NT2> (E) M6X12 FLANGE 		0-28050-612-0 04 1 1401-
150 BOLT; CLIP
(D) M8X12 FLANGE 		0-28050-812-0 01 1 0809-
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0809-1007
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1008-
150 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0809-
150 BOLT; CLIP
(F) M8X25 FLANGE 		0-28650-825-0 01 1 1008-1011
150 BOLT; CLIP
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (F) M8X25 FLANGE 		0-28650-825-0 01 1 1012-1109
150 BOLT; CLIP
(F) M8X25 FLANGE 		0-28650-825-0 01 1 1110-1112
150 BOLT; CLIP
EURO2 SPECIFICATION<NT2> (F) M8X25 FLANGE 		0-28650-825-0 01 1 1201-
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1012-1109
150 BOLT; CLIP
4HK1-TCC ENG(RDV) (C) M6X20 FLANGE 		0-28050-620-0 01 1 1012-1109
150 BOLT; CLIP
4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> (C) M6X20 FLANGE 		0-28050-620-0 01 1 1012-1109
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-1011
313 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1012-
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0809-
313 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 01 1 0809-1011
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1012-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0809-
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0809-1202
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203-

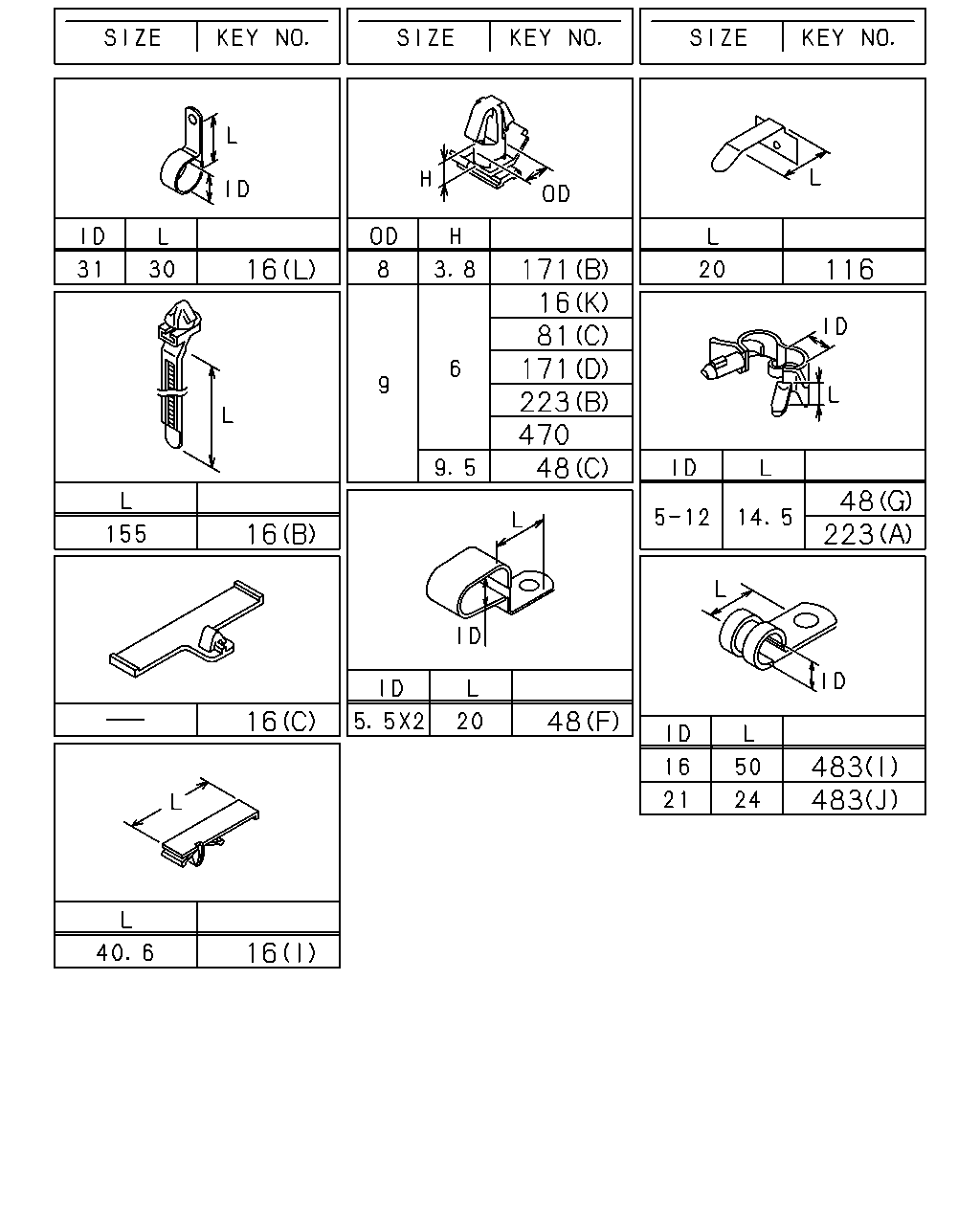

çizim 173215
16 16 16 16 171 81 16 171 470 48 223 48 116 48 223 483 483
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(D) L=350 		1-09707-183-0 03 1 0809-0907
16 CLIP; HARNESS
(D) L=350 		1-09707-183-0 02 1 0908-
16 CLIP; HARNESS
(L) ID=31 L=30 		1-09700-969-0 01 1 0809-0809
16 CLIP; HARNESS
(N) ID=31 H=30 L=35 		1-09700-994-0 01 1 0809-
16 CLIP; HARNESS
(M) ID=24 L=24 		1-09701-001-1 01 1 0809-0809
16 CLIP; HARNESS
(M) ID=24 L=24 		1-09701-001-1 02 1 0809-1007
16 CLIP; HARNESS
(O) ID=28 L=32 		1-09701-107-1 02 1 1008-
16 CLIP; HARNESS
(J) L=250 		1-09707-126-0 02 1 0809-
16 CLIP; HARNESS
(H) ID=10 & 10 		1-09709-277-1 02 1 0809-0809
16 CLIP; HARNESS
(H) ID=10 & 10 		1-09709-277-1 01 1 0810-
16 CLIP; HARNESS
(E) ID=10 & 12 		1-09709-278-1 02 1 0809-0811
16 CLIP; HARNESS
(G) ID=10 & 15 		1-09709-279-1 03 1 0809-0811
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0809-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0809-
16 CLIP; HARNESS
(I) L=40.6 		8-97229-357-0 02 1 0809-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0809-
16 CLIP; HARNESS
(F) ID=25 L=55 		9-09917-573-0 01 1 0809-0811
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (K) OD=9 H=6 		1-09709-178-0 01 1 0809-
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 0809-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0809-0901
48 CLIP; FRAME HARNESS
(F) ID=5.5X2 L=35 		1-09700-974-0 01 1 0809-
48 CLIP; FRAME HARNESS
(I) ID=32 L=50 		1-09701-055-1 01 1 0809-
48 CLIP; FRAME HARNESS
(E) L=600 		1-09707-107-1 01 1 0809-
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 03 1 0809-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0809-1002
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0809-1002
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1003-1011
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) EXC. EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=250 		5-09707-030-1 01 1 1012-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1012-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 06 1 0809-0809
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 05 1 0810-1007
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 1008-1201
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 01 1 1202-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 10 1 0809-1007
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 04 1 1008-1011
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 10 1 1012-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1003-1011
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1012-
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 10 1 1008-1011
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 04 1 1012-
48 CLIP; FRAME HARNESS
MLD6S M/T(X7W) (H) L=180 		1-09707-162-1 01 1 0809-0809
48 CLIP; FRAME HARNESS
MLD6S M/T(X7W) (A) L=250 		5-09707-030-1 04 1 0809-0809
81 CLIP; HARNESS
(B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0809-
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (A) L=180 		1-09707-162-1 01 1 0809-0901
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (C) OD=9 H=6 		1-09709-178-0 01 1 0809-1007
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (C) OD=9 H=6 		1-09709-178-0 01 1 1008-1011
81 CLIP; HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1008-1011
81 CLIP; HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1012-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 0809-
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 0809-
171 CLIP; STARTER HARNESS
MLD6S M/T(X7W) (C) L=180 		1-09707-162-1 01 1 0809-
171 CLIP; STARTER HARNESS
MLD6S M/T(X7W) (D) OD=9 H=6 		1-09709-178-0 01 1 0809-
171 CLIP; STARTER HARNESS
MLD6S M/T(X7W) (E) L=36 		8-94224-891-1 01 1 0809-
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0809-0906
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0907-1011
171 CLIP; STARTER HARNESS
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 1012-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 03 1 0809-
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 04 1 1002-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0809-
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (D) ID=12 B=13 ID=6.5 		5-09700-348-0 02 1 1401-
483 CLIP; ENG HARNESS
EURO3 SPECIFICATION<NT3> (B) ID=18 H=23 L=28 		1-09700-860-0 01 1 1201-1210
483 CLIP; ENG HARNESS
(B) ID=18 H=23 L=28 		1-09700-860-0 01 1 1211-
483 CLIP; ENG HARNESS
(E) L=36 		8-94224-891-1 03 1 1012-1109
483 CLIP; ENG HARNESS
(B) ID=18 H=23 L=28 		1-09700-860-0 01 1 0809-1112
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (B) ID=18 H=23 L=28 		1-09700-860-0 02 1 1201-1210
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (J) ID=21 L=24 		8-98019-191-0 01 1 1211-
483 CLIP; ENG HARNESS
(C) ID=24 L=24 		1-09701-001-1 01 1 0809-1007
483 CLIP; ENG HARNESS
(G) ID=28 L=32 		1-09701-107-1 01 1 1008-
483 CLIP; ENG HARNESS
(D) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0809-
483 CLIP; ENG HARNESS
(E) L=36 		8-94224-891-1 03 1 0809-1007
483 CLIP; ENG HARNESS
(E) L=36 		8-94224-891-1 02 1 1008-1011
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (E) L=36 		8-94224-891-1 02 1 1012-1109
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (E) L=36 		8-94224-891-1 02 1 1110-
483 CLIP; ENG HARNESS
(H) ID=21 L=30 H=40 		1-09700-991-1 01 1 1008-1011
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (H) ID=21 L=30 H=40 		1-09700-991-1 01 1 1012-1109
483 CLIP; ENG HARNESS
(H) ID=21 L=30 H=40 		1-09700-991-1 01 1 1110-1112
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (H) ID=21 L=30 H=40 		1-09700-991-1 01 1 1201-
483 CLIP; ENG HARNESS
(I) ID=16 L=50 		1-09701-158-0 01 1 1008-1011
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (I) ID=16 L=50 		1-09701-158-0 01 1 1012-1109
483 CLIP; ENG HARNESS
(I) ID=16 L=50 		1-09701-158-0 01 1 1110-1112
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (I) ID=16 L=50 		1-09701-158-0 01 1 1201-
483 CLIP; ENG HARNESS
EURO3 SPECIFICATION<NT3> (A) 		1-09987-281-0 01 1 1012-
483 CLIP; ENG HARNESS
EURO3 SPECIFICATION<NT3> (F) ID=21 L=47.5 		8-94178-108-0 01 1 1012-
483 CLIP; ENG HARNESS
EURO3 SPECIFICATION<NT3> (E) L=36 		8-94224-891-1 01 1 1012-

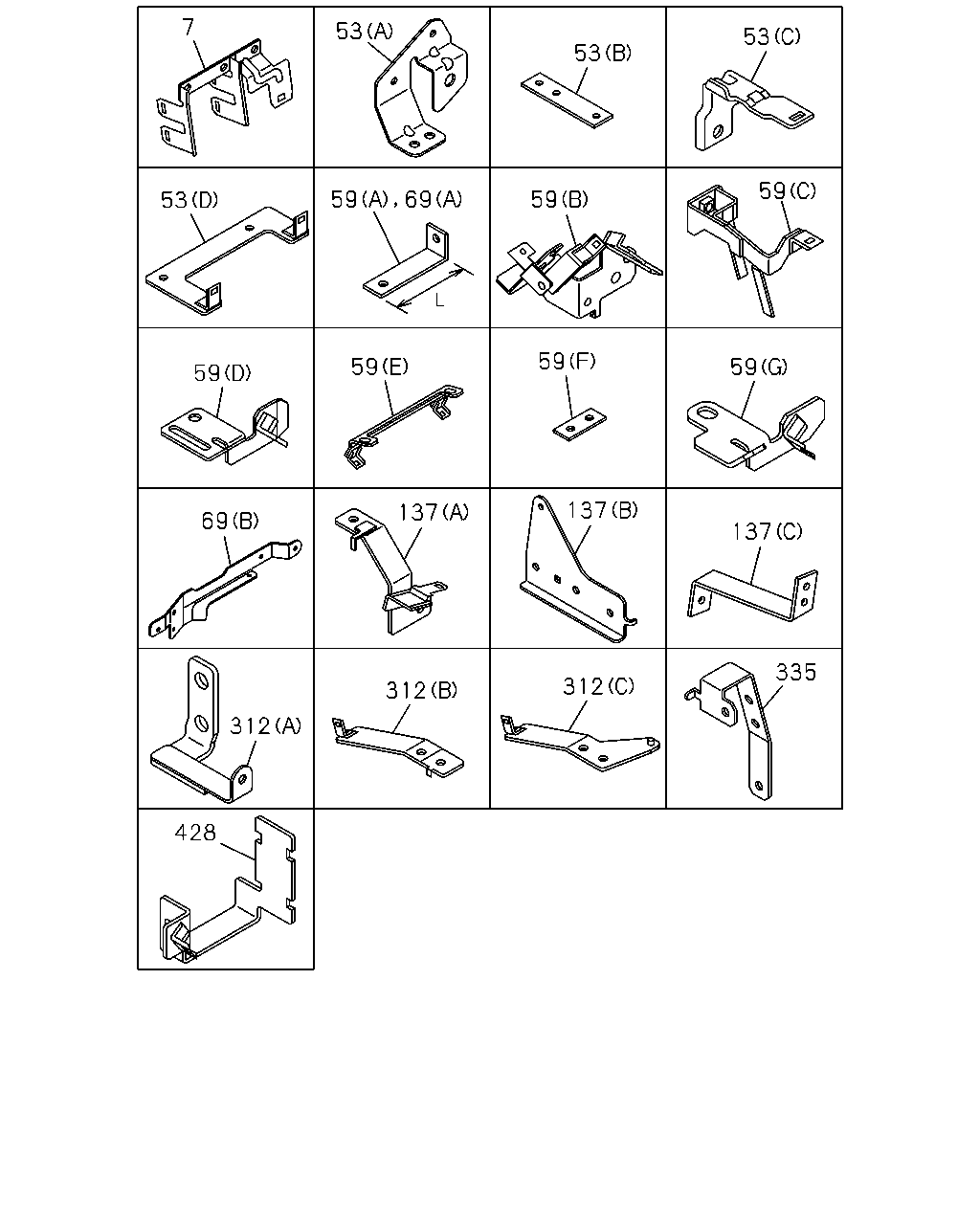

çizim 173218
7 53 53 53 59 59 69 59 53 59 59 59 59 137 137 137 69 312 312 312 335 428
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98090-846-0 01 1 0809-
53 BRACKET; HARNESS
(B) L=170 		1-47479-380-0 01 1 0809-1011
53 BRACKET; HARNESS
(D) 		8-98125-300-1 01 1 1012-
53 BRACKET; HARNESS
(C) 		8-98052-458-0 01 1 0809-
53 BRACKET; HARNESS
(D) 		8-98125-300-1 01 1 0809-1011
53 BRACKET; HARNESS
(B) L=170 		1-47479-380-0 01 1 1012-
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98084-699-0 01 1 0809-
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 0809-1502
59 BRACKET; FRAME HARNESS
(G) 		8-98254-592-0 01 1 1503-
59 BRACKET; FRAME HARNESS
(E) 		8-97619-533-0 01 1 0809-
59 BRACKET; FRAME HARNESS
(B) 		8-97619-535-0 01 1 0809-1401
59 BRACKET; FRAME HARNESS
(B) 		8-97622-828-0 01 1 1402-
59 BRACKET; FRAME HARNESS
(A) L=55 		1-47475-304-0 01 1 0809-0912
59 BRACKET; FRAME HARNESS
(F) L=85 		8-98044-743-0 01 1 1001-
59 BRACKET; FRAME HARNESS
4HK1-TCS ENG(RJS) (C) 		8-98099-963-0 01 1 0809-1011
59 BRACKET; FRAME HARNESS
(C) 		8-98099-963-0 01 1 1012-
69 BRACKET; CLIP
(B) 		8-97614-738-0 01 1 0809-
69 BRACKET; CLIP
4HK1-TCS ENG(RJS) (A) L=95 		1-82699-085-0 01 1 0809-1011
69 BRACKET; CLIP
(A) L=95 		1-82699-085-0 01 1 1012-
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-016-0 01 1 0809-
137 BRACKET; HARNESS CLAMP
(A) 		8-98108-911-1 01 1 0809-1007
137 BRACKET; HARNESS CLAMP
4HK1-TCS ENG(RJS) (C) 		8-98170-409-0 01 1 1008-1011
137 BRACKET; HARNESS CLAMP
(C) 		8-98170-409-0 01 1 1012-
312 BRACKET; CLIP HARNESS
(B) 		8-98125-301-0 01 1 0809-0904
312 BRACKET; CLIP HARNESS
(C) 		8-98143-865-0 01 1 0905-
312 BRACKET; CLIP HARNESS
EURO3 SPECIFICATION<NT3> (A) 		8-98094-804-0 01 1 1012-
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 0809-
428 BRACKET 8-98116-461-0 01 1 0809-

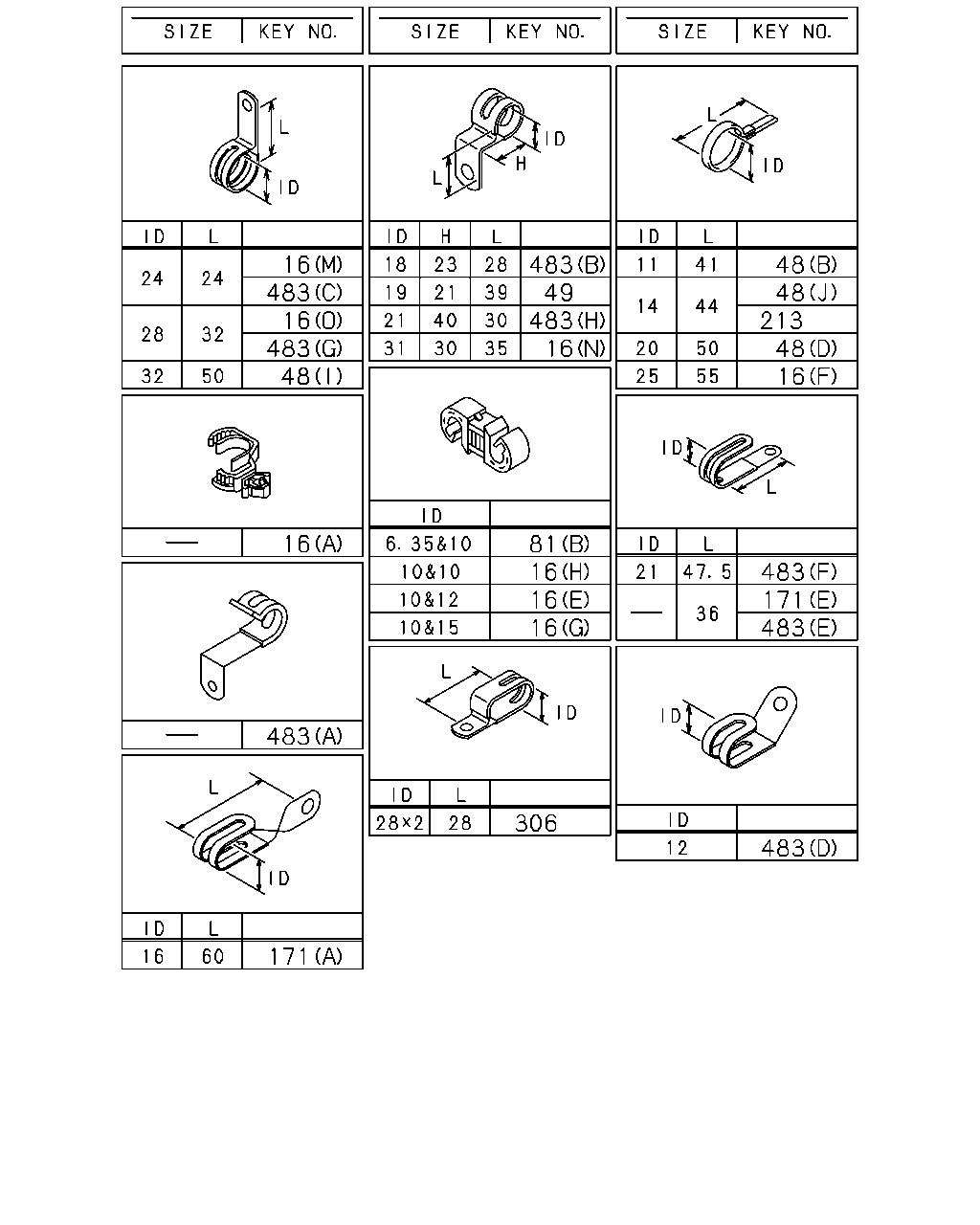

çizim 173235
16 483 16 483 48 483 49 483 16 48 48 213 48 16 16 81 16 16 16 483 171 483 483 306 483 171
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(D) L=350 		1-09707-183-0 03 1 0809-0907
16 CLIP; HARNESS
(D) L=350 		1-09707-183-0 02 1 0908-
16 CLIP; HARNESS
(L) ID=31 L=30 		1-09700-969-0 01 1 0809-0809
16 CLIP; HARNESS
(N) ID=31 H=30 L=35 		1-09700-994-0 01 1 0809-
16 CLIP; HARNESS
(M) ID=24 L=24 		1-09701-001-1 01 1 0809-0809
16 CLIP; HARNESS
(M) ID=24 L=24 		1-09701-001-1 02 1 0809-1007
16 CLIP; HARNESS
(O) ID=28 L=32 		1-09701-107-1 02 1 1008-
16 CLIP; HARNESS
(J) L=250 		1-09707-126-0 02 1 0809-
16 CLIP; HARNESS
(H) ID=10 & 10 		1-09709-277-1 02 1 0809-0809
16 CLIP; HARNESS
(H) ID=10 & 10 		1-09709-277-1 01 1 0810-
16 CLIP; HARNESS
(E) ID=10 & 12 		1-09709-278-1 02 1 0809-0811
16 CLIP; HARNESS
(G) ID=10 & 15 		1-09709-279-1 03 1 0809-0811
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0809-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0809-
16 CLIP; HARNESS
(I) L=40.6 		8-97229-357-0 02 1 0809-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0809-
16 CLIP; HARNESS
(F) ID=25 L=55 		9-09917-573-0 01 1 0809-0811
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (K) OD=9 H=6 		1-09709-178-0 01 1 0809-
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 0809-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0809-0901
48 CLIP; FRAME HARNESS
(F) ID=5.5X2 L=35 		1-09700-974-0 01 1 0809-
48 CLIP; FRAME HARNESS
(I) ID=32 L=50 		1-09701-055-1 01 1 0809-
48 CLIP; FRAME HARNESS
(E) L=600 		1-09707-107-1 01 1 0809-
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 03 1 0809-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0809-1002
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0809-1002
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1003-1011
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) EXC. EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=250 		5-09707-030-1 01 1 1012-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1012-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 06 1 0809-0809
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 05 1 0810-1007
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 1008-1201
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 01 1 1202-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 10 1 0809-1007
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 04 1 1008-1011
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 10 1 1012-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1003-1011
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1012-
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 10 1 1008-1011
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 04 1 1012-
48 CLIP; FRAME HARNESS
MLD6S M/T(X7W) (H) L=180 		1-09707-162-1 01 1 0809-0809
48 CLIP; FRAME HARNESS
MLD6S M/T(X7W) (A) L=250 		5-09707-030-1 04 1 0809-0809
49 CLIP; GEN HARNESS
ID=19 L=39 H=21 		1-09700-972-1 01 1 0809-
81 CLIP; HARNESS
(B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0809-
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (A) L=180 		1-09707-162-1 01 1 0809-0901
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (C) OD=9 H=6 		1-09709-178-0 01 1 0809-1007
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (C) OD=9 H=6 		1-09709-178-0 01 1 1008-1011
81 CLIP; HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1008-1011
81 CLIP; HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1012-
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 0809-
171 CLIP; STARTER HARNESS
MLD6S M/T(X7W) (C) L=180 		1-09707-162-1 01 1 0809-
171 CLIP; STARTER HARNESS
MLD6S M/T(X7W) (D) OD=9 H=6 		1-09709-178-0 01 1 0809-
171 CLIP; STARTER HARNESS
MLD6S M/T(X7W) (E) L=36 		8-94224-891-1 01 1 0809-
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0809-0906
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0907-1011
171 CLIP; STARTER HARNESS
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 1012-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 0809-
306 CLIP; HARNESS,ELEC GOV
ID=28X2 L=28 		1-09701-302-0 01 1 0809-
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (D) ID=12 B=13 ID=6.5 		5-09700-348-0 02 1 1401-
483 CLIP; ENG HARNESS
EURO3 SPECIFICATION<NT3> (B) ID=18 H=23 L=28 		1-09700-860-0 01 1 1201-1210
483 CLIP; ENG HARNESS
(B) ID=18 H=23 L=28 		1-09700-860-0 01 1 1211-
483 CLIP; ENG HARNESS
(E) L=36 		8-94224-891-1 03 1 1012-1109
483 CLIP; ENG HARNESS
(B) ID=18 H=23 L=28 		1-09700-860-0 01 1 0809-1112
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (B) ID=18 H=23 L=28 		1-09700-860-0 02 1 1201-1210
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (J) ID=21 L=24 		8-98019-191-0 01 1 1211-
483 CLIP; ENG HARNESS
(C) ID=24 L=24 		1-09701-001-1 01 1 0809-1007
483 CLIP; ENG HARNESS
(G) ID=28 L=32 		1-09701-107-1 01 1 1008-
483 CLIP; ENG HARNESS
(D) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0809-
483 CLIP; ENG HARNESS
(E) L=36 		8-94224-891-1 03 1 0809-1007
483 CLIP; ENG HARNESS
(E) L=36 		8-94224-891-1 02 1 1008-1011
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (E) L=36 		8-94224-891-1 02 1 1012-1109
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (E) L=36 		8-94224-891-1 02 1 1110-
483 CLIP; ENG HARNESS
(H) ID=21 L=30 H=40 		1-09700-991-1 01 1 1008-1011
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (H) ID=21 L=30 H=40 		1-09700-991-1 01 1 1012-1109
483 CLIP; ENG HARNESS
(H) ID=21 L=30 H=40 		1-09700-991-1 01 1 1110-1112
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (H) ID=21 L=30 H=40 		1-09700-991-1 01 1 1201-
483 CLIP; ENG HARNESS
(I) ID=16 L=50 		1-09701-158-0 01 1 1008-1011
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (I) ID=16 L=50 		1-09701-158-0 01 1 1012-1109
483 CLIP; ENG HARNESS
(I) ID=16 L=50 		1-09701-158-0 01 1 1110-1112
483 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (I) ID=16 L=50 		1-09701-158-0 01 1 1201-
483 CLIP; ENG HARNESS
EURO3 SPECIFICATION<NT3> (A) 		1-09987-281-0 01 1 1012-
483 CLIP; ENG HARNESS
EURO3 SPECIFICATION<NT3> (F) ID=21 L=47.5 		8-94178-108-0 01 1 1012-
483 CLIP; ENG HARNESS
EURO3 SPECIFICATION<NT3> (E) L=36 		8-94224-891-1 01 1 1012-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
