◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11350 - FRR(MIDEAST)4H ENG ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#63324) — 318 parça
çizim 173200
1 2 2 314 431 431 431 431
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> IN HOUSE PRODUCTION<TKF> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1210-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1210-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98187-934-0 01 1 1210-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1210-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98187-937-0 01 1 1112-1209
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98187-937-0 01 1 1210-
1 HARNESS; CAB 8-98084-005-4 01 1 0809-1012
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, H.S.ASYSTEM<6EP> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98158-056-0 01 1 1101-1111
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98158-056-0 01 1 1112-1209
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 0809-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 02 1 0809-
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 0809-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 0809-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 0809-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 0809-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0809-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0809-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0809-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0809-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 0809-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 0809-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 0809-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 0809-1405
431 CONNECTOR; JOINT
EURO2 SPECIFICATION<NT2> (H) 6P BLACK 		8-97616-194-0 01 1 1406-1503

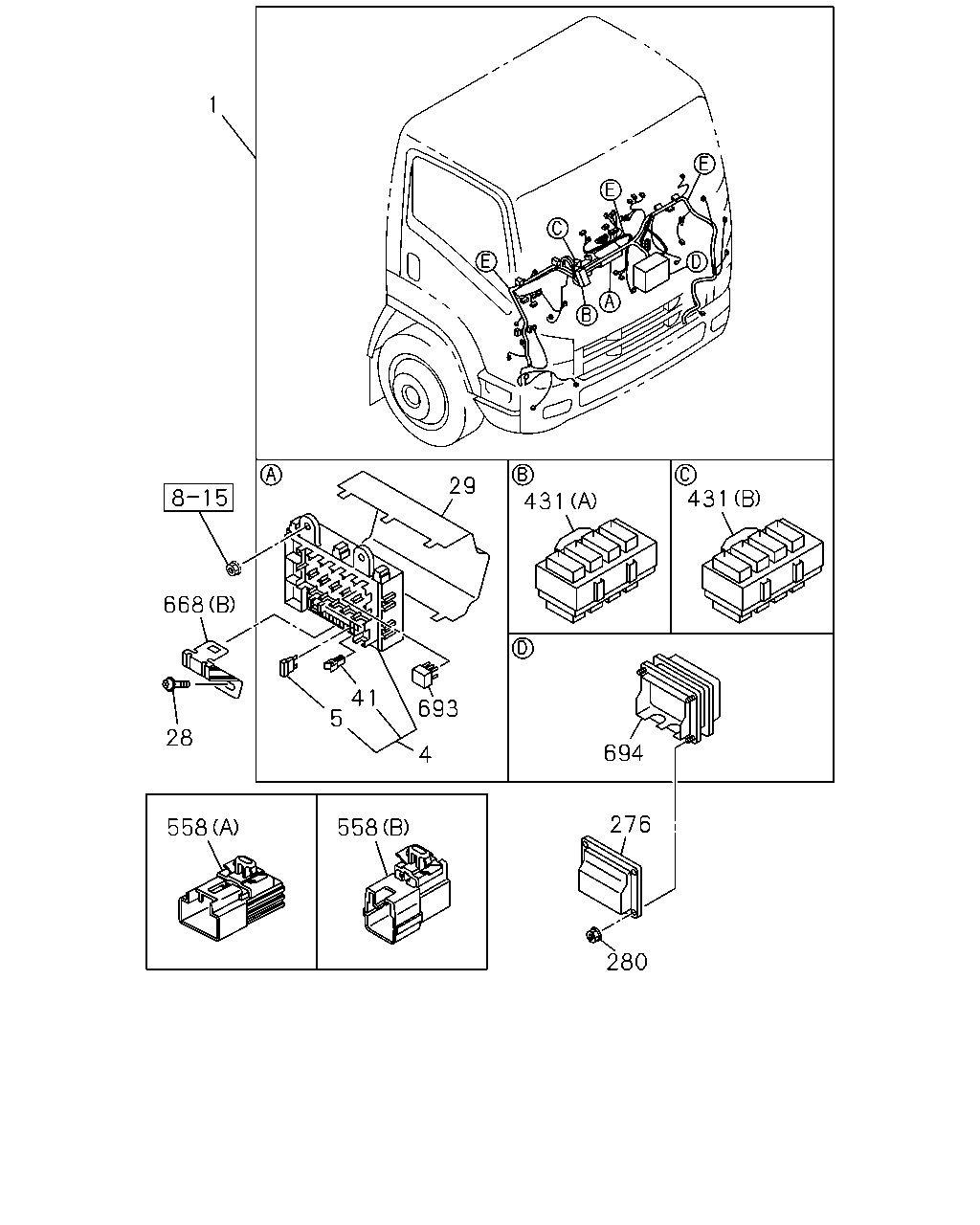

çizim 173205
1 431 431 29 668 41 5 693 28 694 4 276 558 558 280
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> IN HOUSE PRODUCTION<TKF> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1210-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1210-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98187-934-0 01 1 1210-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1210-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98187-937-0 01 1 1112-1209
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98187-937-0 01 1 1210-
1 HARNESS; CAB 8-98084-005-4 01 1 0809-1012
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, H.S.ASYSTEM<6EP> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98158-056-0 01 1 1101-1111
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98158-056-0 01 1 1112-1209
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 0809-
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 0809-
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 0809-
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 0809-
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 01 1 0809-
28 SCREW; FUSE BOX
T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 0809-0908
28 SCREW; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 0909-
28 SCREW; FUSE BOX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X16 FLANGE 		0-28650-616-0 01 1 0909-
29 COVER; FUSE BOX 8-98056-968-0 01 1 0809-
41 PULLER; FUSE 8-98054-260-0 01 1 0809-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 0809-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 0809-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 0809-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 0809-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 0809-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0809-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0809-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0809-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0809-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 0809-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 0809-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 0809-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 0809-1405
431 CONNECTOR; JOINT
EURO2 SPECIFICATION<NT2> (H) 6P BLACK 		8-97616-194-0 01 1 1406-1503
558 CONNECTOR; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-82690-668-0 01 1 0809-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 0809-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 0809-
668 BRACKET; HARNESS
EURO3 SPECIFICATION<NT3> (C) 		8-98022-106-2 01 1 1201-
668 BRACKET; HARNESS
(D) 		8-98001-095-0 01 1 0809-1408
668 BRACKET; HARNESS
EURO3 SPECIFICATION<NT3> (D) 		8-98001-095-0 01 1 1409-
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 0809-1408
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 0809-
668 BRACKET; HARNESS
(C) 		8-98022-106-2 01 1 0809-1007
668 BRACKET; HARNESS
(G) 		8-98061-805-2 01 1 1008-1011
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (G) 		8-98061-805-2 01 1 1012-1109
668 BRACKET; HARNESS
(G) 		8-98061-805-2 01 1 1110-1112
668 BRACKET; HARNESS
EURO2 SPECIFICATION<NT2> (G) 		8-98061-805-2 01 1 1201-1312
668 BRACKET; HARNESS
EURO2 SPECIFICATION<NT2> (H) 		8-98205-089-0 01 1 1401-
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 0809-
668 BRACKET; HARNESS
(B) 		8-98111-712-1 01 1 0809-
668 BRACKET; HARNESS
4HK1-TCC ENG(RDV) (C) 		8-98022-106-2 01 1 1012-1109
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> (C) 		8-98022-106-2 01 1 1012-1109
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 0809-
694 BOX ASM; CONNECTOR 8-98063-269-1 01 1 0809-

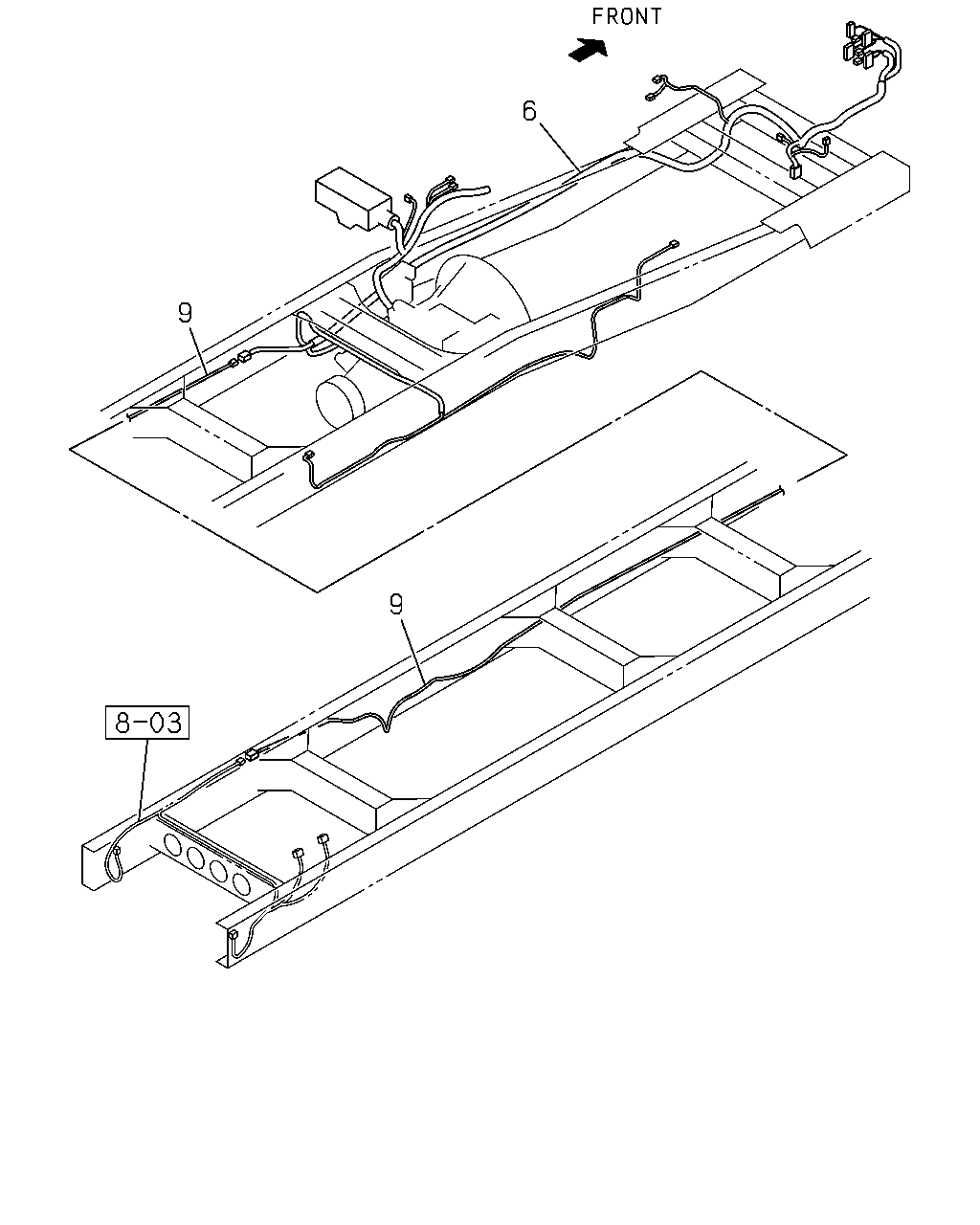

çizim 173208
6 9 9
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
EURO3 SPECIFICATION<NT3> 		8-98115-173-5 01 1 1012-
6 HARNESS; FRAME 8-98064-308-5 01 1 0809-1011
6 HARNESS; FRAME
EURO2 SPECIFICATION<NT2> 		8-98064-308-5 01 1 1012-
9 HARNESS; FRAME,RR 8-98064-320-1 01 1 0809-1007
9 HARNESS; FRAME,RR 8-98168-575-0 01 1 1008-

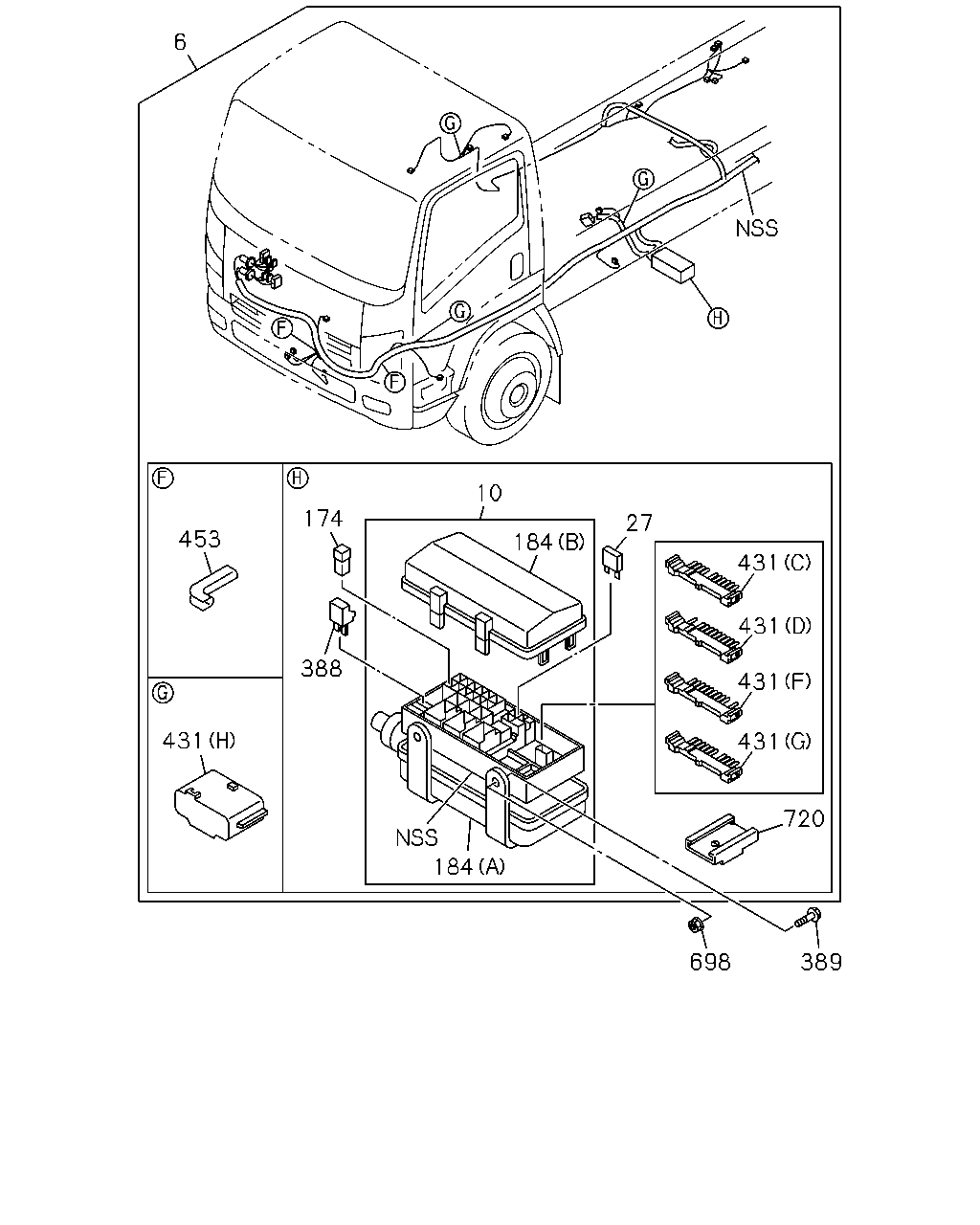

çizim 173210
6 10 174 27 453 184 431 431 388 431 431 431 720 184 698 389
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
EURO3 SPECIFICATION<NT3> 		8-98115-173-5 01 1 1012-
6 HARNESS; FRAME 8-98064-308-5 01 1 0809-1011
6 HARNESS; FRAME
EURO2 SPECIFICATION<NT2> 		8-98064-308-5 01 1 1012-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 0809-
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 0809-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 0809-
174 FUSE; SLOW BLOW
STARTER 60A YELLOW 		8-97219-407-0 01 1 1107-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 0809-
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 0809-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 0809-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 03 1 0809-1106
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1107-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 0809-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-0 01 1 0809-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 0809-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 0809-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 0809-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 0809-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 0809-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0809-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0809-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0809-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0809-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 0809-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 0809-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 0809-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 0809-1405
431 CONNECTOR; JOINT
EURO2 SPECIFICATION<NT2> (H) 6P BLACK 		8-97616-194-0 01 1 1406-1503
453 PROTECTOR; HARNESS 1-82699-709-0 01 1 0809-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 0809-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 0809-

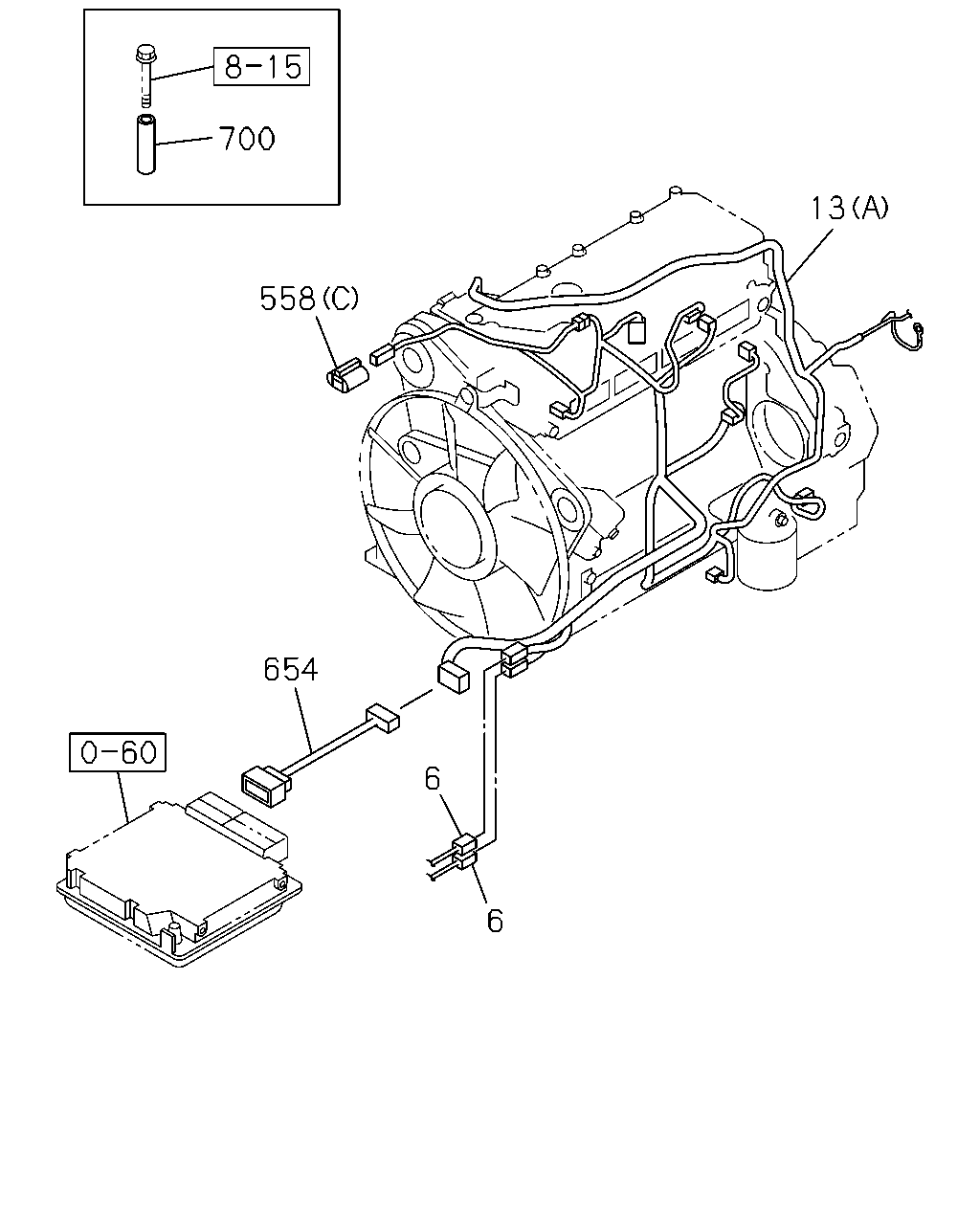

çizim 173211
700 13 558 654 6 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
EURO3 SPECIFICATION<NT3> 		8-98115-173-5 01 1 1012-
6 HARNESS; FRAME 8-98064-308-5 01 1 0809-1011
6 HARNESS; FRAME
EURO2 SPECIFICATION<NT2> 		8-98064-308-5 01 1 1012-
13 HARNESS; ENG
(B) 		8-97332-133-3 01 1 0809-1007
13 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1008-
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98077-328-3 01 1 0809-1007
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98171-995-2 01 1 1008-1011
13 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (A) 		8-98171-995-2 01 1 1012-1109
13 HARNESS; ENG
GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (A) 		8-98171-995-2 01 1 1110-1312
13 HARNESS; ENG
GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (A) 		8-98255-588-0 01 1 1401-1405
13 HARNESS; ENG
GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (A) 		8-98274-035-0 01 1 1406-
13 HARNESS; ENG
GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> EXC. KD PREPARATORY PACK<6HF> (A) 		8-98171-157-1 01 1 1012-1405
13 HARNESS; ENG
GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> EXC. KD PREPARATORY PACK<6HF> (A) 		8-98274-023-0 01 1 1406-
13 HARNESS; ENG
GENERATOR 24V60A(KG2) (A) 		8-98077-329-3 01 1 0809-1007
13 HARNESS; ENG
GENERATOR 24V60A(KG2) (A) 		8-98171-996-2 01 1 1008-1011
13 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (A) 		8-98171-996-2 01 1 1012-1109
13 HARNESS; ENG
GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (A) 		8-98171-996-2 01 1 1110-1312
13 HARNESS; ENG
GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (A) 		8-98255-589-0 01 1 1401-1405
13 HARNESS; ENG
GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (A) 		8-98274-036-0 01 1 1406-
13 HARNESS; ENG
GENERATOR 24V60A(KG2) EURO3 SPECIFICATION<NT3> EXC. KD PREPARATORY PACK<6HF> (A) 		8-98171-158-1 01 1 1012-1405
13 HARNESS; ENG
GENERATOR 24V60A(KG2) EURO3 SPECIFICATION<NT3> EXC. KD PREPARATORY PACK<6HF> (A) 		8-98274-024-0 01 1 1406-
13 HARNESS; ENG
4HK1-TCC ENG(RDV) GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (A) 		8-98171-155-2 01 1 1012-1109
13 HARNESS; ENG
4HK1-TCC ENG(RDV) GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (A) 		8-98171-156-2 01 1 1012-1109
558 CONNECTOR; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-82690-668-0 01 1 0809-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 0809-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 0809-
654 HARNESS; EXT,ENG 8-98119-769-1 01 1 0809-1007
700 TUBE; DISTANCE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=51 		1-11369-157-0 01 1 0809-

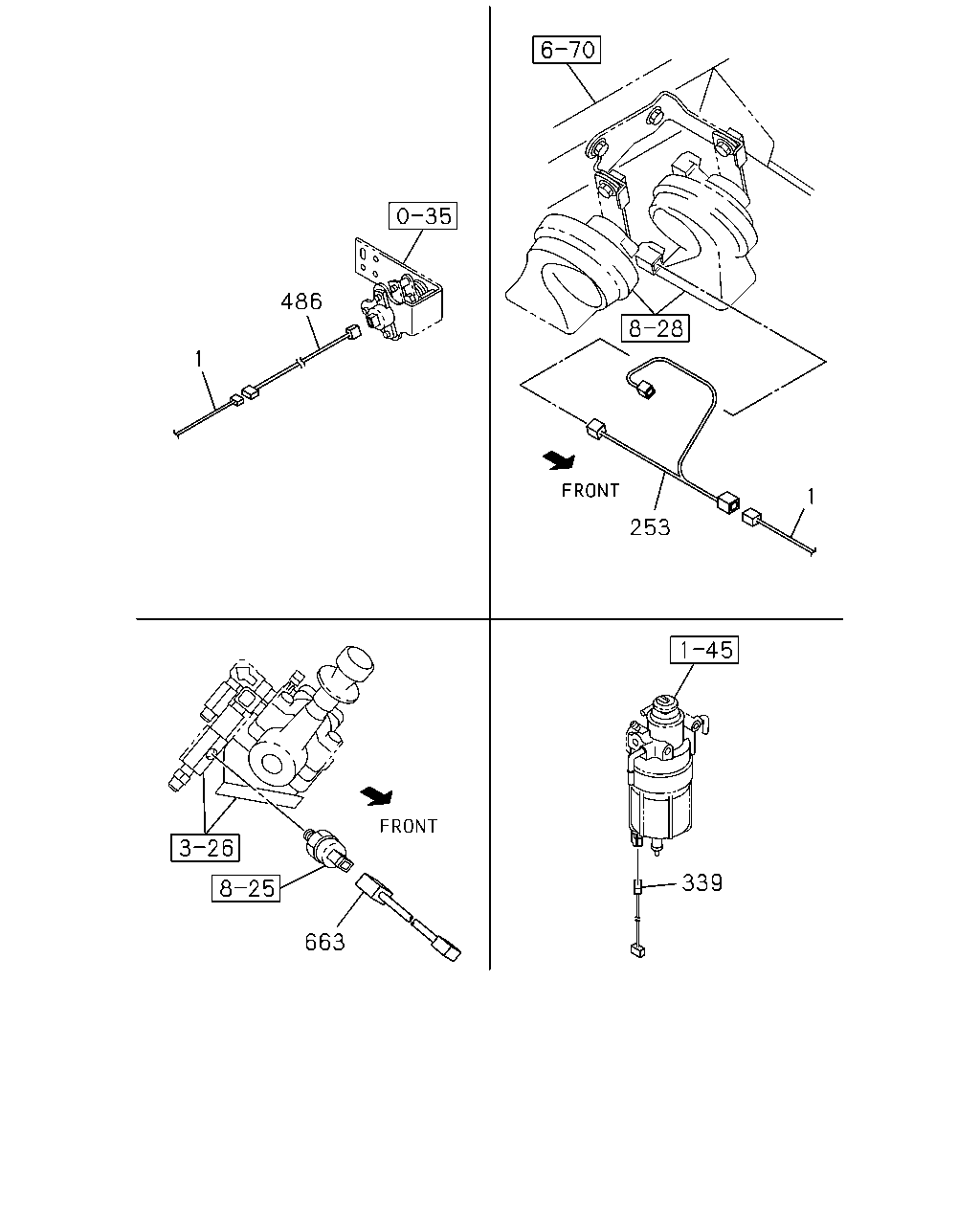

çizim 173212
486 1 1 253 339 663
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> IN HOUSE PRODUCTION<TKF> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1210-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1210-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98187-934-0 01 1 1210-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1210-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98187-937-0 01 1 1112-1209
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98187-937-0 01 1 1210-
1 HARNESS; CAB 8-98084-005-4 01 1 0809-1012
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, H.S.ASYSTEM<6EP> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98158-056-0 01 1 1101-1111
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98158-056-0 01 1 1112-1209
253 HARNESS; EXT,HORN 8-98074-080-3 01 1 0809-
339 HARNESS; EXT,FUEL 8-98118-196-1 01 1 0809-
486 HARNESS; ALL SPEED ACCEL
4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP CONTROL LEVER<RC4> 		1-82675-898-0 01 1 0809-1101
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP CONTROL LEVER<RC4> 		1-82675-898-0 01 1 1102-
663 HARNESS; EXTENSION,RR WHEEL PARKING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98126-779-2 01 1 1008-

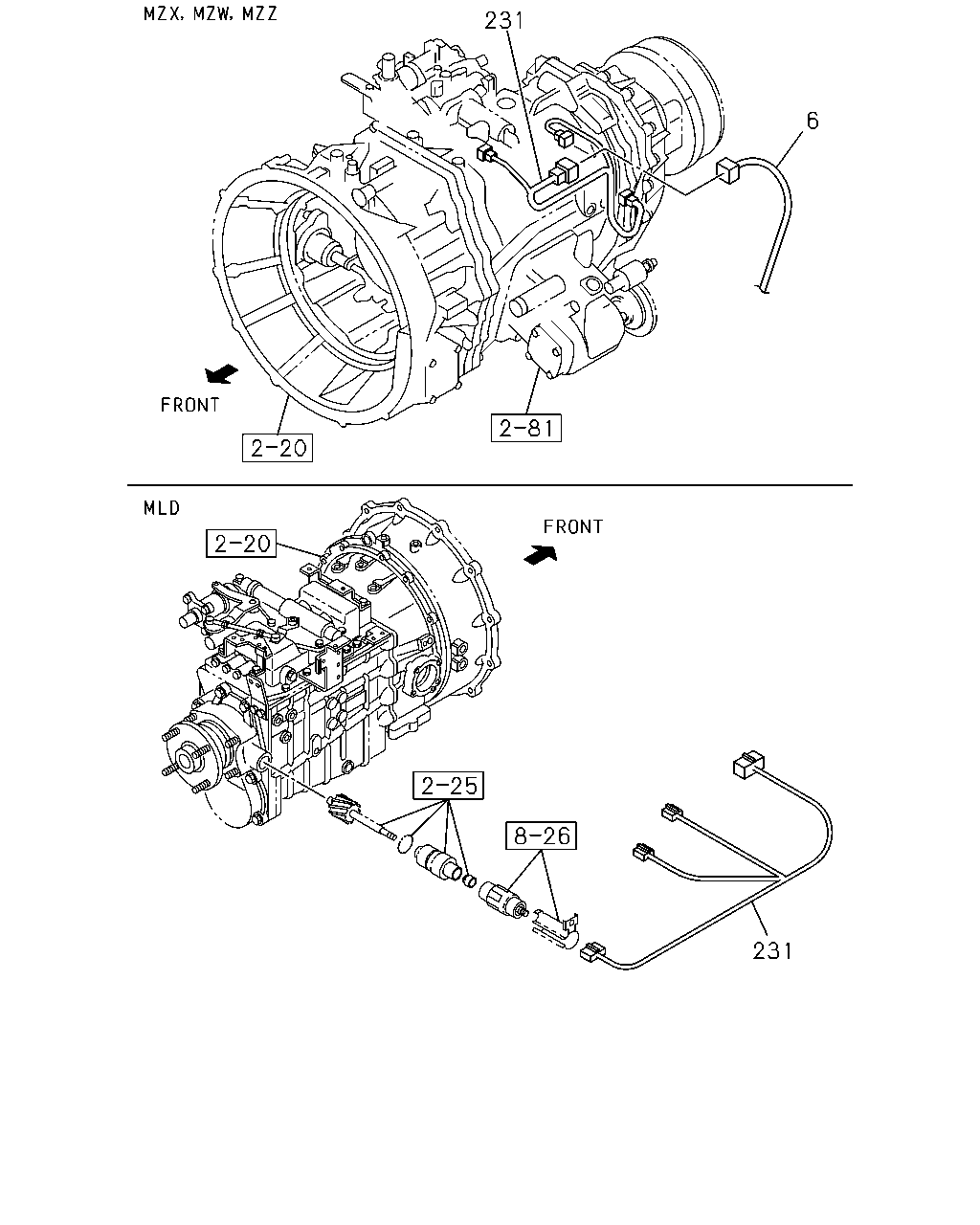

çizim 173213
231 6 231
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
EURO3 SPECIFICATION<NT3> 		8-98115-173-5 01 1 1012-
6 HARNESS; FRAME 8-98064-308-5 01 1 0809-1011
6 HARNESS; FRAME
EURO2 SPECIFICATION<NT2> 		8-98064-308-5 01 1 1012-
231 HARNESS; TRANS
MLD6S M/T(X7W) 		8-98114-228-1 01 1 0809-
231 HARNESS; TRANS
MZX6P M/T(RSW) 		8-97618-933-1 01 1 0809-0906
231 HARNESS; TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-97618-933-2 01 1 0907-
231 HARNESS; TRANS
MZZ6W M/T(RSA) 		8-98170-740-0 01 1 1012-

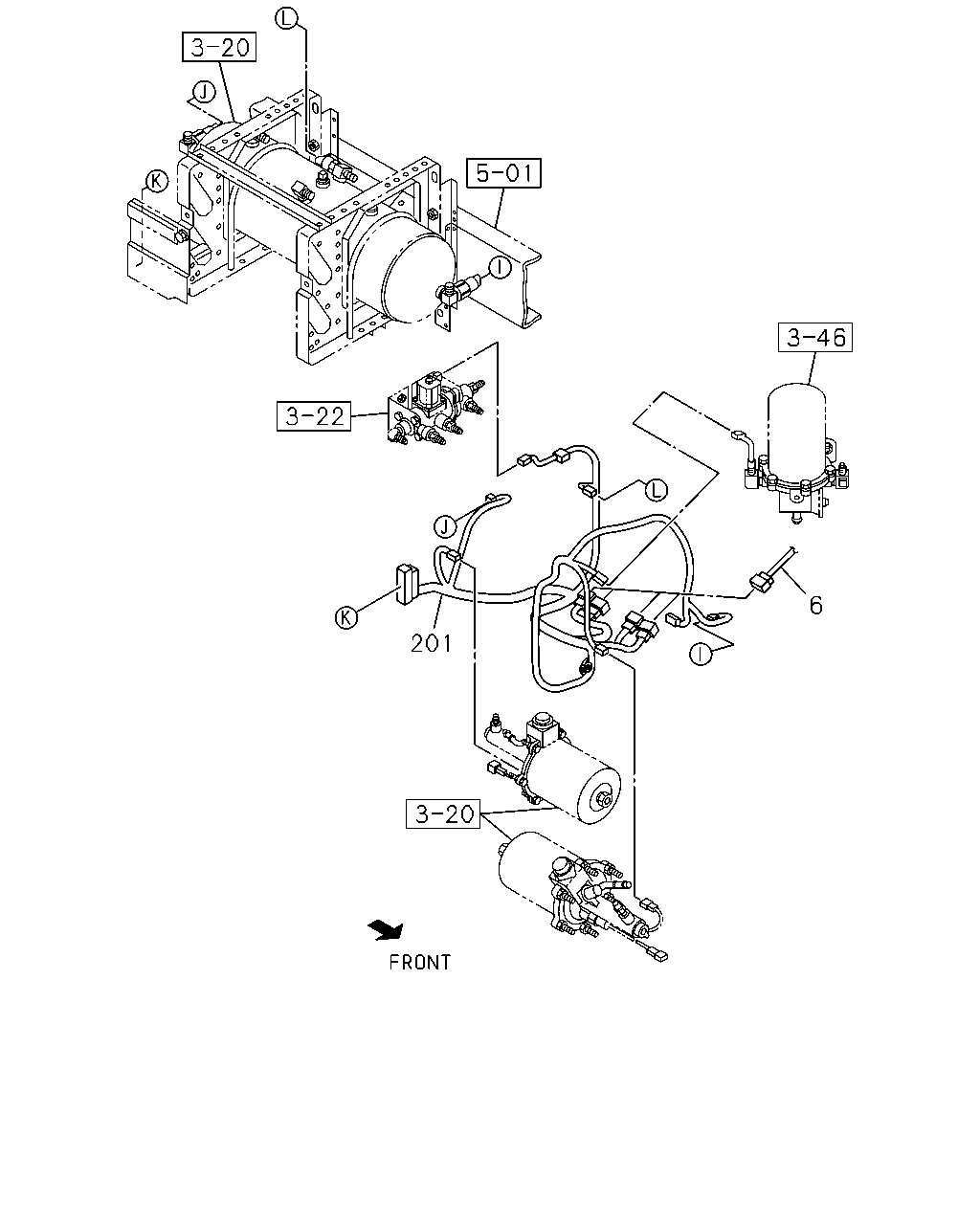

çizim 173220
6 201
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
EURO3 SPECIFICATION<NT3> 		8-98115-173-5 01 1 1012-
6 HARNESS; FRAME 8-98064-308-5 01 1 0809-1011
6 HARNESS; FRAME
EURO2 SPECIFICATION<NT2> 		8-98064-308-5 01 1 1012-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98111-495-0 01 1 0809-1001
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98156-712-1 01 1 1002-
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98111-496-0 01 1 0809-1001
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98156-713-1 01 1 1002-

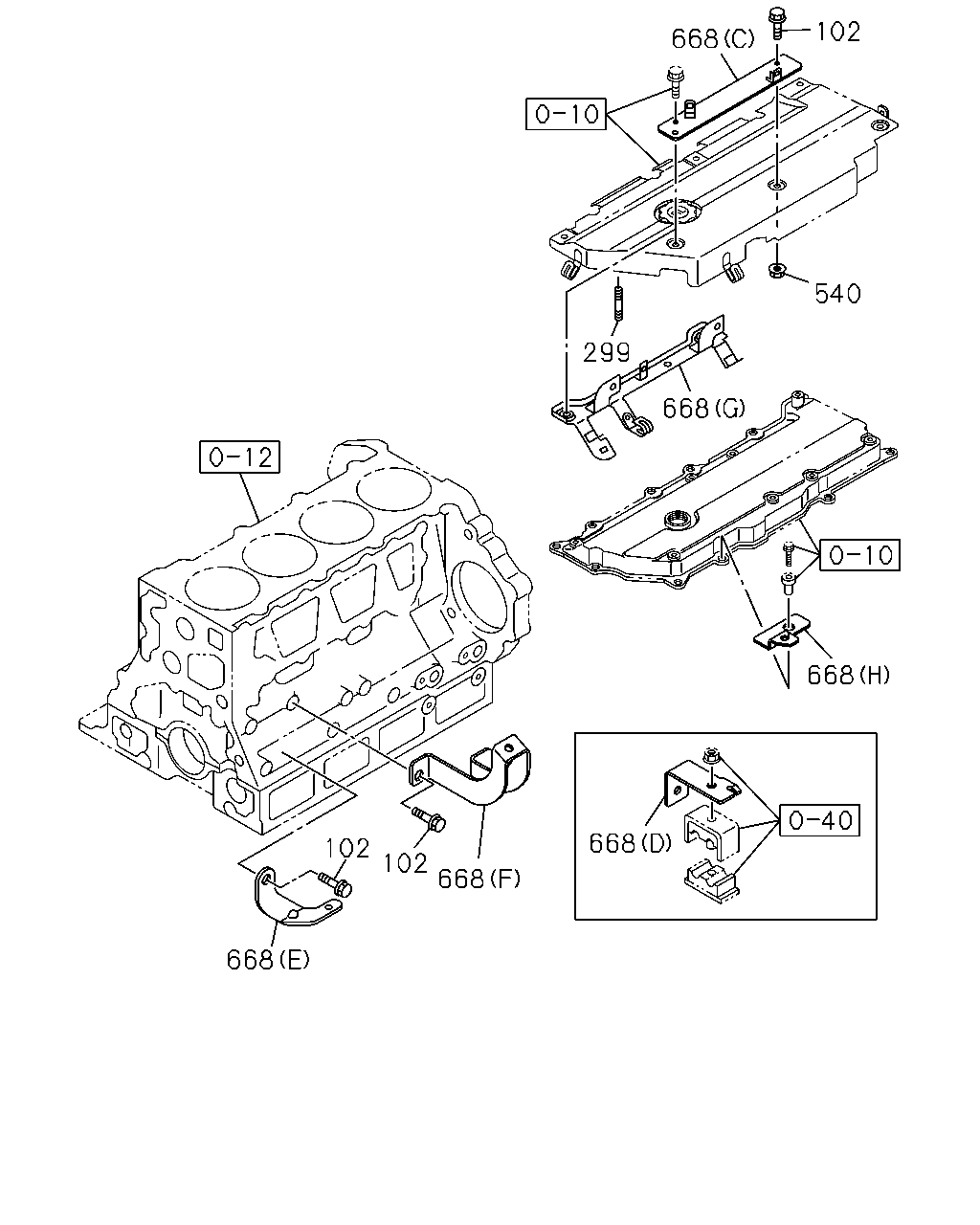

çizim 173222
668 102 540 668 299 668 668 668 102 102 668
BalonParca AdiParca NoAdetTipApplied Date
102 BOLT; BRKT,HARNESS CONNECTOR
EURO3 SPECIFICATION<NT3> M6X25 FLANGE 		0-28050-625-0 01 1 1201-
102 BOLT; BRKT,HARNESS CONNECTOR
M6X25 FLANGE 		0-28050-625-0 01 1 0809-1007
102 BOLT; BRKT,HARNESS CONNECTOR
M8X16 FLANGE 		0-28050-816-0 03 1 0809-
102 BOLT; BRKT,HARNESS CONNECTOR
M10X16 FLANGE 		0-28151-016-0 03 1 0809-
102 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCC ENG(RDV) M6X25 FLANGE 		0-28050-625-0 01 1 1012-1109
102 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> M6X25 FLANGE 		0-28050-625-0 01 1 1012-1109
299 STUD; BRKT
M6X20 L=28 		0-41010-620-0 02 1 1110-1110
299 STUD; BRKT
EURO3 SPECIFICATION<NT3> M6X20 L=28 		0-41010-620-0 02 1 1111-1111
540 NUT; BRKT FIX
EURO3 SPECIFICATION<NT3> M6 FLANGE 		0-91180-106-0 01 1 1201-
540 NUT; BRKT FIX
M6 FLANGE 		0-91180-106-0 01 1 0809-1007
540 NUT; BRKT FIX
M6 FLANGE 		0-91180-106-0 02 1 1008-1011
540 NUT; BRKT FIX
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> M6 FLANGE 		0-91180-106-0 02 1 1012-1109
540 NUT; BRKT FIX
M6 FLANGE 		0-91180-106-0 02 1 1110-1112
540 NUT; BRKT FIX
EURO2 SPECIFICATION<NT2> M6 FLANGE 		0-91180-106-0 02 1 1201-1312
540 NUT; BRKT FIX
4HK1-TCC ENG(RDV) M6 FLANGE 		0-91180-106-0 01 1 1012-1109
540 NUT; BRKT FIX
4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> M6 FLANGE 		0-91180-106-0 01 1 1012-1109
668 BRACKET; HARNESS
EURO3 SPECIFICATION<NT3> (C) 		8-98022-106-2 01 1 1201-
668 BRACKET; HARNESS
(D) 		8-98001-095-0 01 1 0809-1408
668 BRACKET; HARNESS
EURO3 SPECIFICATION<NT3> (D) 		8-98001-095-0 01 1 1409-
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 0809-1408
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 0809-
668 BRACKET; HARNESS
(C) 		8-98022-106-2 01 1 0809-1007
668 BRACKET; HARNESS
(G) 		8-98061-805-2 01 1 1008-1011
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (G) 		8-98061-805-2 01 1 1012-1109
668 BRACKET; HARNESS
(G) 		8-98061-805-2 01 1 1110-1112
668 BRACKET; HARNESS
EURO2 SPECIFICATION<NT2> (G) 		8-98061-805-2 01 1 1201-1312
668 BRACKET; HARNESS
EURO2 SPECIFICATION<NT2> (H) 		8-98205-089-0 01 1 1401-
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 0809-
668 BRACKET; HARNESS
(B) 		8-98111-712-1 01 1 0809-
668 BRACKET; HARNESS
4HK1-TCC ENG(RDV) (C) 		8-98022-106-2 01 1 1012-1109
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> (C) 		8-98022-106-2 01 1 1012-1109

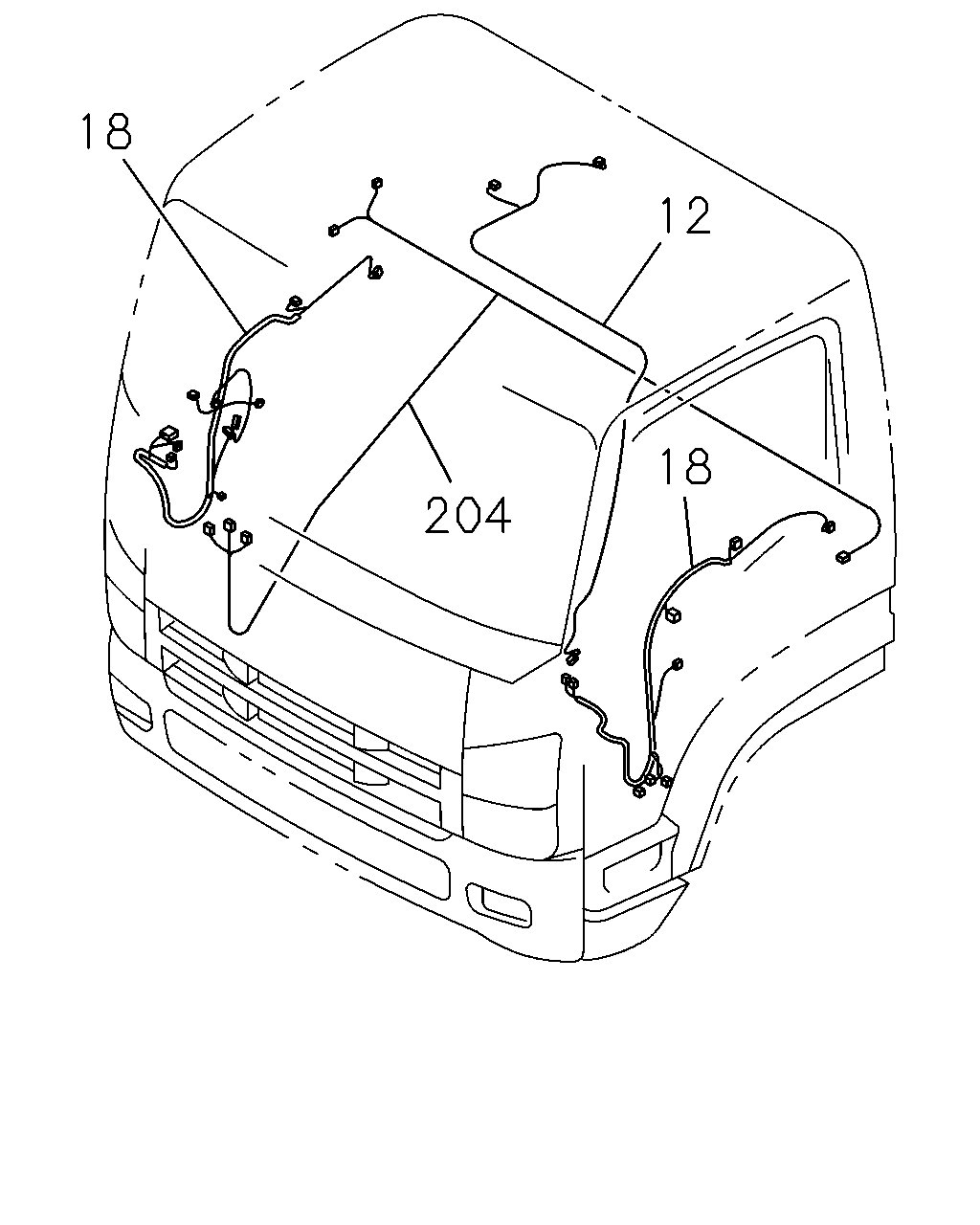

çizim 173223
18 12 18 204
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> 		8-98071-441-0 01 1 0809-
12 HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98084-248-1 01 1 0809-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98080-127-3 01 1 0809-1202
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98178-803-0 01 1 1203-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98080-128-3 01 1 0809-1202
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98178-804-0 01 1 1203-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98084-285-2 01 1 0809-1202
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98178-801-0 01 1 1203-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98084-290-2 01 1 0809-1202
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98178-802-0 01 1 1203-
204 HARNESS; CABLE,FLOOR 8-98084-217-1 01 1 0809-1011
204 HARNESS; CABLE,FLOOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6S M/T(X7W) 		8-98084-217-1 01 1 1012-1012
204 HARNESS; CABLE,FLOOR 8-98084-217-1 01 1 1101-

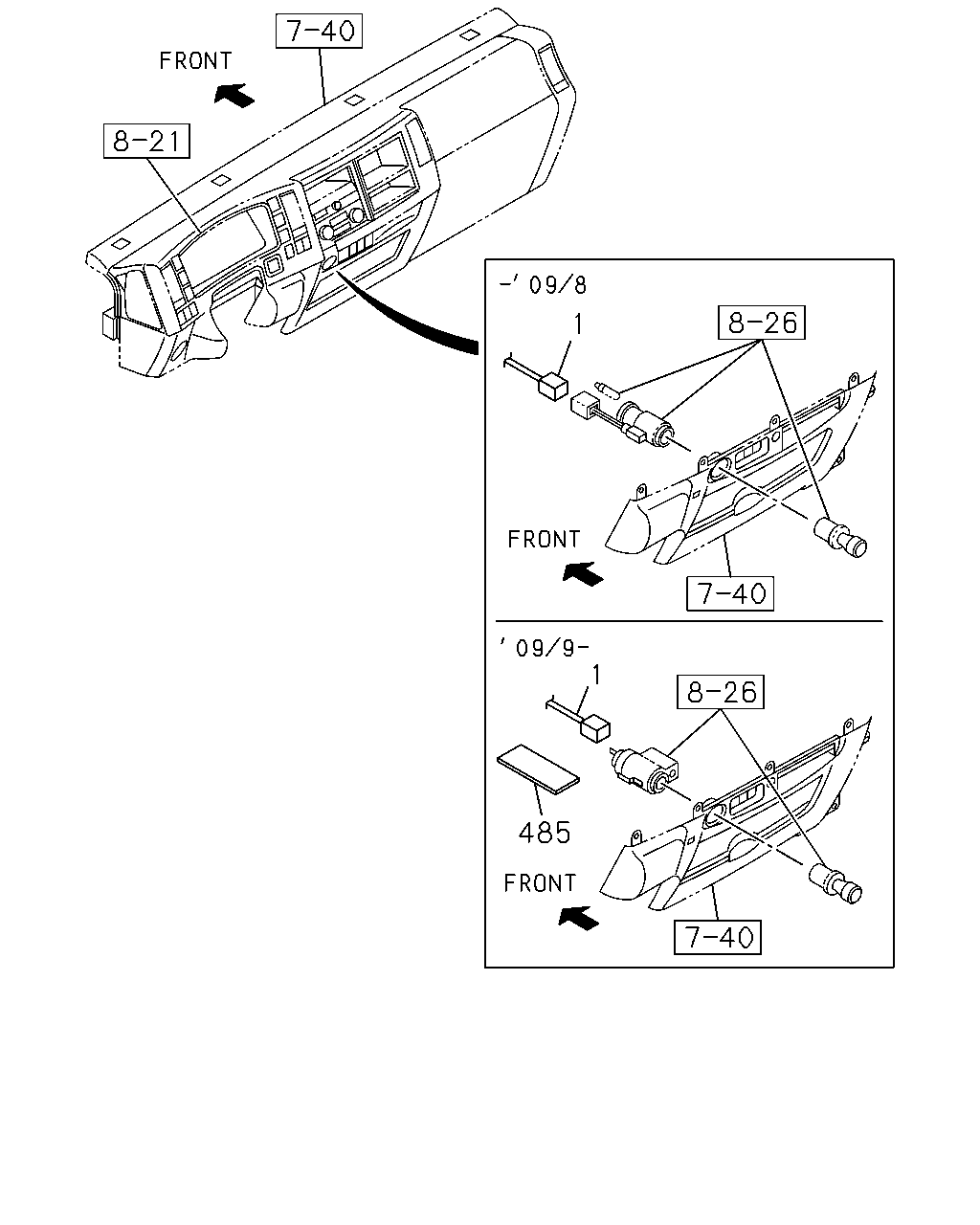

çizim 173225
1 1 485
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> IN HOUSE PRODUCTION<TKF> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1210-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1210-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98187-934-0 01 1 1210-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1210-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98187-937-0 01 1 1112-1209
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98187-937-0 01 1 1210-
1 HARNESS; CAB 8-98084-005-4 01 1 0809-1012
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, H.S.ASYSTEM<6EP> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98158-056-0 01 1 1101-1111
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98158-056-0 01 1 1112-1209
485 SEAL; CONNECTOR
180X40 		1-72498-019-1 01 1 0909-

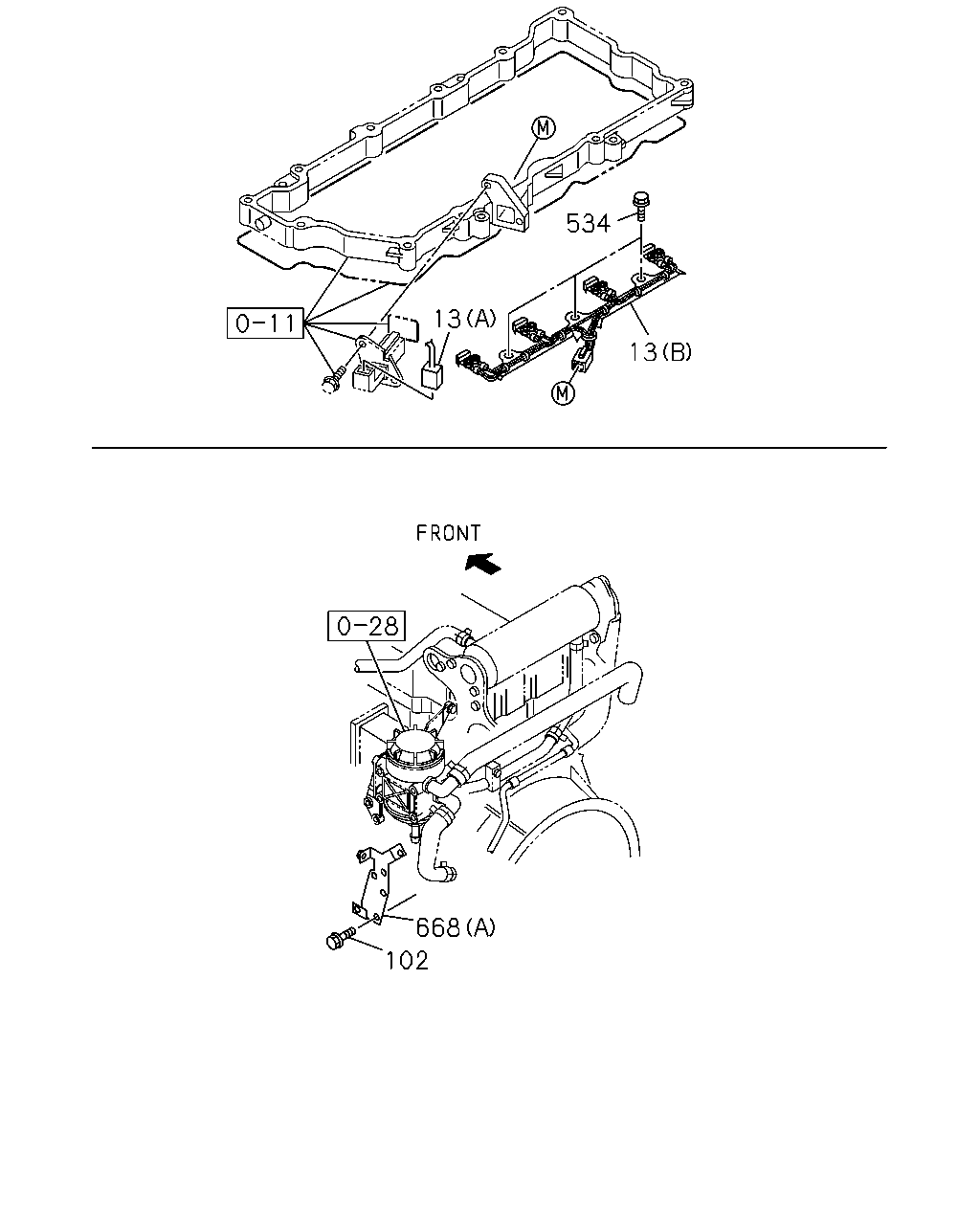

çizim 173231
668 102 13 13 534
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(B) 		8-97332-133-3 01 1 0809-1007
13 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1008-
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98077-328-3 01 1 0809-1007
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98171-995-2 01 1 1008-1011
13 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (A) 		8-98171-995-2 01 1 1012-1109
13 HARNESS; ENG
GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (A) 		8-98171-995-2 01 1 1110-1312
13 HARNESS; ENG
GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (A) 		8-98255-588-0 01 1 1401-1405
13 HARNESS; ENG
GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (A) 		8-98274-035-0 01 1 1406-
13 HARNESS; ENG
GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> EXC. KD PREPARATORY PACK<6HF> (A) 		8-98171-157-1 01 1 1012-1405
13 HARNESS; ENG
GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> EXC. KD PREPARATORY PACK<6HF> (A) 		8-98274-023-0 01 1 1406-
13 HARNESS; ENG
GENERATOR 24V60A(KG2) (A) 		8-98077-329-3 01 1 0809-1007
13 HARNESS; ENG
GENERATOR 24V60A(KG2) (A) 		8-98171-996-2 01 1 1008-1011
13 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (A) 		8-98171-996-2 01 1 1012-1109
13 HARNESS; ENG
GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (A) 		8-98171-996-2 01 1 1110-1312
13 HARNESS; ENG
GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (A) 		8-98255-589-0 01 1 1401-1405
13 HARNESS; ENG
GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (A) 		8-98274-036-0 01 1 1406-
13 HARNESS; ENG
GENERATOR 24V60A(KG2) EURO3 SPECIFICATION<NT3> EXC. KD PREPARATORY PACK<6HF> (A) 		8-98171-158-1 01 1 1012-1405
13 HARNESS; ENG
GENERATOR 24V60A(KG2) EURO3 SPECIFICATION<NT3> EXC. KD PREPARATORY PACK<6HF> (A) 		8-98274-024-0 01 1 1406-
13 HARNESS; ENG
4HK1-TCC ENG(RDV) GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (A) 		8-98171-155-2 01 1 1012-1109
13 HARNESS; ENG
4HK1-TCC ENG(RDV) GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (A) 		8-98171-156-2 01 1 1012-1109
102 BOLT; BRKT,HARNESS CONNECTOR
EURO3 SPECIFICATION<NT3> M6X25 FLANGE 		0-28050-625-0 01 1 1201-
102 BOLT; BRKT,HARNESS CONNECTOR
M6X25 FLANGE 		0-28050-625-0 01 1 0809-1007
102 BOLT; BRKT,HARNESS CONNECTOR
M8X16 FLANGE 		0-28050-816-0 03 1 0809-
102 BOLT; BRKT,HARNESS CONNECTOR
M10X16 FLANGE 		0-28151-016-0 03 1 0809-
102 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCC ENG(RDV) M6X25 FLANGE 		0-28050-625-0 01 1 1012-1109
102 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> M6X25 FLANGE 		0-28050-625-0 01 1 1012-1109
534 BOLT
M10X55 FLANGE 		8-97365-449-0 03 1 0809-
668 BRACKET; HARNESS
EURO3 SPECIFICATION<NT3> (C) 		8-98022-106-2 01 1 1201-
668 BRACKET; HARNESS
(D) 		8-98001-095-0 01 1 0809-1408
668 BRACKET; HARNESS
EURO3 SPECIFICATION<NT3> (D) 		8-98001-095-0 01 1 1409-
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 0809-1408
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 0809-
668 BRACKET; HARNESS
(C) 		8-98022-106-2 01 1 0809-1007
668 BRACKET; HARNESS
(G) 		8-98061-805-2 01 1 1008-1011
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (G) 		8-98061-805-2 01 1 1012-1109
668 BRACKET; HARNESS
(G) 		8-98061-805-2 01 1 1110-1112
668 BRACKET; HARNESS
EURO2 SPECIFICATION<NT2> (G) 		8-98061-805-2 01 1 1201-1312
668 BRACKET; HARNESS
EURO2 SPECIFICATION<NT2> (H) 		8-98205-089-0 01 1 1401-
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 0809-
668 BRACKET; HARNESS
(B) 		8-98111-712-1 01 1 0809-
668 BRACKET; HARNESS
4HK1-TCC ENG(RDV) (C) 		8-98022-106-2 01 1 1012-1109
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> (C) 		8-98022-106-2 01 1 1012-1109

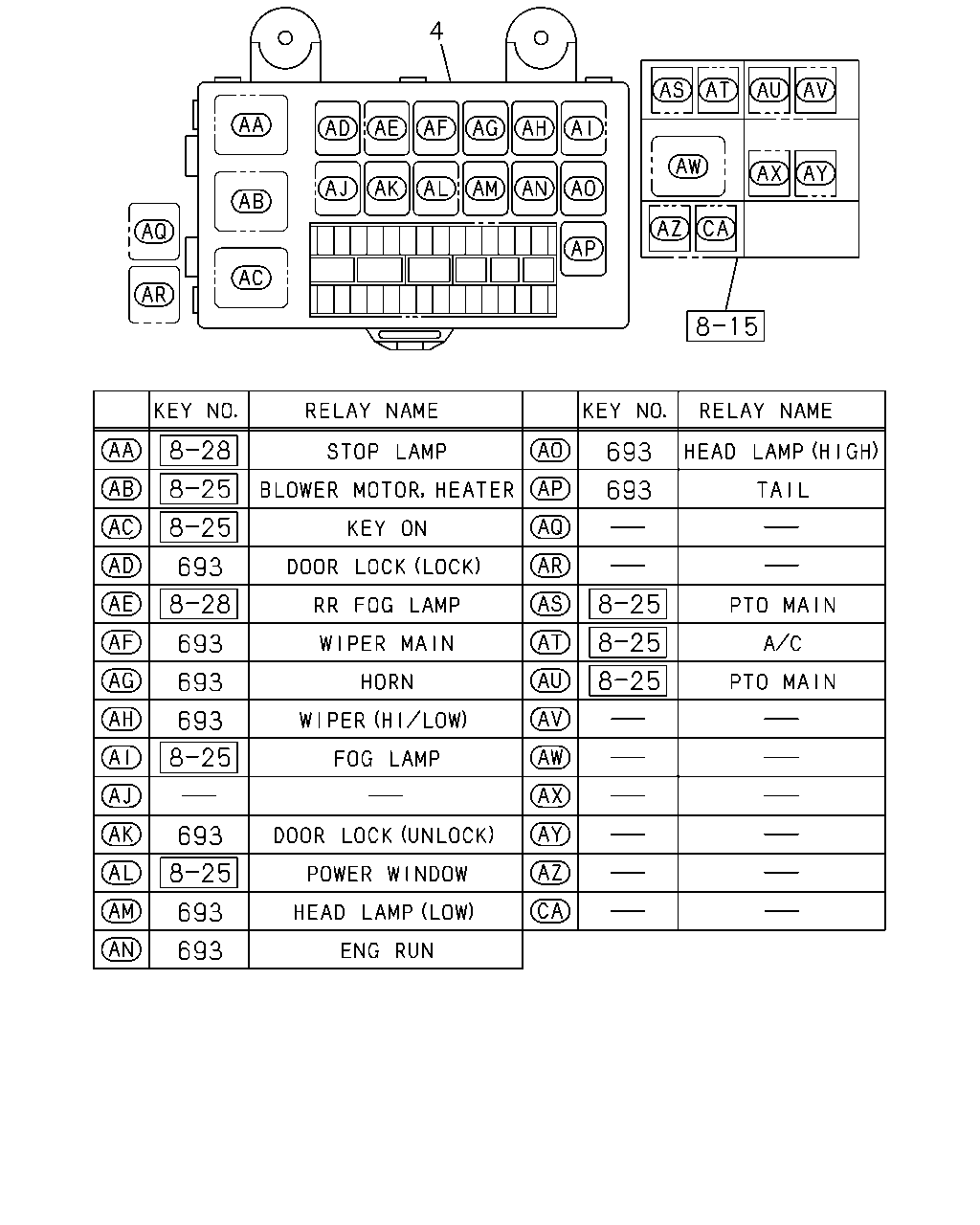

çizim 414208
693 693 693 693 693 693 693 693 693 4
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 0809-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 0809-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
