◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10723 - CVR LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#6332) — 162 parça

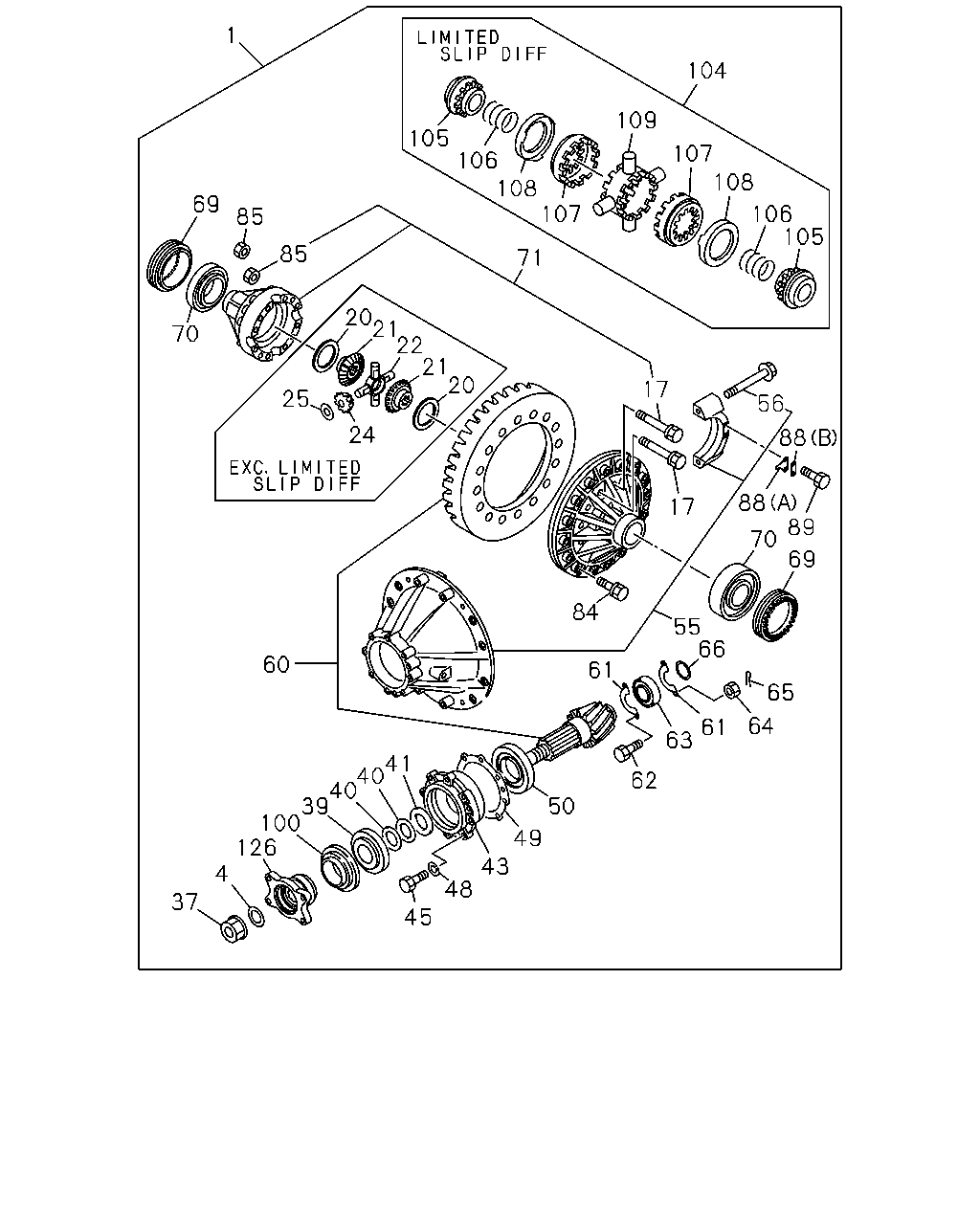

çizim 10882
1 104 109 105 107 106 108 107 108 69 106 105 85 85 71 20 21 22 21 20 70 17 25 56 24 88 88 89 17 70 69 84 55 66 60 61 65 64 61 63 41 40 40 39 100 126 4 62 50 49 43 48 37 45
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRIVE ASM; FINAL,RR
LIMITED SLIP DIFF(G86) 43/7 		1-41001-487-0 01 1 9604- ●
1 DRIVE ASM; FINAL,RR
EXC. LIMITED SLIP DIFF(G86) 43/7 		1-41001-382-0 01 1 9604- ●
1 DRIVE ASM; FINAL,RR
39/7 		1-41001-383-0 01 1 9604- ●
1 DRIVE ASM; FINAL,RR
45/7 		1-41001-381-0 01 1 9905- ●
1 DRIVE ASM; FINAL,RR
41/6 		1-41001-398-0 01 1 9905- ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 9604-9904 ● ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 9905- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 04 1 9604-9904 ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 04 1 9905- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 08 1 9604-9904 ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 08 1 9905- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=2.8 		1-41562-112-0 AR 1 9604-9904 ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=2.8 		1-41562-112-0 AR 1 9905- ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 9905- ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=2.9 		1-41562-113-0 AR 1 9604-9904 ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=2.9 		1-41562-113-0 AR 1 9905- ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 9905- ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.0 		1-41562-114-0 AR 1 9604-9904 ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.0 		1-41562-114-0 AR 1 9905- ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 9905- ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.1 		1-41562-115-0 AR 1 9604-9904 ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.1 		1-41562-115-0 AR 1 9905- ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 9905- ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.2 		1-41562-116-0 AR 1 9604-9904 ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.2 		1-41562-116-0 AR 1 9905- ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 9905- ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.3 		1-41562-117-0 AR 1 9604-9904 ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.3 		1-41562-117-0 AR 1 9905- ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 9905- ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.4 		1-41562-118-0 AR 1 9604-9904 ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF(G86) T=3.4 		1-41562-118-0 AR 1 9905- ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 9905- ● ● ●
21 GEAR; SIDE,DIFF
EXC. LIMITED SLIP DIFF(G86) Z=16 		1-41561-086-0 02 1 9604-9904 ● ●
21 GEAR; SIDE,DIFF
EXC. LIMITED SLIP DIFF(G86) Z=16 		1-41561-086-0 02 1 9905- ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-086-0 02 1 9905- ● ● ●
22 SPIDER; DIFF PINION
EXC. LIMITED SLIP DIFF(G86) OD=35 		1-41521-037-0 01 1 9604-9904 ● ●
22 SPIDER; DIFF PINION
EXC. LIMITED SLIP DIFF(G86) OD=35 		1-41521-037-2 01 1 9905- ●
22 SPIDER; DIFF PINION
OD=35 		1-41521-037-2 01 1 9905- ● ● ●
24 GEAR; PINION,DIFF
EXC. LIMITED SLIP DIFF(G86) Z=10 		1-41551-025-0 04 1 9604-9904 ● ●
24 GEAR; PINION,DIFF
EXC. LIMITED SLIP DIFF(G86) Z=10 		1-41551-025-0 04 1 9905- ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-025-0 04 1 9905- ● ● ●
25 WASHER; THRUST,PINION
EXC. LIMITED SLIP DIFF(G86) T=1.6 		1-41552-017-0 04 1 9604-9904 ● ●
25 WASHER; THRUST,PINION
EXC. LIMITED SLIP DIFF(G86) T=1.6 		1-41552-017-0 04 1 9905- ●
25 WASHER; THRUST,PINION
T=1.6 		1-41552-017-0 04 1 9905- ● ● ●
37 NUT; DRIVING PINION
M46 FLANGE 		1-09449-071-0 01 1 9604-9904 ● ●
37 NUT; DRIVING PINION
M46 FLANGE 		1-09449-071-0 01 1 9905- ● ● ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-075-0 01 1 9604-9904 ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-075-0 01 1 9905- ● ● ● ●
39 BEARING; FINAL PINION
JTEKT 		1-09812-076-0 01 1 9604-9904 ● ●
39 BEARING; FINAL PINION
JTEKT 		1-09812-076-1 01 1 9905- ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9604-9904 ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9905- ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9604-9904 ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9905- ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9604-9904 ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9905- ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9604-9904 ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9905- ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9604-9904 ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9905- ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9604-9904 ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9905- ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9604-9904 ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9905- ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9604-9904 ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9905- ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9604-9904 ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9905- ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9604-9904 ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9905- ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9604-9904 ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9905- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 9604-9904 ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 9905- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 9604-9904 ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 9905- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 9604-9904 ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 9905- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 9604-9904 ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 9905- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 9604-9904 ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 9905- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 9604-9904 ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 9905- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 9604-9904 ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 9905- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 9604-9904 ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 9905- ● ● ● ●
43 CAGE; FINAL PINION
T=81 		1-41151-030-0 01 1 9604-9904 ● ●
43 CAGE; FINAL PINION
T=81 		1-41151-030-0 01 1 9905- ● ● ● ●
45 BOLT; FINAL PINION CAGE
M16X55 		0-16806-655-0 08 1 9604-9904 ● ●
45 BOLT; FINAL PINION CAGE
M16X55 		0-16806-655-0 08 1 9905- ● ● ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 		9-09150-516-0 08 1 9604-9904 ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 		9-09150-516-0 08 1 9905- ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-024-0 AR 1 9604-9904 ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-024-0 AR 1 9905- ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		1-41154-025-0 AR 1 9604-9904 ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		1-41154-025-0 AR 1 9905- ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-057-0 AR 1 9604-9904 ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-057-0 AR 1 9905- ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-058-0 AR 1 9604-9904 ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-058-0 AR 1 9905- ● ● ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-073-0 01 1 9604-9904 ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-073-1 01 1 9905- ● ● ● ●
50 BEARING; FINAL PINION
JTEKT 		1-09812-074-0 01 1 9604-9904 ● ●
50 BEARING; FINAL PINION
JTEKT 		1-09812-074-1 01 1 9905- ● ● ● ●
55 CARRIER; DIFF 1-41110-109-0 01 1 9604-9904 ● ●
55 CARRIER; DIFF 1-41110-109-0 01 1 9905- ● ● ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 9604-9904 ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 9905- ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
43/7 		1-41210-464-0 01 1 9604-9901 ●
60 GEAR SET; FINAL DRIVE,RR
43/7 		1-41210-603-0 01 1 9902- ●
60 GEAR SET; FINAL DRIVE,RR
39/7 		1-41210-465-0 01 1 9604-9901 ●
60 GEAR SET; FINAL DRIVE,RR
39/7 		1-41210-604-0 01 1 9902- ●
60 GEAR SET; FINAL DRIVE,RR
45/7 		1-41210-602-0 01 1 9905- ●
60 GEAR SET; FINAL DRIVE,RR
41/6 		1-41210-601-0 01 1 9905- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 9604-9904 ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 9905- ● ● ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 9604-9904 ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 9905- ● ● ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 9604-9904 ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 9905- ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 9604-9904 ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 9905- ● ● ● ●
64 NUT; RET
M8 		9-09117-408-0 02 1 9604-9707 ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9708-9904 ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9905- ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9604-9904 ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9905- ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 01 1 9604-9904 ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 01 1 9905- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 9604-9904 ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 9905- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 9604-9904 ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 9905- ● ● ● ●
70 BEARING; DIFF CAGE
NSK ID=92 OD=152 T=39.7 		1-09812-156-0 02 1 9604-9702 ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=39.7 		1-09812-158-0 02 1 9604-9702 ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 9703-9904 ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 9905- ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 9604-9904 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 9905- ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 9604-9904 ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 9905- ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 12 1 9604-9904 ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 12 1 9905- ● ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 9604-9904 ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 9905- ● ● ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9604-9904 ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9905- ● ● ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9604-9904 ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9905- ● ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 9604-9904 ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 9905- ● ● ● ●
104 DIFF ASM; NO SPIN
LIMITED SLIP DIFF(G86) 		1-41530-023-0 01 1 9604- ●
105 GEAR; SIDE
LIMITED SLIP DIFF(G86) Z=24 		1-41539-028-0 02 1 9604- ●
106 SPRING; NO SPIN DIFF
LIMITED SLIP DIFF(G86) 		1-41535-004-0 02 1 9604- ●
107 CLUTCH; DRIVEN
LIMITED SLIP DIFF(G86) 		1-41532-006-0 02 1 9604- ●
108 RING; HOLD OUT
LIMITED SLIP DIFF(G86) 		1-41539-024-0 02 1 9604- ●
109 SPIDER; DIFF
LIMITED SLIP DIFF(G86) 		1-41539-027-0 01 1 9604- ●
126 COUPLING; DRIVING PINION 1-37245-143-2 01 1 9604-9901 ● ●
126 COUPLING; DRIVING PINION 1-37245-265-2 01 1 9902-9904 ● ●
126 COUPLING; DRIVING PINION 1-37245-265-2 01 1 9905- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
