Isuzu WW
▶
TRUCKS
▶
FRR
▶
11350 - FRR(MIDEAST)4H ENG
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-10 - CAUTION PLATE AND LABEL
▶

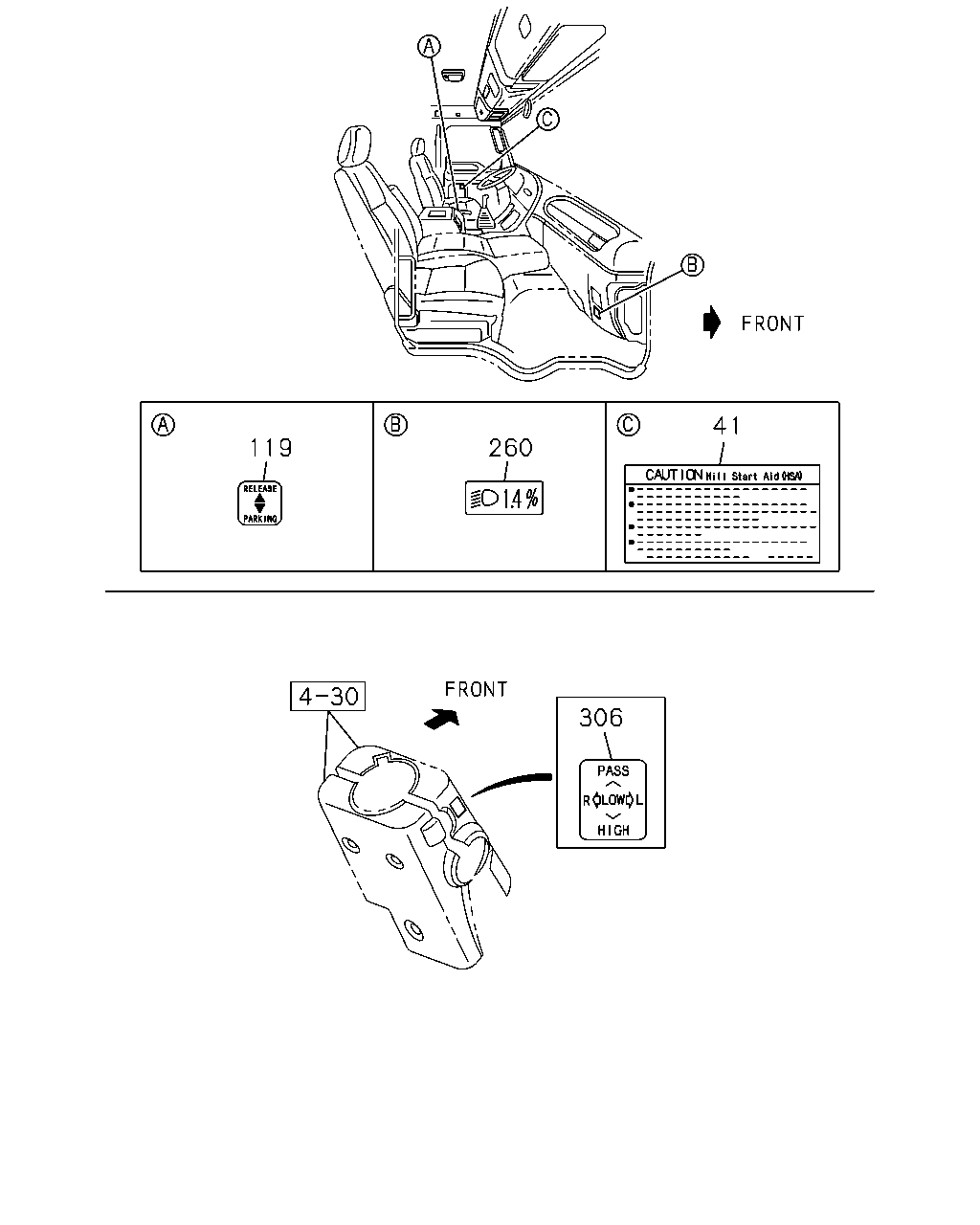

7-10 — CAUTION PLATE AND LABEL
(#63311) — 14 parça
◀
[710A] NO.2 (8 parça)
[710A] NO.1 (6 parça)
▶
35
49
228
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
PLATE; CAUTION,SPARE TIRE
CAUTIONS ARABIAN<WJ7>
8-98082-441-0
01
1
0809-
6
PLATE; CAUTION,SPARE TIRE
EXC. CAUTIONS ARABIAN<WJ7>
8-98082-437-0
01
1
0809-
35
PLATE; CAUTION,CAB
CAUTIONS ARABIAN<WJ7>
8-98070-107-0
01
1
0809-
35
PLATE; CAUTION,CAB
EXC. CAUTIONS ARABIAN<WJ7>
8-98065-363-0
01
1
0809-
49
PLATE; CAUTION,FUSE BOX
CAUTIONS ARABIAN<WJ7>
8-98127-559-0
01
1
0809-
49
PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS ARABIAN<WJ7>
8-98122-354-0
01
1
0809-
228
PLATE; CAUTION,AIR DRYER
CAUTIONS ARABIAN<WJ7>
1-85877-948-0
01
1
0809-1001
228
PLATE; CAUTION,AIR DRYER
EXC. CAUTIONS ARABIAN<WJ7>
1-48199-325-0
01
1
0809-1001
41
119
260
306
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
41
PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> CAUTIONS ARABIAN<WJ7>
8-98141-841-0
01
1
0907-
41
PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> EXC. CAUTIONS ARABIAN<WJ7>
8-98141-836-0
01
1
0907-
119
PLATE; CAUTION,HAND BRK LEVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-85881-759-0
01
1
0809-
260
PLATE; CAUTION,HEAD LAMP LEVELING
4HK1-TCS ENG(RJS)
8-98008-779-0
01
1
0809-1011
260
PLATE; CAUTION,HEAD LAMP LEVELING
8-98008-779-0
01
1
1012-
306
LABEL; BEAM & PASS
8-98070-239-0
01
1
0809-
