Isuzu WW
▶
TRUCKS
▶
FRR
▶
11350 - FRR(MIDEAST)4H ENG
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-70 - FLOOR PANEL
▶

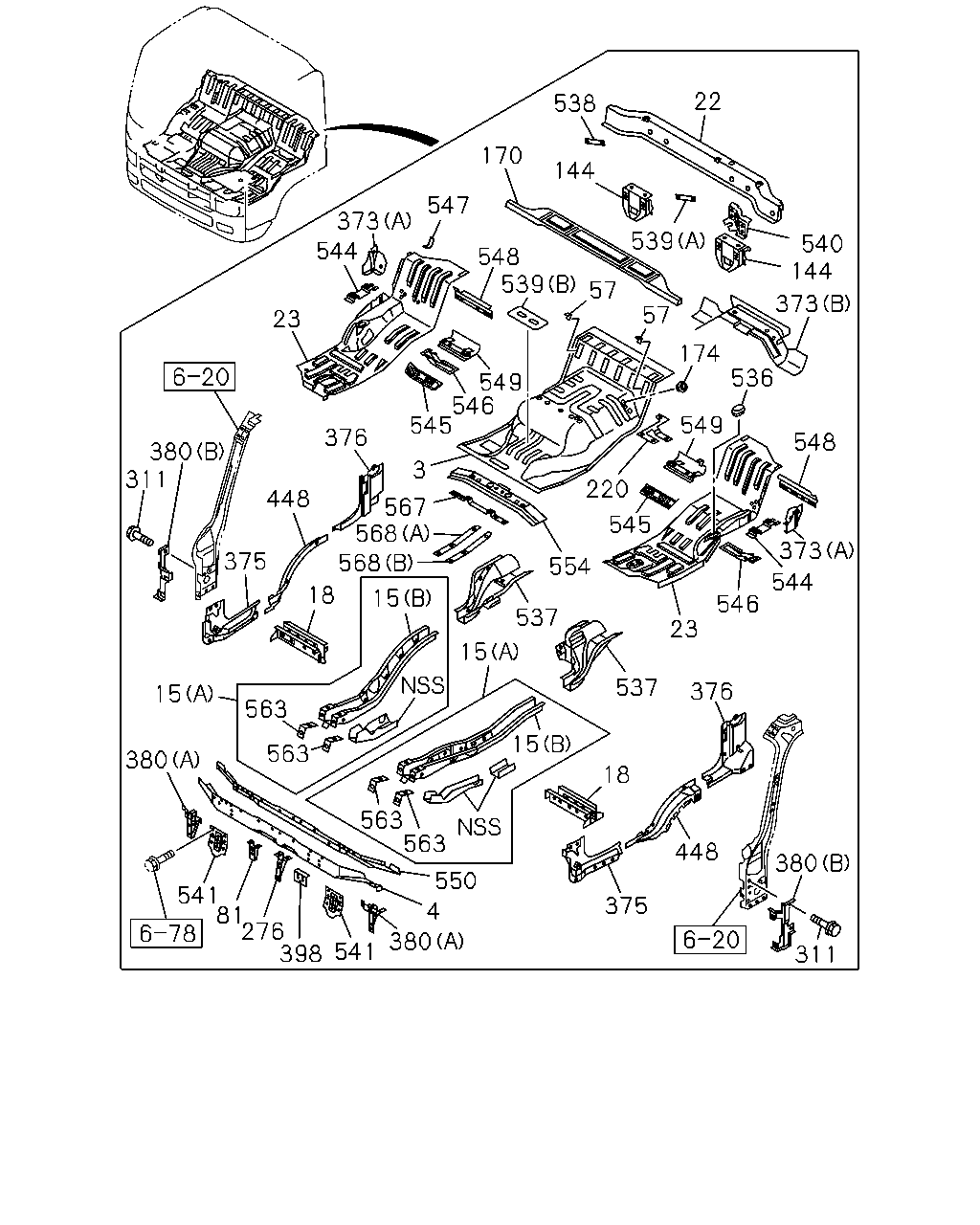

6-70 — FLOOR PANEL
(#63302) — 58 parça
22
538
170
144
547
373
539
540
144
544
548
539
57
373
57
23
174
536
549
546
545
549
376
548
380
311
3
220
448
567
568
545
373
375
568
554
544
18
15
546
537
23
15
537
376
15
563
563
15
380
18
563
563
448
380
550
541
81
276
398
375
4
380
541
311
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
HOOD ASM; ENG
8-98017-307-7
01
1
0809-
4
FRAME; FLOOR,FRT
8-98077-806-1
01
1
0809-
15
FRAME; UNDER
(A)
8-97584-387-9
01
1
0809-
15
FRAME; UNDER
(B)
8-97584-388-9
01
1
0809-
15
FRAME; UNDER
(A)
8-97584-411-9
01
1
0809-
15
FRAME; UNDER
(B)
8-97584-412-7
01
1
0809-
18
FRAME; FLOOR,CENTER SIDE
8-97584-420-4
01
1
0809-
18
FRAME; FLOOR,CENTER SIDE
8-98017-380-2
01
1
0809-
22
FRAME; FLOOR REAR
8-97584-430-5
01
1
0809-
23
PANEL; FLOOR,SIDE
8-98017-358-5
01
1
0809-
23
PANEL; FLOOR,SIDE
8-98080-738-0
01
1
0809-
57
BRACKET; SPARE TIRE
8-98038-970-1
02
1
0809-
81
BRACKET; HARNESS SUPPORT
8-98041-333-3
01
1
0809-
144
BRACKET; MTG,RR
8-97584-432-6
01
1
0809-
144
BRACKET; MTG,RR
8-97589-666-6
01
1
0809-
170
EXTENSION; RR FLOOR
8-97589-204-3
01
1
0809-
174
GROMMET; AIR PIPE
OD=35
8-94122-971-0
01
1
0809-
220
PATCH
8-97589-704-0
01
1
0809-
276
BRACKET; RAD GRILLE
8-97589-596-3
01
1
0809-
311
BOLT; BRKT
M6X16 FLANGE
0-28650-616-0
04
1
0809-
373
REINFORCEMENT; SEAT BELT
(A)
8-97584-367-2
01
1
0809-
373
REINFORCEMENT; SEAT BELT
(A)
8-97584-375-2
01
1
0809-
373
REINFORCEMENT; SEAT BELT
(B)
8-98017-308-4
01
1
0809-
375
CLOSING; PILLAR
8-98044-897-3
01
1
0809-
375
CLOSING; PILLAR
8-98044-898-3
01
1
0809-
376
CLOSING; PILLAR,LWR
8-97589-553-1
01
1
0809-
376
CLOSING; PILLAR,LWR
8-97589-555-1
01
1
0809-
380
BRACKET; HEAD LAMP
(A)
8-97589-707-1
01
1
0809-
380
BRACKET; HEAD LAMP
(A)
8-97589-708-1
01
1
0809-
380
BRACKET; HEAD LAMP
(B)
8-98032-615-1
01
1
0809-
380
BRACKET; HEAD LAMP
(B)
8-98032-614-1
01
1
0809-
398
BRACKET; PIPE SUPPORT
8-97589-681-3
01
1
0809-
448
CLOSING; ROCKER
8-97589-551-2
01
1
0809-
448
CLOSING; ROCKER
8-97589-552-2
01
1
0809-
536
PLUG; CABLE,PTO
8-97612-074-1
01
1
0809-
537
SUPPORT ASM; MTG RR
8-97584-390-4
01
1
0809-
537
SUPPORT ASM; MTG RR
8-97584-416-4
01
1
0809-
538
REINFORCEMENT ASM; AIR INT DUCT
8-97610-207-2
01
1
0809-
539
PATCH ASM; SAFTY HOOK
(A)
8-97584-440-2
01
1
0809-
539
PATCH ASM; SAFTY HOOK
KD PREPARATORY PACK VAR.4<7TV> (B)
8-98131-661-0
01
1
1012-
540
BRACKET ASM; CAB LOCK LEVER
8-97584-438-1
01
1
0809-
541
REINFORCEMENT; MTG,FRT
8-98067-903-0
02
1
0809-
544
BRACKET; DUMP CONT
8-97584-363-1
01
1
0809-
544
BRACKET; DUMP CONT
8-98049-529-0
01
1
0809-
545
BRACKET; SEAT FRT
8-97589-705-0
01
1
0809-
545
BRACKET; SEAT FRT
8-97589-706-0
01
1
0809-
546
REINFORCEMENT; FLOOR SIDE
8-97584-426-0
02
1
0809-
547
BRACKET; JACK HANDLE
8-97588-843-1
01
1
0809-
548
BRACKET; MUD GUARD
8-97588-964-1
01
1
0809-
548
BRACKET; MUD GUARD
8-97588-965-1
01
1
0809-
549
BRACKET; SEAT RR
8-98017-363-1
01
1
0809-
549
BRACKET; SEAT RR
8-98017-370-1
01
1
0809-
550
CLOSING ASM; MTG,FRT
8-97589-709-3
01
1
0809-
554
REINFORCEMENT; FLOOR CENTER
8-98017-330-1
01
1
0809-
563
REINFORCEMENT; MTG FRT,RR
8-97589-579-2
04
1
0809-
567
REINFORCEMENT; CONT LEVER
8-98046-522-3
01
1
0809-
568
BRACKET; ACCEL STOPPER
(A)
8-98089-177-0
01
1
0809-
568
BRACKET; ACCEL STOPPER
(B)
8-98089-178-0
01
1
0809-
