5-01 — FRAME AND OTHER PARTS
(#63284) — 48 parça
◀

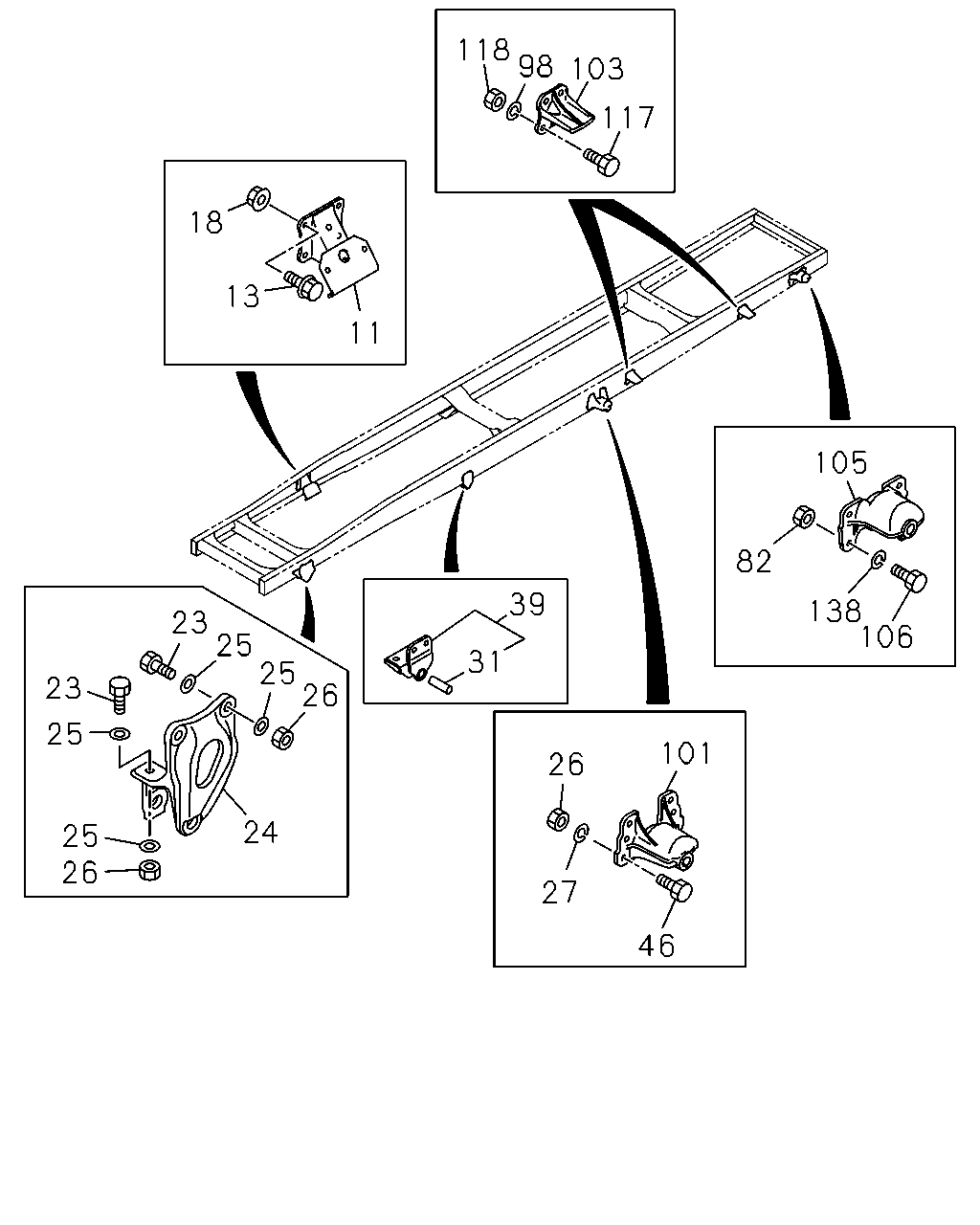

[501A] BRACKET AND OTHER PARTS (21 parça)
[501A] CROSS MEMBER (27 parça)
▶
118
98
103
117
18
13
11
105
82
39
138
106
23
25
25
26
31
23
25
101
26
24
25
26
27
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
8-97604-129-0
02
1
0809-
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE
0-28661-235-0
08
1
0809-
18
NUT; BRKT,ENG MTG
M12 FLANGE
0-91180-212-0
08
1
0809-
23
BOLT; BRKT,SPR
M14X50
0-20951-450-0
08
1
0809-
24
BRACKET; FRT SPR,FRT
8-98059-201-0
01
1
0809-
24
BRACKET; FRT SPR,FRT
8-98059-203-0
01
1
0809-
25
WASHER; PL,BRKT
ID=15
8-98010-627-1
16
1
0809-
26
NUT; BRKT,SPR
M14
0-91110-514-0
20
1
0809-
27
WASHER; LK,BRKT,FRT SPR
ID=14.2
0-91510-614-0
12
1
0809-
31
BUSHING; FRT SPR,RR
ID=25
8-98082-176-0
02
1
0809-
39
BRACKET; FRT SPR,RR
1-53352-154-2
02
1
0809-
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
12
1
0809-
82
NUT; BRKT
M14
0-91110-514-0
10
1
0809-
98
WASHER; LK,STOPPER
ID=14.2
0-91510-614-0
16
1
0809-
101
BRACKET; RR SPR,FRT
1-53353-090-4
02
1
0809-
103
STOPPER; SUB SPR
1-53356-059-1
04
1
0809-
105
BRACKET; RR SPR,RR
1-53354-074-0
02
1
0809-
106
BOLT; BRKT
M14X50
0-20951-450-0
10
1
0809-
117
BOLT; STOPPER
M14X50
0-20951-450-0
16
1
0809-
118
NUT; STOPPER
M14
0-91110-514-0
16
1
0809-
138
WASHER; LK,BRKT
ID=14.2
0-91510-614-0
10
1
0809-
131
77
130
530
531
344
531
132
19
77
34
202
202
16
6
363
16
2
363
6
67
6
4
8
8
364
364
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97615-669-3
01
1
0809-
4
NUT; 1ST C/MBR TO S/MBR
M14
0-91110-514-0
02
1
0809-
6
WASHER; LK,1ST C/MBR
(A) ID=12.2
0-91510-512-0
02
1
0809-
6
WASHER; LK,1ST C/MBR
(B) ID=14.2
0-91510-814-0
02
1
0809-
6
WASHER; LK,1ST C/MBR
(C) ID=15
8-98010-627-1
02
1
0809-
8
GUSSET; 1ST C/MBR
8-97617-910-2
01
1
0809-
8
GUSSET; 1ST C/MBR
8-97617-911-3
01
1
0809-
16
BOLT; 1ST C/MBR TO S/MBR
(A) M12X30
0-20851-230-0
02
1
0809-
16
BOLT; 1ST C/MBR TO S/MBR
(B) M14X40
0-20851-440-0
02
1
0809-
19
MEMBER; CROSS,2ND
8-97620-866-6
01
1
0809-
34
MEMBER; CROSS,3RD
8-97609-501-2
01
1
0809-
67
NUT; C/MBR
M12
0-91110-512-0
02
1
0809-
77
MEMBER; CROSS,TRUNNION RR
8-97610-935-1
02
1
0809-
130
MEMBER; CROSS,END
8-97609-470-0
01
1
0809-
131
BOLT; END C/MBR
M10X25 W/LK WASHER
0-50541-025-0
04
1
0809-
132
NUT; END C/MBR
M10
0-91110-510-0
04
1
0809-
202
SPACER; 3RD C/MBR
8-97609-756-1
02
1
0809-
344
MEMBER; CROSS,4TH
8-97609-472-2
01
1
0809-
363
BOLT; GUSSET
M12X25 FLANGE
0-28661-225-0
04
1
0809-
364
NUT; GUSSET
M12 FLANGE
0-91180-212-0
04
1
0809-
530
MEMBER; CROSS,T/M
MLD6S M/T(X7W)
8-97627-753-0
01
1
0809-
530
MEMBER; CROSS,T/M
MZX6P M/T(RSW)
8-97609-809-3
01
1
0809-0906
530
MEMBER; CROSS,T/M
MZX6P M/T(RSW),MZW6P M/T(RSZ)
8-97609-809-3
01
1
0907-
530
MEMBER; CROSS,T/M
MZZ6W M/T(RSA)
8-97609-814-1
01
1
1012-
531
SPACER; C/MBR,T/M
8-97616-461-1
02
1
0809-1011
531
SPACER; C/MBR,T/M
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6S M/T(X7W)
8-97616-461-1
02
1
1012-
531
SPACER; C/MBR,T/M
MZZ6W M/T(RSA)
8-97637-078-0
02
1
1012-
