Isuzu WW
▶
TRUCKS
▶
FRR
▶
11350 - FRR(MIDEAST)4H ENG
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶
4-60 — REAR SUSPENSION
(#63281) — 37 parça
◀

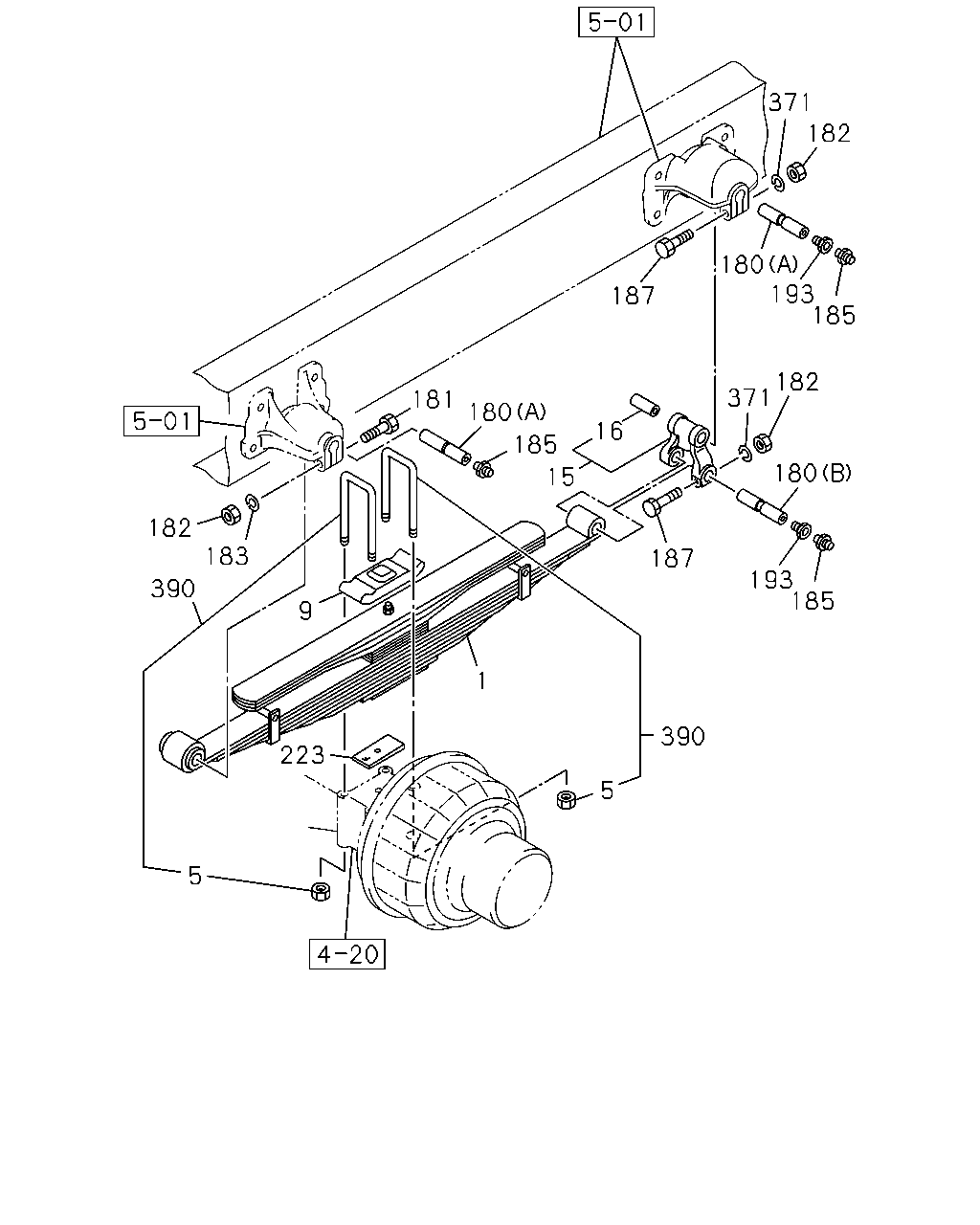

[460A] NO.1 (21 parça)

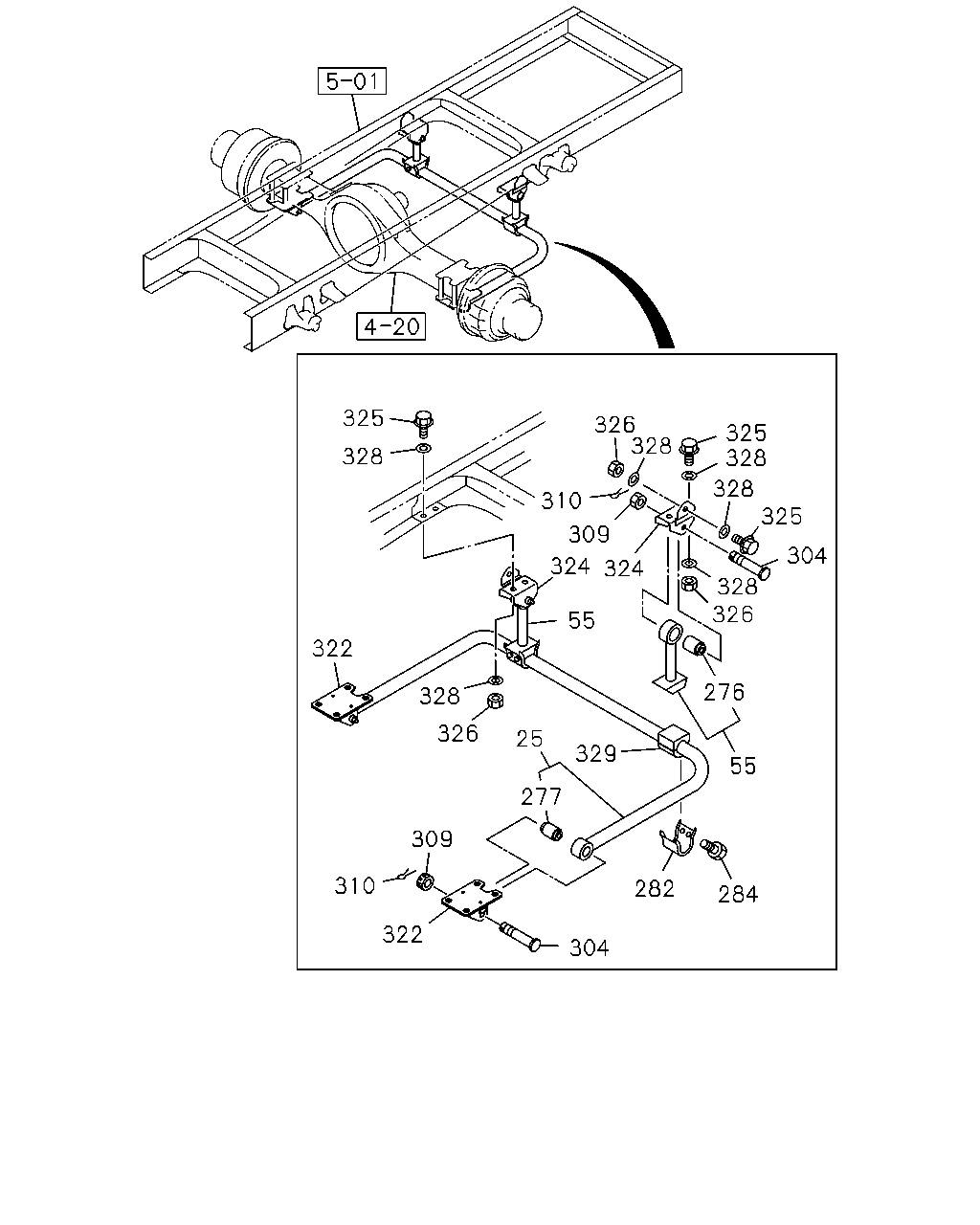

[460A] NO.2 (16 parça)
▶
371
182
180
193
185
187
182
371
181
180
16
185
180
15
182
183
187
193
185
390
9
1
390
223
5
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MULTI LEAF SUSP RR(SAS) 15-LEAF
8-98064-449-0
02
1
0809-
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUS HELPER RR(SAU) 11-LEAF
8-98079-006-0
02
1
0809-
5
NUT; U-BOLT,RR SPR
M18 FLANGE
1-09440-039-1
08
1
0809-
9
PAD; U BOLT,RR SPR
1-51372-059-0
02
1
0809-
15
SHACKLE; RR SPR
1-51362-038-2
02
1
0809-
16
BUSHING; SHACKLE,RR SPR
ID=25
9-51151-032-0
02
1
0809-0902
16
BUSHING; SHACKLE,RR SPR
ID=25
8-98082-176-0
02
1
0903-
180
PIN; RR SPR
(A) DO=25 L=115 PT1/8
1-51361-016-0
04
1
0809-
180
PIN; RR SPR
(B) DO=25 L=115 M12
1-51361-017-0
02
1
0809-
181
BOLT; SPR & SHACKLE
M12X70
0-10961-270-0
02
1
0809-
182
NUT; PIN,RR SPR
M12
0-91110-512-0
06
1
0809-
183
WASHER; LK,PIN,RR SPR
ID=12.2
0-91510-612-0
02
1
0809-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
0-90301-410-0
06
1
0809-
187
BOLT; SPR & SHACKLE
M12X70
0-10961-270-0
04
1
0809-
193
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
02
1
0809-
223
SPACER; U BOLT,RR SPR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6S M/T(X7W)
8-98063-307-0
02
1
0809-1011
223
SPACER; U BOLT,RR SPR
8-98063-307-0
02
1
1012-1212
371
WASHER; LK,SHACKLE
ID=12.2
0-91510-612-0
04
1
0809-
390
U-BOLT SET; RR SPRING
STABILIZER REAR LIGHT DUTY<GN1> L=405
1-87870-353-0
04
1
0809-1005
390
U-BOLT SET; RR SPRING
EXC. STABILIZER REAR LIGHT DUTY<GN1> L=390
1-87870-399-0
04
1
0809-1005
390
U-BOLT SET; RR SPRING
L=390
1-87870-399-0
04
1
1006-
325
326
328
325
328
328
328
325
310
309
304
324
324
328
326
55
322
276
328
326
25
329
55
277
309
310
282
284
322
304
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
BAR ASM; STAB,RR SUSP
STABILIZER REAR LIGHT DUTY<GN1>
1-51770-111-1
01
1
0809-1005
55
ROD; STAB
STABILIZER REAR LIGHT DUTY<GN1>
1-51770-023-0
02
1
0809-1005
276
BUSHING; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1>
1-51779-019-0
02
1
0809-1005
277
BUSHING; STAB,RR UPR
STABILIZER REAR LIGHT DUTY<GN1>
1-51779-067-0
02
1
0809-1005
282
RETAINER; STAB BAR
STABILIZER REAR LIGHT DUTY<GN1>
1-51789-015-2
02
1
0809-1005
284
BOLT; RET TO RET
STABILIZER REAR LIGHT DUTY<GN1> M10X25
8-94463-351-0
08
1
0809-1005
304
PIN; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1>
1-51789-020-2
04
1
0809-1005
309
NUT; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> M24
9-99116-424-0
04
1
0809-1005
310
PIN; SPLIT,STAB ROD
STABILIZER REAR LIGHT DUTY<GN1> OD=4.6 L=45
0-81125-045-0
04
1
0809-1005
322
BRACKET; STAB BAR TO RR AXLE
STABILIZER REAR LIGHT DUTY<GN1>
1-51781-081-0
01
1
0809-1005
322
BRACKET; STAB BAR TO RR AXLE
STABILIZER REAR LIGHT DUTY<GN1>
1-51781-080-0
01
1
0809-1005
324
BRACKET; STAB BAR TO FRAME
STABILIZER REAR LIGHT DUTY<GN1>
1-51781-059-0
02
1
0809-1005
325
BOLT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> M14X50
0-20951-450-0
06
1
0809-1005
326
NUT; BRKT TO FRAME
STABILIZER REAR LIGHT DUTY<GN1> M14
0-91110-514-0
06
1
0809-1005
328
WASHER; PL,BRKT
STABILIZER REAR LIGHT DUTY<GN1> ID=15
8-98010-627-0
12
1
0809-1005
329
BUSHING; STAB ROD
STABILIZER REAR LIGHT DUTY<GN1>
1-51789-017-0
02
1
0809-1005
