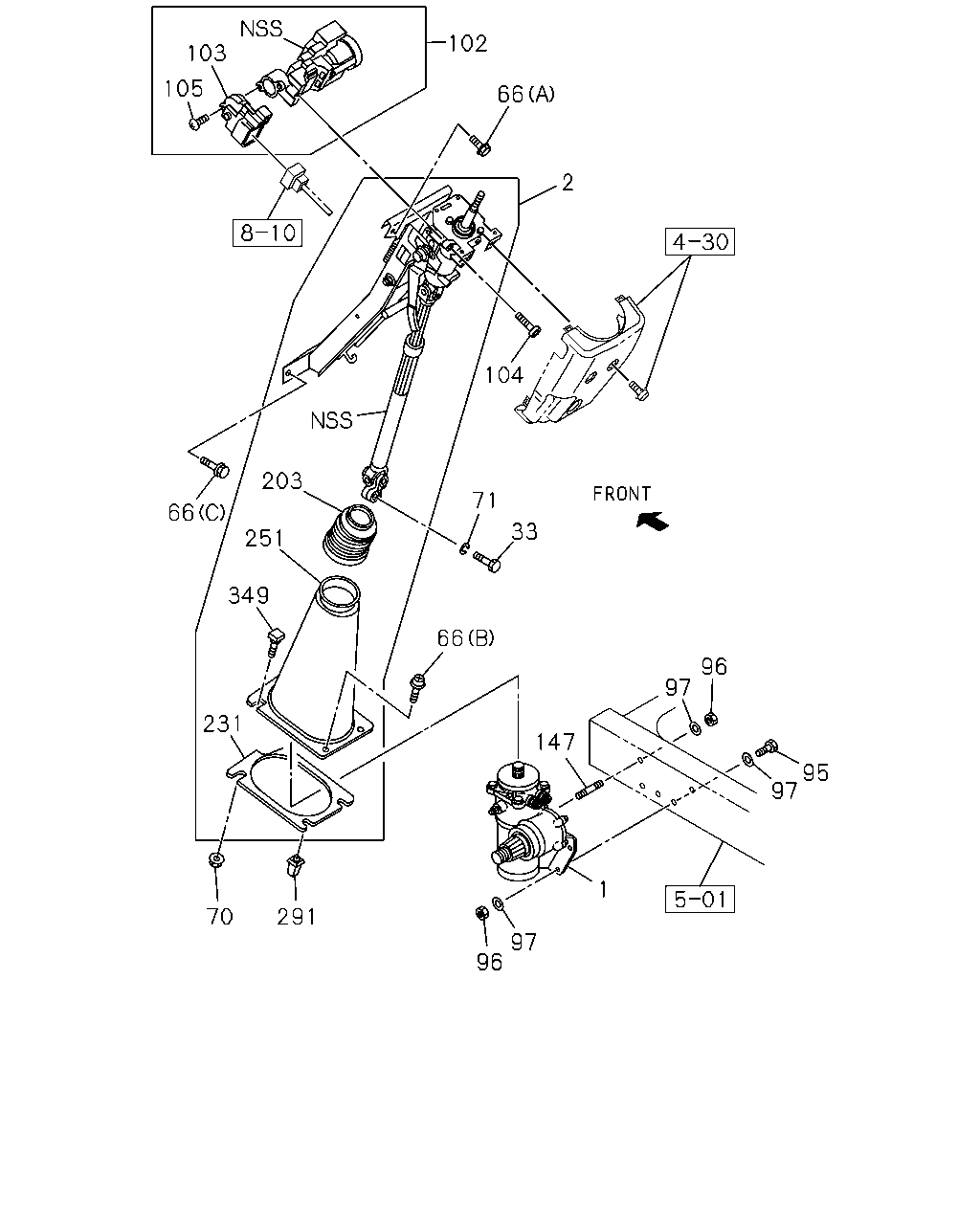

4-31 — STEERING COLUMN AND SHAFT
(#63273) — 21 parça
102
103
105
66
2
104
203
71
66
33
251
349
66
96
97
231
147
95
97
1
70
291
97
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
1-44000-929-2
01
1
0809-
2
SHAFT ASM; STRG
BLACK
8-97415-617-2
01
1
0809-
33
BOLT; STRG SHAFT TO UNIT
M10X35
1-09009-126-1
01
1
0809-
66
BOLT; STRG COLUMN
(A) M8X20 FLANGE
0-28650-820-0
02
1
0809-
66
BOLT; STRG COLUMN
(B) M5X18 TAPPING
0-72180-518-0
02
1
0809-
66
BOLT; STRG COLUMN
(C) M8X25 W/LK&PL WASHER
8-98018-439-0
02
1
0809-
70
NUT; STRG COLUMN
M6 FLANGE W/RUBBER
1-09984-180-0
02
1
0809-
71
WASHER; LK,SHAFT TO UNIT
ID=10.2
0-91510-810-0
01
1
0809-
95
BOLT; STRG UNIT
M14X50
1-09000-787-1
04
1
0809-
96
NUT; STRG UNIT
M14
1-09440-097-0
05
1
0809-
97
WASHER; PL,STRG UNIT
ID=15
8-98010-627-1
09
1
0809-
102
LOCK ASM; STRG
8-98006-150-0
01
1
0809-
103
SWITCH; IGNITION
8-98045-349-0
01
1
0809-
104
BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT
8-97321-385-0
02
1
0809-
105
SCREW; IGN SW
8-98045-346-0
02
1
0809-
147
STUD; STRG UNIT
M14X37 L=66
1-09300-125-0
01
1
0809-
203
BOOT; STRG COLUMN LWR
8-98137-333-0
01
1
0809-
231
SEAL; RUBBER,STRG COLUMN
8-98137-330-0
01
1
0809-
251
COVER; LWR
BLACK
8-97417-050-0
01
1
0809-
291
GROMMET; STRG SHAFT COVER
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
0809-
349
BOLT; COVER
8-98137-334-0
02
1
0809-
