Isuzu WW
▶
TRUCKS
▶
FRR
▶
11350 - FRR(MIDEAST)4H ENG
▶
3 - Brakes, Brake System
▶
3-78 - FIXING PARTS; AIR PIPING
▶
3-78 — FIXING PARTS; AIR PIPING
(#63266) — 46 parça
◀

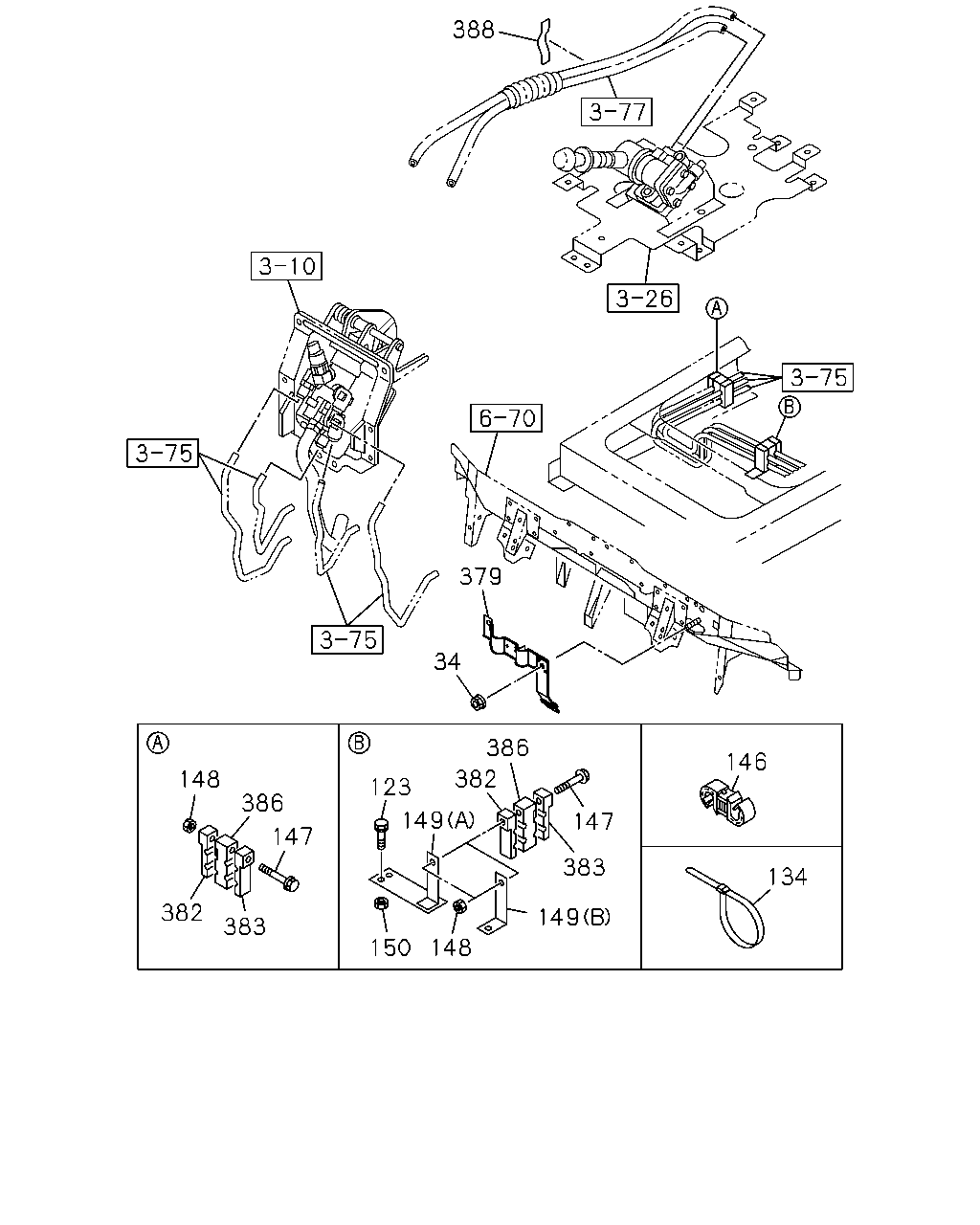

[378A] NO.3 (14 parça)

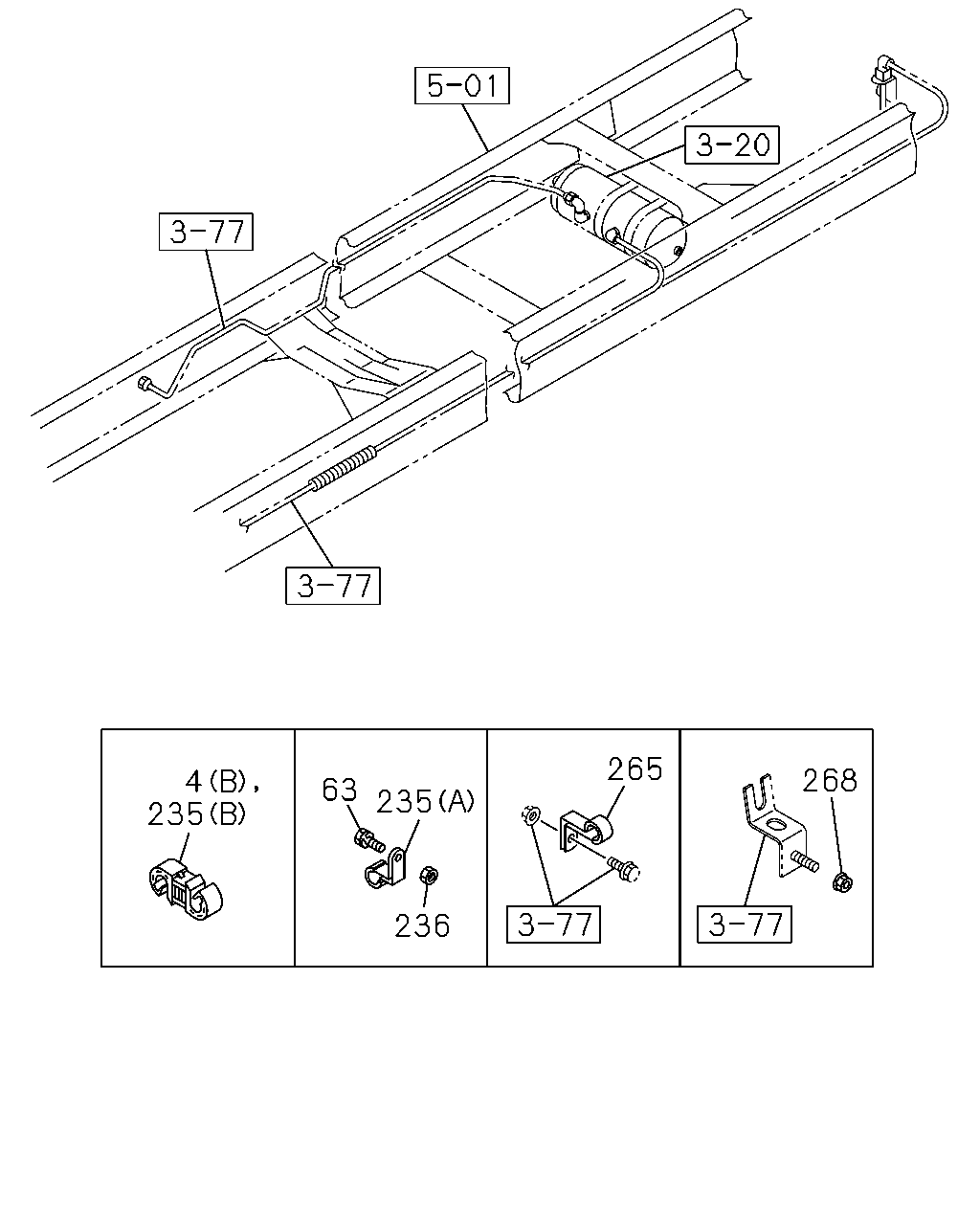

[378A] NO.2 (17 parça)

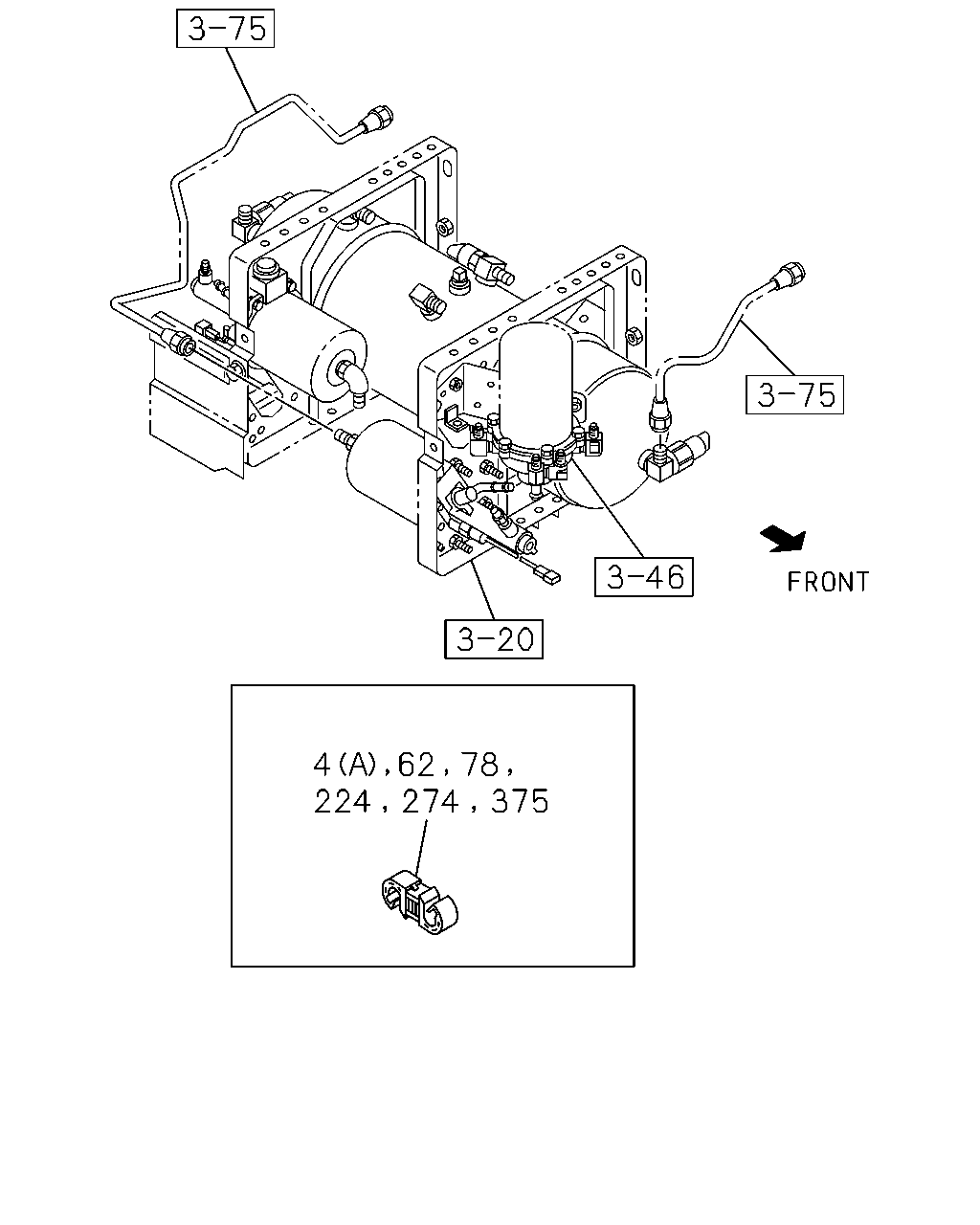

[378A] NO.1 (15 parça)
▶
265
268
4
235
63
235
236
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
CLIP; AIR PIPE
(A) ID=10 & 10
1-09709-277-1
02
1
0809-0901
4
CLIP; AIR PIPE
(A) ID=10 & 10
1-09709-277-1
03
1
0902-
4
CLIP; AIR PIPE
(A) ID=12 & 12
1-09709-280-1
01
1
0809-0901
4
CLIP; AIR PIPE
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0
1-09709-274-1
02
1
0809-0901
4
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0
1-09709-274-1
02
1
0902-
63
BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE
0-28650-825-0
04
1
0809-0810
63
BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE
0-28650-825-0
05
1
0811-
235
CLIP; AIR PIPE
MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0
1-09709-274-1
01
1
0809-
235
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 H=20 L=20
8-98033-780-0
04
1
0809-0810
235
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 H=20 L=20
8-98033-780-0
05
1
0811-
236
NUT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE
0-91180-108-0
04
1
0809-0810
236
NUT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE
0-91180-108-0
05
1
0811-
265
CLIP; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21 H=25.5 L=26
8-94176-806-0
01
1
0809-
268
NUT; CLIP BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE
0-91180-210-0
01
1
0809-
4
62
78
224
274
375
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
CLIP; AIR PIPE
(A) ID=10 & 10
1-09709-277-1
02
1
0809-0901
4
CLIP; AIR PIPE
(A) ID=10 & 10
1-09709-277-1
03
1
0902-
4
CLIP; AIR PIPE
(A) ID=12 & 12
1-09709-280-1
01
1
0809-0901
4
CLIP; AIR PIPE
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0
1-09709-274-1
02
1
0809-0901
4
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0
1-09709-274-1
02
1
0902-
62
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
02
1
0809-0809
62
CLIP; AIR PIPE
H.S.A SYSTEM<6EP> ID=10 & 10
1-09709-277-1
01
1
0810-0901
78
CLIP; AIR PIPE
ID=10 & 12
1-09709-278-1
01
1
0809-0901
224
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
03
1
0809-0901
224
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10 & 10
1-09709-277-1
01
1
0809-0901
224
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10 & 10
1-09709-277-1
01
1
0902-
224
CLIP; AIR PIPE
H.S.A SYSTEM<6EP> ID=10 & 10
1-09709-277-1
01
1
0902-
224
CLIP; AIR PIPE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=6.35 & 12
1-09709-275-1
01
1
0809-0901
224
CLIP; AIR PIPE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=6.35 & 10.0
1-09709-274-1
01
1
0902-
274
CLIP; AIR PIPE
H.S.A SYSTEM<6EP> ID=6.35 & 10.0
1-09709-274-1
01
1
0809-0901
274
CLIP; AIR PIPE
H.S.A SYSTEM<6EP> ID=6.35 & 10.0
1-09709-274-1
02
1
0902-
375
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
02
1
0809-0901
388
379
34
386
146
382
148
123
386
149
147
147
383
134
382
149
383
148
150
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
34
NUT; BRKT
M6 FLANGE
0-91180-106-0
02
1
0809-
123
BOLT; PIPE CLIP
M8X25 FLANGE
0-28650-825-0
03
1
0809-
134
CLIP; AIR PIPE
L=350
1-09707-183-0
01
1
0809-
146
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
02
1
0809-
146
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
03
1
0809-
147
BOLT; PIPE CLIP
M8X70 FLANGE
0-28050-870-0
04
1
0809-
148
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
04
1
0809-
149
BRACKET; PIPE CLIP
(A)
8-98090-114-0
01
1
0809-
149
BRACKET; PIPE CLIP
(B)
8-98116-193-0
01
1
0809-
150
NUT; CLIP BRKT
M8 FLANGE
0-91180-108-0
03
1
0809-
379
BRACKET; NYLON TUBE
8-98112-515-1
01
1
0809-
382
CLIP; UPR
ID=10 & 10
1-09709-241-0
04
1
0809-
383
CLIP; LWR
ID=10 & 10
1-09709-241-0
04
1
0809-
386
CLIP; CENTER
ID=10
1-09709-242-0
04
1
0809-
388
SEAL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40
1-72498-022-1
03
1
0809-
