Isuzu WW
▶
TRUCKS
▶
FRR
▶
11350 - FRR(MIDEAST)4H ENG
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶
3-55 — BRAKE PIPING; OIL,REAR
(#63261) — 48 parça
◀

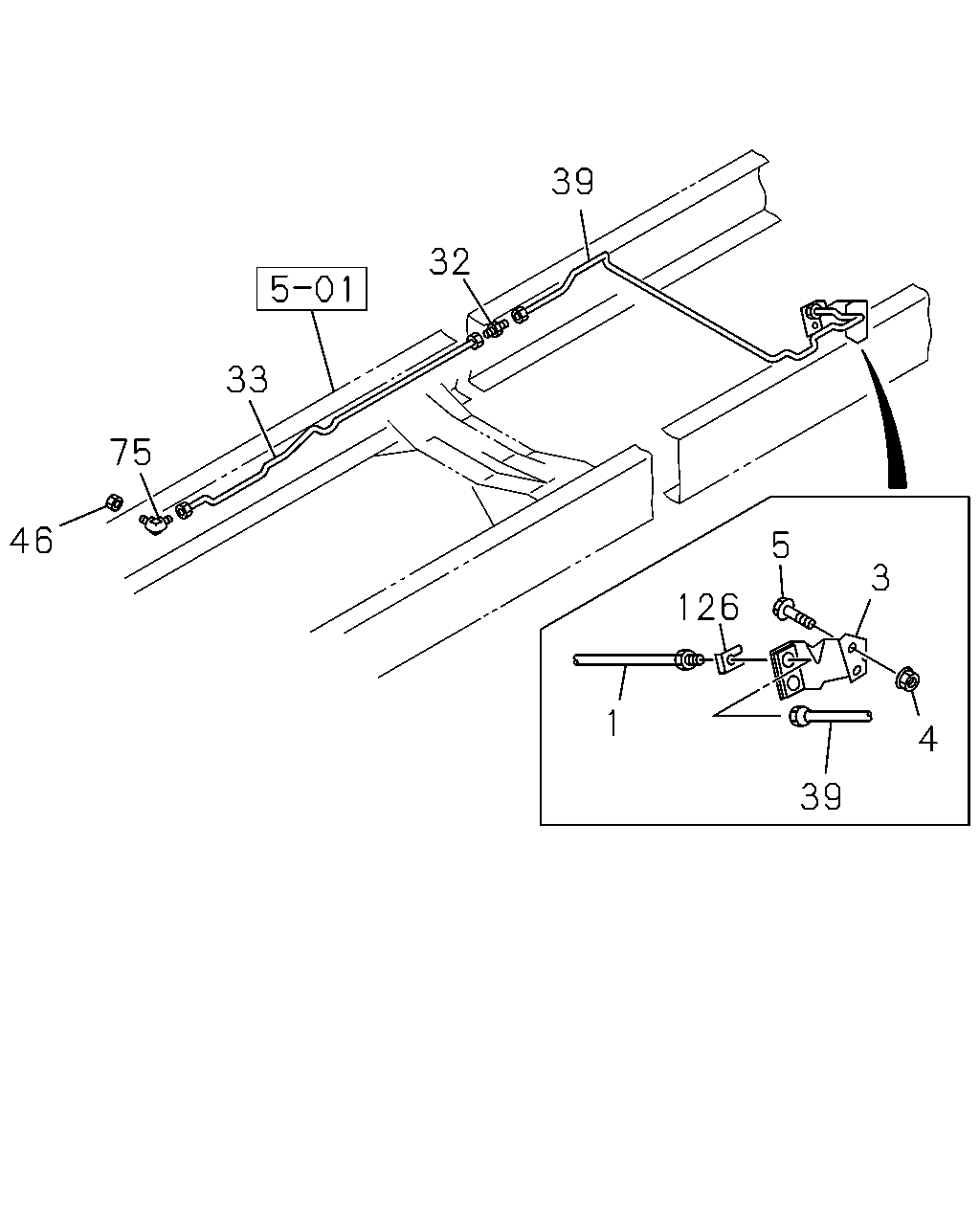

[355A] FRAME SIDE (21 parça)

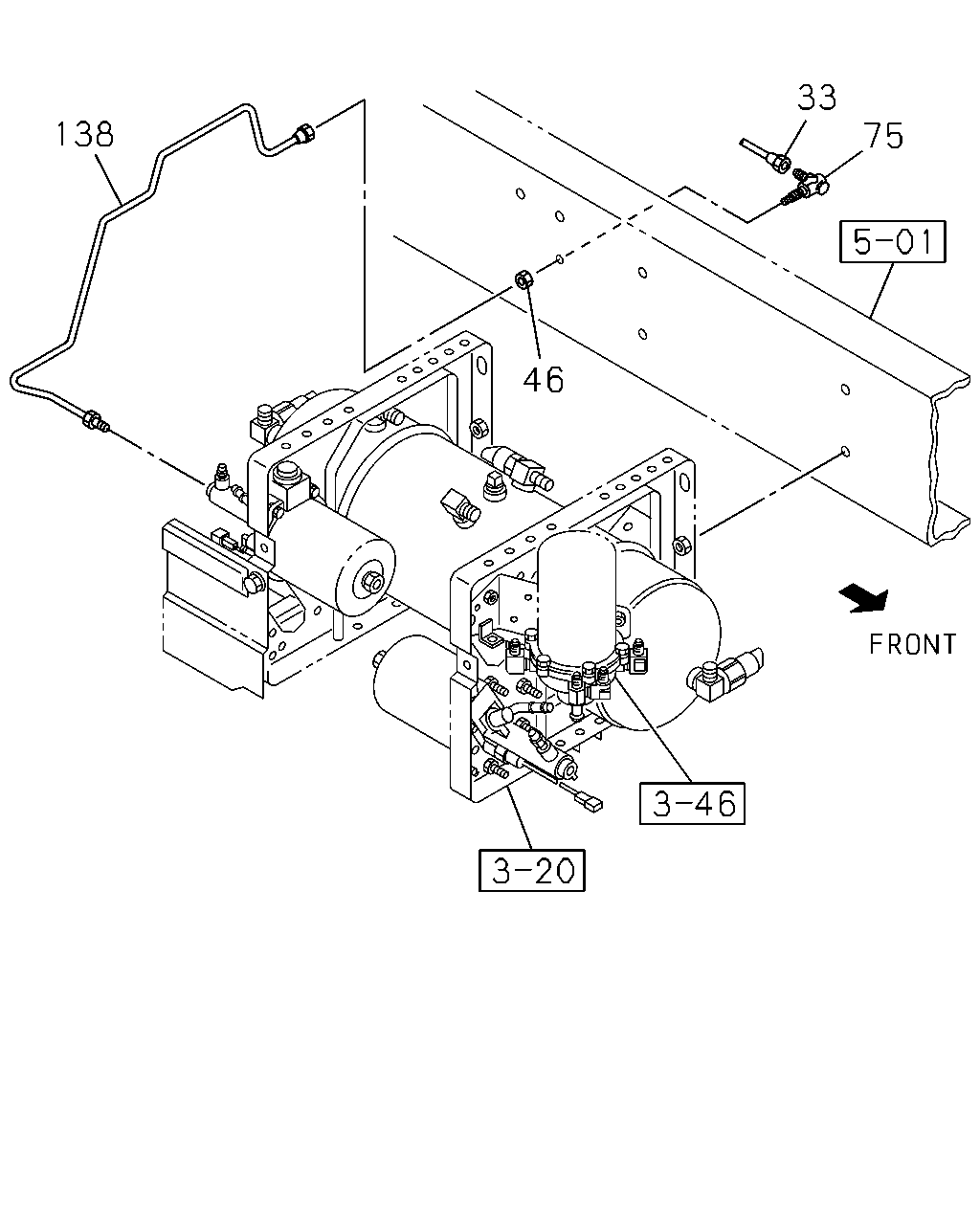

[355A] AIR TANK SIDE (5 parça)

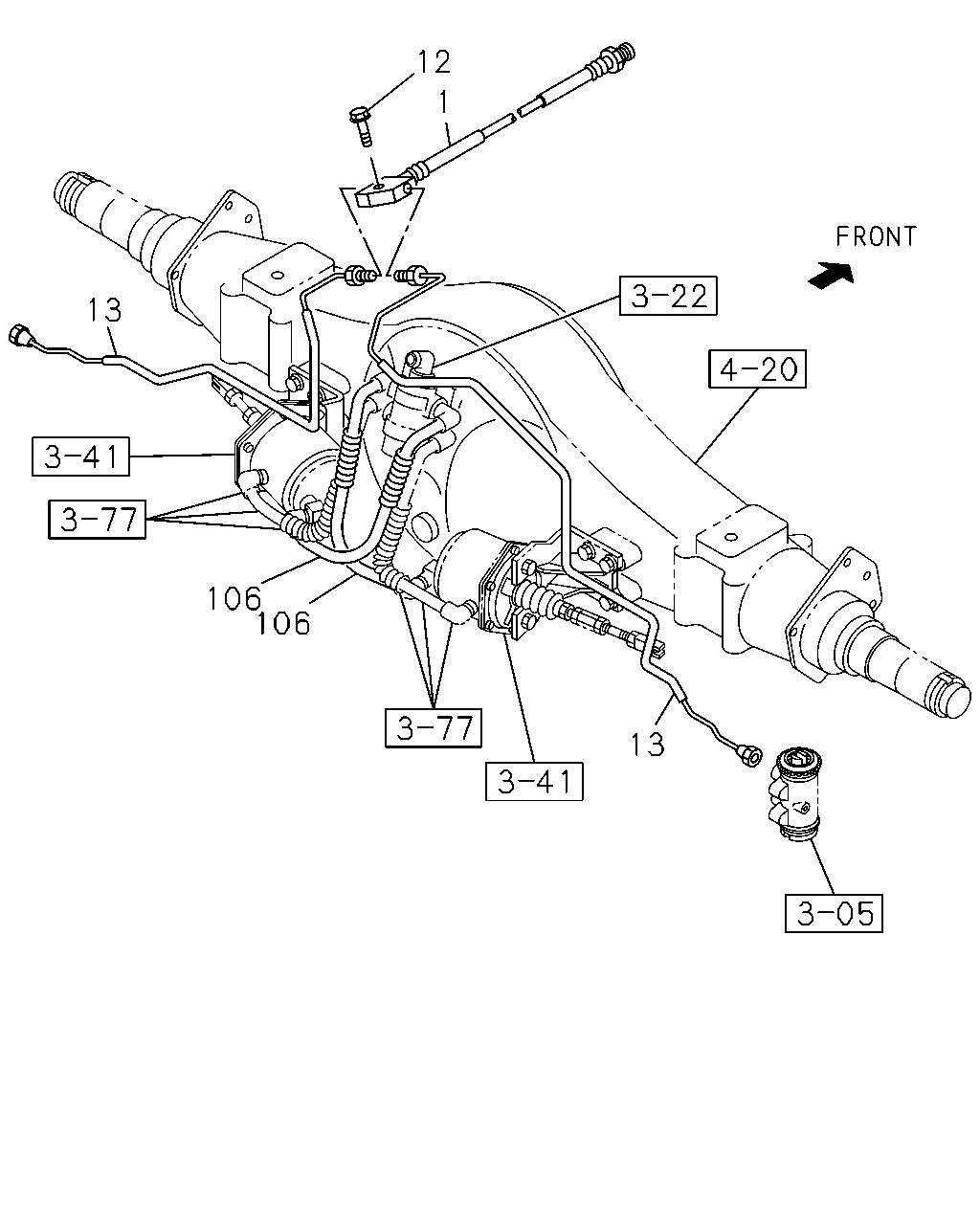

[355A] REAR AXLE SIDE (22 parça)
▶
39
32
33
75
46
5
3
126
1
4
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=485
8-98057-386-1
01
1
0809-1011
1
HOSE; FLEX,RR BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> L=485
8-98057-386-1
01
1
1012-1109
1
HOSE; FLEX,RR BRK
L=485
8-98057-386-1
01
1
1110-
1
HOSE; FLEX,RR BRK
BRAKE ADJUSTER MANUAL<BJR> L=520
8-98175-918-0
01
1
1012-1109
3
BRACKET; FLEX HOSE,RR BRK
BRAKE ADJUSTER MANUAL<BJR>
8-98175-942-0
01
1
1012-1109
3
BRACKET; FLEX HOSE,RR BRK
8-98065-999-2
01
1
0809-1011
3
BRACKET; FLEX HOSE,RR BRK
EXC. BRAKE ADJUSTER MANUAL<BJR>
8-98065-999-2
01
1
1012-1109
3
BRACKET; FLEX HOSE,RR BRK
8-98065-999-2
01
1
1110-
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE
0-91180-108-0
02
1
0809-
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE
0-28650-830-0
02
1
0809-
32
UNION; OIL PIPE
M10 STRAIGHT
0-92107-005-0
02
1
0809-0809
32
UNION; OIL PIPE
M10 STRAIGHT
0-92107-005-0
01
1
0810-
33
PIPE; OIL,UNION TO UNION
L=2270
8-98071-246-0
01
1
0809-1107
33
PIPE; OIL,UNION TO UNION
L=2263
8-98183-300-0
01
1
1108-
39
PIPE; OIL,UNION TO RR FLEX HOSE
BRAKE ADJUSTER MANUAL<BJR> L=2100
8-98175-941-0
01
1
1012-1109
39
PIPE; OIL,UNION TO RR FLEX HOSE
L=1710
8-98106-485-0
01
1
0809-1011
39
PIPE; OIL,UNION TO RR FLEX HOSE
EXC. BRAKE ADJUSTER MANUAL<BJR> L=1710
8-98106-485-0
01
1
1012-1109
39
PIPE; OIL,UNION TO RR FLEX HOSE
L=1710
8-98106-485-0
01
1
1110-
46
NUT; UNION,OIL PIPE
M10 H=8
1-09400-029-0
01
1
0809-
75
UNION; OIL PIPE
M10X2 ELBOW
8-98018-438-0
01
1
0809-
126
CLIP; FLEX HOSE
8-97360-054-0
01
1
0809-
33
138
75
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
PIPE; OIL,UNION TO UNION
L=2270
8-98071-246-0
01
1
0809-1107
33
PIPE; OIL,UNION TO UNION
L=2263
8-98183-300-0
01
1
1108-
46
NUT; UNION,OIL PIPE
M10 H=8
1-09400-029-0
01
1
0809-
75
UNION; OIL PIPE
M10X2 ELBOW
8-98018-438-0
01
1
0809-
138
PIPE; HYDRAULIC UNIT
L=497
8-98108-125-0
01
1
0809-
12
1
13
106
106
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=485
8-98057-386-1
01
1
0809-1011
1
HOSE; FLEX,RR BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> L=485
8-98057-386-1
01
1
1012-1109
1
HOSE; FLEX,RR BRK
L=485
8-98057-386-1
01
1
1110-
1
HOSE; FLEX,RR BRK
BRAKE ADJUSTER MANUAL<BJR> L=520
8-98175-918-0
01
1
1012-1109
12
BOLT; FLEX HOSE TO RR AXLE
M8X35 FLANGE
0-28650-835-0
01
1
0809-1011
12
BOLT; FLEX HOSE TO RR AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR> M8X35 FLANGE
0-28650-835-0
01
1
1012-1109
12
BOLT; FLEX HOSE TO RR AXLE
M8X35 FLANGE
0-28650-835-0
01
1
1110-
13
PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-98029-679-0
01
1
1410-1410
13
PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-98029-680-0
01
1
1410-1410
13
PIPE; BRK,RR AXLE
BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=675
1-47427-105-0
01
1
1012-1109
13
PIPE; BRK,RR AXLE
BRAKE ADJUSTER MANUAL<BJR> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=847
1-47427-106-0
01
1
1012-1109
13
PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-98107-930-0
01
1
0809-1409
13
PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1030
8-98281-559-0
01
1
1410-
13
PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-98107-931-0
01
1
0809-1409
13
PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=645
8-98281-560-0
01
1
1410-
13
PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1115
8-98071-761-0
01
1
0809-1011
13
PIPE; BRK,RR AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1115
8-98071-761-0
01
1
1012-1109
13
PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1115
8-98071-761-0
01
1
1110-
13
PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=738
8-98071-762-0
01
1
0809-1011
13
PIPE; BRK,RR AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=738
8-98071-762-0
01
1
1012-1109
13
PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=738
8-98071-762-0
01
1
1110-
106
TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-98061-971-0
02
1
0809-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
