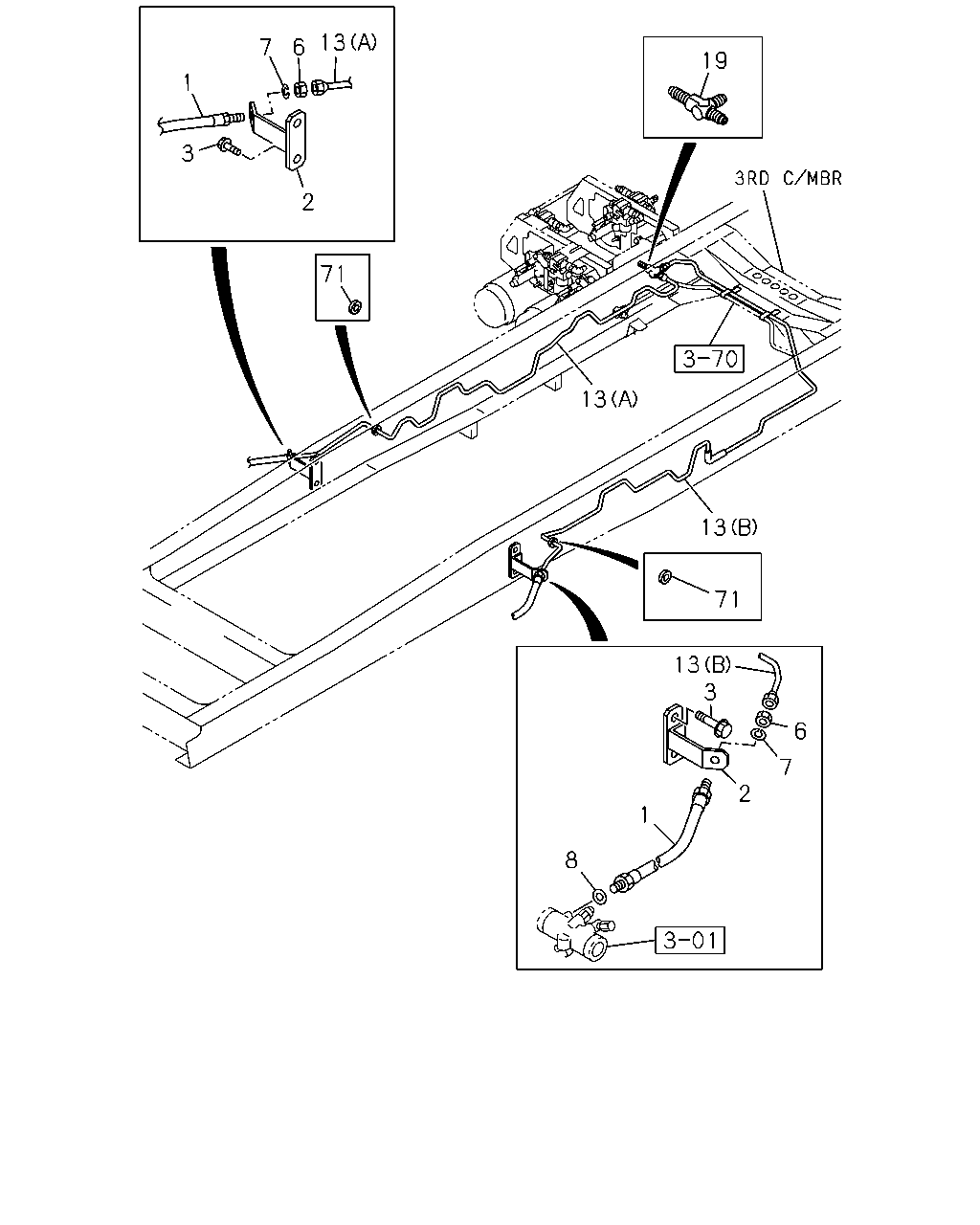

3-52 — BRAKE PIPING; OIL,FRONT (#63257) — 15 parça

13 7 6 19 1 3 2 71 13 13 71 13 3 6 7 2 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,FRT BRK L=610	0-05212-610-0	02	1	1108-
2	BRACKET; FLEX HOSE,FRT BRK	8-98177-524-0	02	1	1108-
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE IDN	0-28650-825-0	04	1	1108-
6	NUT; FLEX HOSE,FRT BRK M12	9-09840-280-0	02	1	1108-
7	WASHER; LK,FLEX HOSE,FRT BRK ID=12.2	0-91510-512-0	02	1	1108-
8	GASKET; FLEX HOSE,FRT BRK ID=9 OD=17	9-09920-472-0	02	1	1108-
13	PIPE; OIL,UNION TO UNION (B) L=3254 SERVICED BY L=3400	1-47428-746-0	01	1	1108-
13	PIPE; OIL,UNION TO UNION (A) L=1606 IDN	8-98185-767-0	01	1	1108-
19	UNION; OIL PIPE M12 3WAY	0-92138-906-0	01	1	1108-
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	1108-

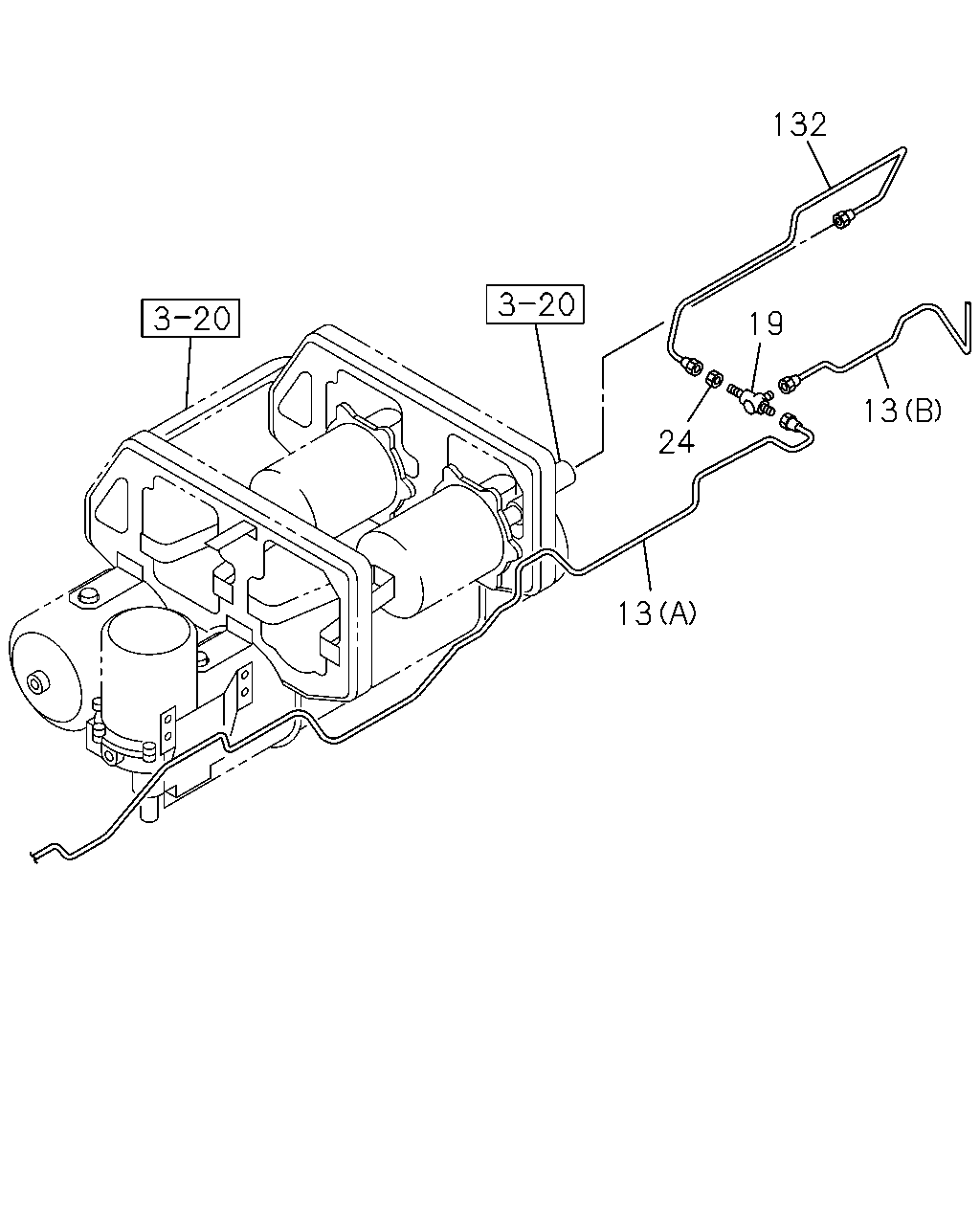

132 19 13 24 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; OIL,UNION TO UNION (B) L=3254 SERVICED BY L=3400	1-47428-746-0	01	1	1108-
13	PIPE; OIL,UNION TO UNION (A) L=1606 IDN	8-98185-767-0	01	1	1108-
19	UNION; OIL PIPE M12 3WAY	0-92138-906-0	01	1	1108-
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1108-
132	PIPE; OIL,BRK,HYD UNIT L=895 SERVICED BY L=900	1-47428-729-0	01	1	1108-
