3-46 — AIR DRYER
(#63256) — 22 parça
◀

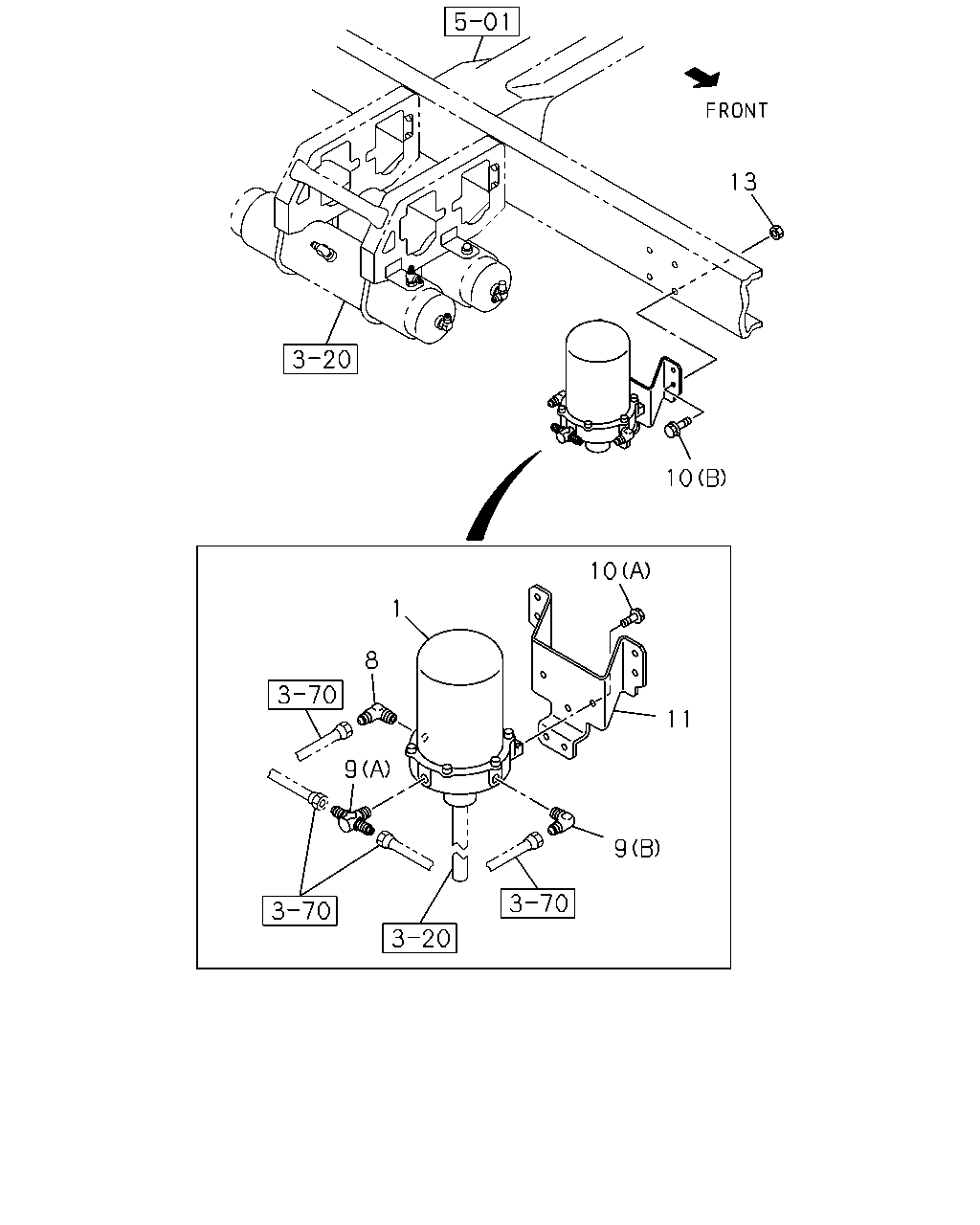

[346A] FIXING (8 parça)

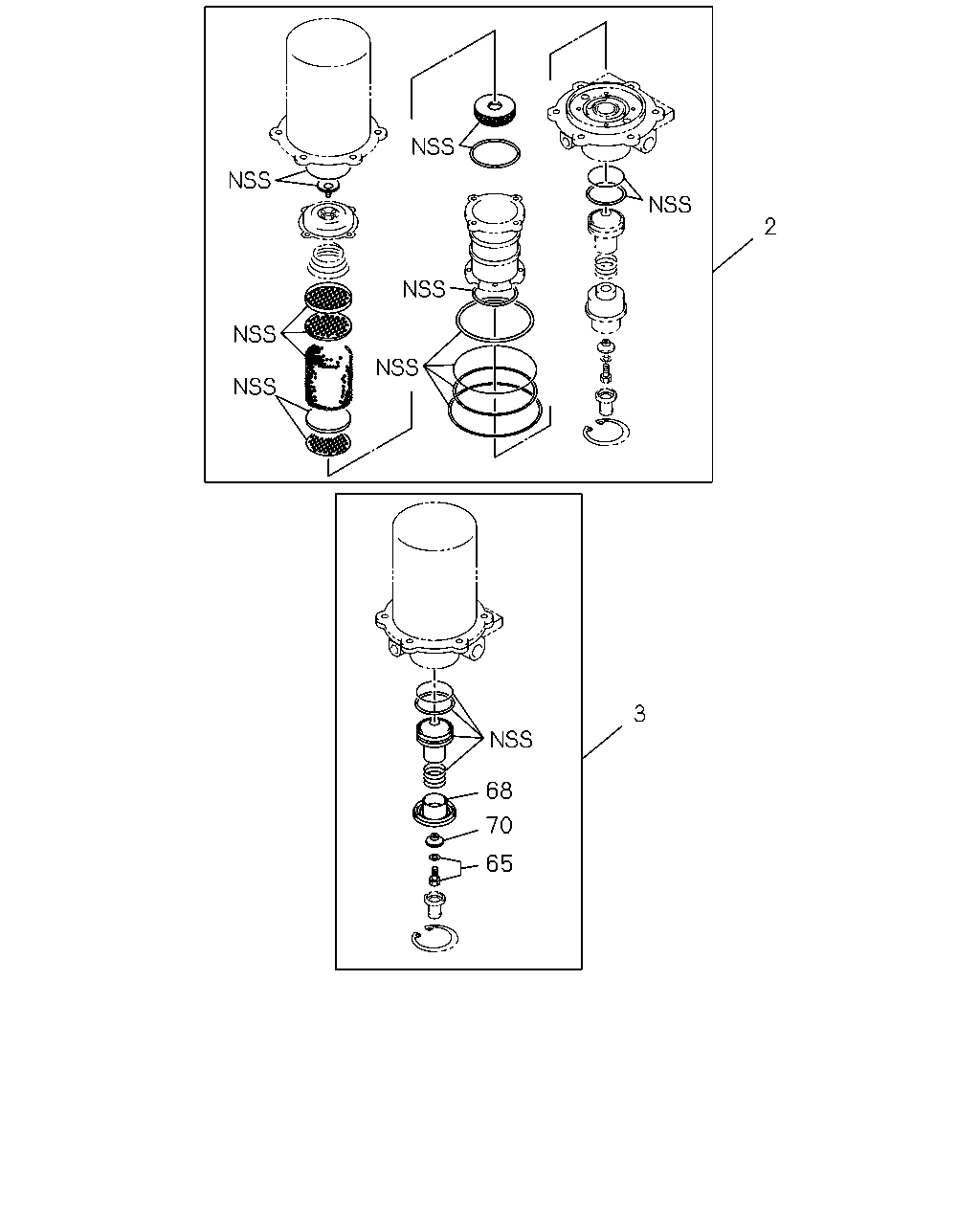

[346A] REPAIR AND PISTON KIT (5 parça)

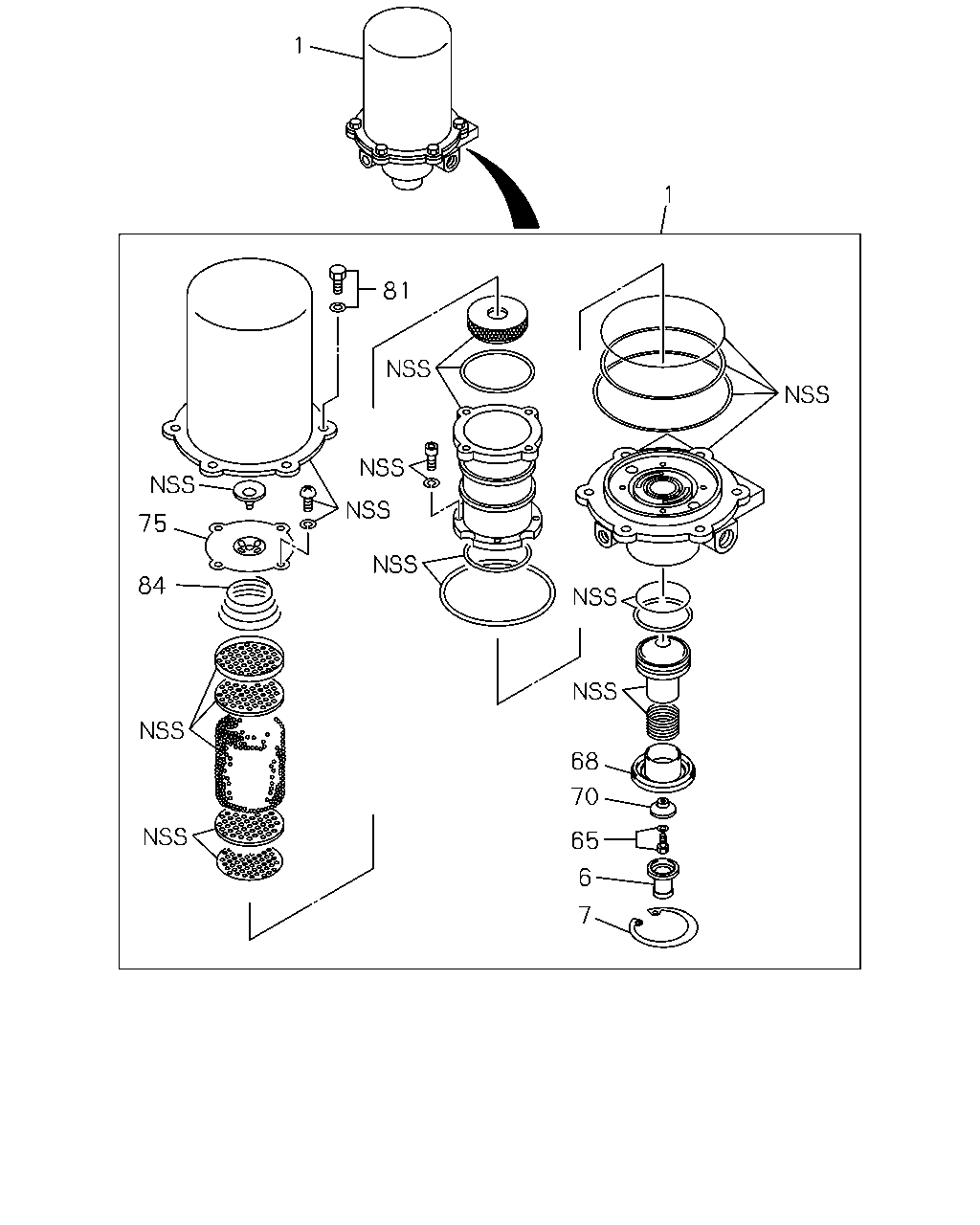

[346A] COMPONENT (9 parça)
▶
13
10
1
8
11
9
9
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-299-1
01
1
1108-
8
CONNECTOR; OUT,AIR DRYER
DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
1108-
9
CONNECTOR; PIPE,AIR DRYER
(A) M12X2 & PT1/4 3WAY
1-09656-229-1
01
1
1108-
9
CONNECTOR; PIPE,AIR DRYER
(B) M22 & R1/2 W/VALVE
1-48320-026-2
01
1
1108-
10
BOLT; AIR DRYER
(A) M10X20 FLANGE IDN
0-28051-020-0
03
1
1108-
10
BOLT; AIR DRYER
(B) M10X35 FLANGE IDN
0-28651-035-0
04
1
1108-
11
BRACKET; AIR DRYER
8-98111-760-0
01
1
1108-
13
NUT; AIR DRYER
M10 FLANGE
0-91180-210-0
04
1
1108-
2
3
68
70
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
1-85576-217-0
01
1
1108-
3
PISTON KIT; AIR DRYER
1-85576-193-0
01
1
1108-
65
BOLT; PURGE VLV
1-48199-393-0
01
1
1108-
68
BODY; VALVE
1-48199-408-0
01
1
1108-
70
VALVE; AIR DRYER
1-48199-105-0
01
1
1108-
1
1
81
75
84
68
70
65
6
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-299-1
01
1
1108-
6
COVER; EXH,AIR DRYER
1-48199-404-0
01
1
1108-
7
RING; SNAP,AIR DRYER
1-48199-403-0
01
1
1108-
65
BOLT; PURGE VLV
1-48199-393-0
01
1
1108-
68
BODY; VALVE
1-48199-408-0
01
1
1108-
70
VALVE; AIR DRYER
1-48199-105-0
01
1
1108-
75
COVER; CASE,AIR DRYER
1-48199-427-0
01
1
1108-
81
BOLT; CASE,AIR DRYER
1-48199-436-0
06
1
1108-
84
SPRING; AIR DRYER
1-48199-425-0
01
1
1108-
