Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#6325) — 322 parça

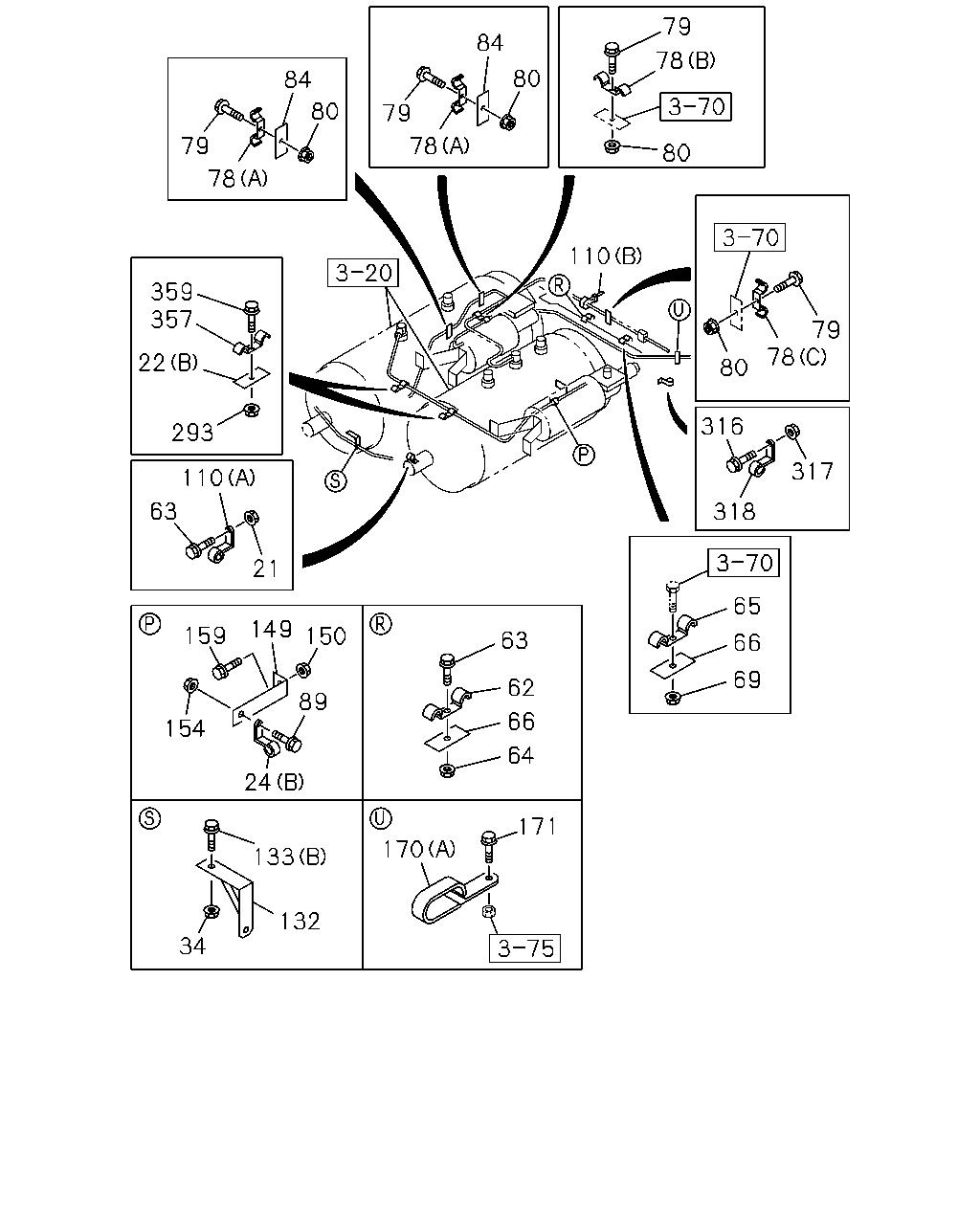

79 84 78 80 84 80 79 79 78 80 78 110 359 357 79 78 22 80 316 293 317 110 63 318 21 65 149 159 150 63 66 69 62 89 66 154 64 24 171 170 133 132 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	NUT; CLIP EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9604-9606
21	NUT; CLIP EXC. CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	01	1	9607-
22	BRACKET; CLIP CONCRETE PUMP<RA5> (B) L=50	1-47475-299-2	02	1	9604-
22	BRACKET; CLIP EXC. CONCRETE PUMP<RA5> (A)	1-47477-514-3	02	1	9604-
24	CLIP; PIPE CONCRETE PUMP<RA5> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9604-
24	CLIP; PIPE MAL5T M/T(Y1K) (A) ID=16 L=20	9-09525-535-0	01	1	9604-
24	CLIP; PIPE MAL6Q M/T(Y1M) (A) ID=16 L=20	9-09525-535-0	02	1	9604-9904
24	CLIP; PIPE MAG6W M/T(X8B),MAL6Q M/T(Y1M) (A) ID=16 L=20	9-09525-535-0	02	1	9905-
34	NUT; BRKT CONCRETE PUMP<RA5> M10	9-09110-510-0	02	1	9604-9606
34	NUT; BRKT CONCRETE PUMP<RA5> M10 FLANGE	0-91150-210-0	02	1	9607-
62	CLIP; AIR PIPE CONCRETE PUMP<RA5> ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	9604-
63	BOLT; CLIP CONCRETE PUMP<RA5> M8X16 FLANGE	0-28080-816-0	01	1	9604-9606
63	BOLT; CLIP CONCRETE PUMP<RA5> M8X20 FLANGE	0-28680-820-0	01	1	9607-
63	BOLT; CLIP EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	01	1	9604-9606
63	BOLT; CLIP EXC. CONCRETE PUMP<RA5> M8X30 FLANGE	0-28680-830-0	01	1	9607-
64	NUT; CLIP CONCRETE PUMP<RA5> M8	9-09110-508-0	01	1	9604-9606
64	NUT; CLIP CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	01	1	9607-
65	CLIP; AIR PIPE CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7> ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	9604-0005
65	CLIP; AIR PIPE CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7> ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	0006-
65	CLIP; AIR PIPE CONCRETE PUMP<RA5> ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	0006-
66	BRACKET; CLIP,AIR PIPE CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7> L=50	1-47475-299-2	01	1	9604-0005
66	BRACKET; CLIP,AIR PIPE CONCRETE PUMP<RA5> L=50	1-47475-299-2	01	1	9604-0005
66	BRACKET; CLIP,AIR PIPE CONCRETE PUMP<RA5> L=50	1-47475-299-2	02	1	0006-
66	BRACKET; CLIP,AIR PIPE CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7> L=50	1-47475-299-2	01	1	0006-
69	NUT; CLIP,AIR PIPE CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7> M8	9-09110-508-0	01	1	9604-9606
69	NUT; CLIP,AIR PIPE CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9607-0005
69	NUT; CLIP,AIR PIPE CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0006-
69	NUT; CLIP,AIR PIPE CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	01	1	0006-
78	CLIP; AIR PIPE AIR DRYER<PS7> CONCRETE PUMP<RA5> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9604-
78	CLIP; AIR PIPE AIR DRYER<PS7> CONCRETE PUMP<RA5> (C) ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	9604-
78	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (D) ID=16 L=28	9-09525-556-0	01	1	9604-
78	CLIP; AIR PIPE CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9604-
78	CLIP; AIR PIPE CONCRETE PUMP<RA5> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9604-
79	BOLT; PIPE CLIP AIR DRYER<PS7> CONCRETE PUMP<RA5> M8X16 FLANGE	0-28080-816-0	01	1	9604-9606
79	BOLT; PIPE CLIP AIR DRYER<PS7> CONCRETE PUMP<RA5> M8X20 FLANGE	0-28680-820-0	01	1	9607-
79	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28080-820-0	01	1	9604-9606
79	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	9607-
79	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X16 FLANGE	0-28080-816-0	02	1	9604-9606
79	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X20 FLANGE	0-28680-820-0	02	1	9607-
80	NUT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8	9-09110-508-0	01	1	9604-9606
80	NUT; CLIP,AIR PIPE AIR DRYER<PS7> CONCRETE PUMP<RA5> M8	9-09110-508-0	01	1	9604-9606
80	NUT; CLIP,AIR PIPE CONCRETE PUMP<RA5> M8	9-09110-508-0	01	1	9604-9606
80	NUT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9607-
80	NUT; CLIP,AIR PIPE AIR DRYER<PS7> CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	01	1	9607-
80	NUT; CLIP,AIR PIPE CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9604-9606
80	NUT; CLIP,AIR PIPE CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	02	1	9607-
84	BRACKET; PIPE CLIP CONCRETE PUMP<RA5> L=50	1-47475-299-2	01	1	9604-
89	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	01	1	9604-9606
89	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X25 FLANGE	0-28680-825-0	01	1	9607-
89	BOLT; PIPE CLIP GOVERNOR CONTROL<W69> M8X16 FLANGE	0-28080-816-0	01	1	9604-9606
89	BOLT; PIPE CLIP GOVERNOR CONTROL<W69> M8X20 FLANGE	0-28680-820-0	01	1	9607-9904
89	BOLT; PIPE CLIP GOVERNOR CONTROL<W69> M8X35 FLANGE	0-28080-835-0	01	1	9604-9606
89	BOLT; PIPE CLIP GOVERNOR CONTROL<W69> M8X40 FLANGE	0-28680-840-0	01	1	9607-9904
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	05	1	9604-9610
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	07	1	9611-
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CONCRETE PUMP<RA5> (B) L=250	1-09707-126-0	10	1	9604-
110	CLIP; BAND,NYLON TUBE EXC. CONCRETE PUMP<RA5> (A) ID=28 L=40	1-09700-995-1	01	1	9604-9904
110	CLIP; BAND,NYLON TUBE EXC. CONCRETE PUMP<RA5> (C) ID=25 L=40	1-09700-215-1	01	1	9905-
110	CLIP; BAND,NYLON TUBE EXC. CONCRETE PUMP<RA5> (B) L=250	1-09707-126-0	17	1	9604-
132	BRACKET; PIPE CLIP CONCRETE PUMP<RA5>	1-47477-153-0	01	1	9604-
133	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9604-
133	BOLT; BRKT CONCRETE PUMP<RA5> (B) M10X25 FLANGE	0-28081-025-0	02	1	9604-9606
133	BOLT; BRKT CONCRETE PUMP<RA5> (B) M10X30 FLANGE	0-28681-030-0	02	1	9607-
149	BRACKET; PIPE CLIP CONCRETE PUMP<RA5> L=95	1-82699-085-0	01	1	9604-
150	NUT; CLIP BRKT CONCRETE PUMP<RA5> M8	9-09110-508-0	03	1	9604-9606
150	NUT; CLIP BRKT CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	03	1	9607-
154	NUT; PIPE CLIP CONCRETE PUMP<RA5> M8	9-09110-508-0	02	1	9604-9606
154	NUT; PIPE CLIP CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	02	1	9607-
159	BOLT; CLIP BRKT CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	01	1	9604-9606
159	BOLT; CLIP BRKT CONCRETE PUMP<RA5> M8X25 FLANGE	0-28680-825-0	01	1	9607-
170	CLIP; NYLON TUBE AIR DRYER<PS7> CONCRETE PUMP<RA5> (A) ID=9X2 L=16	9-09534-825-0	01	1	9604-
170	CLIP; NYLON TUBE CONCRETE PUMP<RA5> (B) L=250	1-09707-126-0	10	1	9604-9604
170	CLIP; NYLON TUBE CONCRETE PUMP<RA5> (B) L=250	1-09707-126-0	12	1	9605-
170	CLIP; NYLON TUBE CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7> (B) L=250	1-09707-126-0	01	1	9604-
171	BOLT; TUBE CLIP AIR DRYER<PS7> CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	01	1	9604-9606
171	BOLT; TUBE CLIP AIR DRYER<PS7> CONCRETE PUMP<RA5> M8X25 FLANGE	0-28680-825-0	01	1	9607-
293	NUT; CLIP M8	9-09110-508-0	01	1	9604-9606
293	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9607-
293	NUT; CLIP CONCRETE PUMP<RA5> M8	9-09110-508-0	05	1	9604-9606
293	NUT; CLIP CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	05	1	9607-
316	BOLT; CLIP AIR DRYER<PS7> CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	01	1	9604-9606
316	BOLT; CLIP AIR DRYER<PS7> CONCRETE PUMP<RA5> M8X30 FLANGE	0-28680-830-0	01	1	9607-
316	BOLT; CLIP EXC. CONCRETE PUMP<RA5> M8X35 FLANGE	0-28080-835-0	01	1	9604-9606
316	BOLT; CLIP EXC. CONCRETE PUMP<RA5> M8X35 FLANGE	0-28680-835-0	01	1	9607-
317	NUT; CLIP AIR DRYER<PS7> CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9604-9606
317	NUT; CLIP AIR DRYER<PS7> CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	01	1	9607-
318	CLIP; AIR PIPE AIR DRYER<PS7> CONCRETE PUMP<RA5> ID=6 H=20 L=20	1-09700-603-0	01	1	9604-
357	BOLT; CLIP FIX CONCRETE PUMP<RA5> CLIP ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9604-
357	BOLT; CLIP FIX CONCRETE PUMP<RA5> CLIP ID=11 & 13 L=21.5 & 21.5	1-09700-688-0	01	1	9604-
359	BOLT; CLIP CONCRETE PUMP<RA5> M8X16 FLANGE	0-28080-816-0	02	1	9604-9606
359	BOLT; CLIP CONCRETE PUMP<RA5> M8X20 FLANGE	0-28680-820-0	02	1	9607-

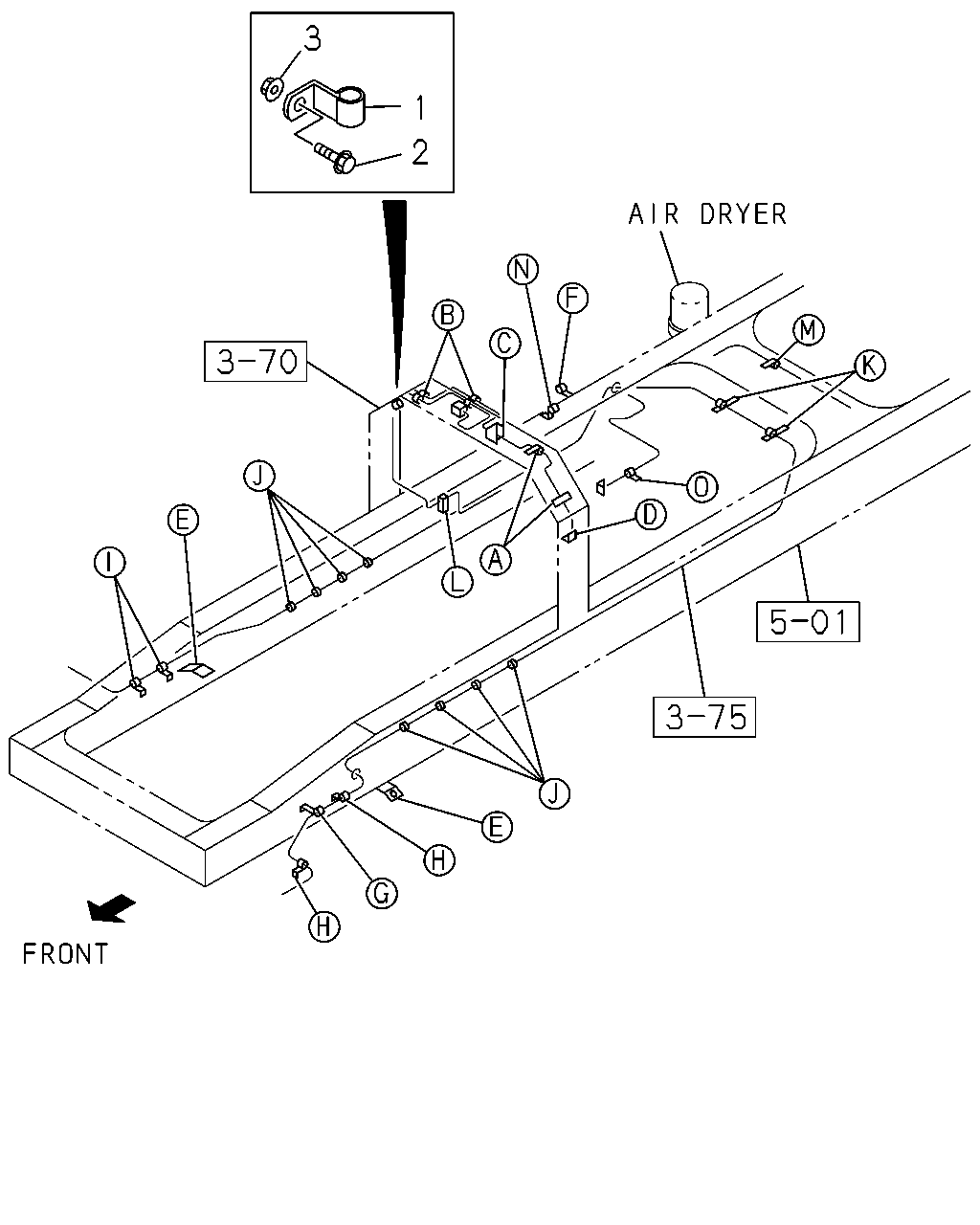

3 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	9905-
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	01	1	9905-
3	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	9905-

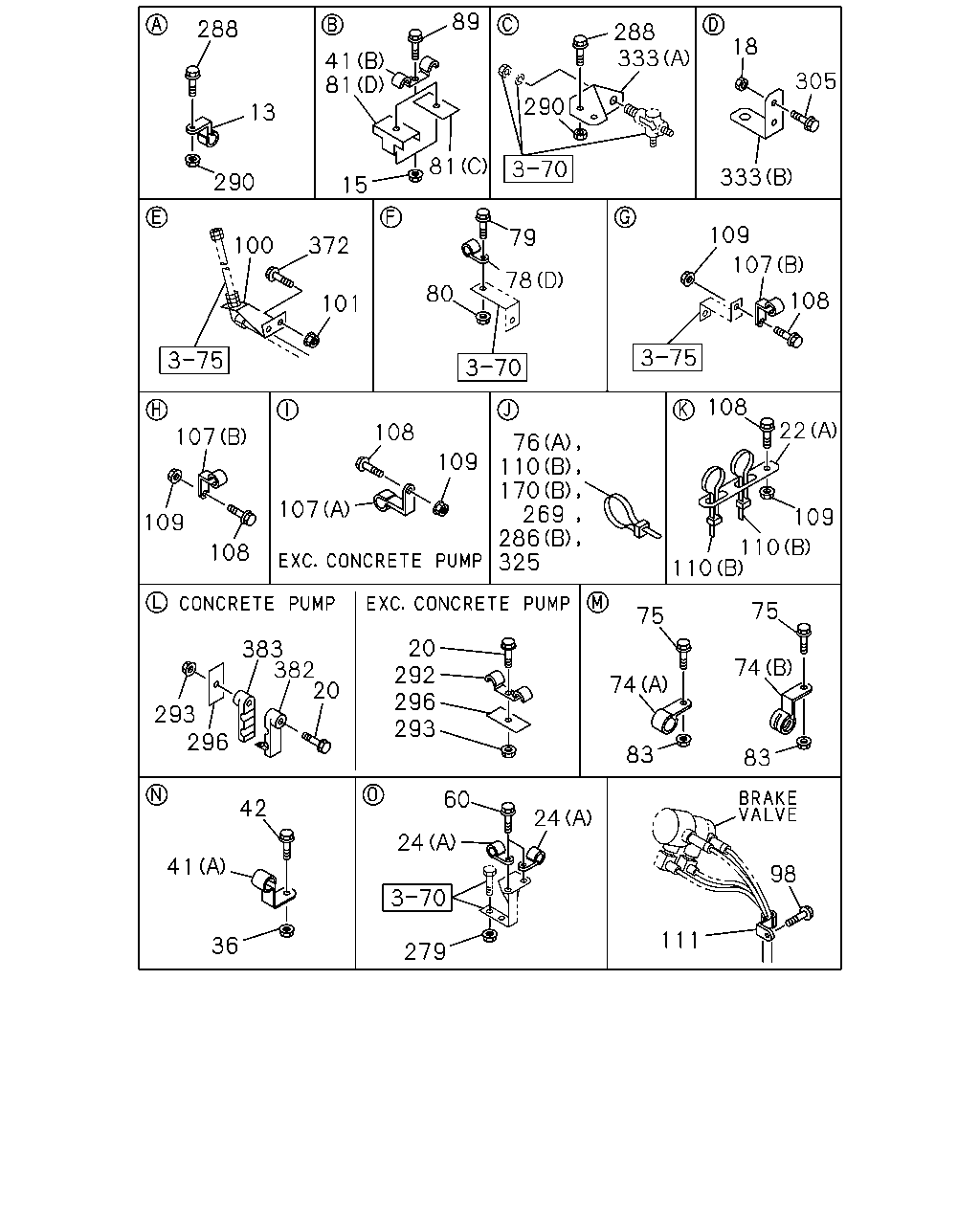

89 288 288 333 18 41 81 305 290 13 81 333 290 15 109 79 100 372 107 78 80 108 101 108 22 108 107 76 110 170 269 286 325 109 107 109 109 110 110 108 75 75 20 292 296 293 383 382 20 74 74 293 296 83 83 60 42 24 24 41 98 111 36 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	9604-9904
13	CLIP; AIR PIPE EXC. GOVERNOR CONTROL<W69> ID=6 H=20 L=20	1-09700-603-0	01	1	9604-9904
13	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	9905-0001
13	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	9905-0001
13	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	02	1	0002-
15	NUT; PIPE CLIP GOVERNOR CONTROL<W69> M8	9-09110-508-0	02	1	9604-9606
15	NUT; PIPE CLIP GOVERNOR CONTROL<W69> M8 FLANGE	0-91150-108-0	02	1	9607-9904
18	NUT; CLIP M8	9-09110-508-0	02	1	9604-9606
18	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9607-
20	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9604-9606
20	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9607-
20	BOLT; CLIP CONCRETE PUMP<RA5> M8X50 FLANGE	0-28080-850-0	01	1	9604-
20	BOLT; CLIP EXC. CONCRETE PUMP<RA5> M8X16 FLANGE	0-28080-816-0	01	1	9604-9606
20	BOLT; CLIP EXC. CONCRETE PUMP<RA5> M8X20 FLANGE	0-28680-820-0	01	1	9607-
22	BRACKET; CLIP CONCRETE PUMP<RA5> (B) L=50	1-47475-299-2	02	1	9604-
22	BRACKET; CLIP EXC. CONCRETE PUMP<RA5> (A)	1-47477-514-3	02	1	9604-
24	CLIP; PIPE CONCRETE PUMP<RA5> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9604-
24	CLIP; PIPE MAL5T M/T(Y1K) (A) ID=16 L=20	9-09525-535-0	01	1	9604-
24	CLIP; PIPE MAL6Q M/T(Y1M) (A) ID=16 L=20	9-09525-535-0	02	1	9604-9904
24	CLIP; PIPE MAG6W M/T(X8B),MAL6Q M/T(Y1M) (A) ID=16 L=20	9-09525-535-0	02	1	9905-
36	NUT; CLIP AIR DRYER<PS7> CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9604-9606
36	NUT; CLIP AIR DRYER<PS7> CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	01	1	9607-
41	CLIP; AIR PIPE AIR DRYER<PS7> CONCRETE PUMP<RA5> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9604-
41	CLIP; AIR PIPE GOVERNOR CONTROL<W69> (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9604-9904
42	BOLT; CLIP,AIR PIPE AIR DRYER<PS7> CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	01	1	9604-9606
42	BOLT; CLIP,AIR PIPE AIR DRYER<PS7> CONCRETE PUMP<RA5> M8X30 FLANGE	0-28680-830-0	01	1	9607-
60	BOLT; CLIP FIX MAL5T M/T(Y1K) M8X20 FLANGE	0-28080-820-0	01	1	9604-9606
60	BOLT; CLIP FIX MAL5T M/T(Y1K) M8X25 FLANGE	0-28680-825-0	01	1	9607-
60	BOLT; CLIP FIX MAL6Q M/T(Y1M) M8X20 FLANGE	0-28080-820-0	02	1	9604-9606
60	BOLT; CLIP FIX MAL6Q M/T(Y1M) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904
60	BOLT; CLIP FIX MAG6W M/T(X8B),MAL6Q M/T(Y1M) M8X25 FLANGE	0-28680-825-0	02	1	9905-
74	CLIP; NYLON TUBE CONCRETE PUMP<RA5> (A) ID=31 L=30	1-09700-969-0	02	1	9604-9604
74	CLIP; NYLON TUBE CONCRETE PUMP<RA5> (B) ID=35 H=45 L=33	1-09701-047-0	01	1	9604-
75	BOLT; CLIP CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	03	1	9604-9604
75	BOLT; CLIP CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	01	1	9605-9606
75	BOLT; CLIP CONCRETE PUMP<RA5> M8X25 FLANGE	0-28680-825-0	01	1	9607-
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	08	1	9604-
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=350	8-94152-256-1	01	1	9604-
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) L=250	1-09707-126-0	02	1	9604-
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	01	1	9604-
76	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3	8-94426-175-0	01	1	9605-
78	CLIP; AIR PIPE AIR DRYER<PS7> CONCRETE PUMP<RA5> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9604-
78	CLIP; AIR PIPE AIR DRYER<PS7> CONCRETE PUMP<RA5> (C) ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	9604-
78	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (D) ID=16 L=28	9-09525-556-0	01	1	9604-
78	CLIP; AIR PIPE CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9604-
78	CLIP; AIR PIPE CONCRETE PUMP<RA5> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9604-
79	BOLT; PIPE CLIP AIR DRYER<PS7> CONCRETE PUMP<RA5> M8X16 FLANGE	0-28080-816-0	01	1	9604-9606
79	BOLT; PIPE CLIP AIR DRYER<PS7> CONCRETE PUMP<RA5> M8X20 FLANGE	0-28680-820-0	01	1	9607-
79	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28080-820-0	01	1	9604-9606
79	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	9607-
79	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X16 FLANGE	0-28080-816-0	02	1	9604-9606
79	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X20 FLANGE	0-28680-820-0	02	1	9607-
80	NUT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8	9-09110-508-0	01	1	9604-9606
80	NUT; CLIP,AIR PIPE AIR DRYER<PS7> CONCRETE PUMP<RA5> M8	9-09110-508-0	01	1	9604-9606
80	NUT; CLIP,AIR PIPE CONCRETE PUMP<RA5> M8	9-09110-508-0	01	1	9604-9606
80	NUT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9607-
80	NUT; CLIP,AIR PIPE AIR DRYER<PS7> CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	01	1	9607-
80	NUT; CLIP,AIR PIPE CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9604-9606
80	NUT; CLIP,AIR PIPE CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	02	1	9607-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-79996-133-2	01	1	9604-
81	BRACKET; CLIP GOVERNOR CONTROL<W69> (C) L=50	1-47475-299-2	01	1	9604-9904
81	BRACKET; CLIP GOVERNOR CONTROL<W69> (D)	1-47475-427-1	01	1	9604-9904
81	BRACKET; CLIP SPRING BRAKE(SU9) (A)	1-79996-127-2	01	1	9604-
83	NUT; CLIP CONCRETE PUMP<RA5> M8	9-09110-508-0	03	1	9604-9604
83	NUT; CLIP CONCRETE PUMP<RA5> M8	9-09110-508-0	01	1	9605-9606
83	NUT; CLIP CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	01	1	9607-
89	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	01	1	9604-9606
89	BOLT; PIPE CLIP CONCRETE PUMP<RA5> M8X25 FLANGE	0-28680-825-0	01	1	9607-
89	BOLT; PIPE CLIP GOVERNOR CONTROL<W69> M8X16 FLANGE	0-28080-816-0	01	1	9604-9606
89	BOLT; PIPE CLIP GOVERNOR CONTROL<W69> M8X20 FLANGE	0-28680-820-0	01	1	9607-9904
89	BOLT; PIPE CLIP GOVERNOR CONTROL<W69> M8X35 FLANGE	0-28080-835-0	01	1	9604-9606
89	BOLT; PIPE CLIP GOVERNOR CONTROL<W69> M8X40 FLANGE	0-28680-840-0	01	1	9607-9904
98	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	01	1	9604-9606
98	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M8X30 FLANGE	0-28680-830-0	01	1	9607-
100	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-369-1	01	1	9604-9604
100	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-770-0	01	1	9605-
100	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-365-0	01	1	9604-
101	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-508-0	04	1	9604-9606
101	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	04	1	9607-
107	CLIP; NYLON TUBE (B) ID=35 H=45 L=33	1-09701-047-0	03	1	9604-9904
107	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	03	1	9905-
107	CLIP; NYLON TUBE CONCRETE PUMP<RA5> (D) D=43	1-09700-703-0	01	1	9604-9604
107	CLIP; NYLON TUBE CONCRETE PUMP<RA5> (C) ID=12 H=24 L=20	1-09700-605-0	02	1	9612-
107	CLIP; NYLON TUBE EXC. CONCRETE PUMP<RA5> (A) ID=31.5 H=23 L=25	1-09701-017-0	02	1	9604-9904
107	CLIP; NYLON TUBE EXC. CONCRETE PUMP<RA5> (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	9905-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	03	1	9604-9606
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	03	1	9607-
108	BOLT; TUBE CLIP CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	01	1	9604-9604
108	BOLT; TUBE CLIP EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	04	1	9604-9606
108	BOLT; TUBE CLIP EXC. CONCRETE PUMP<RA5> M8X30 FLANGE	0-28680-830-0	02	1	9607-
109	NUT; TUBE CLIP M8	9-09110-408-0	03	1	9604-9606
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	03	1	9607-
109	NUT; TUBE CLIP CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9604-9604
109	NUT; TUBE CLIP EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	04	1	9604-9606
109	NUT; TUBE CLIP EXC. CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	02	1	9607-
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	05	1	9604-9610
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	07	1	9611-
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CONCRETE PUMP<RA5> (B) L=250	1-09707-126-0	10	1	9604-
110	CLIP; BAND,NYLON TUBE EXC. CONCRETE PUMP<RA5> (A) ID=28 L=40	1-09700-995-1	01	1	9604-9904
110	CLIP; BAND,NYLON TUBE EXC. CONCRETE PUMP<RA5> (C) ID=25 L=40	1-09700-215-1	01	1	9905-
110	CLIP; BAND,NYLON TUBE EXC. CONCRETE PUMP<RA5> (B) L=250	1-09707-126-0	17	1	9604-
111	CLIP; AIR PIPE EXC. CONCRETE PUMP<RA5> ID=35 L=33	1-09700-945-0	01	1	9604-
170	CLIP; NYLON TUBE AIR DRYER<PS7> CONCRETE PUMP<RA5> (A) ID=9X2 L=16	9-09534-825-0	01	1	9604-
170	CLIP; NYLON TUBE CONCRETE PUMP<RA5> (B) L=250	1-09707-126-0	10	1	9604-9604
170	CLIP; NYLON TUBE CONCRETE PUMP<RA5> (B) L=250	1-09707-126-0	12	1	9605-
170	CLIP; NYLON TUBE CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7> (B) L=250	1-09707-126-0	01	1	9604-
269	CLIP; BAND,NYLON TUBE WHEEL BASE 4600MM(46W) EXC. CONCRETE PUMP<RA5> L=250	1-09707-126-0	13	1	9604-
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5400MM(54W) L=250	1-09707-126-0	14	1	9604-
279	NUT; BRKT M10 FLANGE	0-91150-110-0	02	1	9604-9606
279	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9607-
279	NUT; BRKT EXC. CONCRETE PUMP<RA5> M8	9-09110-508-0	02	1	9604-9606
279	NUT; BRKT EXC. CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	02	1	9607-
286	CLIP; NYLON TUBE CONCRETE PUMP<RA5> (B) L=250	1-09707-126-0	02	1	9604-
286	CLIP; NYLON TUBE EXC. CONCRETE PUMP<RA5> (A) L=250	5-09707-030-1	01	1	9604-
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28080-820-0	03	1	9604-9606
288	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	03	1	9607-0001
288	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	04	1	0002-
288	BOLT; CLIP,AIR PIPE EXC. GOVERNOR CONTROL<W69> M8X20 FLANGE	0-28080-820-0	01	1	9604-9606
288	BOLT; CLIP,AIR PIPE EXC. GOVERNOR CONTROL<W69> M8X25 FLANGE	0-28680-825-0	01	1	9607-9904
288	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	01	1	9905-0001
290	NUT; CLIP,AIR PIPE M8	9-09110-508-0	03	1	9604-9606
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	03	1	9607-9904
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	9905-0001
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	9905-0001
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	0002-
290	NUT; CLIP,AIR PIPE EXC. GOVERNOR CONTROL<W69> M8	9-09110-508-0	01	1	9604-9606
290	NUT; CLIP,AIR PIPE EXC. GOVERNOR CONTROL<W69> M8 FLANGE	0-91150-108-0	01	1	9607-9904
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9604-9904
292	CLIP; AIR PIPE EXC. CONCRETE PUMP<RA5> ID=7 & 7 L=15 & 15	1-09700-652-0	01	1	9604-9904
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9905-
292	CLIP; AIR PIPE EXC. CONCRETE PUMP<RA5> ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9905-
293	NUT; CLIP M8	9-09110-508-0	01	1	9604-9606
293	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9607-
293	NUT; CLIP CONCRETE PUMP<RA5> M8	9-09110-508-0	05	1	9604-9606
293	NUT; CLIP CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	05	1	9607-
296	BRACKET; CLIP L=50	1-47475-299-2	01	1	9604-
296	BRACKET; CLIP EXC. CONCRETE PUMP<RA5> L=50	1-47475-299-2	01	1	9604-
305	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	02	1	9604-9606
305	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-
325	CLIP; AIR PIPE CONCRETE PUMP<RA5> L=250	1-09707-126-0	03	1	9604-
333	BRACKET; BRK AIR PIPE (A)	1-47477-254-0	01	1	9604-9702
333	BRACKET; BRK AIR PIPE (A)	1-47477-818-0	01	1	9703-
333	BRACKET; BRK AIR PIPE (B)	1-47477-337-1	01	1	9604-
372	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	04	1	9604-9606
372	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	04	1	9607-
382	CLIP; UPR CONCRETE PUMP<RA5> ID=10 & 10	1-09709-241-0	01	1	9604-
383	CLIP; LWR CONCRETE PUMP<RA5> ID=6 & 6	1-09709-244-0	01	1	9604-

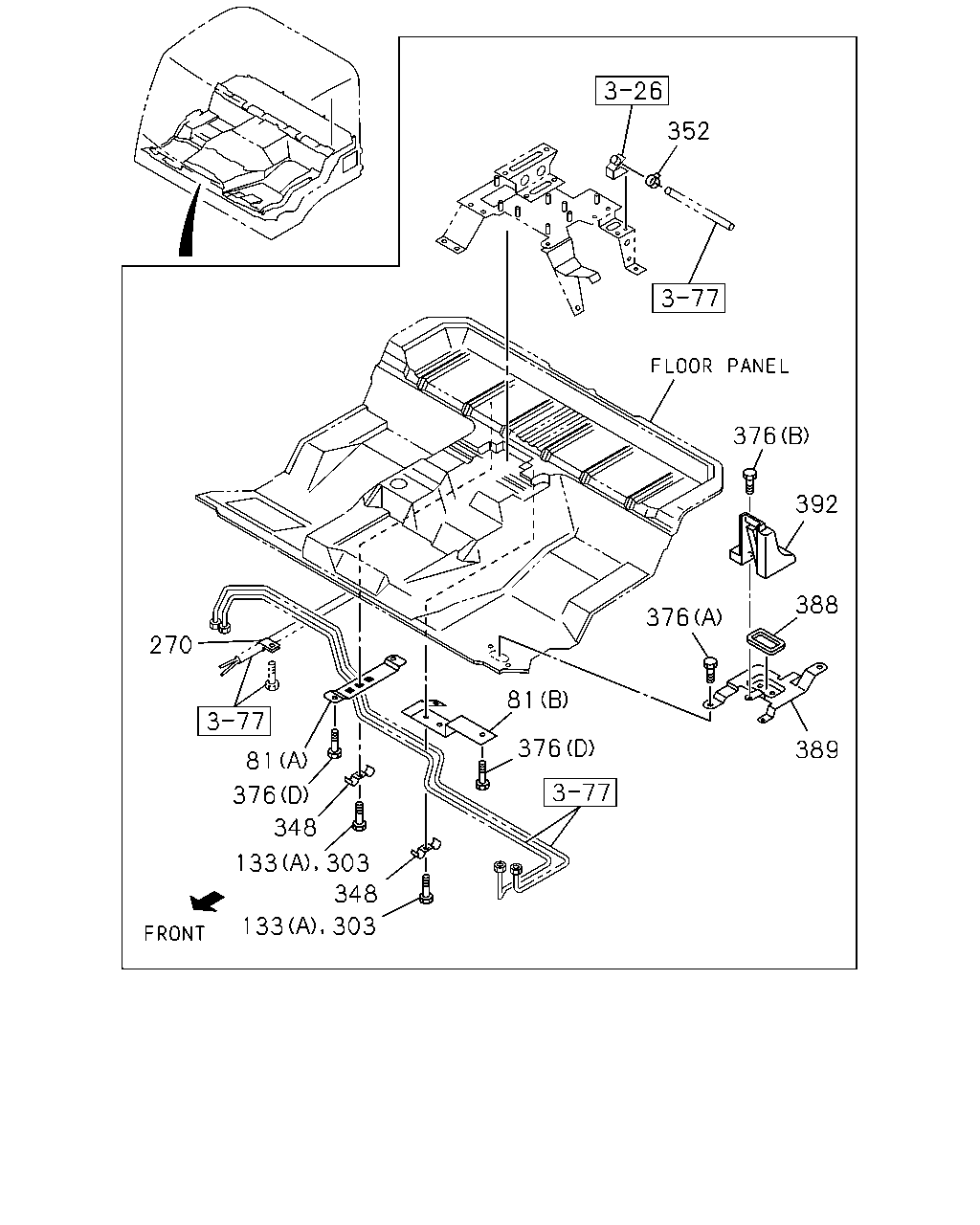

352 376 392 388 376 270 81 376 389 81 376 348 133 303 348 133 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-79996-133-2	01	1	9604-
81	BRACKET; CLIP GOVERNOR CONTROL<W69> (C) L=50	1-47475-299-2	01	1	9604-9904
81	BRACKET; CLIP GOVERNOR CONTROL<W69> (D)	1-47475-427-1	01	1	9604-9904
81	BRACKET; CLIP SPRING BRAKE(SU9) (A)	1-79996-127-2	01	1	9604-
133	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9604-
133	BOLT; BRKT CONCRETE PUMP<RA5> (B) M10X25 FLANGE	0-28081-025-0	02	1	9604-9606
133	BOLT; BRKT CONCRETE PUMP<RA5> (B) M10X30 FLANGE	0-28681-030-0	02	1	9607-
270	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=28 L=32	1-09701-107-1	04	1	9604-
303	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	9604-9904
303	BOLT; PIPE CLIP EXC. CONCRETE PUMP<RA5> M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9905-
348	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=9 & 9 L=15 & 15	1-09700-061-0	01	1	9604-
348	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 & 9 L=15 & 15	1-09700-062-0	03	1	9604-
352	CLIP; EXH HOSE EXC. CONCRETE PUMP<RA5> ID=14	8-94238-572-0	02	1	9604-
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9604-
376	BOLT; BRKT EXC. AIR DRYER<PS7> (C) M8X30 FLANGE	0-28680-830-0	01	1	9909-
376	BOLT; BRKT DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9604-
376	BOLT; BRKT SPRING BRAKE(SU9) (D) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9604-
376	BOLT; BRKT SPRING BRAKE(SU9) (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9604-
388	SEAL L=215	1-79738-794-1	01	1	9604-
389	BRACKET; UNION DUAL AIR GAUGE<UG2>	1-79738-790-1	01	1	9604-
389	BRACKET; UNION EXC. DUAL AIR GAUGE<UG2>	1-79738-795-1	01	1	9604-
392	COVER; BRKT DUAL AIR GAUGE<UG2>	1-73996-264-1	01	1	9604-

321 379 286 254 316 76 76 107 107 108 109 172 172 297 173 173 174 174 297 321 173 110 172 174 376 320 361

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	08	1	9604-
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=350	8-94152-256-1	01	1	9604-
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) L=250	1-09707-126-0	02	1	9604-
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	01	1	9604-
76	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> (C) ID=8.3 & 8.3	8-94426-175-0	01	1	9605-
107	CLIP; NYLON TUBE (B) ID=35 H=45 L=33	1-09701-047-0	03	1	9604-9904
107	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	03	1	9905-
107	CLIP; NYLON TUBE CONCRETE PUMP<RA5> (D) D=43	1-09700-703-0	01	1	9604-9604
107	CLIP; NYLON TUBE CONCRETE PUMP<RA5> (C) ID=12 H=24 L=20	1-09700-605-0	02	1	9612-
107	CLIP; NYLON TUBE EXC. CONCRETE PUMP<RA5> (A) ID=31.5 H=23 L=25	1-09701-017-0	02	1	9604-9904
107	CLIP; NYLON TUBE EXC. CONCRETE PUMP<RA5> (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	9905-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	03	1	9604-9606
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	03	1	9607-
108	BOLT; TUBE CLIP CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	01	1	9604-9604
108	BOLT; TUBE CLIP EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	04	1	9604-9606
108	BOLT; TUBE CLIP EXC. CONCRETE PUMP<RA5> M8X30 FLANGE	0-28680-830-0	02	1	9607-
109	NUT; TUBE CLIP M8	9-09110-408-0	03	1	9604-9606
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	03	1	9607-
109	NUT; TUBE CLIP CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9604-9604
109	NUT; TUBE CLIP EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	04	1	9604-9606
109	NUT; TUBE CLIP EXC. CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	02	1	9607-
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	05	1	9604-9610
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	07	1	9611-
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CONCRETE PUMP<RA5> (B) L=250	1-09707-126-0	10	1	9604-
110	CLIP; BAND,NYLON TUBE EXC. CONCRETE PUMP<RA5> (A) ID=28 L=40	1-09700-995-1	01	1	9604-9904
110	CLIP; BAND,NYLON TUBE EXC. CONCRETE PUMP<RA5> (C) ID=25 L=40	1-09700-215-1	01	1	9905-
110	CLIP; BAND,NYLON TUBE EXC. CONCRETE PUMP<RA5> (B) L=250	1-09707-126-0	17	1	9604-
172	BRACKET; TUBE CLIP AIR DRYER<PS7> CONCRETE PUMP<RA5> (A)	1-47477-632-0	01	1	9604-
172	BRACKET; TUBE CLIP CONCRETE PUMP<RA5> (C)	1-47477-514-3	02	1	9605-
172	BRACKET; TUBE CLIP CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7> (B) L=150 H=30	1-47477-629-2	01	1	9604-
173	BOLT; CLIP BRKT AIR DRYER<PS7> CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	01	1	9604-9604
173	BOLT; CLIP BRKT CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	01	1	9604-9604
173	BOLT; CLIP BRKT CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	03	1	9605-9606
173	BOLT; CLIP BRKT CONCRETE PUMP<RA5> M8X30 FLANGE	0-28680-830-0	03	1	9607-
173	BOLT; CLIP BRKT CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7> M10X25 FLANGE	0-28081-025-0	02	1	9604-9604
174	NUT; CLIP BRKT CONCRETE PUMP<RA5> M8	9-09110-508-0	01	1	9604-9604
174	NUT; CLIP BRKT CONCRETE PUMP<RA5> M8	9-09110-508-0	03	1	9605-9606
174	NUT; CLIP BRKT CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	03	1	9607-
174	NUT; CLIP BRKT CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7> M10	9-09110-510-0	02	1	9604-9604
254	BOLT; PIPE CLIP SPRING BRAKE(SU9) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9604-
286	CLIP; NYLON TUBE CONCRETE PUMP<RA5> (B) L=250	1-09707-126-0	02	1	9604-
286	CLIP; NYLON TUBE EXC. CONCRETE PUMP<RA5> (A) L=250	5-09707-030-1	01	1	9604-
297	NUT; BRKT M10 FLANGE	0-91150-110-0	02	1	9604-9606
297	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9607-
297	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9909-
316	BOLT; CLIP AIR DRYER<PS7> CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	01	1	9604-9606
316	BOLT; CLIP AIR DRYER<PS7> CONCRETE PUMP<RA5> M8X30 FLANGE	0-28680-830-0	01	1	9607-
316	BOLT; CLIP EXC. CONCRETE PUMP<RA5> M8X35 FLANGE	0-28080-835-0	01	1	9604-9606
316	BOLT; CLIP EXC. CONCRETE PUMP<RA5> M8X35 FLANGE	0-28680-835-0	01	1	9607-
320	CLIP; BAND,FLEX FIX L=100	5-09707-036-1	01	1	9604-
321	BRACKET; CLIP EXC. AIR DRYER<PS7> (B) L=100 H=30	1-47477-645-2	01	1	9909-
321	BRACKET; CLIP EXC. CONCRETE PUMP<RA5> (A)	1-47477-746-0	01	1	9604-
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=250	5-09707-030-1	01	1	9604-
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9604-
376	BOLT; BRKT EXC. AIR DRYER<PS7> (C) M8X30 FLANGE	0-28680-830-0	01	1	9909-
376	BOLT; BRKT DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9604-
376	BOLT; BRKT SPRING BRAKE(SU9) (D) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9604-
376	BOLT; BRKT SPRING BRAKE(SU9) (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9604-
379	BRACKET; NYLON TUBE SPRING BRAKE(SU9)	1-79996-110-2	01	1	9604-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
