2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#63242) — 23 parça

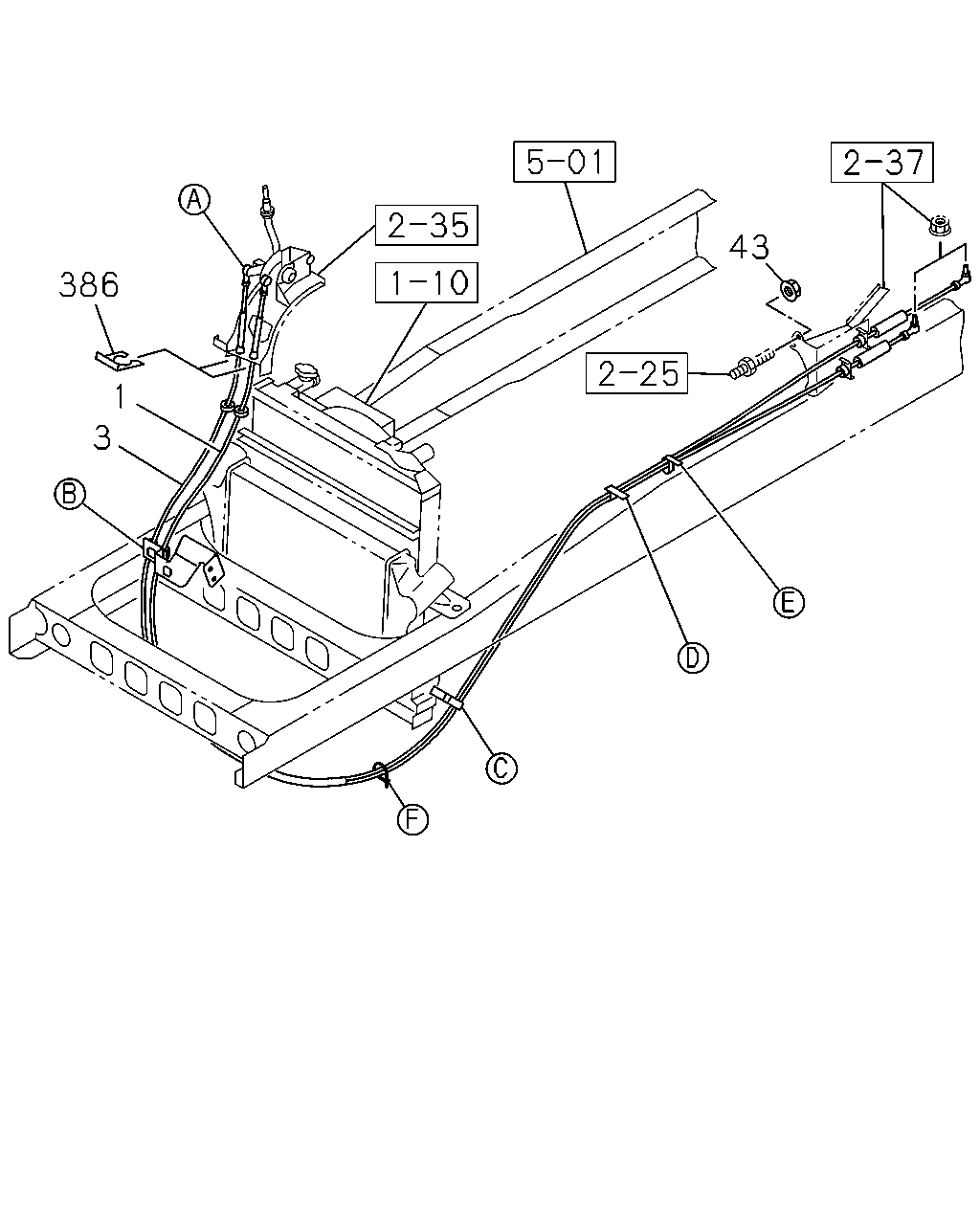

43 386 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; SHIFT,TRANS CONT L=3510	8-98017-469-4	01	1	1108-
3	CABLE; SELECT,TRANS CONT L=3690	8-98010-474-2	01	1	1108-
43	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1108-
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	1108-

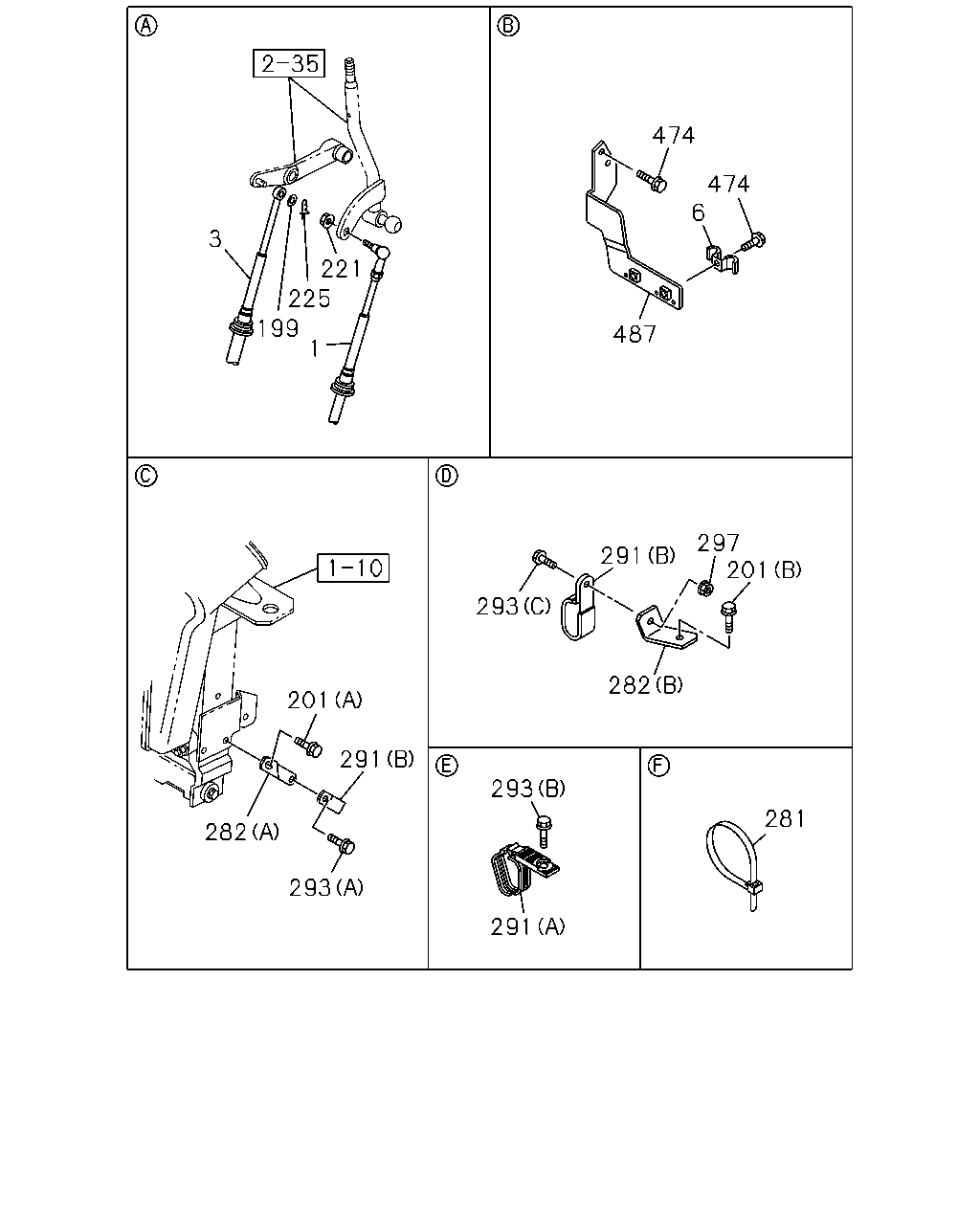

474 474 6 3 221 225 199 487 1 297 201 291 293 282 201 291 293 281 282 293 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; SHIFT,TRANS CONT L=3510	8-98017-469-4	01	1	1108-
3	CABLE; SELECT,TRANS CONT L=3690	8-98010-474-2	01	1	1108-
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1108-
199	WASHER; PL,SELECT ID=8.4 OD=16	0-91614-508-0	01	1	1108-
201	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	1108-
201	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	01	1	1108-
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-062-1	01	1	1108-
225	PIN; SELECT CABLE L=27.7	8-94111-137-0	01	1	1108-
281	CLIP; BAND L=300	1-09707-001-1	01	1	1108-
282	BRACKET; TRANS SIDE (B)	1-82699-199-0	01	1	1108-
282	BRACKET; TRANS SIDE (A)	8-98010-418-0	01	1	1108-
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=11X2 L=16	0-95325-026-0	02	1	1108-
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1108-
293	BOLT; CLIP,SHIFT TO SELECT (A) M8X16 FLANGE	0-28050-816-0	01	1	1108-
293	BOLT; CLIP,SHIFT TO SELECT (B) M8X20 FLANGE	0-28050-820-0	01	1	1108-
293	BOLT; CLIP,SHIFT TO SELECT (C) M8X20 FLANGE IDN	0-28650-820-0	01	1	1108-
297	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1108-
474	BOLT; BRKT M8X25 W/WASHER	0-51640-825-0	03	1	1108-
487	BRACKET; CONT CABLE	8-98183-009-0	01	1	1108-
