3-77 — BRAKE PIPING; AIR,REAR (#6324) — 94 parça

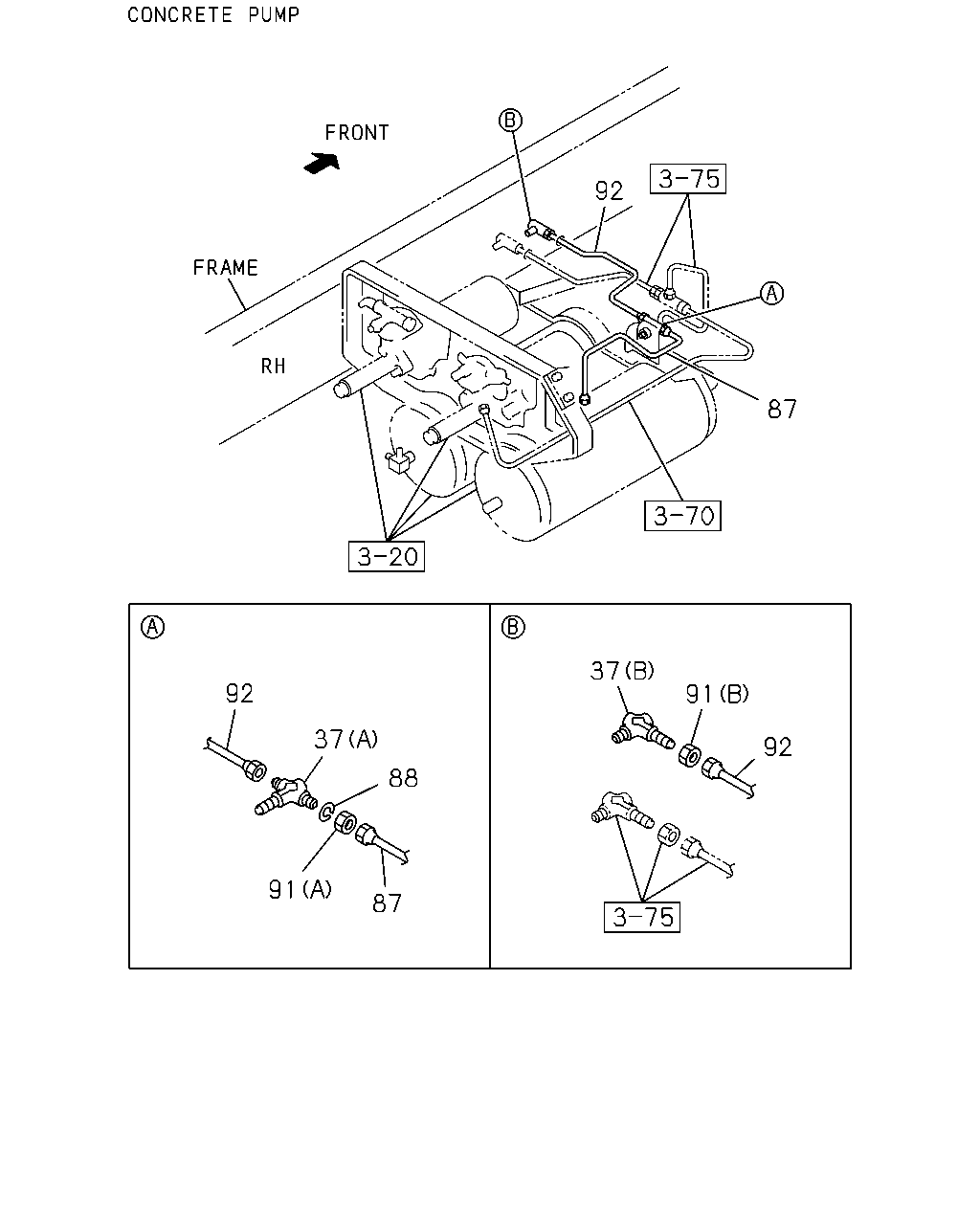

92 87 37 92 91 37 92 88 91 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (C) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9610-
37	UNION; AIR PIPE EXC. CONCRETE PUMP<RA5> (C) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9610-
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (D)	1-09650-251-1	01	1	9610-9708
37	UNION; AIR PIPE EXC. CONCRETE PUMP<RA5> (D)	1-09650-251-1	01	1	9610-9708
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (D)	1-09650-251-1	01	1	9709-
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (E)	1-09664-209-0	01	1	9610-
37	UNION; AIR PIPE EXC. CONCRETE PUMP<RA5> (E)	1-09664-209-0	01	1	9610-
37	UNION; AIR PIPE CONCRETE PUMP<RA5> (A) M22	1-09656-099-1	01	1	9604-
37	UNION; AIR PIPE CONCRETE PUMP<RA5> (B) M16 ELBOW	9-09235-210-1	01	1	9604-
37	UNION; AIR PIPE EXC. CONCRETE PUMP<RA5> (D) M14X35	1-09650-272-2	01	1	9701-
87	PIPE; AIR,AIR TANK TO UNION CONCRETE PUMP<RA5>	1-49116-528-0	01	1	9604-
88	WASHER; LK,PIPE UNION CONCRETE PUMP<RA5> ID=22.5	9-09150-522-0	01	1	9604-
91	NUT; PIPE UNION CONCRETE PUMP<RA5> (A) M22	9-09111-422-0	01	1	9604-
91	NUT; PIPE UNION CONCRETE PUMP<RA5> (B) M16	9-99111-416-0	01	1	9604-
92	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5>	1-49115-248-1	01	1	9604-9901
92	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5>	1-49121-420-0	01	1	9902-

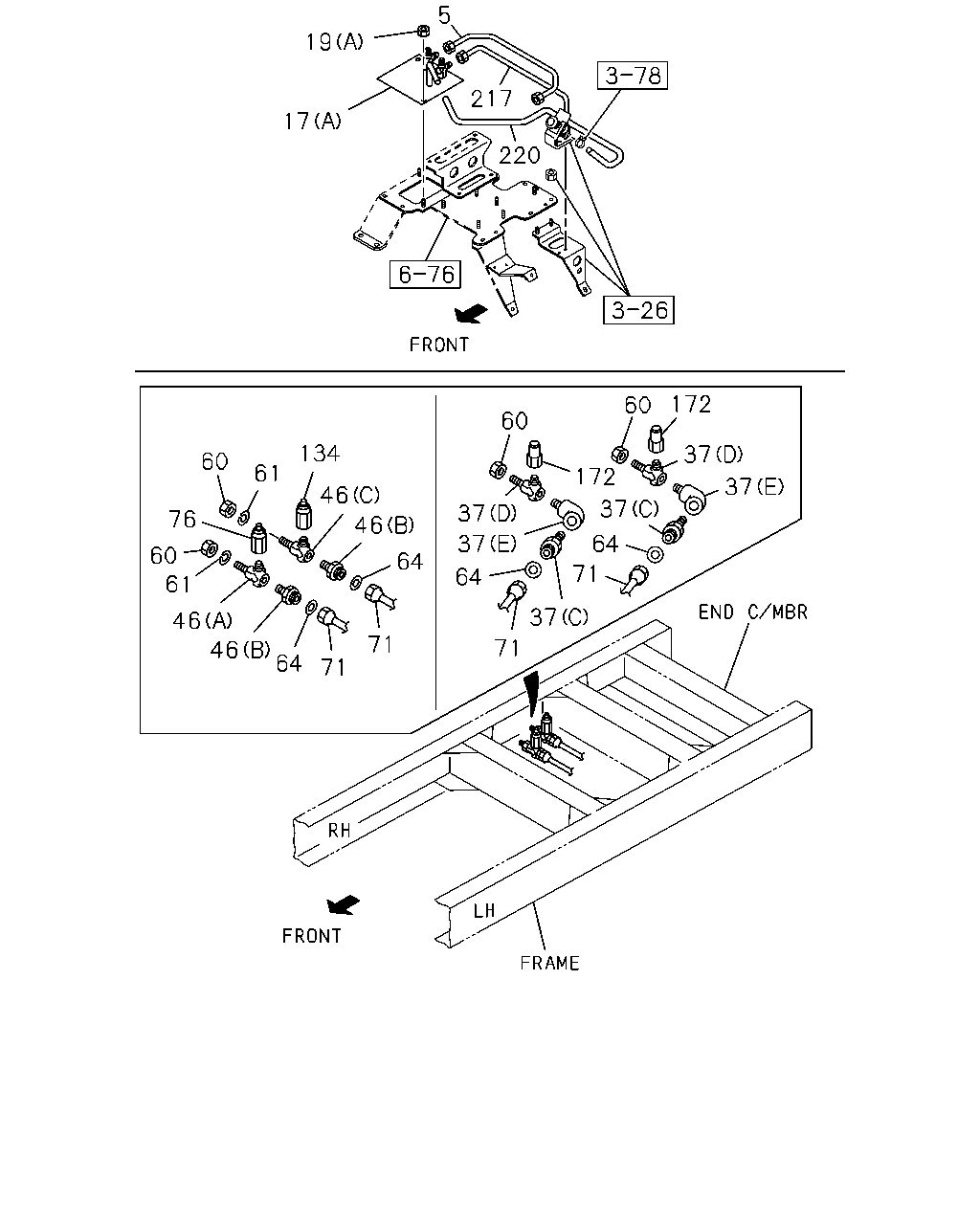

5 19 217 17 220 172 60 60 134 37 172 60 61 37 46 37 37 76 46 37 64 60 61 64 71 64 37 46 71 71 46 64 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	PIPE; AIR,UNION TO PARKING VLV SPRING BRAKE(SU9)	1-49114-638-1	01	1	9604-
17	UNION; AIR PIPE SPRING BRAKE(SU9) (A)	1-47470-418-2	01	1	9604-
17	UNION; AIR PIPE SPRING BRAKE(SU9) (B)	1-47470-464-3	01	1	9604-
19	NUT; PIPE UNION EXC. CONCRETE PUMP<RA5> (A) M8 FLANGE	0-91150-108-0	02	1	9604-
19	NUT; PIPE UNION EXC. CONCRETE PUMP<RA5> (B) M8	9-09110-408-0	01	1	9604-
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (C) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9610-
37	UNION; AIR PIPE EXC. CONCRETE PUMP<RA5> (C) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9610-
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (D)	1-09650-251-1	01	1	9610-9708
37	UNION; AIR PIPE EXC. CONCRETE PUMP<RA5> (D)	1-09650-251-1	01	1	9610-9708
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (D)	1-09650-251-1	01	1	9709-
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (E)	1-09664-209-0	01	1	9610-
37	UNION; AIR PIPE EXC. CONCRETE PUMP<RA5> (E)	1-09664-209-0	01	1	9610-
37	UNION; AIR PIPE CONCRETE PUMP<RA5> (A) M22	1-09656-099-1	01	1	9604-
37	UNION; AIR PIPE CONCRETE PUMP<RA5> (B) M16 ELBOW	9-09235-210-1	01	1	9604-
37	UNION; AIR PIPE EXC. CONCRETE PUMP<RA5> (D) M14X35	1-09650-272-2	01	1	9701-
46	NIPPLE; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (B) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9604-9609
46	NIPPLE; AIR PIPE EXC. CONCRETE PUMP<RA5> (B) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9604-9609
46	NIPPLE; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (A)	1-09650-251-1	01	1	9604-9609
46	NIPPLE; AIR PIPE EXC. CONCRETE PUMP<RA5> (C) M14X35	1-09650-272-2	01	1	9604-9609
60	NUT; NIPPLE,AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> M20	9-99111-420-0	01	1	9604-
60	NUT; NIPPLE,AIR PIPE EXC. CONCRETE PUMP<RA5> M20	9-99111-420-0	01	1	9604-
61	WASHER; LK,NIPPLE EXC. CONCRETE PUMP<RA5> ID=20.2	9-09150-520-0	01	1	9604-9606
64	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17.5	9-09572-515-0	02	1	9604-
64	GASKET; FLEX HOSE EXC. CONCRETE PUMP<RA5> ID=17.5	9-09572-515-0	02	1	9604-
71	HOSE; FLEX,RWD RR BRAKE POWER CHAMBER FORWARD<BCQ> L=550	0-07909-550-0	01	1	9604-
71	HOSE; FLEX,RWD RR EXC. CONCRETE PUMP<RA5> L=550	0-07909-550-0	01	1	9604-
76	ADAPTER; NYLON TUBE BRAKE POWER CHAMBER FORWARD<BCQ> DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9604-9609
134	CONNECTOR EXC. CONCRETE PUMP<RA5> DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9604-9609
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9610-9612
172	ADAPTER; UNION EXC. CONCRETE PUMP<RA5> DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9610-9612
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9701-9904
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9905-0007
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-
172	ADAPTER; UNION EXC. CONCRETE PUMP<RA5> DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9701-9904
172	ADAPTER; UNION EXC. CONCRETE PUMP<RA5> DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9905-0007
172	ADAPTER; UNION EXC. CONCRETE PUMP<RA5> DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0008-
217	PIPE; AIR,PARKING BRK VLV TO UNION SPRING BRAKE(SU9)	1-49114-639-0	01	1	9604-
220	HOSE; VINYL,EXH,PARKING BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=850 SERVICED BY L=10000	9-09914-701-0	01	1	9604-9606

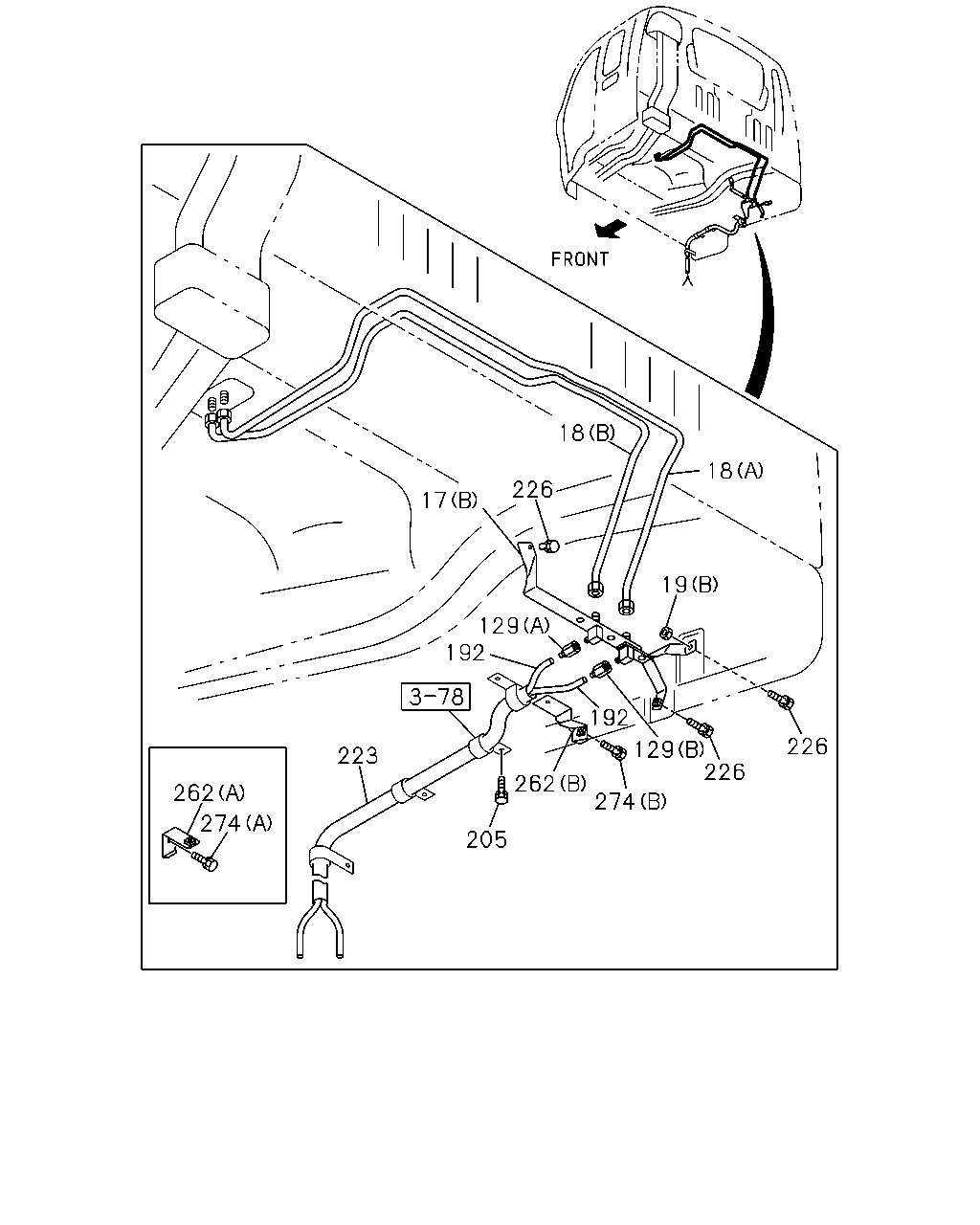

18 18 226 17 19 129 192 192 226 129 226 223 262 274 262 274 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	UNION; AIR PIPE SPRING BRAKE(SU9) (A)	1-47470-418-2	01	1	9604-
17	UNION; AIR PIPE SPRING BRAKE(SU9) (B)	1-47470-464-3	01	1	9604-
18	PIPE; AIR,UNION TO UNION SPRING BRAKE(SU9) (B) L=1937 SERVICED BY L=1950	1-47426-393-0	01	1	9604-
18	PIPE; AIR,UNION TO UNION SPRING BRAKE(SU9) (A) L=2108 SERVICED BY L=2500	1-47426-423-0	01	1	9604-
19	NUT; PIPE UNION EXC. CONCRETE PUMP<RA5> (A) M8 FLANGE	0-91150-108-0	02	1	9604-
19	NUT; PIPE UNION EXC. CONCRETE PUMP<RA5> (B) M8	9-09110-408-0	01	1	9604-
129	CONNECTOR; NYLON TUBE EXC. CONCRETE PUMP<RA5> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9604-0007
129	CONNECTOR; NYLON TUBE EXC. CONCRETE PUMP<RA5> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0008-0009
129	CONNECTOR; NYLON TUBE EXC. CONCRETE PUMP<RA5> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9604-0007
129	CONNECTOR; NYLON TUBE EXC. CONCRETE PUMP<RA5> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0008-0009
129	CONNECTOR; NYLON TUBE EXC. CONCRETE PUMP<RA5> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9912-9912
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9912-0007
129	CONNECTOR; NYLON TUBE EXC. CONCRETE PUMP<RA5> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9912-0007
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0008-0009
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0010-
129	CONNECTOR; NYLON TUBE EXC. CONCRETE PUMP<RA5> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0010-
129	CONNECTOR; NYLON TUBE EXC. CONCRETE PUMP<RA5> (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9912-9912
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9912-0007
129	CONNECTOR; NYLON TUBE EXC. CONCRETE PUMP<RA5> (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9912-0007
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-0009
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0010-
129	CONNECTOR; NYLON TUBE EXC. CONCRETE PUMP<RA5> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0010-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9604-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9604-
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9604-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9604-
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9604-
205	BOLT; TUBE CLIP EXC. CONCRETE PUMP<RA5> M6X16 W/LK WASHER	0-50040-616-0	01	1	9604-
205	BOLT; TUBE CLIP EXC. CONCRETE PUMP<RA5> M8X16 W/LK WASHER	0-50040-816-0	03	1	9604-9702
205	BOLT; TUBE CLIP EXC. CONCRETE PUMP<RA5> M8X16 FLANGE	0-28080-816-0	03	1	9703-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9604-
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=13	1-87410-092-0	AR	1	9604-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9604-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9604-
226	BOLT; UNION EXC. CONCRETE PUMP<RA5> M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9604-
262	BRACKET SPRING BRAKE(SU9) (A)	1-79996-143-0	01	1	9604-
262	BRACKET SPRING BRAKE(SU9) (B)	1-79996-258-1	01	1	9604-
274	BOLT; BRKT SPRING BRAKE(SU9) (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9604-
274	BOLT; BRKT SPRING BRAKE(SU9) (B) M8X16 W/LK WASHER	0-50040-816-0	01	1	9604-9702
274	BOLT; BRKT SPRING BRAKE(SU9) (B) M8X16 FLANGE	0-28080-816-0	01	1	9703-
