◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11392 - FVR(INDONESIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26 - MANUAL TRANSMISSION GEAR ▶
2-26 — MANUAL TRANSMISSION GEAR (#63239) — 140 parça
çizim 146190
93 57 517 84 241 39 20 20 516 24 585 584 58 586 241 95 314 563 561 582 582 106 174 579 577 587 105 590 108 582 589 588 517 24 516 592 104 582 174 15 593 325 506 118 20 20 596 223 320 398 579
BalonParca AdiParca NoAdetTipApplied Date
15 COLLAR; 4TH GEAR 8-98146-345-0 01 1 1108-
20 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1108-1210
20 SLEEVE
(A) Z=45 		8-97241-296-1 03 1 1211-1308
20 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1309-1311
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1312-1508
20 SLEEVE
Z=45 		8-98258-279-0 03 1 1509-
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1108-1210
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1309-1508
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1108-
39 HUB; CLU,LOW & 2ND
Z=45 		8-98075-732-0 01 1 1108-1501
39 HUB; CLU,LOW & 2ND
Z=45 		8-98303-646-0 01 1 1502-1507
39 HUB; CLU,LOW & 2ND
Z=45 		8-98309-852-0 01 1 1508-
57 SLEEVE; REV
Z=45 		8-94421-871-1 01 1 1108-
58 HUB; CLU,REV
Z=45-27 		8-98005-296-0 01 1 1108-
84 BEARING; COUNTER SHAFT,FRT 8-97377-957-1 01 1 1108-
93 RING; SNAP,COUNTER FRT BRG 8-97377-958-0 01 1 1108-
95 GEAR; REV,COUNTER
Z=44 		8-98005-229-0 01 1 1108-
104 GEAR; 4TH,COUNTER
Z=29 		8-98168-502-0 01 1 1108-1203
104 GEAR; 4TH,COUNTER
Z=29 		8-98198-297-0 01 1 1204-
105 GEAR; 3RD,COUNTER
Z=35 		8-98168-501-0 01 1 1108-
106 GEAR; 2ND,COUNTER
Z=44 		8-98140-884-0 01 1 1108-
108 SHAFT; COUNTER
Z=27-42-26 		8-98160-120-0 01 1 1108-1209
108 SHAFT; COUNTER
Z=27-42-26 		8-98223-607-0 01 1 1210-1501
108 SHAFT; COUNTER
Z=27-42-26 		8-98303-643-0 01 1 1502-
118 GEAR; 6TH,COUNTER
Z=17 		8-98005-292-1 01 1 1108-
174 SYNCHRONIZER ASM; 2ND-3RD 8-98315-823-0 02 1 1509-
223 NUT; COUNTER SHAFT END
M34 FLANGE 		8-98005-894-0 01 1 1108-
241 RING; SNAP
(A) ID=46.5 T=1.8 		8-97254-743-0 01 1 1108-
241 RING; SNAP
(B) ID=96 T=2.5 		8-98009-391-0 01 1 1108-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT 		1-09811-017-0 02 1 1108-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1108-
320 HUB; CLU,4TH & 3RD
Z=45 		8-98075-733-0 01 1 1108-1501
320 HUB; CLU,4TH & 3RD
Z=45 		8-98303-649-0 01 1 1502-1507
320 HUB; CLU,4TH & 3RD
Z=45 		8-98309-859-0 01 1 1508-
325 SHIM; COUNTER SHAFT BRG
T=1.56 		8-97377-994-0 01 1 1108-
325 SHIM; COUNTER SHAFT BRG
T=1.62 		8-97377-995-0 01 1 1108-
325 SHIM; COUNTER SHAFT BRG
T=1.68 		8-97377-996-0 01 1 1108-
325 SHIM; COUNTER SHAFT BRG
T=1.74 		8-97377-997-0 01 1 1108-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		8-97377-998-0 01 1 1108-
325 SHIM; COUNTER SHAFT BRG
T=1.26 		8-98009-373-0 01 1 1108-
325 SHIM; COUNTER SHAFT BRG
T=1.32 		8-98009-374-0 01 1 1108-
325 SHIM; COUNTER SHAFT BRG
T=1.38 		8-98009-375-0 01 1 1108-
325 SHIM; COUNTER SHAFT BRG
T=1.44 		8-98009-376-0 01 1 1108-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98009-377-0 01 1 1108-
325 SHIM; COUNTER SHAFT BRG
T=1.14 		8-98022-218-0 01 1 1108-
325 SHIM; COUNTER SHAFT BRG
T=1.20 		8-98022-219-0 01 1 1108-
398 GEAR; COUNTER
Z=22 		8-97380-568-0 01 1 1108-
506 COLLAR; 6TH,COUNTER 8-97377-965-0 01 1 1108-
516 SPRING; SYNCHRO,INDEX 8-98032-197-0 09 1 1108-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1108-
561 GEAR; LOW,COUNTER
Z=44 		8-98000-330-0 01 1 1108-
563 COLLAR; 1ST GEAR 8-98146-345-0 01 1 1108-
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 04 1 1108-1205
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 02 1 1206-
577 HOSE; OIL PUMP
(B) 		8-98033-982-0 02 1 1108-
579 CLAMP; HOSE
ID=16 		8-97329-628-0 10 1 1108-1205
579 CLAMP; HOSE
ID=16 		8-97329-628-0 07 1 1206-
582 BEARING; NEEDLE,COUNTER GEAR 8-97253-110-0 04 1 1108-
584 RING; BLOCK,2ND
Z=45 		8-98034-770-0 01 1 1108-1210
584 RING; BLOCK,2ND
Z=45 		8-98223-605-1 01 1 1211-1308
584 RING; BLOCK,2ND
Z=45 		8-98034-770-0 01 1 1309-1508
585 RING; OUTSIDE,2ND 8-97241-309-1 01 1 1108-1508
586 RING; INSIDE,2ND 8-97241-312-1 01 1 1108-1210
586 RING; INSIDE,2ND 8-98223-606-1 01 1 1211-1308
586 RING; INSIDE,2ND 8-97241-312-1 01 1 1309-1508
587 CASE; PUMP,COUNTER 8-97377-959-0 01 1 1108-1205
587 CASE; PUMP,COUNTER 8-98212-196-0 01 1 1206-1501
587 CASE; PUMP,COUNTER 8-98303-650-0 01 1 1502-
588 RING; BLOCK,3RD
Z=45 		8-97241-306-1 01 1 1108-1209
588 RING; BLOCK,3RD
Z=45 		8-98223-605-1 01 1 1210-1308
588 RING; BLOCK,3RD
Z=45 		8-97241-306-1 01 1 1309-1508
589 RING; OUTSIDE,3RD 8-97241-309-1 01 1 1108-1508
590 RING; INSIDE,3RD 8-97241-312-1 01 1 1108-1209
590 RING; INSIDE,3RD 8-98223-606-1 01 1 1210-1308
590 RING; INSIDE,3RD 8-97241-312-1 01 1 1309-1508
592 RING; BLOCK,4TH
Z=45 		8-97241-306-1 01 1 1108-
593 BEARING; COUNTER MIDDLE 8-97377-976-0 01 1 1108-
596 BEARING; ROOLER,COUNTER END 8-97377-968-0 01 1 1108-

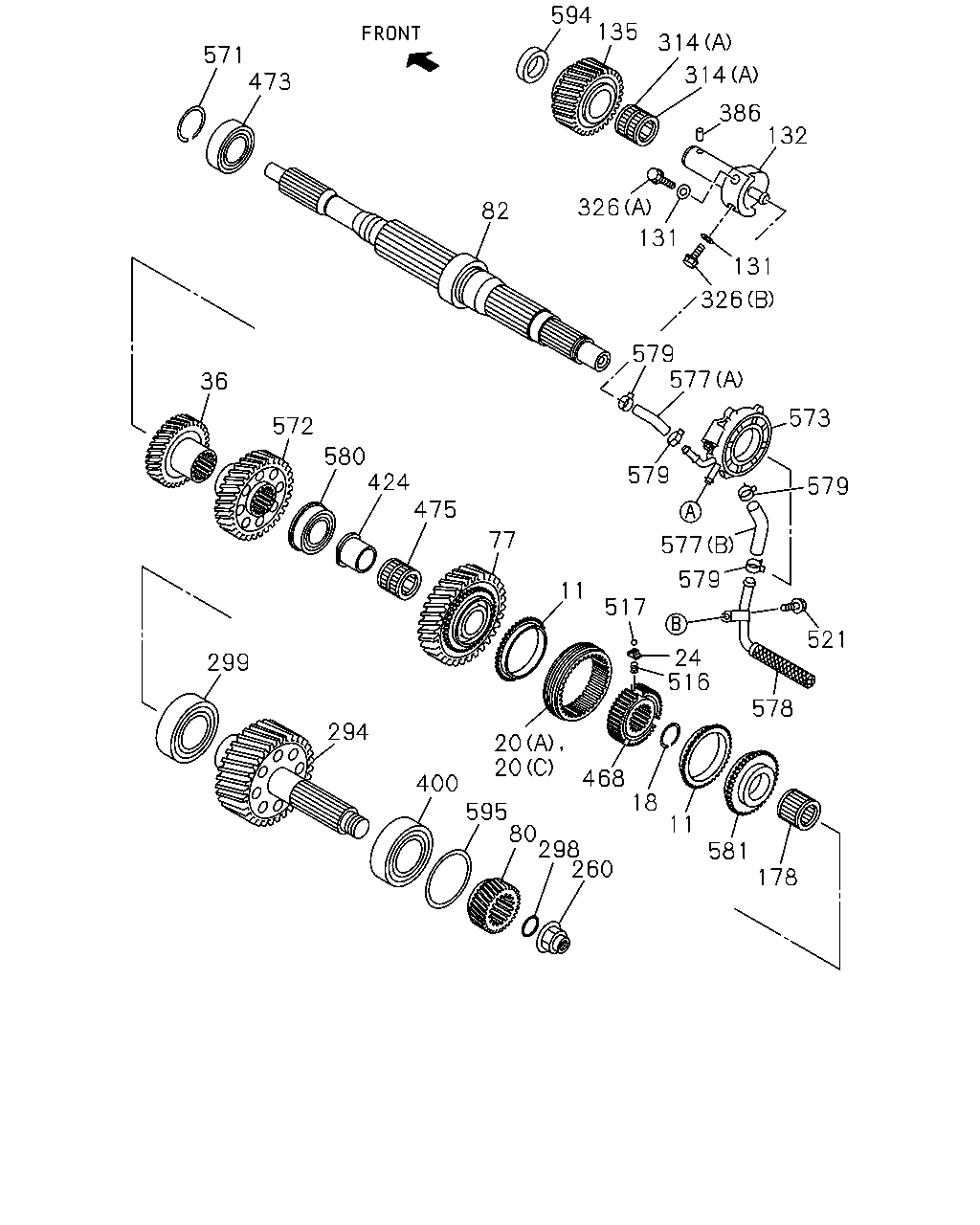

çizim 146195
594 135 314 314 386 132 326 131 131 326 579 577 573 579 579 577 579 521 578 516 24 517 11 475 77 424 580 572 36 299 294 400 595 80 298 260 178 581 11 18 468 20 20 82 473 571
BalonParca AdiParca NoAdetTipApplied Date
11 RING; BLOCK,5TH & 6TH
Z=45 		8-97241-306-1 02 1 1108-
18 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 1108-
20 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1108-1210
20 SLEEVE
(A) Z=45 		8-97241-296-1 03 1 1211-1308
20 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1309-1311
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1312-1508
20 SLEEVE
Z=45 		8-98258-279-0 03 1 1509-
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1108-1210
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1309-1508
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1108-
36 GEAR; 3RD,MAINSHAFT
Z=29 		8-98168-499-0 01 1 1108-
77 GEAR; 6TH,MAINSHAFT
Z=46 		8-98049-406-1 01 1 1108-1203
77 GEAR; 6TH,MAINSHAFT
Z=46 		8-98137-256-0 01 1 1204-
80 GEAR; SPD DRIVE
Z=5 		8-97377-978-1 01 1 1108-
82 SHAFT; MAIN,TRANS
Z=13-21-19-26 		8-98140-880-0 01 1 1108-1308
82 SHAFT; MAIN,TRANS
Z=13-21-19-26 		8-98245-057-0 01 1 1309-
131 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0 		9-09571-410-0 02 1 1108-
132 SHAFT; REV 8-98009-372-0 01 1 1108-
135 GEAR; REV IDLER
Z=27 		8-98005-601-1 01 1 1108-
178 BEARING; NEEDLE,MAINSHAFT 8-97253-099-1 01 1 1108-
260 NUT; MAINSHAFT END
M36 FLANGE 		8-98014-140-0 01 1 1108-
294 SHAFT; OUTPUT
Z=43 		8-97380-571-0 01 1 1108-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5 		1-09623-380-0 01 1 1108-
299 BEARING; OUTPUT SHAFT FRT 8-97377-970-0 01 1 1108-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT 		1-09811-017-0 02 1 1108-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1108-
326 BOLT; REV SHAFT
(A) M10X50 FLANGE 		0-29261-050-0 01 1 1108-
326 BOLT; REV SHAFT
(B) M10X50 		8-98014-738-0 01 1 1108-
386 PIN; REV SHAFT
OD=4 L=8 		9-08150-408-0 01 1 1108-
400 BEARING; OUTPUT SHAFT RR 8-97377-977-0 01 1 1108-
424 COLLAR; 6TH GEAR 8-98125-318-0 01 1 1108-
468 HUB; CLU,5TH & 6TH
Z=45 		8-98075-734-0 01 1 1108-
473 BEARING; INPUT SHAFT 8-97377-950-0 01 1 1108-
475 BEARING; 6TH
COLLAR OD=-49.999 		8-98101-505-0 01 1 1108-
475 BEARING; 6TH
COLLAR OD=50.000- 		8-98142-265-0 01 1 1108-
516 SPRING; SYNCHRO,INDEX 8-98032-197-0 09 1 1108-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1108-
521 BOLT
M8X12 FLANGE 		0-28050-812-0 01 1 1108-
571 RING; SNAP,BRG 8-97377-951-0 01 1 1108-
572 GEAR; 4TH,INPUT
Z=37 		8-98168-500-0 01 1 1108-
573 PUMP ASM; OIL 8-98044-683-0 01 1 1108-1205
573 PUMP ASM; OIL 8-98212-241-0 01 1 1206-
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 04 1 1108-1205
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 02 1 1206-
577 HOSE; OIL PUMP
(B) 		8-98033-982-0 02 1 1108-
578 SCREEN; OIL PUMP 8-98009-345-0 02 1 1108-
579 CLAMP; HOSE
ID=16 		8-97329-628-0 10 1 1108-1205
579 CLAMP; HOSE
ID=16 		8-97329-628-0 07 1 1206-
580 BEARING; MAINSHAFT RR 8-97377-953-0 01 1 1108-
581 CLUTCH; DOG,5TH GEAR 8-97377-956-0 01 1 1108-
594 WASHER; THRUST,REV IDLE 8-98005-633-0 01 1 1108-
595 SHIM; OUTPUT SHAFT
T=1.44 		8-97377-984-0 01 1 1108-
595 SHIM; OUTPUT SHAFT
T=1.50 		8-97377-985-0 01 1 1108-
595 SHIM; OUTPUT SHAFT
T=1.56 		8-97377-986-0 01 1 1108-
595 SHIM; OUTPUT SHAFT
T=1.62 		8-97377-987-0 01 1 1108-
595 SHIM; OUTPUT SHAFT
T=1.68 		8-97377-988-0 01 1 1108-
595 SHIM; OUTPUT SHAFT
T=1.74 		8-97377-989-0 01 1 1108-
595 SHIM; OUTPUT SHAFT
T=1.80 		8-97377-990-0 01 1 1108-
595 SHIM; OUTPUT SHAFT
T=1.86 		8-97377-991-0 01 1 1108-
595 SHIM; OUTPUT SHAFT
T=1.38 		8-98009-379-0 01 1 1108-
595 SHIM; OUTPUT SHAFT
T=1.26 		8-98022-221-0 01 1 1108-
595 SHIM; OUTPUT SHAFT
T=1.32 		8-98022-222-0 01 1 1108-
