1-41 — FUEL PIPING; CHASSIS (#63226) — 85 parça

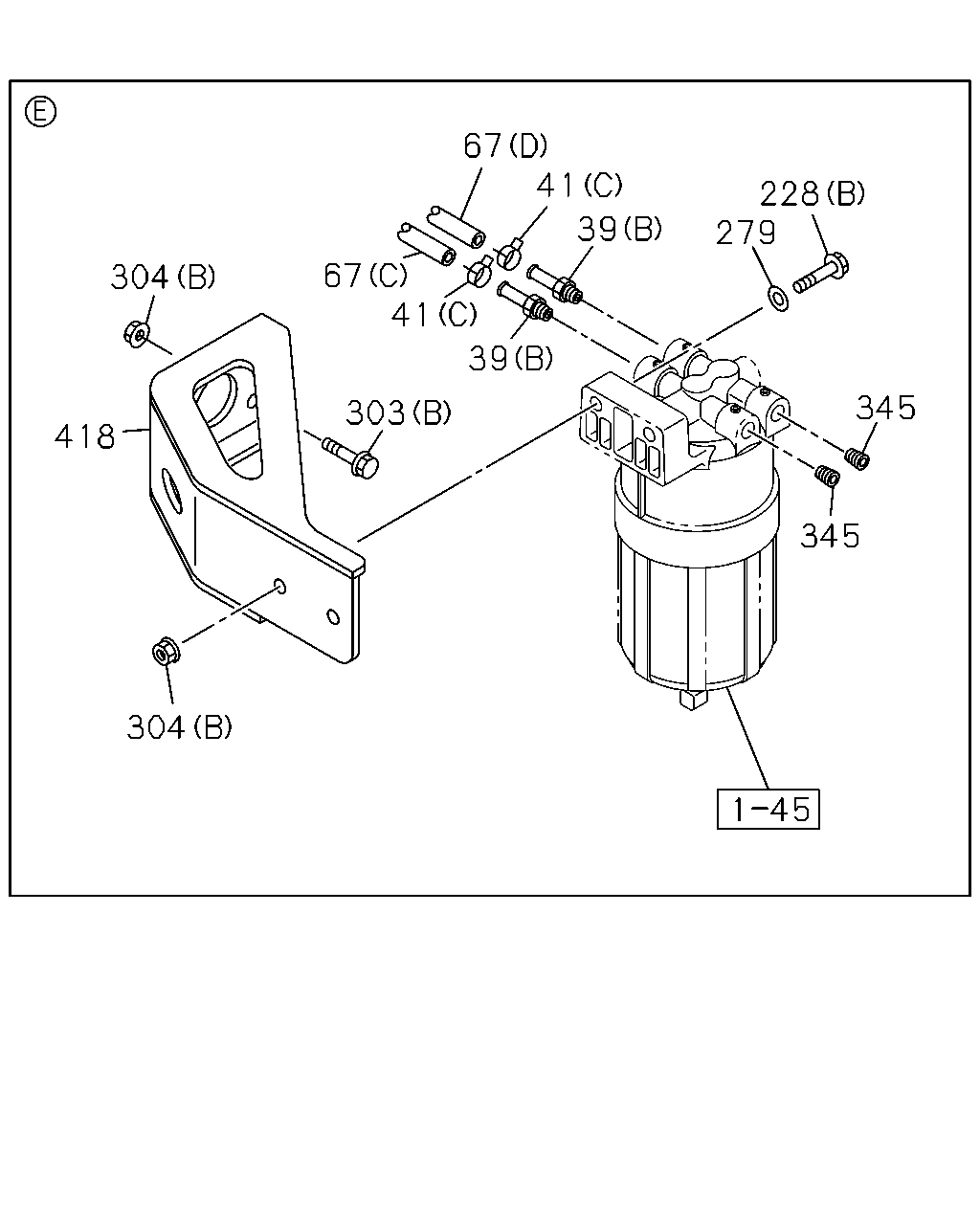

çizim 146168
304 418 304 303 67 39 41 67 41 39 279 228 345 345
BalonParca AdiParca NoAdetTipApplied Date
39 PIPE; FUEL
INDONESIA KD DELETION<35D> (B) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1210-1210
39 PIPE; FUEL
(A) IDN 		8-98009-438-1 01 1 1108-
39 PIPE; FUEL
(B) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1108-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. LOCALLY SUPPLIED PARTS<TKH> (D) ID=16 IDN 		8-94238-568-0 04 1 1201-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1108-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 IDN 		1-09704-102-0 06 1 1108-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 IDN 		5-09707-030-1 03 1 1108-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 IDN 		8-94238-568-0 04 1 1108-1112
41 CLIP; FUEL PIPE,FUEL TANK
LOCALLY SUPPLIED PARTS<TKH> (D) ID=16 IDN 		8-94238-568-0 02 1 1201-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 IDN 		8-94238-571-0 06 1 1108-
67 HOSE; FUEL,DELIVERY
(B) L=110 SERVICED BY L=3000 		0-01260-300-0 01 1 1108-
67 HOSE; FUEL,DELIVERY
(A) L=210 SERVICED BY L=3000 		0-01558-300-0 01 1 1108-
67 HOSE; FUEL,DELIVERY
(C) L=300 		8-98157-878-0 01 1 1108-
67 HOSE; FUEL,DELIVERY
(D) L=780 IDN 		8-98184-820-0 01 1 1108-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1108-
228 BOLT; BRKT,SEDIMENTER
(B) M10X50 FLANGE 		0-28051-050-0 02 1 1108-
228 BOLT; BRKT,SEDIMENTER
(C) M8X20 FLANGE IDN 		0-28650-820-0 02 1 1108-
279 WASHER
ID=10.5 OD=26 		0-91614-710-0 02 1 1108-
303 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1108-
303 BOLT; BRKT
(B) M10X35 FLANGE IDN 		0-28651-035-0 02 1 1108-
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 1108-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1108-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1108-
345 PLUG
NPTF3/8-18 		8-97329-623-0 02 1 1108-
418 BRACKET; PRE FUEL FILTER 8-98128-254-0 01 1 1108-

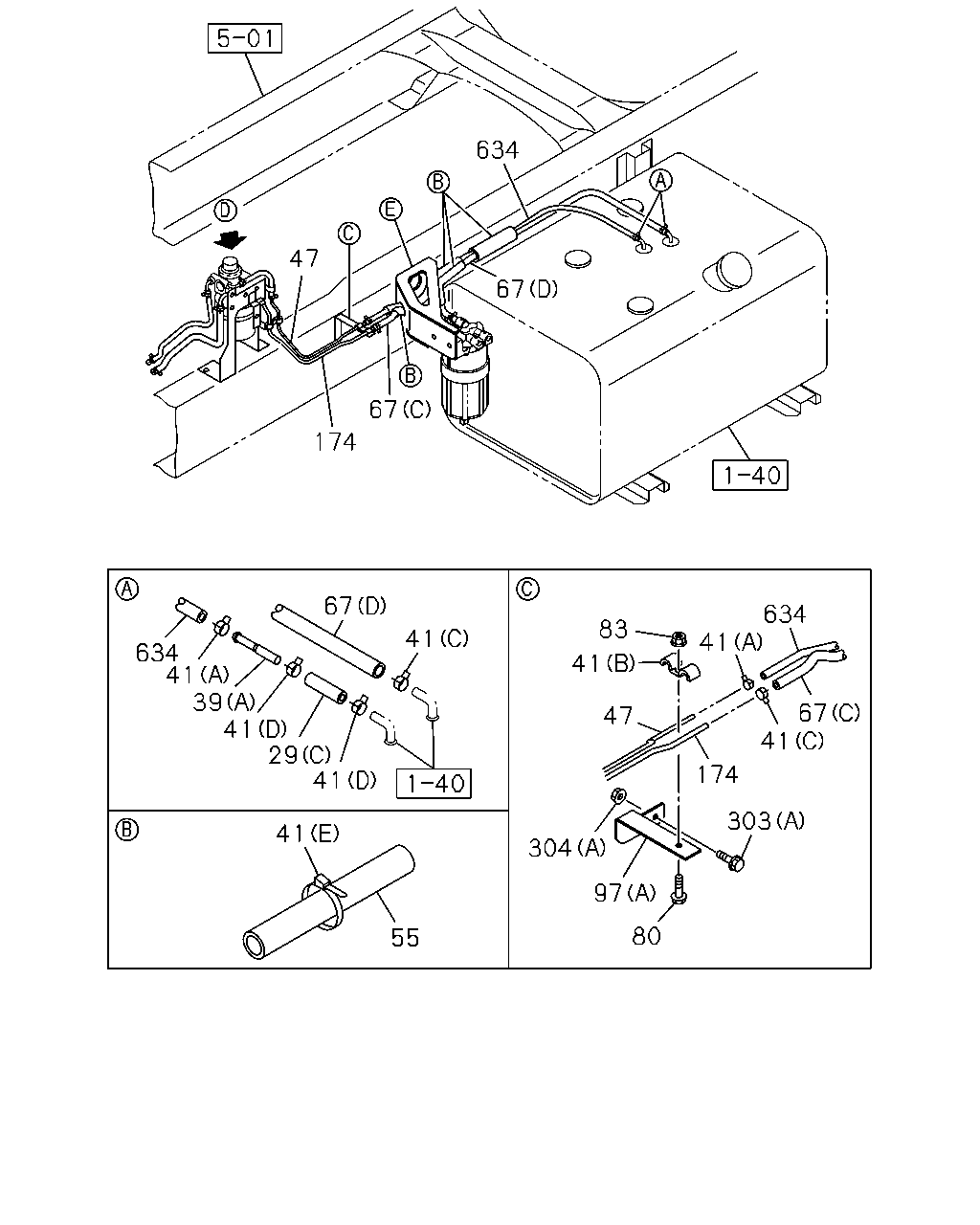

çizim 146186
634 67 67 174 47 67 41 41 29 41 39 41 634 41 55 80 97 304 83 41 47 41 634 67 41 174 303
BalonParca AdiParca NoAdetTipApplied Date
29 HOSE; FUEL
(C) L=60 SERVICED BY L=3000 		0-01259-300-0 01 1 1108-
29 HOSE; FUEL
(A) IDN 		8-98078-196-2 01 1 1108-
29 HOSE; FUEL
(B) IDN 		8-98078-197-1 01 1 1108-
39 PIPE; FUEL
INDONESIA KD DELETION<35D> (B) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1210-1210
39 PIPE; FUEL
(A) IDN 		8-98009-438-1 01 1 1108-
39 PIPE; FUEL
(B) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1108-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. LOCALLY SUPPLIED PARTS<TKH> (D) ID=16 IDN 		8-94238-568-0 04 1 1201-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1108-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 IDN 		1-09704-102-0 06 1 1108-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 IDN 		5-09707-030-1 03 1 1108-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 IDN 		8-94238-568-0 04 1 1108-1112
41 CLIP; FUEL PIPE,FUEL TANK
LOCALLY SUPPLIED PARTS<TKH> (D) ID=16 IDN 		8-94238-568-0 02 1 1201-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 IDN 		8-94238-571-0 06 1 1108-
47 PIPE; FUEL,RETURN
L=539 IDN 		8-98117-709-0 01 1 1108-
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1108-
67 HOSE; FUEL,DELIVERY
(B) L=110 SERVICED BY L=3000 		0-01260-300-0 01 1 1108-
67 HOSE; FUEL,DELIVERY
(A) L=210 SERVICED BY L=3000 		0-01558-300-0 01 1 1108-
67 HOSE; FUEL,DELIVERY
(C) L=300 		8-98157-878-0 01 1 1108-
67 HOSE; FUEL,DELIVERY
(D) L=780 IDN 		8-98184-820-0 01 1 1108-
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1108-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 02 1 1108-
97 BRACKET; CLIP
(B) 		8-98053-654-0 01 1 1108-
97 BRACKET; CLIP
(A) 		8-98126-612-0 01 1 1108-
174 PIPE; FUEL,FEED,FRT
L=548 IDN 		8-98117-708-0 01 1 1108-
303 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1108-
303 BOLT; BRKT
(B) M10X35 FLANGE IDN 		0-28651-035-0 02 1 1108-
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 1108-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1108-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1108-
634 HOSE; RUBBER RETURN
LOCALLY SUPPLIED PARTS<TKH> 		8-98211-102-0 01 1 1201-
634 HOSE; RUBBER RETURN
IDN 		8-98184-202-0 01 1 1108-1112
634 HOSE; RUBBER RETURN
EXC. LOCALLY SUPPLIED PARTS<TKH> IDN 		8-98184-202-0 01 1 1201-

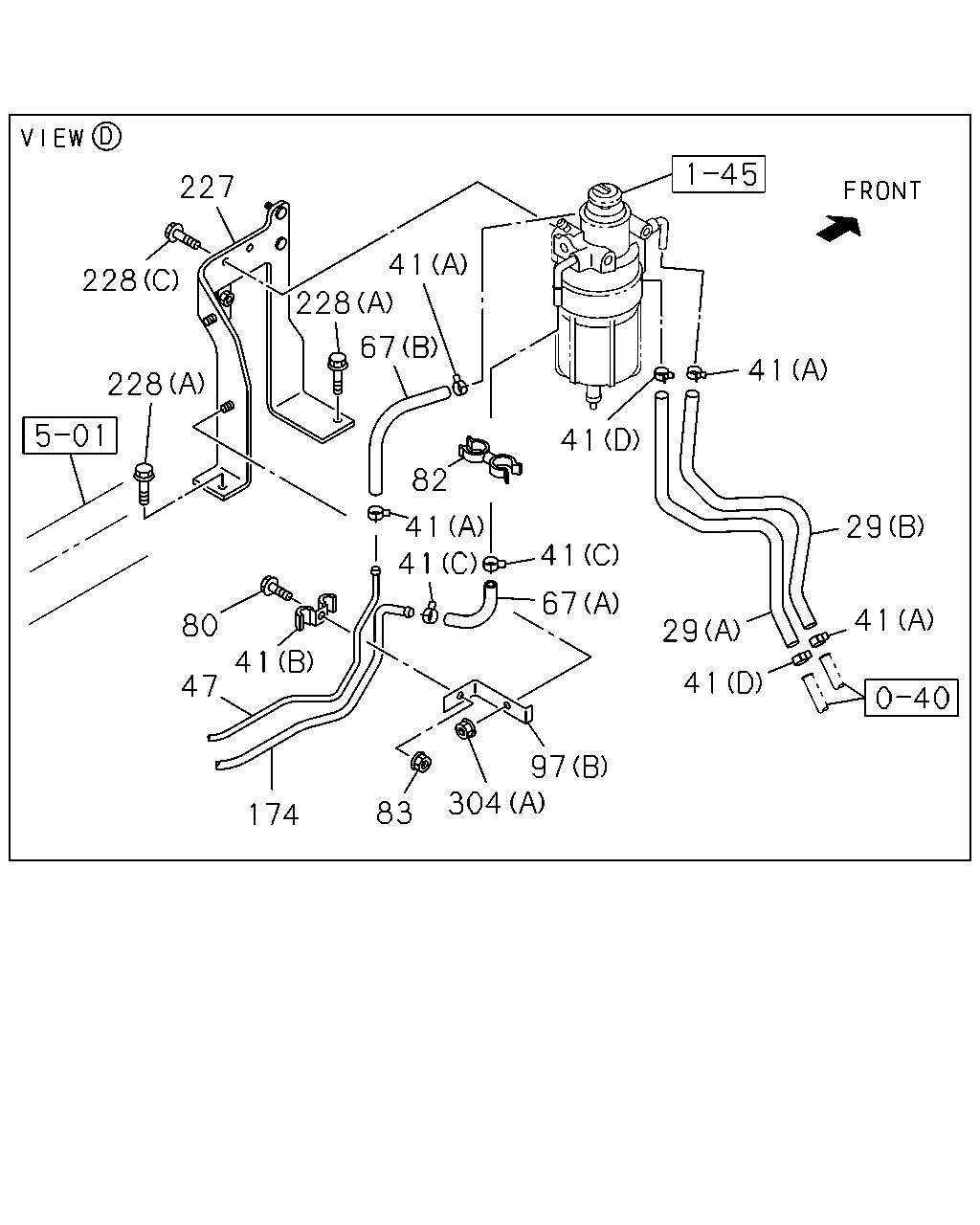

çizim 146191
227 228 228 228 41 67 82 41 41 80 47 41 174 83 304 97 41 67 41 41 29 41 29 41
BalonParca AdiParca NoAdetTipApplied Date
29 HOSE; FUEL
(C) L=60 SERVICED BY L=3000 		0-01259-300-0 01 1 1108-
29 HOSE; FUEL
(A) IDN 		8-98078-196-2 01 1 1108-
29 HOSE; FUEL
(B) IDN 		8-98078-197-1 01 1 1108-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. LOCALLY SUPPLIED PARTS<TKH> (D) ID=16 IDN 		8-94238-568-0 04 1 1201-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1108-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 IDN 		1-09704-102-0 06 1 1108-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 IDN 		5-09707-030-1 03 1 1108-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 IDN 		8-94238-568-0 04 1 1108-1112
41 CLIP; FUEL PIPE,FUEL TANK
LOCALLY SUPPLIED PARTS<TKH> (D) ID=16 IDN 		8-94238-568-0 02 1 1201-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 IDN 		8-94238-571-0 06 1 1108-
47 PIPE; FUEL,RETURN
L=539 IDN 		8-98117-709-0 01 1 1108-
67 HOSE; FUEL,DELIVERY
(B) L=110 SERVICED BY L=3000 		0-01260-300-0 01 1 1108-
67 HOSE; FUEL,DELIVERY
(A) L=210 SERVICED BY L=3000 		0-01558-300-0 01 1 1108-
67 HOSE; FUEL,DELIVERY
(C) L=300 		8-98157-878-0 01 1 1108-
67 HOSE; FUEL,DELIVERY
(D) L=780 IDN 		8-98184-820-0 01 1 1108-
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1108-
82 CLIP; FUEL HOSE
ID=13 & 16.5 		8-94169-028-0 01 1 1108-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 02 1 1108-
97 BRACKET; CLIP
(B) 		8-98053-654-0 01 1 1108-
97 BRACKET; CLIP
(A) 		8-98126-612-0 01 1 1108-
174 PIPE; FUEL,FEED,FRT
L=548 IDN 		8-98117-708-0 01 1 1108-
227 BRACKET; FUEL SEDIMENTER 8-98044-366-3 01 1 1108-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1108-
228 BOLT; BRKT,SEDIMENTER
(B) M10X50 FLANGE 		0-28051-050-0 02 1 1108-
228 BOLT; BRKT,SEDIMENTER
(C) M8X20 FLANGE IDN 		0-28650-820-0 02 1 1108-
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 1108-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1108-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1108-
