1-31 — AIR DUCT
(#63223) — 42 parça
◀

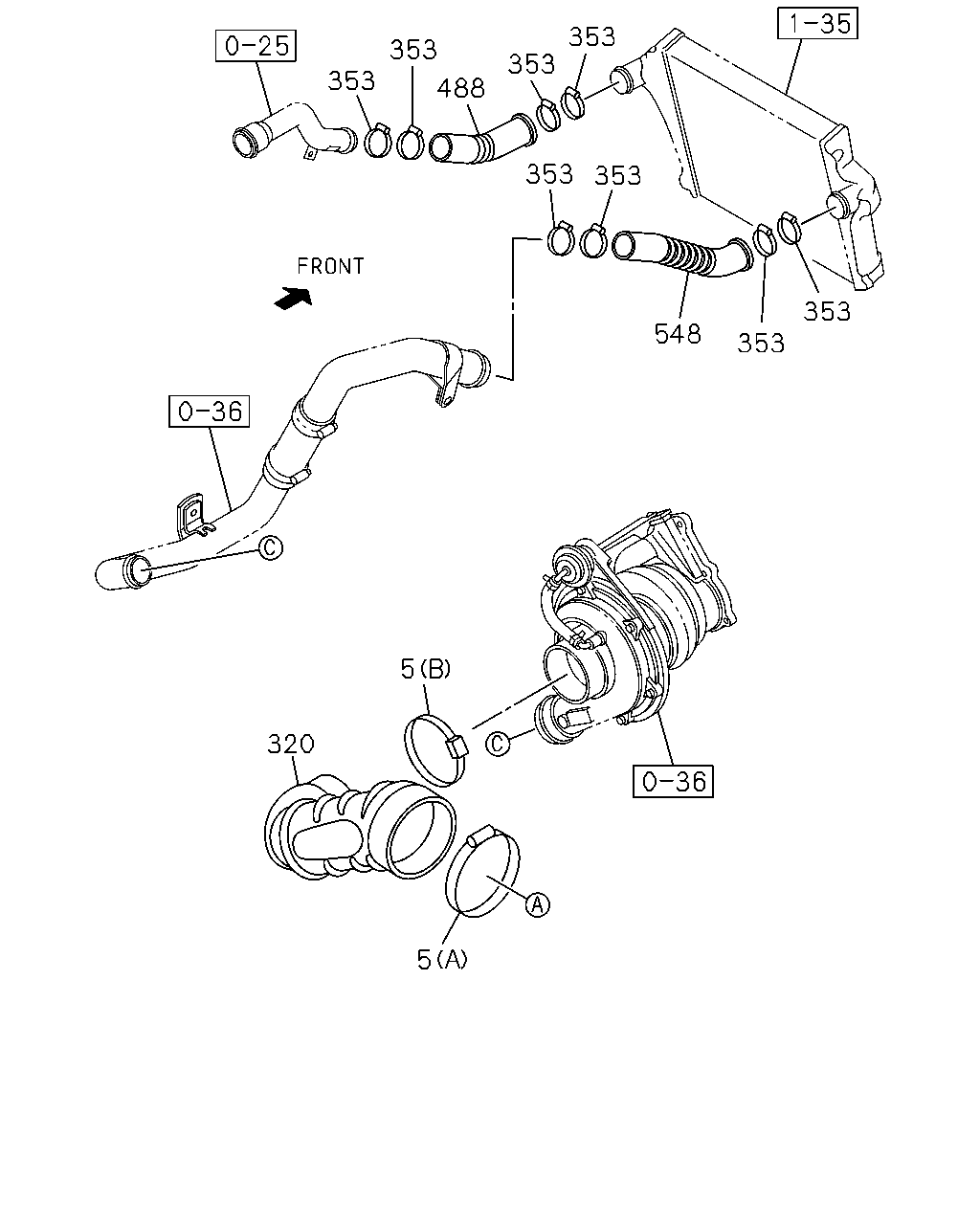

[131A] PIPING (6 parça)
[131A] DUCT FIXING (36 parça)
▶
353
353
353
353
488
353
353
353
548
353
5
320
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(A) ID=110-130
8-98133-359-0
01
1
1108-
5
CLIP; AIR DUCT
(B) ID=90-110
8-98133-365-0
01
1
1108-
320
HOSE; CONN,ACL
IDN
8-98073-257-0
01
1
1108-
353
CLIP; RUBBER HOSE
ID=55-75
8-98133-349-0
08
1
1108-
488
HOSE; RUBBER,PIPE
8-98012-936-1
01
1
1108-
548
HOSE; RUBBER,TURBO TO INL PIPE
IDN
8-98181-974-1
01
1
1108-
49
242
58
56
56
49
49
56
56
58
242
242
58
245
61
58
48
49
560
26
450
252
316
71
558
225
424
159
543
368
480
357
543
564
379
357
209
296
210
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98010-361-2
01
1
1108-
48
BOLT; AIR DUCT
M10X26
1-09030-044-1
02
1
1108-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
1108-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
1108-
49
NUT; AIR DUCT
(C) M8 FLANGE IDN
8-94279-517-0
02
1
1108-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
1108-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
1108-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
1108-
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
1108-
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
1108-
71
CLIP; AIR DUCT
ID=120-140
8-98133-367-0
01
1
1108-
159
BOLT; AIR PIPE
M6X16 FLANGE IDN
0-28050-616-0
02
1
1108-
209
BRACKET; ACL
8-98021-995-1
01
1
1108-
210
BOLT; ACL BRKT
M10X25 FLANGE IDN
0-28651-025-0
04
1
1108-
225
GASKET; AIR PIPE
ID=24.4
1-09623-057-0
01
1
1108-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
1108-
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
1108-
242
BRACKET; AIR DUCT
(A)
8-98019-304-1
01
1
1108-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
1108-
252
DUCT; AIR INT
8-98012-861-1
01
1
1108-
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
1108-
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
1108-
357
CLIP; RUBBER HOSE
(A) ID=26
1-09707-091-0
01
1
1108-
357
CLIP; RUBBER HOSE
(B) ID=29.5
8-97354-979-0
01
1
1108-
368
SENSOR; TEMP
8-98065-377-0
01
1
1108-
379
HOSE; RUBBER
INDONESIA KD DELETION<35D>
8-97619-194-0
01
1
1210-1210
379
HOSE; RUBBER
8-97619-194-0
01
1
1108-
424
PIPE; AIR,INL
8-98081-834-0
01
1
1108-
450
CLAMP; HOSE
9-09915-504-1
01
1
1108-
480
ADAPTER
8-98086-417-0
01
1
1108-
543
SCREW; SENSOR
(B) M5X14 W/LK WASHER
0-36220-514-0
01
1
1108-
543
SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1108-
558
CLIP; AIR FLOW SENSOR
L=600
1-09707-107-1
01
1
1108-
558
CLIP; AIR FLOW SENSOR
L=250 IDN
5-09707-030-1
02
1
1108-
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
1108-
564
GASKET; ADAPTER
8-98071-416-0
01
1
1108-
