3-70 — BRAKE PIPING; AIR,AIR MASTER (#6322) — 402 parça

258 88 321 323 434 322 434 445 296 258 286 231 231 375 337 456 221 231 334 434 273 335 304 337 232 232 337 231 297 434 232 297 297 258 343 233 330 233 330 258 343 258 343 233 330

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

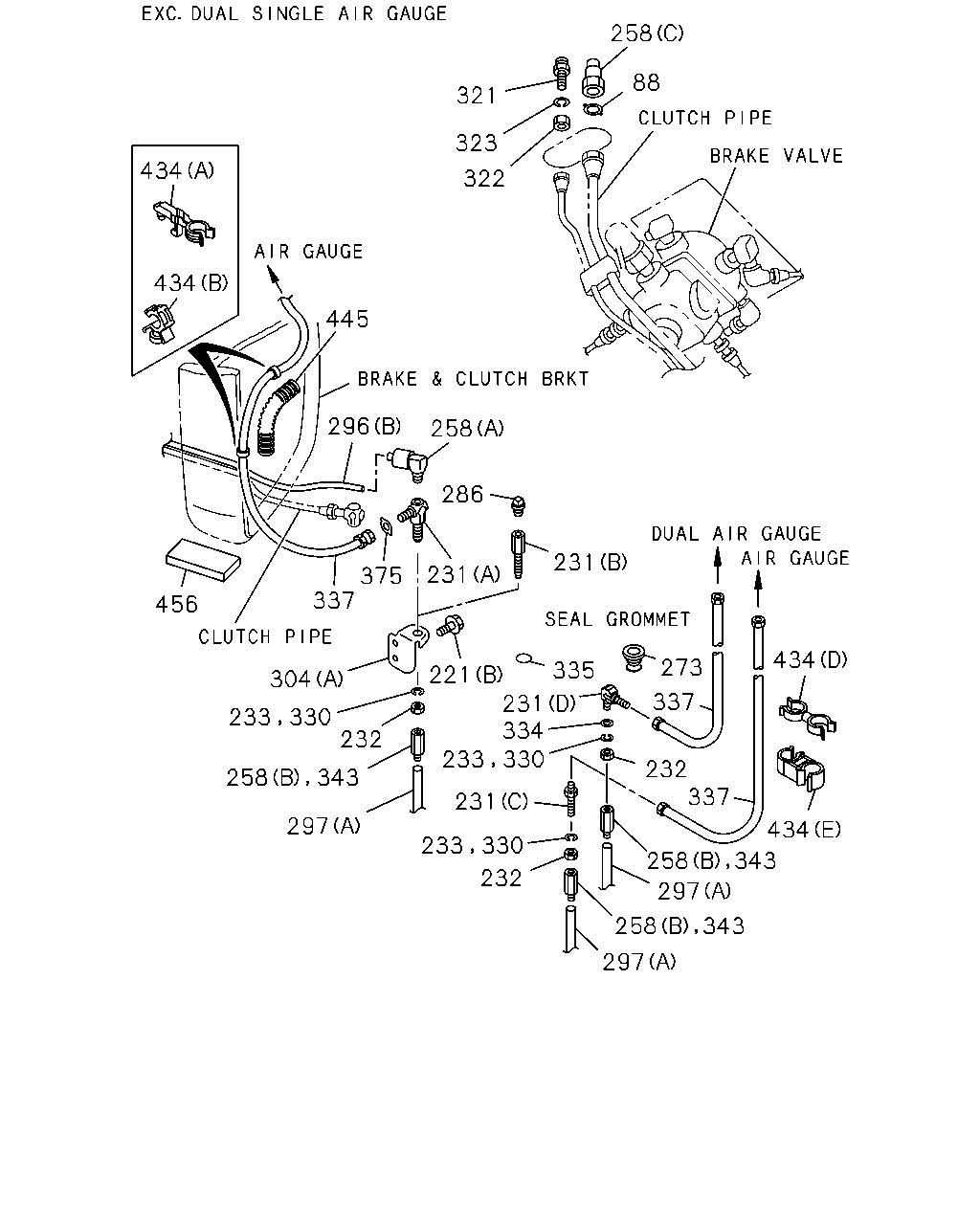

88	GASKET; NYLON TUBE ASSISTER SHIFT CONTROL<WX8> ID=11 OD=18	9-09572-510-0	01	1	9604-
88	GASKET; NYLON TUBE CONCRETE PUMP<RA5> ID=14.2 OD=23.0	9-09572-014-0	01	1	9604-
221	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) M8X30 FLANGE	0-28080-830-0	01	1	9604-9606
221	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	9607-
221	BOLT; BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9604-9904
221	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9604-9904
221	BOLT; BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (D) M10 ELBOW	1-09654-186-2	01	1	9604-
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (C) M10 STRAIGHT	1-09654-361-0	01	1	9604-
231	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (A)	1-09654-347-0	01	1	9604-
231	UNION; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (B)	1-09656-713-2	01	1	9604-
232	NUT; UNION,AIR PIPE DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	02	1	9604-
232	NUT; UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9604-9904
232	NUT; UNION,AIR PIPE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9604-9904
232	NUT; UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9905-
233	WASHER; LK,UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9604-9904
233	WASHER; LK,UNION,AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9604-9904
233	WASHER; LK,UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9905-

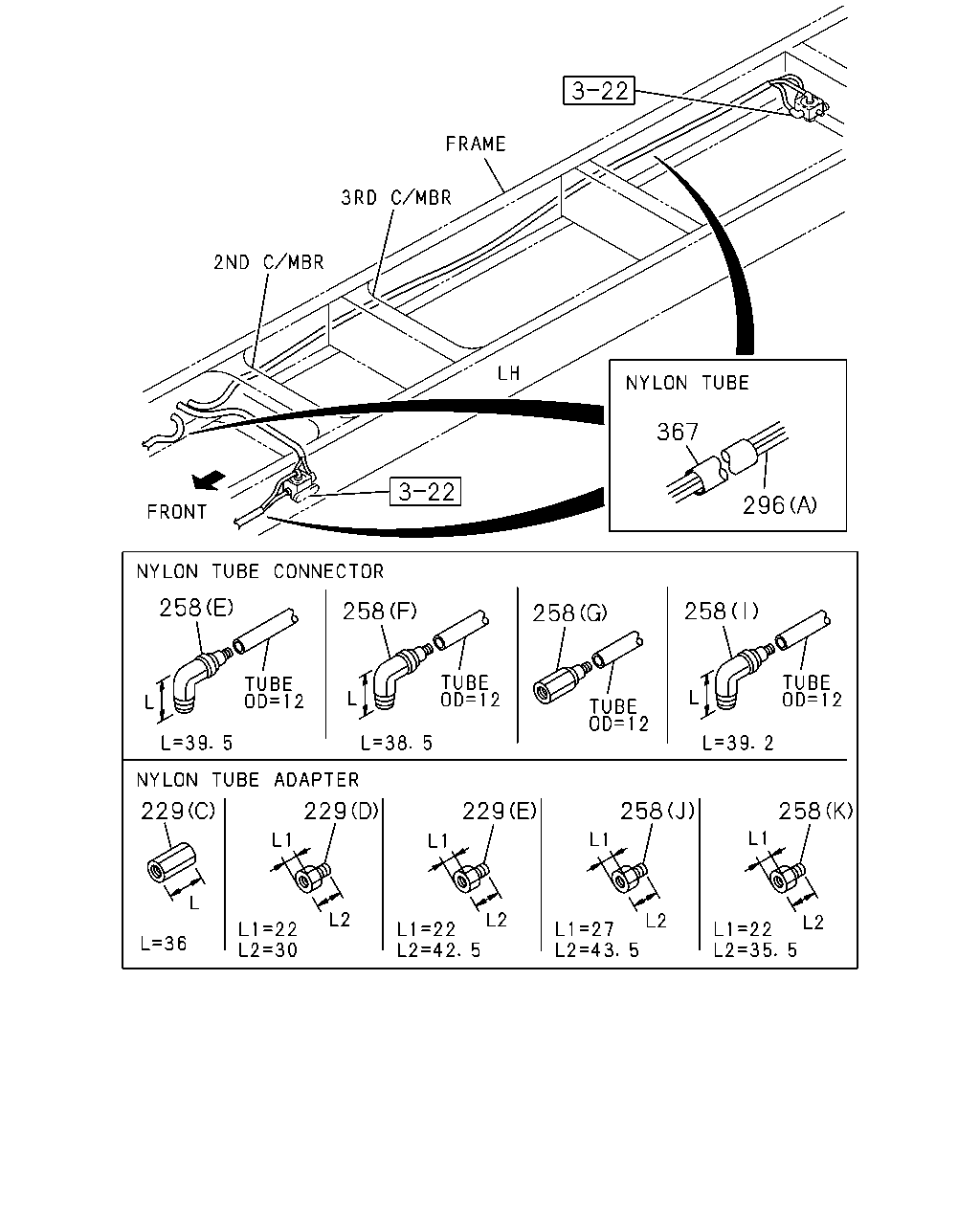

258	CONNECTOR; NYLON TUBE CONCRETE PUMP<RA5> (E) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9604-9612
258	CONNECTOR; NYLON TUBE CONCRETE PUMP<RA5> (F) DIN12 & R1/4 ELBOW	1-09660-655-1	01	1	9604-9904
258	CONNECTOR; NYLON TUBE CONCRETE PUMP<RA5> (I) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	9905-
258	CONNECTOR; NYLON TUBE EXC. CONCRETE PUMP<RA5> (G) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9604-9904
258	CONNECTOR; NYLON TUBE EXC. CONCRETE PUMP<RA5> (J) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9905-0007
258	CONNECTOR; NYLON TUBE EXC. CONCRETE PUMP<RA5> (J) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-
258	CONNECTOR; NYLON TUBE DUAL AIR GAUGE<UG2> TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) EXC. CONCRETE PUMP<RA5> (D) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9604-9904
258	CONNECTOR; NYLON TUBE EXC. CONCRETE PUMP<RA5>,DUAL AIR GAUGE<UG2> (D) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9604-9904
258	CONNECTOR; NYLON TUBE DUAL AIR GAUGE<UG2> TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) EXC. CONCRETE PUMP<RA5> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-
258	CONNECTOR; NYLON TUBE EXC. CONCRETE PUMP<RA5>,DUAL AIR GAUGE<UG2> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B)	1-09660-796-0	01	1	9604-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	9604-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (C) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9604-9811
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9604-9811
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (K) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-0007
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (K) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (B)	1-09660-796-1	01	1	9604-
273	GROMMET SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2>	1-09332-102-0	01	1	9604-9904
273	GROMMET EXC. DUAL AIR GAUGE<UG2>	1-09332-102-0	01	1	9604-9904
273	GROMMET SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2>	1-09332-102-0	01	1	9905-
286	PLUG; AIR PIPE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	9-09204-510-0	01	1	9604-

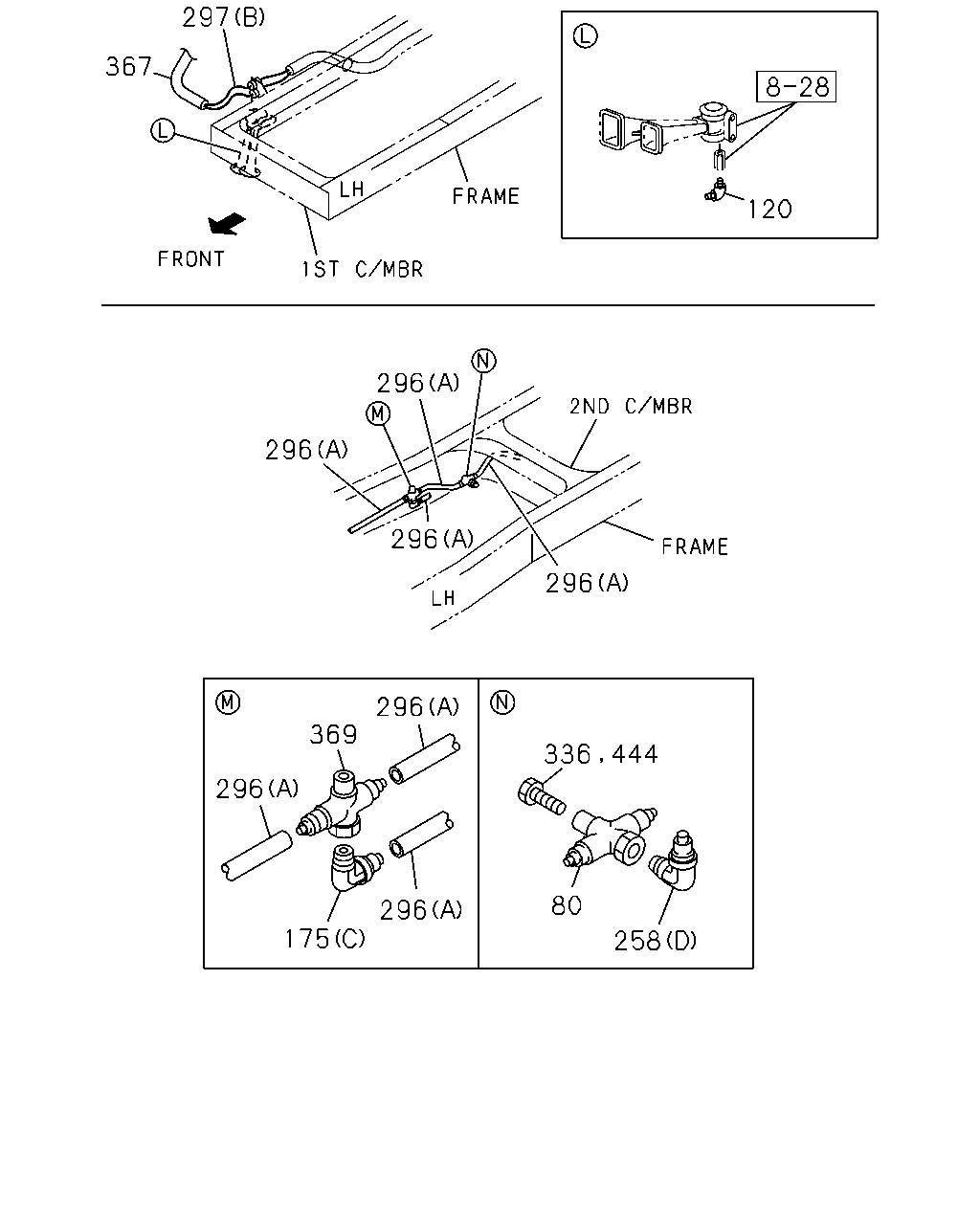

296	TUBE; NYLON (B) SERVICED BY L=30000 OD=6	1-09366-235-0	AR	1	9604-
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9604-
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9604-
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	9604-
296	TUBE; NYLON SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=1200 OD=6	1-09366-256-1	01	1	0002-
297	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	9604-
297	TUBE; NYLON CONCRETE PUMP<RA5> (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9604-
297	TUBE; NYLON CONCRETE PUMP<RA5> (B) SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	9604-
304	BRACKET; UNION (C)	1-47477-182-1	01	1	9604-
304	BRACKET; UNION EXC. CONCRETE PUMP<RA5> (B)	1-47476-556-0	01	1	9604-
304	BRACKET; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (A)	1-71117-210-0	01	1	9604-9904
304	BRACKET; UNION EXC. DUAL AIR GAUGE<UG2> (A)	1-71117-210-0	01	1	9604-9904
304	BRACKET; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (A)	1-71117-210-0	01	1	9905-
321	JOINT; FLEX HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2>	1-09654-362-1	01	1	9604-9811
321	JOINT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2>	1-09654-362-1	01	1	9604-9811
321	JOINT; FLEX HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	9812-
322	NUT; JOINT,FLEX HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9604-9904
322	NUT; JOINT,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9604-9904
322	NUT; JOINT,FLEX HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9905-
323	WASHER; LK,JOINT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9604-9904
323	WASHER; LK,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9604-9904
323	WASHER; LK,JOINT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9905-
330	WASHER; LK,UNION,AIR PIPE DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	02	1	9604-
334	SPACER; PIPE UNION DUAL AIR GAUGE<UG2> ID=10.5 OD=22 T=4	1-09503-045-0	01	1	9605-
335	SEAL; UNION DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK	1-76798-035-0	01	1	9604-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	0-07210-720-0	02	1	9604-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=720	0-07210-720-0	01	1	9604-
343	UNION; NYLON TUBE DUAL AIR GAUGE<UG2>	1-09660-796-1	02	1	9604-
343	UNION; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2>	1-09660-796-0	01	1	9604-9904
343	UNION; NYLON TUBE EXC. DUAL AIR GAUGE<UG2>	1-09660-796-0	01	1	9604-9904
343	UNION; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2>	1-09660-796-1	01	1	9905-
375	GASKET SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9604-9811
375	GASKET EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9604-9811
434	CLIP (C) L=300	1-09707-001-1	01	1	9604-
434	CLIP DUAL AIR GAUGE<UG2> (E) ID=10 & 10	1-09709-221-0	01	1	9812-
434	CLIP EXC. DUAL AIR GAUGE<UG2> (A) ID=17	1-09987-105-1	01	1	9604-
434	CLIP EXC. DUAL AIR GAUGE<UG2> (B)	8-94297-486-0	01	1	9604-
434	CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (D) ID=8.3 & 8.3	8-94426-175-0	03	1	9604-9904
434	CLIP EXC. DUAL AIR GAUGE<UG2> (D) ID=8.3 & 8.3	8-94426-175-0	03	1	9604-9904
434	CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (D) ID=8.3 & 8.3	8-94426-175-0	03	1	9905-
445	GUARD SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=520 ID=7.4	1-83129-031-1	01	1	9604-
456	SEAL; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X40	1-72498-022-0	01	1	9905-

7 21 6 237 374 8 8 8 7 6 3 7 6 26 27 2 4 1 4 25 30 4 1 4 123 131 376 377 1 1 30 98 18 12 16 304 421 376 72 180 163 17 21 35 237 179 186 185 193 55 247 184 217 12 428 123 249 248 177 124 217 214 215 180 72 224 213 175 175 229 328 150 284 124 328 202 291 229 229 150 328 123 284 123 175 124 304 345 25 374 2 26 3 27 51 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

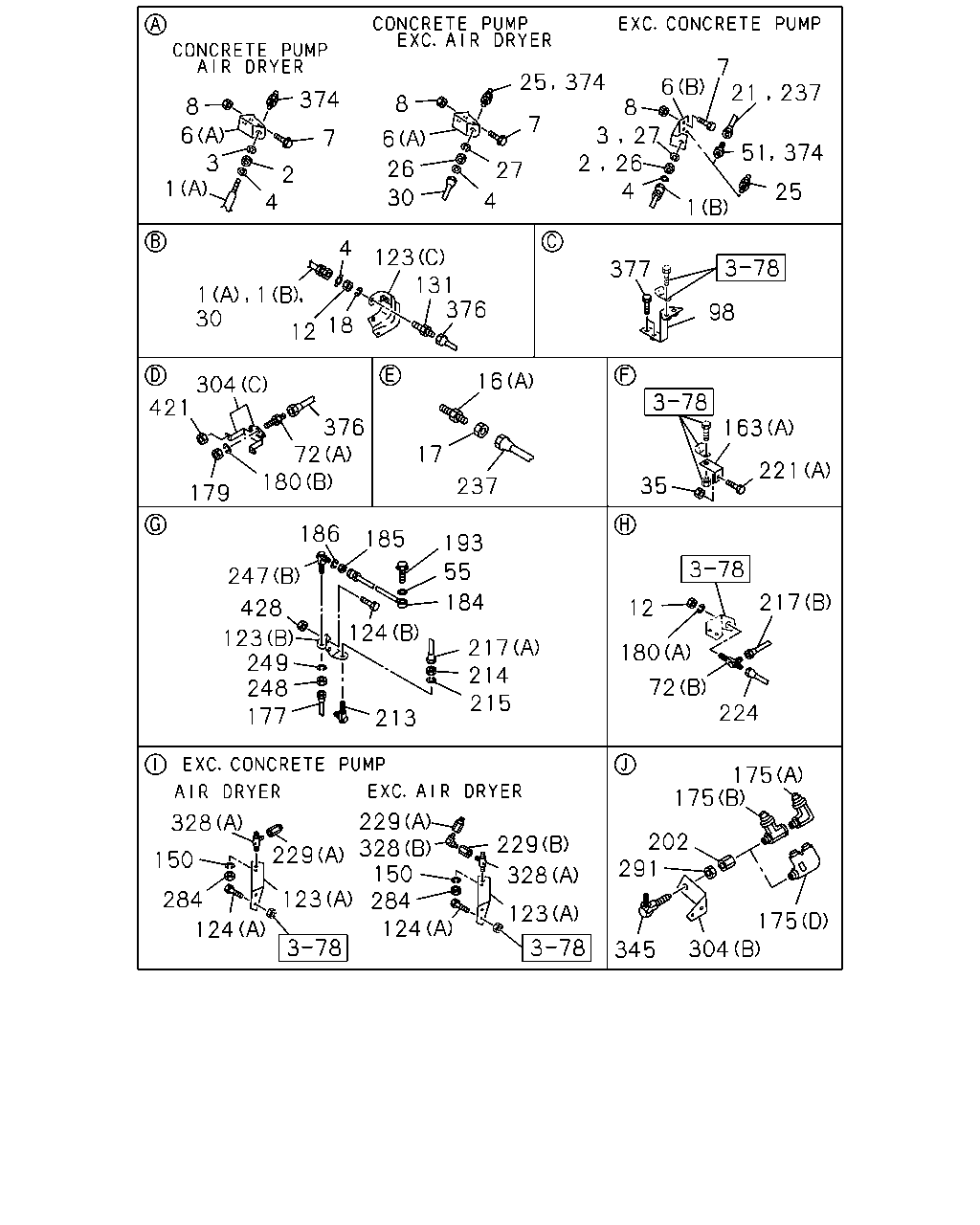

1	HOSE; FLEX,AIR TANK AIR DRYER<PS7> CONCRETE PUMP<RA5> (A) L=610	0-07816-610-1	01	1	9604-
1	HOSE; FLEX,AIR TANK MAL5 M/T<X9F> EXC. CONCRETE PUMP<RA5> (B) L=580	0-07846-580-1	01	1	9604-
1	HOSE; FLEX,AIR TANK MAL6 M/T<X9G> (B) L=530	0-07846-530-1	01	1	9604-
2	NUT; FLEX HOSE,AIR TANK AIR DRYER<PS7> CONCRETE PUMP<RA5> M22	9-09111-422-0	01	1	9604-
2	NUT; FLEX HOSE,AIR TANK AIR DRYER<PS7> EXC. CONCRETE PUMP<RA5> M20	9-99111-420-0	01	1	9604-
3	WASHER; LK,FLEX HOSE,AIR TANK AIR DRYER<PS7> CONCRETE PUMP<RA5> ID=22.5	9-09150-522-0	01	1	9604-
3	WASHER; LK,FLEX HOSE,AIR TANK AIR DRYER<PS7> EXC. CONCRETE PUMP<RA5> ID=20.2	9-09150-520-0	01	1	9604-
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9604-9606
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9607-
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9707-
6	BRACKET; FLEX HOSE,AIR TANK AIR DRYER<PS7> CONCRETE PUMP<RA5> (A)	1-47477-198-1	01	1	9604-
6	BRACKET; FLEX HOSE,AIR TANK CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7> (A)	1-47477-661-0	01	1	9604-
6	BRACKET; FLEX HOSE,AIR TANK EXC. CONCRETE PUMP<RA5> (B)	1-47477-232-0	01	1	9604-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28080-825-0	02	1	9604-9606
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	9607-
8	NUT; BRKT,FLEX HOSE,AIR TANK M8	9-09110-508-0	02	1	9604-9606
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91150-108-0	02	1	9607-
12	NUT; UNION M20	9-99111-420-0	02	1	9604-9702
12	NUT; UNION M20	9-99111-420-0	01	1	9703-
12	NUT; UNION M12	9-09840-280-0	01	1	9703-
16	UNION; AIR PIPE EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5> (A) M22	9-09233-315-1	01	1	9604-
16	UNION; AIR PIPE CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7> (B) M22	9-09235-215-1	01	1	9604-
17	NUT; UNION EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5> M22	9-09111-422-0	01	1	9604-
18	WASHER; LK,UNION ID=20.2	9-09150-520-0	01	1	9604-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-49114-744-0	01	1	9604-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-49116-141-0	01	1	9604-
25	VALVE; CHECK EXC. AIR DRYER<PS7>	1-48410-138-2	01	1	9604-
26	NUT; CHECK VLV EXC. AIR DRYER<PS7> M20	9-99111-420-0	01	1	9604-
27	WASHER; LK,CHECK VLV EXC. AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9604-
30	PIPE; AIR,CHECK VLV CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7>	1-49116-521-0	01	1	9604-
35	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8	9-09110-508-0	01	1	9604-9606
35	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9607-
51	UNION AIR DRYER<PS7> EXC. CONCRETE PUMP<RA5> M20 & M22 STRAIGHT	1-09654-166-1	01	1	9604-
55	GASKET; AIR PIPE ID=14.2 OD=19.2	1-09630-085-0	02	1	9604-
72	UNION; AIR PIPE (A)	1-09654-097-1	01	1	9604-
72	UNION; AIR PIPE (B)	1-09656-292-1	01	1	9604-9702
72	UNION; AIR PIPE (B) M12 3WAY	9-09228-906-1	01	1	9703-
98	BRACKET; AIR PIPE	1-47477-190-2	02	1	9604-9612
98	BRACKET; AIR PIPE	1-47477-840-0	02	1	9701-
123	BRACKET; UNION (B)	1-47477-045-0	01	1	9604-
123	BRACKET; UNION EXC. CONCRETE PUMP<RA5> (A)	1-47477-654-1	01	1	9604-
123	BRACKET; UNION MAL5 M/T<X9F> (C)	1-47477-189-0	01	1	9604-
123	BRACKET; UNION MAL6 M/T<X9G> (C)	1-47477-188-1	01	1	9604-9904
123	BRACKET; UNION MAL6 M/T<X9G>,MAG6 M/T<X9T> (C)	1-47477-188-1	01	1	9905-
124	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9604-9606
124	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	9607-
124	BOLT; BRKT EXC. CONCRETE PUMP<RA5> (A) M8X30 FLANGE	0-28080-830-0	02	1	9604-9606
124	BOLT; BRKT EXC. CONCRETE PUMP<RA5> (A) M8X35 FLANGE	0-28680-835-0	02	1	9607-
131	UNION; AIR PIPE M20 & M22 STRAIGHT	1-09654-166-1	01	1	9604-0006
150	WASHER; LK,UNION EXC. CONCRETE PUMP<RA5> ID=12.2	9-09150-512-0	02	1	9604-9904
150	WASHER; LK,UNION EXC. CONCRETE PUMP<RA5> ID=12.2	9-09150-512-0	01	1	9905-
163	BRACKET; AIR PIPE AIR DRYER<PS7> CONCRETE PUMP<RA5> (B) L=50	1-47475-299-2	01	1	9604-
163	BRACKET; AIR PIPE CONCRETE PUMP<RA5> (B) L=50	1-47475-299-2	01	1	9604-
163	BRACKET; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) L=55	1-47475-304-0	01	1	9604-
175	CONNECTOR; AIR PIPE EXC. CONCRETE PUMP<RA5> (C) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9604-9904
175	CONNECTOR; AIR PIPE EXC. CONCRETE PUMP<RA5> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-
175	CONNECTOR; AIR PIPE EXC. CONCRETE PUMP<RA5> (A) DIN12 & R1/4 ELBOW	1-09660-655-1	01	1	9604-9904
175	CONNECTOR; AIR PIPE EXC. CONCRETE PUMP<RA5> (D) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	9905-
175	CONNECTOR; AIR PIPE EXC. CONCRETE PUMP<RA5> (B) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	9604-9904
177	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> L=1249 SERVICED BY L=1370	1-47428-818-0	01	1	9604-9908
177	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5>	1-49122-241-0	01	1	9909-
177	PIPE; AIR,UNION TO UNION EXC. CONCRETE PUMP<RA5> L=568 SERVICED BY L=600	1-47428-809-0	01	1	9604-9908
177	PIPE; AIR,UNION TO UNION EXC. CONCRETE PUMP<RA5> L=548	1-49122-243-0	01	1	9909-
179	NUT; UNION M22	9-09111-422-0	01	1	9604-
180	WASHER; LK,UNION (A) ID=20.2	9-09150-520-0	01	1	9604-9702
180	WASHER; LK,UNION (A) ID=12.2	9-09150-512-0	01	1	9703-
180	WASHER; LK,UNION (B) ID=22.5	9-09150-522-0	01	1	9604-
184	HOSE; FLEX,AIR GOV L=370	0-07532-370-1	01	1	9604-
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	9604-9711
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	9604-9711
193	BOLT; EYE,FLEX HOSE,GOV LINE M14X27 FLANGE	1-09675-086-0	01	1	9604-
202	ADAPTER EXC. CONCRETE PUMP<RA5> M12 & RC3/8 STRAIGHT	1-09660-879-0	01	1	9604-
213	UNION; AIR PIPE M12 ELBOW	9-09225-206-1	01	1	9604-
214	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	9604-
215	WASHER; LK,UNION,AIR PIPE ID=12.2	9-09150-512-0	01	1	9604-

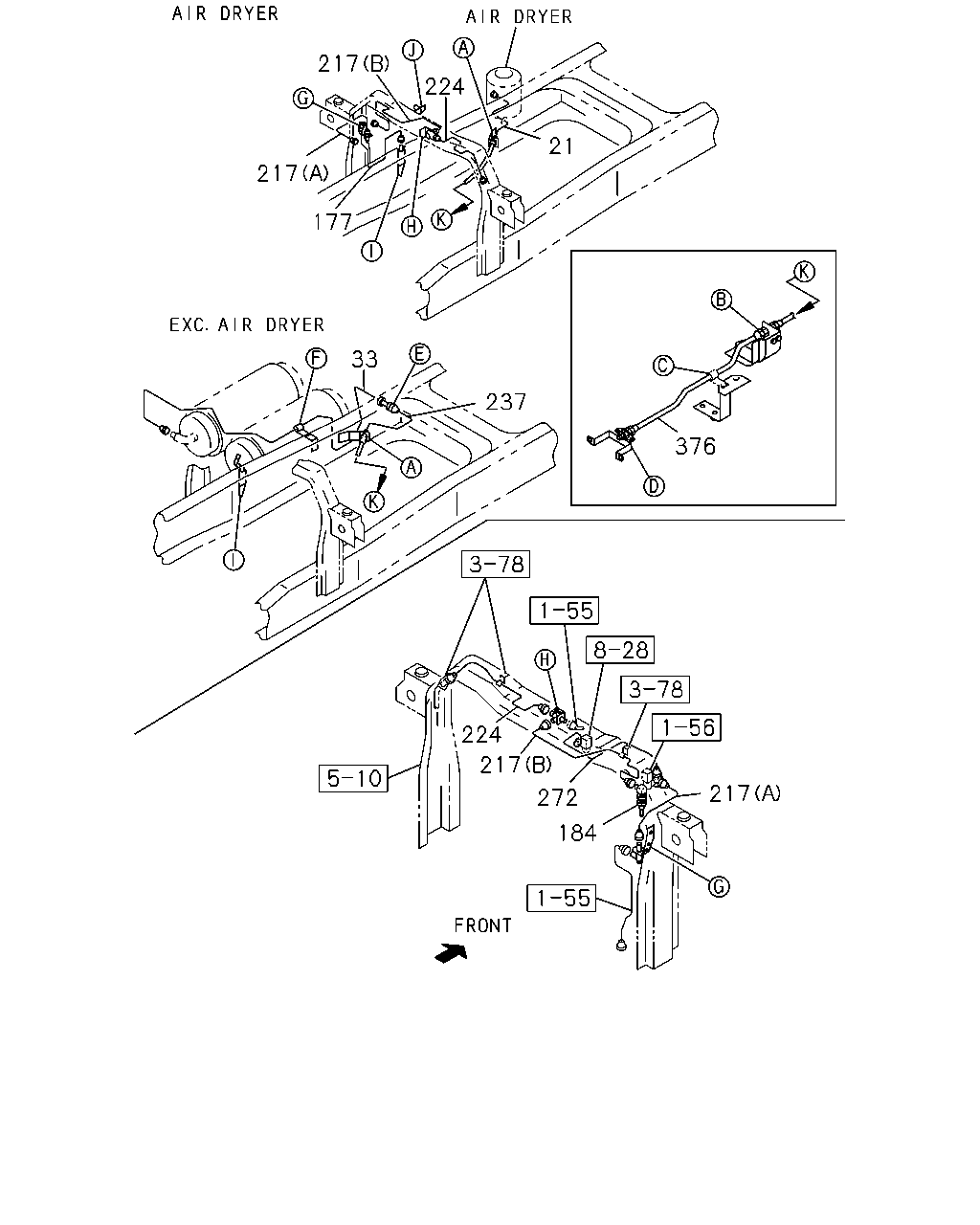

217	PIPE; VAC,UNION TO MAG VLV (B) L=748 SERVICED BY L=800	1-47428-812-0	01	1	9604-9702
217	PIPE; VAC,UNION TO MAG VLV (B) L=752 SERVICED BY L=800	1-47428-812-0	01	1	9703-9904
217	PIPE; VAC,UNION TO MAG VLV (A) L=620	1-49121-778-0	01	1	9905-
217	PIPE; VAC,UNION TO MAG VLV (A) L=336	1-47499-145-0	01	1	9604-9904
217	PIPE; VAC,UNION TO MAG VLV (B) L=572 SERVICED BY L=600	1-47428-809-0	01	1	9905-9905
217	PIPE; VAC,UNION TO MAG VLV (B) L=552	1-49121-876-0	01	1	9906-
224	PIPE; AIR,UNION TO FLEX HOSE L=480 SERVICED BY L=500	1-47428-807-0	01	1	9604-9702
224	PIPE; AIR,UNION TO FLEX HOSE L=494 SERVICED BY L=500	1-47428-807-0	01	1	9703-
229	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5> (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	9604-
229	ADAPTER; NYLON TUBE CONCRETE PUMP<RA5> (C) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	9604-9612
229	ADAPTER; NYLON TUBE CONCRETE PUMP<RA5> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9701-9904
229	ADAPTER; NYLON TUBE CONCRETE PUMP<RA5> (E) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9905-0007
229	ADAPTER; NYLON TUBE CONCRETE PUMP<RA5> (E) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
229	ADAPTER; NYLON TUBE CONCRETE PUMP<RA5> (D) M14 & PT1/4	9-48319-149-0	01	1	9604-
229	ADAPTER; NYLON TUBE EXC. CONCRETE PUMP<RA5> (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9604-9904
229	ADAPTER; NYLON TUBE EXC. CONCRETE PUMP<RA5> (A) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	9905-0005
229	ADAPTER; NYLON TUBE EXC. CONCRETE PUMP<RA5> (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0006-
237	PIPE; AIR,FLEX HOSE TO UNION EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5> L=495	1-49117-170-0	01	1	9604-
247	UNION; AIR PIPE (B) M12	1-09654-087-1	01	1	9604-
247	UNION; AIR PIPE CONCRETE PUMP<RA5> (A) M12 L=40	9-09223-006-1	01	1	9604-
248	NUT; PIPE UNION M12	9-09840-280-0	01	1	9604-
249	WASHER; LK,PIPE UNION ID=12.2	9-09150-512-0	01	1	9604-
284	NUT; UNION EXC. CONCRETE PUMP<RA5> M12	9-99111-412-0	01	1	9604-
291	NUT; UNION EXC. CONCRETE PUMP<RA5> M12	9-09840-280-0	01	1	9604-
304	BRACKET; UNION (C)	1-47477-182-1	01	1	9604-
304	BRACKET; UNION EXC. CONCRETE PUMP<RA5> (B)	1-47476-556-0	01	1	9604-
304	BRACKET; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (A)	1-71117-210-0	01	1	9604-9904
304	BRACKET; UNION EXC. DUAL AIR GAUGE<UG2> (A)	1-71117-210-0	01	1	9604-9904
304	BRACKET; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (A)	1-71117-210-0	01	1	9905-
328	UNION; AIR PIPE EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9604-
328	UNION; AIR PIPE EXC. CONCRETE PUMP<RA5> (A) M12 2WAY	1-09654-059-2	01	1	9604-
345	UNION; AIR PIPE EXC. CONCRETE PUMP<RA5> M12 ELBOW	9-09225-206-1	01	1	9604-
374	CONNECTOR M20 & M22 STRAIGHT	1-09654-166-1	01	1	0007-
376	PIPE; AIR,FLEX HOSE MAG6 M/T<X9T> L=643	1-49112-568-0	01	1	9905-
376	PIPE; AIR,FLEX HOSE MAL5 M/T<X9F> L=476	1-49112-572-0	01	1	9604-
376	PIPE; AIR,FLEX HOSE MAL6 M/T<X9G> L=580	1-49112-570-0	01	1	9604-
377	BOLT; BRKT FIX EXC. CONCRETE PUMP<RA5> M8X30 FLANGE	0-28080-830-0	02	1	9604-9606
377	BOLT; BRKT FIX EXC. CONCRETE PUMP<RA5> M8X35 FLANGE	0-28680-835-0	02	1	9607-
421	NUT; BRKT M10 FLANGE	0-91150-110-0	02	1	9604-9606
421	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9607-
428	NUT; BRKT M8	9-09110-508-0	02	1	9604-9606
428	NUT; BRKT EXC. CONCRETE PUMP<RA5> M8	9-09110-508-0	02	1	9604-9606
428	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-
428	NUT; BRKT EXC. CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	02	1	9607-

367 296 258 258 258 258 229 229 229 258 258

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
229	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5> (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	9604-
229	ADAPTER; NYLON TUBE CONCRETE PUMP<RA5> (C) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	9604-9612
229	ADAPTER; NYLON TUBE CONCRETE PUMP<RA5> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9701-9904
229	ADAPTER; NYLON TUBE CONCRETE PUMP<RA5> (E) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9905-0007
229	ADAPTER; NYLON TUBE CONCRETE PUMP<RA5> (E) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
229	ADAPTER; NYLON TUBE CONCRETE PUMP<RA5> (D) M14 & PT1/4	9-48319-149-0	01	1	9604-
229	ADAPTER; NYLON TUBE EXC. CONCRETE PUMP<RA5> (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9604-9904
229	ADAPTER; NYLON TUBE EXC. CONCRETE PUMP<RA5> (A) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	9905-0005
229	ADAPTER; NYLON TUBE EXC. CONCRETE PUMP<RA5> (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0006-
258	CONNECTOR; NYLON TUBE CONCRETE PUMP<RA5> (E) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9604-9612
258	CONNECTOR; NYLON TUBE CONCRETE PUMP<RA5> (F) DIN12 & R1/4 ELBOW	1-09660-655-1	01	1	9604-9904
258	CONNECTOR; NYLON TUBE CONCRETE PUMP<RA5> (I) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	9905-
258	CONNECTOR; NYLON TUBE EXC. CONCRETE PUMP<RA5> (G) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9604-9904
258	CONNECTOR; NYLON TUBE EXC. CONCRETE PUMP<RA5> (J) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9905-0007
258	CONNECTOR; NYLON TUBE EXC. CONCRETE PUMP<RA5> (J) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-
258	CONNECTOR; NYLON TUBE DUAL AIR GAUGE<UG2> TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) EXC. CONCRETE PUMP<RA5> (D) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9604-9904
258	CONNECTOR; NYLON TUBE EXC. CONCRETE PUMP<RA5>,DUAL AIR GAUGE<UG2> (D) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9604-9904
258	CONNECTOR; NYLON TUBE DUAL AIR GAUGE<UG2> TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) EXC. CONCRETE PUMP<RA5> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-
258	CONNECTOR; NYLON TUBE EXC. CONCRETE PUMP<RA5>,DUAL AIR GAUGE<UG2> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B)	1-09660-796-0	01	1	9604-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	9604-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (C) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9604-9811
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9604-9811
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (K) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-0007
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (K) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (B)	1-09660-796-1	01	1	9604-
296	TUBE; NYLON (B) SERVICED BY L=30000 OD=6	1-09366-235-0	AR	1	9604-
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9604-
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9604-
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	9604-
296	TUBE; NYLON SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=1200 OD=6	1-09366-256-1	01	1	0002-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	AR	1	9604-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9604-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9604-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9604-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9604-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9604-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9604-
367	TUBE; CORRUGATE CONCRETE PUMP<RA5> SERVICED BY L=4000 ID=10	1-87410-089-0	AR	1	9905-

297 367 120 296 296 296 296 296 369 296 80 296 175 258 336 444

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	UNION; 3 WAY EXC. CONCRETE PUMP<RA5>	1-09660-757-0	01	1	9604-9904
80	UNION; 3 WAY EXC. CONCRETE PUMP<RA5> DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	9905-
120	CONNECTOR; AIR PIPE DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9604-9904
120	CONNECTOR; AIR PIPE DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-
175	CONNECTOR; AIR PIPE EXC. CONCRETE PUMP<RA5> (C) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9604-9904
175	CONNECTOR; AIR PIPE EXC. CONCRETE PUMP<RA5> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-
175	CONNECTOR; AIR PIPE EXC. CONCRETE PUMP<RA5> (A) DIN12 & R1/4 ELBOW	1-09660-655-1	01	1	9604-9904
175	CONNECTOR; AIR PIPE EXC. CONCRETE PUMP<RA5> (D) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	9905-
175	CONNECTOR; AIR PIPE EXC. CONCRETE PUMP<RA5> (B) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	9604-9904
258	CONNECTOR; NYLON TUBE CONCRETE PUMP<RA5> (E) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9604-9612
258	CONNECTOR; NYLON TUBE CONCRETE PUMP<RA5> (F) DIN12 & R1/4 ELBOW	1-09660-655-1	01	1	9604-9904
258	CONNECTOR; NYLON TUBE CONCRETE PUMP<RA5> (I) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	9905-
258	CONNECTOR; NYLON TUBE EXC. CONCRETE PUMP<RA5> (G) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9604-9904
258	CONNECTOR; NYLON TUBE EXC. CONCRETE PUMP<RA5> (J) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9905-0007
258	CONNECTOR; NYLON TUBE EXC. CONCRETE PUMP<RA5> (J) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-
258	CONNECTOR; NYLON TUBE DUAL AIR GAUGE<UG2> TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) EXC. CONCRETE PUMP<RA5> (D) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9604-9904
258	CONNECTOR; NYLON TUBE EXC. CONCRETE PUMP<RA5>,DUAL AIR GAUGE<UG2> (D) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9604-9904
258	CONNECTOR; NYLON TUBE DUAL AIR GAUGE<UG2> TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) EXC. CONCRETE PUMP<RA5> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-
258	CONNECTOR; NYLON TUBE EXC. CONCRETE PUMP<RA5>,DUAL AIR GAUGE<UG2> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (B)	1-09660-796-0	01	1	9604-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	9604-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (C) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9604-9811
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9604-9811
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (K) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-0007
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (K) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (B)	1-09660-796-1	01	1	9604-
296	TUBE; NYLON (B) SERVICED BY L=30000 OD=6	1-09366-235-0	AR	1	9604-
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9604-
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9604-
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	9604-
296	TUBE; NYLON SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=1200 OD=6	1-09366-256-1	01	1	0002-
297	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	9604-
297	TUBE; NYLON CONCRETE PUMP<RA5> (B) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9604-
297	TUBE; NYLON CONCRETE PUMP<RA5> (B) SERVICED BY L=4000 OD=8	1-87410-074-0	01	1	9604-
336	BOLT; PIPE UNION EXC. CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	01	1	9604-9606
336	BOLT; PIPE UNION EXC. CONCRETE PUMP<RA5> M8X20 FLANGE	0-28680-820-0	01	1	9607-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	AR	1	9604-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9604-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9604-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9604-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9604-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9604-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9604-
367	TUBE; CORRUGATE CONCRETE PUMP<RA5> SERVICED BY L=4000 ID=10	1-87410-089-0	AR	1	9905-
369	UNION; AIR PIPE EXC. CONCRETE PUMP<RA5> DIN12 RC3/8 & M8 3WAY	1-09660-758-1	01	1	9604-9904
369	UNION; AIR PIPE EXC. CONCRETE PUMP<RA5> DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	9905-
444	BOLT; UNION EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	01	1	9604-9606
444	BOLT; UNION EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28680-825-0	01	1	9607-

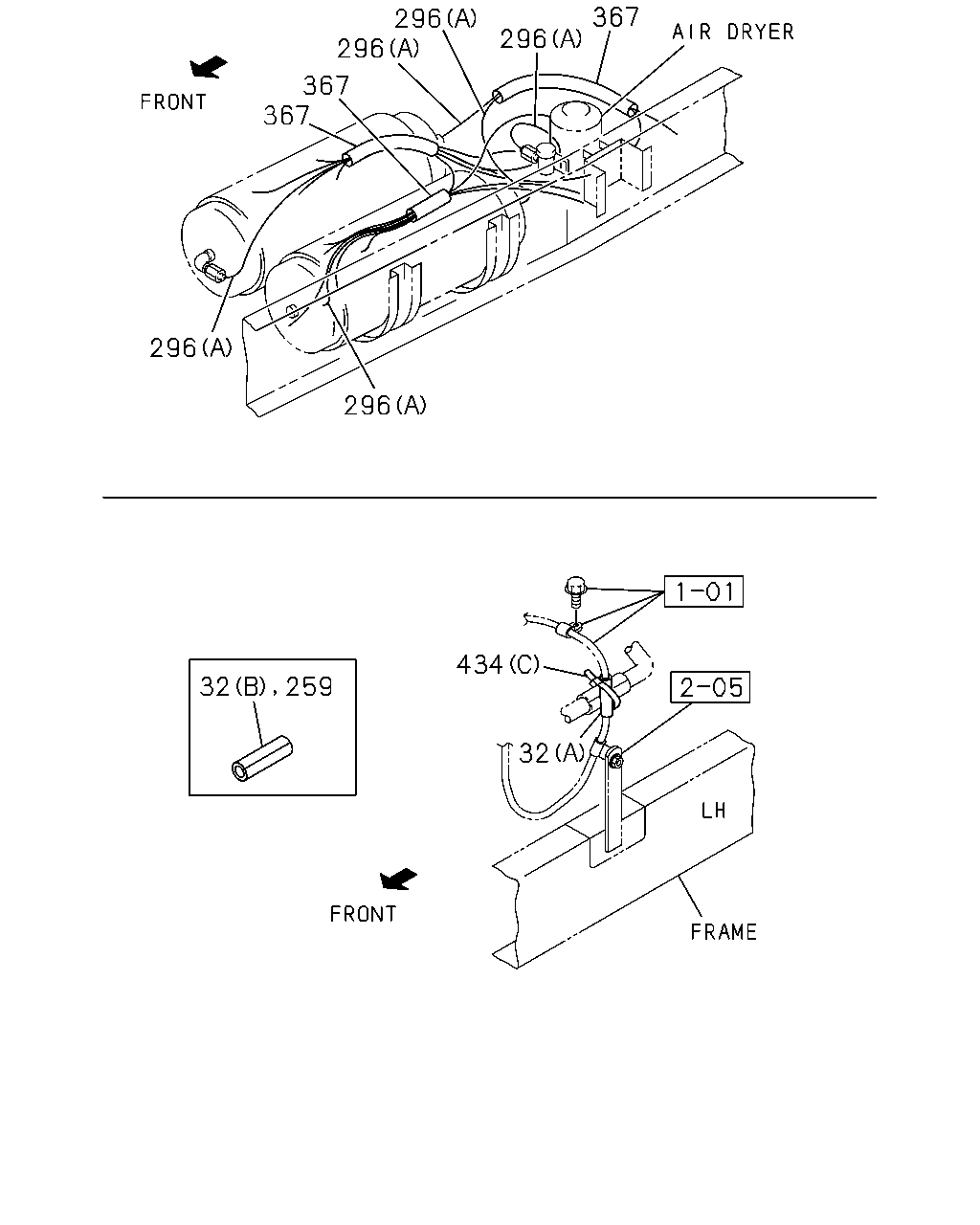

367 296 296 296 367 367 296 296 434 32 32 259

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	SLEEVE; RUBBER,AIR PIPE (A) ID=6 L=30	5-09360-352-0	01	1	9604-9910
32	SLEEVE; RUBBER,AIR PIPE (A) ID=6 OD=10 L=70	1-09376-512-0	01	1	9911-
32	SLEEVE; RUBBER,AIR PIPE (B) ID=12.5 OD=15.5 L=30	9-09714-002-0	02	1	9604-
259	SLEEVE; RUBBER,NYLON TUBE EXC. CONCRETE PUMP<RA5> ID=23 OD=27 L=40	1-09337-015-0	02	1	9604-
296	TUBE; NYLON (B) SERVICED BY L=30000 OD=6	1-09366-235-0	AR	1	9604-
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9604-
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9604-
296	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	9604-
296	TUBE; NYLON SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=1200 OD=6	1-09366-256-1	01	1	0002-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	AR	1	9604-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9604-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9604-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9604-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9604-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9604-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9604-
367	TUBE; CORRUGATE CONCRETE PUMP<RA5> SERVICED BY L=4000 ID=10	1-87410-089-0	AR	1	9905-
434	CLIP (C) L=300	1-09707-001-1	01	1	9604-
434	CLIP DUAL AIR GAUGE<UG2> (E) ID=10 & 10	1-09709-221-0	01	1	9812-
434	CLIP EXC. DUAL AIR GAUGE<UG2> (A) ID=17	1-09987-105-1	01	1	9604-
434	CLIP EXC. DUAL AIR GAUGE<UG2> (B)	8-94297-486-0	01	1	9604-
434	CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (D) ID=8.3 & 8.3	8-94426-175-0	03	1	9604-9904
434	CLIP EXC. DUAL AIR GAUGE<UG2> (D) ID=8.3 & 8.3	8-94426-175-0	03	1	9604-9904
434	CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (D) ID=8.3 & 8.3	8-94426-175-0	03	1	9905-

217 224 21 217 177 33 237 376 224 217 217 272 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-49114-744-0	01	1	9604-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-49116-141-0	01	1	9604-
33	PIPE; AIR,UNION TO AIR TANK EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5>	1-49116-788-0	01	1	9604-9606
33	PIPE; AIR,UNION TO AIR TANK EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5>	1-49117-526-0	01	1	9607-9904
33	PIPE; AIR,UNION TO AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>	1-49121-925-0	01	1	9905-9912
33	PIPE; AIR,UNION TO AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>	1-49122-444-0	01	1	0001-
177	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> L=1249 SERVICED BY L=1370	1-47428-818-0	01	1	9604-9908
177	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5>	1-49122-241-0	01	1	9909-
177	PIPE; AIR,UNION TO UNION EXC. CONCRETE PUMP<RA5> L=568 SERVICED BY L=600	1-47428-809-0	01	1	9604-9908
177	PIPE; AIR,UNION TO UNION EXC. CONCRETE PUMP<RA5> L=548	1-49122-243-0	01	1	9909-
184	HOSE; FLEX,AIR GOV L=370	0-07532-370-1	01	1	9604-
217	PIPE; VAC,UNION TO MAG VLV (B) L=748 SERVICED BY L=800	1-47428-812-0	01	1	9604-9702
217	PIPE; VAC,UNION TO MAG VLV (B) L=752 SERVICED BY L=800	1-47428-812-0	01	1	9703-9904
217	PIPE; VAC,UNION TO MAG VLV (A) L=620	1-49121-778-0	01	1	9905-
217	PIPE; VAC,UNION TO MAG VLV (A) L=336	1-47499-145-0	01	1	9604-9904
217	PIPE; VAC,UNION TO MAG VLV (B) L=572 SERVICED BY L=600	1-47428-809-0	01	1	9905-9905
217	PIPE; VAC,UNION TO MAG VLV (B) L=552	1-49121-876-0	01	1	9906-
224	PIPE; AIR,UNION TO FLEX HOSE L=480 SERVICED BY L=500	1-47428-807-0	01	1	9604-9702
224	PIPE; AIR,UNION TO FLEX HOSE L=494 SERVICED BY L=500	1-47428-807-0	01	1	9703-
237	PIPE; AIR,FLEX HOSE TO UNION EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5> L=495	1-49117-170-0	01	1	9604-
272	PIPE; AIR,MAG VLV TO UNION GOVERNOR CONTROL<W69>	1-49116-510-0	01	1	9604-9904
376	PIPE; AIR,FLEX HOSE MAG6 M/T<X9T> L=643	1-49112-568-0	01	1	9905-
376	PIPE; AIR,FLEX HOSE MAL5 M/T<X9F> L=476	1-49112-572-0	01	1	9604-
376	PIPE; AIR,FLEX HOSE MAL6 M/T<X9G> L=580	1-49112-570-0	01	1	9604-

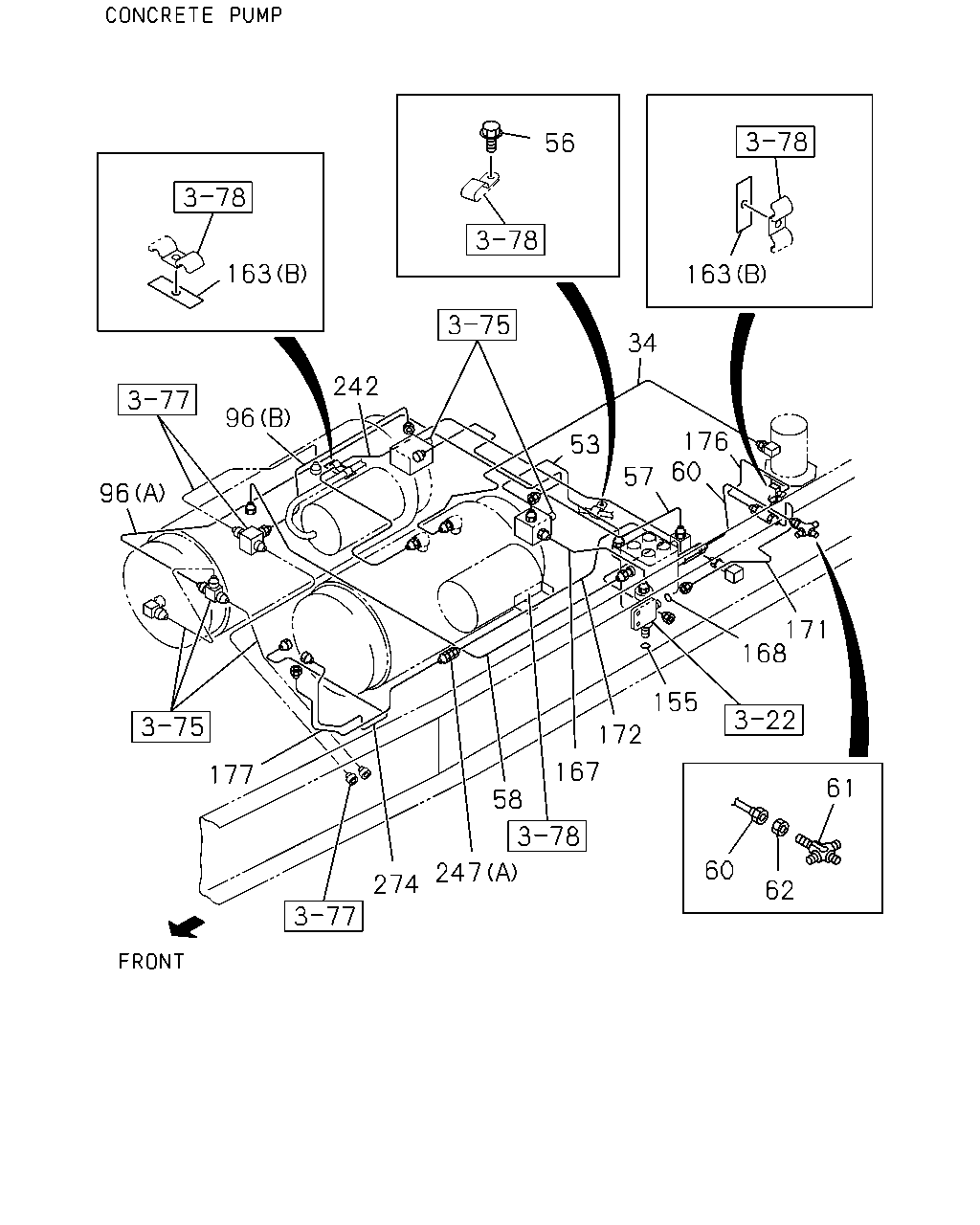

56 163 163 34 242 96 176 60 53 57 96 171 168 155 172 167 177 61 58 60 247 274 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	PIPE; AIR AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-49114-831-1	01	1	9604-9901
34	PIPE; AIR AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-49121-552-0	01	1	9902-
53	PIPE; AIR,AIR TANK TO VALVE CONCRETE PUMP<RA5>	1-49116-523-0	01	1	9604-0005
53	PIPE; AIR,AIR TANK TO VALVE CONCRETE PUMP<RA5>	1-49122-703-0	01	1	0006-
56	BOLT; CLIP,BRKT CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	01	1	9604-9606
56	BOLT; CLIP,BRKT CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28680-820-0	01	1	9607-0005
56	BOLT; CLIP,BRKT CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28680-820-0	01	1	0006-
56	BOLT; CLIP,BRKT CONCRETE PUMP<RA5> M8X20 FLANGE	0-28680-820-0	01	1	0006-
57	PIPE; AIR,P/VALVE TO A/T CONCRETE PUMP<RA5>	1-49116-524-0	01	1	9604-0005
57	PIPE; AIR,P/VALVE TO A/T CONCRETE PUMP<RA5>	1-49122-701-0	01	1	0006-
58	PIPE; AIR CONCRETE PUMP<RA5> L=1063 SERVICED BY L=1100	1-49115-486-0	01	1	9604-
60	PIPE; AIR,P/VALVE TO JOINT CONCRETE PUMP<RA5>	1-49117-186-0	01	1	9604-
61	JOINT; AIR PIPE CONCRETE PUMP<RA5>	1-09656-444-1	01	1	9604-
62	NUT; JOINT CONCRETE PUMP<RA5> M16	9-99111-416-0	01	1	9604-
96	PIPE; AIR,UNION TO AIR MASTER CONCRETE PUMP<RA5> (B)	1-49112-154-1	01	1	9604-
96	PIPE; AIR,UNION TO AIR MASTER CONCRETE PUMP<RA5> (A)	1-49117-187-0	01	1	9604-
155	GASKET; AIR PIPE CONCRETE PUMP<RA5> ID=11 OD=18	9-09572-510-0	01	1	9604-9904
163	BRACKET; AIR PIPE AIR DRYER<PS7> CONCRETE PUMP<RA5> (B) L=50	1-47475-299-2	01	1	9604-
163	BRACKET; AIR PIPE CONCRETE PUMP<RA5> (B) L=50	1-47475-299-2	01	1	9604-
163	BRACKET; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) L=55	1-47475-304-0	01	1	9604-
167	PIPE; AIR,CONN TO GOV CONCRETE PUMP<RA5>	1-49116-529-0	01	1	9604-9904
167	PIPE; AIR,CONN TO GOV CONCRETE PUMP<RA5>	1-49119-632-0	01	1	9905-0005
167	PIPE; AIR,CONN TO GOV CONCRETE PUMP<RA5>	1-49122-704-0	01	1	0006-
168	GASKET; AIR PIPE,GOV CONCRETE PUMP<RA5> ID=11 OD=18	9-09572-510-0	01	1	9604-9904
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-49116-214-0	01	1	9604-9904
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-49119-633-0	01	1	9905-
172	PIPE; AIR,GOV TO UNION CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7>	1-49117-188-0	01	1	9604-9904
172	PIPE; AIR,GOV TO UNION CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7>	1-49119-634-0	01	1	9905-
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> CONCRETE PUMP<RA5> L=1182 SERVICED BY L=1200	1-47428-816-0	01	1	9604-
177	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> L=1249 SERVICED BY L=1370	1-47428-818-0	01	1	9604-9908
177	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5>	1-49122-241-0	01	1	9909-
177	PIPE; AIR,UNION TO UNION EXC. CONCRETE PUMP<RA5> L=568 SERVICED BY L=600	1-47428-809-0	01	1	9604-9908
177	PIPE; AIR,UNION TO UNION EXC. CONCRETE PUMP<RA5> L=548	1-49122-243-0	01	1	9909-
242	PIPE; AIR,AIR TANK TO UNION CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7>	1-49116-522-0	01	1	9604-
247	UNION; AIR PIPE (B) M12	1-09654-087-1	01	1	9604-
247	UNION; AIR PIPE CONCRETE PUMP<RA5> (A) M12 L=40	9-09223-006-1	01	1	9604-
274	PIPE; AIR UNION TO UNION CONCRETE PUMP<RA5>	1-49115-247-0	01	1	9604-

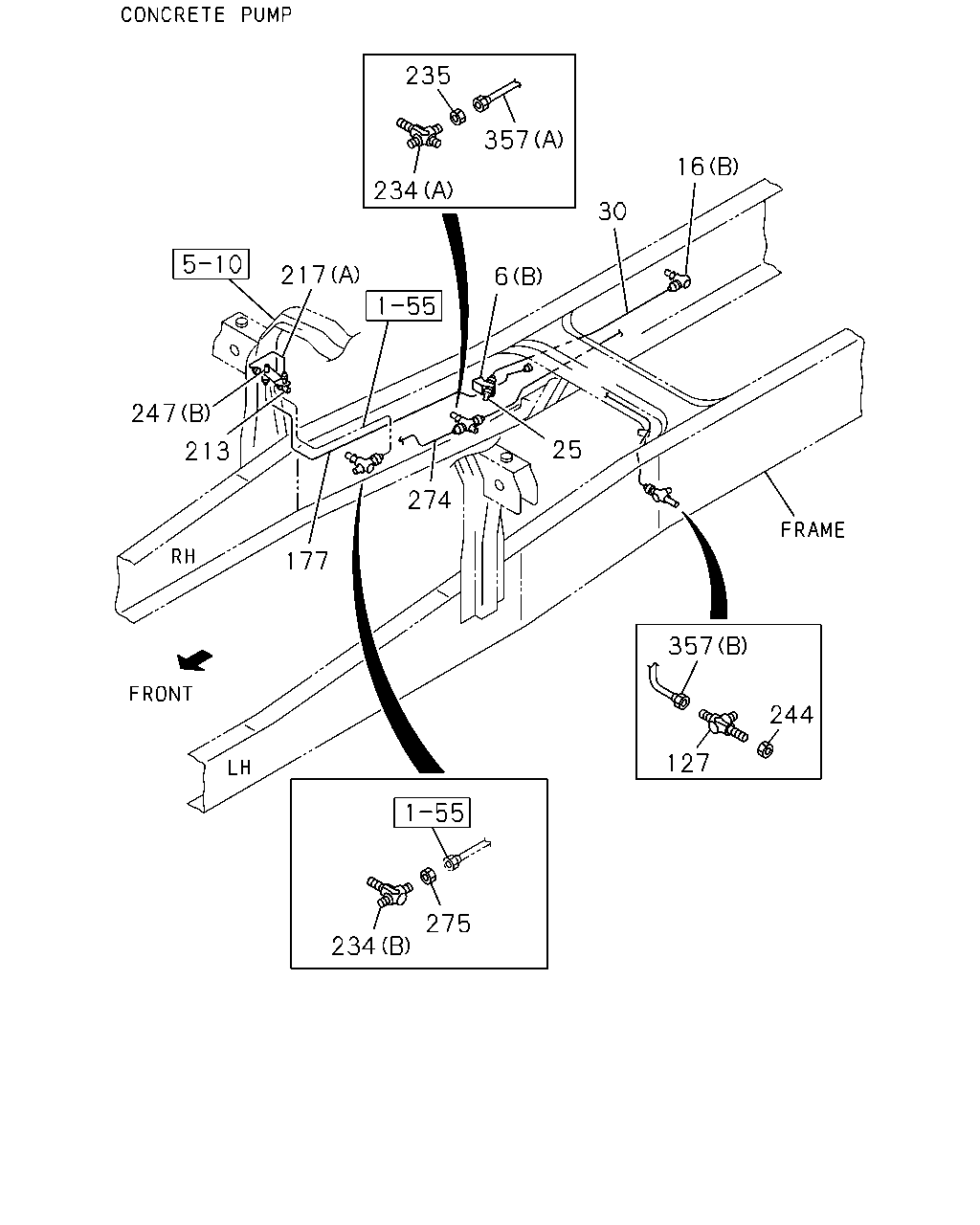

235 357 16 234 30 217 6 247 25 213 274 177 357 244 127 275 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	BRACKET; FLEX HOSE,AIR TANK AIR DRYER<PS7> CONCRETE PUMP<RA5> (A)	1-47477-198-1	01	1	9604-
6	BRACKET; FLEX HOSE,AIR TANK CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7> (A)	1-47477-661-0	01	1	9604-
6	BRACKET; FLEX HOSE,AIR TANK EXC. CONCRETE PUMP<RA5> (B)	1-47477-232-0	01	1	9604-
16	UNION; AIR PIPE EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5> (A) M22	9-09233-315-1	01	1	9604-
16	UNION; AIR PIPE CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7> (B) M22	9-09235-215-1	01	1	9604-
25	VALVE; CHECK EXC. AIR DRYER<PS7>	1-48410-138-2	01	1	9604-
30	PIPE; AIR,CHECK VLV CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7>	1-49116-521-0	01	1	9604-
127	UNION; AIR PIPE CONCRETE PUMP<RA5> M12 2WAY	1-09654-059-2	01	1	9604-
177	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> L=1249 SERVICED BY L=1370	1-47428-818-0	01	1	9604-9908
177	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5>	1-49122-241-0	01	1	9909-
177	PIPE; AIR,UNION TO UNION EXC. CONCRETE PUMP<RA5> L=568 SERVICED BY L=600	1-47428-809-0	01	1	9604-9908
177	PIPE; AIR,UNION TO UNION EXC. CONCRETE PUMP<RA5> L=548	1-49122-243-0	01	1	9909-
213	UNION; AIR PIPE M12 ELBOW	9-09225-206-1	01	1	9604-
217	PIPE; VAC,UNION TO MAG VLV (B) L=748 SERVICED BY L=800	1-47428-812-0	01	1	9604-9702
217	PIPE; VAC,UNION TO MAG VLV (B) L=752 SERVICED BY L=800	1-47428-812-0	01	1	9703-9904
217	PIPE; VAC,UNION TO MAG VLV (A) L=620	1-49121-778-0	01	1	9905-
217	PIPE; VAC,UNION TO MAG VLV (A) L=336	1-47499-145-0	01	1	9604-9904
217	PIPE; VAC,UNION TO MAG VLV (B) L=572 SERVICED BY L=600	1-47428-809-0	01	1	9905-9905
217	PIPE; VAC,UNION TO MAG VLV (B) L=552	1-49121-876-0	01	1	9906-
234	UNION; AIR PIPE CONCRETE PUMP<RA5> (A)	1-09656-350-1	01	1	9604-
234	UNION; AIR PIPE CONCRETE PUMP<RA5> (B) M12 3WAY	9-09228-606-1	01	1	9604-
235	NUT; PIPE UNION CONCRETE PUMP<RA5> M12	9-09840-280-0	01	1	9604-
244	NUT; UNION,AIR PIPE CONCRETE PUMP<RA5> M12	9-99110-412-0	01	1	9604-9606
244	NUT; UNION,AIR PIPE CONCRETE PUMP<RA5> M12 FLANGE	0-91150-212-0	01	1	9607-
247	UNION; AIR PIPE (B) M12	1-09654-087-1	01	1	9604-
247	UNION; AIR PIPE CONCRETE PUMP<RA5> (A) M12 L=40	9-09223-006-1	01	1	9604-
274	PIPE; AIR UNION TO UNION CONCRETE PUMP<RA5>	1-49115-247-0	01	1	9604-
275	NUT; UNION CONCRETE PUMP<RA5> M12	9-09840-280-0	01	1	9604-
357	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> (B) L=2134 SERVICED BY L=2200	1-47426-360-0	01	1	9604-
357	PIPE; AIR,UNION TO UNION CONCRETE PUMP<RA5> (A) L=1125 SERVICED BY L=1250	1-47426-416-0	01	1	9604-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
