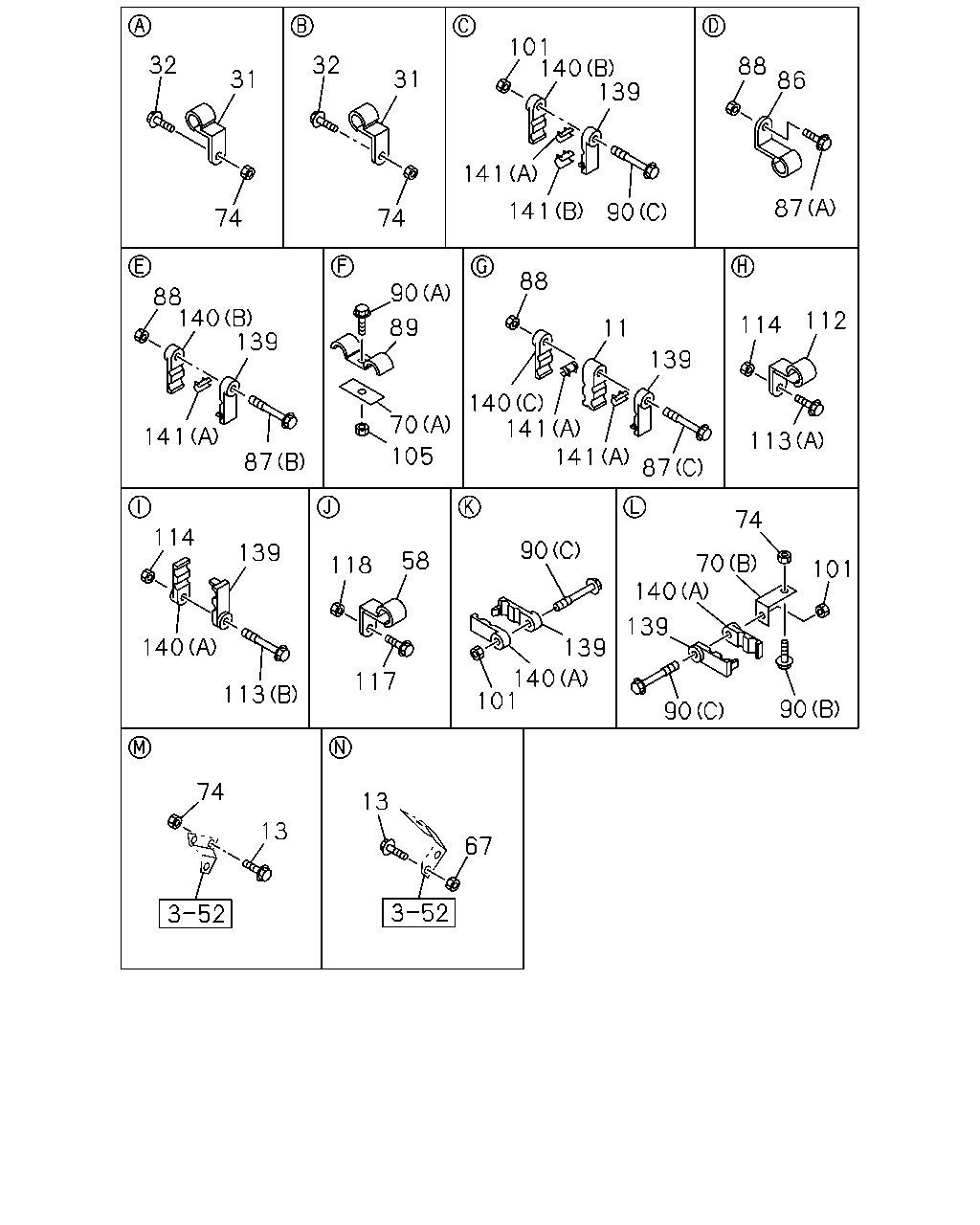

3-58 — FIXING PARTS; OIL PIPING (#6321) — 60 parça

101 140 139 32 32 88 31 31 86 141 87 141 90 74 74 88 90 88 140 139 112 114 89 11 139 140 141 141 70 141 113 105 87 87 74 114 90 139 58 70 140 118 101 139 140 139 140 101 117 113 90 90 74 13 13 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	CLIP; OIL PIPE CONCRETE PUMP<RA5> ID=10	1-09709-242-0	01	1	9604-
13	BOLT; BRKT,OIL PIPE CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	04	1	9604-9606
13	BOLT; BRKT,OIL PIPE CONCRETE PUMP<RA5> M8X25 FLANGE	0-28680-825-0	02	1	9607-
13	BOLT; BRKT,OIL PIPE CONCRETE PUMP<RA5> M8X30 FLANGE	0-28680-830-0	02	1	9607-
31	CLIP; OIL PIPE CONCRETE PUMP<RA5> ID=6 H=20 L=20	1-09700-603-0	03	1	9604-
32	BOLT; CLIP,OIL PIPE CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	03	1	9604-9606
32	BOLT; CLIP,OIL PIPE CONCRETE PUMP<RA5> M8X30 FLANGE	0-28680-830-0	03	1	9607-
58	CLIP; OIL PIPE CONCRETE PUMP<RA5> ID=6 H=20 L=20	1-09700-603-0	04	1	9604-
67	NUT; BRKT CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9604-9606
67	NUT; BRKT CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	02	1	9607-
70	BRACKET; CLIP CONCRETE PUMP<RA5> (A) L=50	1-47475-299-2	02	1	9604-
70	BRACKET; CLIP CONCRETE PUMP<RA5> (B) L=50	1-47475-663-1	01	1	9604-
74	NUT; CLIP,OIL PIPE CONCRETE PUMP<RA5> M8	9-09110-408-0	06	1	9604-9606
74	NUT; CLIP,OIL PIPE CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	06	1	9607-
74	NUT; CLIP,OIL PIPE CONCRETE PUMP<RA5> M8	9-09110-508-0	01	1	9604-9606
86	CLIP; OIL PIPE CONCRETE PUMP<RA5> ID=6 H=20 L=20	1-09700-603-0	01	1	9604-
87	BOLT; PIPE CLIP CONCRETE PUMP<RA5> (A) M8X25 FLANGE	0-28080-825-0	01	1	9604-9606
87	BOLT; PIPE CLIP CONCRETE PUMP<RA5> (A) M8X30 FLANGE	0-28680-830-0	01	1	9607-
87	BOLT; PIPE CLIP CONCRETE PUMP<RA5> (B) M8X50 FLANGE	0-28080-850-0	01	1	9604-
87	BOLT; PIPE CLIP CONCRETE PUMP<RA5> (C) M8X70 FLANGE	0-28080-870-0	01	1	9604-
88	NUT; PIPE CLIP CONCRETE PUMP<RA5> M8	9-09110-408-0	03	1	9604-9606
88	NUT; PIPE CLIP CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	03	1	9607-
89	CLIP; OIL PIPE CONCRETE PUMP<RA5> ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9604-
89	CLIP; OIL PIPE CONCRETE PUMP<RA5> ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9604-
90	BOLT; CLIP,OIL PIPE CONCRETE PUMP<RA5> (A) M8X16 FLANGE	0-28080-816-0	02	1	9604-9606
90	BOLT; CLIP,OIL PIPE CONCRETE PUMP<RA5> (A) M8X20 FLANGE	0-28680-820-0	02	1	9607-
90	BOLT; CLIP,OIL PIPE CONCRETE PUMP<RA5> (B) M8X25 FLANGE	0-28080-825-0	01	1	9604-9606
90	BOLT; CLIP,OIL PIPE CONCRETE PUMP<RA5> (B) M8X30 FLANGE	0-28680-830-0	01	1	9607-
90	BOLT; CLIP,OIL PIPE CONCRETE PUMP<RA5> (C) M8X50 FLANGE	0-28080-850-0	03	1	9604-
101	NUT; CLIP,OIL PIPE CONCRETE PUMP<RA5> M8	9-09110-408-0	03	1	9604-9606
101	NUT; CLIP,OIL PIPE CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	03	1	9607-
105	NUT; BRKT,OIL PIPE CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9604-9606
105	NUT; BRKT,OIL PIPE CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	02	1	9607-
112	CLIP; OIL PIPE CONCRETE PUMP<RA5> ID=6 H=20 L=20	1-09700-603-0	02	1	9604-
113	BOLT; CLIP,OIL PIPE CONCRETE PUMP<RA5> (A) M8X25 FLANGE	0-28080-825-0	02	1	9604-9606
113	BOLT; CLIP,OIL PIPE CONCRETE PUMP<RA5> (A) M8X30 FLANGE	0-28680-830-0	02	1	9607-
113	BOLT; CLIP,OIL PIPE CONCRETE PUMP<RA5> (B) M8X50 FLANGE	0-28080-850-0	02	1	9604-
114	NUT; CLIP,OIL PIPE CONCRETE PUMP<RA5> M8	9-09110-408-0	04	1	9604-9606
114	NUT; CLIP,OIL PIPE CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	04	1	9607-
117	BOLT; CLIP,OIL PIPE CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	04	1	9604-9606
117	BOLT; CLIP,OIL PIPE CONCRETE PUMP<RA5> M8X30 FLANGE	0-28680-830-0	04	1	9607-
118	NUT; CLIP,OIL PIPE CONCRETE PUMP<RA5> M8	9-09110-408-0	04	1	9604-9606
118	NUT; CLIP,OIL PIPE CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	04	1	9607-
139	CLIP; UPR CONCRETE PUMP<RA5> ID=10 & 10	1-09709-241-0	06	1	9905-
139	CLIP; UPR CONCRETE PUMP<RA5> ID=10 & 10	1-09709-241-0	07	1	9604-9904
140	CLIP; LWR CONCRETE PUMP<RA5> (B) ID=10 & 10	1-09709-243-0	03	1	9905-
140	CLIP; LWR CONCRETE PUMP<RA5> (C) ID=10 & 10	1-09709-241-0	01	1	9604-
140	CLIP; LWR CONCRETE PUMP<RA5> (B) ID=10 & 10	1-09709-243-0	02	1	9604-9904
140	CLIP; LWR CONCRETE PUMP<RA5> (A) ID=6 & 6	1-09709-244-0	04	1	9604-9904
140	CLIP; LWR CONCRETE PUMP<RA5> (A) ID=6 & 6	1-09709-244-0	02	1	9905-
141	COLLAR CONCRETE PUMP<RA5> (A) ID=6	1-47459-010-0	05	1	9905-
141	COLLAR CONCRETE PUMP<RA5> (B) ID=8	1-47459-011-0	02	1	9905-
141	COLLAR CONCRETE PUMP<RA5> (A) ID=6	1-47459-010-0	04	1	9604-9904
141	COLLAR CONCRETE PUMP<RA5> (B) ID=8	1-47459-011-0	01	1	9604-9904

59 57 9 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28080-816-0	04	1	9604-
53	CLIP; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-09707-126-0	02	1	9604-9904
53	CLIP; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-09707-126-0	01	1	9905-
57	CLIP; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 L=20	9-09524-635-0	04	1	9604-
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X12 W/LK WASHER	0-50040-812-0	04	1	9604-9911
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X10 FLANGE	0-28080-810-0	04	1	9912-
