0-40 — FUEL INJECTION SYSTEM (#63209) — 125 parça

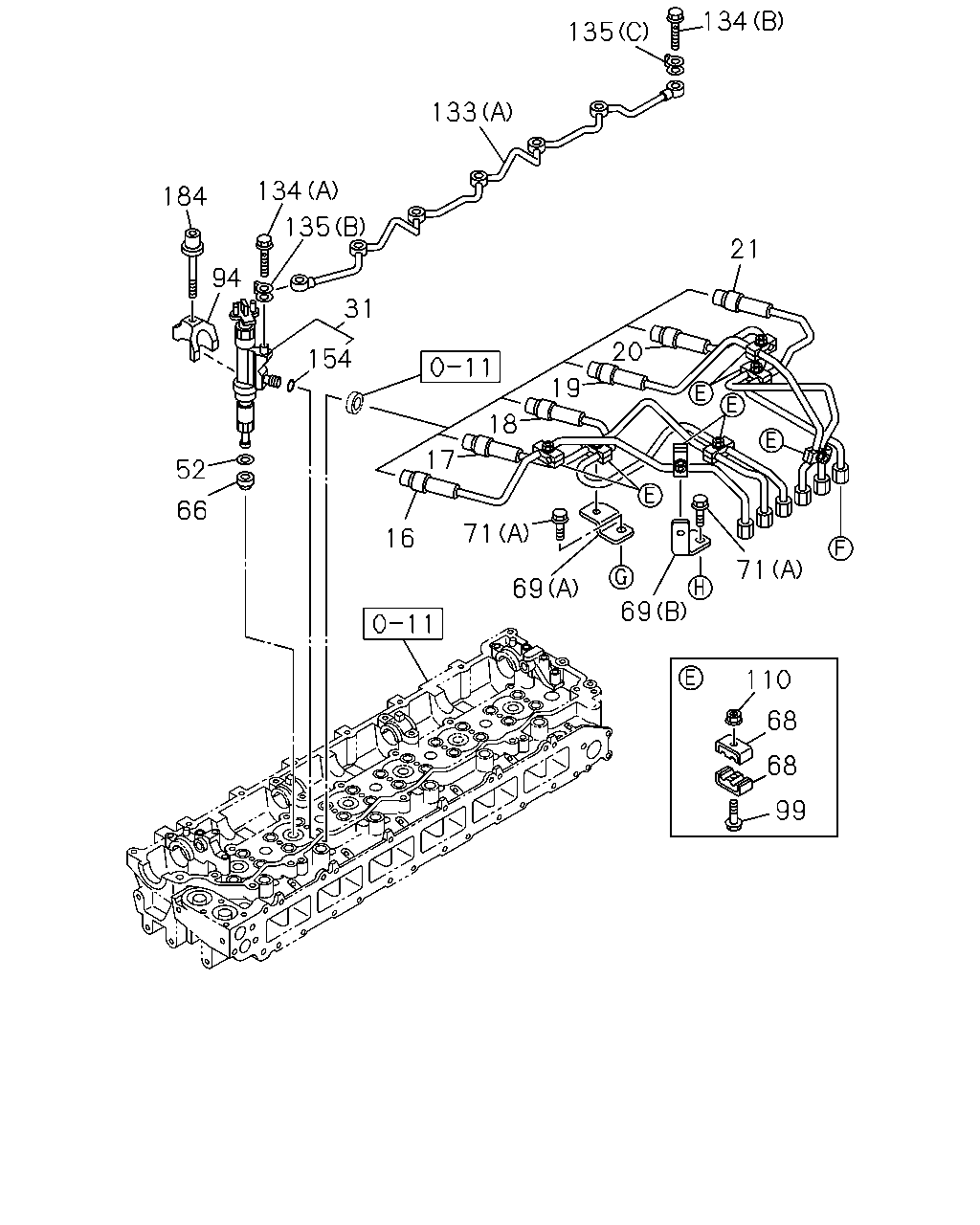

134 135 133 134 184 135 21 94 31 20 154 19 18 17 52 66 71 16 71 69 69 110 68 68 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	PIPE; INJ NO.1 KD ENGINE<7MB>	8-97520-840-1	01	1	1411-1412
16	PIPE; INJ NO.1 KD ENGINE<7MB> IDN	8-98298-618-0	01	1	1501-
16	PIPE; INJ NO.1	8-98185-362-0	01	1	1108-1403
16	PIPE; INJ NO.1	8-98271-207-0	01	1	1404-1410
16	PIPE; INJ NO.1 EXC. KD ENGINE<7MB>	8-98271-207-0	01	1	1411-1501
16	PIPE; INJ NO.1 EXC. KD ENGINE<7MB>	8-98298-611-0	01	1	1502-
17	PIPE; INJ NO.2 KD ENGINE<7MB>	8-97520-841-1	01	1	1411-1412
17	PIPE; INJ NO.2 KD ENGINE<7MB> IDN	8-98298-619-0	01	1	1501-
17	PIPE; INJ NO.2	8-98185-363-0	01	1	1108-1403
17	PIPE; INJ NO.2	8-98271-208-0	01	1	1404-1410
17	PIPE; INJ NO.2 EXC. KD ENGINE<7MB>	8-98271-208-0	01	1	1411-1501
17	PIPE; INJ NO.2 EXC. KD ENGINE<7MB>	8-98298-612-0	01	1	1502-
18	PIPE; INJ NO.3 KD ENGINE<7MB>	8-97520-842-1	01	1	1411-1412
18	PIPE; INJ NO.3 KD ENGINE<7MB> IDN	8-98298-620-0	01	1	1501-
18	PIPE; INJ NO.3	8-98185-364-0	01	1	1108-1403
18	PIPE; INJ NO.3	8-98271-209-0	01	1	1404-1410
18	PIPE; INJ NO.3 EXC. KD ENGINE<7MB>	8-98271-209-0	01	1	1411-1501
18	PIPE; INJ NO.3 EXC. KD ENGINE<7MB>	8-98298-613-0	01	1	1502-
19	PIPE; INJ NO.4 KD ENGINE<7MB>	8-97520-843-1	01	1	1411-1412
19	PIPE; INJ NO.4 KD ENGINE<7MB> IDN	8-98298-621-0	01	1	1501-
19	PIPE; INJ NO.4	8-98185-365-0	01	1	1108-1403
19	PIPE; INJ NO.4	8-98271-210-0	01	1	1404-1410
19	PIPE; INJ NO.4 EXC. KD ENGINE<7MB>	8-98271-210-0	01	1	1411-1501
19	PIPE; INJ NO.4 EXC. KD ENGINE<7MB>	8-98298-614-0	01	1	1502-
20	PIPE; INJ NO.5 KD ENGINE<7MB>	8-97520-844-1	01	1	1411-1412
20	PIPE; INJ NO.5 KD ENGINE<7MB> IDN	8-98298-622-0	01	1	1501-
20	PIPE; INJ NO.5	8-98185-366-0	01	1	1108-1403
20	PIPE; INJ NO.5	8-98271-211-0	01	1	1404-1410
20	PIPE; INJ NO.5 EXC. KD ENGINE<7MB>	8-98271-211-0	01	1	1411-1501
20	PIPE; INJ NO.5 EXC. KD ENGINE<7MB>	8-98298-615-0	01	1	1502-
21	PIPE; INJ NO.6 KD ENGINE<7MB>	8-97520-864-1	01	1	1411-1412
21	PIPE; INJ NO.6 KD ENGINE<7MB> IDN	8-98298-623-0	01	1	1501-
21	PIPE; INJ NO.6	8-98185-367-0	01	1	1108-1403
21	PIPE; INJ NO.6	8-98271-212-0	01	1	1404-1410
21	PIPE; INJ NO.6 EXC. KD ENGINE<7MB>	8-98271-212-0	01	1	1411-1501
21	PIPE; INJ NO.6 EXC. KD ENGINE<7MB>	8-98298-617-0	01	1	1502-
31	NOZZLE ASM; INJ	8-97609-789-6	06	1	1108-
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3	8-94173-412-0	06	1	1108-
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-98079-248-0	06	1	1108-
68	CLIP; INJ PIPE	8-98039-293-0	14	1	1108-1405
68	CLIP; INJ PIPE ID=11 & 11 L=19	8-98148-996-2	14	1	1406-
69	BRACKET; INJ PIPE CLIP KD ENGINE<7MB> (B)	8-97520-846-0	01	1	1411-
69	BRACKET; INJ PIPE CLIP (B)	8-98038-940-0	01	1	1108-1410
69	BRACKET; INJ PIPE CLIP EXC. KD ENGINE<7MB> (B)	8-98038-940-0	01	1	1411-
69	BRACKET; INJ PIPE CLIP (C)	8-98038-941-0	01	1	1108-
69	BRACKET; INJ PIPE CLIP (A)	8-98049-015-0	01	1	1108-
69	BRACKET; INJ PIPE CLIP (D)	8-98059-807-0	01	1	1108-
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1108-
71	BOLT; BRKT (C) M10X16 FLANGE	0-28151-016-0	01	1	1108-
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	1108-
94	BRACKET; INJ NOZZLE	8-98028-999-1	06	1	1108-
99	BOLT; CLIP,INJ,PIPE M6X35 FLANGE	0-28050-635-0	03	1	1108-
110	NUT; CLIP M6 FLANGE	0-91180-106-0	05	1	1108-
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94391-311-0	01	1	1108-1206
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1207-
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-98059-804-0	01	1	1108-
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	1108-
134	BOLT; JOINT,LEAK OFF PIPE (B) M10X21 FLANGE	8-94396-711-0	02	1	1108-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-97240-975-0	01	1	1108-1301
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-98231-393-0	01	1	1302-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0	8-98065-992-0	06	1	1108-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17	8-98079-755-0	01	1	1108-
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	06	1	1108-
184	BOLT; NOZZLE HOLDER M8X54	8-98008-895-0	06	1	1108-

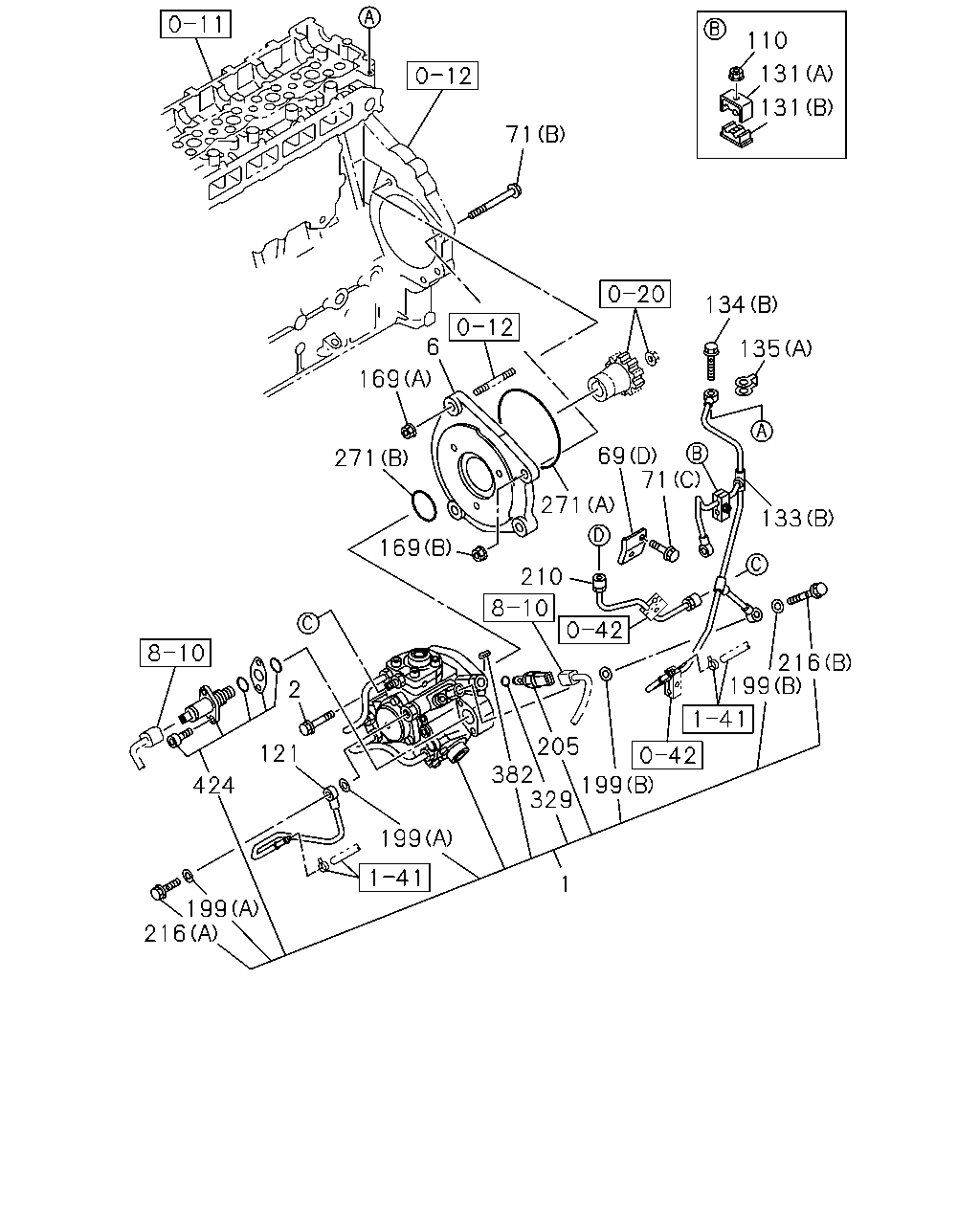

110 131 131 71 134 6 135 169 69 71 271 271 133 169 210 216 199 2 205 382 329 121 199 424 199 1 199 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; INJ	8-97605-946-7	01	1	1108-
2	BOLT; INJ PUMP M8X28	8-94399-256-0	03	1	1108-
6	BRACKET; INJ PUMP TO C/BL	8-97601-154-1	01	1	1108-
69	BRACKET; INJ PIPE CLIP KD ENGINE<7MB> (B)	8-97520-846-0	01	1	1411-
69	BRACKET; INJ PIPE CLIP (B)	8-98038-940-0	01	1	1108-1410
69	BRACKET; INJ PIPE CLIP EXC. KD ENGINE<7MB> (B)	8-98038-940-0	01	1	1411-
69	BRACKET; INJ PIPE CLIP (C)	8-98038-941-0	01	1	1108-
69	BRACKET; INJ PIPE CLIP (A)	8-98049-015-0	01	1	1108-
69	BRACKET; INJ PIPE CLIP (D)	8-98059-807-0	01	1	1108-
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1108-
71	BOLT; BRKT (C) M10X16 FLANGE	0-28151-016-0	01	1	1108-
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	1108-
110	NUT; CLIP M6 FLANGE	0-91180-106-0	05	1	1108-
121	PIPE; FUEL,FEED PUMP,SUCTION	8-98126-331-0	01	1	1108-
131	CLIP; OVERFLOW LEAK OFF (A) ID=7 & 9 L=25	8-98000-010-2	01	1	1108-
131	CLIP; OVERFLOW LEAK OFF (B) ID=7 & 9 L=25	8-98000-011-2	01	1	1108-
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94391-311-0	01	1	1108-1206
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1207-
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-98059-804-0	01	1	1108-
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	1108-
134	BOLT; JOINT,LEAK OFF PIPE (B) M10X21 FLANGE	8-94396-711-0	02	1	1108-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-97240-975-0	01	1	1108-1301
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-98231-393-0	01	1	1302-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0	8-98065-992-0	06	1	1108-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17	8-98079-755-0	01	1	1108-
169	NUT; BRKT (A) M10 FLANGE	0-91180-110-0	02	1	1108-
169	NUT; BRKT (B) M12 FLANGE IDN	0-91180-112-0	01	1	1108-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1108-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1108-
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	1108-
210	PIPE; INJ,C/R KD ENGINE<7MB>	8-97520-845-0	01	1	1411-
210	PIPE; INJ,C/R	8-98059-805-0	01	1	1108-1410
210	PIPE; INJ,C/R EXC. KD ENGINE<7MB>	8-98059-805-0	01	1	1411-
216	BOLT; EYE (A)	5-15759-003-0	01	1	1108-
216	BOLT; EYE (B)	8-97351-388-0	01	1	1108-
216	BOLT; EYE (C)	8-98043-033-0	01	1	1108-
271	GASKET; INJ PUMP (A) ID=139.6	1-09623-464-0	01	1	1108-
271	GASKET; INJ PUMP (B) ID=52	8-98031-844-0	01	1	1108-
329	GASKET; SENSOR,FUEL TEMP ID=9.8 OD=11.7	9-09566-110-0	01	1	1108-1201
382	KEY; DRIVE SHAFT	8-98161-995-0	01	1	1108-
424	OVERHAUL KIT; SUPPLY PUMP	8-98145-449-1	01	1	1108-

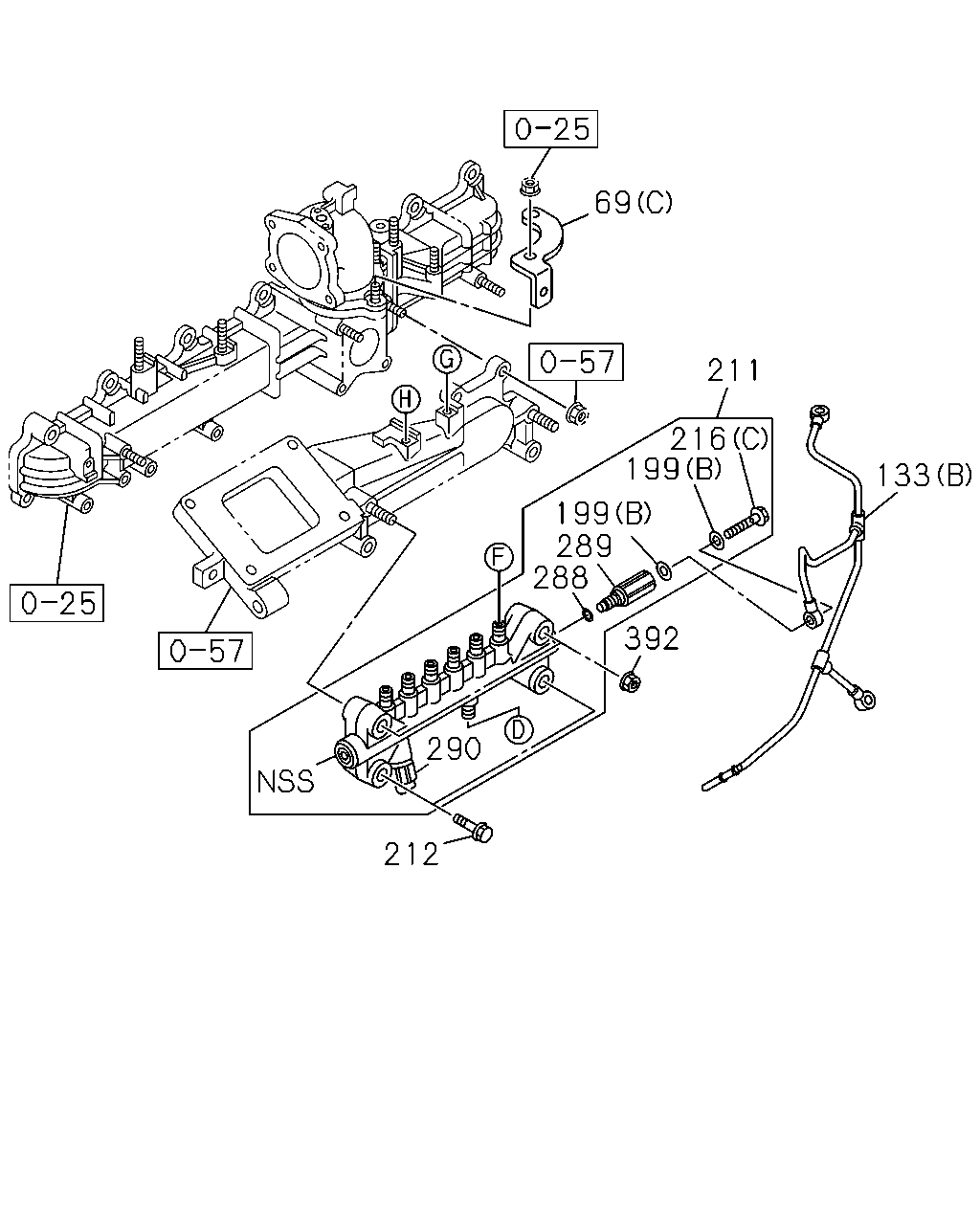

69 211 216 199 133 199 289 288 392 290 212

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
69	BRACKET; INJ PIPE CLIP KD ENGINE<7MB> (B)	8-97520-846-0	01	1	1411-
69	BRACKET; INJ PIPE CLIP (B)	8-98038-940-0	01	1	1108-1410
69	BRACKET; INJ PIPE CLIP EXC. KD ENGINE<7MB> (B)	8-98038-940-0	01	1	1411-
69	BRACKET; INJ PIPE CLIP (C)	8-98038-941-0	01	1	1108-
69	BRACKET; INJ PIPE CLIP (A)	8-98049-015-0	01	1	1108-
69	BRACKET; INJ PIPE CLIP (D)	8-98059-807-0	01	1	1108-
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94391-311-0	01	1	1108-1206
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1207-
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-98059-804-0	01	1	1108-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1108-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1108-
211	RAIL ASM; COMMON	8-97609-980-2	01	1	1108-
212	BOLT; RAIL ASM M10X50 FLANGE	8-97372-243-0	02	1	1108-
216	BOLT; EYE (A)	5-15759-003-0	01	1	1108-
216	BOLT; EYE (B)	8-97351-388-0	01	1	1108-
216	BOLT; EYE (C)	8-98043-033-0	01	1	1108-
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1108-
289	LIMITER; FUEL PRESS	8-98032-549-0	01	1	1108-
290	SENSOR; PRESS	8-98119-790-0	01	1	1108-
392	NUT; RAIL ASM M10 FLANGE	0-91180-110-0	02	1	1108-
