4-80 — ROAD WHEEL (#63206) — 58 parça

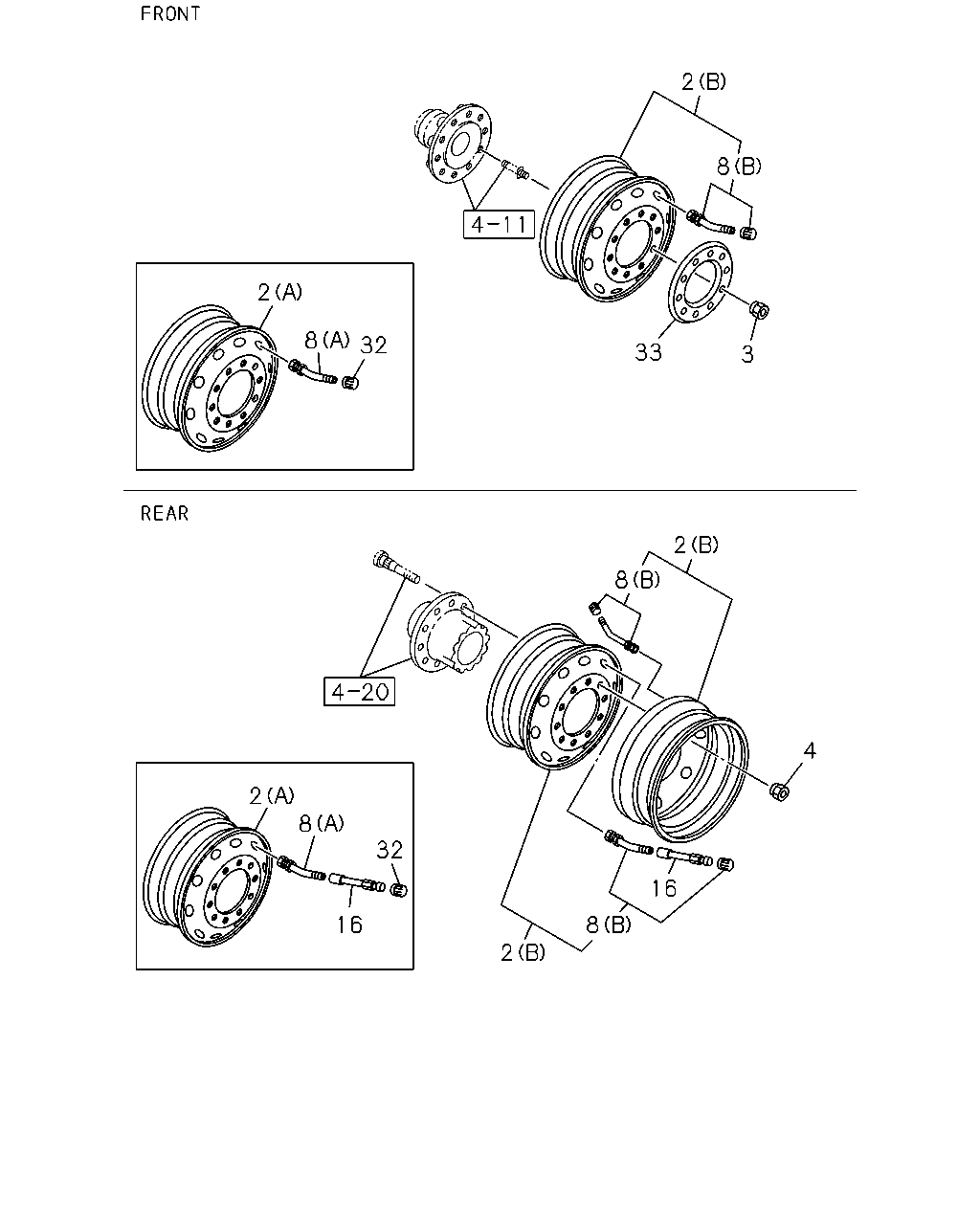

çizim 170671
2 8 32 33 3 8 2 2 8 32 16 2 8 16 4 8 2
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (C) SPARE 		1-42350-448-0 01 1 1307-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (C) FRONT,REAR 		1-42350-448-0 06 1 1307-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		1-42350-730-0 06 1 1008-1205
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		8-98217-247-0 06 1 1206-1306
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) SPARE 		8-98217-247-0 01 1 1307-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) SPARE 		8-98281-497-0 01 1 1408-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-730-0 01 1 1008-1205
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98217-247-0 01 1 1206-1306
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		8-98217-247-0 06 1 1307-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		8-98281-497-0 06 1 1408-
2 WHEEL; DISC
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) FRONT,REAR 		1-42350-764-0 06 1 1008-1306
2 WHEEL; DISC
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) SPARE 		1-42350-764-0 01 1 1307-
2 WHEEL; DISC
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42350-764-0 01 1 1008-1306
2 WHEEL; DISC
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) FRONT,REAR 		1-42350-764-0 06 1 1307-
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-055-0 20 1 1008-
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-055-0 20 1 1008-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		1-42370-020-3 06 1 1008-1205
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		1-42370-048-0 06 1 1206-1306
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) SPARE 		1-42370-048-0 01 1 1307-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) SPARE 		1-42370-019-3 01 1 1408-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42370-020-3 01 1 1008-1205
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42370-048-0 01 1 1206-1306
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		1-42370-048-0 06 1 1307-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		1-42370-019-3 06 1 1408-
8 VALVE; TIRE
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) FRONT,REAR 		1-42370-041-1 06 1 1008-1306
8 VALVE; TIRE
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) SPARE 		1-42370-041-1 01 1 1307-
8 VALVE; TIRE
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42370-041-1 01 1 1008-1306
8 VALVE; TIRE
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) FRONT,REAR 		1-42370-041-1 06 1 1307-
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		8-98167-052-0 02 1 1008-
32 CAP; VALVE
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) 		1-42374-001-0 05 1 1307-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42374-001-0 06 1 1008-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 01 1 1008-1306
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42374-001-0 01 1 1307-
33 COVER; WHEEL 1-43139-065-0 02 1 1008-1306
33 COVER; WHEEL
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FT WHEEL COVER<JEH> 		1-43139-065-1 02 1 1307-

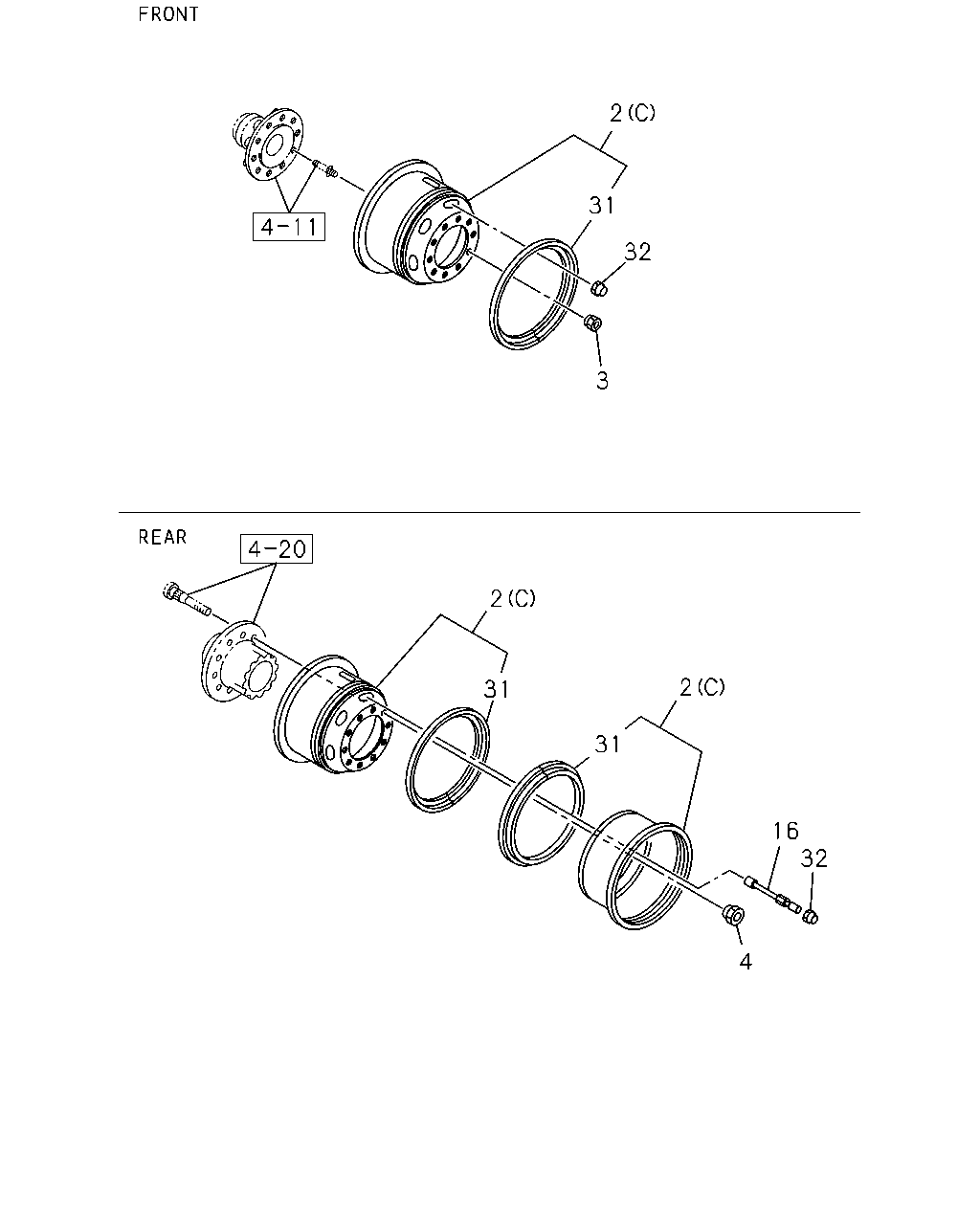

çizim 363401
31 32 3 2 2 31 31 2 16 32 4
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (C) SPARE 		1-42350-448-0 01 1 1307-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (C) FRONT,REAR 		1-42350-448-0 06 1 1307-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		1-42350-730-0 06 1 1008-1205
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		8-98217-247-0 06 1 1206-1306
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) SPARE 		8-98217-247-0 01 1 1307-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) SPARE 		8-98281-497-0 01 1 1408-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-730-0 01 1 1008-1205
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98217-247-0 01 1 1206-1306
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		8-98217-247-0 06 1 1307-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		8-98281-497-0 06 1 1408-
2 WHEEL; DISC
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) FRONT,REAR 		1-42350-764-0 06 1 1008-1306
2 WHEEL; DISC
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) SPARE 		1-42350-764-0 01 1 1307-
2 WHEEL; DISC
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42350-764-0 01 1 1008-1306
2 WHEEL; DISC
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) FRONT,REAR 		1-42350-764-0 06 1 1307-
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-055-0 20 1 1008-
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-055-0 20 1 1008-
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		8-98167-052-0 02 1 1008-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE 		1-42355-014-0 01 1 1307-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) FRONT,REAR 		1-42355-014-0 06 1 1307-
32 CAP; VALVE
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) 		1-42374-001-0 05 1 1307-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42374-001-0 06 1 1008-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 01 1 1008-1306
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42374-001-0 01 1 1307-
