4-42 — POWER STEERING OIL PUMP (#63200) — 23 parça

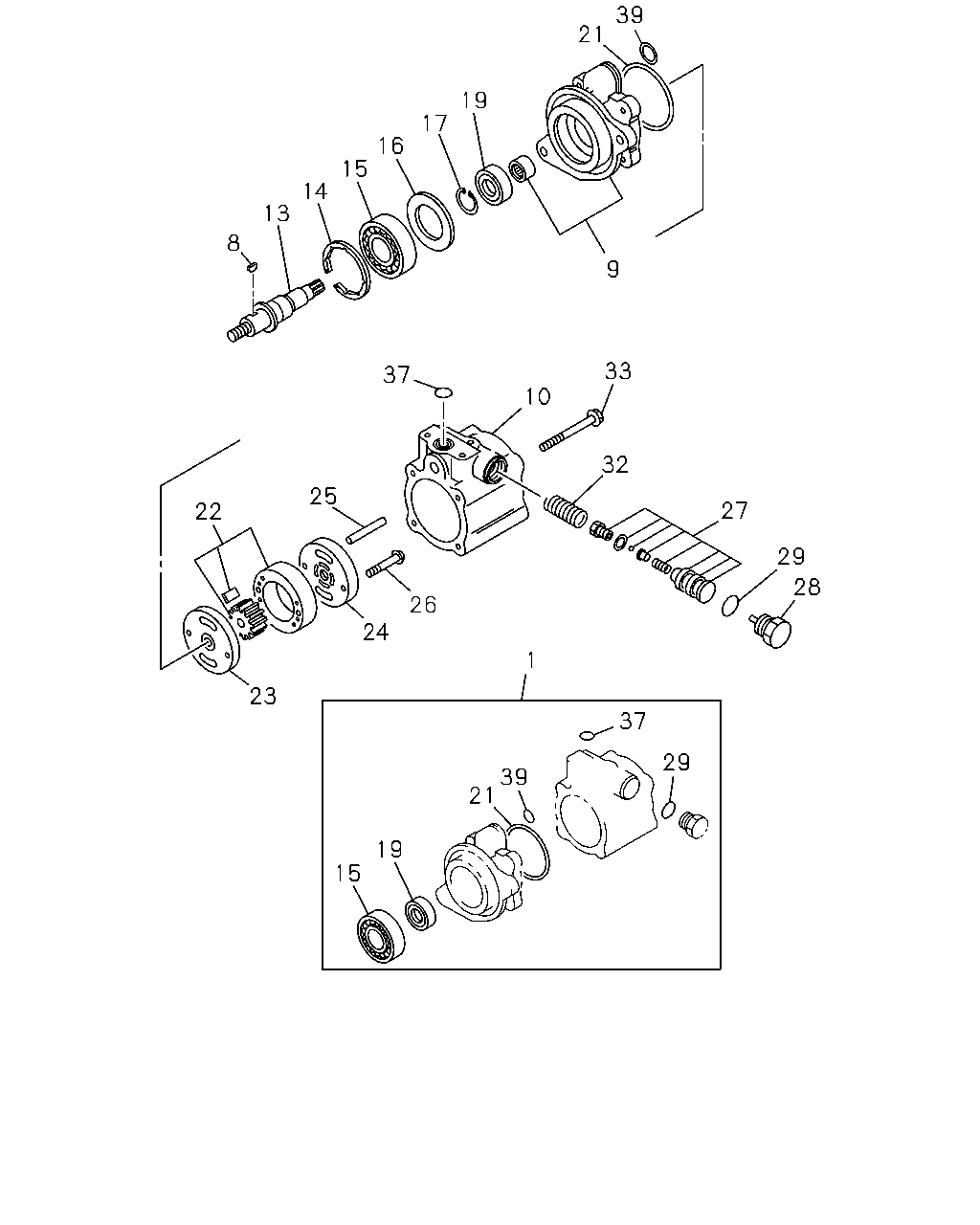

çizim 170744
8 13 14 15 16 17 19 21 39 9 33 32 27 29 28 1 29 37 39 21 19 15 26 24 23 22 25 37 10
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
ASM PART: A = 1-19500-561-3 		1-85574-049-0 01 1 -
8 KEY; SHAFT,OIL PUMP
ASM PART: A = 1-19500-561-3 		9-19519-036-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: A = 1-19500-561-3 		1-19511-168-0 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: A = 1-19500-561-3 		1-19511-171-0 01 1 -
13 SHAFT KIT; RET
ASM PART: A = 1-19500-561-3 		1-19521-018-0 01 1 -
14 RING; RET,OIL PUMP
ASM PART: A = 1-19500-561-3 		1-19519-135-0 01 1 -
15 BEARING; BALL,OIL PUMP
ASM PART: A = 1-19500-561-3 		1-19515-004-0 01 1 -
16 RING; RET,OIL PUMP
ASM PART: A = 1-19500-561-3 		9-19519-078-0 01 1 -
17 RING; RET
ASM PART: A = 1-19500-561-3 		1-19519-177-0 01 1 -
19 SEAL; OIL,OIL PUMP
ASM PART: A = 1-19500-561-3 		1-19519-252-0 01 1 -
21 GASKET; FRT COVER TO BODY
ASM PART: A = 1-19500-561-3 		1-19519-314-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 1-19500-561-3 		1-19519-311-0 01 1 -
23 PLATE; SIDE,OIL PUMP
ASM PART: A = 1-19500-561-3 		1-19519-234-0 01 1 -
24 PLATE ASM; THRUST
ASM PART: A = 1-19500-561-3 		1-19519-312-0 01 1 -
25 PIN; HSG,P/S
ASM PART: A = 1-19500-561-3 		9-88510-421-0 02 1 -
26 SCREW; PLATE
ASM PART: A = 1-19500-561-3 		1-19519-142-0 02 1 -
27 VALVE ASM; OIL PUMP
ASM PART: A = 1-19500-561-3 		1-19519-347-0 01 1 -
28 PLUG; DRAIN,OIL PUMP
ASM PART: A = 1-19500-561-3 		1-19519-351-0 01 1 -
29 GASKET; PLUG TO VLV
ASM PART: A = 1-19500-561-3 		9-88510-248-0 01 1 -
32 SPRING; OIL PUMP
ASM PART: A = 1-19500-561-3 		9-19529-013-0 01 1 -
33 BOLT; COVER
ASM PART: A = 1-19500-561-3 		1-19519-245-0 04 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 1-19500-561-3 		1-19519-292-0 01 1 -
39 GASKET; OIL PUMP
ASM PART: A = 1-19500-561-3 		1-19519-313-0 01 1 -
