0-50 — OIL COOLER AND OIL FILTER (#632) — 89 parça

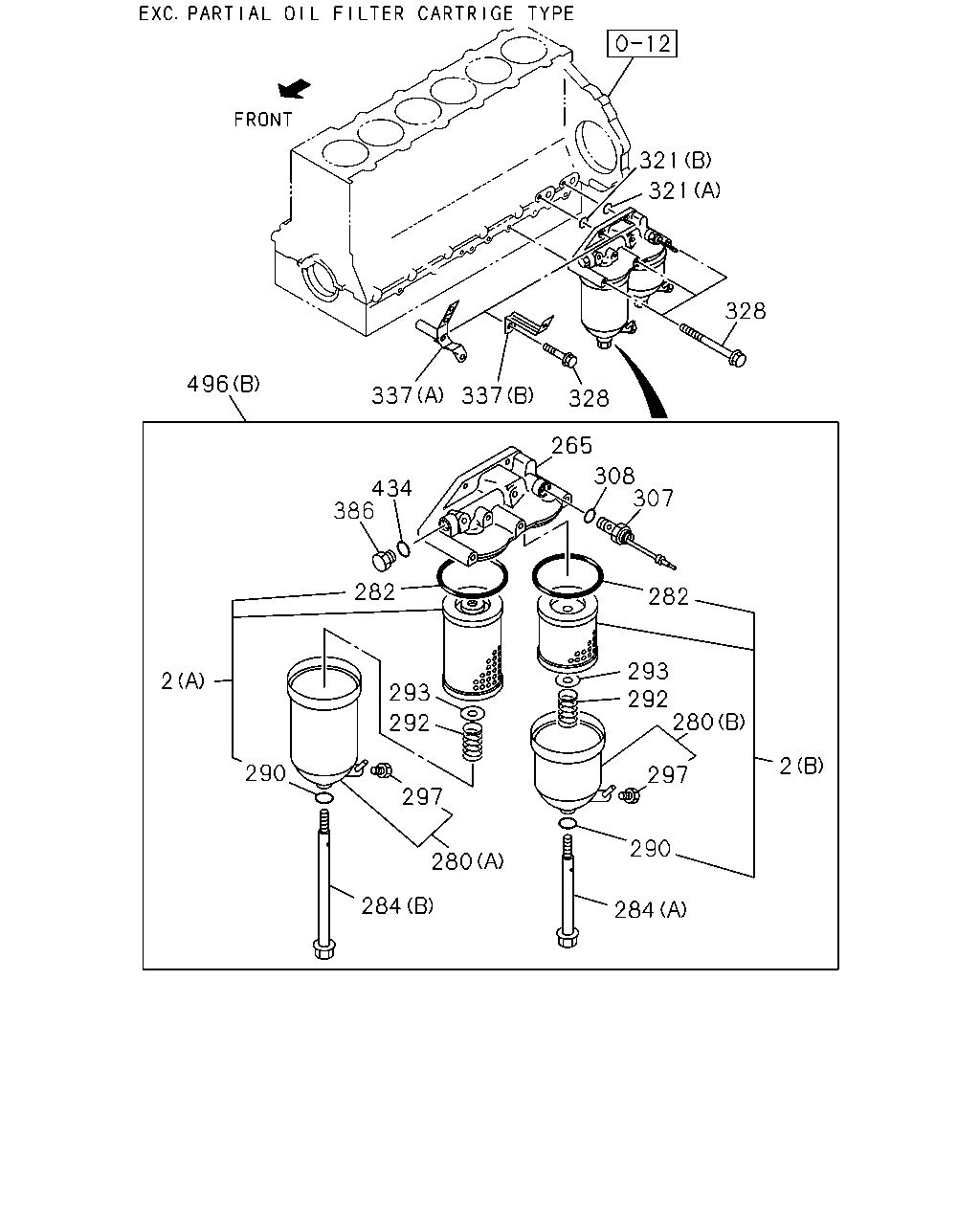

321 321 328 496 337 337 328 265 308 307 434 386 282 282 293 292 280 2 293 292 2 290 297 297 290 280 284 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C)	8-94393-501-0	01	1	9202-9302	●	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C)	8-94396-375-4	01	1	9303-	●	●
2	ELEMENT; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A)	1-13240-132-0	01	1	9202-	●	●
2	ELEMENT; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B)	1-87810-372-1	01	1	9202-	●	●
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94396-373-0	01	1	9202-9403	●	●
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94394-527-0	01	1	9404-	●	●
265	BODY; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94393-503-0	01	1	9202-	●	●
280	CASE ASM; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B)	8-94393-504-1	01	1	9202-	●	●
280	CASE ASM; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A)	8-94393-505-1	01	1	9202-	●	●
282	GASKET; BODY TO CASE EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	9-09920-311-0	02	1	9202-	●	●
284	BOLT; CENTER,OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A)	1-13231-069-0	01	1	9202-	●	●
284	BOLT; CENTER,OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B)	1-13231-070-1	01	1	9202-	●	●
290	GASKET; PLUG,OIL DRAIN EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> ID=15.5	9-09920-694-0	02	1	9202-	●	●
292	SPRING; ELEMENT EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	9-09941-283-0	02	1	9202-	●	●
293	SEAT; SPR EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	9-13239-025-0	02	1	9202-	●	●
297	PLUG; COVER EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	1-13219-275-0	02	1	9202-	●	●
307	VALVE; OVERFLOW PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94396-374-0	01	1	9202-	●	●
307	VALVE; OVERFLOW EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	1-13260-066-1	01	1	9202-	●	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9202-	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	9202-	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	9202-	●	●
328	BOLT; OIL FILTER M10X30 FLANGE	0-28181-030-0	01	1	9202-	●	●
328	BOLT; OIL FILTER ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> M10X140 M10X140 FLANGE	8-94373-016-1	01	1	9202-	●	●
328	BOLT; OIL FILTER ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> M10X120	8-94396-689-0	01	1	9202-	●	●
328	BOLT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> M10X90 FLANGE	0-28181-090-0	02	1	9202-	●	●
328	BOLT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M10X90 FLANGE	0-28181-090-0	01	1	9202-	●	●
328	BOLT; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> M10X135	8-94397-139-1	02	1	9202-	●	●
328	BOLT; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>, ENGINEOIL LEVEL GAUGE WIDE NECK<WY9> M10X135	8-94397-139-1	01	1	9202-	●	●
337	BRACKET; FUEL PIPE ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A)	8-94393-088-1	01	1	9202-	●	●
337	BRACKET; FUEL PIPE EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (B)	8-94399-726-0	01	1	9202-	●	●
337	BRACKET; FUEL PIPE PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (B)	8-94393-173-1	01	1	9202-	●	●
386	PLUG; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> M16X9	9-13226-011-0	01	1	9202-	●	●
434	GASKET; PLUG,OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	9-09920-526-0	01	1	9202-	●	●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A)	8-94393-450-0	01	1	9202-9403	●	●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A)	8-94396-315-3	01	1	9404-	●	●
496	FILTER ASM; OIL EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B)	8-94393-427-1	01	1	9202-	●	●

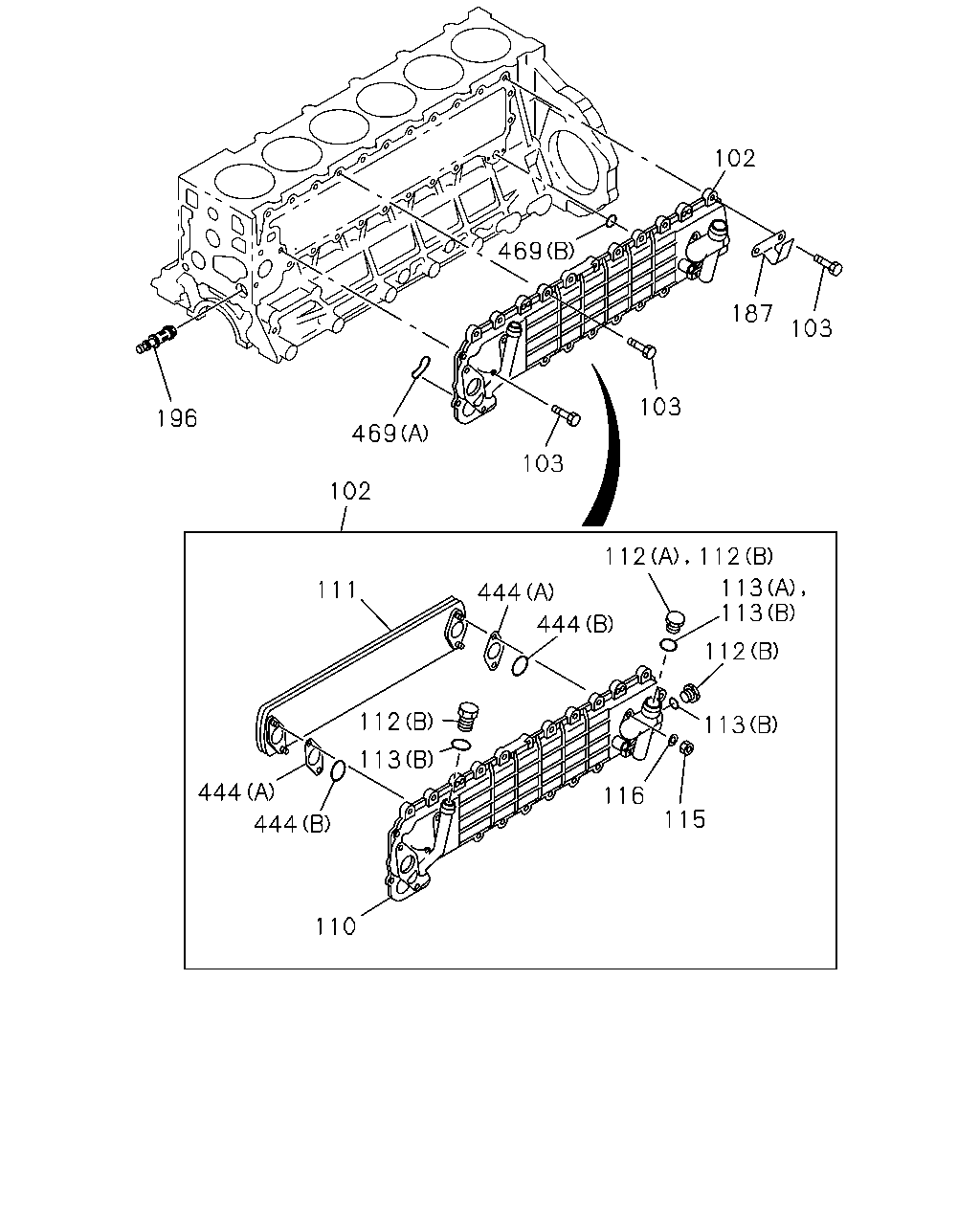

102 469 187 103 103 196 469 103 102 112 112 113 113 111 444 444 112 112 113 113 444 116 115 444 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
102	COOLER ASM; OIL AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. ENG OIL PUMP HEAVY DUTY<Q1V>	8-94397-459-3	01	1	9202-9307	●	●
102	COOLER ASM; OIL AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. ENG OIL PUMP HEAVY DUTY<Q1V>	8-94393-320-1	01	1	9308-	●	●
102	COOLER ASM; OIL EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,ENG OIL PUMP HEAVY DUTY<Q1V>	8-94397-458-3	01	1	9202-9307	●	●
102	COOLER ASM; OIL EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,ENG OIL PUMP HEAVY DUTY<Q1V>	8-94396-405-4	01	1	9308-	●	●
102	COOLER ASM; OIL ENG OIL PUMP HEAVY DUTY<Q1V> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94393-751-3	01	1	9202-	●	●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9202-	●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	9202-	●	●
110	BODY; CASE,OIL COOLER AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. ENG OIL PUMP HEAVY DUTY<Q1V>	8-94396-714-2	01	1	9202-	●	●
110	BODY; CASE,OIL COOLER EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,ENG OIL PUMP HEAVY DUTY<Q1V>	8-94396-713-2	01	1	9202-	●	●
110	BODY; CASE,OIL COOLER ENG OIL PUMP HEAVY DUTY<Q1V> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94393-602-3	01	1	9202-	●	●
111	CORE; OIL COOLER ENG OIL PUMP HEAVY DUTY<Q1V> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94393-773-0	01	1	9202-	●	●
111	CORE; OIL COOLER EXC. ENG OIL PUMP HEAVY DUTY<Q1V>	8-94396-715-0	01	1	9202-9307	●	●
111	CORE; OIL COOLER EXC. ENG OIL PUMP HEAVY DUTY<Q1V>	8-94396-716-0	01	1	9308-	●	●
112	PLUG; OIL COOLER CASE ENG OIL PUMP HEAVY DUTY<Q1V> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94393-604-0	01	1	9202-	●	●
112	PLUG; OIL COOLER CASE ENG OIL PUMP HEAVY DUTY<Q1V> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	8-94396-753-0	02	1	9202-	●	●
112	PLUG; OIL COOLER CASE EXC. ENG OIL PUMP HEAVY DUTY<Q1V> (B)	8-94396-753-0	03	1	9202-	●	●
113	GASKET; PLUG,OIL COOLER CASE ENG OIL PUMP HEAVY DUTY<Q1V> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	1-09623-499-0	01	1	9202-	●	●
113	GASKET; PLUG,OIL COOLER CASE ENG OIL PUMP HEAVY DUTY<Q1V> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B) M24	8-94396-755-0	02	1	9202-	●	●
113	GASKET; PLUG,OIL COOLER CASE EXC. ENG OIL PUMP HEAVY DUTY<Q1V> (B) M24	8-94396-755-0	03	1	9202-	●	●
115	NUT; ELEMENT M10	9-09111-410-0	04	1	9202-	●	●
116	WASHER; PL,ELEMENT ID=10.5	9-09164-510-0	04	1	9202-	●	●
187	CLIP; PIPE TO PIPE	8-94396-688-1	01	1	9202-	●	●
196	THERMOSTAT; OIL COOLER 90?C	8-94393-347-2	01	1	9202-9412	●	●
196	THERMOSTAT; OIL COOLER 90?C	8-94394-815-2	01	1	9501-	●	●
444	GASKET; ELEMENT TO BODY (A)	8-94396-754-0	02	1	9202-	●	●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9202-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9202-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9202-	●	●

496 307 308 265 328 337 328 2 321 321 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C)	8-94393-501-0	01	1	9202-9302	●	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C)	8-94396-375-4	01	1	9303-	●	●
2	ELEMENT; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A)	1-13240-132-0	01	1	9202-	●	●
2	ELEMENT; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B)	1-87810-372-1	01	1	9202-	●	●
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94396-373-0	01	1	9202-9403	●	●
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94394-527-0	01	1	9404-	●	●
265	BODY; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94393-503-0	01	1	9202-	●	●
307	VALVE; OVERFLOW PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94396-374-0	01	1	9202-	●	●
307	VALVE; OVERFLOW EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	1-13260-066-1	01	1	9202-	●	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9202-	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	9202-	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	9202-	●	●
328	BOLT; OIL FILTER M10X30 FLANGE	0-28181-030-0	01	1	9202-	●	●
328	BOLT; OIL FILTER ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> M10X140 M10X140 FLANGE	8-94373-016-1	01	1	9202-	●	●
328	BOLT; OIL FILTER ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> M10X120	8-94396-689-0	01	1	9202-	●	●
328	BOLT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> M10X90 FLANGE	0-28181-090-0	02	1	9202-	●	●
328	BOLT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M10X90 FLANGE	0-28181-090-0	01	1	9202-	●	●
328	BOLT; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> M10X135	8-94397-139-1	02	1	9202-	●	●
328	BOLT; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>, ENGINEOIL LEVEL GAUGE WIDE NECK<WY9> M10X135	8-94397-139-1	01	1	9202-	●	●
337	BRACKET; FUEL PIPE ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A)	8-94393-088-1	01	1	9202-	●	●
337	BRACKET; FUEL PIPE EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (B)	8-94399-726-0	01	1	9202-	●	●
337	BRACKET; FUEL PIPE PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (B)	8-94393-173-1	01	1	9202-	●	●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A)	8-94393-450-0	01	1	9202-9403	●	●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A)	8-94396-315-3	01	1	9404-	●	●
496	FILTER ASM; OIL EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B)	8-94393-427-1	01	1	9202-	●	●
