◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11324 - EXR MIDDLE EAST WITH 3STEPS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#63198) — 30 parça

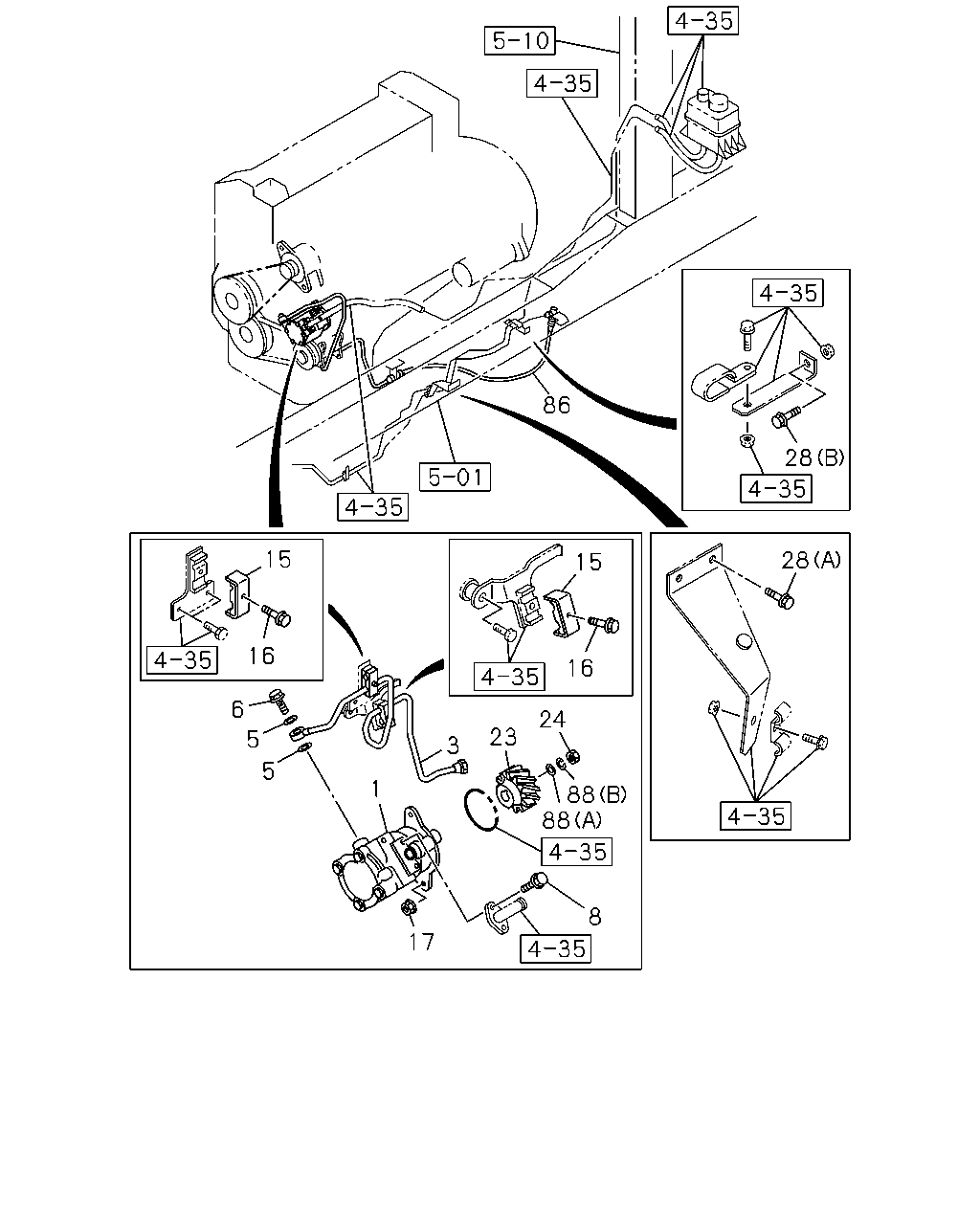

çizim 170676
86 15 16 6 5 5 1 17 8 3 23 24 88 88 28 28 15 16
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-561-3 01 1 1008-
3 PIPE; OIL,CHARGE,P/S 1-13313-773-1 01 1 1008-
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4 		1-09630-087-0 02 1 1008-
6 BOLT; EYE,P/S PIPE
M18X36 		1-09675-205-0 01 1 1008-
8 BOLT; OIL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1008-
15 CLIP; OIL PIPE SUCTION 1-09701-195-3 02 1 1008-
16 BOLT; STAY,P/S OIL PUMP
M6X35 FLANGE 		0-28650-635-0 02 1 1008-
17 NUT; POWER STRG PUMP
M10 FLANGE 		0-91180-110-0 02 1 1008-
23 GEAR; OIL PUMP
Z=20 		1-19581-041-0 01 1 1008-
24 NUT; GEAR,P/S PUMP
M16 		9-19519-112-0 01 1 1008-
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1008-
28 BOLT; BRKT,FLEX HOSE,P/S
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1008-1306
86 HOSE; FLEX,P/S
L=470 		1-09365-177-0 01 1 1008-
88 WASHER; GEAR,P/S PUMP
(A) 		1-19519-293-0 01 1 1008-
88 WASHER; GEAR,P/S PUMP
(B) 		9-09150-016-0 01 1 1008-

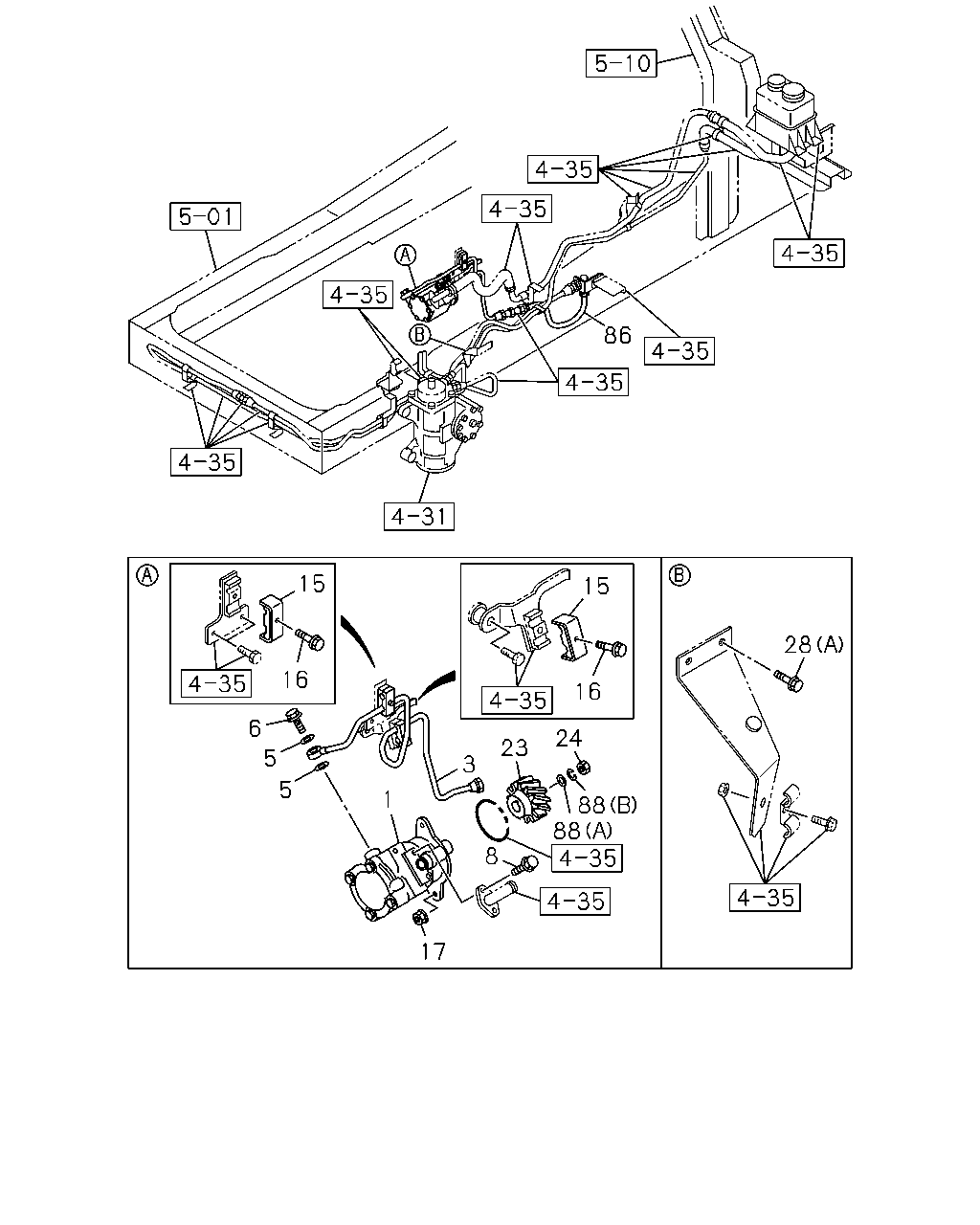

çizim 364599
86 15 16 28 88 17 8 3 1 5 5 6 16 23 24 15 88
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-561-3 01 1 1008-
3 PIPE; OIL,CHARGE,P/S 1-13313-773-1 01 1 1008-
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4 		1-09630-087-0 02 1 1008-
6 BOLT; EYE,P/S PIPE
M18X36 		1-09675-205-0 01 1 1008-
8 BOLT; OIL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1008-
15 CLIP; OIL PIPE SUCTION 1-09701-195-3 02 1 1008-
16 BOLT; STAY,P/S OIL PUMP
M6X35 FLANGE 		0-28650-635-0 02 1 1008-
17 NUT; POWER STRG PUMP
M10 FLANGE 		0-91180-110-0 02 1 1008-
23 GEAR; OIL PUMP
Z=20 		1-19581-041-0 01 1 1008-
24 NUT; GEAR,P/S PUMP
M16 		9-19519-112-0 01 1 1008-
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1008-
28 BOLT; BRKT,FLEX HOSE,P/S
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1008-1306
86 HOSE; FLEX,P/S
L=470 		1-09365-177-0 01 1 1008-
88 WASHER; GEAR,P/S PUMP
(A) 		1-19519-293-0 01 1 1008-
88 WASHER; GEAR,P/S PUMP
(B) 		9-09150-016-0 01 1 1008-
