4-25B — REAR FINAL DRIVE (#63193) — 167 parça

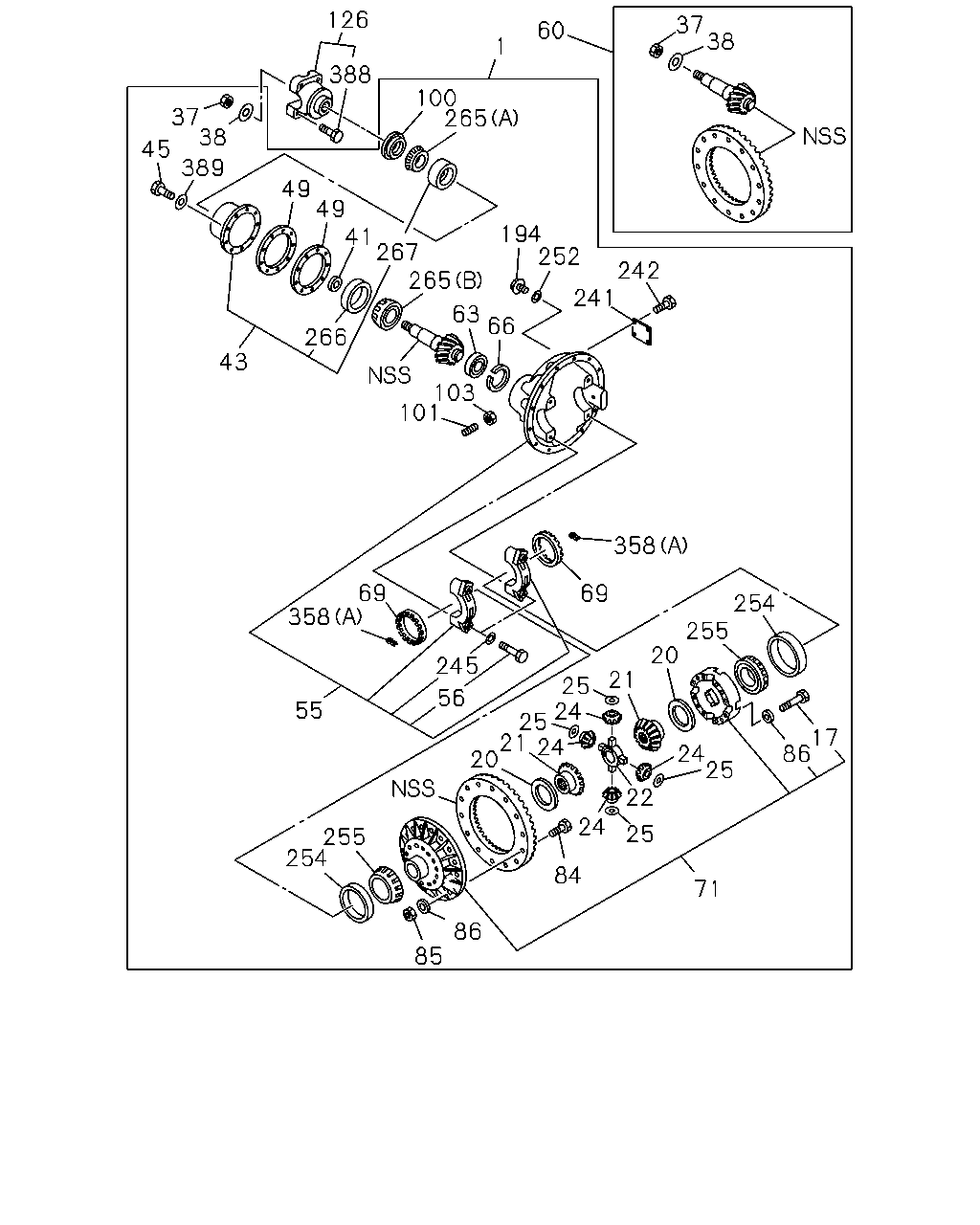

126 388 1 60 37 38 265 100 194 241 242 252 66 63 265 267 41 49 49 389 38 37 45 43 266 101 103 358 69 20 21 69 358 55 56 255 254 20 245 21 86 85 84 71 25 24 24 25 22 86 25 24 24 255 25 17 254

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	DRIVE ASM; FINAL,RR 41/9	1-41002-929-0	01	1	1008-	●
1	DRIVE ASM; FINAL,RR 44/9	1-41002-928-0	01	1	1008-		●
1	DRIVE ASM; FINAL,RR 43/8	1-41002-927-0	01	1	1008-			●
1	DRIVE ASM; FINAL,RR 43/10	1-41002-930-0	01	1	1008-				●
1	DRIVE ASM; FINAL,RR 41/10	1-41002-931-0	01	1	1008-					●
1	DRIVE ASM; FINAL,RR 43/11	1-41002-932-0	01	1	1008-						●
17	BOLT; DIFF CAGE SETTING	1-41519-095-0	12	1	1008-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR	1-41562-269-0	02	1	1008-	●	●	●	●	●	●
21	GEAR; SIDE,DIFF	1-41561-113-0	02	1	1008-	●	●	●	●	●	●
22	SPIDER; DIFF PINION	1-41521-054-0	01	1	1008-	●	●	●	●	●	●
24	GEAR; PINION,DIFF	1-41551-035-0	04	1	1008-	●	●	●	●	●	●
25	WASHER; THRUST,PINION	1-41552-037-0	04	1	1008-	●	●	●	●	●	●
37	NUT; DRIVING PINION	1-41219-028-0	01	1	1307-	●	●	●	●	●	●
37	NUT; DRIVING PINION	1-41210-688-0	01	1	1008-1306	●	●	●	●	●	●
38	WASHER; PL,DRIVING PINION	1-41210-689-0	01	1	1008-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.35	1-41229-372-0	01	1	1008-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.38	1-41229-373-0	01	1	1008-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.40	1-41229-374-0	01	1	1008-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.43	1-41229-375-0	01	1	1008-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.45	1-41229-376-0	01	1	1008-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.50	1-41229-377-0	01	1	1008-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.60	1-41229-378-0	01	1	1008-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.63	1-41229-379-0	01	1	1008-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.65	1-41229-380-0	01	1	1008-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.68	1-41229-381-0	01	1	1008-	●	●	●	●	●	●
43	CAGE; FINAL PINION	1-41151-103-0	01	1	1008-	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE	1-41159-059-0	08	1	1307-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.125	1-41154-115-0	AR	1	1008-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.200	1-41154-116-0	AR	1	1008-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.500	1-41154-117-0	AR	1	1008-	●	●	●	●	●	●
55	CARRIER; DIFF	1-41110-127-0	01	1	1008-	●	●	●	●	●	●
56	BOLT; BRG CAP	1-41119-066-0	04	1	1008-	●	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-685-0	01	1	1008-	●
60	GEAR SET; FINAL DRIVE,RR 44/9	1-41210-686-0	01	1	1008-		●
60	GEAR SET; FINAL DRIVE,RR 43/8	1-41210-687-0	01	1	1008-			●
60	GEAR SET; FINAL DRIVE,RR 43/10	1-41210-684-0	01	1	1008-				●
60	GEAR SET; FINAL DRIVE,RR 41/10	1-41210-683-0	01	1	1008-					●
60	GEAR SET; FINAL DRIVE,RR 43/11	1-41210-682-0	01	1	1008-						●
63	BEARING; PINION PILOT	1-41219-034-0	01	1	1008-	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG	1-41219-035-0	01	1	1008-	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-052-0	01	1	1008-1411	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-052-0	01	1	1412-	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-053-0	01	1	1008-1411	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-053-0	01	1	1412-	●	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-312-0	01	1	1008-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-313-0	01	1	1008-				●	●	●
84	BOLT; FINAL DRIVE GEAR	1-41519-036-0	16	1	1008-	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	16	1	1008-	●	●	●	●	●	●
86	WASHER; PL,DIFF CAGE SETTING	1-41519-035-0	28	1	1008-	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION	1-41349-184-0	01	1	1307-	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION	1-41349-180-0	01	1	1008-1306	●	●	●	●	●	●
101	BOLT; ADJ,DRIVEN GEAR THRUST	1-41259-001-0	01	1	1008-	●	●	●	●	●	●
103	NUT; ADJ BOLT	1-41259-002-0	01	1	1008-	●	●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-373-0	01	1	1008-	●	●	●	●	●	●
194	PLUG	1-41119-072-0	01	1	1008-	●	●	●	●	●	●
241	COVER; SHIFT HSG	1-48269-220-0	01	1	1008-	●	●	●	●	●	●
242	BOLT; COVER	1-48269-260-0	04	1	1008-	●	●	●	●	●	●
245	WASHER; PL,BRG CAP	1-41119-065-0	04	1	1008-	●	●	●	●	●	●
252	GASKET; CARRIER DIFF LOCK(C3N)	1-48269-219-0	02	1	1008-	●	●	●	●	●	●
252	GASKET; CARRIER EXC. DIFF LOCK(C3N)	1-48269-219-0	01	1	1008-	●	●	●	●	●	●
254	CUP; DIFF BRG	1-41519-091-0	01	1	1008-1411	●	●	●	●	●	●
254	CUP; DIFF BRG	1-41519-091-0	01	1	1412-	●	●	●	●	●	●
254	CUP; DIFF BRG	1-41519-092-0	01	1	1008-1411	●	●	●	●	●	●
254	CUP; DIFF BRG	1-41519-092-0	01	1	1412-	●	●	●	●	●	●
255	CONE; DIFF BRG	1-41519-093-0	01	1	1008-1411	●	●	●	●	●	●
255	CONE; DIFF BRG	1-41519-093-0	01	1	1412-	●	●	●	●	●	●
255	CONE; DIFF BRG	1-41519-094-0	01	1	1008-1411	●	●	●	●	●	●
255	CONE; DIFF BRG	1-41519-094-0	01	1	1412-	●	●	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (B)	1-41219-033-0	01	1	1008-	●	●	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (A)	1-41219-135-0	01	1	1008-	●	●	●	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER	1-41219-137-0	01	1	1008-	●	●	●	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER	1-41219-136-0	01	1	1008-	●	●	●	●	●	●
358	PIN; SPR (A)	1-41129-020-0	02	1	1008-	●	●	●	●	●	●
358	PIN; SPR DIFF LOCK(C3N) (B)	1-48269-218-0	01	1	1008-	●	●	●	●	●	●
388	BOLT; COUPLING M14X48.5	1-09046-013-0	04	1	1008-	●	●	●	●	●	●
389	WASHER; FINAL PINION CAGE	1-41159-009-0	08	1	1307-	●	●	●	●	●	●

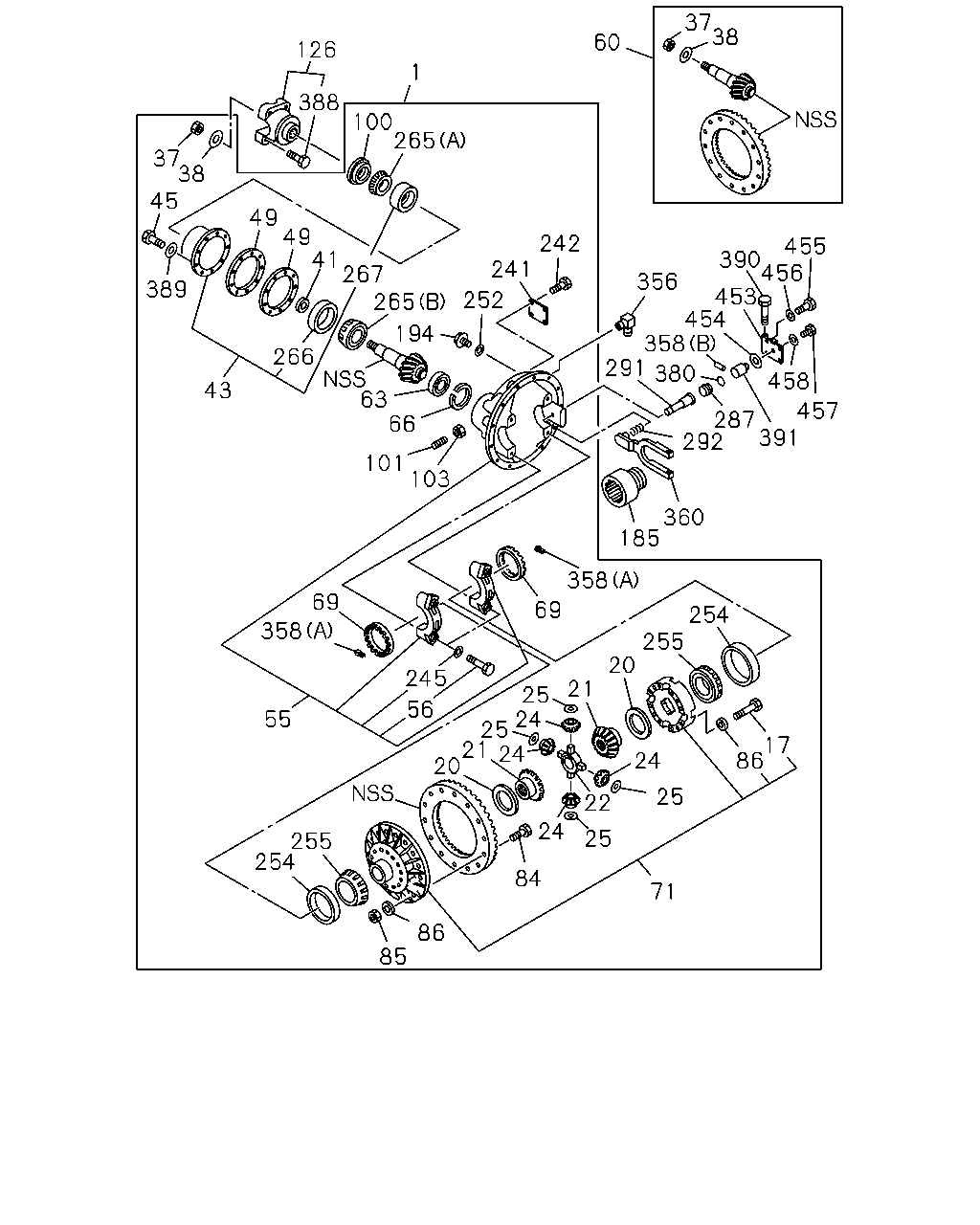

126 388 1 265 100 49 38 37 45 389 43 266 41 49 265 267 194 63 101 66 103 252 241 242 356 390 60 37 38 455 456 453 454 358 291 292 287 458 391 457 360 185 358 69 20 380 69 358 55 245 56 20 255 254 85 84 86 25 24 24 21 71 25 24 22 86 254 17 21 25 24 25 255

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	DRIVE ASM; FINAL,RR 41/9	1-41002-929-0	01	1	1008-	●
1	DRIVE ASM; FINAL,RR 44/9	1-41002-928-0	01	1	1008-		●
1	DRIVE ASM; FINAL,RR 43/8	1-41002-927-0	01	1	1008-			●
1	DRIVE ASM; FINAL,RR 43/10	1-41002-930-0	01	1	1008-				●
1	DRIVE ASM; FINAL,RR 41/10	1-41002-931-0	01	1	1008-					●
1	DRIVE ASM; FINAL,RR 43/11	1-41002-932-0	01	1	1008-						●
17	BOLT; DIFF CAGE SETTING	1-41519-095-0	12	1	1008-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR	1-41562-269-0	02	1	1008-	●	●	●	●	●	●
21	GEAR; SIDE,DIFF	1-41561-113-0	02	1	1008-	●	●	●	●	●	●
22	SPIDER; DIFF PINION	1-41521-054-0	01	1	1008-	●	●	●	●	●	●
24	GEAR; PINION,DIFF	1-41551-035-0	04	1	1008-	●	●	●	●	●	●
25	WASHER; THRUST,PINION	1-41552-037-0	04	1	1008-	●	●	●	●	●	●
37	NUT; DRIVING PINION	1-41219-028-0	01	1	1307-	●	●	●	●	●	●
37	NUT; DRIVING PINION	1-41210-688-0	01	1	1008-1306	●	●	●	●	●	●
38	WASHER; PL,DRIVING PINION	1-41210-689-0	01	1	1008-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.35	1-41229-372-0	01	1	1008-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.38	1-41229-373-0	01	1	1008-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.40	1-41229-374-0	01	1	1008-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.43	1-41229-375-0	01	1	1008-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.45	1-41229-376-0	01	1	1008-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.50	1-41229-377-0	01	1	1008-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.60	1-41229-378-0	01	1	1008-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.63	1-41229-379-0	01	1	1008-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.65	1-41229-380-0	01	1	1008-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.68	1-41229-381-0	01	1	1008-	●	●	●	●	●	●
43	CAGE; FINAL PINION	1-41151-103-0	01	1	1008-	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE	1-41159-059-0	08	1	1307-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.125	1-41154-115-0	AR	1	1008-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.200	1-41154-116-0	AR	1	1008-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.500	1-41154-117-0	AR	1	1008-	●	●	●	●	●	●
55	CARRIER; DIFF	1-41110-127-0	01	1	1008-	●	●	●	●	●	●
56	BOLT; BRG CAP	1-41119-066-0	04	1	1008-	●	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-685-0	01	1	1008-	●
60	GEAR SET; FINAL DRIVE,RR 44/9	1-41210-686-0	01	1	1008-		●
60	GEAR SET; FINAL DRIVE,RR 43/8	1-41210-687-0	01	1	1008-			●
60	GEAR SET; FINAL DRIVE,RR 43/10	1-41210-684-0	01	1	1008-				●
60	GEAR SET; FINAL DRIVE,RR 41/10	1-41210-683-0	01	1	1008-					●
60	GEAR SET; FINAL DRIVE,RR 43/11	1-41210-682-0	01	1	1008-						●
63	BEARING; PINION PILOT	1-41219-034-0	01	1	1008-	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG	1-41219-035-0	01	1	1008-	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-052-0	01	1	1008-1411	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-052-0	01	1	1412-	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-053-0	01	1	1008-1411	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-053-0	01	1	1412-	●	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-312-0	01	1	1008-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-313-0	01	1	1008-				●	●	●
84	BOLT; FINAL DRIVE GEAR	1-41519-036-0	16	1	1008-	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	16	1	1008-	●	●	●	●	●	●
86	WASHER; PL,DIFF CAGE SETTING	1-41519-035-0	28	1	1008-	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION	1-41349-184-0	01	1	1307-	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION	1-41349-180-0	01	1	1008-1306	●	●	●	●	●	●
101	BOLT; ADJ,DRIVEN GEAR THRUST	1-41259-001-0	01	1	1008-	●	●	●	●	●	●
103	NUT; ADJ BOLT	1-41259-002-0	01	1	1008-	●	●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-373-0	01	1	1008-	●	●	●	●	●	●
185	COLLAR; SHIFT FORK DIFF LOCK(C3N)	1-48269-210-0	01	1	1008-	●	●	●	●	●	●
194	PLUG	1-41119-072-0	01	1	1008-	●	●	●	●	●	●
241	COVER; SHIFT HSG	1-48269-220-0	01	1	1008-	●	●	●	●	●	●
242	BOLT; COVER	1-48269-260-0	04	1	1008-	●	●	●	●	●	●
245	WASHER; PL,BRG CAP	1-41119-065-0	04	1	1008-	●	●	●	●	●	●
252	GASKET; CARRIER DIFF LOCK(C3N)	1-48269-219-0	02	1	1008-	●	●	●	●	●	●
252	GASKET; CARRIER EXC. DIFF LOCK(C3N)	1-48269-219-0	01	1	1008-	●	●	●	●	●	●
254	CUP; DIFF BRG	1-41519-091-0	01	1	1008-1411	●	●	●	●	●	●
254	CUP; DIFF BRG	1-41519-091-0	01	1	1412-	●	●	●	●	●	●
254	CUP; DIFF BRG	1-41519-092-0	01	1	1008-1411	●	●	●	●	●	●
254	CUP; DIFF BRG	1-41519-092-0	01	1	1412-	●	●	●	●	●	●
255	CONE; DIFF BRG	1-41519-093-0	01	1	1008-1411	●	●	●	●	●	●
255	CONE; DIFF BRG	1-41519-093-0	01	1	1412-	●	●	●	●	●	●
255	CONE; DIFF BRG	1-41519-094-0	01	1	1008-1411	●	●	●	●	●	●
255	CONE; DIFF BRG	1-41519-094-0	01	1	1412-	●	●	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (B)	1-41219-033-0	01	1	1008-	●	●	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (A)	1-41219-135-0	01	1	1008-	●	●	●	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER	1-41219-137-0	01	1	1008-	●	●	●	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER	1-41219-136-0	01	1	1008-	●	●	●	●	●	●
287	PISTON; SHIFT UNIT DIFF LOCK(C3N)	1-48262-029-0	01	1	1008-	●	●	●	●	●	●
291	ROD; PUSH DIFF LOCK(C3N)	1-48269-211-0	01	1	1008-	●	●	●	●	●	●
292	SPRING; PISTON DIFF LOCK(C3N)	1-48265-012-0	01	1	1008-	●	●	●	●	●	●
356	NIPPLE; SHIFT UNIT DIFF LOCK(C3N)	1-09650-490-0	01	1	1008-	●	●	●	●	●	●
358	PIN; SPR (A)	1-41129-020-0	02	1	1008-	●	●	●	●	●	●
358	PIN; SPR DIFF LOCK(C3N) (B)	1-48269-218-0	01	1	1008-	●	●	●	●	●	●
360	FORK; SHIFT DIFF LOCK(C3N)	1-48269-207-0	01	1	1008-	●	●	●	●	●	●
380	GASKET; PISTON DIFF LOCK(C3N)	1-48269-215-0	01	1	1008-	●	●	●	●	●	●
388	BOLT; COUPLING M14X48.5	1-09046-013-0	04	1	1008-	●	●	●	●	●	●
389	WASHER; FINAL PINION CAGE	1-41159-009-0	08	1	1307-	●	●	●	●	●	●
390	BOLT; CAGING DIFF LOCK(C3N)	1-48269-213-0	01	1	1008-	●	●	●	●	●	●
391	CYLINDER; SHIFT DIFF LOCK(C3N)	1-48269-206-0	01	1	1008-	●	●	●	●	●	●
453	COVER; CYLINDER DIFF LOCK(C3N)	1-48269-212-0	01	1	1008-	●	●	●	●	●	●
454	GASKET; CYLINDER DIFF LOCK(C3N)	1-48269-208-0	01	1	1008-	●	●	●	●	●	●
455	BOLT; CYLINDER COVER DIFF LOCK(C3N)	1-48269-216-0	04	1	1008-	●	●	●	●	●	●
456	WASHER; CYLINDER COVER DIFF LOCK(C3N)	1-48269-217-0	04	1	1008-	●	●	●	●	●	●
457	CAP; SCREW,DIFF LOCK DIFF LOCK(C3N)	1-48269-214-0	01	1	1008-	●	●	●	●	●	●
458	GASKET; CYLINDER CAP DIFF LOCK(C3N)	1-48269-209-0	01	1	1008-	●	●	●	●	●	●
