Sayfa 4-25A - Isuzu EPC

4-25A — REAR FINAL DRIVE (#63192) — 341 parça

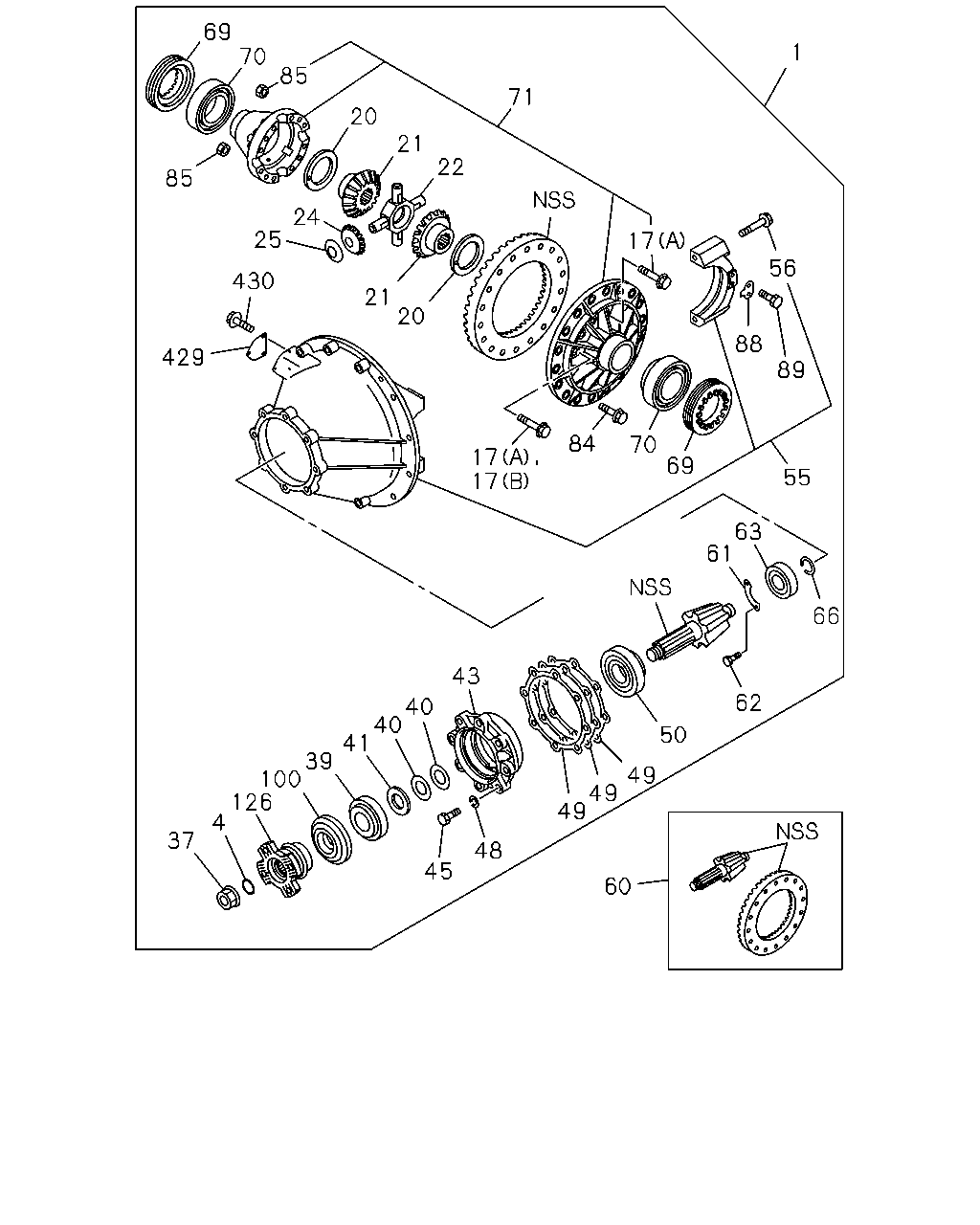

69 70 85 71 1 85 20 21 22 24 25 430 429 21 20 17 17 84 17 56 88 89 70 69 61 63 55 60 66 43 40 40 41 39 100 126 4 37 45 48 49 49 49 50 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	DRIVE ASM; FINAL,RR DIFF LOCK(C3N) 39/8	1-41003-518-0	01	1	1008-	●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK(C3N) 39/8	1-41003-516-0	01	1	1008-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK(C3N) 41/8	1-41003-517-0	01	1	1008-		●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK(C3N) 41/8	1-41003-515-0	01	1	1008-		●
1	DRIVE ASM; FINAL,RR DIFF LOCK(C3N) 41/9	1-41003-326-0	01	1	1008-			●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK(C3N) 41/9	1-41003-317-0	01	1	1008-			●
1	DRIVE ASM; FINAL,RR DIFF LOCK(C3N) 41/10	1-41003-328-0	01	1	1008-				●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK(C3N) 41/10	1-41003-319-0	01	1	1008-				●
1	DRIVE ASM; FINAL,RR DIFF LOCK(C3N) 43/11	1-41003-329-0	01	1	1008-1306					●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK(C3N) 43/11	1-41003-320-0	01	1	1008-1306					●
1	DRIVE ASM; FINAL,RR DIFF LOCK(C3N) 39/9	1-41003-327-0	01	1	1008-						●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK(C3N) 39/9	1-41003-318-0	01	1	1008-						●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	1008-1306	●	●	●	●	●	●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	1307-	●	●	●	●		●
17	BOLT; DIFF CAGE SETTING (A) M16X141 FLANGE	1-09070-013-0	08	1	1008-1306	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X141 FLANGE	1-09070-013-0	08	1	1307-	●	●	●	●		●
17	BOLT; DIFF CAGE SETTING (B) M16X105 FLANGE	1-09070-014-0	04	1	1008-1306	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M16X105 FLANGE	1-09070-014-0	04	1	1307-	●	●	●	●		●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-270-1	AR	1	1008-1306	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-270-1	AR	1	1307-	●	●	●	●		●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-271-1	AR	1	1008-1306	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-271-1	AR	1	1307-	●	●	●	●		●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-272-1	AR	1	1008-1306	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-272-1	AR	1	1307-	●	●	●	●		●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-273-1	AR	1	1008-1306	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-273-1	AR	1	1307-	●	●	●	●		●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-274-1	AR	1	1008-1306	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-274-1	AR	1	1307-	●	●	●	●		●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-275-1	AR	1	1008-1306	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-275-1	AR	1	1307-	●	●	●	●		●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-276-1	AR	1	1008-1306	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-276-1	AR	1	1307-	●	●	●	●		●
21	GEAR; SIDE,DIFF Z=16	1-41561-167-0	02	1	1008-1306	●	●	●	●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-167-0	02	1	1307-	●	●	●	●		●
22	SPIDER; DIFF PINION OD=35	1-41521-052-0	01	1	1008-1306	●	●	●	●	●	●
22	SPIDER; DIFF PINION OD=35	1-41521-052-0	01	1	1307-	●	●	●	●		●
24	GEAR; PINION,DIFF Z=10	1-41551-054-0	04	1	1008-1306	●	●	●	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-054-0	04	1	1307-	●	●	●	●		●
25	WASHER; THRUST,PINION T=1.6	1-41552-003-0	04	1	1008-1306	●	●	●	●	●	●
25	WASHER; THRUST,PINION T=1.6	1-41552-003-0	04	1	1307-	●	●	●	●		●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	1008-1306	●	●	●	●	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	1307-	●	●	●	●		●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	1008-1306	●	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	1307-	●	●	●	●		●
39	BEARING; FINAL PINION JTEKT	1-09812-076-1	01	1	1008-1306	●	●	●	●	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-076-1	01	1	1307-	●	●	●	●		●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	1008-1306	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	1307-	●	●	●	●		●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	1008-1306	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	1307-	●	●	●	●		●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	1008-1306	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	1307-	●	●	●	●		●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	1008-1306	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	1307-	●	●	●	●		●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	1008-1306	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	1307-	●	●	●	●		●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	1008-1306	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	1307-	●	●	●	●		●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	1008-1306	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	1307-	●	●	●	●		●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	1008-1306	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	1307-	●	●	●	●		●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	1008-1306	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	1307-	●	●	●	●		●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	1008-1306	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	1307-	●	●	●	●		●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	1008-1306	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	1307-	●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	1008-1306	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	1307-	●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	1008-1306	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	1307-	●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	1008-1306	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	1307-	●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	1008-1306	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	1307-	●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	1008-1306	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	1307-	●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	1008-1306	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	1307-	●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	1008-1306	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	1307-	●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	1008-1306	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	1307-	●	●	●	●		●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	1008-1306	●	●	●	●	●	●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	1307-	●	●	●	●		●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	1008-1306	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	1307-	●	●	●	●		●
48	WASHER; LK,FINAL PINION ID=16.2	0-91510-516-0	08	1	1008-1306	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	0-91510-516-0	08	1	1307-	●	●	●	●		●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	1008-1306	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	1307-	●	●	●	●		●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	1008-1306	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	1307-	●	●	●	●		●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	1008-1306	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	1307-	●	●	●	●		●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	1008-1306	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	1307-	●	●	●	●		●
50	BEARING; FINAL PINION NSK	1-09812-250-0	01	1	1008-1306	●	●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-250-0	01	1	1307-	●	●	●	●		●
50	BEARING; FINAL PINION JTEKT	1-09812-251-0	01	1	1008-1306	●	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-251-0	01	1	1307-	●	●	●	●		●
55	CARRIER; DIFF	1-41110-117-0	01	1	1008-1306	●	●	●	●	●	●
55	CARRIER; DIFF	1-41110-117-1	01	1	1307-	●	●	●	●		●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	1008-1306	●	●	●	●	●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	1307-	●	●	●	●		●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-41210-744-0	01	1	1008-	●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-743-0	01	1	1008-		●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-719-0	01	1	1008-			●
60	GEAR SET; FINAL DRIVE,RR 41/10	1-41210-721-0	01	1	1008-				●
60	GEAR SET; FINAL DRIVE,RR 43/11	1-41210-722-0	01	1	1008-1306					●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-720-0	01	1	1008-						●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	01	1	1008-1306	●	●	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	01	1	1307-	●	●	●	●		●
62	BOLT; RET M8X16	0-20850-816-0	02	1	1008-1306	●	●	●	●	●	●
62	BOLT; RET M8X16	0-20850-816-0	02	1	1307-	●	●	●	●		●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	1008-1306	●	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	1307-	●	●	●	●		●
63	BEARING; PINION PILOT JTEKT	1-09810-153-0	01	1	1008-1306	●	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-153-0	01	1	1307-	●	●	●	●		●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	1008-1306	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	1307-	●	●	●	●		●
69	NUT; ADJ,DIFF CAGE	1-41121-051-0	01	1	1008-1306	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-051-0	01	1	1307-1411	●	●	●	●		●
69	NUT; ADJ,DIFF CAGE	1-41121-051-0	01	1	1412-	●	●	●	●		●
69	NUT; ADJ,DIFF CAGE	1-41121-050-0	01	1	1008-1306	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-050-0	01	1	1307-1411	●	●	●	●		●
69	NUT; ADJ,DIFF CAGE	1-41121-050-0	01	1	1412-	●	●	●	●		●
70	BEARING; DIFF CAGE JTEKT ID=110 OD=170 T=38	1-09812-226-0	02	1	1008-1306	●	●	●	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=110 OD=170 T=38	1-09812-226-0	02	1	1307-	●	●	●	●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-253-0	01	1	1008-1306	●	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-253-0	01	1	1307-	●	●	●	●		●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	1008-1306	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	1307-	●	●	●	●		●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	1008-1306	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	1307-	●	●	●	●		●
88	PLATE; LK,ADJ NUT T=3.2	1-41124-026-0	02	1	1008-1306	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT T=3.2	1-41124-026-0	02	1	1307-	●	●	●	●		●
89	BOLT; LK PLATE M10X20 FLANGE	0-28751-020-0	04	1	1008-1306	●	●	●	●	●	●
89	BOLT; LK PLATE M10X20 FLANGE	0-28751-020-0	04	1	1307-	●	●	●	●		●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	1008-1306	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	1307-	●	●	●	●		●
126	COUPLING; DRIVING PINION	1-37245-343-0	01	1	1008-1306	●	●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-343-0	01	1	1307-	●	●	●	●		●
429	PLATE; DUMMY EXC. DIFF LOCK(C3N)	1-41279-014-0	01	1	1008-1306	●	●	●	●	●	●
429	PLATE; DUMMY EXC. DIFF LOCK(C3N)	1-41279-014-0	01	1	1307-	●	●	●	●		●
430	BOLT; PLATE,DUMMY EXC. DIFF LOCK(C3N) M8X20 FLANGE	0-28650-820-0	03	1	1008-1306	●	●	●	●	●	●
430	BOLT; PLATE,DUMMY EXC. DIFF LOCK(C3N) M8X20 FLANGE	0-28650-820-0	03	1	1307-	●	●	●	●		●

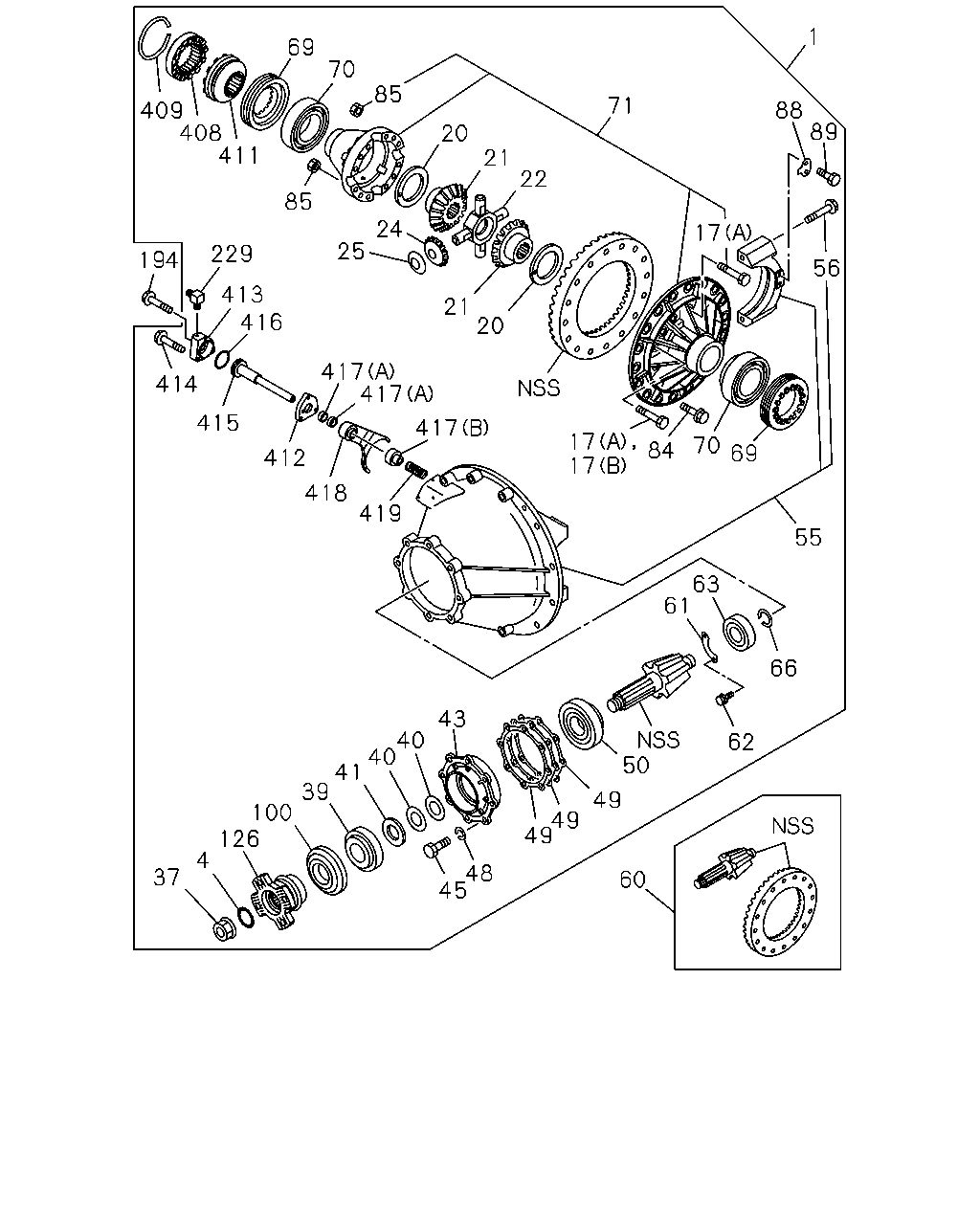

69 70 85 20 21 22 71 1 88 89 56 17 69 70 84 17 17 20 21 24 25 85 411 408 409 194 229 413 414 415 412 418 419 417 417 417 37 4 126 100 39 41 40 40 43 45 48 49 49 49 50 61 63 55 66 62 60 416

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	DRIVE ASM; FINAL,RR DIFF LOCK(C3N) 39/8	1-41003-518-0	01	1	1008-	●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK(C3N) 39/8	1-41003-516-0	01	1	1008-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK(C3N) 41/8	1-41003-517-0	01	1	1008-		●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK(C3N) 41/8	1-41003-515-0	01	1	1008-		●
1	DRIVE ASM; FINAL,RR DIFF LOCK(C3N) 41/9	1-41003-326-0	01	1	1008-			●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK(C3N) 41/9	1-41003-317-0	01	1	1008-			●
1	DRIVE ASM; FINAL,RR DIFF LOCK(C3N) 41/10	1-41003-328-0	01	1	1008-				●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK(C3N) 41/10	1-41003-319-0	01	1	1008-				●
1	DRIVE ASM; FINAL,RR DIFF LOCK(C3N) 43/11	1-41003-329-0	01	1	1008-1306					●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK(C3N) 43/11	1-41003-320-0	01	1	1008-1306					●
1	DRIVE ASM; FINAL,RR DIFF LOCK(C3N) 39/9	1-41003-327-0	01	1	1008-						●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK(C3N) 39/9	1-41003-318-0	01	1	1008-						●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	1008-1306	●	●	●	●	●	●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	1307-	●	●	●	●		●
17	BOLT; DIFF CAGE SETTING (A) M16X141 FLANGE	1-09070-013-0	08	1	1008-1306	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X141 FLANGE	1-09070-013-0	08	1	1307-	●	●	●	●		●
17	BOLT; DIFF CAGE SETTING (B) M16X105 FLANGE	1-09070-014-0	04	1	1008-1306	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M16X105 FLANGE	1-09070-014-0	04	1	1307-	●	●	●	●		●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-270-1	AR	1	1008-1306	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-270-1	AR	1	1307-	●	●	●	●		●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-271-1	AR	1	1008-1306	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-271-1	AR	1	1307-	●	●	●	●		●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-272-1	AR	1	1008-1306	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-272-1	AR	1	1307-	●	●	●	●		●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-273-1	AR	1	1008-1306	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-273-1	AR	1	1307-	●	●	●	●		●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-274-1	AR	1	1008-1306	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-274-1	AR	1	1307-	●	●	●	●		●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-275-1	AR	1	1008-1306	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-275-1	AR	1	1307-	●	●	●	●		●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-276-1	AR	1	1008-1306	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-276-1	AR	1	1307-	●	●	●	●		●
21	GEAR; SIDE,DIFF Z=16	1-41561-167-0	02	1	1008-1306	●	●	●	●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-167-0	02	1	1307-	●	●	●	●		●
22	SPIDER; DIFF PINION OD=35	1-41521-052-0	01	1	1008-1306	●	●	●	●	●	●
22	SPIDER; DIFF PINION OD=35	1-41521-052-0	01	1	1307-	●	●	●	●		●
24	GEAR; PINION,DIFF Z=10	1-41551-054-0	04	1	1008-1306	●	●	●	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-054-0	04	1	1307-	●	●	●	●		●
25	WASHER; THRUST,PINION T=1.6	1-41552-003-0	04	1	1008-1306	●	●	●	●	●	●
25	WASHER; THRUST,PINION T=1.6	1-41552-003-0	04	1	1307-	●	●	●	●		●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	1008-1306	●	●	●	●	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	1307-	●	●	●	●		●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	1008-1306	●	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	1307-	●	●	●	●		●
39	BEARING; FINAL PINION JTEKT	1-09812-076-1	01	1	1008-1306	●	●	●	●	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-076-1	01	1	1307-	●	●	●	●		●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	1008-1306	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	1307-	●	●	●	●		●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	1008-1306	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	1307-	●	●	●	●		●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	1008-1306	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	1307-	●	●	●	●		●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	1008-1306	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	1307-	●	●	●	●		●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	1008-1306	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	1307-	●	●	●	●		●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	1008-1306	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	1307-	●	●	●	●		●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	1008-1306	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	1307-	●	●	●	●		●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	1008-1306	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	1307-	●	●	●	●		●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	1008-1306	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	1307-	●	●	●	●		●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	1008-1306	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	1307-	●	●	●	●		●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	1008-1306	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	1307-	●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	1008-1306	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	1307-	●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	1008-1306	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	1307-	●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	1008-1306	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	1307-	●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	1008-1306	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	1307-	●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	1008-1306	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	1307-	●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	1008-1306	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	1307-	●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	1008-1306	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	1307-	●	●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	1008-1306	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	1307-	●	●	●	●		●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	1008-1306	●	●	●	●	●	●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	1307-	●	●	●	●		●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	1008-1306	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	1307-	●	●	●	●		●
48	WASHER; LK,FINAL PINION ID=16.2	0-91510-516-0	08	1	1008-1306	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	0-91510-516-0	08	1	1307-	●	●	●	●		●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	1008-1306	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	1307-	●	●	●	●		●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	1008-1306	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	1307-	●	●	●	●		●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	1008-1306	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	1307-	●	●	●	●		●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	1008-1306	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	1307-	●	●	●	●		●
50	BEARING; FINAL PINION NSK	1-09812-250-0	01	1	1008-1306	●	●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-250-0	01	1	1307-	●	●	●	●		●
50	BEARING; FINAL PINION JTEKT	1-09812-251-0	01	1	1008-1306	●	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-251-0	01	1	1307-	●	●	●	●		●
55	CARRIER; DIFF	1-41110-117-0	01	1	1008-1306	●	●	●	●	●	●
55	CARRIER; DIFF	1-41110-117-1	01	1	1307-	●	●	●	●		●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	1008-1306	●	●	●	●	●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	1307-	●	●	●	●		●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-41210-744-0	01	1	1008-	●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-743-0	01	1	1008-		●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-719-0	01	1	1008-			●
60	GEAR SET; FINAL DRIVE,RR 41/10	1-41210-721-0	01	1	1008-				●
60	GEAR SET; FINAL DRIVE,RR 43/11	1-41210-722-0	01	1	1008-1306					●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-720-0	01	1	1008-						●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	01	1	1008-1306	●	●	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	01	1	1307-	●	●	●	●		●
62	BOLT; RET M8X16	0-20850-816-0	02	1	1008-1306	●	●	●	●	●	●
62	BOLT; RET M8X16	0-20850-816-0	02	1	1307-	●	●	●	●		●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	1008-1306	●	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	1307-	●	●	●	●		●
63	BEARING; PINION PILOT JTEKT	1-09810-153-0	01	1	1008-1306	●	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-153-0	01	1	1307-	●	●	●	●		●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	1008-1306	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	1307-	●	●	●	●		●
69	NUT; ADJ,DIFF CAGE	1-41121-051-0	01	1	1008-1306	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-051-0	01	1	1307-1411	●	●	●	●		●
69	NUT; ADJ,DIFF CAGE	1-41121-051-0	01	1	1412-	●	●	●	●		●
69	NUT; ADJ,DIFF CAGE	1-41121-050-0	01	1	1008-1306	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-050-0	01	1	1307-1411	●	●	●	●		●
69	NUT; ADJ,DIFF CAGE	1-41121-050-0	01	1	1412-	●	●	●	●		●
70	BEARING; DIFF CAGE JTEKT ID=110 OD=170 T=38	1-09812-226-0	02	1	1008-1306	●	●	●	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=110 OD=170 T=38	1-09812-226-0	02	1	1307-	●	●	●	●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-253-0	01	1	1008-1306	●	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-253-0	01	1	1307-	●	●	●	●		●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	1008-1306	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	1307-	●	●	●	●		●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	1008-1306	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	1307-	●	●	●	●		●
88	PLATE; LK,ADJ NUT T=3.2	1-41124-026-0	02	1	1008-1306	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT T=3.2	1-41124-026-0	02	1	1307-	●	●	●	●		●
89	BOLT; LK PLATE M10X20 FLANGE	0-28751-020-0	04	1	1008-1306	●	●	●	●	●	●
89	BOLT; LK PLATE M10X20 FLANGE	0-28751-020-0	04	1	1307-	●	●	●	●		●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	1008-1306	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	1307-	●	●	●	●		●
126	COUPLING; DRIVING PINION	1-37245-343-0	01	1	1008-1306	●	●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-343-0	01	1	1307-	●	●	●	●		●
194	PLUG DIFF LOCK(C3N) M8X10 FLANGE	0-28050-810-0	01	1	1008-1306	●	●	●	●	●	●
194	PLUG DIFF LOCK(C3N) M8X10 FLANGE	0-28050-810-0	01	1	1307-	●	●	●	●		●
229	CONNECTOR DIFF LOCK(C3N) M12 & PT1/8	0-92124-306-0	01	1	1008-1306	●	●	●	●	●	●
229	CONNECTOR DIFF LOCK(C3N) M12 & PT1/8	0-92124-306-0	01	1	1307-	●	●	●	●		●
408	CLAW; CLU,DIFF LK DIFF LOCK(C3N)	1-41266-020-1	01	1	1008-1306	●	●	●	●	●	●
408	CLAW; CLU,DIFF LK DIFF LOCK(C3N)	1-41266-020-1	01	1	1307-	●	●	●	●		●
409	CIRCUIT DIFF LOCK(C3N)	1-33219-024-0	01	1	1008-1306	●	●	●	●	●	●
409	CIRCUIT DIFF LOCK(C3N)	1-33219-024-0	01	1	1307-	●	●	●	●		●
411	SLEEVE; CLU DIFF LOCK(C3N)	1-41266-021-2	01	1	1008-1306	●	●	●	●	●	●
411	SLEEVE; CLU DIFF LOCK(C3N)	1-41266-021-2	01	1	1307-	●	●	●	●		●
412	STOPPER; STROKE,SHIFT DIFF LOCK(C3N)	1-41279-017-1	01	1	1008-1306	●	●	●	●	●	●
412	STOPPER; STROKE,SHIFT DIFF LOCK(C3N)	1-41279-017-1	01	1	1307-	●	●	●	●		●
413	CYLINDER; DIFF LK DIFF LOCK(C3N)	1-41279-018-0	01	1	1008-1306	●	●	●	●	●	●
413	CYLINDER; DIFF LK DIFF LOCK(C3N)	1-41279-018-0	01	1	1307-1404	●	●	●	●		●
413	CYLINDER; DIFF LK DIFF LOCK(C3N)	1-41279-023-0	01	1	1405-	●	●	●	●		●
414	BOLT; CYL DIFF LOCK(C3N) M8X45 FLANGE	0-28050-845-0	03	1	1008-1306	●	●	●	●	●	●
414	BOLT; CYL DIFF LOCK(C3N) M8X45 FLANGE	0-28050-845-0	03	1	1307-1404	●	●	●	●		●
414	BOLT; CYL DIFF LOCK(C3N) M8X50 FLANGE	0-28050-850-0	03	1	1405-	●	●	●	●		●
415	ROD; PISTON,DIFF LK DIFF LOCK(C3N)	1-41279-016-0	01	1	1008-1306	●	●	●	●	●	●
415	ROD; PISTON,DIFF LK DIFF LOCK(C3N)	1-41279-016-0	01	1	1307-	●	●	●	●		●
416	GASKET DIFF LOCK(C3N) ID=43.7	9-09561-344-0	01	1	1008-1306	●	●	●	●	●	●
416	GASKET DIFF LOCK(C3N) ID=43.7	9-09561-344-0	01	1	1307-	●	●	●	●		●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=4.0	1-41229-274-0	AR	1	1008-1306	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=4.0	1-41229-274-0	AR	1	1307-	●	●	●	●		●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=4.5	1-41229-275-0	AR	1	1008-1306	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=4.5	1-41229-275-0	AR	1	1307-	●	●	●	●		●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=5.0	1-41229-276-0	AR	1	1008-1306	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=5.0	1-41229-276-0	AR	1	1307-	●	●	●	●		●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=5.5	1-41229-277-0	AR	1	1008-1306	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=5.5	1-41229-277-0	AR	1	1307-	●	●	●	●		●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=6.0	1-41229-278-0	AR	1	1008-1306	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=6.0	1-41229-278-0	AR	1	1307-	●	●	●	●		●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=6.5	1-41229-279-0	AR	1	1008-1306	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=6.5	1-41229-279-0	AR	1	1307-	●	●	●	●		●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=7.0	1-41229-280-0	AR	1	1008-1306	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=7.0	1-41229-280-0	AR	1	1307-	●	●	●	●		●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=7.5	1-41229-281-0	AR	1	1008-1306	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=7.5	1-41229-281-0	AR	1	1307-	●	●	●	●		●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=8.0	1-41229-282-0	AR	1	1008-1306	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=8.0	1-41229-282-0	AR	1	1307-	●	●	●	●		●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=10.0	1-41229-297-0	AR	1	1008-1306	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=10.0	1-41229-297-0	AR	1	1307-	●	●	●	●		●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=15.0	1-41229-298-0	AR	1	1008-1306	●	●	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK(C3N) (A) T=15.0	1-41229-298-0	AR	1	1307-	●	●	●	●		●
417	SHIM; DIFF LK DIFF LOCK(C3N) (B) T=10.0	1-41229-338-0	01	1	1008-	●	●	●			●
418	SHIFT FORK; DIFF LK DIFF LOCK(C3N)	1-41271-012-0	01	1	1008-1306	●	●	●	●	●	●
418	SHIFT FORK; DIFF LK DIFF LOCK(C3N)	1-41271-012-0	01	1	1307-	●	●	●	●		●
419	SPRING; DIFF LK DIFF LOCK(C3N)	1-09580-507-0	01	1	1008-1306	●	●	●	●	●	●
419	SPRING; DIFF LK DIFF LOCK(C3N)	1-09580-507-0	01	1	1307-	●	●	●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
