4-10 — FRONT AXLE (#63189) — 156 parça

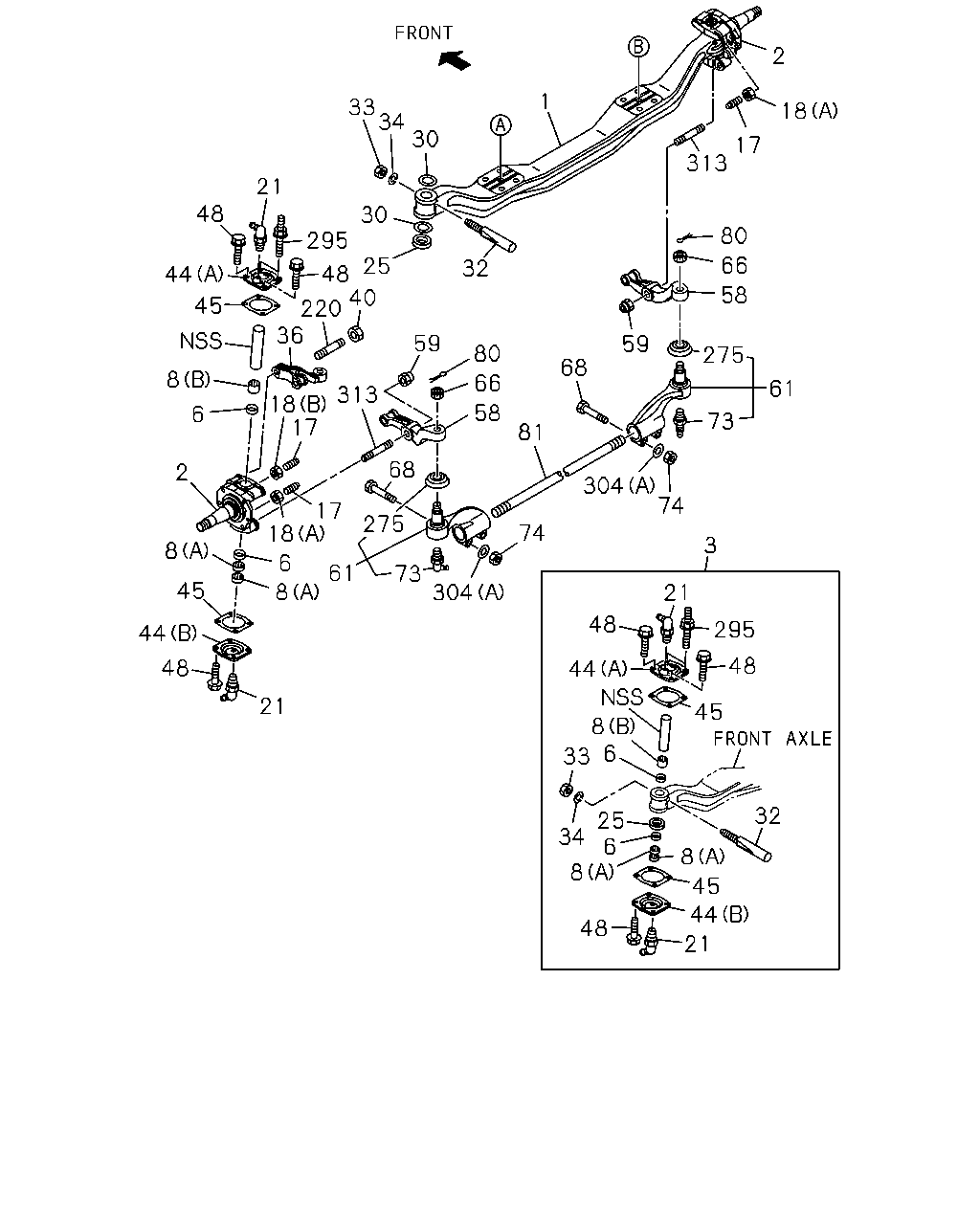

çizim 170680
32 8 45 44 21 48 8 34 25 6 33 6 8 44 48 295 48 45 3 21 74 73 61 275 58 66 80 313 17 18 2 1 30 34 33 21 48 44 45 295 30 25 32 59 68 80 66 58 81 304 74 304 73 275 68 313 59 40 48 220 36 6 8 18 17 17 18 6 61 8 8 2 45 44 48 21
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT 1-43111-178-3 01 1 1008-
2 KNUCKLE; FRT AXLE 1-43132-120-1 01 1 1008-
2 KNUCKLE; FRT AXLE 1-43131-120-1 01 1 1008-
3 KING PIN SET 1-87831-349-2 02 1 1008-
6 SEAL; KING PIN 9-09926-024-0 04 1 1008-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1008-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1008-
17 BOLT; STOPPER KNUCKLE
M18X53 		1-09009-066-0 01 1 1008-
17 BOLT; STOPPER KNUCKLE
M18X43 		1-09009-190-0 02 1 1008-
18 NUT; STOPPER BOLT,KNUCKLE
(A) M18 		0-91110-518-0 02 1 1008-
18 NUT; STOPPER BOLT,KNUCKLE
(B) OCTAGON M18 		1-09469-011-1 01 1 1008-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1008-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 1008-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 1008-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 1008-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 1008-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 1008-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 1008-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 1008-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 1008-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 1008-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 1008-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 1008-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 1008-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 1008-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 1008-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 1008-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 1008-
32 BOLT; KEY,KING PIN 1-43116-002-2 02 1 1008-
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1008-
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1008-
36 ARM; KNUCKLE 1-43133-083-3 01 1 1008-
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 1008-
44 COVER; KING PIN
(A) 		8-98100-654-0 02 1 1008-
44 COVER; KING PIN
(B) 		8-98100-655-0 02 1 1008-
45 GASKET; KING PIN COVER 8-98100-656-1 04 1 1008-
48 BOLT; COVER
M10X25 FLANGE 		0-28751-025-0 12 1 1008-
58 ARM; TIE ROD 8-98145-593-0 01 1 1008-
58 ARM; TIE ROD 8-98145-592-0 01 1 1008-
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1008-
61 ROD END; TIE ROD 8-98054-853-0 01 1 1008-1009
61 ROD END; TIE ROD 8-98096-754-0 01 1 1010-1306
61 ROD END; TIE ROD 8-98228-107-0 01 1 1307-
61 ROD END; TIE ROD 8-98054-851-0 01 1 1008-1009
61 ROD END; TIE ROD 8-98096-753-0 01 1 1010-1306
61 ROD END; TIE ROD 8-98228-106-0 01 1 1307-
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1008-
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1008-
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1010-
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1008-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1008-
81 ROD; TIE 1-43151-154-0 01 1 1008-1009
81 ROD; TIE 8-98105-064-0 01 1 1010-
220 STUD; KNUCKLE ARM
M22X145 		1-09300-127-1 02 1 1008-
275 BOOT; ROD END,TIE 1-43159-107-0 02 1 1008-1009
275 BOOT; ROD END,TIE 1-43159-131-0 02 1 1010-1306
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1307-
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1008-
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1008-
304 WASHER; PL
(B) ID=21 		0-91614-520-0 02 1 1008-
313 STUD; TIE ROD ARM
M22X145 		1-09300-127-1 04 1 1008-

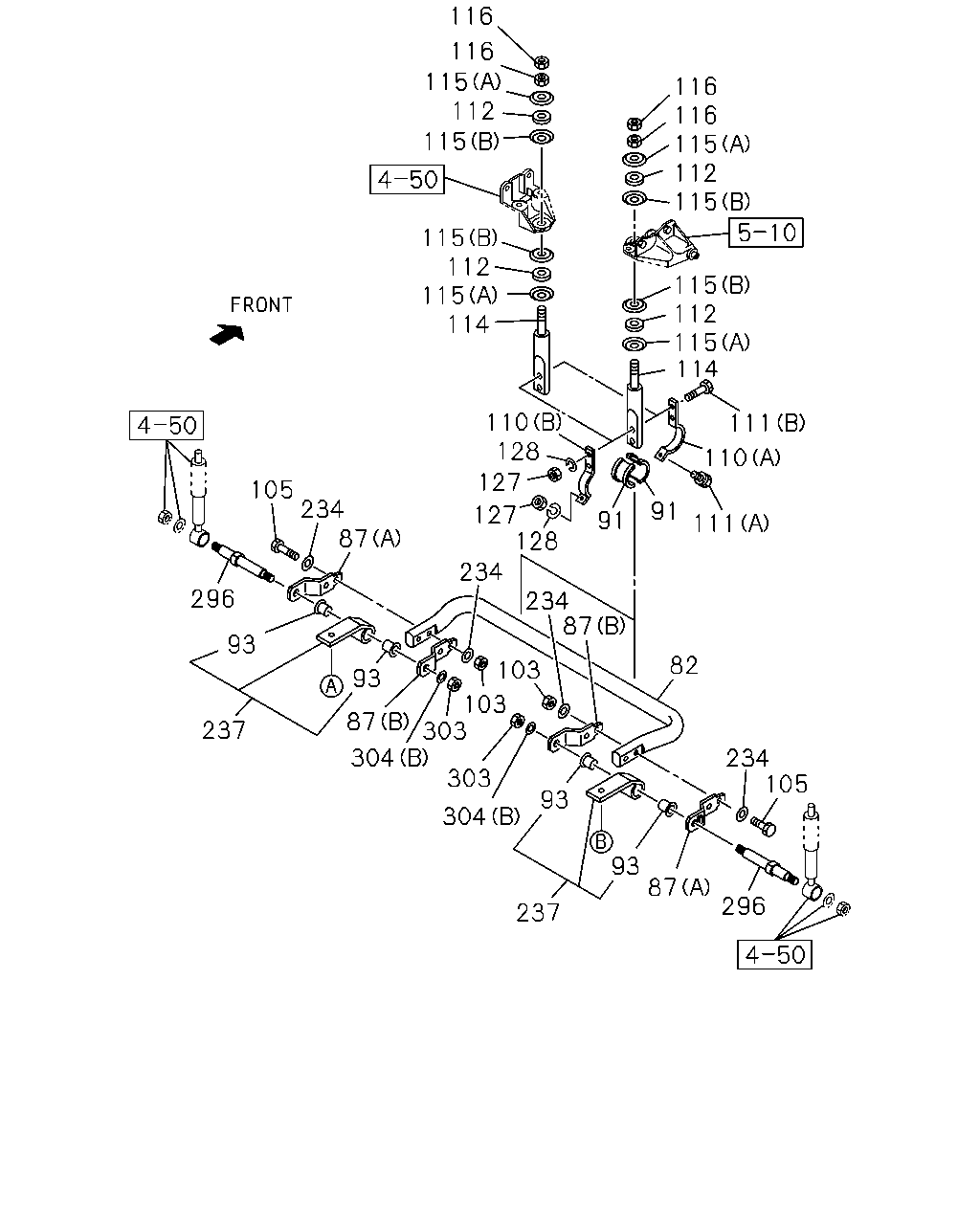

çizim 170695
116 116 115 112 115 115 112 115 114 111 110 111 91 91 110 128 127 127 128 114 115 112 115 115 112 115 116 116 105 234 87 234 234 87 82 296 93 93 103 103 303 87 304 303 237 304 237 93 87 296 105 234 93
BalonParca AdiParca NoAdetTipApplied Date
82 BAR; STAB,FRT SUSP 1-51771-136-1 01 1 1008-
87 BRACKET; STABILIZER
(A) 		8-98012-958-0 02 1 1008-
87 BRACKET; STABILIZER
(B) 		8-98012-959-0 02 1 1008-
91 BUSHING; RUBBER,STAB BAR 1-51779-087-1 04 1 1008-
93 BUSHING; STABILIZER 1-51689-015-3 04 1 1008-
103 NUT; BRKT FIX
M14 		0-91110-514-0 04 1 1008-
105 BOLT; BRKT FIX
M14X70 		0-10956-470-0 04 1 1008-
110 CLAMP; STAB TO ROD
(A) 		1-51789-027-2 02 1 1008-
110 CLAMP; STAB TO ROD
(B) 		1-51789-028-1 02 1 1008-
111 BOLT; CLAMP TO ROD
(A) M12X30 		0-20851-230-0 02 1 1008-
111 BOLT; CLAMP TO ROD
(B) M12X50 		0-20851-250-0 04 1 1008-
112 BUSHING; ROD 9-51631-039-0 04 1 1008-
114 ROD; STAB BAR 1-51773-083-2 02 1 1008-1306
114 ROD; STAB BAR 1-51773-072-2 02 1 1307-
115 WASHER; CENTER,STAB TO FRAME
(A) ID=16.5 		9-51631-040-0 04 1 1008-
115 WASHER; CENTER,STAB TO FRAME
(B) ID=20.8 		9-51631-041-0 04 1 1008-
116 NUT; LK,STAB TO FRAME
M14 		0-91111-514-0 04 1 1008-
127 NUT; CLAMP
M12 		0-91110-512-0 06 1 1008-
128 WASHER; LK,CLAMP
ID=12.2 		0-91510-812-0 06 1 1008-
234 WASHER; STAB
ID=15 		8-98010-627-1 08 1 1008-
237 SUPPORT; STAB BAR 1-51681-662-0 02 1 1008-
296 PIN; STAB 8-98022-874-1 02 1 1008-
303 NUT; PIN
M20 		0-91110-520-0 02 1 1008-
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1008-
304 WASHER; PL
(B) ID=21 		0-91614-520-0 02 1 1008-

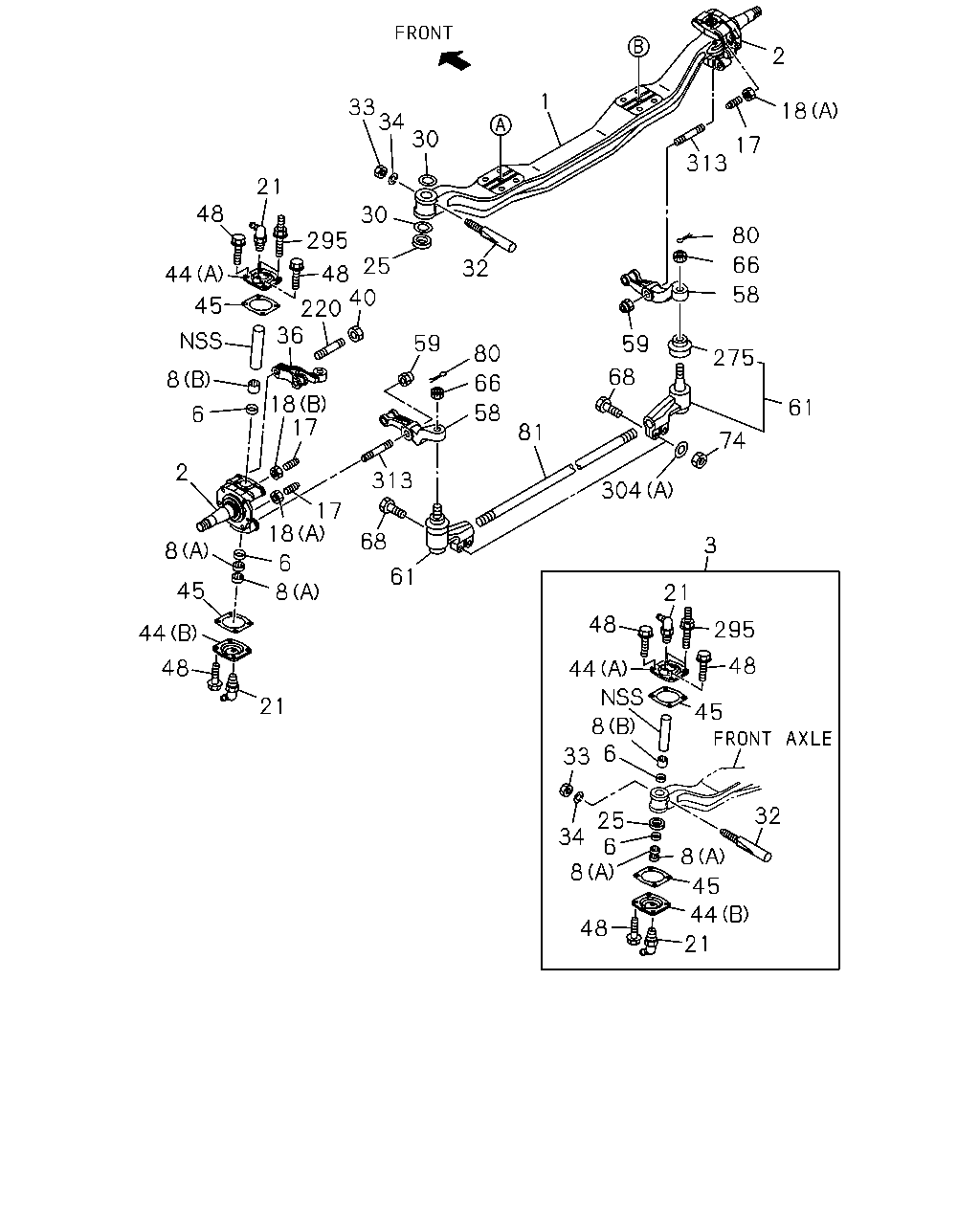

çizim 170702
33 30 32 30 34 1 313 17 18 2 80 61 58 66 275 74 304 3 59 68 81 58 66 80 59 313 61 68 17 18 8 6 21 48 44 45 8 2 6 8 45 44 48 21 295 220 36 18 40 48 25 17 21 48 44 295 48 45 8 33 25 6 32 8 45 44 21 48 8 34 6
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT 1-43111-178-3 01 1 1008-
2 KNUCKLE; FRT AXLE 1-43132-120-1 01 1 1008-
2 KNUCKLE; FRT AXLE 1-43131-120-1 01 1 1008-
3 KING PIN SET 1-87831-349-2 02 1 1008-
6 SEAL; KING PIN 9-09926-024-0 04 1 1008-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1008-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1008-
17 BOLT; STOPPER KNUCKLE
M18X53 		1-09009-066-0 01 1 1008-
17 BOLT; STOPPER KNUCKLE
M18X43 		1-09009-190-0 02 1 1008-
18 NUT; STOPPER BOLT,KNUCKLE
(A) M18 		0-91110-518-0 02 1 1008-
18 NUT; STOPPER BOLT,KNUCKLE
(B) OCTAGON M18 		1-09469-011-1 01 1 1008-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1008-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 1008-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 1008-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 1008-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 1008-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 1008-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 1008-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 1008-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 1008-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 1008-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 1008-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 1008-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 1008-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 1008-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 1008-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 1008-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 1008-
32 BOLT; KEY,KING PIN 1-43116-002-2 02 1 1008-
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1008-
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1008-
36 ARM; KNUCKLE 1-43133-083-3 01 1 1008-
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 1008-
44 COVER; KING PIN
(A) 		8-98100-654-0 02 1 1008-
44 COVER; KING PIN
(B) 		8-98100-655-0 02 1 1008-
45 GASKET; KING PIN COVER 8-98100-656-1 04 1 1008-
48 BOLT; COVER
M10X25 FLANGE 		0-28751-025-0 12 1 1008-
58 ARM; TIE ROD 8-98145-593-0 01 1 1008-
58 ARM; TIE ROD 8-98145-592-0 01 1 1008-
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1008-
61 ROD END; TIE ROD 8-98054-853-0 01 1 1008-1009
61 ROD END; TIE ROD 8-98096-754-0 01 1 1010-1306
61 ROD END; TIE ROD 8-98228-107-0 01 1 1307-
61 ROD END; TIE ROD 8-98054-851-0 01 1 1008-1009
61 ROD END; TIE ROD 8-98096-753-0 01 1 1010-1306
61 ROD END; TIE ROD 8-98228-106-0 01 1 1307-
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1008-
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1008-
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1008-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1008-
81 ROD; TIE 1-43151-154-0 01 1 1008-1009
81 ROD; TIE 8-98105-064-0 01 1 1010-
220 STUD; KNUCKLE ARM
M22X145 		1-09300-127-1 02 1 1008-
275 BOOT; ROD END,TIE 1-43159-107-0 02 1 1008-1009
275 BOOT; ROD END,TIE 1-43159-131-0 02 1 1010-1306
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1307-
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1008-
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1008-
304 WASHER; PL
(B) ID=21 		0-91614-520-0 02 1 1008-
313 STUD; TIE ROD ARM
M22X145 		1-09300-127-1 04 1 1008-

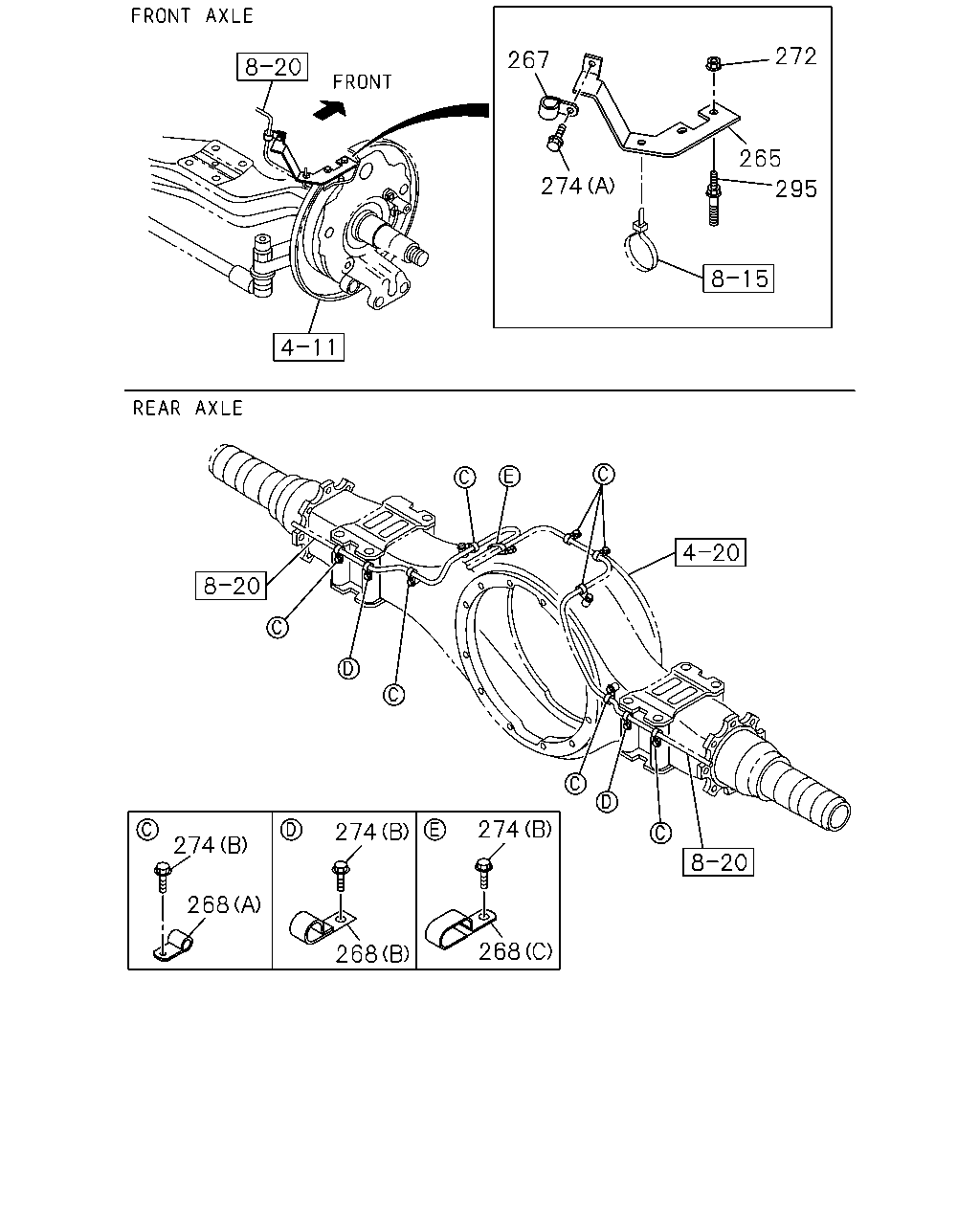

çizim 170853
267 272 295 265 274 274 274 274 268 268 268
BalonParca AdiParca NoAdetTipApplied Date
265 BRACKET; CLIP I BEAM 1-82698-506-0 01 1 1008-
265 BRACKET; CLIP I BEAM 1-82698-505-0 01 1 1008-
267 CLIP; HARNESS
ID=11 L=20 		0-95235-035-0 02 1 1008-
268 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 08 1 1008-
268 CLIP; HARNESS
(C) ID=11X2 L=20 		0-95325-035-0 01 1 1008-
268 CLIP; HARNESS
(B) ID=11 L=30 		1-09700-511-0 02 1 1008-
272 NUT; CLIP
M10 FLANGE 		0-91180-110-0 04 1 1008-
274 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 11 1 1008-
274 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1008-
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1008-
