◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11324 - EXR MIDDLE EAST WITH 3STEPS ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#63185) — 220 parça

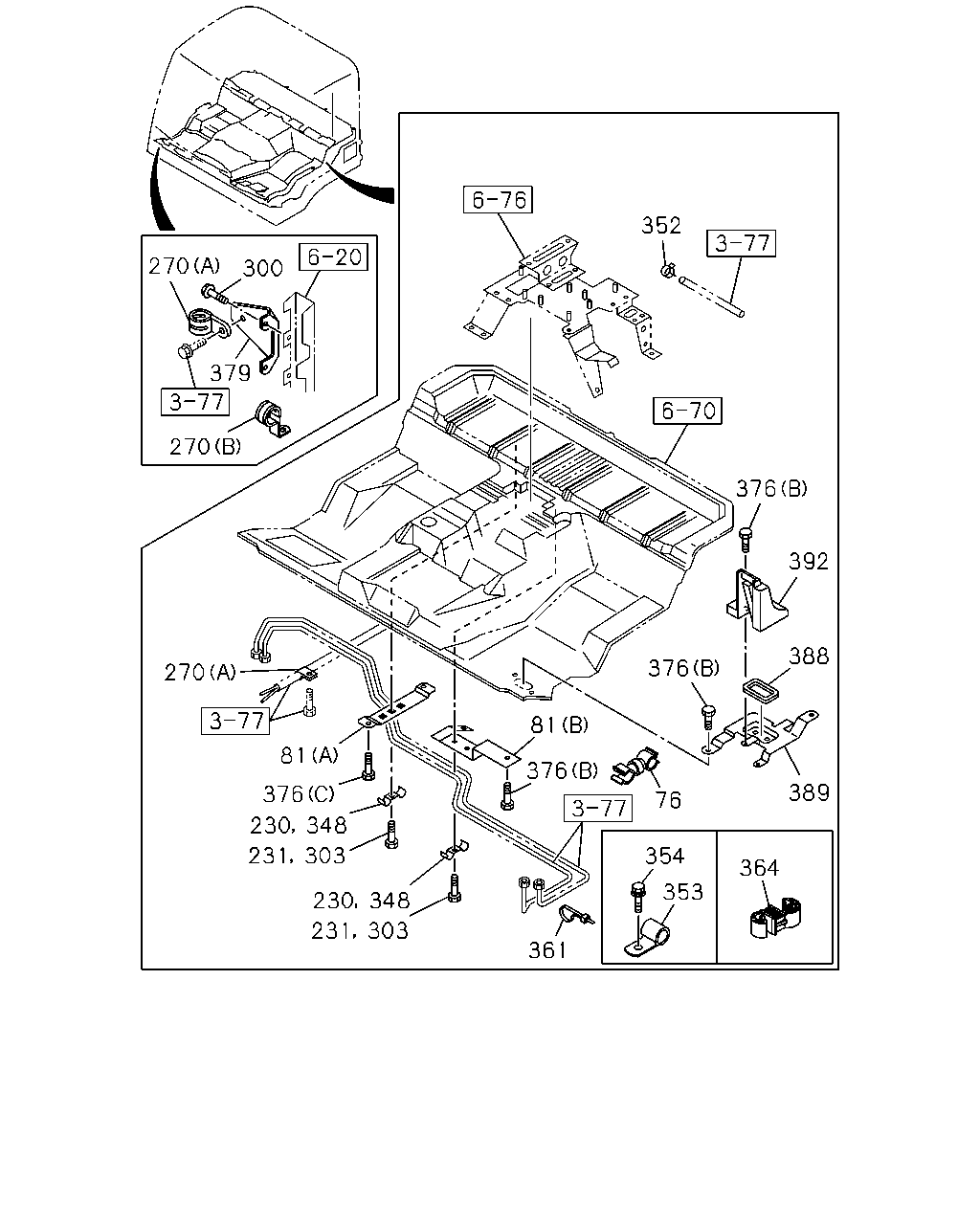

çizim 170652
270 300 379 270 352 376 392 388 376 389 76 376 81 270 81 376 230 348 303 231 230 231 303 348 361 353 354 364
BalonParca AdiParca NoAdetTipApplied Date
76 CLIP; NYLON TUBE
ID=6 & 8.3 		8-94167-742-0 01 1 1008-
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 1008-
81 BRACKET; CLIP
(C) 		1-47471-274-0 02 1 1008-1306
81 BRACKET; CLIP
(C) 		8-98061-758-0 02 1 1307-
81 BRACKET; CLIP
(F) L=100 H=30 		1-47477-645-2 02 1 1008-
81 BRACKET; CLIP
(G) 		1-47478-113-0 02 1 1008-1306
81 BRACKET; CLIP
(G) 		1-47478-113-0 01 1 1307-
81 BRACKET; CLIP
(B) 		1-79996-133-2 01 1 1008-
81 BRACKET; CLIP
(D) 		8-98052-412-0 01 1 1008-
81 BRACKET; CLIP
(H) 		8-98052-413-0 01 1 1008-
81 BRACKET; CLIP
(I) 		8-98052-414-0 01 1 1008-
81 BRACKET; CLIP
(J) 		8-98052-415-0 01 1 1008-
81 BRACKET; CLIP
(A) 		1-79996-127-2 01 1 1008-
230 CLIP; PIPE,AIR
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> ID=11 & 9 L=15 & 15 		1-09700-062-0 03 1 1008-1306
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 03 1 1307-
231 BOLT; CLIP
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1008-1306
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1307-
270 CLIP; NYLON TUBE
(B) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1008-
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 03 1 1008-
300 BOLT; TUBE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1008-
303 BOLT; PIPE CLIP
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1008-1306
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1307-
303 BOLT; PIPE CLIP
EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL<NLG> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1008-1306
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 03 1 1008-
348 CLIP; AIR PIPE
EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL<NLG> ID=11 & 9 L=15 & 15 		1-09700-062-0 03 1 1008-1306
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 1008-
353 CLIP; AIR PIPE
ID=9 L=16 		0-95234-822-0 01 1 1008-
354 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1008-
361 CLIP; FLEX HOSE,AIR PRESS GAGE
L=250 		5-09707-030-1 01 1 1008-
364 CLIP; AIR PIPE
ID=8.3 & 10 		8-94176-792-0 01 1 1008-
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1008-1306
376 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1307-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008-1306
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1307-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1008-1306
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1307-
376 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1008-
379 BRACKET; NYLON TUBE 1-79996-110-2 01 1 1008-
388 SEAL
L=215 		1-79738-794-1 01 1 1008-
389 BRACKET; UNION 1-79738-790-1 01 1 1008-
392 COVER; BRKT 1-73996-264-1 01 1 1008-

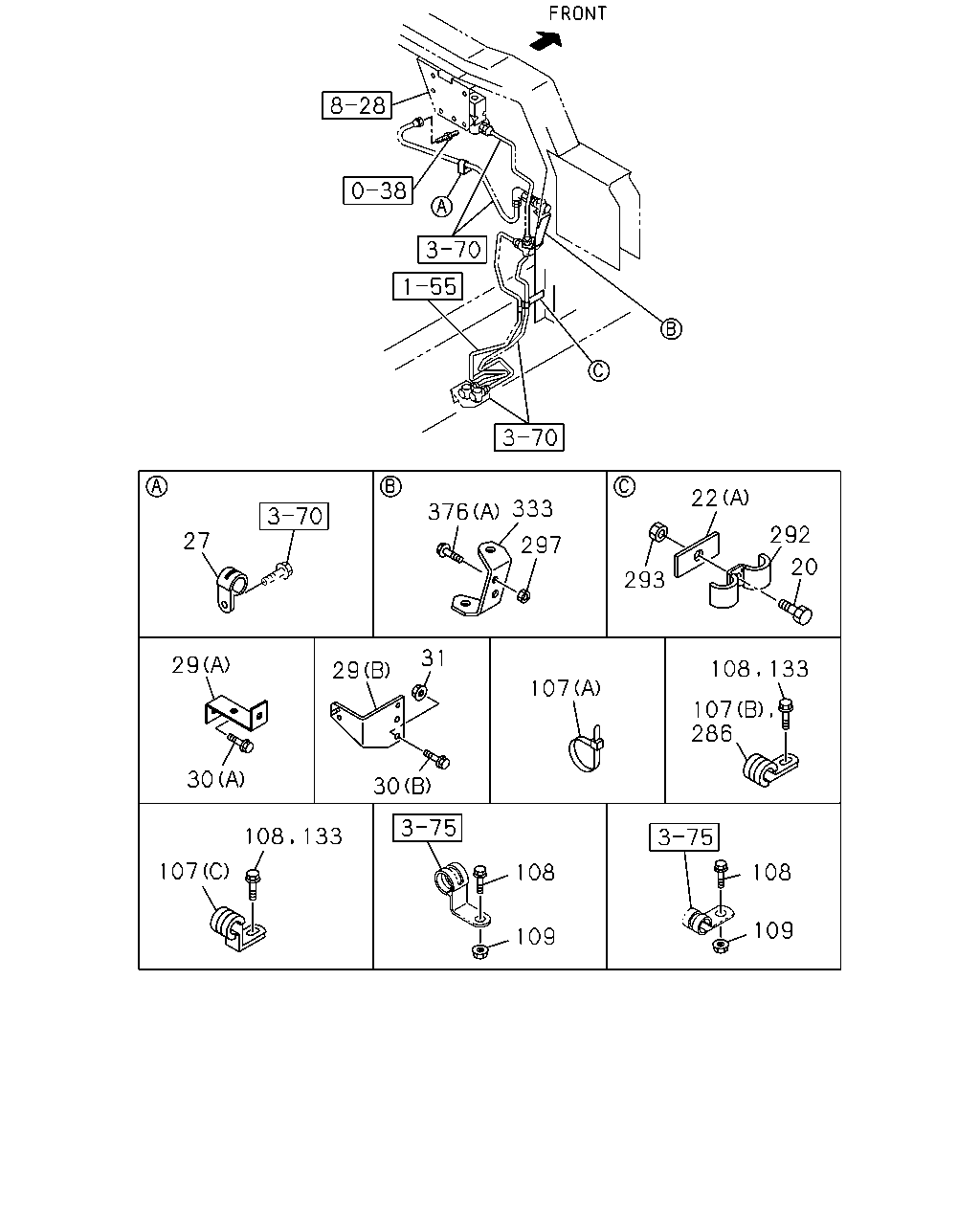

çizim 170656
109 108 109 108 107 286 133 108 107 20 292 22 293 297 333 376 31 29 30 133 108 107 30 29 27
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1008-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1008-
22 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 1008-
22 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 03 1 1008-
27 CLIP; FLEX HOSE
ID=11 L=50 		0-95235-085-0 01 1 1008-1306
27 CLIP; FLEX HOSE
MJX16P M/T(Y3Z) ID=11 L=50 		0-95235-085-0 01 1 1307-
27 CLIP; FLEX HOSE
MJT7S M/T(Y3E) ID=15 L=28 		1-09701-216-0 01 1 1307-
29 BRACKET; CLIP,AIR PIPE
(A) 		1-47479-698-0 01 1 1008-
29 BRACKET; CLIP,AIR PIPE
(B) 		8-98169-621-1 01 1 1008-
30 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1008-
30 BOLT; CLIP BRKT
(B) M10X25 FLANGE 		0-28651-025-0 01 1 1008-
31 NUT; CLIP BRKT
M10 FLANGE 		0-91180-210-0 01 1 1008-
107 CLIP; NYLON TUBE
(B) ID=19 L=60 		0-95235-896-0 01 1 1008-1306
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350 		1-09707-183-0 02 1 1307-
107 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350 		1-09707-183-0 02 1 1307-
107 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 02 1 1008-
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 03 1 1008-1306
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 01 1 1307-
107 CLIP; NYLON TUBE
(B) ID=15 L=28 		1-09701-216-0 01 1 1008-1306
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 L=28 		1-09701-216-0 01 1 1307-
107 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 L=28 		1-09701-216-0 01 1 1307-
107 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 1008-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 1008-1306
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 1307-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 1008-1202
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 13 1 1203-1306
107 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 1307-
107 CLIP; NYLON TUBE
(D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1008-1306
107 CLIP; NYLON TUBE
(D) ID=13-18 L=14.5 		1-09709-290-0 01 1 1307-
107 CLIP; NYLON TUBE
(A) L=600 		1-09707-107-1 02 1 1203-1306
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1307-
107 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1307-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1008-1306
108 BOLT; TUBE CLIP
M8X35 FLANGE 		0-28650-835-0 01 1 1307-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 1008-1306
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1307-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1307-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 07 1 1008-1306
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1307-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1008-1306
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1008-1306
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1307-
108 BOLT; TUBE CLIP
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X25 FLANGE 		0-28650-825-0 01 1 1307-
108 BOLT; TUBE CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X25 FLANGE 		0-28650-825-0 01 1 1307-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 1008-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1008-1306
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1307-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 02 1 1008-1306
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1307-
109 NUT; TUBE CLIP
MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 01 1 1307-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1008-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1008-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 10 1 1008-1306
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1307-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 05 1 1008-1306
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 11 1 1307-1312
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 12 1 1401-
286 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) ID=15 L=28 		1-09701-216-0 01 1 1307-
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 1008-
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1008-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1008-
297 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 1008-1306
333 BRACKET; BRK AIR PIPE 1-47477-045-0 01 1 1008-
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1008-1306
376 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1307-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008-1306
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1307-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1008-1306
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1307-
376 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1008-

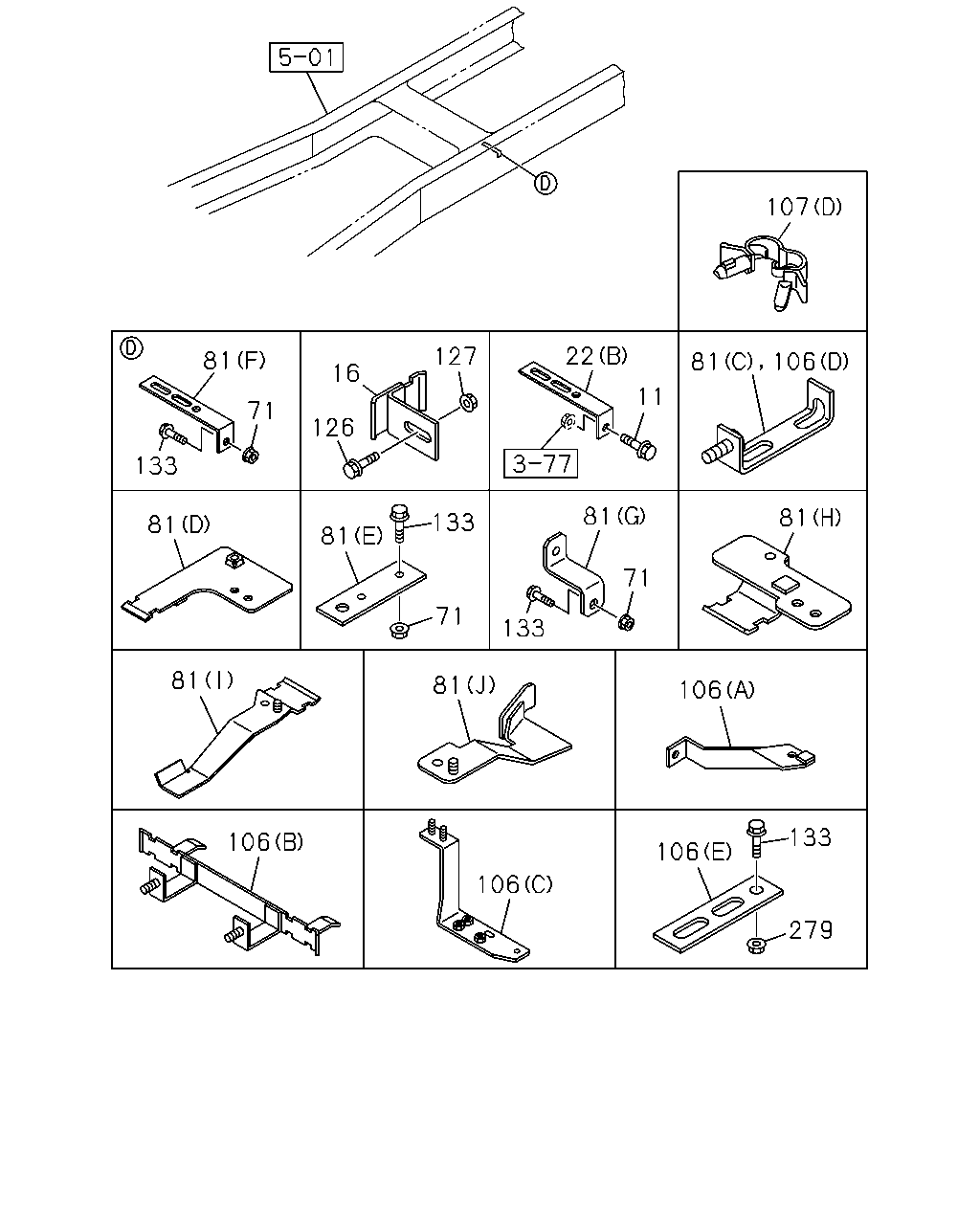

çizim 170670
279 133 106 106 106 81 106 81 81 81 71 71 133 81 81 133 127 16 126 71 81 133 22 11 81 106 107
BalonParca AdiParca NoAdetTipApplied Date
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1008-
16 BRACKET; PIPE CLIP 1-47479-693-0 01 1 1008-
22 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 1008-
22 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 03 1 1008-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 1008-
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 1008-
81 BRACKET; CLIP
(C) 		1-47471-274-0 02 1 1008-1306
81 BRACKET; CLIP
(C) 		8-98061-758-0 02 1 1307-
81 BRACKET; CLIP
(F) L=100 H=30 		1-47477-645-2 02 1 1008-
81 BRACKET; CLIP
(G) 		1-47478-113-0 02 1 1008-1306
81 BRACKET; CLIP
(G) 		1-47478-113-0 01 1 1307-
81 BRACKET; CLIP
(B) 		1-79996-133-2 01 1 1008-
81 BRACKET; CLIP
(D) 		8-98052-412-0 01 1 1008-
81 BRACKET; CLIP
(H) 		8-98052-413-0 01 1 1008-
81 BRACKET; CLIP
(I) 		8-98052-414-0 01 1 1008-
81 BRACKET; CLIP
(J) 		8-98052-415-0 01 1 1008-
81 BRACKET; CLIP
(A) 		1-79996-127-2 01 1 1008-
106 BRACKET; TUBE CLIP
(N) L=82 B=20 		1-47478-420-0 01 1 1307-1404
106 BRACKET; TUBE CLIP
(N) L=82 B=20 		8-98259-390-0 01 1 1405-
106 BRACKET; TUBE CLIP
(C) 		1-47471-108-0 01 1 1008-
106 BRACKET; TUBE CLIP
(D) 		1-47471-274-0 01 1 1008-1306
106 BRACKET; TUBE CLIP
(D) 		8-98061-758-0 01 1 1307-
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 1008-1306
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 02 1 1307-
106 BRACKET; TUBE CLIP
(F) 		1-47479-381-2 02 1 1008-
106 BRACKET; TUBE CLIP
(B) 		1-47479-553-0 01 1 1008-
106 BRACKET; TUBE CLIP
(L) 		1-47479-870-0 01 1 1008-
106 BRACKET; TUBE CLIP
(K) 		8-97615-493-0 01 1 1008-1306
106 BRACKET; TUBE CLIP
(M) 		8-98224-856-1 01 1 1307-
106 BRACKET; TUBE CLIP
(G) 		8-98052-408-0 01 1 1008-1412
106 BRACKET; TUBE CLIP
(G) 		8-98297-188-0 01 1 1501-
106 BRACKET; TUBE CLIP
(H) 		8-98052-409-0 01 1 1008-
106 BRACKET; TUBE CLIP
(I) 		8-98052-410-0 01 1 1008-
106 BRACKET; TUBE CLIP
(J) 		8-98052-411-0 01 1 1008-
106 BRACKET; TUBE CLIP
(A) 		8-98057-133-0 01 1 1008-1306
106 BRACKET; TUBE CLIP
(K) 		8-98226-741-1 01 1 1307-1312
106 BRACKET; TUBE CLIP
(K) 		8-98251-771-0 01 1 1401-
107 CLIP; NYLON TUBE
(B) ID=19 L=60 		0-95235-896-0 01 1 1008-1306
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350 		1-09707-183-0 02 1 1307-
107 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=350 		1-09707-183-0 02 1 1307-
107 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 02 1 1008-
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 03 1 1008-1306
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 01 1 1307-
107 CLIP; NYLON TUBE
(B) ID=15 L=28 		1-09701-216-0 01 1 1008-1306
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 L=28 		1-09701-216-0 01 1 1307-
107 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 L=28 		1-09701-216-0 01 1 1307-
107 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 1008-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 1008-1306
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 1307-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 1008-1202
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 13 1 1203-1306
107 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 1307-
107 CLIP; NYLON TUBE
(D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1008-1306
107 CLIP; NYLON TUBE
(D) ID=13-18 L=14.5 		1-09709-290-0 01 1 1307-
107 CLIP; NYLON TUBE
(A) L=600 		1-09707-107-1 02 1 1203-1306
107 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1307-
107 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1307-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1008-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 03 1 1008-1306
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1307-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1307-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1008-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1008-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 10 1 1008-1306
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1307-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 05 1 1008-1306
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 11 1 1307-1312
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 12 1 1401-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 09 1 1008-
279 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1307-

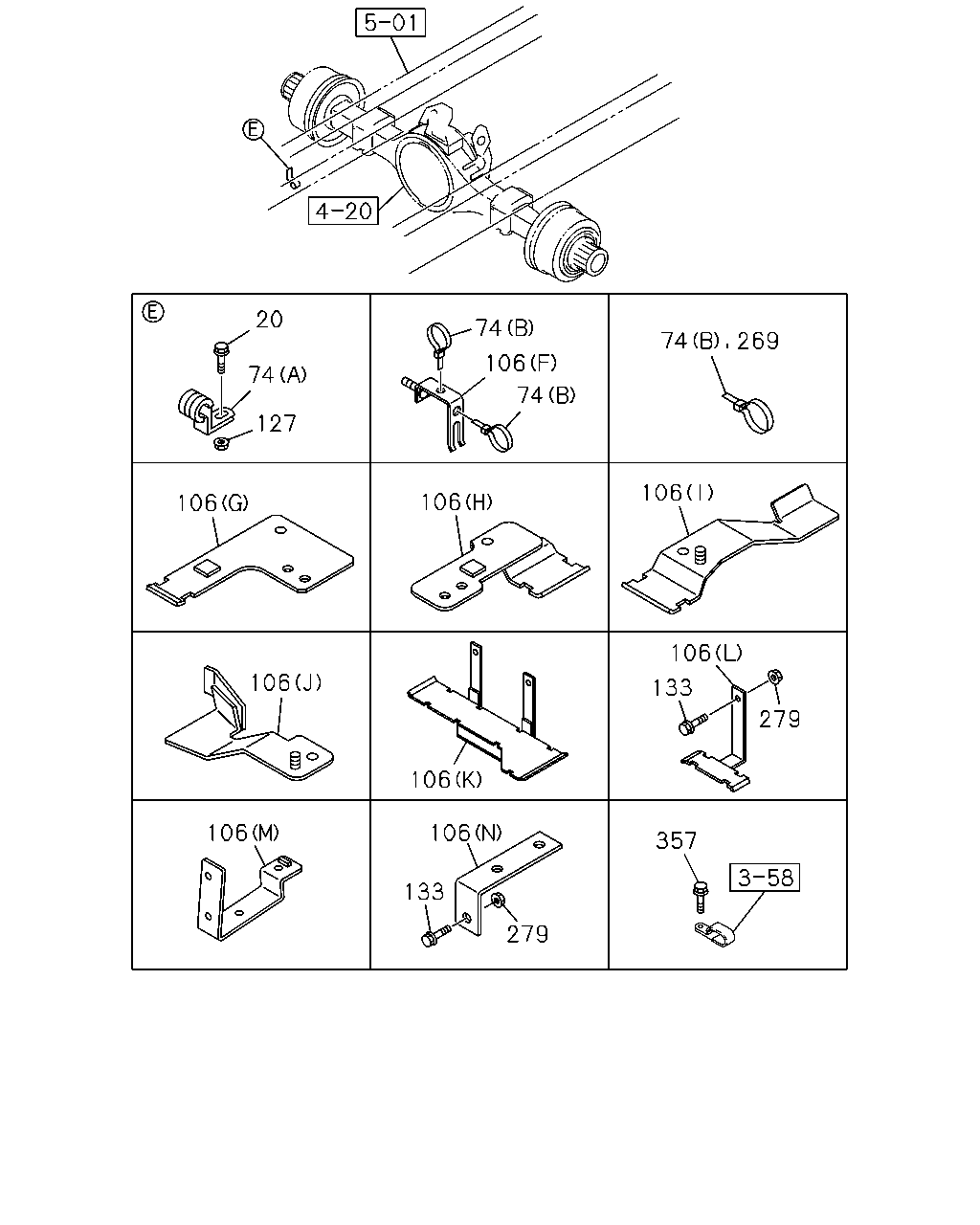

çizim 170711
20 74 127 74 106 74 74 269 106 106 106 106 106 106 133 279 357 106 133 279 106
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1008-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1008-
74 CLIP; NYLON TUBE
(A) ID=25 H=30 L=35 		1-09700-875-0 01 1 1008-
74 CLIP; NYLON TUBE
(A) ID=31 H=30 L=35 		1-09700-994-0 01 1 1008-
74 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 11 1 1008-
106 BRACKET; TUBE CLIP
(N) L=82 B=20 		1-47478-420-0 01 1 1307-1404
106 BRACKET; TUBE CLIP
(N) L=82 B=20 		8-98259-390-0 01 1 1405-
106 BRACKET; TUBE CLIP
(C) 		1-47471-108-0 01 1 1008-
106 BRACKET; TUBE CLIP
(D) 		1-47471-274-0 01 1 1008-1306
106 BRACKET; TUBE CLIP
(D) 		8-98061-758-0 01 1 1307-
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 1008-1306
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 02 1 1307-
106 BRACKET; TUBE CLIP
(F) 		1-47479-381-2 02 1 1008-
106 BRACKET; TUBE CLIP
(B) 		1-47479-553-0 01 1 1008-
106 BRACKET; TUBE CLIP
(L) 		1-47479-870-0 01 1 1008-
106 BRACKET; TUBE CLIP
(K) 		8-97615-493-0 01 1 1008-1306
106 BRACKET; TUBE CLIP
(M) 		8-98224-856-1 01 1 1307-
106 BRACKET; TUBE CLIP
(G) 		8-98052-408-0 01 1 1008-1412
106 BRACKET; TUBE CLIP
(G) 		8-98297-188-0 01 1 1501-
106 BRACKET; TUBE CLIP
(H) 		8-98052-409-0 01 1 1008-
106 BRACKET; TUBE CLIP
(I) 		8-98052-410-0 01 1 1008-
106 BRACKET; TUBE CLIP
(J) 		8-98052-411-0 01 1 1008-
106 BRACKET; TUBE CLIP
(A) 		8-98057-133-0 01 1 1008-1306
106 BRACKET; TUBE CLIP
(K) 		8-98226-741-1 01 1 1307-1312
106 BRACKET; TUBE CLIP
(K) 		8-98251-771-0 01 1 1401-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 03 1 1008-1306
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1307-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1307-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1008-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1008-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 10 1 1008-1306
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1307-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 05 1 1008-1306
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 11 1 1307-1312
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 12 1 1401-
269 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 01 1 1008-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 09 1 1008-
279 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1307-
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28050-810-0 01 1 1008-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
