3-77 — BRAKE PIPING; AIR,REAR (#63184) — 173 parça

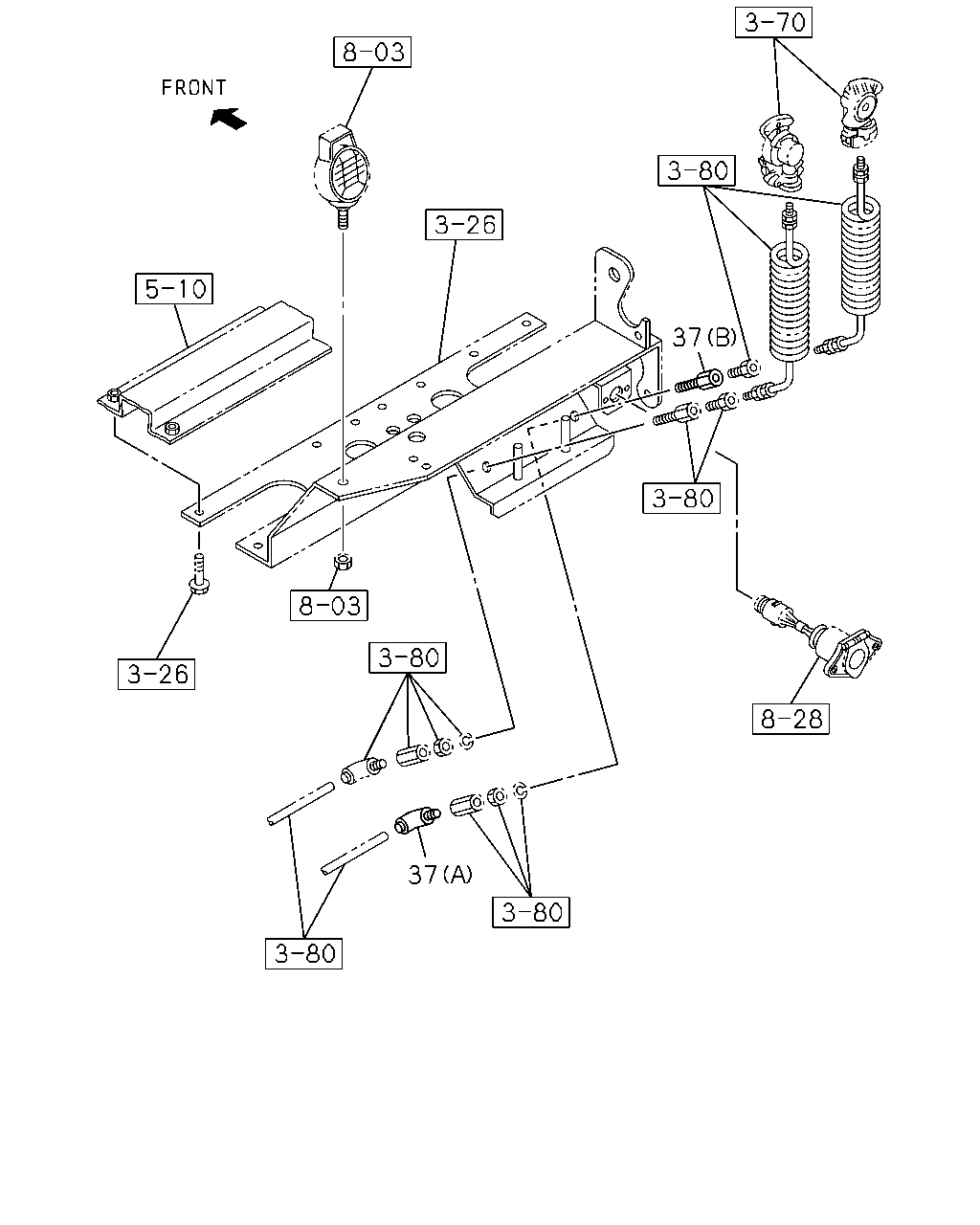

çizim 170643
37 37
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1008-
37 UNION; AIR PIPE
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1008-
37 UNION; AIR PIPE
(B) 		1-09650-222-1 01 1 1008-

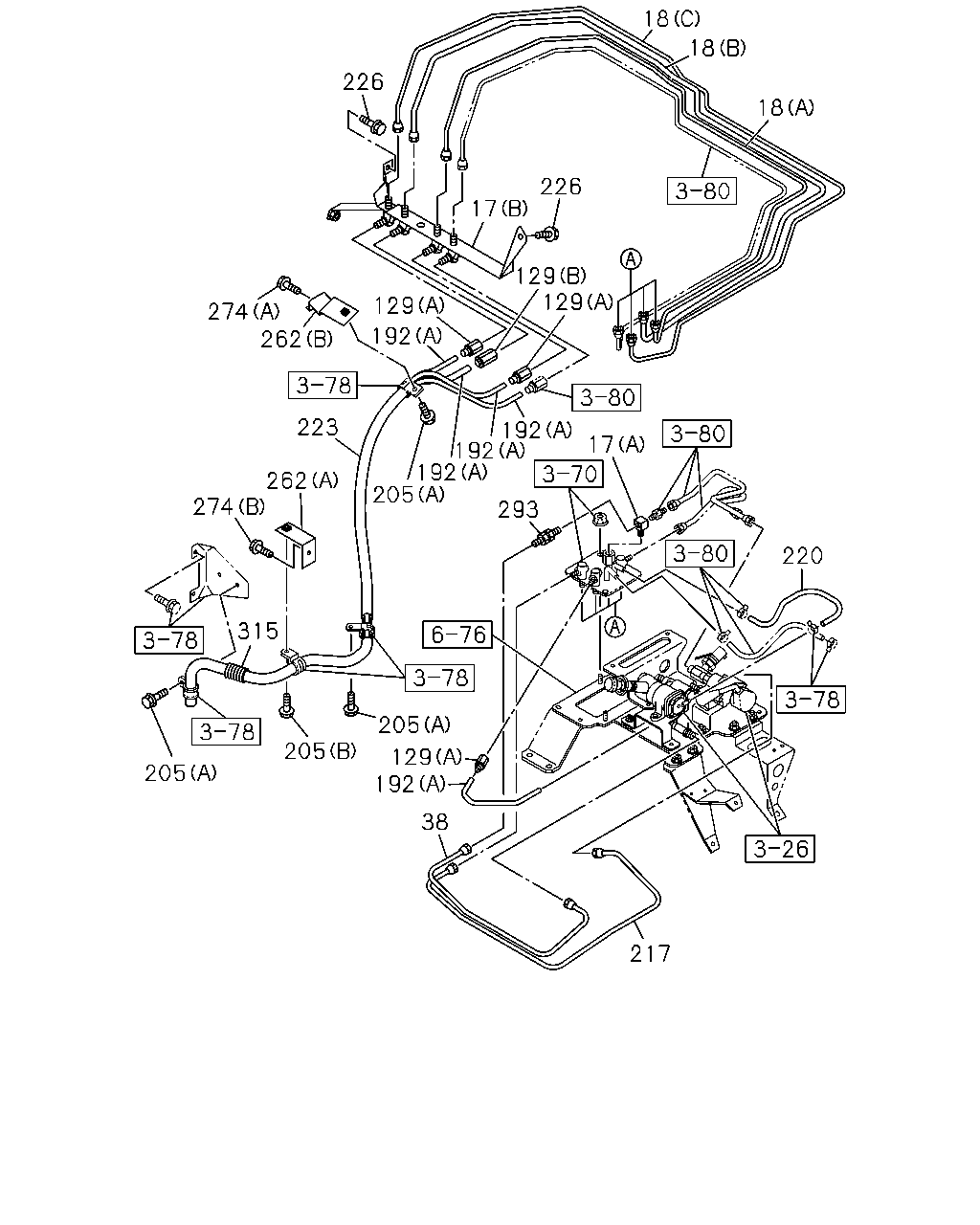

çizim 170658
226 17 226 18 18 18 129 129 129 274 192 262 223 262 274 315 205 205 205 129 192 38 217 293 205 192 192 192 17 220
BalonParca AdiParca NoAdetTipApplied Date
17 UNION; AIR PIPE
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> (A) 		1-09656-708-0 01 1 1008-1306
17 UNION; AIR PIPE
(A) 		1-09656-708-0 01 1 1307-
17 UNION; AIR PIPE
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> (B) 		1-47470-656-0 01 1 1008-1306
17 UNION; AIR PIPE
(B) 		1-47470-656-0 01 1 1307-
17 UNION; AIR PIPE
EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL<NLG> (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1008-1306
17 UNION; AIR PIPE
EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL<NLG> (B) 		8-98151-901-0 01 1 1008-1306
18 PIPE; AIR,UNION TO UNION
(C) L=2316 SERVICED BY L=2400 		1-47428-856-0 01 1 1008-
18 PIPE; AIR,UNION TO UNION
(B) L=2098 SERVICED BY L=2100 		1-47428-882-0 01 1 1008-
18 PIPE; AIR,UNION TO UNION
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> (A) L=1931 SERVICED BY L=1950 		1-47428-854-0 01 1 1008-1306
18 PIPE; AIR,UNION TO UNION
(A) L=1931 SERVICED BY L=1950 		1-47428-854-0 01 1 1307-
38 PIPE; AIR,UNION TO MAG VLV 1-49122-879-0 01 1 1008-
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 1008-1306
129 CONNECTOR; NYLON TUBE
EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL<NLG> (A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 1008-1306
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 1307-
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1008-
129 CONNECTOR; NYLON TUBE
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> (A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 1008-1306
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 1307-
192 TUBE; NYLON
(B) L=990 OD=8 		1-49218-618-1 02 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-
192 TUBE; NYLON
(C) 		8-98147-142-0 01 1 1008-1306
192 TUBE; NYLON
(D) 		8-98147-143-0 01 1 1008-1306
192 TUBE; NYLON
(D) 		8-98234-678-0 01 1 1307-
192 TUBE; NYLON
(C) 		8-98234-679-0 01 1 1307-
205 BOLT; TUBE CLIP
(A) M8X16 FLANGE 		0-28050-816-0 03 1 1008-
205 BOLT; TUBE CLIP
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1008-
217 PIPE; AIR,PARKING BRK VLV TO UNION 1-49123-172-0 01 1 1008-
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=350 SERVICED BY L=10000 		9-09914-701-0 01 1 1008-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1008-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1008-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 1008-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1008-
226 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 01 1 1008-
226 BOLT; UNION
M8X45 FLANGE 		0-28050-845-0 02 1 1008-
226 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 1008-1306
226 BOLT; UNION
EXC. TRAILER BRAKE HAND CONTROL<NLG> M8X25 FLANGE 		0-28650-825-0 01 1 1008-1306
226 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 1307-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1008-
262 BRACKET
(C) 		1-47471-015-0 01 1 1008-
262 BRACKET
(A) 		1-79996-143-0 01 1 1008-
262 BRACKET
(B) 		1-79996-258-1 01 1 1008-
262 BRACKET
DIFF LOCK(C3N) (D) 		1-47471-386-0 01 1 1008-
274 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1008-
274 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1008-
293 VALVE; CHECK
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> 		1-48410-479-1 01 1 1008-1306
293 VALVE; CHECK 1-48410-479-1 01 1 1307-
293 VALVE; CHECK
EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL<NLG> PT1/4 & M16 STRAIGHT 		1-09650-352-1 01 1 1008-1306
315 CLIP 8-97332-148-0 01 1 1109-

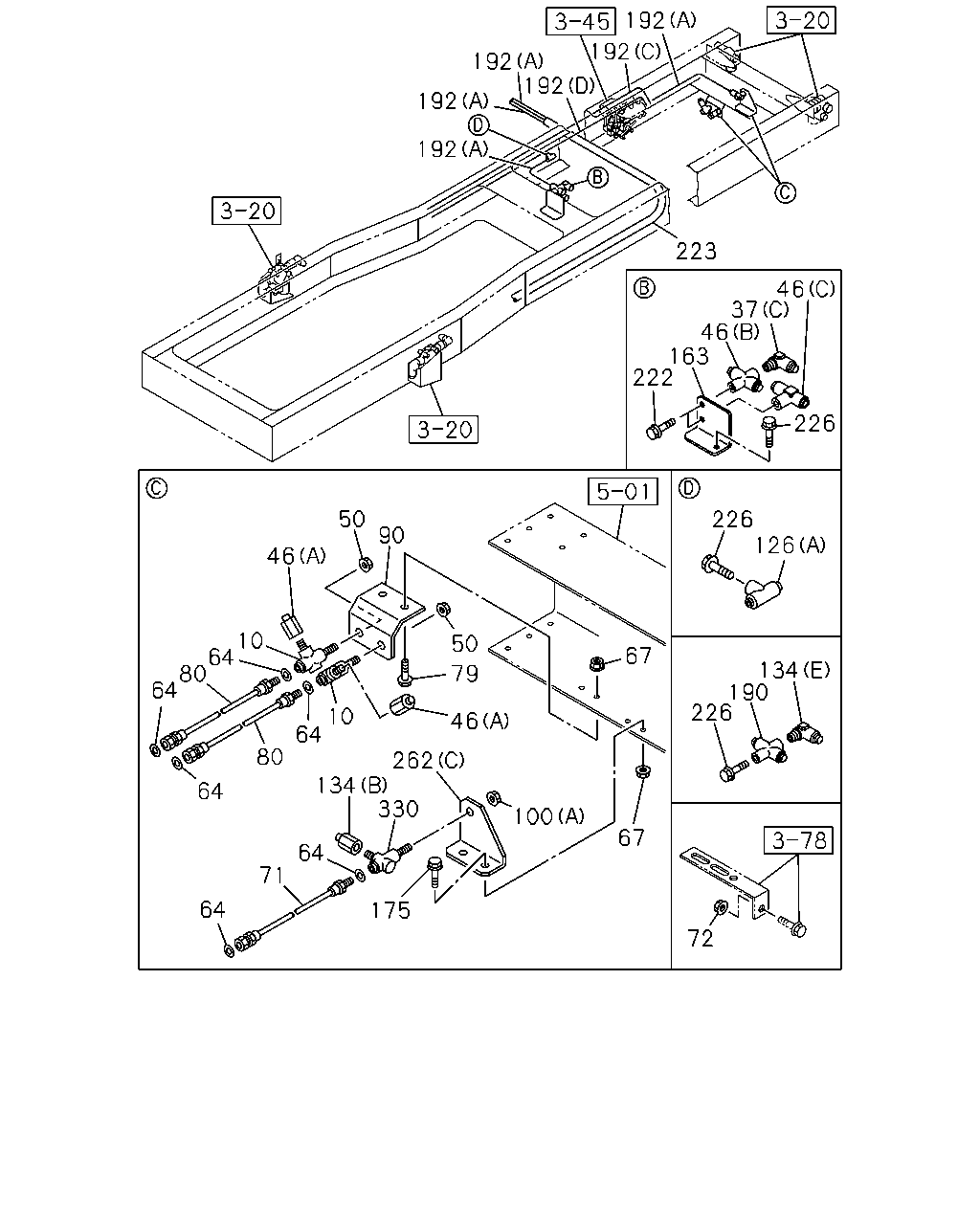

çizim 170659
64 80 64 71 64 175 330 262 134 64 10 80 64 64 10 46 50 90 50 79 46 100 67 72 226 190 134 126 226 222 163 46 37 46 223 192 192 192 192 192 192 226 67
BalonParca AdiParca NoAdetTipApplied Date
10 CONNECTOR; FLEX HOSE 1-09650-360-1 02 1 1008-
37 UNION; AIR PIPE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1008-
37 UNION; AIR PIPE
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1008-
37 UNION; AIR PIPE
(B) 		1-09650-222-1 01 1 1008-
46 NIPPLE; AIR PIPE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 1008-
46 NIPPLE; AIR PIPE
(B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1008-
46 NIPPLE; AIR PIPE
(C) DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 1008-
50 NUT; UNION BRKT
M14 FLANGE 		0-91150-114-0 02 1 1008-
64 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 06 1 1008-
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 04 1 1008-
71 HOSE; FLEX,RWD RR
L=630 		0-57846-630-1 01 1 1008-
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1008-
72 NUT; BRKT
DIFF LOCK(C3N) M8 FLANGE 		0-91180-108-0 02 1 1008-
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1008-
80 HOSE; FLEX,POWER CHAMBER
L=630 		0-57846-630-1 02 1 1008-
90 BRACKET; PIPE UNION 1-47471-007-0 01 1 1008-
100 NUT; UNION
(A) M14 FLANGE 		0-91150-114-0 01 1 1008-
100 NUT; UNION
DIFF LOCK(C3N) (B) M12 		9-09840-280-0 01 1 1008-
126 UNION; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1008-
126 UNION; NYLON TUBE
(B) 		1-09661-612-1 01 1 1008-
126 UNION; NYLON TUBE
(C) M22X2 STRAIGHT 		8-98107-103-0 02 1 1008-
126 UNION; NYLON TUBE
DIFF LOCK(C3N) (D) M12 ELBOW 		0-92125-206-0 01 1 1008-
134 CONNECTOR
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1008-
134 CONNECTOR
(D) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 1008-
134 CONNECTOR
(C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1008-
134 CONNECTOR
(A) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 1008-
134 CONNECTOR
(E) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1008-1306
163 BRACKET; FLEX HOSE 1-47471-145-0 01 1 1008-
175 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1008-
190 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1008-1306
192 TUBE; NYLON
(B) L=990 OD=8 		1-49218-618-1 02 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-
192 TUBE; NYLON
(C) 		8-98147-142-0 01 1 1008-1306
192 TUBE; NYLON
(D) 		8-98147-143-0 01 1 1008-1306
192 TUBE; NYLON
(D) 		8-98234-678-0 01 1 1307-
192 TUBE; NYLON
(C) 		8-98234-679-0 01 1 1307-
222 BOLT; CONNECTOR
M8X10 FLANGE 		0-28050-810-0 02 1 1008-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1008-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1008-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 1008-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1008-
226 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 01 1 1008-
226 BOLT; UNION
M8X45 FLANGE 		0-28050-845-0 02 1 1008-
226 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 1008-1306
226 BOLT; UNION
EXC. TRAILER BRAKE HAND CONTROL<NLG> M8X25 FLANGE 		0-28650-825-0 01 1 1008-1306
226 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 1307-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1008-
262 BRACKET
(C) 		1-47471-015-0 01 1 1008-
262 BRACKET
(A) 		1-79996-143-0 01 1 1008-
262 BRACKET
(B) 		1-79996-258-1 01 1 1008-
262 BRACKET
DIFF LOCK(C3N) (D) 		1-47471-386-0 01 1 1008-
330 UNION; FLEX HOSE 1-09650-360-1 01 1 1008-
çizim 170677
192 192 72 262 105 100 280 126 76 192
BalonParca AdiParca NoAdetTipApplied Date
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1008-
72 NUT; BRKT
DIFF LOCK(C3N) M8 FLANGE 		0-91180-108-0 02 1 1008-
76 ADAPTER; NYLON TUBE
DIFF LOCK(C3N) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1008-
100 NUT; UNION
(A) M14 FLANGE 		0-91150-114-0 01 1 1008-
100 NUT; UNION
DIFF LOCK(C3N) (B) M12 		9-09840-280-0 01 1 1008-
105 HOSE; FLEX
DIFF LOCK(C3N) FINAL GEAR 18.5" STRENGTHEN TYPE<FAV> L=320 		1-09363-625-0 01 1 1008-
105 HOSE; FLEX
FINAL GEAR 19.5"<BDC> DIFF LOCK(C3N) L=390 		1-09363-616-0 01 1 1008-
126 UNION; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1008-
126 UNION; NYLON TUBE
(B) 		1-09661-612-1 01 1 1008-
126 UNION; NYLON TUBE
(C) M22X2 STRAIGHT 		8-98107-103-0 02 1 1008-
126 UNION; NYLON TUBE
DIFF LOCK(C3N) (D) M12 ELBOW 		0-92125-206-0 01 1 1008-
192 TUBE; NYLON
(B) L=990 OD=8 		1-49218-618-1 02 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-
192 TUBE; NYLON
(C) 		8-98147-142-0 01 1 1008-1306
192 TUBE; NYLON
(D) 		8-98147-143-0 01 1 1008-1306
192 TUBE; NYLON
(D) 		8-98234-678-0 01 1 1307-
192 TUBE; NYLON
(C) 		8-98234-679-0 01 1 1307-
262 BRACKET
(C) 		1-47471-015-0 01 1 1008-
262 BRACKET
(A) 		1-79996-143-0 01 1 1008-
262 BRACKET
(B) 		1-79996-258-1 01 1 1008-
262 BRACKET
DIFF LOCK(C3N) (D) 		1-47471-386-0 01 1 1008-
280 WASHER; LK
DIFF LOCK(C3N) ID=12.2 		0-91510-512-0 01 1 1008-

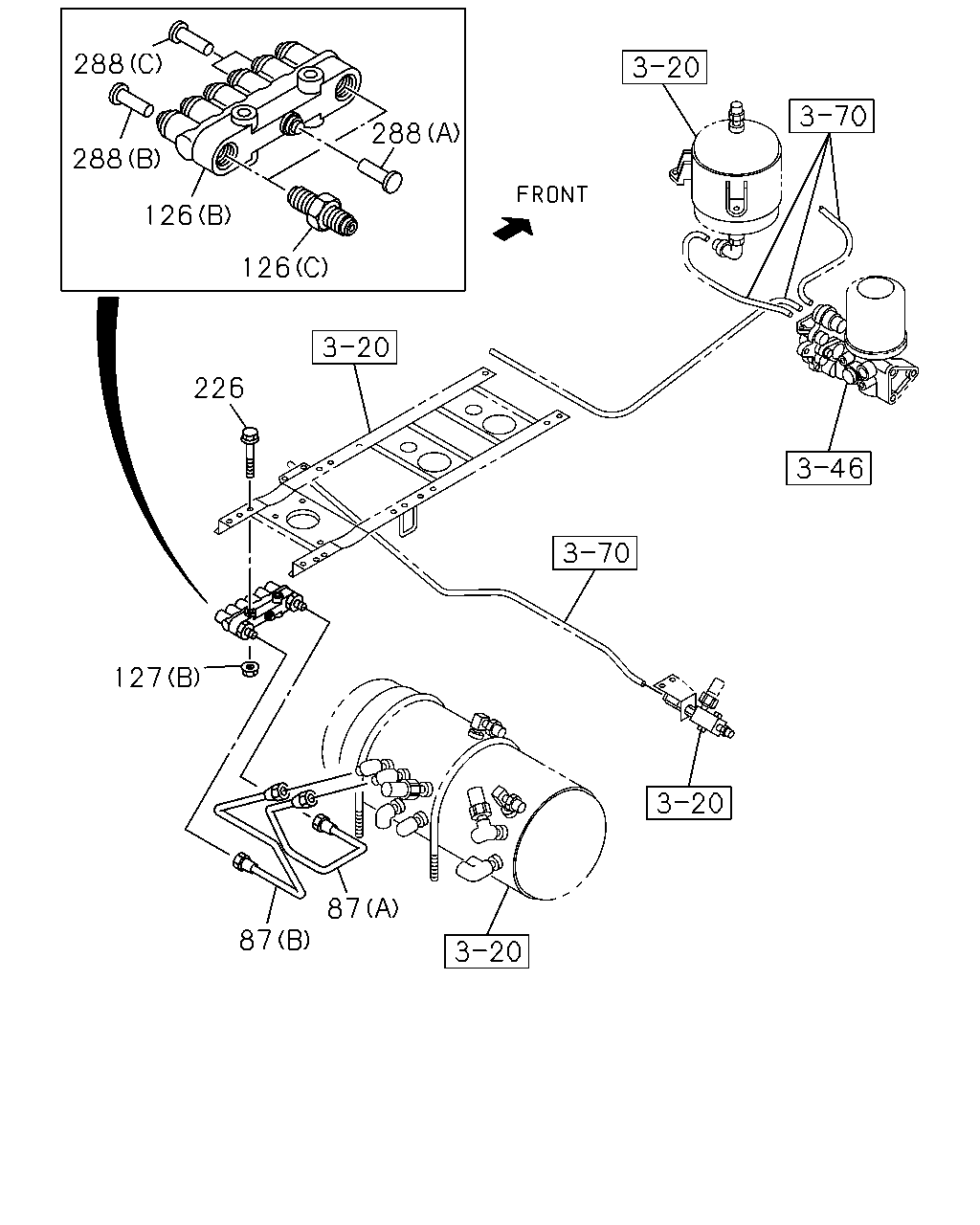

çizim 170696
126 126 288 288 288 127 226 87 87
BalonParca AdiParca NoAdetTipApplied Date
87 PIPE; AIR,AIR TANK TO UNION
(B) L=425 		1-49124-670-0 01 1 1008-1306
87 PIPE; AIR,AIR TANK TO UNION
(B) L=429 		8-98239-053-0 01 1 1307-
87 PIPE; AIR,AIR TANK TO UNION
(A) L=541 		1-49124-671-0 01 1 1008-1306
87 PIPE; AIR,AIR TANK TO UNION
(A) L=543 		8-98239-054-0 01 1 1307-
126 UNION; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1008-
126 UNION; NYLON TUBE
(B) 		1-09661-612-1 01 1 1008-
126 UNION; NYLON TUBE
(C) M22X2 STRAIGHT 		8-98107-103-0 02 1 1008-
126 UNION; NYLON TUBE
DIFF LOCK(C3N) (D) M12 ELBOW 		0-92125-206-0 01 1 1008-
127 NUT; UNION
(A) M20 		0-91111-520-0 03 1 1008-
127 NUT; UNION
(B) M8 FLANGE 		0-91180-108-0 03 1 1008-
226 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 01 1 1008-
226 BOLT; UNION
M8X45 FLANGE 		0-28050-845-0 02 1 1008-
226 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 1008-1306
226 BOLT; UNION
EXC. TRAILER BRAKE HAND CONTROL<NLG> M8X25 FLANGE 		0-28650-825-0 01 1 1008-1306
226 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 1307-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1008-
288 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1008-
288 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1008-
288 PLUG
(C) OD=12 		1-09661-617-0 02 1 1008-

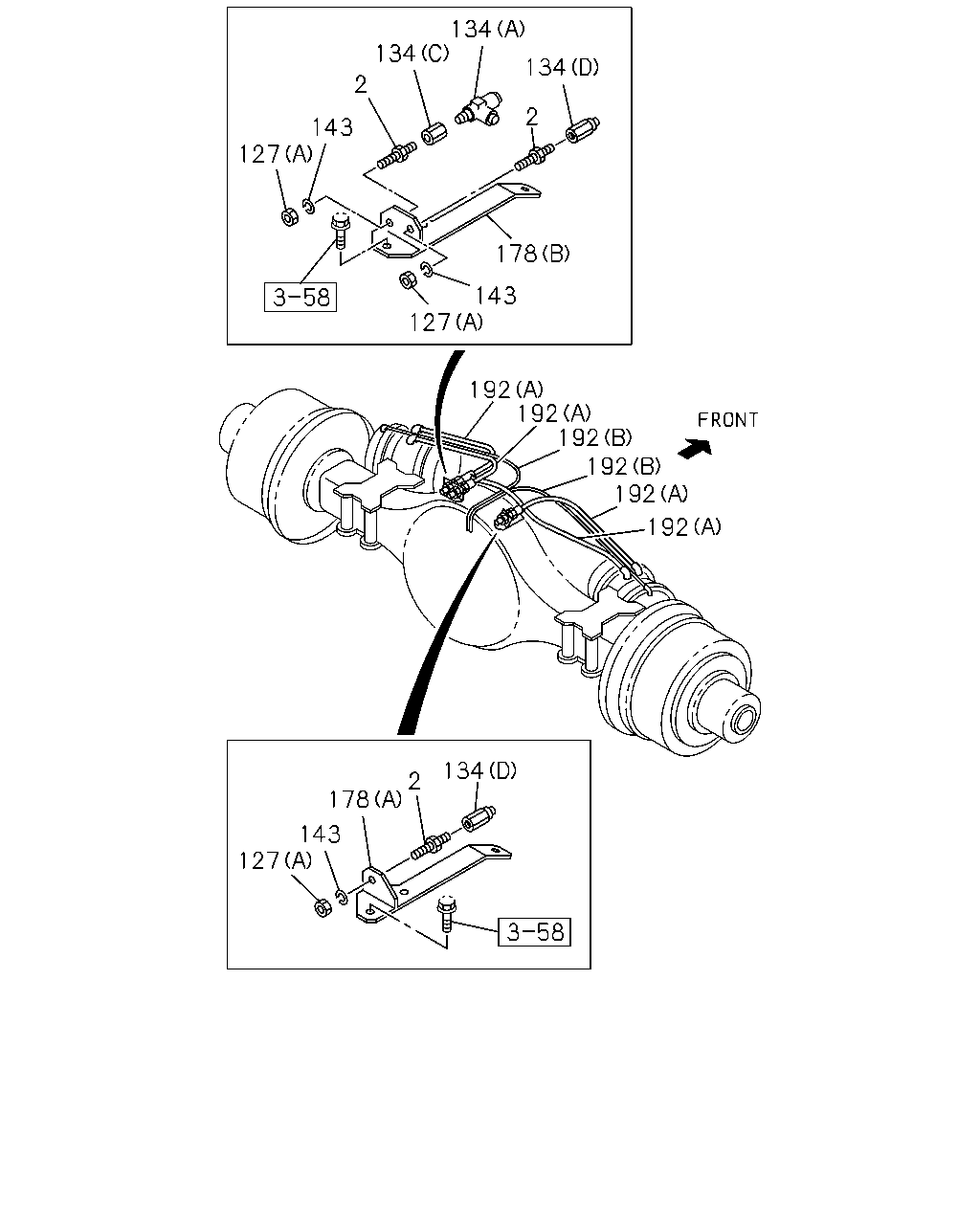

çizim 170772
134 134 134 2 143 127 178 2 143 127 192 192 192 192 192 192 134 2 178 143 127
BalonParca AdiParca NoAdetTipApplied Date
2 UNION; AIR PIPE
M20 STRAIGHT 		1-09654-240-1 03 1 1008-
127 NUT; UNION
(A) M20 		0-91111-520-0 03 1 1008-
127 NUT; UNION
(B) M8 FLANGE 		0-91180-108-0 03 1 1008-
134 CONNECTOR
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1008-
134 CONNECTOR
(D) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 1008-
134 CONNECTOR
(C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1008-
134 CONNECTOR
(A) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 1008-
134 CONNECTOR
(E) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1008-1306
143 WASHER; LK,UNION
ID=20.2 		0-91510-520-0 03 1 1008-1008
143 WASHER; LK,UNION
ID=20.2 		0-91510-620-0 03 1 1009-
178 BRACKET; UNION
(A) 		1-42119-186-0 01 1 1008-
178 BRACKET; UNION
(B) 		1-42119-187-0 01 1 1008-
192 TUBE; NYLON
(B) L=990 OD=8 		1-49218-618-1 02 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-
192 TUBE; NYLON
(C) 		8-98147-142-0 01 1 1008-1306
192 TUBE; NYLON
(D) 		8-98147-143-0 01 1 1008-1306
192 TUBE; NYLON
(D) 		8-98234-678-0 01 1 1307-
192 TUBE; NYLON
(C) 		8-98234-679-0 01 1 1307-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
