◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11324 - EXR MIDDLE EAST WITH 3STEPS ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#63182) — 252 parça

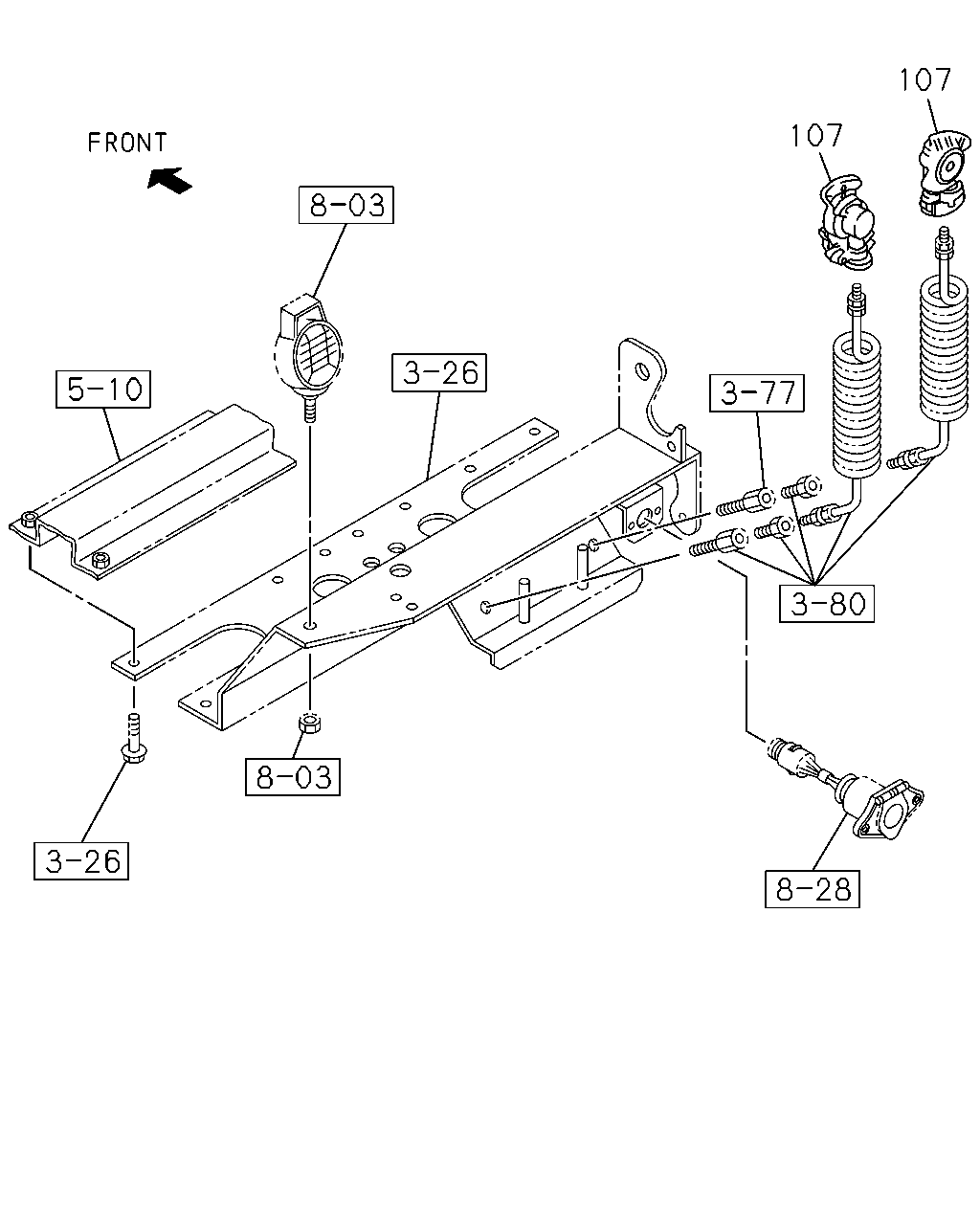

çizim 170641
107 107
BalonParca AdiParca NoAdetTipApplied Date
107 COUPLING; SERVICE
EMERGENCY 		1-47478-210-0 01 1 1008-
107 COUPLING; SERVICE
SERVICE 		1-47478-211-0 01 1 1008-

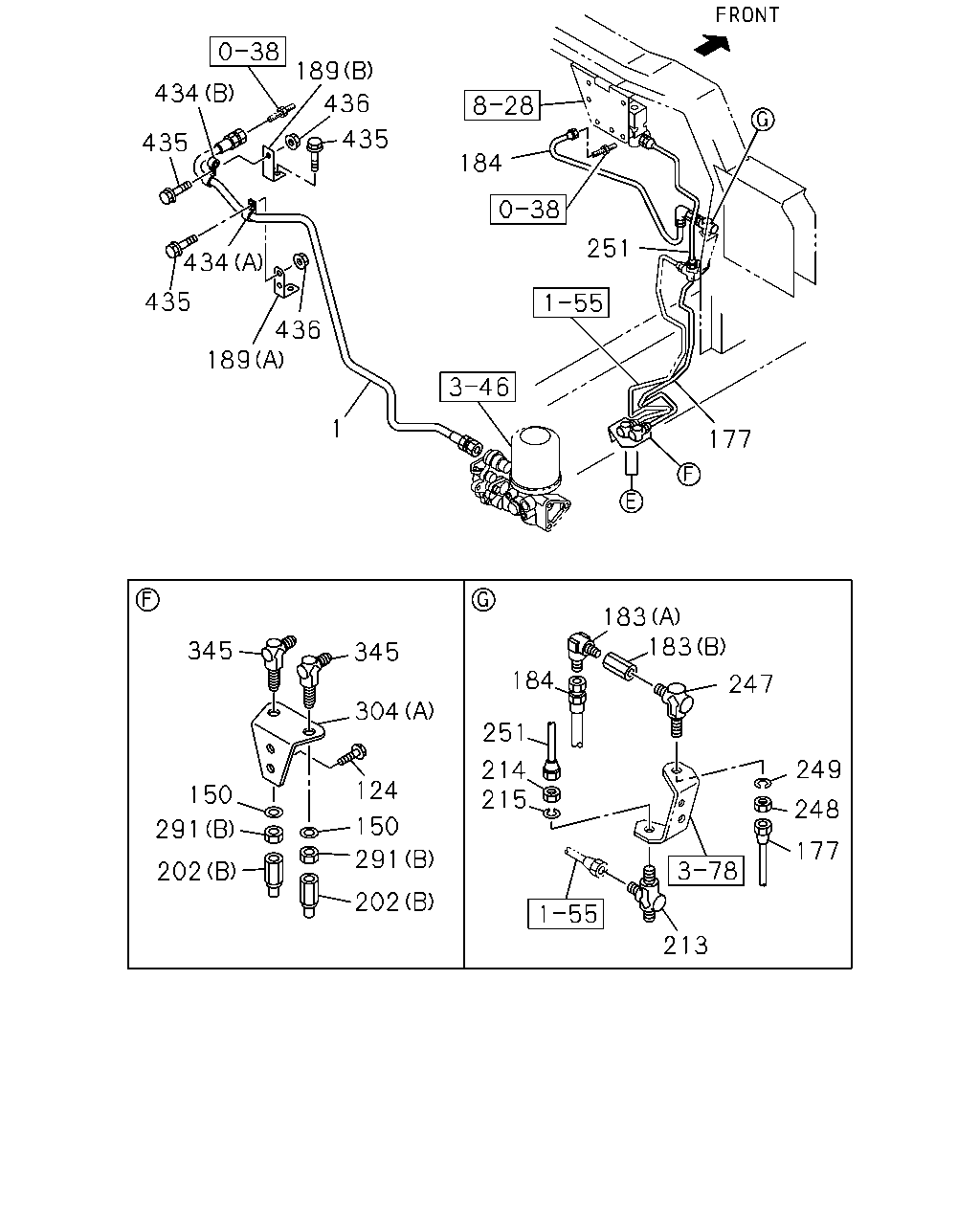

çizim 170647
434 435 434 435 189 1 436 435 436 189 184 251 177 183 183 247 249 248 177 213 215 214 251 184 345 304 124 150 291 202 202 291 150 345
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=1480 		8-98169-578-0 01 1 1008-
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1008-
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 1008-
177 PIPE; AIR,UNION TO UNION
L=582 SERVICED BY L=600 		1-47428-809-0 01 1 1008-
183 UNION; FLEX HOSE,GOV
(A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1008-
183 UNION; FLEX HOSE,GOV
(B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 1008-
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 1008-
189 BRACKET; FLEX HOSE
(A) 		1-47477-337-1 01 1 1008-1306
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) (A) 		1-47477-337-1 01 1 1307-
189 BRACKET; FLEX HOSE
(B) L=75 		1-47478-328-0 01 1 1008-
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) (C) 		8-97645-648-0 01 1 1307-1308
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) (C) 		8-97646-842-0 01 1 1309-
202 ADAPTER
(A) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 1008-1306
202 ADAPTER
MJX16P M/T(Y3Z) (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1307-
202 ADAPTER
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1008-
213 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1008-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1008-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 1008-
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1008-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 1008-
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 1008-
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 1008-
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1008-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1008-
304 BRACKET; UNION
(B) 		1-71117-210-0 01 1 1008-1306
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-71117-210-0 01 1 1307-
304 BRACKET; UNION
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (B) 		1-71117-210-0 01 1 1307-
304 BRACKET; UNION
(A) 		8-98082-870-0 01 1 1008-
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 1008-
434 CLIP
(A) ID=24 L=27 		1-09700-809-0 03 1 1008-
434 CLIP
(B) ID=12 & 24 		1-09701-248-0 01 1 1008-
434 CLIP
(C) ID=10 & 10 		1-09709-221-0 01 1 1008-
434 CLIP
(D) ID=8.3 & 8.3 		8-94426-175-0 03 1 1008-1306
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=8.3 & 8.3 		8-94426-175-0 03 1 1307-
434 CLIP
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (D) ID=8.3 & 8.3 		8-94426-175-0 03 1 1307-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1008-1306
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1008-1306
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1307-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1008-1306
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1307-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1008-1306

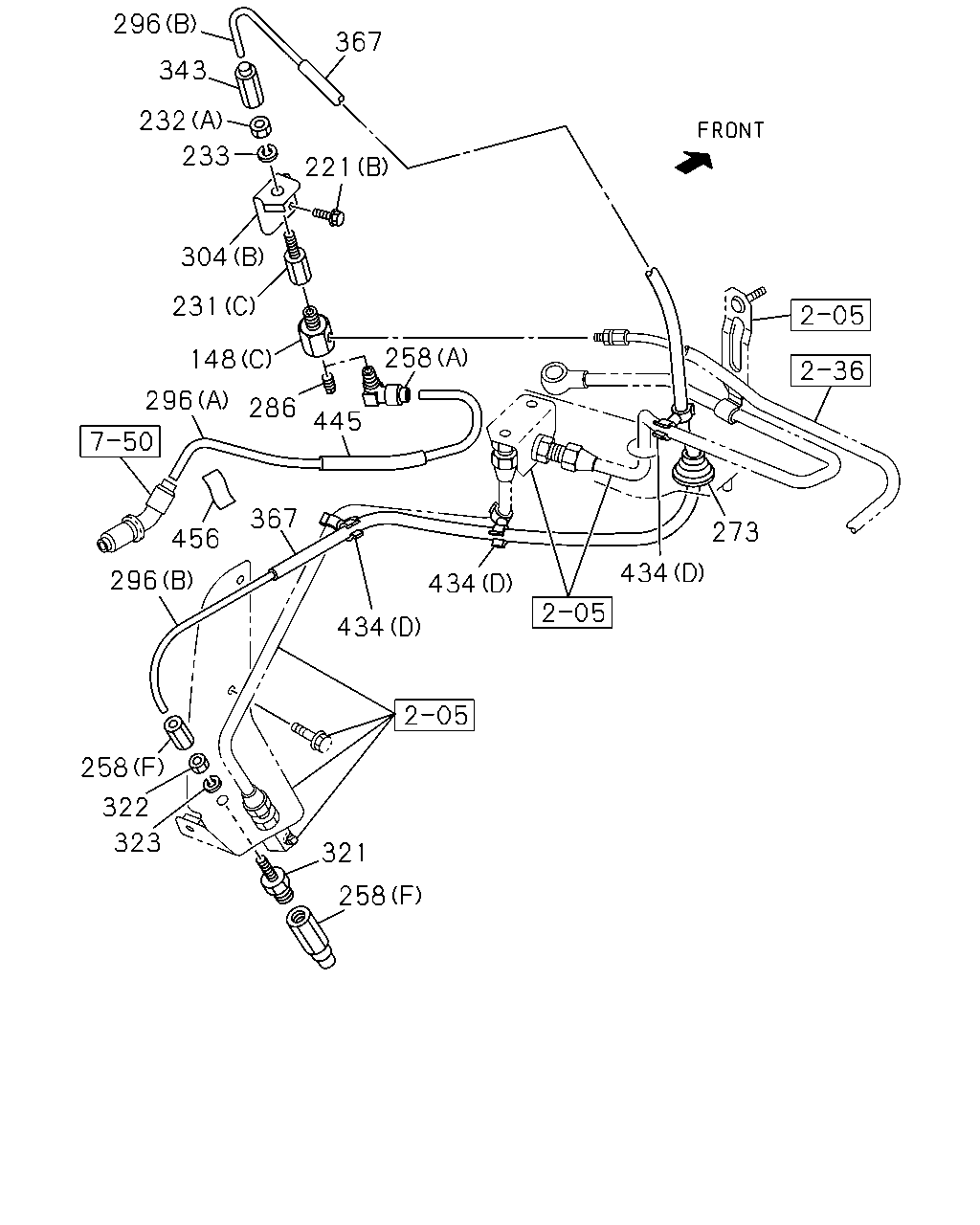

çizim 170653
258 321 323 322 258 434 434 434 273 445 286 258 296 456 367 296 148 231 304 221 367 233 232 343 296
BalonParca AdiParca NoAdetTipApplied Date
148 CONNECTOR; UNION
(A) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1008-1306
148 CONNECTOR; UNION
(B) DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1008-1306
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) (C) 		8-94338-417-0 01 1 1008-
221 BOLT; BRKT
(A) M10X40 FLANGE 		0-28651-040-0 02 1 1008-1306
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008-1306
221 BOLT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1307-
221 BOLT; BRKT
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1307-
231 UNION; AIR PIPE
(B) M10 ELBOW 		1-09654-186-2 01 1 1008-
231 UNION; AIR PIPE
(A) M10 STRAIGHT 		1-09654-361-0 01 1 1008-
231 UNION; AIR PIPE
(C) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1008-1306
231 UNION; AIR PIPE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1307-
231 UNION; AIR PIPE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) (C) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1307-
232 NUT; UNION,AIR PIPE
(A) M10 		0-91110-510-0 01 1 1008-
232 NUT; UNION,AIR PIPE
(B) M10 H=8 		1-09400-029-0 01 1 1008-
232 NUT; UNION,AIR PIPE
(B) M10 H=8 		1-09400-029-0 01 1 1008-
233 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 01 1 1008-1306
233 WASHER; LK,UNION,AIR PIPE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 1307-
233 WASHER; LK,UNION,AIR PIPE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) ID=10.2 		0-91510-510-0 01 1 1307-
258 CONNECTOR; NYLON TUBE
(A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1008-1306
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1307-
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1008-1306
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1307-
258 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1008-1306
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1307-
258 CONNECTOR; NYLON TUBE
(D) PT3/8 3WAY 		1-09661-300-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
(E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1008-1306
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) (E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1307-
258 CONNECTOR; NYLON TUBE
(F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1008-1306
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1307-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1307-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) DIFF LOCK(C3N) (G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1008-1306
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) DIFF LOCK(C3N) (G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1307-
273 GROMMET 1-09332-102-0 01 1 1008-1306
273 GROMMET
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09332-102-0 01 1 1307-
273 GROMMET
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) 		1-09332-102-0 01 1 1307-
286 PLUG; AIR PIPE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) 		9-09204-510-0 01 1 1307-
296 TUBE; NYLON
(A) L=1200 OD=6 		1-09366-256-1 01 1 1008-1306
296 TUBE; NYLON
(D) 		8-98241-072-0 01 1 1307-
296 TUBE; NYLON
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1307-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-
296 TUBE; NYLON
(C) 		8-98169-207-0 01 1 1008-1306
296 TUBE; NYLON
(C) 		8-98242-435-0 01 1 1307-
304 BRACKET; UNION
(B) 		1-71117-210-0 01 1 1008-1306
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-71117-210-0 01 1 1307-
304 BRACKET; UNION
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (B) 		1-71117-210-0 01 1 1307-
304 BRACKET; UNION
(A) 		8-98082-870-0 01 1 1008-
321 JOINT; FLEX HOSE
M12 L=66.5 		0-92113-306-0 01 1 1008-1306
321 JOINT; FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5 		0-92113-306-0 01 1 1307-
321 JOINT; FLEX HOSE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) M12 L=66.5 		0-92113-306-0 01 1 1307-
322 NUT; JOINT,FLEX HOSE
M12 		9-09840-280-0 01 1 1008-1306
322 NUT; JOINT,FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 		9-09840-280-0 01 1 1307-
322 NUT; JOINT,FLEX HOSE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) M12 		9-09840-280-0 01 1 1307-
323 WASHER; LK,JOINT
ID=12.2 		0-91510-512-0 01 1 1008-1306
323 WASHER; LK,JOINT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2 		0-91510-512-0 01 1 1307-
323 WASHER; LK,JOINT
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) ID=12.2 		0-91510-512-0 01 1 1307-
343 UNION; NYLON TUBE 1-09660-796-1 01 1 1008-1306
343 UNION; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-1 01 1 1307-
343 UNION; NYLON TUBE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) 		1-09660-796-1 01 1 1307-
343 UNION; NYLON TUBE 1-09660-796-1 02 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1008-
434 CLIP
(A) ID=24 L=27 		1-09700-809-0 03 1 1008-
434 CLIP
(B) ID=12 & 24 		1-09701-248-0 01 1 1008-
434 CLIP
(C) ID=10 & 10 		1-09709-221-0 01 1 1008-
434 CLIP
(D) ID=8.3 & 8.3 		8-94426-175-0 03 1 1008-1306
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=8.3 & 8.3 		8-94426-175-0 03 1 1307-
434 CLIP
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (D) ID=8.3 & 8.3 		8-94426-175-0 03 1 1307-
445 GUARD
L=520 ID=7.4 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 1008-1306
445 GUARD
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=520 ID=7.4 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 1307-
456 SEAL; NYLON TUBE
100X40 		1-72498-022-1 01 1 1008-1306
456 SEAL; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X40 		1-72498-022-1 01 1 1307-
çizim 170665
120 372 297 335 343 343 232 330 231 334 330 232 337 337 231 434
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> 		1-47470-655-0 01 1 1008-1306
120 CONNECTOR; AIR PIPE 1-47470-655-0 01 1 1307-
120 CONNECTOR; AIR PIPE
EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL<NLG> 		8-98138-506-1 01 1 1008-1306
231 UNION; AIR PIPE
(B) M10 ELBOW 		1-09654-186-2 01 1 1008-
231 UNION; AIR PIPE
(A) M10 STRAIGHT 		1-09654-361-0 01 1 1008-
231 UNION; AIR PIPE
(C) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1008-1306
231 UNION; AIR PIPE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1307-
231 UNION; AIR PIPE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) (C) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1307-
232 NUT; UNION,AIR PIPE
(A) M10 		0-91110-510-0 01 1 1008-
232 NUT; UNION,AIR PIPE
(B) M10 H=8 		1-09400-029-0 01 1 1008-
232 NUT; UNION,AIR PIPE
(B) M10 H=8 		1-09400-029-0 01 1 1008-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 1008-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008-
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 02 1 1008-
334 SPACER; PIPE UNION
ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 1008-
335 SEAL; UNION
MJT7S M/T(Y3E) RIGID SEAT W/ARM REST(SGC) OD=30 BLACK 		1-76798-035-0 01 1 1307-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-57210-720-0 02 1 1008-
343 UNION; NYLON TUBE 1-09660-796-1 01 1 1008-1306
343 UNION; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-1 01 1 1307-
343 UNION; NYLON TUBE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) 		1-09660-796-1 01 1 1307-
343 UNION; NYLON TUBE 1-09660-796-1 02 1 1008-
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 1008-
434 CLIP
(A) ID=24 L=27 		1-09700-809-0 03 1 1008-
434 CLIP
(B) ID=12 & 24 		1-09701-248-0 01 1 1008-
434 CLIP
(C) ID=10 & 10 		1-09709-221-0 01 1 1008-
434 CLIP
(D) ID=8.3 & 8.3 		8-94426-175-0 03 1 1008-1306
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=8.3 & 8.3 		8-94426-175-0 03 1 1307-
434 CLIP
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (D) ID=8.3 & 8.3 		8-94426-175-0 03 1 1307-

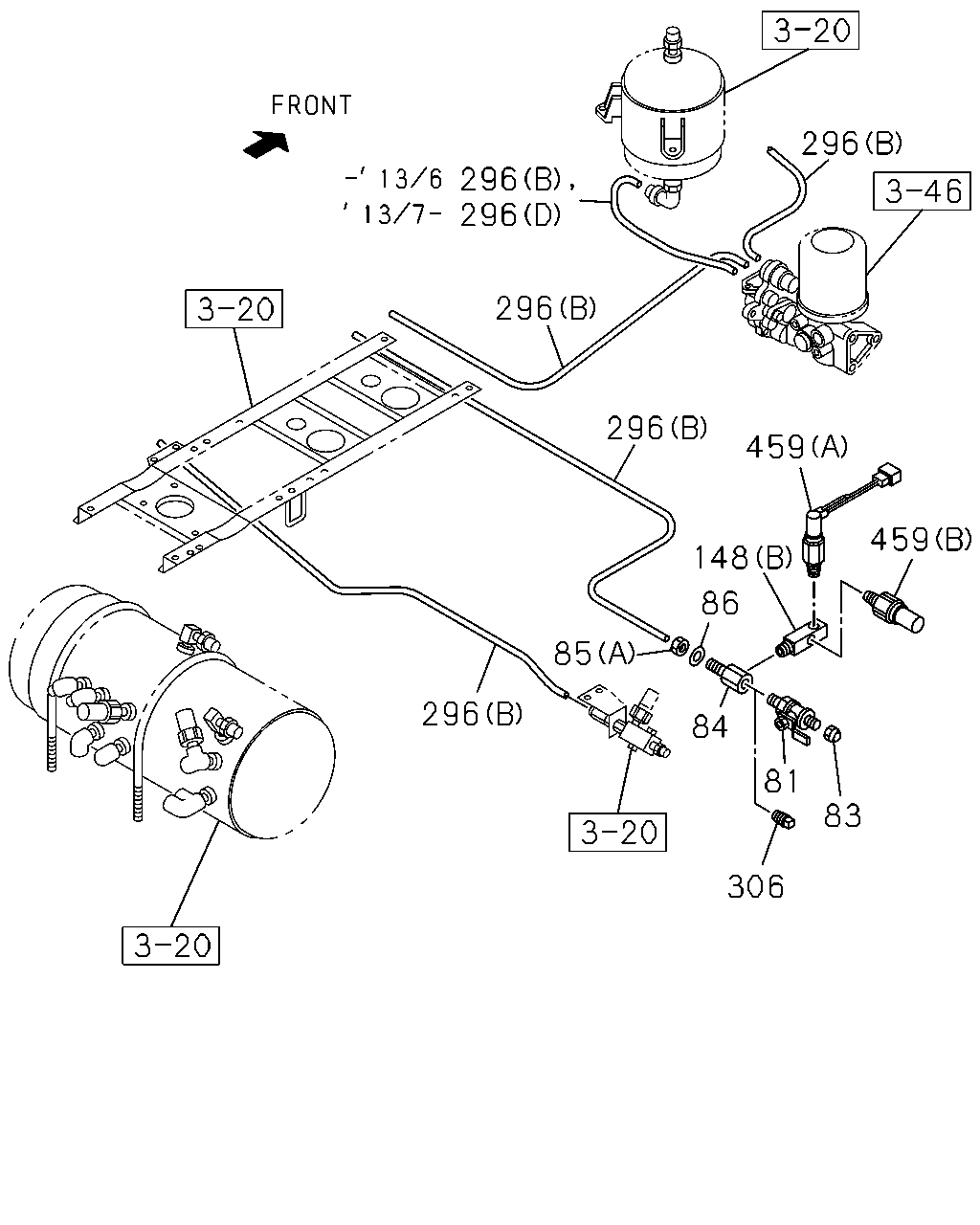

çizim 170668
296 296 296 459 459 148 86 85 296 84 81 83 306 296 296
BalonParca AdiParca NoAdetTipApplied Date
81 COCK; AIR
TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 1008-1306
83 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 1008-1306
84 UNION; NYLON TUBE 1-09661-092-0 01 1 1008-1306
85 NUT; UNION
(A) M18 		0-91110-518-0 01 1 1008-1306
85 NUT; UNION
MJX16P M/T(Y3Z) (B) M12 		0-91111-512-0 01 1 1307-1308
85 NUT; UNION
MJX16P M/T(Y3Z) (B) M12 		9-09840-280-0 01 1 1309-
86 WASHER; LK,TUBE UNION
ID=18.2 		0-91510-518-0 01 1 1008-1306
148 CONNECTOR; UNION
(A) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1008-1306
148 CONNECTOR; UNION
(B) DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1008-1306
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) (C) 		8-94338-417-0 01 1 1008-
296 TUBE; NYLON
(A) L=1200 OD=6 		1-09366-256-1 01 1 1008-1306
296 TUBE; NYLON
(D) 		8-98241-072-0 01 1 1307-
296 TUBE; NYLON
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1307-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-
296 TUBE; NYLON
(C) 		8-98169-207-0 01 1 1008-1306
296 TUBE; NYLON
(C) 		8-98242-435-0 01 1 1307-
306 PLUG; NYLON TUBE
EXC. TIRE INFLATOR DEVICE<SG4> PT1/4 		9-99204-513-0 01 1 1008-1306
459 SWITCH; PRESS
(A) 		1-48340-058-2 01 1 1008-1306
459 SWITCH; PRESS
(B) THREAD R1/4 		1-80220-023-1 01 1 1008-1306

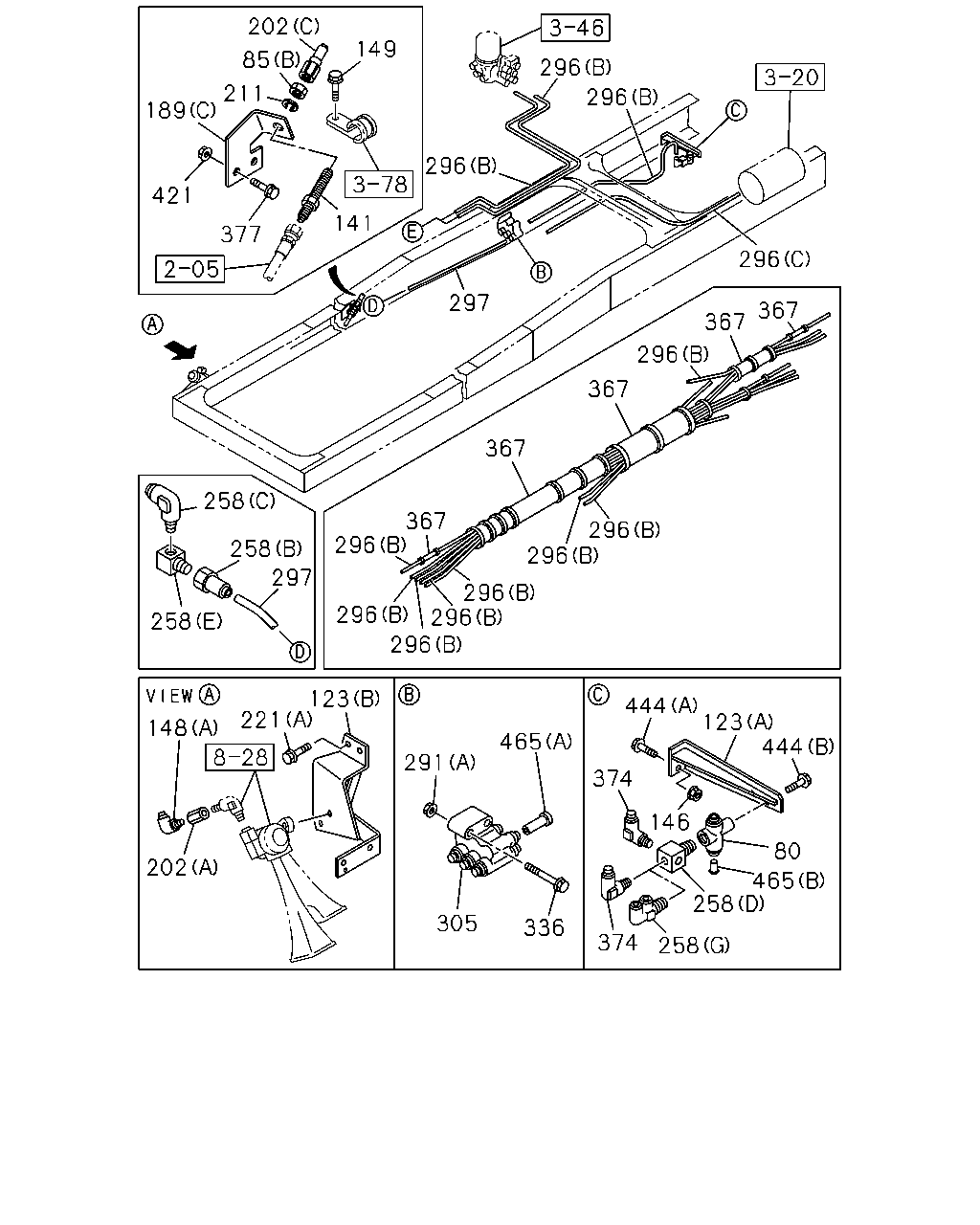

çizim 170721
444 123 444 374 146 80 465 258 258 374 336 305 291 465 367 367 296 367 367 296 296 296 296 296 296 296 367 297 296 296 296 296 149 141 377 421 189 211 85 202 258 258 297 258 148 221 123 202
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1008-
85 NUT; UNION
(A) M18 		0-91110-518-0 01 1 1008-1306
85 NUT; UNION
MJX16P M/T(Y3Z) (B) M12 		0-91111-512-0 01 1 1307-1308
85 NUT; UNION
MJX16P M/T(Y3Z) (B) M12 		9-09840-280-0 01 1 1309-
123 BRACKET; UNION
(A) 		1-47479-401-0 01 1 1008-
123 BRACKET; UNION
(B) 		1-53457-161-0 01 1 1008-1306
141 UNION; FLEX HOSE
MJX16P M/T(Y3Z) M12 L=66.5 		0-92113-306-0 01 1 1307-
146 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 1008-1306
146 NUT; UNION
TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE 		0-91180-108-0 02 1 1307-
148 CONNECTOR; UNION
(A) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1008-1306
148 CONNECTOR; UNION
(B) DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1008-1306
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) (C) 		8-94338-417-0 01 1 1008-
149 BOLT; TUBE CLIP
MJX16P M/T(Y3Z) M8X25 FLANGE 		0-28650-825-0 01 1 1307-
189 BRACKET; FLEX HOSE
(A) 		1-47477-337-1 01 1 1008-1306
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) (A) 		1-47477-337-1 01 1 1307-
189 BRACKET; FLEX HOSE
(B) L=75 		1-47478-328-0 01 1 1008-
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) (C) 		8-97645-648-0 01 1 1307-1308
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) (C) 		8-97646-842-0 01 1 1309-
202 ADAPTER
(A) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 1008-1306
202 ADAPTER
MJX16P M/T(Y3Z) (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1307-
202 ADAPTER
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1008-
211 WASHER; LK,UNION
MJX16P M/T(Y3Z) ID=12.2 		0-91510-812-0 01 1 1307-1308
211 WASHER; LK,UNION
MJX16P M/T(Y3Z) ID=12.2 		0-91510-512-0 01 1 1309-
221 BOLT; BRKT
(A) M10X40 FLANGE 		0-28651-040-0 02 1 1008-1306
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008-1306
221 BOLT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1307-
221 BOLT; BRKT
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1307-
258 CONNECTOR; NYLON TUBE
(A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1008-1306
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1307-
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1008-1306
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1307-
258 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1008-1306
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1307-
258 CONNECTOR; NYLON TUBE
(D) PT3/8 3WAY 		1-09661-300-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
(E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1008-1306
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) (E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1307-
258 CONNECTOR; NYLON TUBE
(F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1008-1306
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1307-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1307-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) DIFF LOCK(C3N) (G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1008-1306
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) DIFF LOCK(C3N) (G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1307-
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1008-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1008-
296 TUBE; NYLON
(A) L=1200 OD=6 		1-09366-256-1 01 1 1008-1306
296 TUBE; NYLON
(D) 		8-98241-072-0 01 1 1307-
296 TUBE; NYLON
TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1307-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1008-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-
296 TUBE; NYLON
(C) 		8-98169-207-0 01 1 1008-1306
296 TUBE; NYLON
(C) 		8-98242-435-0 01 1 1307-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 1008-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008-
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 1008-
336 BOLT; PIPE UNION
M8X60 FLANGE 		0-28050-860-0 02 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1008-
374 CONNECTOR
DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1008-
377 BOLT; BRKT FIX
MJX16P M/T(Y3Z) M8X25 FLANGE 		0-28650-825-0 02 1 1307-
421 NUT; BRKT
MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 02 1 1307-
444 BOLT; UNION
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1008-
444 BOLT; UNION
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1008-1306
444 BOLT; UNION
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8X30 FLANGE 		0-28650-830-0 02 1 1307-
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1008-1306
465 PLUG
MJT7S M/T(Y3E) DIFF LOCK(C3N) (B) OD=8 PLASTIC 		1-09661-616-0 01 1 1008-1306
465 PLUG
MJX16P M/T(Y3Z) (B) OD=8 PLASTIC 		1-09661-616-0 01 1 1008-1306
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1307-
465 PLUG
MJT7S M/T(Y3E) DIFF LOCK(C3N) (B) OD=8 PLASTIC 		1-09661-616-0 01 1 1307-
465 PLUG
MJX16P M/T(Y3Z) (B) OD=8 PLASTIC 		1-09661-616-0 01 1 1307-
465 PLUG
MJT7S M/T(Y3E) EXC. DIFF LOCK(C3N) (B) OD=8 PLASTIC 		1-09661-616-0 02 1 1008-
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 1008-1306
465 PLUG
MJT7S M/T(Y3E) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) OD=6 L=27 		1-09661-615-0 01 1 1307-1409
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) OD=6 L=27 		1-09661-615-0 01 1 1307-1409
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1307-1409
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 1410-
465 PLUG
MJT7S M/T(Y3E) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) OD=6 L=27 		1-09661-615-0 01 1 1410-
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1410-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
