Sayfa 3-46 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10723 - CVR LHD ▶ 3 - Brakes, Brake System ▶ 3-46 - AIR DRYER ▶

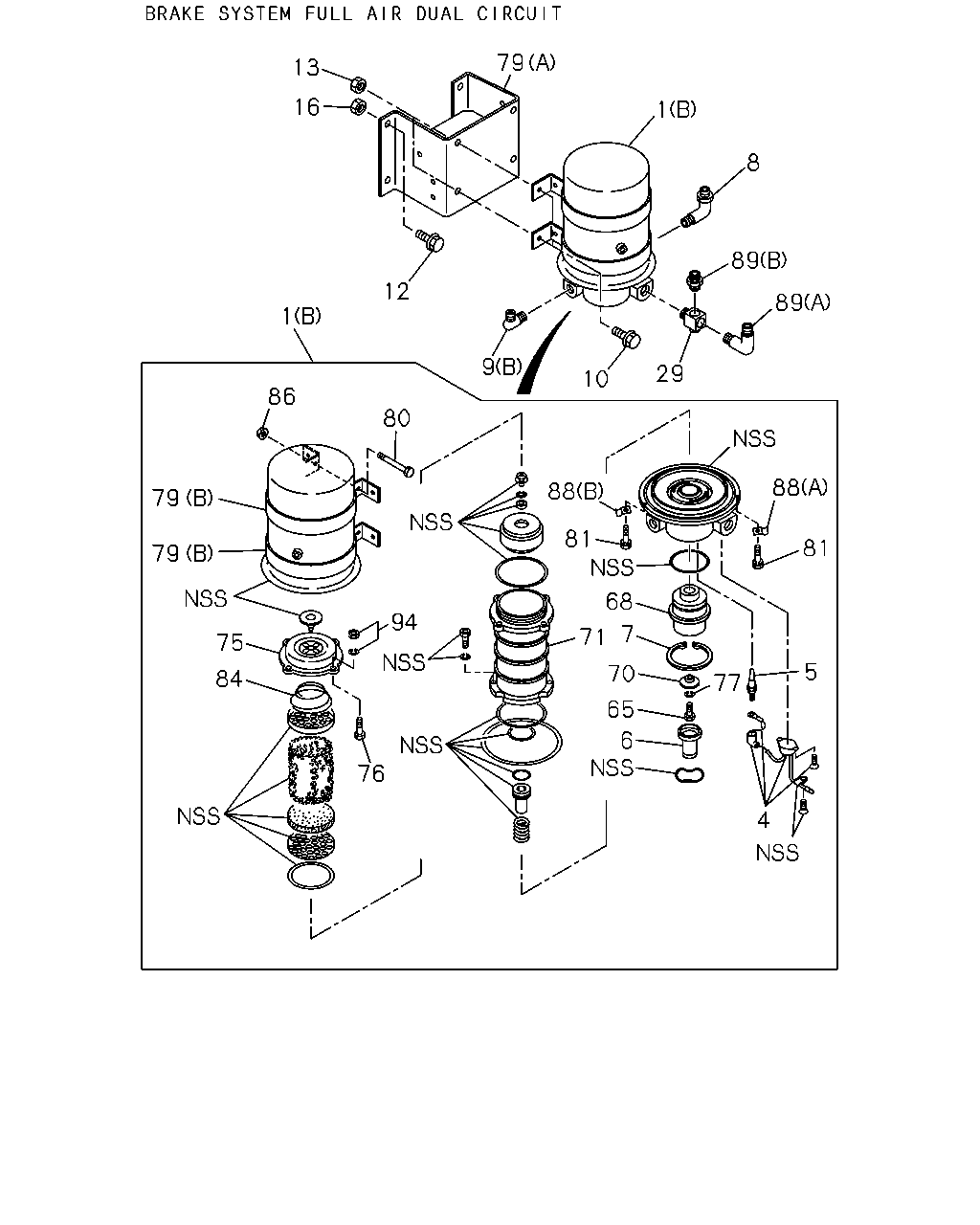

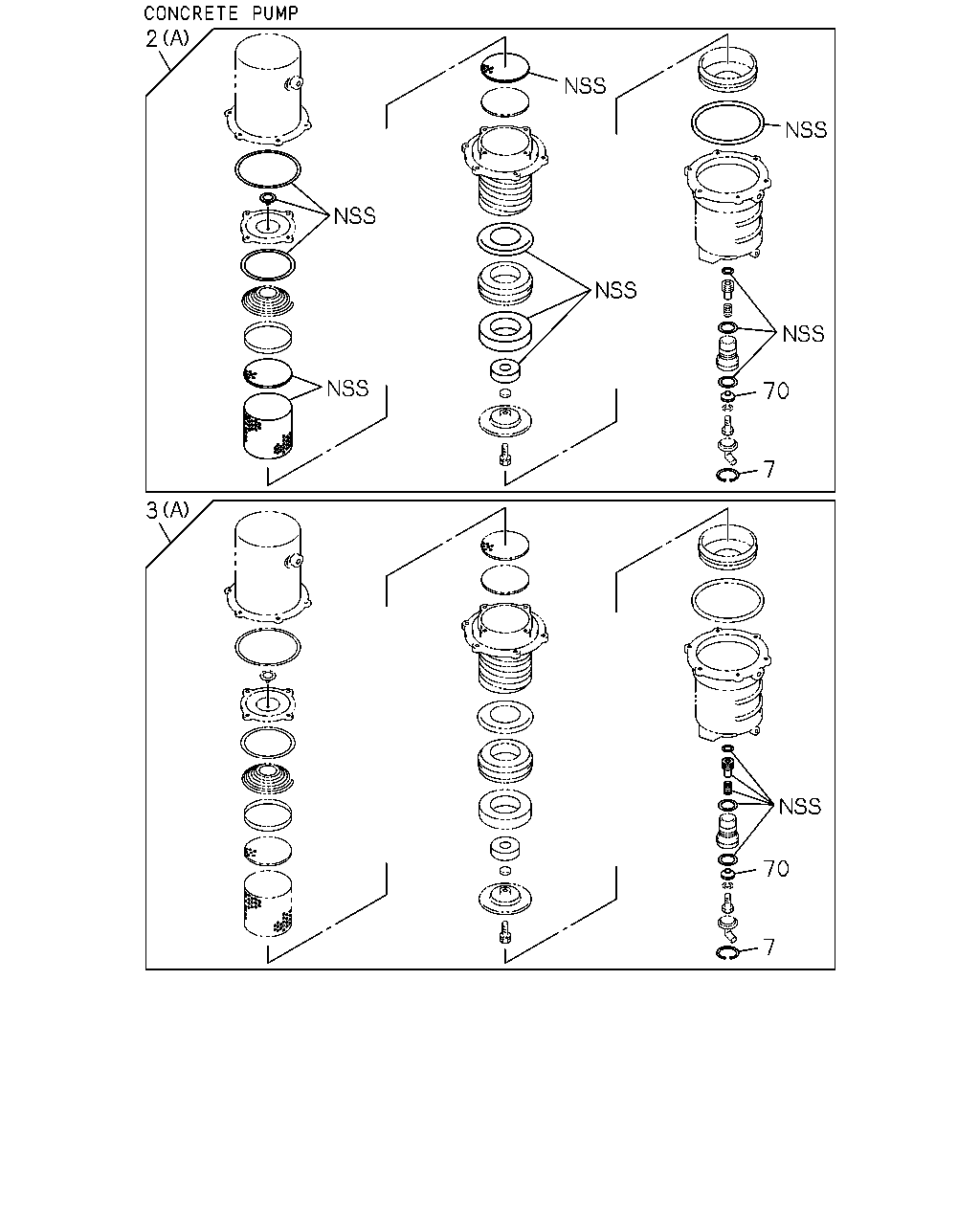

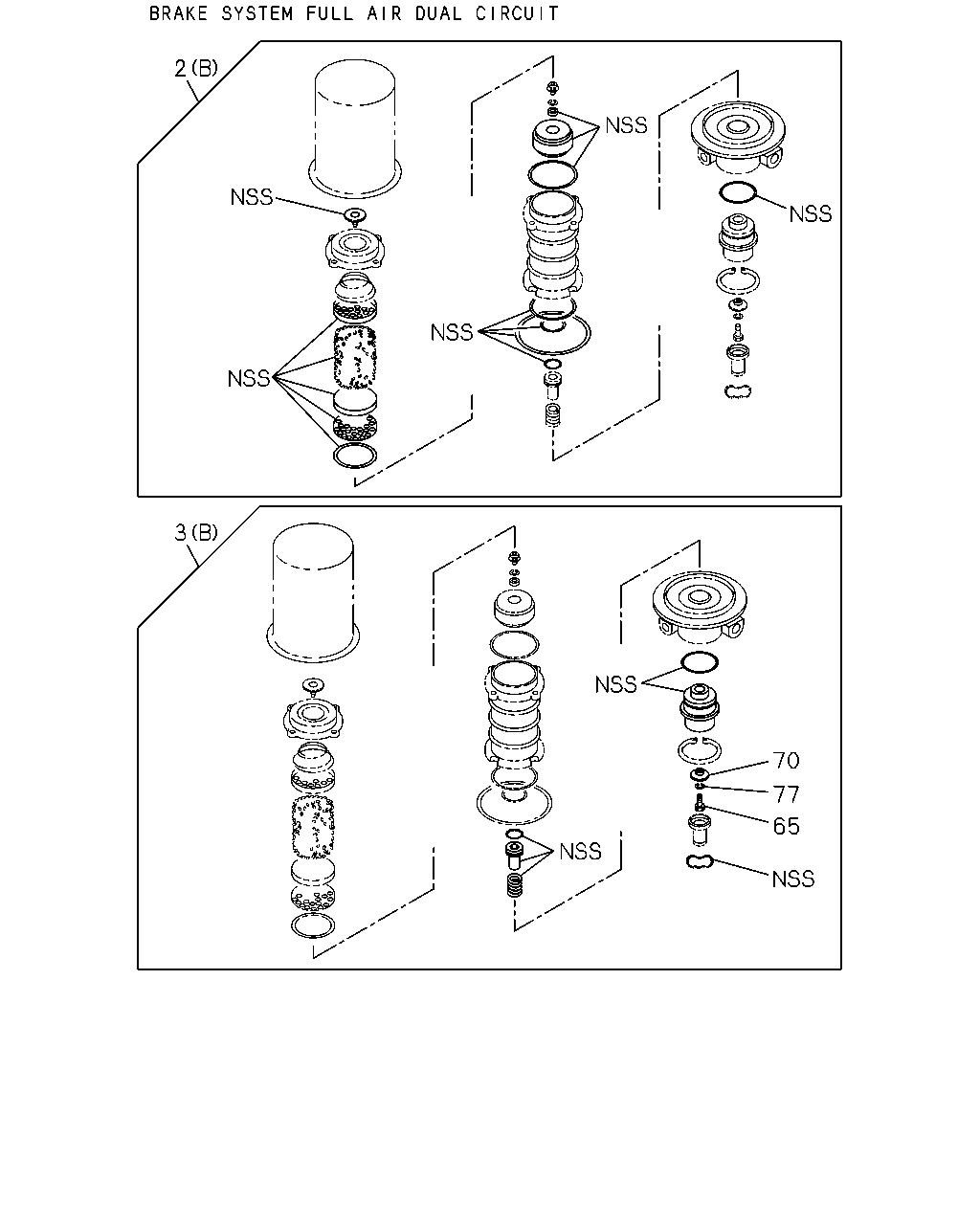

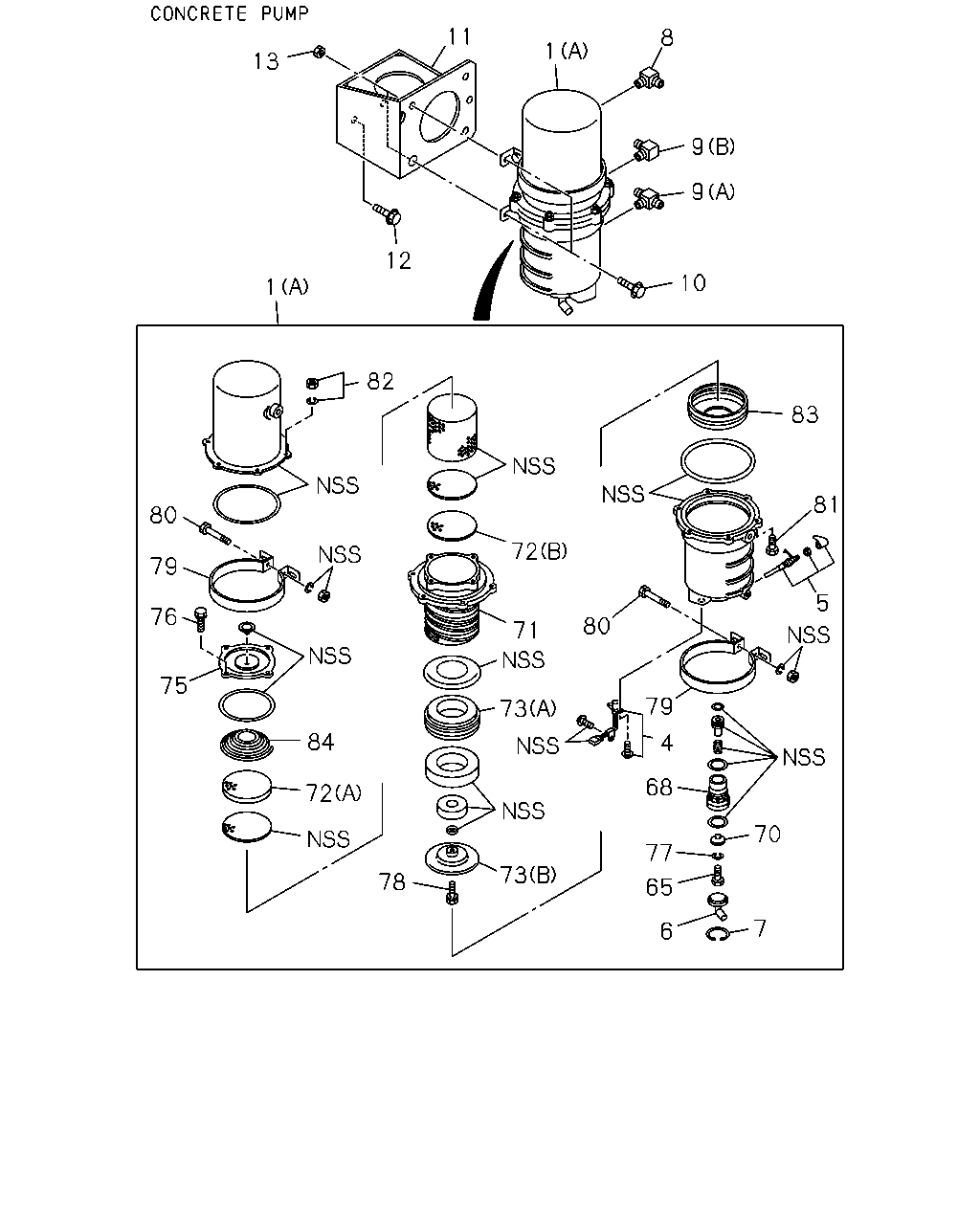

3-46 — AIR DRYER (#6318) — 145 parça

2 3 70 77 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5> (A)	1-85576-161-0	01	1	9604-
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B)	1-85576-055-1	01	1	9604-
3	PISTON KIT; AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5> (A)	1-85576-084-0	01	1	9604-
3	PISTON KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B)	1-85576-057-1	01	1	9604-
65	BOLT; PURGE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-102-0	01	1	9604-9704
65	BOLT; PURGE VLV AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-102-0	01	1	9604-9704
65	BOLT; PURGE VLV AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-102-0	01	1	9705-
65	BOLT; PURGE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-413-0	01	1	9705-
70	VALVE; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-105-0	01	1	9604-
70	VALVE; AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-105-0	01	1	9604-
77	WASHER; LK,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-103-0	01	1	9604-9704
77	WASHER; LK,VALVE AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-103-0	01	1	9604-9704
77	WASHER; LK,VALVE AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-103-0	01	1	9705-

2 70 7 3 70 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5> (A)	1-85576-161-0	01	1	9604-
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B)	1-85576-055-1	01	1	9604-
3	PISTON KIT; AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5> (A)	1-85576-084-0	01	1	9604-
3	PISTON KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B)	1-85576-057-1	01	1	9604-
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-100-0	01	1	9604-
7	RING; SNAP,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-154-0	01	1	9604-
70	VALVE; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-105-0	01	1	9604-
70	VALVE; AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-105-0	01	1	9604-

79 13 16 1 8 89 12 89 1 9 29 10 86 80 88 88 79 81 81 79 68 94 7 71 75 5 70 84 77 65 6 76 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR AIR DRYER<PS7> CONCRETE PUMP<RA5> (A)	1-48190-168-1	01	1	9604-
1	DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B)	1-48190-105-3	01	1	9604-
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-85576-121-0	01	1	9604-
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-129-0	01	1	9604-
5	HEATER ASM; AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-200-0	01	1	9604-
5	HEATER ASM; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-085-0	02	1	9604-
6	COVER; EXH,AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-132-0	01	1	9604-
6	COVER; EXH,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-101-0	01	1	9604-
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-100-0	01	1	9604-
7	RING; SNAP,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-154-0	01	1	9604-
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9604-
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	9604-9904
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9905-
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5> (A) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	9604-
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9604-
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5> (B) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9604-
10	BOLT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X25 FLANGE	0-28081-025-0	04	1	9604-9606
10	BOLT; AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5> M10X25 FLANGE	0-28081-025-0	04	1	9604-9606
10	BOLT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X30 FLANGE	0-28681-030-0	04	1	9607-
10	BOLT; AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5> M10X30 FLANGE	0-28681-030-0	04	1	9607-
12	BOLT; BRKT AIR DRYER<PS7> M10X35 FLANGE	0-28081-035-0	04	1	9604-9606
12	BOLT; BRKT AIR DRYER<PS7> M10X40 FLANGE	0-28681-040-0	04	1	9607-
13	NUT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10	9-09110-510-0	04	1	9604-9606
13	NUT; AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5> M10	9-09110-510-0	04	1	9604-9606
13	NUT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	9607-
13	NUT; AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5> M10 FLANGE	0-91150-210-0	04	1	9607-
16	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10	9-09110-410-0	04	1	9604-9606
16	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	9607-
29	UNION; 3 WAY,PURGE TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M12 & PT1/4 3WAY	1-09656-586-1	01	1	9604-
65	BOLT; PURGE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-102-0	01	1	9604-9704
65	BOLT; PURGE VLV AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-102-0	01	1	9604-9704
65	BOLT; PURGE VLV AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-102-0	01	1	9705-
65	BOLT; PURGE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-413-0	01	1	9705-
68	BODY; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-216-0	01	1	9604-
68	BODY; VALVE AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-216-0	01	1	9604-
70	VALVE; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-105-0	01	1	9604-
70	VALVE; AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-105-0	01	1	9604-
71	CASE; INNER,AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-374-0	01	1	9604-
71	CASE; INNER,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-156-1	01	1	9604-
75	COVER; CASE,AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-383-0	01	1	9604-
75	COVER; CASE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-167-0	01	1	9604-
76	BOLT; COVER,AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-385-0	04	1	9604-
76	BOLT; COVER,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-478-0	06	1	9905-
77	WASHER; LK,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-103-0	01	1	9604-9704
77	WASHER; LK,VALVE AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-103-0	01	1	9604-9704
77	WASHER; LK,VALVE AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-103-0	01	1	9705-
79	BRACKET; AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-209-0	02	1	9604-
79	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B)	1-48199-189-0	02	1	9604-
79	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-53497-540-1	01	1	9604-
80	BOLT; BRKT AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-212-0	02	1	9604-
80	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-190-0	02	1	9604-
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-208-0	06	1	9604-
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-177-0	02	1	9604-
84	SPRING; AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-092-0	01	1	9604-
84	SPRING; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-166-0	01	1	9604-
86	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-320-0	02	1	9604-
88	PLATE; STOPPER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48199-178-0	01	1	9604-
88	PLATE; STOPPER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B)	1-48199-179-0	01	1	9604-
89	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9604-9904
89	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-
89	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9604-9904
89	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	9905-0005
89	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0006-
94	NUT; COVER,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-479-0	07	1	9905-

11 8 1 13 9 9 12 10 1 82 83 81 80 72 79 5 76 80 71 75 79 73 84 4 68 72 70 77 73 78 65 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR AIR DRYER<PS7> CONCRETE PUMP<RA5> (A)	1-48190-168-1	01	1	9604-
1	DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B)	1-48190-105-3	01	1	9604-
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-85576-121-0	01	1	9604-
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-129-0	01	1	9604-
5	HEATER ASM; AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-200-0	01	1	9604-
5	HEATER ASM; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-085-0	02	1	9604-
6	COVER; EXH,AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-132-0	01	1	9604-
6	COVER; EXH,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-101-0	01	1	9604-
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-100-0	01	1	9604-
7	RING; SNAP,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-154-0	01	1	9604-
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9604-
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	9604-9904
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9905-
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5> (A) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	9604-
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9604-
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5> (B) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9604-
10	BOLT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X25 FLANGE	0-28081-025-0	04	1	9604-9606
10	BOLT; AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5> M10X25 FLANGE	0-28081-025-0	04	1	9604-9606
10	BOLT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X30 FLANGE	0-28681-030-0	04	1	9607-
10	BOLT; AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5> M10X30 FLANGE	0-28681-030-0	04	1	9607-
11	BRACKET; AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48317-713-0	01	1	9604-
12	BOLT; BRKT AIR DRYER<PS7> M10X35 FLANGE	0-28081-035-0	04	1	9604-9606
12	BOLT; BRKT AIR DRYER<PS7> M10X40 FLANGE	0-28681-040-0	04	1	9607-
13	NUT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10	9-09110-510-0	04	1	9604-9606
13	NUT; AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5> M10	9-09110-510-0	04	1	9604-9606
13	NUT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	9607-
13	NUT; AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5> M10 FLANGE	0-91150-210-0	04	1	9607-
65	BOLT; PURGE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-102-0	01	1	9604-9704
65	BOLT; PURGE VLV AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-102-0	01	1	9604-9704
65	BOLT; PURGE VLV AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-102-0	01	1	9705-
65	BOLT; PURGE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-413-0	01	1	9705-
68	BODY; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-216-0	01	1	9604-
68	BODY; VALVE AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-216-0	01	1	9604-
70	VALVE; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-105-0	01	1	9604-
70	VALVE; AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-105-0	01	1	9604-
71	CASE; INNER,AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-374-0	01	1	9604-
71	CASE; INNER,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-156-1	01	1	9604-
72	PLATE; FILTER,AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5> (A)	1-48199-097-0	01	1	9604-
72	PLATE; FILTER,AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5> (B)	1-48199-382-0	01	1	9604-
73	COVER; FILTER,AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5> (A)	1-48199-377-0	01	1	9604-
73	COVER; FILTER,AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5> (B)	1-48199-379-0	01	1	9604-
75	COVER; CASE,AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-383-0	01	1	9604-
75	COVER; CASE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-167-0	01	1	9604-
76	BOLT; COVER,AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-385-0	04	1	9604-
76	BOLT; COVER,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-478-0	06	1	9905-
77	WASHER; LK,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-103-0	01	1	9604-9704
77	WASHER; LK,VALVE AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-103-0	01	1	9604-9704
77	WASHER; LK,VALVE AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-103-0	01	1	9705-
78	BOLT; OIL FILTER,AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-380-0	01	1	9604-
79	BRACKET; AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-209-0	02	1	9604-
79	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B)	1-48199-189-0	02	1	9604-
79	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-53497-540-1	01	1	9604-
80	BOLT; BRKT AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-212-0	02	1	9604-
80	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-190-0	02	1	9604-
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-208-0	06	1	9604-
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-177-0	02	1	9604-
82	NUT; CASE,AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-320-0	08	1	9604-
83	BAFFLE; AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-381-0	01	1	9604-
84	SPRING; AIR DRYER AIR DRYER<PS7> CONCRETE PUMP<RA5>	1-48199-092-0	01	1	9604-
84	SPRING; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-166-0	01	1	9604-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
