◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11324 - EXR MIDDLE EAST WITH 3STEPS ▶ 3 - Brakes, Brake System ▶ 3-41 - REAR BRAKE POWER CHAMBER ▶
3-41 — REAR BRAKE POWER CHAMBER (#63177) — 27 parça

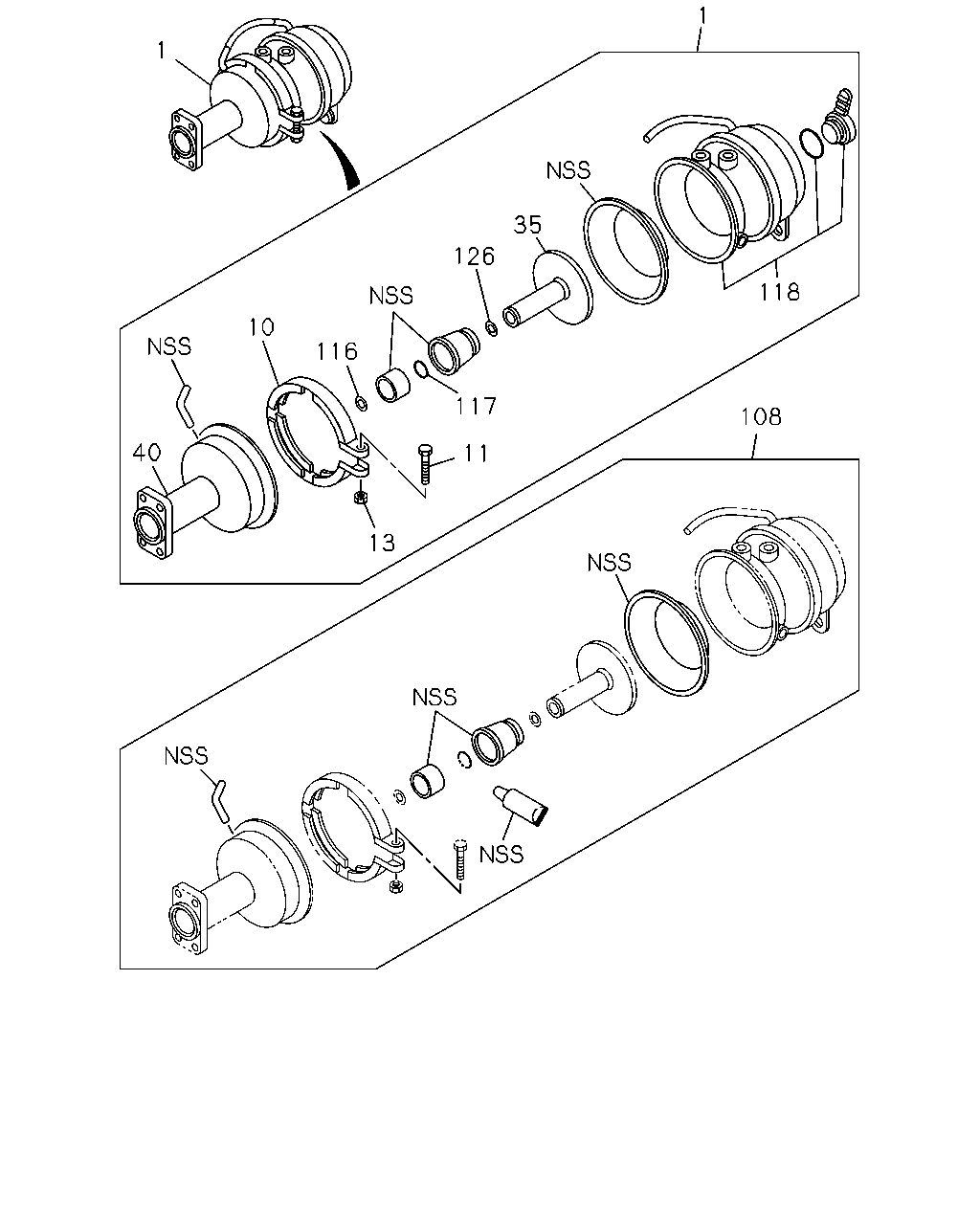

çizim 170638
1 1 40 10 13 116 117 11 126 35 118 108
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING 1-87412-098-0 01 1 1008-1411
1 CHAMBER ASM; SPRING 1-87412-098-0 01 1 1412-
1 CHAMBER ASM; SPRING 1-87412-097-0 01 1 1008-1411
1 CHAMBER ASM; SPRING 1-87412-097-0 01 1 1412-
10 RING; CLAMP,SPR CHAMBER 1-48269-256-0 02 1 1008-
11 BOLT; CLAMP RING 1-48269-257-0 02 1 1008-
13 NUT; CLAMP RING 1-48269-147-0 02 1 1008-
35 PLATE; ROD END,SPR CHAMBER 8-98146-974-0 02 1 1008-
40 COVER ASM; LWR,SPR CHAMBER 1-48251-141-1 01 1 1008-1411
40 COVER ASM; LWR,SPR CHAMBER 1-48251-141-1 01 1 1412-
40 COVER ASM; LWR,SPR CHAMBER 1-48251-140-1 01 1 1008-1411
40 COVER ASM; LWR,SPR CHAMBER 1-48251-140-1 01 1 1412-
108 REPAIR KIT; SPR CHAMBER 8-98146-982-0 02 1 1008-
116 GUIDE; SPR CHAMBER 8-98146-963-0 02 1 1008-
117 RING; SPR CHAMBER 8-98146-966-0 02 1 1008-
118 CHAMBER; PIGGY BACK 1-87412-114-0 01 1 1008-1411
118 CHAMBER; PIGGY BACK 1-87412-114-0 01 1 1412-
118 CHAMBER; PIGGY BACK 1-87412-113-0 01 1 1008-1411
118 CHAMBER; PIGGY BACK 1-87412-113-0 01 1 1412-
126 SHIM 8-98146-965-0 AR 1 1008-
çizim 170645
1 32 32 1
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING 1-87412-098-0 01 1 1008-1411
1 CHAMBER ASM; SPRING 1-87412-098-0 01 1 1412-
1 CHAMBER ASM; SPRING 1-87412-097-0 01 1 1008-1411
1 CHAMBER ASM; SPRING 1-87412-097-0 01 1 1412-
32 CONNECTOR; SPR CHAMBER
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1008-1306
32 CONNECTOR; SPR CHAMBER
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1307-
32 CONNECTOR; SPR CHAMBER
(B) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 1008-1306
