◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11324 - EXR MIDDLE EAST WITH 3STEPS ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#63172) — 322 parça

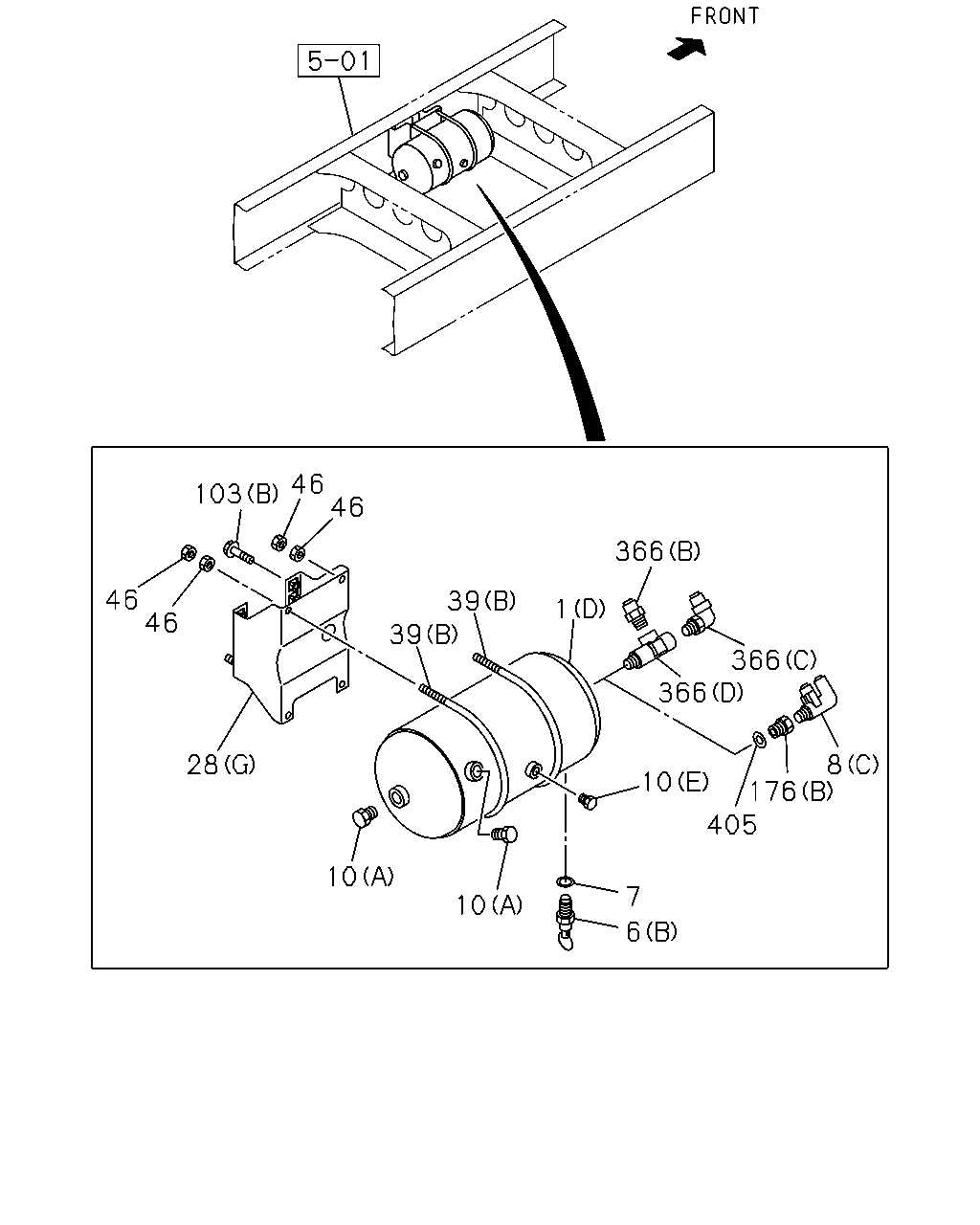

çizim 170613
103 46 46 46 46 28 39 1 39 366 366 366 8 176 10 405 7 6 10 10
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(C) 		1-48371-165-3 01 1 1008-1306
1 TANK ASM; AIR
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) 		1-48371-165-3 01 1 1307-
1 TANK ASM; AIR
(A) 		1-48371-387-1 01 1 1008-
1 TANK ASM; AIR
(B) 		1-48371-434-1 01 1 1008-
1 TANK ASM; AIR
(D) 		8-97626-720-0 01 1 1008-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-006-1 01 1 1008-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1008-1306
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 06 1 1307-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 03 1 1008-1306
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 03 1 1008-1306
6 COCK; DRAIN,AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-48312-017-0 01 1 1307-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1008-1306
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 07 1 1307-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1008-1306
7 GASKET; DRAIN COCK
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=14 		1-09630-145-0 01 1 1307-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1008-1306
8 CONNECTOR; AIR TANK
(A) DIN8 & R3/8 & RC3/8 3WAY 		1-09661-271-0 01 1 1008-
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 03 1 1008-1306
8 CONNECTOR; AIR TANK
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1307-
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 01 1 1008-1306
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 03 1 1307-
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 02 1 1008-1306
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 01 1 1307-
10 PLUG; AIR TANK
(E) M14 		1-09661-569-0 01 1 1008-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1008-1306
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1008-1306
10 PLUG; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) PT3/4 		9-09204-526-0 01 1 1307-
10 PLUG; AIR TANK
(C) PT3/4 		9-09204-526-0 01 1 1008-1306
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 1307-
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 01 1 1008-1306
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 01 1 1008-1306
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 04 1 1307-
28 BRACKET; AIR TANK
(A) 		1-47471-153-0 01 1 1008-1306
28 BRACKET; AIR TANK
(H) 		8-98200-121-2 01 1 1307-
28 BRACKET; AIR TANK
(F) 		1-48316-024-3 01 1 1008-
28 BRACKET; AIR TANK
(D) 		1-48316-026-0 01 1 1008-
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 1008-1306
28 BRACKET; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-48317-473-2 01 1 1307-
28 BRACKET; AIR TANK
(E) 		1-48317-985-1 01 1 1008-1306
28 BRACKET; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (E) 		1-48317-985-1 01 1 1307-
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 01 1 1008-
28 BRACKET; AIR TANK
(G) 		8-97627-750-3 01 1 1008-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 1008-1306
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 05 1 1307-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 1008-1306
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 06 1 1307-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1008-1306
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1008-1306
39 U-BOLT; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=210 		1-48317-458-1 02 1 1307-
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1008-1306
46 NUT; U-BOLT
M8 		0-91110-508-0 20 1 1307-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1008-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1008-
103 BOLT; BRKT
(A) M14X35 		0-20851-435-0 04 1 1008-
103 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 04 1 1008-
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 06 1 1008-1306
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1307-
176 ADAPTER
(D) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1008-
176 ADAPTER
(A) PT3/8 		1-09664-210-0 02 1 1008-
176 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 1307-
176 ADAPTER
TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 02 1 1307-
176 ADAPTER
EXC. TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 01 1 1307-
366 CONNECTOR; NYLON TUBE
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1008-
366 CONNECTOR; NYLON TUBE
(B) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 1008-1306
366 CONNECTOR; NYLON TUBE
(C) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 1008-1306
366 CONNECTOR; NYLON TUBE
(D) 		1-09661-501-0 01 1 1008-1306
405 GASKET
ID=22.5 		9-09571-422-0 01 1 1307-
405 GASKET
ID=22.5 		9-09571-422-0 08 1 1008-

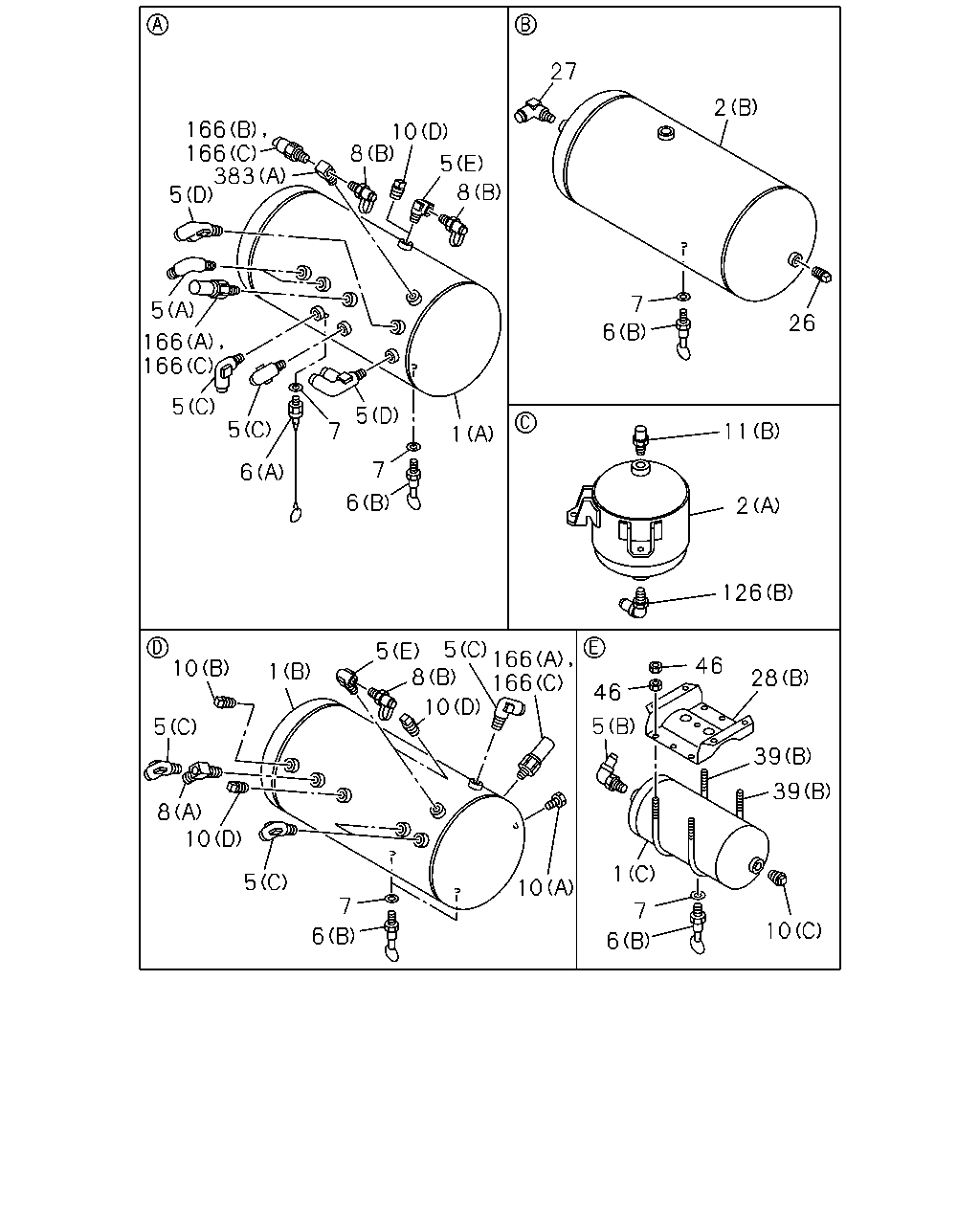

çizim 170617
28 39 39 10 6 1 7 5 46 46 166 166 8 10 5 1 10 5 8 10 5 7 6 11 2 126 1 6 7 26 6 7 5 7 5 8 2 27 10 8 383 166 166 5 5 166 166 5 5 6 10 5
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(C) 		1-48371-165-3 01 1 1008-1306
1 TANK ASM; AIR
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) 		1-48371-165-3 01 1 1307-
1 TANK ASM; AIR
(A) 		1-48371-387-1 01 1 1008-
1 TANK ASM; AIR
(B) 		1-48371-434-1 01 1 1008-
1 TANK ASM; AIR
(D) 		8-97626-720-0 01 1 1008-
2 TANK; AIR
(A) 		1-48371-166-3 01 1 1008-
2 TANK; AIR
(B) 		1-48371-389-1 02 1 1008-
5 UNION; AIR TANK
(E) PT1/4 2WAY 		1-09660-693-0 02 1 1008-1306
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 1008-
5 UNION; AIR TANK
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 1008-
5 UNION; AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 1008-1306
5 UNION; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 1307-
5 UNION; AIR TANK
(A) 		1-09661-550-0 02 1 1008-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-006-1 01 1 1008-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1008-1306
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 06 1 1307-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 03 1 1008-1306
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 03 1 1008-1306
6 COCK; DRAIN,AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-48312-017-0 01 1 1307-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1008-1306
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 07 1 1307-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1008-1306
7 GASKET; DRAIN COCK
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=14 		1-09630-145-0 01 1 1307-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1008-1306
8 CONNECTOR; AIR TANK
(A) DIN8 & R3/8 & RC3/8 3WAY 		1-09661-271-0 01 1 1008-
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 03 1 1008-1306
8 CONNECTOR; AIR TANK
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1307-
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 01 1 1008-1306
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 03 1 1307-
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 02 1 1008-1306
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 01 1 1307-
10 PLUG; AIR TANK
(E) M14 		1-09661-569-0 01 1 1008-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1008-1306
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1008-1306
10 PLUG; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) PT3/4 		9-09204-526-0 01 1 1307-
10 PLUG; AIR TANK
(C) PT3/4 		9-09204-526-0 01 1 1008-1306
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 1307-
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 01 1 1008-1306
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 01 1 1008-1306
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 04 1 1307-
11 VALVE; SAFETY,AIR TANK
(A) 		1-48320-012-2 01 1 1008-
11 VALVE; SAFETY,AIR TANK
(B) 		1-48320-047-2 01 1 1008-1306
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 02 1 1008-
27 UNION; ELBOW,AIR TANK
DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1008-
28 BRACKET; AIR TANK
(A) 		1-47471-153-0 01 1 1008-1306
28 BRACKET; AIR TANK
(H) 		8-98200-121-2 01 1 1307-
28 BRACKET; AIR TANK
(F) 		1-48316-024-3 01 1 1008-
28 BRACKET; AIR TANK
(D) 		1-48316-026-0 01 1 1008-
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 1008-1306
28 BRACKET; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-48317-473-2 01 1 1307-
28 BRACKET; AIR TANK
(E) 		1-48317-985-1 01 1 1008-1306
28 BRACKET; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (E) 		1-48317-985-1 01 1 1307-
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 01 1 1008-
28 BRACKET; AIR TANK
(G) 		8-97627-750-3 01 1 1008-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 1008-1306
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 05 1 1307-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 1008-1306
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 06 1 1307-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1008-1306
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1008-1306
39 U-BOLT; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=210 		1-48317-458-1 02 1 1307-
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1008-1306
46 NUT; U-BOLT
M8 		0-91110-508-0 20 1 1307-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1008-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1008-
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1008-
126 CONNECTOR; ELBOW
(B) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 1008-
126 CONNECTOR; ELBOW
(C) 		8-98227-936-0 01 1 1307-
126 CONNECTOR; ELBOW
TIRE INFLATOR DEVICE<SG4> (B) PT1/4 2WAY 		1-09660-693-0 01 1 1307-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
(A) 		1-48340-058-2 02 1 1008-1306
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
(C) STAMP 5.5 		8-97609-249-0 03 1 1307-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
(B) 		1-48340-065-0 01 1 1008-1306
383 UNION; 3 WAY
(A) 		1-09660-363-0 01 1 1008-
383 UNION; 3 WAY
(B) 		1-09661-092-0 02 1 1307-

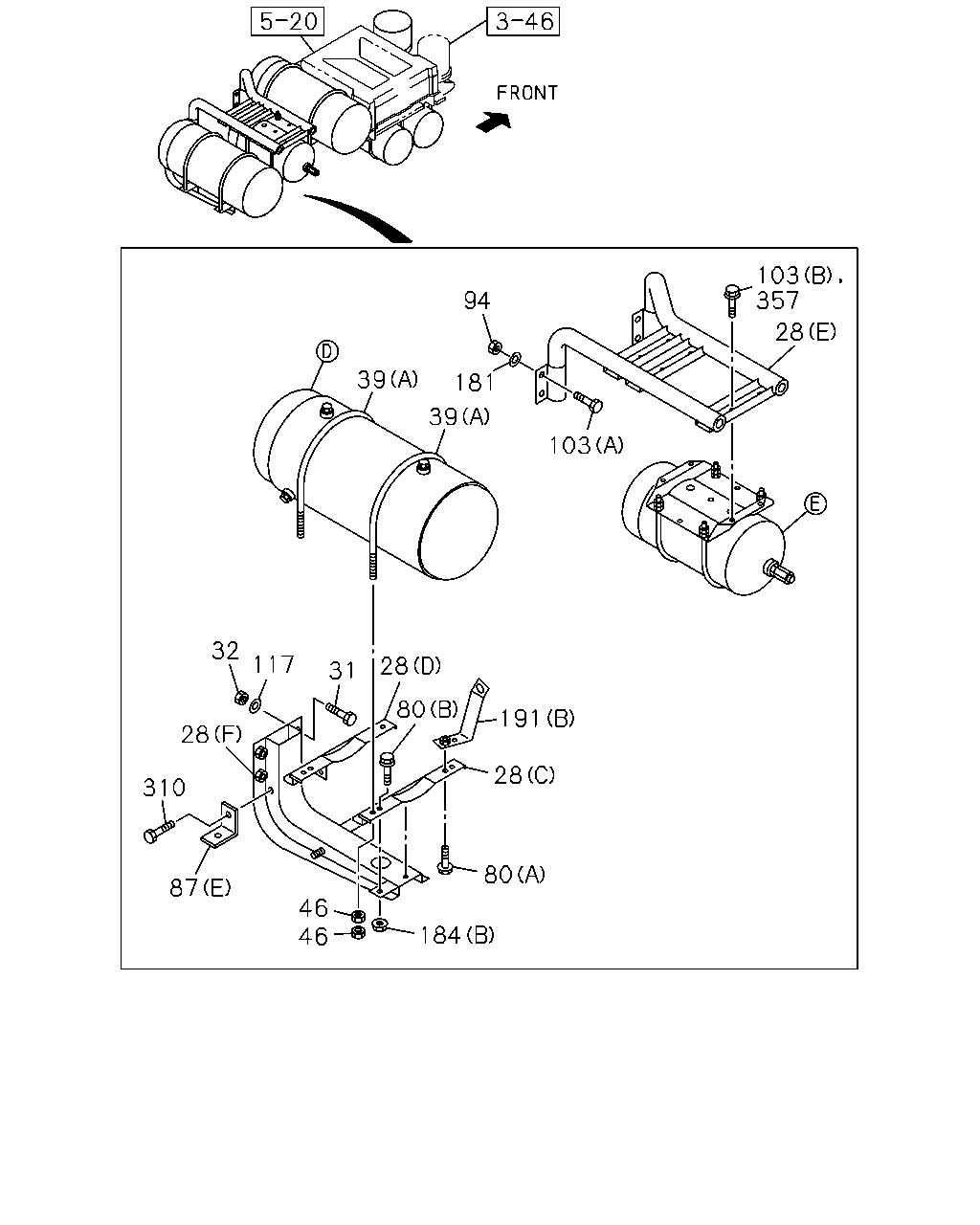

çizim 170621
28 357 103 103 181 94 39 39 191 28 117 80 28 31 32 28 310 87 46 46 80 184
BalonParca AdiParca NoAdetTipApplied Date
28 BRACKET; AIR TANK
(A) 		1-47471-153-0 01 1 1008-1306
28 BRACKET; AIR TANK
(H) 		8-98200-121-2 01 1 1307-
28 BRACKET; AIR TANK
(F) 		1-48316-024-3 01 1 1008-
28 BRACKET; AIR TANK
(D) 		1-48316-026-0 01 1 1008-
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 1008-1306
28 BRACKET; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-48317-473-2 01 1 1307-
28 BRACKET; AIR TANK
(E) 		1-48317-985-1 01 1 1008-1306
28 BRACKET; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (E) 		1-48317-985-1 01 1 1307-
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 01 1 1008-
28 BRACKET; AIR TANK
(G) 		8-97627-750-3 01 1 1008-
31 BOLT; BRKT TO FRAME
M14X50 		0-20851-450-0 04 1 1008-
32 NUT; BRKT TO FRAME
M14 		0-91110-514-0 04 1 1008-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 1008-1306
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 05 1 1307-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 1008-1306
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 06 1 1307-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1008-1306
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1008-1306
39 U-BOLT; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=210 		1-48317-458-1 02 1 1307-
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1008-1306
46 NUT; U-BOLT
M8 		0-91110-508-0 20 1 1307-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1008-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1008-
80 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1008-
80 BOLT; BRKT
(B) M12X25 FLANGE 		0-28651-225-0 04 1 1008-
87 BRACKET; AIR PIPE JOINT
(B) 		1-47471-189-0 02 1 1008-
87 BRACKET; AIR PIPE JOINT
(C) 		1-47471-241-0 01 1 1008-
87 BRACKET; AIR PIPE JOINT
(E) 		8-98053-747-0 01 1 1008-
87 BRACKET; AIR PIPE JOINT
(A) 		8-98054-525-0 01 1 1008-
87 BRACKET; AIR PIPE JOINT
(D) 		8-98060-053-0 01 1 1008-
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 02 1 1008-
103 BOLT; BRKT
(A) M14X35 		0-20851-435-0 04 1 1008-
103 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 04 1 1008-
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 06 1 1008-1306
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1307-
117 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 04 1 1008-
181 WASHER; LK,AIR TANK
ID=14.2 		0-91510-514-0 04 1 1008-
184 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 1008-
184 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 01 1 1008-
191 BRACKET; STOPPER,AIR TANK
(B) 		1-48316-014-1 01 1 1008-
191 BRACKET; STOPPER,AIR TANK
(A) 		1-48316-015-1 01 1 1008-
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 06 1 1008-1306
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 05 1 1307-
310 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1307-
357 BOLT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) M10X30 FLANGE 		0-28651-030-0 04 1 1307-

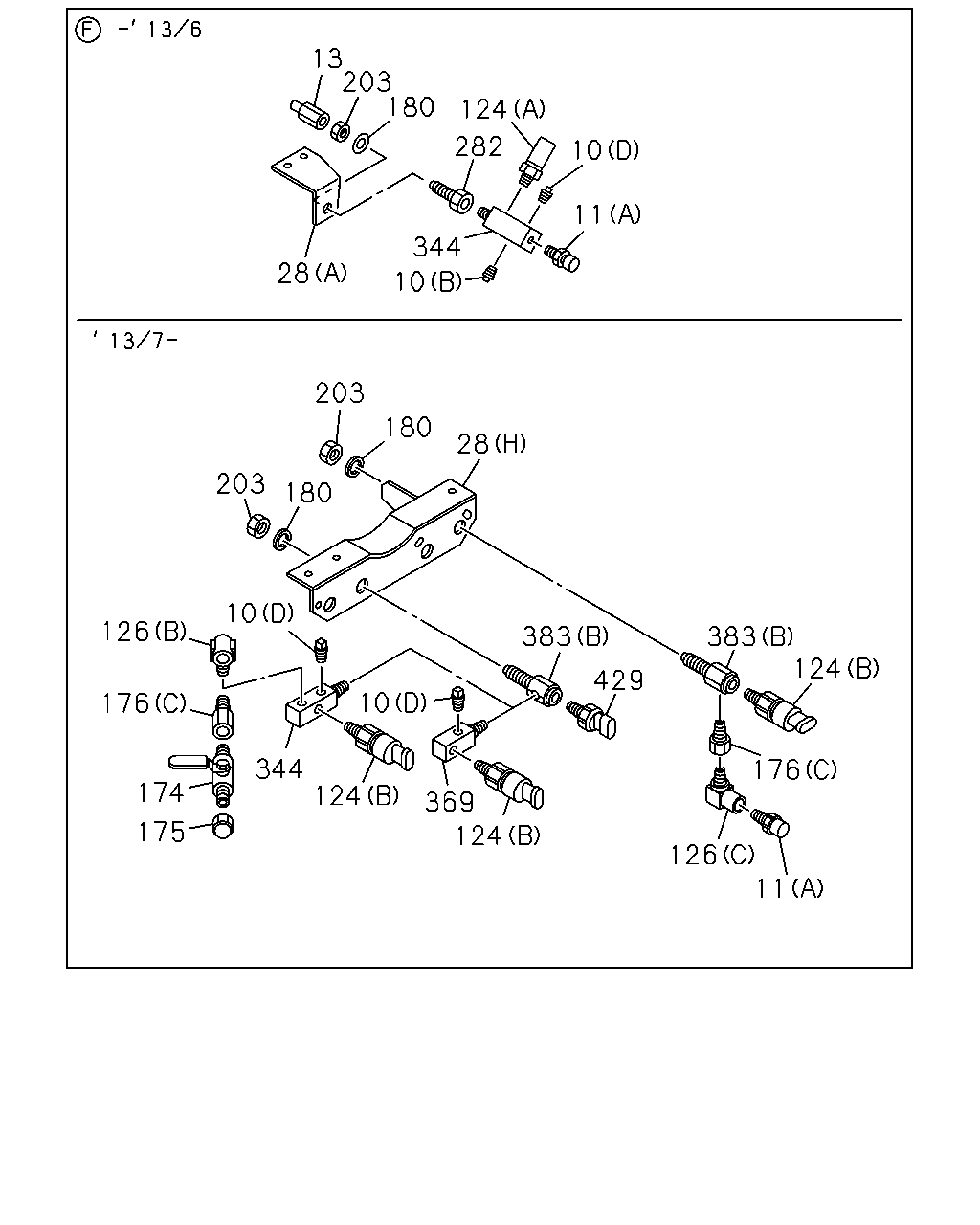

çizim 170639
175 344 174 124 369 124 126 11 176 124 383 429 383 10 10 126 176 203 203 180 180 28 10 344 11 10 282 124 180 203 13 28
BalonParca AdiParca NoAdetTipApplied Date
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 01 1 1008-1306
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 03 1 1307-
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 02 1 1008-1306
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 01 1 1307-
10 PLUG; AIR TANK
(E) M14 		1-09661-569-0 01 1 1008-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1008-1306
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1008-1306
10 PLUG; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) PT3/4 		9-09204-526-0 01 1 1307-
10 PLUG; AIR TANK
(C) PT3/4 		9-09204-526-0 01 1 1008-1306
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 1307-
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 01 1 1008-1306
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 01 1 1008-1306
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 04 1 1307-
11 VALVE; SAFETY,AIR TANK
(A) 		1-48320-012-2 01 1 1008-
11 VALVE; SAFETY,AIR TANK
(B) 		1-48320-047-2 01 1 1008-1306
13 ADAPTER; NYLON TUBE
DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 1008-1306
28 BRACKET; AIR TANK
(A) 		1-47471-153-0 01 1 1008-1306
28 BRACKET; AIR TANK
(H) 		8-98200-121-2 01 1 1307-
28 BRACKET; AIR TANK
(F) 		1-48316-024-3 01 1 1008-
28 BRACKET; AIR TANK
(D) 		1-48316-026-0 01 1 1008-
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 1008-1306
28 BRACKET; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-48317-473-2 01 1 1307-
28 BRACKET; AIR TANK
(E) 		1-48317-985-1 01 1 1008-1306
28 BRACKET; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (E) 		1-48317-985-1 01 1 1307-
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 01 1 1008-
28 BRACKET; AIR TANK
(G) 		8-97627-750-3 01 1 1008-
124 SWITCH; AIR PRESSURE
(A) 		1-48340-065-0 01 1 1008-1306
124 SWITCH; AIR PRESSURE
(B) STAMP 5.5 		8-97609-249-0 02 1 1307-
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1008-
126 CONNECTOR; ELBOW
(B) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 1008-
126 CONNECTOR; ELBOW
(C) 		8-98227-936-0 01 1 1307-
126 CONNECTOR; ELBOW
TIRE INFLATOR DEVICE<SG4> (B) PT1/4 2WAY 		1-09660-693-0 01 1 1307-
174 COCK; AIR,INFLATOR
TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 1307-
175 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 1307-
176 ADAPTER
(D) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1008-
176 ADAPTER
(A) PT3/8 		1-09664-210-0 02 1 1008-
176 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 1307-
176 ADAPTER
TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 02 1 1307-
176 ADAPTER
EXC. TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 01 1 1307-
180 WASHER; LK
ID=16.2 		0-91510-516-0 01 1 1008-1306
180 WASHER; LK
ID=18.2 		0-91510-518-0 02 1 1307-
203 NUT
M16 		0-91110-516-0 01 1 1008-1306
203 NUT
M18 		0-91110-518-0 02 1 1307-
282 UNION; 2 WAY 1-09650-222-1 01 1 1008-1306
344 CONNECTOR; 4WAY 1-09660-521-2 01 1 1008-1306
344 CONNECTOR; 4WAY
TIRE INFLATOR DEVICE<SG4> PT1/4 4WAY 		1-09660-358-0 01 1 1307-
369 CONNECTOR; 3WAY
EXC. TIRE INFLATOR DEVICE<SG4> DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1307-
383 UNION; 3 WAY
(A) 		1-09660-363-0 01 1 1008-
383 UNION; 3 WAY
(B) 		1-09661-092-0 02 1 1307-
429 SENSOR
THREAD R1/4 		1-80220-023-1 01 1 1307-

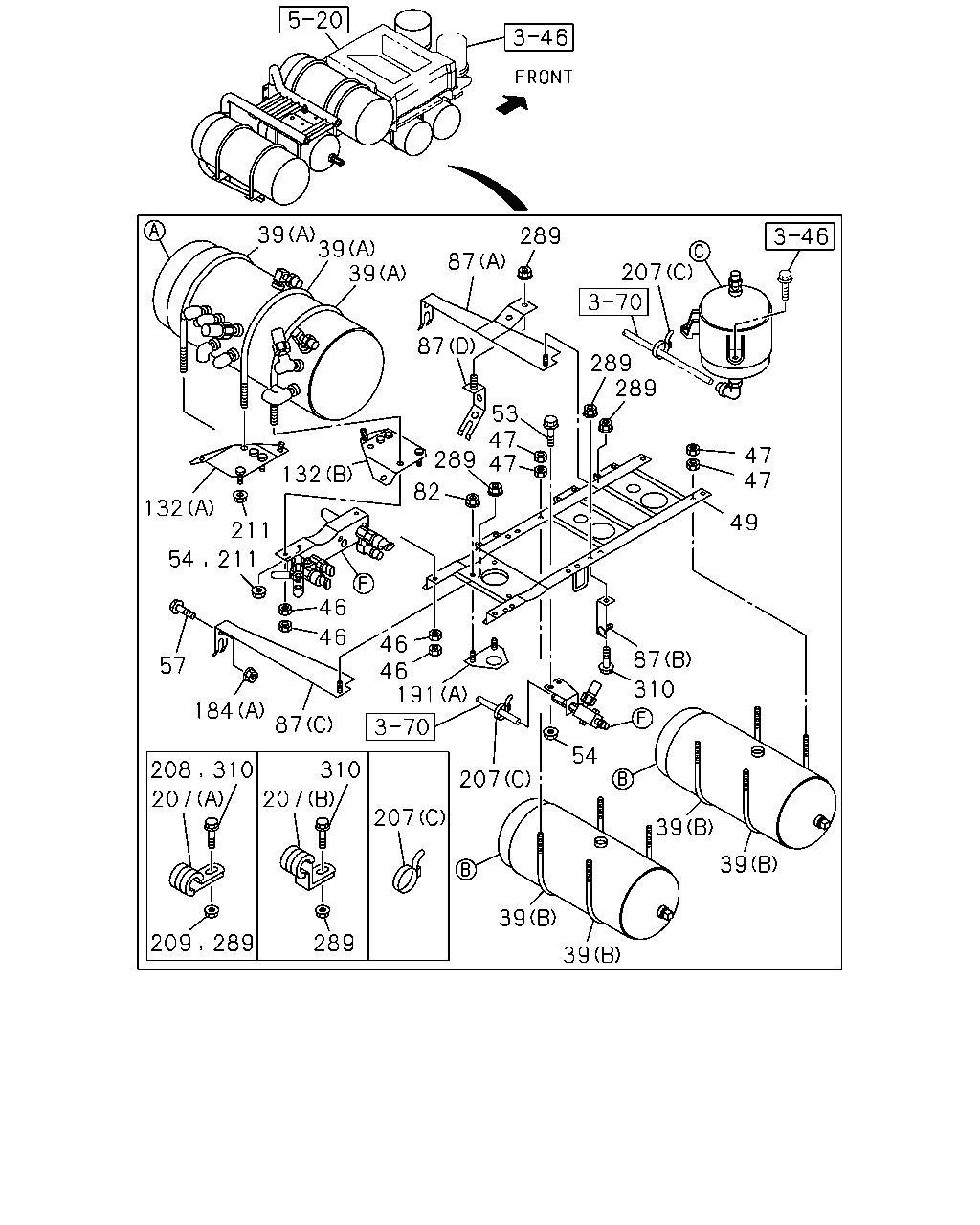

çizim 170640
47 47 49 87 310 54 39 39 39 39 207 207 207 310 289 289 209 207 208 310 184 87 191 46 46 46 57 211 211 54 132 132 82 289 47 47 53 87 289 87 39 39 39 46 207 289 289
BalonParca AdiParca NoAdetTipApplied Date
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 1008-1306
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 05 1 1307-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 1008-1306
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 06 1 1307-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1008-1306
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1008-1306
39 U-BOLT; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=210 		1-48317-458-1 02 1 1307-
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1008-1306
46 NUT; U-BOLT
M8 		0-91110-508-0 20 1 1307-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1008-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1008-
47 NUT; LK,U BOLT,AIR TANK
M8 		0-91110-508-0 16 1 1008-
49 BRACKET; AIR TANK 1-48316-065-1 01 1 1008-1306
49 BRACKET; AIR TANK 8-98241-376-0 01 1 1307-
53 BOLT; STAY,AIR TANK
M8X20 FLANGE 		0-28650-820-0 02 1 1008-1306
54 NUT; STAY
M8 FLANGE 		0-91180-108-0 02 1 1008-1306
54 NUT; STAY
M8 FLANGE 		0-91180-108-0 01 1 1307-
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28651-025-0 04 1 1008-
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91180-108-0 02 1 1008-
87 BRACKET; AIR PIPE JOINT
(B) 		1-47471-189-0 02 1 1008-
87 BRACKET; AIR PIPE JOINT
(C) 		1-47471-241-0 01 1 1008-
87 BRACKET; AIR PIPE JOINT
(E) 		8-98053-747-0 01 1 1008-
87 BRACKET; AIR PIPE JOINT
(A) 		8-98054-525-0 01 1 1008-
87 BRACKET; AIR PIPE JOINT
(D) 		8-98060-053-0 01 1 1008-
132 BRACKET; STRING GUIDE
(A) 		8-98140-096-0 01 1 1008-1306
132 BRACKET; STRING GUIDE
(B) 		8-98200-122-0 01 1 1307-
184 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 1008-
184 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 01 1 1008-
191 BRACKET; STOPPER,AIR TANK
(B) 		1-48316-014-1 01 1 1008-
191 BRACKET; STOPPER,AIR TANK
(A) 		1-48316-015-1 01 1 1008-
207 CLIP; AIR PIPE
(A) ID=7 L=20 		0-95234-635-0 01 1 1008-
207 CLIP; AIR PIPE
(A) ID=16 L=20 		0-95235-535-0 01 1 1008-
207 CLIP; AIR PIPE
(A) ID=35 L=33 		1-09700-945-0 02 1 1008-1306
207 CLIP; AIR PIPE
(A) ID=35 L=33 		1-09700-945-0 01 1 1307-
207 CLIP; AIR PIPE
(B) ID=31 H=30 L=35 		1-09700-994-0 01 1 1008-
207 CLIP; AIR PIPE
(C) L=350 		1-09707-183-0 01 1 1008-1306
207 CLIP; AIR PIPE
(C) L=350 		1-09707-183-0 13 1 1307-
207 CLIP; AIR PIPE
(C) L=350 		1-09707-183-0 13 1 1008-1306
207 CLIP; AIR PIPE
(A) ID=35 L=35 		1-09700-895-0 01 1 1307-
207 CLIP; AIR PIPE
(C) L=256 		1-09707-189-0 02 1 1008-
208 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 1008-
209 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1008-
211 NUT; STRING GUIDE
M8 FLANGE 		0-91180-108-0 02 1 1008-
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 06 1 1008-
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 06 1 1008-1306
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 05 1 1307-
310 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1307-

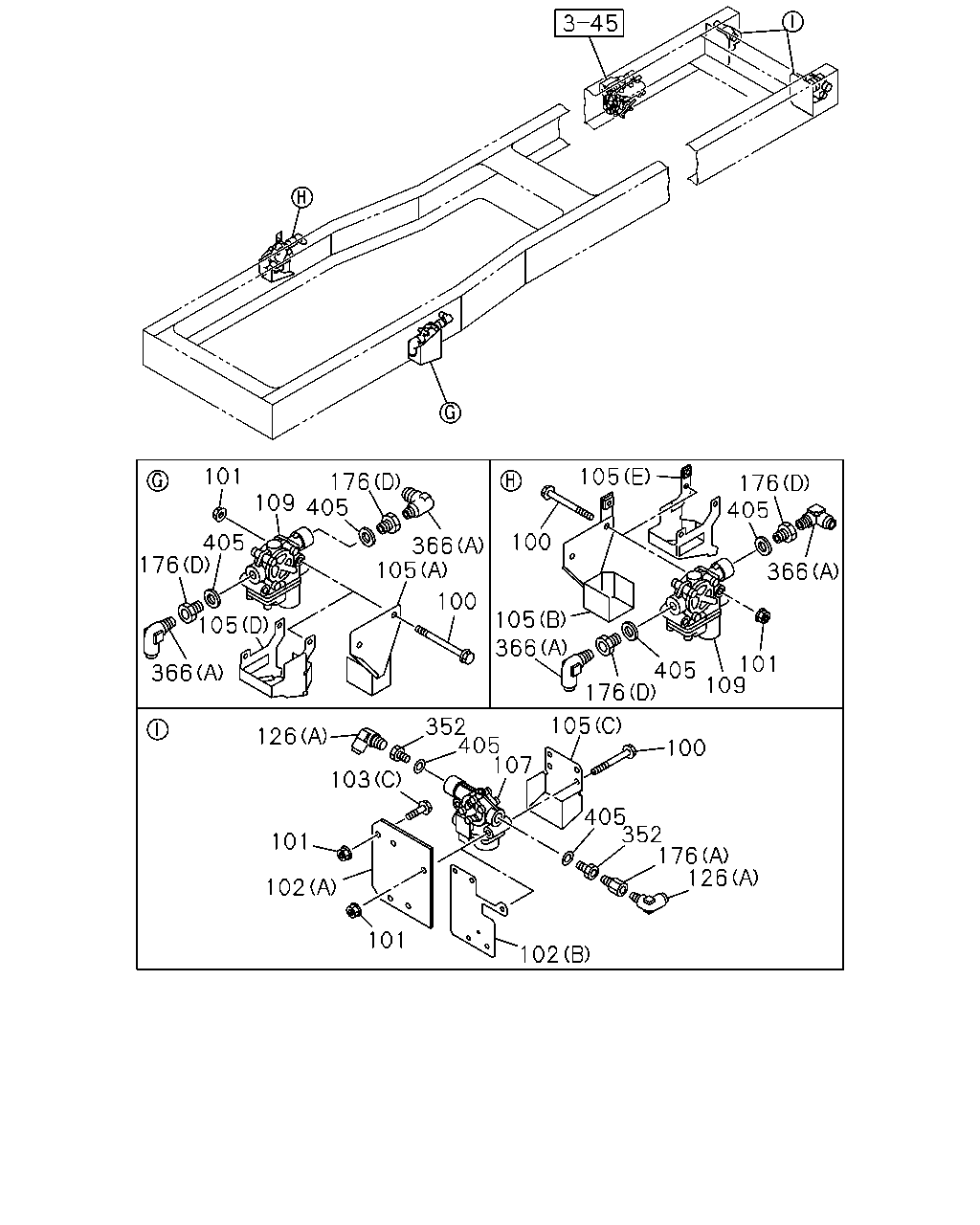

çizim 170681
101 176 109 405 366 105 100 105 176 366 405 126 352 105 100 405 103 101 102 107 405 352 176 126 105 176 100 405 366 101 109 405 176 366 105 101 102
BalonParca AdiParca NoAdetTipApplied Date
100 BOLT; MODULATOR
M8X85 		1-09044-074-0 04 1 1505-
100 BOLT; MODULATOR
M8X80 FLANGE 		0-28050-880-0 08 1 1008-1504
100 BOLT; MODULATOR
M8X80 FLANGE 		0-28050-880-0 04 1 1505-
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 08 1 1008-
102 BRACKET; MODULATOR
(A) 		1-47471-369-0 02 1 1008-1504
102 BRACKET; MODULATOR
(B) 		8-98300-007-0 02 1 1505-
103 BOLT; BRKT
(A) M14X35 		0-20851-435-0 04 1 1008-
103 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 04 1 1008-
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 06 1 1008-1306
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1307-
105 COVER; MODULATOR
(C) 		1-47471-354-0 02 1 1008-1504
105 COVER; MODULATOR
(D) 		8-98300-150-0 01 1 1505-
105 COVER; MODULATOR
(C) 		8-98302-925-0 01 1 1505-
105 COVER; MODULATOR
(A) 		8-98147-199-0 01 1 1008-1504
105 COVER; MODULATOR
(C) 		8-98302-924-0 01 1 1505-
105 COVER; MODULATOR
(B) 		8-98147-206-0 01 1 1008-1504
105 COVER; MODULATOR
(E) 		8-98300-154-0 01 1 1505-
107 MODULATOR; RR 1-48240-115-0 02 1 1008-1504
107 MODULATOR; RR 8-98215-454-0 02 1 1505-
109 MODULATOR; FRT 1-48240-115-0 02 1 1008-1504
109 MODULATOR; FRT 8-98215-454-0 02 1 1505-
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1008-
126 CONNECTOR; ELBOW
(B) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 1008-
126 CONNECTOR; ELBOW
(C) 		8-98227-936-0 01 1 1307-
126 CONNECTOR; ELBOW
TIRE INFLATOR DEVICE<SG4> (B) PT1/4 2WAY 		1-09660-693-0 01 1 1307-
176 ADAPTER
(D) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1008-
176 ADAPTER
(A) PT3/8 		1-09664-210-0 02 1 1008-
176 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 1307-
176 ADAPTER
TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 02 1 1307-
176 ADAPTER
EXC. TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 01 1 1307-
352 CONNECTOR; STRAIGHT
INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1008-
366 CONNECTOR; NYLON TUBE
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1008-
366 CONNECTOR; NYLON TUBE
(B) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 1008-1306
366 CONNECTOR; NYLON TUBE
(C) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 1008-1306
366 CONNECTOR; NYLON TUBE
(D) 		1-09661-501-0 01 1 1008-1306
405 GASKET
ID=22.5 		9-09571-422-0 01 1 1307-
405 GASKET
ID=22.5 		9-09571-422-0 08 1 1008-
çizim 366174
241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 1008-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
