3-10 — BRAKE PEDAL AND CONTROL
(#63170) — 37 parça
◀
[310A] FIXING;BRAKE VALVE (16 parça)

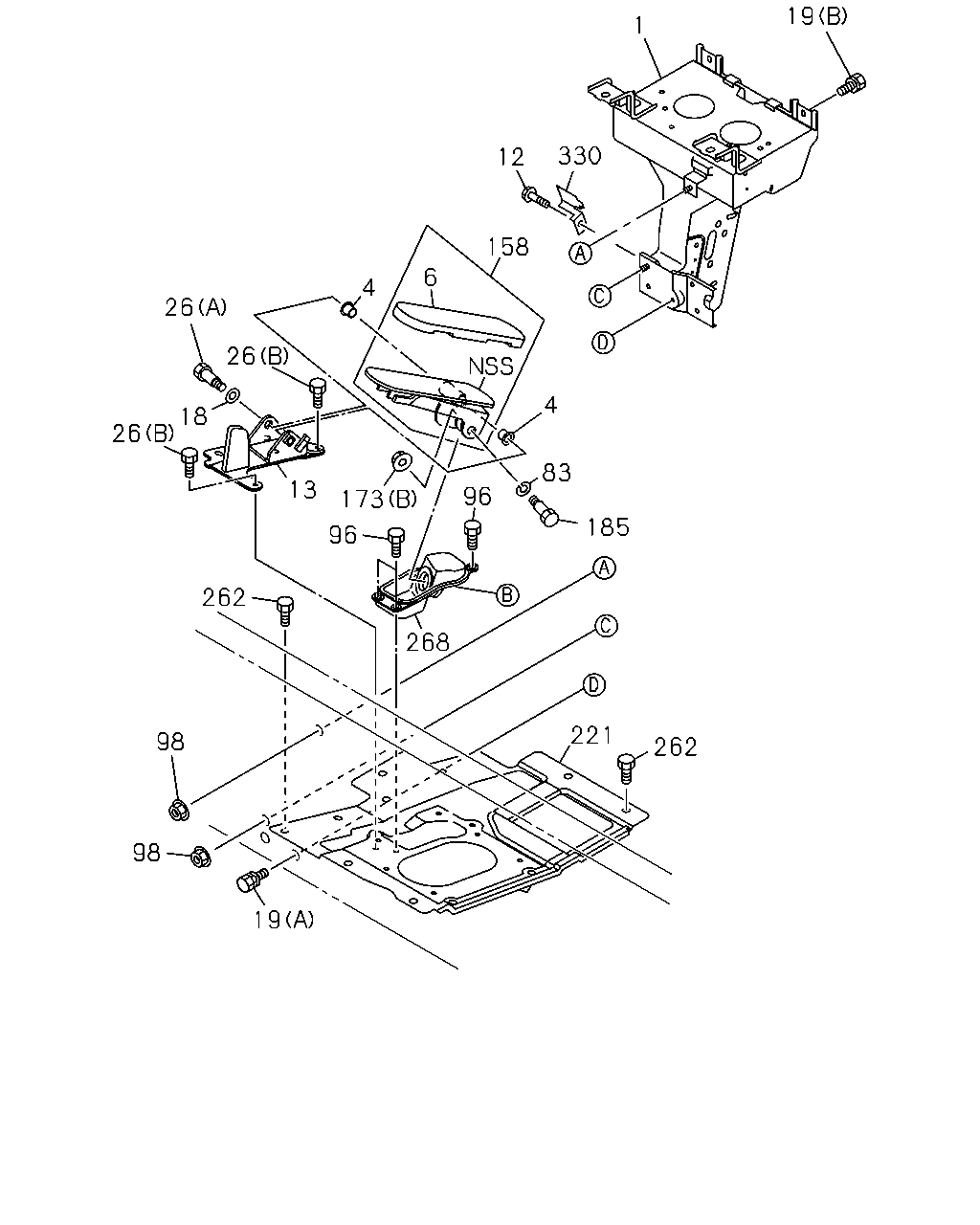

[310A] BRACKET AND PEDAL (21 parça)
▶
20
34
20
191
20
173
172
266
16
16
7
7
7
7
183
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
CONNECTOR; BRK VALVE
(A)
1-09656-708-0
01
1
1008-
7
CONNECTOR; BRK VALVE
(B) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1008-
7
CONNECTOR; BRK VALVE
(C)
1-09661-285-0
02
1
1008-1306
7
CONNECTOR; BRK VALVE
(C)
1-09661-285-0
01
1
1307-
7
CONNECTOR; BRK VALVE
(C)
1-09661-285-0
01
1
1307-
7
CONNECTOR; BRK VALVE
(D) DIN8 & RC1/4 & R3/8 3WAY
8-97620-116-0
01
1
1008-
16
SWITCH; STOP LAMP
(A) GREEN
1-82410-176-1
02
1
1008-1306
16
SWITCH; STOP LAMP
(B) STAMP 0.3
8-98010-857-0
02
1
1307-
20
BOLT; BRKT
M8X24.5 W/LK&PL WASHER
8-98059-720-0
04
1
1008-
34
BRACKET ASM; BRK VLV
1-79738-808-3
01
1
1008-
172
JOINT; JAW,BRK PEDAL
1-73908-167-1
01
1
1008-
173
NUT; JOINT LOCK
(A) M12
0-91110-512-0
01
1
1008-
173
NUT; JOINT LOCK
(B) M10 FLANGE
0-91180-110-0
01
1
1008-
183
BOLT; BRK VLV
M10X25 W/LK WASHER
1-09980-503-0
03
1
1008-
191
JOINT; BALL,PUSH ROD
1-47355-001-0
01
1
1008-
266
JOINT ROD
1-73908-166-3
01
1
1008-
262
221
19
98
98
262
268
185
83
96
4
96
173
13
26
18
26
26
4
6
158
12
330
1
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET ASM; PEDAL
1-73908-480-0
01
1
1008-
4
BUSHING; BRK PEDAL
1-73908-201-1
02
1
1008-
6
COVER; BRK PEDAL
1-48119-333-0
01
1
1008-
12
BOLT; BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
1008-
13
BRACKET; BRK PEDAL
1-73908-069-6
01
1
1008-
18
WASHER; PL
ID=12.5
9-09164-512-0
01
1
1008-
19
BOLT; BRKT
(A) M8X20
1-79198-002-0
02
1
1008-
19
BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1008-
26
BOLT; PEDAL
(A)
1-09980-614-0
01
1
1008-
26
BOLT; PEDAL
(B) M6X25
8-94279-204-0
02
1
1008-
83
WASHER; LK,BRKT
ID=14.2
0-91510-814-0
01
1
1008-
96
BOLT; COVER
M6X19.5 W/LK&PL WASHER
8-94279-201-0
03
1
1008-
98
NUT; BRKT
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
1008-
158
PEDAL ASM; BRK
1-73908-068-5
01
1
1008-
173
NUT; JOINT LOCK
(A) M12
0-91110-512-0
01
1
1008-
173
NUT; JOINT LOCK
(B) M10 FLANGE
0-91180-110-0
01
1
1008-
185
BOLT; BRKT
1-73996-282-1
01
1
1008-
221
PLATE ASM; SIDE
1-73996-280-4
01
1
1008-
262
BOLT; PLATE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
08
1
1008-
268
COVER; ROD
1-73908-192-1
01
1
1008-
330
BRACKET; CONNECTOR
8-97616-605-0
01
1
1008-
