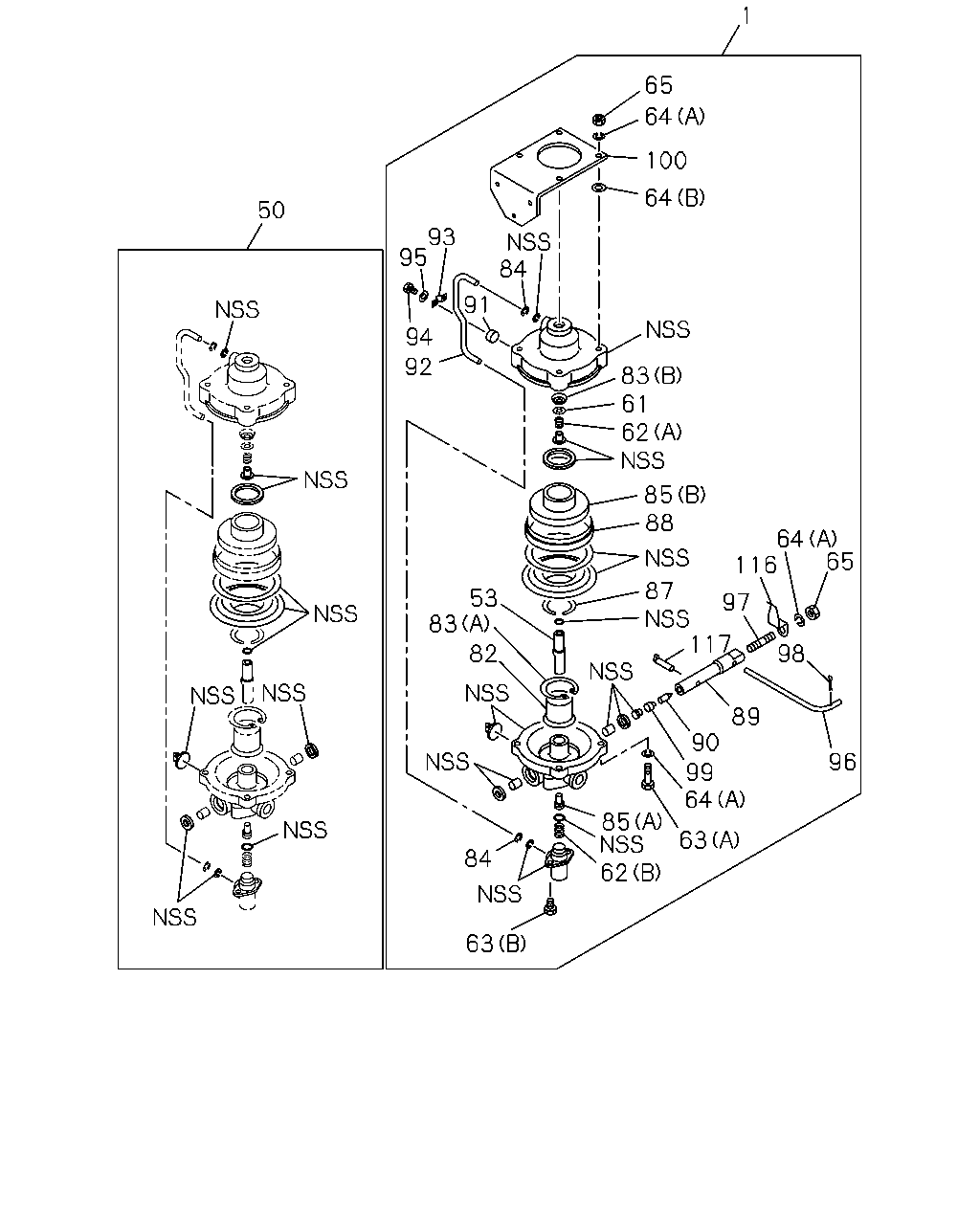

3-45 — LOAD SENSING PROPORTIONING VALVE (#6317) — 63 parça

1 65 64 100 64 50 93 95 84 91 94 92 83 61 62 85 88 64 116 65 87 117 53 83 97 98 82 89 90 96 99 64 85 62 63 84 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE(JR7)	1-47720-093-0	01	1	9703-
50	REPAIR KIT; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-088-0	01	1	9703-
53	PLUNGER; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-033-0	01	1	9703-
61	RETAINER; SPRING LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-026-0	01	1	9703-
62	SPRING; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (A)	1-47769-025-0	01	1	9703-
62	SPRING; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (B)	1-47769-042-0	01	1	9703-
63	BOLT; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (B)	1-47769-045-0	02	1	9703-
63	BOLT; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (A)	1-47769-094-0	04	1	9703-
64	WASHER; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (A)	1-47769-036-0	05	1	9703-
64	WASHER; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (B)	1-47769-079-0	04	1	9703-
65	NUT; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-095-0	05	1	9703-
82	GUIDE; PISTON,LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-016-0	01	1	9703-
83	RING; SNAP,RET LOAD SENSING PROPORTIONING VALVE(JR7) (A)	1-47769-017-0	01	1	9703-
83	RING; SNAP,RET LOAD SENSING PROPORTIONING VALVE(JR7) (B)	1-47769-027-0	01	1	9703-
84	RETAINER; GASKET LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-021-0	02	1	9703-
85	PISTON; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (B)	1-47769-023-0	01	1	9703-
85	PISTON; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (A)	1-47769-043-0	01	1	9703-
87	RETAINER; DIAPH LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-086-0	01	1	9703-
88	GUIDE; DIAPH LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-032-0	01	1	9703-
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-083-0	01	1	9703-
90	SCREW; CAM LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-039-0	01	1	9703-
91	FILTER; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-047-0	01	1	9703-
92	PIPE; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-048-0	01	1	9703-
93	CLIP; PIPE LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-050-0	01	1	9703-
94	SCREW; CLIP LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-051-0	02	1	9703-
95	WASHER; CLIP LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-052-0	02	1	9703-
96	ARM; OPERATING LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-110-0	01	1	9703-
97	BOLT; OPERATING ARM LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-081-0	01	1	9703-
98	PIN; SPLIT LOAD SENSING PROPORTIONING VALVE(JR7) OD=1.8 L=15	9-08112-015-0	01	1	9703-
99	CAP; SCREW LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-055-0	01	1	9703-
100	BRACKET; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-111-0	01	1	9703-
116	INDICATOR; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-078-0	01	1	9703-
117	CAM; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-038-0	01	1	9703-

58 58 13 58 1 101 101 21 114 33 8 114 3 6 5 7 4 2 8 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE(JR7)	1-47720-093-0	01	1	9703-
2	DAMPER LOAD SENSING PROPORTIONING VALVE(JR7)	1-47725-012-0	01	1	9703-9904
2	DAMPER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE(JR7)	1-47725-012-0	01	1	9905-
3	ROD; UPR LOAD SENSING PROPORTIONING VALVE(JR7)	1-09765-071-0	01	1	9703-9904
3	ROD; UPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE(JR7)	1-09765-071-0	01	1	9905-
4	ROD; LWR LOAD SENSING PROPORTIONING VALVE(JR7)	1-09765-212-0	01	1	9703-9904
4	ROD; LWR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE(JR7)	1-09765-212-0	01	1	9905-
5	JOINT LOAD SENSING PROPORTIONING VALVE(JR7)	1-09768-004-0	01	1	9703-9904
5	JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE(JR7)	1-09768-004-0	01	1	9905-
6	NUT; LK,UPR LOAD SENSING PROPORTIONING VALVE(JR7) M8	9-09111-408-0	01	1	9703-9904
6	NUT; LK,UPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE(JR7) M8	9-09111-408-0	01	1	9905-
7	NUT; LK,LWR LOAD SENSING PROPORTIONING VALVE(JR7) LH THREAD	1-09409-002-0	01	1	9703-9904
7	NUT; LK,LWR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE(JR7) LH THREAD	1-09409-002-0	01	1	9905-
8	ROD END LOAD SENSING PROPORTIONING VALVE(JR7)	1-47723-001-0	02	1	9703-9904
8	ROD END BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE(JR7)	1-47723-001-0	02	1	9905-
13	NUT; LSPV TO BRKT LOAD SENSING PROPORTIONING VALVE(JR7) M8 FLANGE	0-91150-108-0	03	1	9703-
21	BOLT; BRKT LOAD SENSING PROPORTIONING VALVE(JR7) M8X35 FLANGE	0-28680-835-0	03	1	9703-
26	BOLT; DAMPER LOAD SENSING PROPORTIONING VALVE(JR7) M8X12 FLANGE	0-28080-812-0	02	1	9703-9904
26	BOLT; DAMPER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE(JR7) M8X12 FLANGE	0-28080-812-0	02	1	9905-
33	PIN; SPLIT LOAD SENSING PROPORTIONING VALVE(JR7) OD=1.8 L=25	9-08112-025-0	01	1	9703-9904
33	PIN; SPLIT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE(JR7) OD=1.8 L=25	9-08112-025-0	01	1	9905-
58	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9703-
58	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	9703-9904
58	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9905-0007
58	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
58	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (C)	1-47459-013-0	01	1	9703-
101	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (A) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9703-9904
101	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9905-
101	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (B)	1-09660-778-1	01	1	9703-
114	WASHER; PL,JOINT RUBBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE(JR7) ID=8.4	9-09160-508-0	02	1	9905-
