2-85 — POWER TAKE OFF CONTROL (#63167) — 47 parça

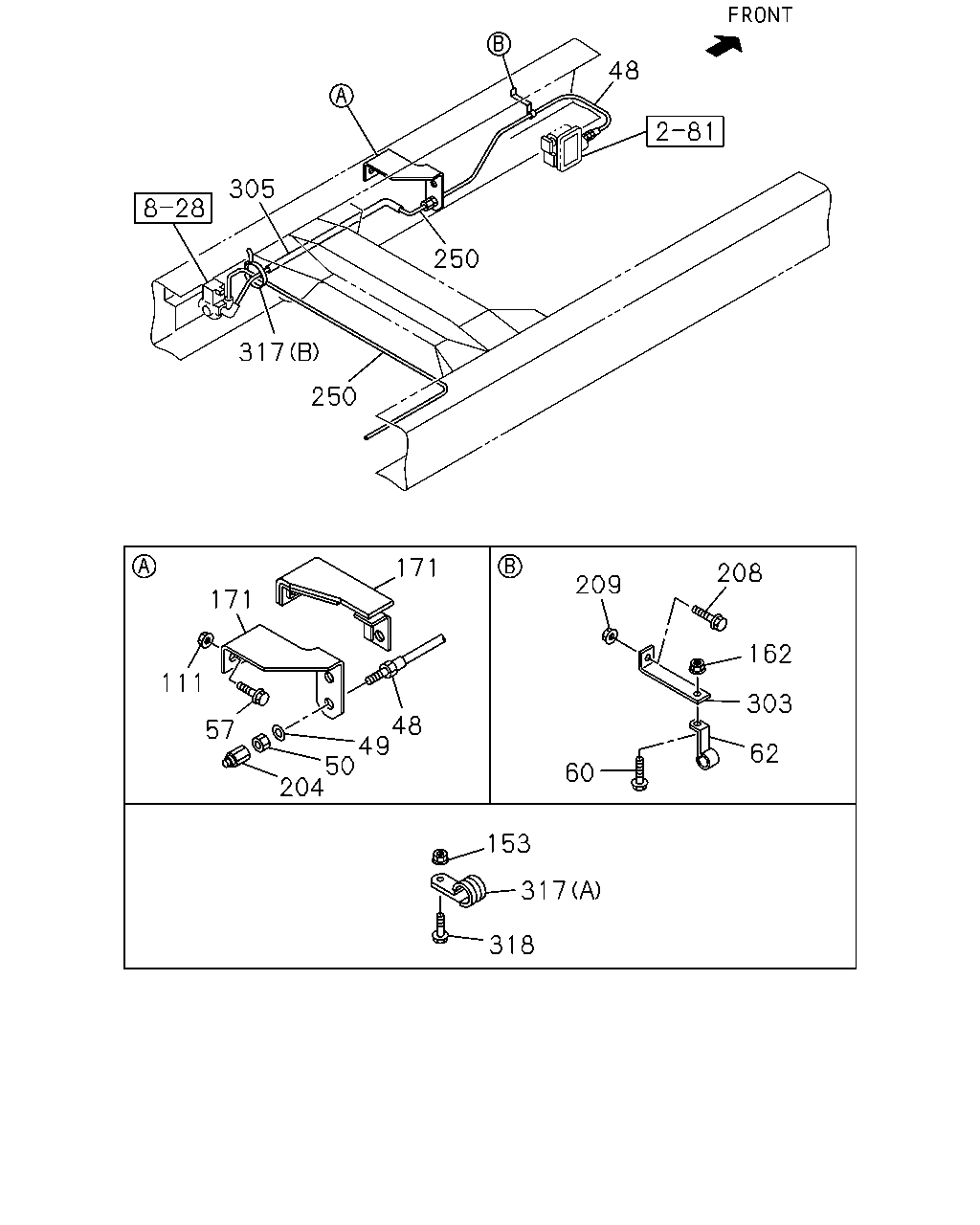

çizim 170590
305 317 250 48 250 171 171 111 57 204 48 49 50 209 208 162 303 62 60 153 317 318
BalonParca AdiParca NoAdetTipApplied Date
48 HOSE; FLEX,PTO
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) L=420 		1-09363-633-0 01 1 1008-1306
48 HOSE; FLEX,PTO
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) OD=12.7 L=450 		1-09363-631-0 01 1 1307-
48 HOSE; FLEX,PTO
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=880 		1-09363-819-0 01 1 1008-1306
48 HOSE; FLEX,PTO
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=940 		1-09363-707-0 01 1 1307-
48 HOSE; FLEX,PTO
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) L=350 		1-09363-624-0 01 1 1307-
49 WASHER; LK,FLEX HOSE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2 		0-91510-512-0 01 1 1008-1008
49 WASHER; LK,FLEX HOSE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2 		0-91510-812-0 01 1 1009-1306
49 WASHER; LK,FLEX HOSE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2 		0-91510-512-0 01 1 1307-
49 WASHER; LK,FLEX HOSE
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) ID=12.2 		0-91510-512-0 01 1 1307-
50 NUT; FLEX HOSE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 		9-09840-280-0 01 1 1008-1306
50 NUT; FLEX HOSE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 		9-09840-280-0 01 1 1307-
50 NUT; FLEX HOSE
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M12 		9-09840-280-0 01 1 1307-
57 BOLT; BRKT
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE 		0-28650-835-0 02 1 1008-1306
57 BOLT; BRKT
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X30 FLANGE 		0-28650-830-0 02 1 1307-
57 BOLT; BRKT
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M8X30 FLANGE 		0-28650-830-0 02 1 1307-
60 BOLT; CLIP FIX
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 01 1 1008-
62 CLIP; PIPE,AIR
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15 L=22 H=30 		1-09701-215-1 01 1 1008-
111 NUT; BRKT
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 1008-1306
153 NUT; CLIP
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE 		0-91180-108-0 01 1 1008-
162 NUT; CLIP
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 01 1 1008-
171 BRACKET; FLEX HOSE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-47471-088-0 01 1 1008-1306
171 BRACKET; FLEX HOSE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97634-061-0 01 1 1307-
171 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		8-97634-061-0 01 1 1307-
204 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1008-1306
204 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1307-
208 BOLT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE 		0-28650-835-0 01 1 1008-1306
208 BOLT; BRKT,AIR PIPE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE 		0-28650-835-0 01 1 1307-
208 BOLT; BRKT,AIR PIPE
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X35 FLANGE 		0-28650-835-0 01 1 1307-
209 NUT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 01 1 1008-1306
209 NUT; BRKT,AIR PIPE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 01 1 1307-
209 NUT; BRKT,AIR PIPE
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE 		0-91180-108-0 01 1 1307-
250 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 1008-1306
250 TUBE; NYLON
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 1008-1306
250 TUBE; NYLON
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 1307-
250 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 1307-
303 BRACKET; CLIP
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) L=95 		1-82699-085-0 01 1 1008-1306
303 BRACKET; CLIP
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=95 		1-82699-085-0 01 1 1307-
303 BRACKET; CLIP
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) L=95 		1-82699-085-0 01 1 1307-
305 TUBE; CORRUGATE
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1008-
317 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) ID=11 L=16 		0-95235-025-0 01 1 1008-
317 CLIP; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=350 		1-09707-183-0 01 1 1008-1306
318 BOLT; CLIP
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X25 FLANGE 		0-28650-825-0 01 1 1008-
çizim 170595
3 139 1 3 3 55
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER ASM; PTO & DUMP CONT
PTO CONTROL<SV6> 		1-79907-045-1 01 1 1008-
3 BOLT; BRKT,DUMP CONT LEVER
PTO CONTROL<SV6> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 1008-1306
3 BOLT; BRKT,DUMP CONT LEVER
PTO CONTROL<SV6> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 1307-
55 GROMMET; CABLE
EXC. PTO CONTROL<SV6> 		1-09983-068-0 01 1 1008-
139 BRACKET; CONT BOX
PTO CONTROL<SV6> 		1-79907-044-0 01 1 1008-
