Sayfa 2-53 - Isuzu EPC

2-53 — TRANSMISSION OIL COOLER SYSTEM (#63165) — 205 parça

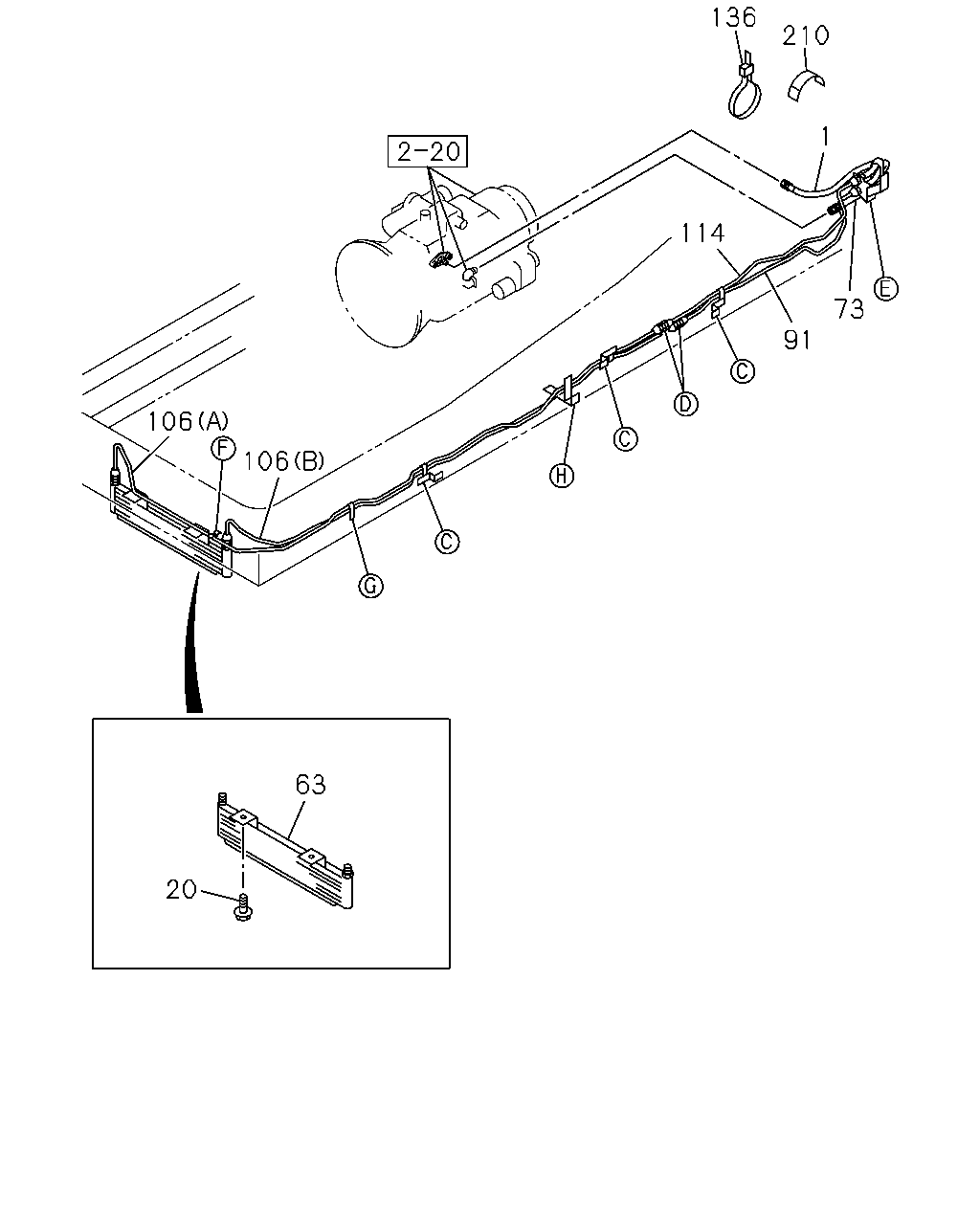

210 136 114 73 91 63 20 106 106 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1008-
1	HOSE; ATF MJX16P M/T(Y3Z) L=600	1-09365-232-0	01	1	1008-1306
1	HOSE; ATF MJX16P M/T(Y3Z) L=710	8-97635-173-0	01	1	1307-
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	1008-1306
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	1307-
63	COOLER; OIL	1-21700-394-0	01	1	1008-1306
63	COOLER; OIL MJT7S M/T(Y3E)	8-98240-506-0	01	1	1307-1405
63	COOLER; OIL MJT7S M/T(Y3E)	8-98269-767-0	01	1	1406-
63	COOLER; OIL MJX16P M/T(Y3Z)	8-98240-507-0	01	1	1307-
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1008-
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=530	1-09365-248-0	01	1	1008-1306
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=630	8-97635-172-0	01	1	1307-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=775 SERVICED BY L=800	1-47428-872-0	01	1	1008-1306
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=876 SERVICED BY L=900	1-47428-873-0	01	1	1307-
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=919	1-49166-987-1	01	1	1008-
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (A) L=1747 SERVICED BY L=1900	1-47428-881-0	01	1	1008-1306
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (B) L=1689	8-98234-564-0	01	1	1307-
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (A) L=2314	8-98234-565-0	01	1	1307-
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B) L=1726	8-98034-829-0	01	1	1008-1306
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B) L=1746	8-98234-809-0	01	1	1307-
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (C) L=2311	8-98034-830-0	01	1	1008-1306
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (C) L=2347	8-98234-810-0	01	1	1307-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=836 SERVICED BY L=900	1-47428-873-0	01	1	1008-1306
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=841	8-98100-827-0	01	1	1307-
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=849	1-49167-146-0	01	1	1008-
136	CLIP; FLEX HOSE L=350	1-09707-183-0	01	1	1008-1306
136	CLIP; FLEX HOSE MJT7S M/T(Y3E) L=350	1-09707-183-0	01	1	1307-
136	CLIP; FLEX HOSE MJX16P M/T(Y3Z) L=350	1-09707-183-0	02	1	1307-
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1008-1306
210	BAND; FLEX HOSE MJT7S M/T(Y3E) L=175	1-09707-178-0	01	1	1307-
210	BAND; FLEX HOSE MJX16P M/T(Y3Z) L=175	1-09707-178-0	02	1	1307-

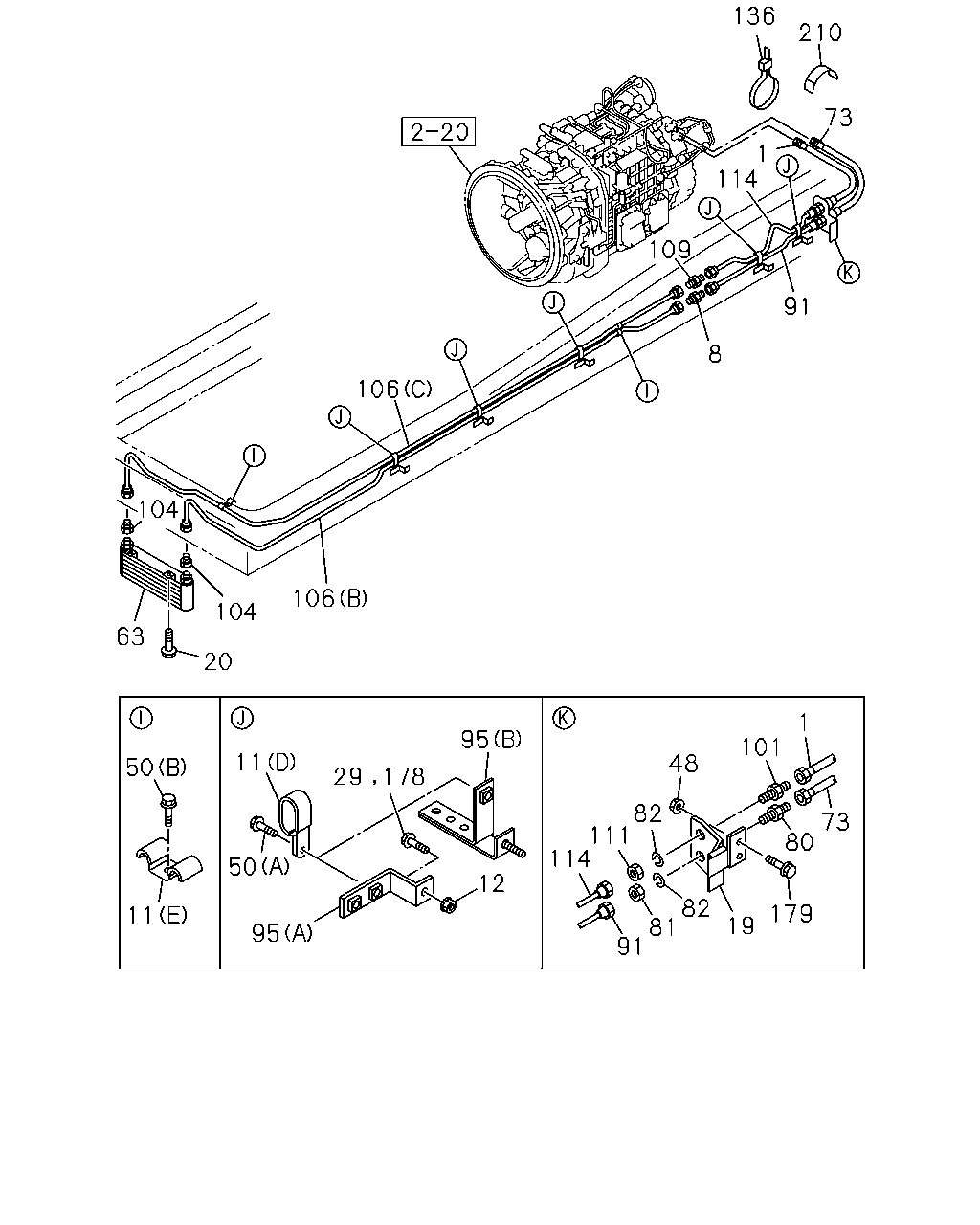

50 11 12 11 29 178 95 12 50 116 114 117 48 1 73 179 19 77 76 1 11 50 50 11 11 50 12 95 8 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1008-
1	HOSE; ATF MJX16P M/T(Y3Z) L=600	1-09365-232-0	01	1	1008-1306
1	HOSE; ATF MJX16P M/T(Y3Z) L=710	8-97635-173-0	01	1	1307-
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1008-
8	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1008-
11	CLIP; PIPE MJT7S M/T(Y3E) (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	1008-1306
11	CLIP; PIPE MJT7S M/T(Y3E) (F) ID=11X2 L=20	0-95325-035-0	05	1	1307-
11	CLIP; PIPE MJT7S M/T(Y3E) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	02	1	1008-1306
11	CLIP; PIPE MJT7S M/T(Y3E) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	1307-
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	9-09535-036-0	05	1	1008-1306
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16X2 L=20	0-95325-535-0	05	1	1008-
11	CLIP; PIPE MJX16P M/T(Y3Z) (E) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1008-
12	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1008-1306
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1307-
19	BRACKET; FLEX HOSE MJT7S M/T(Y3E)	1-47479-559-0	01	1	1008-
19	BRACKET; FLEX HOSE MJX16P M/T(Y3Z)	1-47479-561-1	01	1	1008-
29	BOLT; FILTER TO BRKT M8X30 FLANGE	0-28650-830-0	04	1	1008-1306
29	BOLT; FILTER TO BRKT M8X35 FLANGE	0-28650-835-0	02	1	1307-
29	BOLT; FILTER TO BRKT MJT7S M/T(Y3E) M10X30 FLANGE	0-28651-030-0	02	1	1008-1306
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1008-
48	NUT; BRKT MJT7S M/T(Y3E) M8 FLANGE	0-91180-108-0	01	1	1008-1306
50	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	05	1	1008-
50	BOLT; CLIP MJT7S M/T(Y3E) (C) M8X16 FLANGE	0-28050-816-0	01	1	1008-1306
50	BOLT; CLIP MJT7S M/T(Y3E) (B) M8X20 FLANGE	0-28650-820-0	02	1	1008-1306
50	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1307-
50	BOLT; CLIP MJX16P M/T(Y3Z) (B) M8X20 FLANGE	0-28650-820-0	01	1	1008-1306
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1008-
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=530	1-09365-248-0	01	1	1008-1306
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=630	8-97635-172-0	01	1	1307-
76	NUT; FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1008-
77	WASHER; LK MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1008-
95	BRACKET; CLIP (A)	1-47479-482-0	05	1	1008-1306
95	BRACKET; CLIP (A)	1-47479-482-0	03	1	1307-
95	BRACKET; CLIP (B)	8-98199-287-2	01	1	1307-
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	02	1	1008-1306
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1307-
109	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1008-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=836 SERVICED BY L=900	1-47428-873-0	01	1	1008-1306
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=841	8-98100-827-0	01	1	1307-
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=849	1-49167-146-0	01	1	1008-
116	NUT; BRKT,FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1008-
117	WASHER; LK,FLEX HOSE MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1008-
178	BOLT; BRKT,CLIP M8X30 FLANGE	0-28650-830-0	01	1	1008-1306
178	BOLT; BRKT,CLIP M8X35 FLANGE	0-28650-835-0	01	1	1307-
179	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1008-1306
179	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1307-

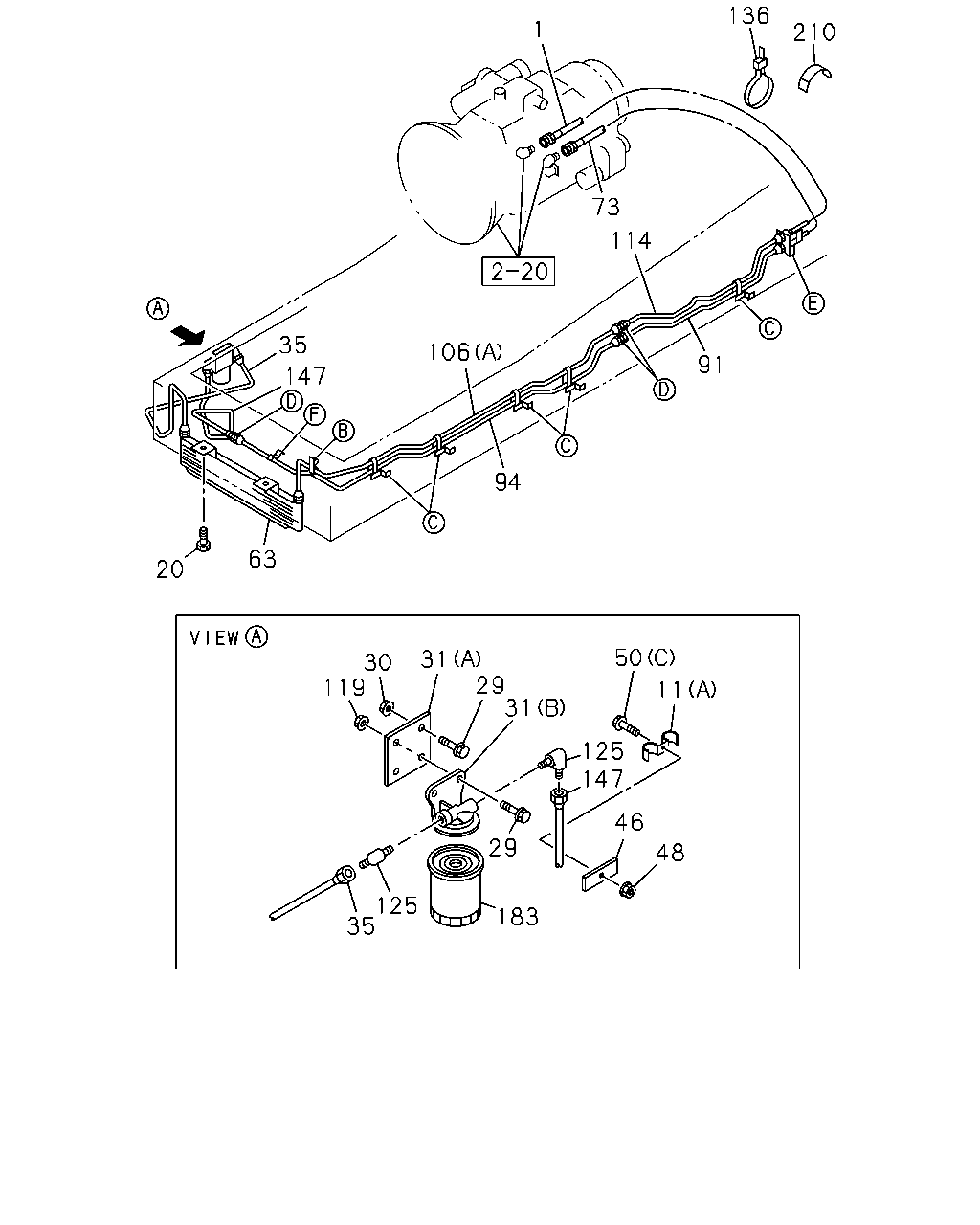

114 91 106 210 136 1 35 147 63 20 50 31 29 31 30 119 29 183 46 48 147 125 125 35 11 94 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1008-
1	HOSE; ATF MJX16P M/T(Y3Z) L=600	1-09365-232-0	01	1	1008-1306
1	HOSE; ATF MJX16P M/T(Y3Z) L=710	8-97635-173-0	01	1	1307-
11	CLIP; PIPE MJT7S M/T(Y3E) (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	1008-1306
11	CLIP; PIPE MJT7S M/T(Y3E) (F) ID=11X2 L=20	0-95325-035-0	05	1	1307-
11	CLIP; PIPE MJT7S M/T(Y3E) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	02	1	1008-1306
11	CLIP; PIPE MJT7S M/T(Y3E) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	1307-
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	9-09535-036-0	05	1	1008-1306
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16X2 L=20	0-95325-535-0	05	1	1008-
11	CLIP; PIPE MJX16P M/T(Y3Z) (E) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1008-
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	1008-1306
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	1307-
29	BOLT; FILTER TO BRKT M8X30 FLANGE	0-28650-830-0	04	1	1008-1306
29	BOLT; FILTER TO BRKT M8X35 FLANGE	0-28650-835-0	02	1	1307-
29	BOLT; FILTER TO BRKT MJT7S M/T(Y3E) M10X30 FLANGE	0-28651-030-0	02	1	1008-1306
30	NUT; BRKT MJT7S M/T(Y3E) M10 FLANGE	0-91180-210-0	02	1	1008-1306
31	BRACKET; OIL FILTER MJT7S M/T(Y3E) (B)	1-33119-222-0	01	1	1008-1306
31	BRACKET; OIL FILTER MJT7S M/T(Y3E) (A)	1-47471-155-0	01	1	1008-1306
35	PIPE; OIL,OIL COOLER TO FILTER MJT7S M/T(Y3E) L=787	1-49167-386-0	01	1	1008-1306
46	BRACKET; OIL PIPE MJT7S M/T(Y3E) L=50	1-47475-299-2	01	1	1008-1306
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1008-
48	NUT; BRKT MJT7S M/T(Y3E) M8 FLANGE	0-91180-108-0	01	1	1008-1306
50	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	05	1	1008-
50	BOLT; CLIP MJT7S M/T(Y3E) (C) M8X16 FLANGE	0-28050-816-0	01	1	1008-1306
50	BOLT; CLIP MJT7S M/T(Y3E) (B) M8X20 FLANGE	0-28650-820-0	02	1	1008-1306
50	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1307-
50	BOLT; CLIP MJX16P M/T(Y3Z) (B) M8X20 FLANGE	0-28650-820-0	01	1	1008-1306
63	COOLER; OIL	1-21700-394-0	01	1	1008-1306
63	COOLER; OIL MJT7S M/T(Y3E)	8-98240-506-0	01	1	1307-1405
63	COOLER; OIL MJT7S M/T(Y3E)	8-98269-767-0	01	1	1406-
63	COOLER; OIL MJX16P M/T(Y3Z)	8-98240-507-0	01	1	1307-
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1008-
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=530	1-09365-248-0	01	1	1008-1306
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=630	8-97635-172-0	01	1	1307-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=775 SERVICED BY L=800	1-47428-872-0	01	1	1008-1306
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=876 SERVICED BY L=900	1-47428-873-0	01	1	1307-
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=919	1-49166-987-1	01	1	1008-
94	PIPE; OIL,UNION TO UNION MJT7S M/T(Y3E) L=2325 SERVICED BY L=2500	1-47428-883-0	01	1	1008-1306
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (A) L=1747 SERVICED BY L=1900	1-47428-881-0	01	1	1008-1306
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (B) L=1689	8-98234-564-0	01	1	1307-
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (A) L=2314	8-98234-565-0	01	1	1307-
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B) L=1726	8-98034-829-0	01	1	1008-1306
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B) L=1746	8-98234-809-0	01	1	1307-
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (C) L=2311	8-98034-830-0	01	1	1008-1306
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (C) L=2347	8-98234-810-0	01	1	1307-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=836 SERVICED BY L=900	1-47428-873-0	01	1	1008-1306
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=841	8-98100-827-0	01	1	1307-
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=849	1-49167-146-0	01	1	1008-
119	NUT; FILTER TO BRKT MJT7S M/T(Y3E) M10 FLANGE	0-91180-210-0	02	1	1008-1306
125	CONNECTOR; OIL FILTER MJT7S M/T(Y3E) M16 & PT1/4 ELBOW	0-92134-310-0	02	1	1008-1306
136	CLIP; FLEX HOSE L=350	1-09707-183-0	01	1	1008-1306
136	CLIP; FLEX HOSE MJT7S M/T(Y3E) L=350	1-09707-183-0	01	1	1307-
136	CLIP; FLEX HOSE MJX16P M/T(Y3Z) L=350	1-09707-183-0	02	1	1307-
147	PIPE; OIL,UNION TO FILTER MJT7S M/T(Y3E) L=739 SERVICED BY L=800	1-47428-872-0	01	1	1008-1306
183	CARTRIDGE; OIL FILTER MJT7S M/T(Y3E)	8-94459-700-1	01	1	1008-1306
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1008-1306
210	BAND; FLEX HOSE MJT7S M/T(Y3E) L=175	1-09707-178-0	01	1	1307-
210	BAND; FLEX HOSE MJX16P M/T(Y3Z) L=175	1-09707-178-0	02	1	1307-

1 73 101 48 80 179 19 82 81 111 114 91 12 95 178 29 11 50 95 50 11 106 104 20 63 106 8 91 114 109 1 73 210 136 104 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1008-
1	HOSE; ATF MJX16P M/T(Y3Z) L=600	1-09365-232-0	01	1	1008-1306
1	HOSE; ATF MJX16P M/T(Y3Z) L=710	8-97635-173-0	01	1	1307-
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1008-
8	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1008-
11	CLIP; PIPE MJT7S M/T(Y3E) (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	1008-1306
11	CLIP; PIPE MJT7S M/T(Y3E) (F) ID=11X2 L=20	0-95325-035-0	05	1	1307-
11	CLIP; PIPE MJT7S M/T(Y3E) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	02	1	1008-1306
11	CLIP; PIPE MJT7S M/T(Y3E) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	1307-
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	9-09535-036-0	05	1	1008-1306
11	CLIP; PIPE MJX16P M/T(Y3Z) (D) ID=16X2 L=20	0-95325-535-0	05	1	1008-
11	CLIP; PIPE MJX16P M/T(Y3Z) (E) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1008-
12	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1008-1306
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1307-
19	BRACKET; FLEX HOSE MJT7S M/T(Y3E)	1-47479-559-0	01	1	1008-
19	BRACKET; FLEX HOSE MJX16P M/T(Y3Z)	1-47479-561-1	01	1	1008-
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	1008-1306
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	1307-
29	BOLT; FILTER TO BRKT M8X30 FLANGE	0-28650-830-0	04	1	1008-1306
29	BOLT; FILTER TO BRKT M8X35 FLANGE	0-28650-835-0	02	1	1307-
29	BOLT; FILTER TO BRKT MJT7S M/T(Y3E) M10X30 FLANGE	0-28651-030-0	02	1	1008-1306
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1008-
48	NUT; BRKT MJT7S M/T(Y3E) M8 FLANGE	0-91180-108-0	01	1	1008-1306
50	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	05	1	1008-
50	BOLT; CLIP MJT7S M/T(Y3E) (C) M8X16 FLANGE	0-28050-816-0	01	1	1008-1306
50	BOLT; CLIP MJT7S M/T(Y3E) (B) M8X20 FLANGE	0-28650-820-0	02	1	1008-1306
50	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1307-
50	BOLT; CLIP MJX16P M/T(Y3Z) (B) M8X20 FLANGE	0-28650-820-0	01	1	1008-1306
63	COOLER; OIL	1-21700-394-0	01	1	1008-1306
63	COOLER; OIL MJT7S M/T(Y3E)	8-98240-506-0	01	1	1307-1405
63	COOLER; OIL MJT7S M/T(Y3E)	8-98269-767-0	01	1	1406-
63	COOLER; OIL MJX16P M/T(Y3Z)	8-98240-507-0	01	1	1307-
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1008-
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=530	1-09365-248-0	01	1	1008-1306
73	HOSE; FLEX,TRANS MJX16P M/T(Y3Z) L=630	8-97635-172-0	01	1	1307-
80	UNION; FLEX HOSE MJX16P M/T(Y3Z) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1008-
81	NUT; UNION MJX16P M/T(Y3Z) M22	0-91111-522-0	01	1	1008-
82	WASHER; LK,UNION MJX16P M/T(Y3Z) ID=22.5	0-91510-522-0	02	1	1008-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=775 SERVICED BY L=800	1-47428-872-0	01	1	1008-1306
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) L=876 SERVICED BY L=900	1-47428-873-0	01	1	1307-
91	PIPE; OIL,FLEX HOSE TO UNION MJX16P M/T(Y3Z) L=919	1-49166-987-1	01	1	1008-
95	BRACKET; CLIP (A)	1-47479-482-0	05	1	1008-1306
95	BRACKET; CLIP (A)	1-47479-482-0	03	1	1307-
95	BRACKET; CLIP (B)	8-98199-287-2	01	1	1307-
101	UNION; FLEX HOSE MJX16P M/T(Y3Z) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1008-
104	CONNECTOR; COOLER MJX16P M/T(Y3Z)	1-09654-398-0	02	1	1008-1306
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (A) L=1747 SERVICED BY L=1900	1-47428-881-0	01	1	1008-1306
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (B) L=1689	8-98234-564-0	01	1	1307-
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) (A) L=2314	8-98234-565-0	01	1	1307-
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B) L=1726	8-98034-829-0	01	1	1008-1306
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (B) L=1746	8-98234-809-0	01	1	1307-
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (C) L=2311	8-98034-830-0	01	1	1008-1306
106	PIPE ASM; OIL,COOLER TO UNION MJX16P M/T(Y3Z) (C) L=2347	8-98234-810-0	01	1	1307-
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	02	1	1008-1306
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1307-
109	UNION MJX16P M/T(Y3Z) M22 L=51	0-92123-015-0	01	1	1008-
111	NUT; UNION MJX16P M/T(Y3Z) M22	0-91111-522-0	01	1	1008-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=836 SERVICED BY L=900	1-47428-873-0	01	1	1008-1306
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) L=841	8-98100-827-0	01	1	1307-
114	PIPE; OIL,UNION TO FLEX HOSE MJX16P M/T(Y3Z) L=849	1-49167-146-0	01	1	1008-
136	CLIP; FLEX HOSE L=350	1-09707-183-0	01	1	1008-1306
136	CLIP; FLEX HOSE MJT7S M/T(Y3E) L=350	1-09707-183-0	01	1	1307-
136	CLIP; FLEX HOSE MJX16P M/T(Y3Z) L=350	1-09707-183-0	02	1	1307-
178	BOLT; BRKT,CLIP M8X30 FLANGE	0-28650-830-0	01	1	1008-1306
178	BOLT; BRKT,CLIP M8X35 FLANGE	0-28650-835-0	01	1	1307-
179	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1008-1306
179	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1307-
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1008-1306
210	BAND; FLEX HOSE MJT7S M/T(Y3E) L=175	1-09707-178-0	01	1	1307-
210	BAND; FLEX HOSE MJX16P M/T(Y3Z) L=175	1-09707-178-0	02	1	1307-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
