Sayfa 2-36 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11324 - EXR MIDDLE EAST WITH 3STEPS ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#63161) — 167 parça

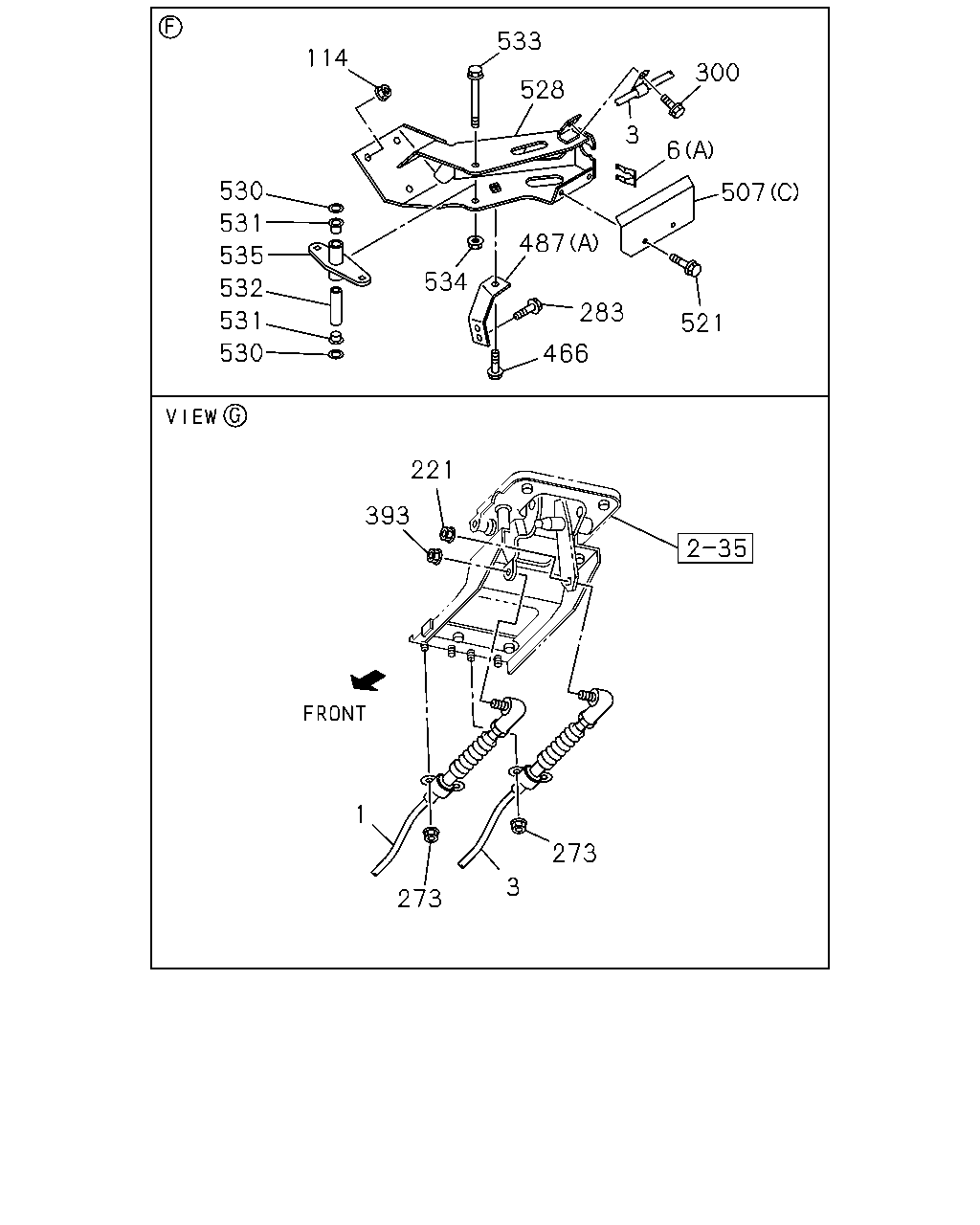

114 530 531 535 532 531 530 221 393 1 273 3 273 466 534 487 283 521 507 6 3 528 533 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; SHIFT,TRANS CONT TRANSMISSION CONTROL CABLE TYPE(C1A) L=3316	8-98216-277-2	01	1	1307-
3	CABLE; SELECT,TRANS CONT MJT7S M/T(Y3E) L=3974	8-98222-464-2	01	1	1307-
3	CABLE; SELECT,TRANS CONT MJX16P M/T(Y3Z) L=4125	8-98222-465-2	01	1	1307-
6	CLIP; CABLE TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=22.2	1-09701-209-1	02	1	1307-
6	CLIP; CABLE TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=13 & 13 L=32	8-97389-264-0	01	1	1307-
114	NUT; RELAY LEVER TRANSMISSION CONTROL CABLE TYPE(C1A) M12 FLANGE	0-91180-212-0	03	1	1307-
221	NUT; SHIFT WIRE TO LEVER TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE	1-09440-061-0	01	1	1307-
273	NUT; CONT CABLE TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE	0-91180-110-0	04	1	1307-
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	1008-1306
283	BOLT; RELAY LEVER TRANSMISSION CONTROL CABLE TYPE(C1A) M10X20 FLANGE	0-28151-020-0	02	1	1307-
300	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) M8X20 FLANGE	0-28050-820-0	03	1	1307-
393	NUT; SELECT CABLE,CAB TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE	1-09440-062-1	01	1	1307-
466	BOLT; FIX M8X20 FLANGE	0-28650-820-0	02	1	1008-1306
466	BOLT; FIX TRANSMISSION CONTROL CABLE TYPE(C1A) M10X20 FLANGE	0-28651-020-0	01	1	1307-
466	BOLT; FIX TRANSMISSION CONTROL CABLE TYPE(C1A) M6X16 FLANGE	0-28050-616-0	04	1	1307-
466	BOLT; FIX TRANSMISSION CONTROL CABLE TYPE(C1A) M10X35 FLANGE	0-28651-035-0	01	1	1307-
466	BOLT; FIX TRANSMISSION CONTROL CABLE TYPE(C1A) M14X45 FLANGE	0-28851-445-0	01	1	1307-
487	BRACKET; CONT CABLE MJT7S M/T(Y3E) (C)	1-33657-872-2	01	1	1307-
487	BRACKET; CONT CABLE MJX16P M/T(Y3Z) (E)	1-33657-873-0	01	1	1307-
487	BRACKET; CONT CABLE TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	8-98049-854-0	01	1	1307-
487	BRACKET; CONT CABLE TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	8-98131-521-2	01	1	1307-
487	BRACKET; CONT CABLE TRANSMISSION CONTROL CABLE TYPE(C1A) (D)	8-98198-836-1	01	1	1307-
487	BRACKET; CONT CABLE TRANSMISSION CONTROL CABLE TYPE(C1A) (F)	8-98216-298-1	01	1	1307-
507	PROTECTOR; HEAT (A)	1-14181-287-1	01	1	1008-1306
507	PROTECTOR; HEAT TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	8-98151-604-0	01	1	1307-
507	PROTECTOR; HEAT TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	8-98171-722-0	01	1	1307-
521	BOLT; PROTECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) M8X20 FLANGE	0-28050-820-0	02	1	1307-
528	BRACKET; LOWER,RELAY LEVER TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98049-809-1	01	1	1307-
530	RING; RELAY LEVER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-09623-636-0	02	1	1307-
531	BUSHING; RELAY LEVER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-09330-119-0	02	1	1307-
532	COLLAR; RELAY LEVER TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98049-429-0	01	1	1307-
533	BOLT; RELAY LEVER TRANSMISSION CONTROL CABLE TYPE(C1A) M10X100 FLANGE	0-28051-000-0	01	1	1307-
534	NUT; RELAY LEVER TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE	1-09440-056-0	01	1	1307-
535	LEVER; RELAY,SHIFT TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98049-430-0	01	1	1307-

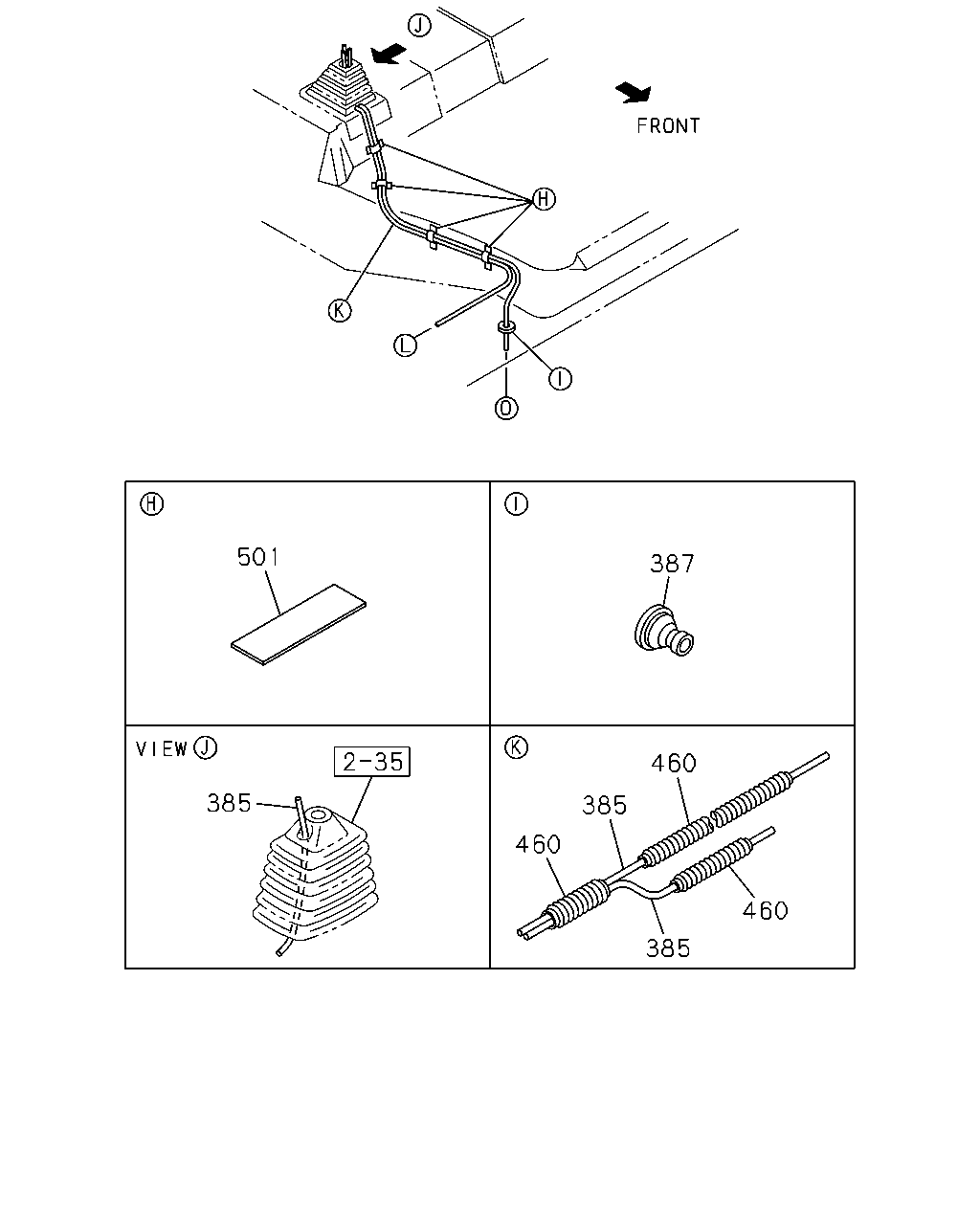

501 385 460 385 460 387 460 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
385	TUBE; NYLON MJX16P M/T(Y3Z) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	1008-
385	TUBE; NYLON MJX16P M/T(Y3Z) L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	1008-1306
385	TUBE; NYLON MJX16P M/T(Y3Z) L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	1307-
385	TUBE; NYLON MJX16P M/T(Y3Z) L=1340 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	1008-
387	GROMMET; CONT TUBE,FULLER MJX16P M/T(Y3Z)	1-09332-102-0	01	1	1008-
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1008-
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) L=250 ID=7 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1008-
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	1008-1306
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) L=960 ID=7 SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	1307-
501	SEAL; HARNESS PROTECTOR MJX16P M/T(Y3Z) 100X40	1-72498-022-1	04	1	1008-

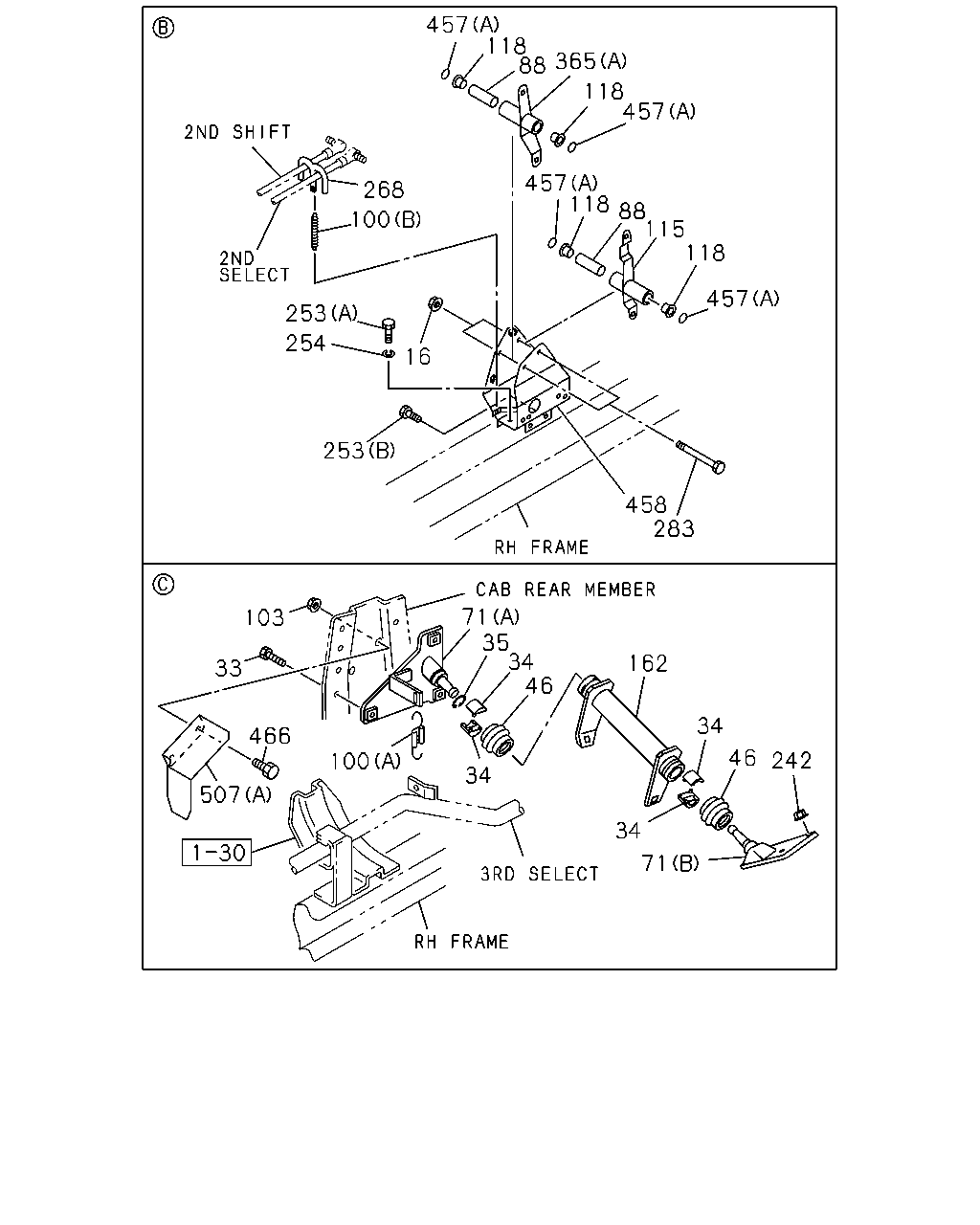

457 365 88 118 457 118 457 115 88 118 118 457 458 16 283 253 253 254 100 268 103 33 466 507 100 34 46 162 34 35 71 34 46 34 242 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	NUT; RELAY LEVER M10 FLANGE	0-91180-110-0	02	1	1008-1306
33	BOLT; BRKT,3RD RELAY LEVER M10X35 FLANGE	0-28651-035-0	03	1	1008-1306
34	SEAT; BALL,RELAY LEVER	1-33659-165-0	04	1	1008-1306
35	RING; SNAP,RELAY LEVER OD=34.4	9-09180-132-0	01	1	1008-1306
46	SEAL; DUST,RELAY LEVER	1-33659-248-0	02	1	1008-1306
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-481-0	01	1	1008-1306
71	BRACKET; 3RD RELAY LEVER,FRAME (A)	1-33657-706-0	01	1	1008-1306
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	1008-1306
100	SPRING (A)	1-09583-319-0	01	1	1008-1306
100	SPRING (B)	1-09583-351-0	01	1	1008-1306
103	NUT M8 FLANGE	0-91180-108-0	01	1	1008-1306
115	LEVER; RELAY,2ND SHIFT	1-33651-769-1	01	1	1008-1306
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	1008-1306
162	LEVER; RELAY	1-33651-625-1	01	1	1008-1306
242	NUT; FLANGE 3RD RELAY LEVER M12 FLANGE	0-91180-212-0	03	1	1008-1306
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	1008-1306
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X25 FLANGE	0-28051-025-0	02	1	1008-1306
254	WASHER; LK,RELAY LEVER ID=14.2	0-91510-614-0	02	1	1008-1306
268	BRACKET; LINK ROD	1-33657-216-0	01	1	1008-1306
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	1008-1306
283	BOLT; RELAY LEVER TRANSMISSION CONTROL CABLE TYPE(C1A) M10X20 FLANGE	0-28151-020-0	02	1	1307-
365	LEVER; RELAY,SELECT (A)	1-33651-771-1	01	1	1008-1306
365	LEVER; RELAY,SELECT (B)	1-33659-242-1	01	1	1008-1306
457	GASKET (A)	1-09623-594-0	04	1	1008-1306
457	GASKET MJX16P M/T(Y3Z) (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	1008-1306
457	GASKET MJX16P M/T(Y3Z) (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	1307-
458	BRACKET; 2ND RELAY LEVER	1-33657-664-1	01	1	1008-1306
466	BOLT; FIX M8X20 FLANGE	0-28650-820-0	02	1	1008-1306
466	BOLT; FIX TRANSMISSION CONTROL CABLE TYPE(C1A) M10X20 FLANGE	0-28651-020-0	01	1	1307-
466	BOLT; FIX TRANSMISSION CONTROL CABLE TYPE(C1A) M6X16 FLANGE	0-28050-616-0	04	1	1307-
466	BOLT; FIX TRANSMISSION CONTROL CABLE TYPE(C1A) M10X35 FLANGE	0-28651-035-0	01	1	1307-
466	BOLT; FIX TRANSMISSION CONTROL CABLE TYPE(C1A) M14X45 FLANGE	0-28851-445-0	01	1	1307-
507	PROTECTOR; HEAT (A)	1-14181-287-1	01	1	1008-1306
507	PROTECTOR; HEAT TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	8-98151-604-0	01	1	1307-
507	PROTECTOR; HEAT TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	8-98171-722-0	01	1	1307-

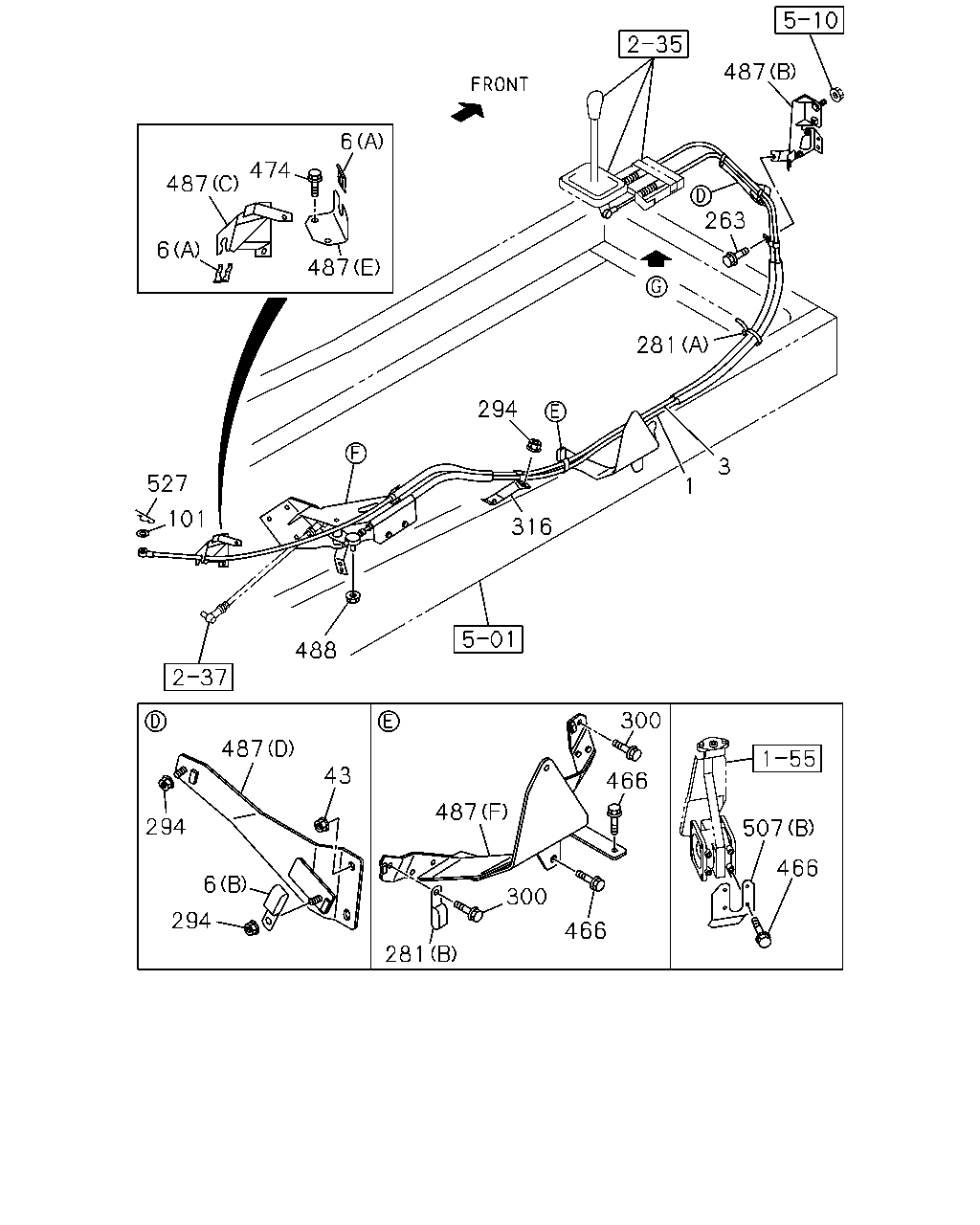

487 474 6 487 6 527 488 316 294 281 263 487 1 3 101 487 294 43 6 294 281 300 466 507 466 466 300 487

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; SHIFT,TRANS CONT TRANSMISSION CONTROL CABLE TYPE(C1A) L=3316	8-98216-277-2	01	1	1307-
3	CABLE; SELECT,TRANS CONT MJT7S M/T(Y3E) L=3974	8-98222-464-2	01	1	1307-
3	CABLE; SELECT,TRANS CONT MJX16P M/T(Y3Z) L=4125	8-98222-465-2	01	1	1307-
6	CLIP; CABLE TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=22.2	1-09701-209-1	02	1	1307-
6	CLIP; CABLE TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=13 & 13 L=32	8-97389-264-0	01	1	1307-
43	NUT; BRKT TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE	0-91180-110-0	02	1	1307-
101	WASHER; PL TRANSMISSION CONTROL CABLE TYPE(C1A) ID=8.4 OD=16	0-91610-508-0	01	1	1307-
263	BOLT; CLIP,TRANS CONT WIRE TRANSMISSION CONTROL CABLE TYPE(C1A) M8X16 FLANGE	0-28050-816-0	02	1	1307-
281	CLIP; BAND TRANSMISSION CONTROL CABLE TYPE(C1A) (A) L=350	1-09707-183-0	01	1	1307-
281	CLIP; BAND TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=13 & 13 L=32	8-97389-264-0	01	1	1307-
294	NUT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE	0-91180-108-0	01	1	1307-
294	NUT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE	0-91180-108-0	02	1	1307-
300	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) M8X20 FLANGE	0-28050-820-0	03	1	1307-
316	BRACKET; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98150-331-0	01	1	1307-
466	BOLT; FIX M8X20 FLANGE	0-28650-820-0	02	1	1008-1306
466	BOLT; FIX TRANSMISSION CONTROL CABLE TYPE(C1A) M10X20 FLANGE	0-28651-020-0	01	1	1307-
466	BOLT; FIX TRANSMISSION CONTROL CABLE TYPE(C1A) M6X16 FLANGE	0-28050-616-0	04	1	1307-
466	BOLT; FIX TRANSMISSION CONTROL CABLE TYPE(C1A) M10X35 FLANGE	0-28651-035-0	01	1	1307-
466	BOLT; FIX TRANSMISSION CONTROL CABLE TYPE(C1A) M14X45 FLANGE	0-28851-445-0	01	1	1307-
474	BOLT; BRKT MJX16P M/T(Y3Z) M10X20 FLANGE	0-28151-020-0	02	1	1307-
487	BRACKET; CONT CABLE MJT7S M/T(Y3E) (C)	1-33657-872-2	01	1	1307-
487	BRACKET; CONT CABLE MJX16P M/T(Y3Z) (E)	1-33657-873-0	01	1	1307-
487	BRACKET; CONT CABLE TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	8-98049-854-0	01	1	1307-
487	BRACKET; CONT CABLE TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	8-98131-521-2	01	1	1307-
487	BRACKET; CONT CABLE TRANSMISSION CONTROL CABLE TYPE(C1A) (D)	8-98198-836-1	01	1	1307-
487	BRACKET; CONT CABLE TRANSMISSION CONTROL CABLE TYPE(C1A) (F)	8-98216-298-1	01	1	1307-
488	NUT; CABLE TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE	1-09440-056-0	01	1	1307-
507	PROTECTOR; HEAT (A)	1-14181-287-1	01	1	1008-1306
507	PROTECTOR; HEAT TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	8-98151-604-0	01	1	1307-
507	PROTECTOR; HEAT TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	8-98171-722-0	01	1	1307-
527	PIN; SNAP TRANSMISSION CONTROL CABLE TYPE(C1A) L=23	8-94170-378-0	01	1	1307-

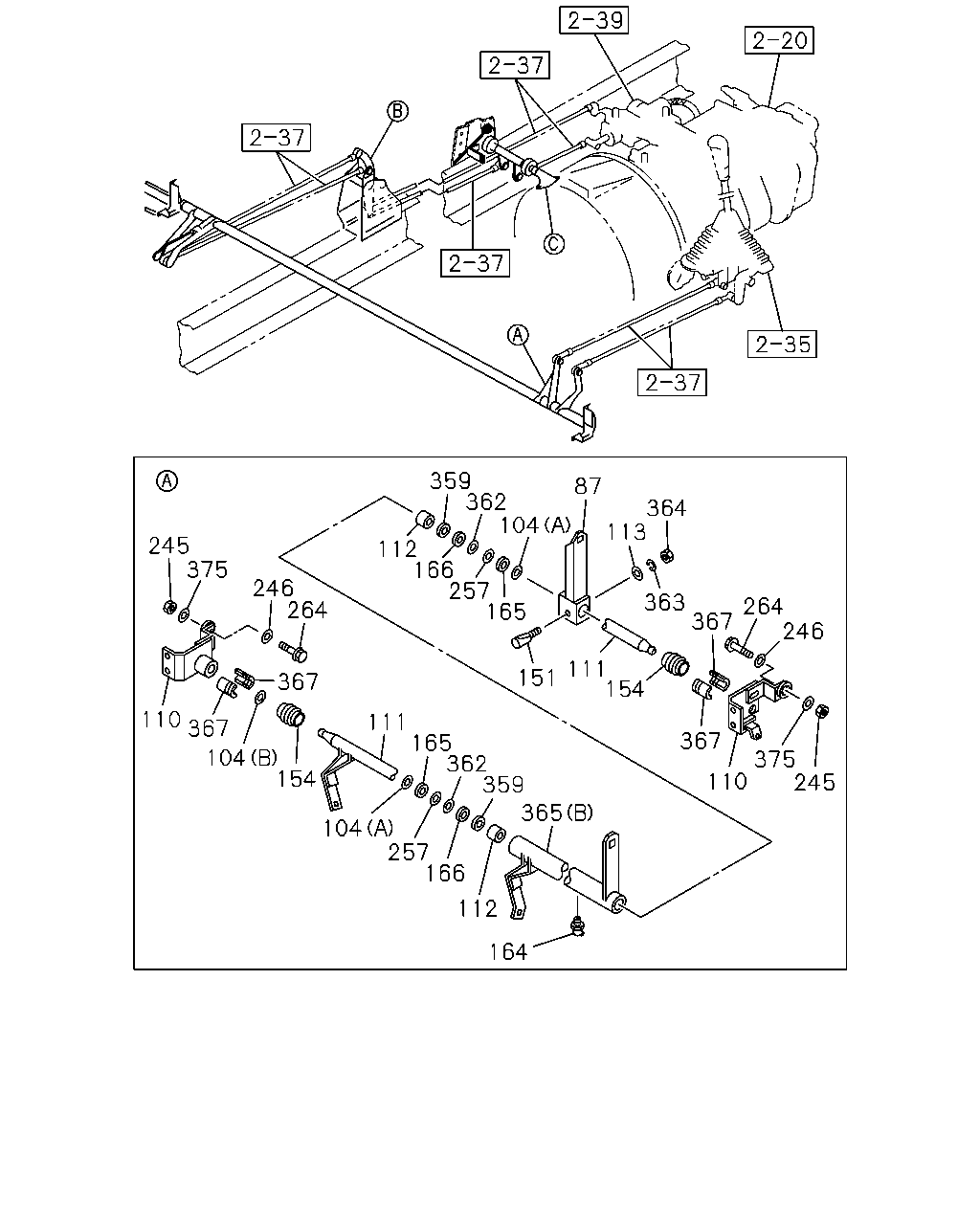

246 264 363 367 367 375 245 110 154 111 151 165 257 166 112 359 87 113 104 362 364 359 365 362 165 111 257 166 112 164 104 154 104 367 110 375 245 246 264 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
87	LEVER; RELAY,SELECT	1-33651-666-0	01	1	1008-1306
104	RING; SNAP (A) ID=32.2	9-09180-035-0	02	1	1008-1306
104	RING; SNAP (B) OD=23.5	9-09180-122-0	01	1	1008-1306
110	BRACKET; RELAY LEVER,1ST	1-33657-617-0	01	1	1008-1306
110	BRACKET; RELAY LEVER,1ST	1-33657-618-0	01	1	1008-1306
111	SHAFT; RELAY LEVER,1ST	1-33659-239-0	01	1	1008-1306
112	BUSHING; RELAY LEVER	1-09330-143-0	02	1	1008-1306
113	WASHER; RELAY LEVER ID=10.5 OD=26	9-09160-710-0	01	1	1008-1205
113	WASHER; RELAY LEVER ID=10.5	0-91610-710-0	01	1	1206-1306
151	BOLT; KEY,RELAY LEVER	1-33659-063-0	01	1	1008-1306
154	COVER; DUST,RELAY LEVER	1-33659-068-0	02	1	1008-1306
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1008-1205
165	WASHER; RELAY LEVER	1-09503-148-0	AR	1	1008-1306
166	WASHER; NYLON,RELAY LEVER	1-09509-040-0	02	1	1008-1306
245	NUT; BRKT,RELAY LEVER M10	1-09984-142-0	02	1	1008-1306
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	02	1	1008-1306
257	PIECE; DIST,RELAY LEVER	1-09503-198-0	AR	1	1008-1306
264	BOLT; BRKT,RELAY LEVER M10X30 FLANGE	0-28651-030-0	02	1	1008-1306
264	BOLT; BRKT,RELAY LEVER M10X105	1-79198-008-1	02	1	1008-1306
359	SEAL; RUBBER,RELAY LEVER	1-09625-005-1	02	1	1008-1306
362	SHIM	1-09503-172-0	AR	1	1008-1306
363	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	01	1	1008-1306
364	NUT; KEY BOLT M10	0-91111-510-0	01	1	1008-1306
365	LEVER; RELAY,SELECT (A)	1-33651-771-1	01	1	1008-1306
365	LEVER; RELAY,SELECT (B)	1-33659-242-1	01	1	1008-1306
367	SEAT; BALL,CONT SHAFT	1-33659-053-0	04	1	1008-1306
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	1008-1306

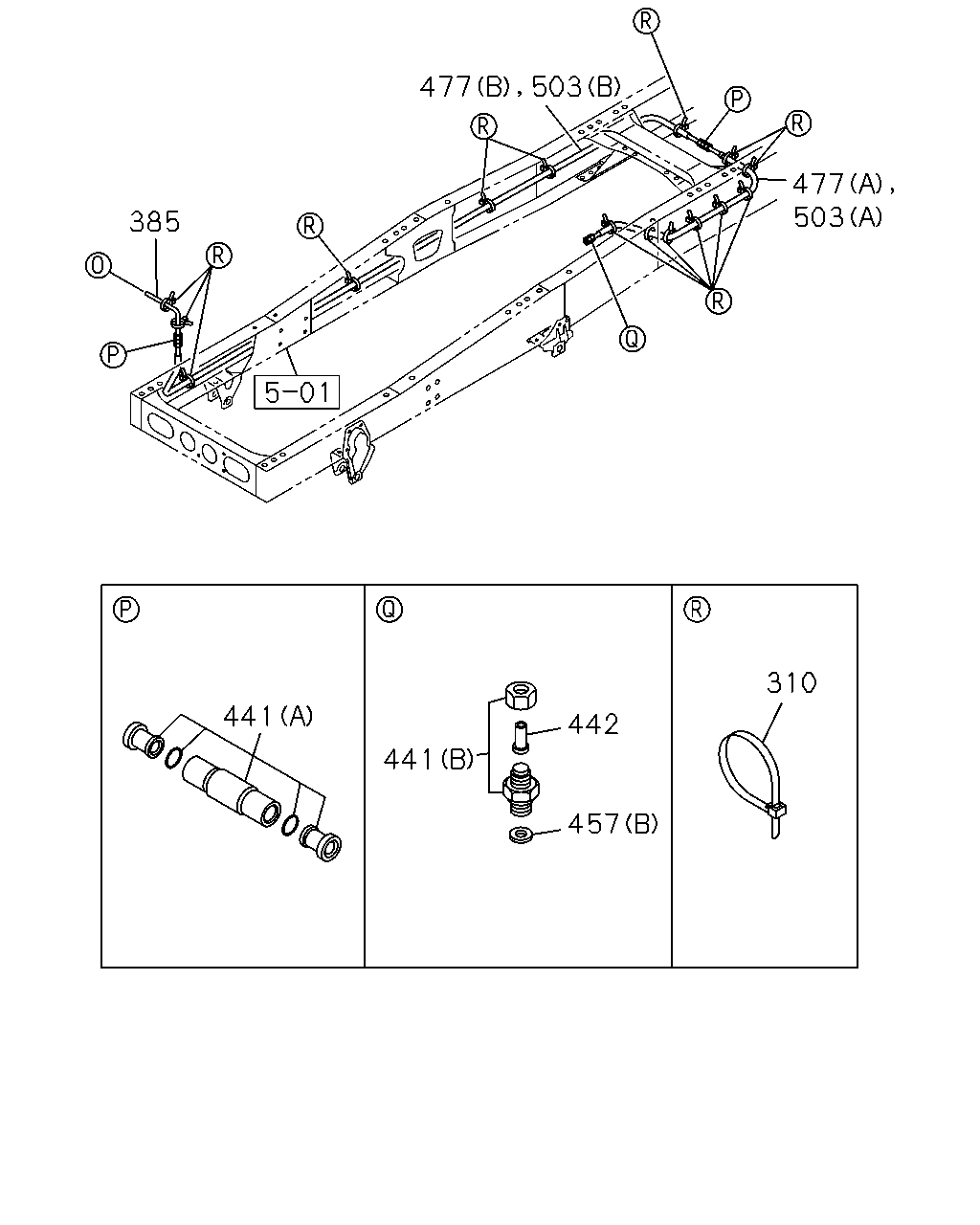

385 441 441 457 442 310 503 477 503 477

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
310	CLIP; TUBE MJX16P M/T(Y3Z) L=350	1-09707-183-0	19	1	1008-1306
310	CLIP; TUBE MJX16P M/T(Y3Z) L=350	1-09707-183-0	25	1	1307-
310	CLIP; TUBE MJX16P M/T(Y3Z) L=350	1-09707-183-0	01	1	1111-1306
385	TUBE; NYLON MJX16P M/T(Y3Z) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	1008-
385	TUBE; NYLON MJX16P M/T(Y3Z) L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	1008-1306
385	TUBE; NYLON MJX16P M/T(Y3Z) L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	1307-
385	TUBE; NYLON MJX16P M/T(Y3Z) L=1340 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	1008-
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) (B)	1-09660-466-0	01	1	1008-1306
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) (B)	1-09660-466-0	01	1	1307-
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) (A)	8-98134-660-0	02	1	1008-1306
441	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) (A)	8-98134-660-0	02	1	1307-
442	INSERT; NYLON TUBE MJX16P M/T(Y3Z) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1008-1306
442	INSERT; NYLON TUBE MJX16P M/T(Y3Z) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1307-
457	GASKET (A)	1-09623-594-0	04	1	1008-1306
457	GASKET MJX16P M/T(Y3Z) (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	1008-1306
457	GASKET MJX16P M/T(Y3Z) (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	1307-
477	TUBE; CORRUGATE MJX16P M/T(Y3Z) (A) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	1008-
477	TUBE; CORRUGATE MJX16P M/T(Y3Z) (B) SERVICED BY L=6000 ID=7	1-87411-018-0	01	1	1008-
503	TUBE; NYLON MJX16P M/T(Y3Z) (A) SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	1008-
503	TUBE; NYLON MJX16P M/T(Y3Z) (B) SERVICED BY L=6000 OD=4	1-87410-079-0	01	1	1008-

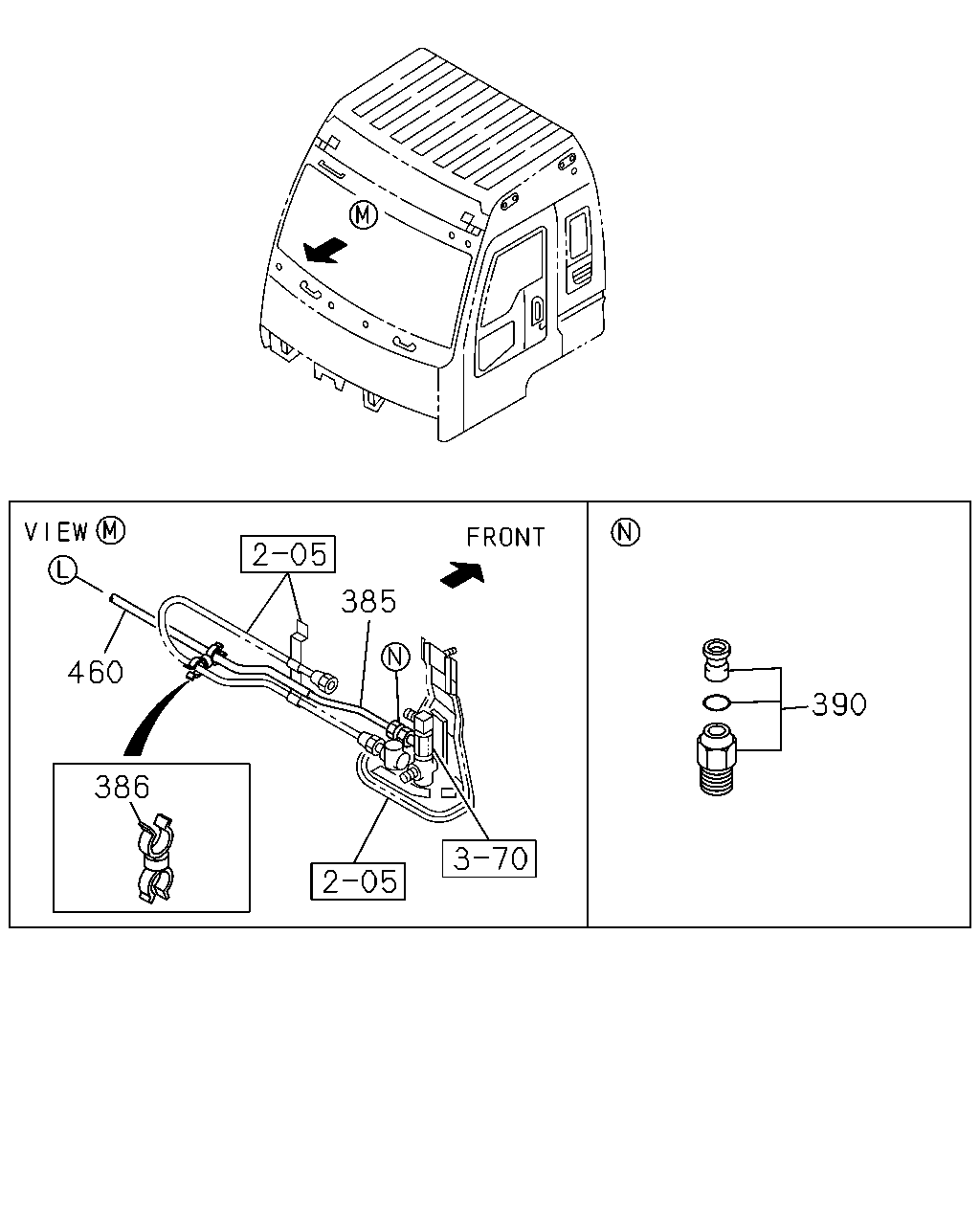

460 386 385 390

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
385	TUBE; NYLON MJX16P M/T(Y3Z) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	1008-
385	TUBE; NYLON MJX16P M/T(Y3Z) L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	1008-1306
385	TUBE; NYLON MJX16P M/T(Y3Z) L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	1307-
385	TUBE; NYLON MJX16P M/T(Y3Z) L=1340 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	1008-
386	CLIP; CONT CABLE & TUBE MJX16P M/T(Y3Z) ID=8.3 & 8.3	8-94426-175-0	01	1	1008-
390	CONNECTOR; STRAIGHT,TRANS SIDE MJX16P M/T(Y3Z)	1-09661-174-0	01	1	1008-
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1008-
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) L=250 ID=7 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1008-
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	1008-1306
460	TUBE; CORRUGATE MJX16P M/T(Y3Z) L=960 ID=7 SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	1307-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
