◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11324 - EXR MIDDLE EAST WITH 3STEPS ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#63160) — 104 parça

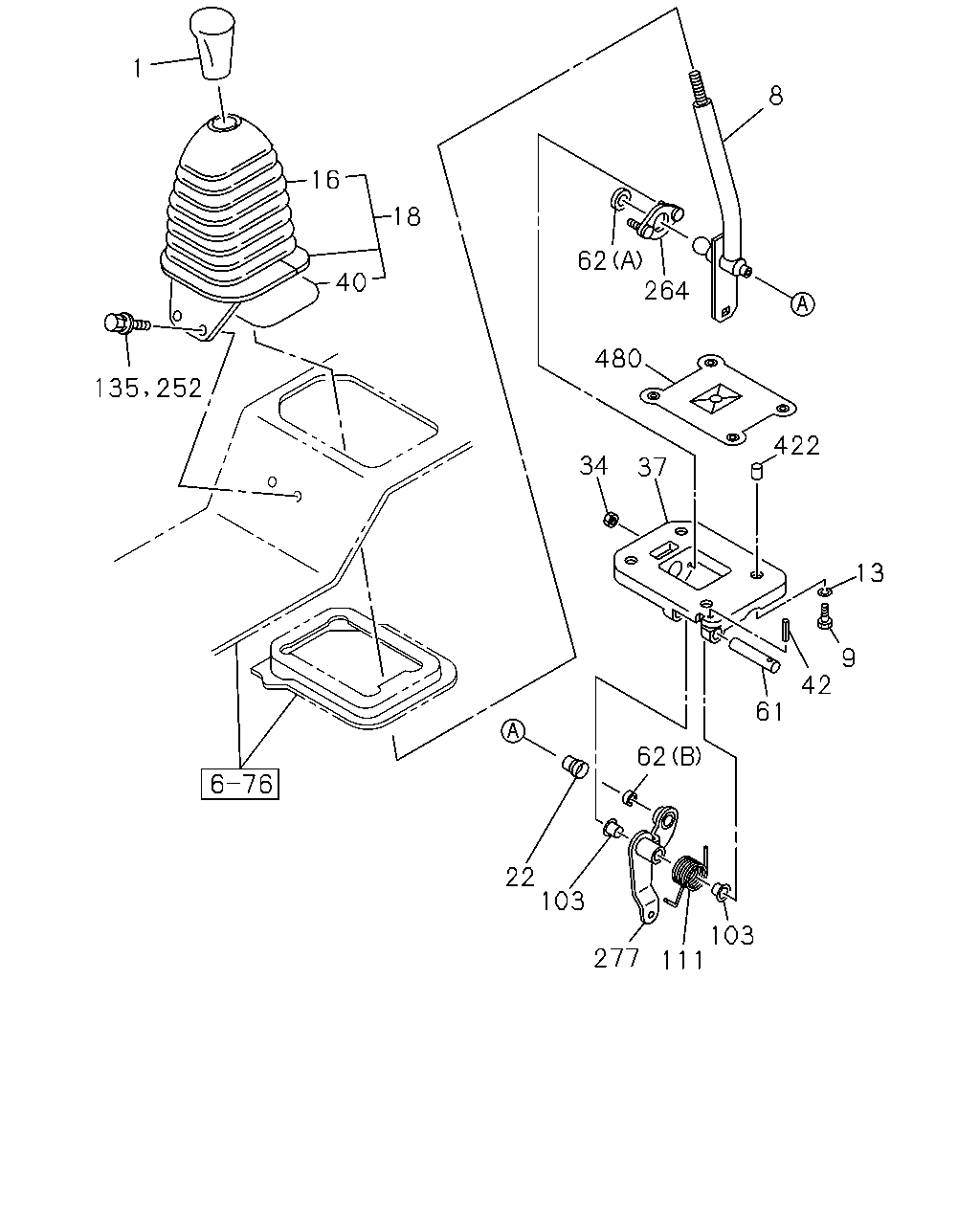

çizim 170623
135 252 40 18 16 1 22 103 277 111 103 62 61 42 13 34 37 422 480 264 62 8
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
MJT7S M/T(Y3E) 		1-33611-082-1 01 1 1008-
1 KNOB; CHANGE LEVER
MJX16P M/T(Y3Z) 		1-33611-038-0 01 1 1008-
8 LEVER; CHANGE
MJT7S M/T(Y3E) 		1-33613-344-0 01 1 1008-1306
8 LEVER; CHANGE
MJT7S M/T(Y3E) 		8-98199-046-1 01 1 1307-
8 LEVER; CHANGE
MJX16P M/T(Y3Z) 		1-33613-345-0 01 1 1008-1306
8 LEVER; CHANGE
MJX16P M/T(Y3Z) 		8-98199-047-1 01 1 1307-
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		0-91610-708-0 04 1 1008-1306
13 WASHER; PL,SUPER SHIFT LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=8.4 OD=22 		0-91610-708-0 04 1 1307-
16 BOOT; CHANGE LEVER
MJT7S M/T(Y3E) 		1-79996-368-0 01 1 1008-1306
16 BOOT; CHANGE LEVER
MJT7S M/T(Y3E) 		1-79996-688-0 01 1 1307-
16 BOOT; CHANGE LEVER
MJX16P M/T(Y3Z) 		1-79996-369-0 01 1 1008-1306
16 BOOT; CHANGE LEVER
MJX16P M/T(Y3Z) 		1-79996-687-0 01 1 1307-
18 BOOT; CHANGE LEVER
MJT7S M/T(Y3E) 		1-79996-436-2 01 1 1008-1306
18 BOOT; CHANGE LEVER
MJT7S M/T(Y3E) 		8-98199-743-0 01 1 1307-
18 BOOT; CHANGE LEVER
MJX16P M/T(Y3Z) 		1-79996-401-0 01 1 1008-1306
18 BOOT; CHANGE LEVER
MJX16P M/T(Y3Z) 		8-98199-744-0 01 1 1307-
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 1008-1306
22 COVER; DUST,CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33619-573-0 01 1 1307-
34 NUT
M6 FLANGE 		0-91180-106-0 02 1 1008-1306
34 NUT
TRANSMISSION CONTROL CABLE TYPE(C1A) M6 FLANGE 		0-91180-106-0 02 1 1307-
37 BRACKET; CHANGE LEVER SUPPORT 8-98100-876-1 01 1 1008-1306
37 BRACKET; CHANGE LEVER SUPPORT
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98100-876-1 01 1 1307-
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 1008-
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 1008-1306
42 PIN; SPRING,SELECT LEVER PIN
TRANSMISSION CONTROL CABLE TYPE(C1A) D=5 L=28 		8-94252-581-0 01 1 1307-
61 PIN; SELECT LEVER 1-33619-470-0 01 1 1008-1306
61 PIN; SELECT LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33619-470-0 01 1 1307-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1008-1306
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-33619-427-0 01 1 1307-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 1008-1306
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-97011-900-0 01 1 1307-
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 1008-1306
103 BUSHING; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=14 OD=16 		8-94252-671-0 02 1 1307-
111 SPRING
MJT7S M/T(Y3E) 		1-09585-136-0 01 1 1008-1306
111 SPRING
MJT7S M/T(Y3E) 		8-98199-054-0 01 1 1307-
111 SPRING
MJX16P M/T(Y3Z) 		1-09585-136-0 01 1 1307-
135 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1008-1306
252 BOLT; COVER,CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1307-
264 PLATE; COVER 1-33619-469-0 01 1 1008-1306
264 PLATE; COVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33619-469-0 01 1 1307-
277 LEVER; RELAY 1-33651-636-1 01 1 1008-1306
277 LEVER; RELAY
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98199-053-0 01 1 1307-
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 1008-1306
422 BUSHING; CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-97091-427-0 04 1 1307-
480 RUBBER; COVER 8-98119-365-0 01 1 1008-1306
480 RUBBER; COVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98119-365-0 01 1 1307-

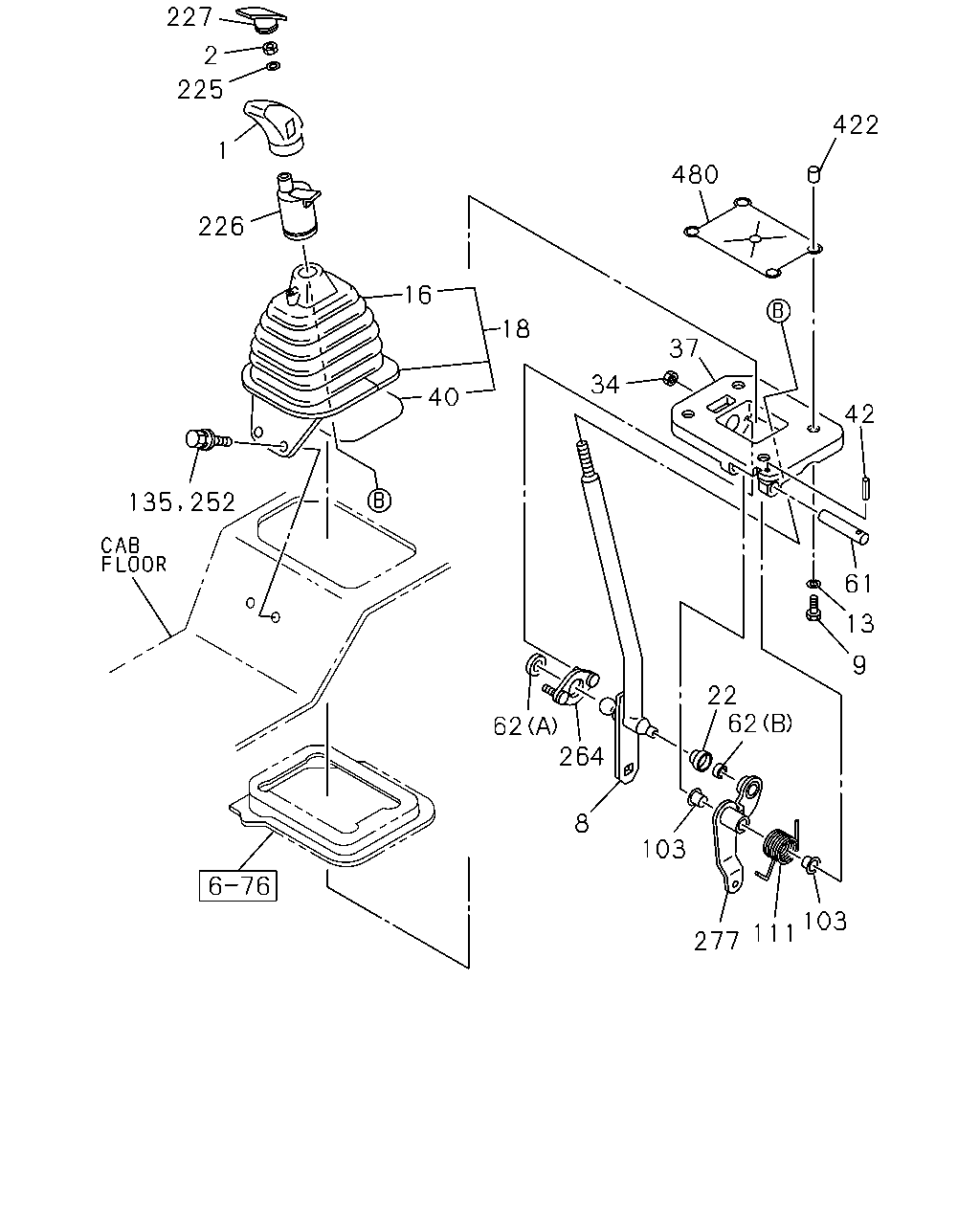

çizim 170628
422 480 37 34 42 61 13 9 227 225 2 1 226 16 40 18 252 135 22 62 62 264 8 103 277 103 111
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
MJT7S M/T(Y3E) 		1-33611-082-1 01 1 1008-
1 KNOB; CHANGE LEVER
MJX16P M/T(Y3Z) 		1-33611-038-0 01 1 1008-
2 NUT; KNOB
MJX16P M/T(Y3Z) M10 FLANGE 		0-91180-210-0 01 1 1008-
8 LEVER; CHANGE
MJT7S M/T(Y3E) 		1-33613-344-0 01 1 1008-1306
8 LEVER; CHANGE
MJT7S M/T(Y3E) 		8-98199-046-1 01 1 1307-
8 LEVER; CHANGE
MJX16P M/T(Y3Z) 		1-33613-345-0 01 1 1008-1306
8 LEVER; CHANGE
MJX16P M/T(Y3Z) 		8-98199-047-1 01 1 1307-
9 BOLT; CHANGE LEVER
M8X25 FLANGE 		0-28650-825-0 04 1 1008-1306
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X25 FLANGE 		0-28650-825-0 04 1 1307-
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		0-91610-708-0 04 1 1008-1306
13 WASHER; PL,SUPER SHIFT LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=8.4 OD=22 		0-91610-708-0 04 1 1307-
16 BOOT; CHANGE LEVER
MJT7S M/T(Y3E) 		1-79996-368-0 01 1 1008-1306
16 BOOT; CHANGE LEVER
MJT7S M/T(Y3E) 		1-79996-688-0 01 1 1307-
16 BOOT; CHANGE LEVER
MJX16P M/T(Y3Z) 		1-79996-369-0 01 1 1008-1306
16 BOOT; CHANGE LEVER
MJX16P M/T(Y3Z) 		1-79996-687-0 01 1 1307-
18 BOOT; CHANGE LEVER
MJT7S M/T(Y3E) 		1-79996-436-2 01 1 1008-1306
18 BOOT; CHANGE LEVER
MJT7S M/T(Y3E) 		8-98199-743-0 01 1 1307-
18 BOOT; CHANGE LEVER
MJX16P M/T(Y3Z) 		1-79996-401-0 01 1 1008-1306
18 BOOT; CHANGE LEVER
MJX16P M/T(Y3Z) 		8-98199-744-0 01 1 1307-
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 1008-1306
22 COVER; DUST,CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33619-573-0 01 1 1307-
34 NUT
M6 FLANGE 		0-91180-106-0 02 1 1008-1306
34 NUT
TRANSMISSION CONTROL CABLE TYPE(C1A) M6 FLANGE 		0-91180-106-0 02 1 1307-
37 BRACKET; CHANGE LEVER SUPPORT 8-98100-876-1 01 1 1008-1306
37 BRACKET; CHANGE LEVER SUPPORT
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98100-876-1 01 1 1307-
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 1008-
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 1008-1306
42 PIN; SPRING,SELECT LEVER PIN
TRANSMISSION CONTROL CABLE TYPE(C1A) D=5 L=28 		8-94252-581-0 01 1 1307-
61 PIN; SELECT LEVER 1-33619-470-0 01 1 1008-1306
61 PIN; SELECT LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33619-470-0 01 1 1307-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1008-1306
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-33619-427-0 01 1 1307-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 1008-1306
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-97011-900-0 01 1 1307-
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 1008-1306
103 BUSHING; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=14 OD=16 		8-94252-671-0 02 1 1307-
111 SPRING
MJT7S M/T(Y3E) 		1-09585-136-0 01 1 1008-1306
111 SPRING
MJT7S M/T(Y3E) 		8-98199-054-0 01 1 1307-
111 SPRING
MJX16P M/T(Y3Z) 		1-09585-136-0 01 1 1307-
135 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1008-1306
225 WASHER; PL,KNOB
MJX16P M/T(Y3Z) ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1008-
226 VALVE; SELECTOR
MJX16P M/T(Y3Z) 		1-33710-008-0 01 1 1008-
227 COVER; KNOB
MJX16P M/T(Y3Z) 		1-33619-219-0 01 1 1008-
252 BOLT; COVER,CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1307-
264 PLATE; COVER 1-33619-469-0 01 1 1008-1306
264 PLATE; COVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33619-469-0 01 1 1307-
277 LEVER; RELAY 1-33651-636-1 01 1 1008-1306
277 LEVER; RELAY
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98199-053-0 01 1 1307-
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 1008-1306
422 BUSHING; CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-97091-427-0 04 1 1307-
480 RUBBER; COVER 8-98119-365-0 01 1 1008-1306
480 RUBBER; COVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98119-365-0 01 1 1307-

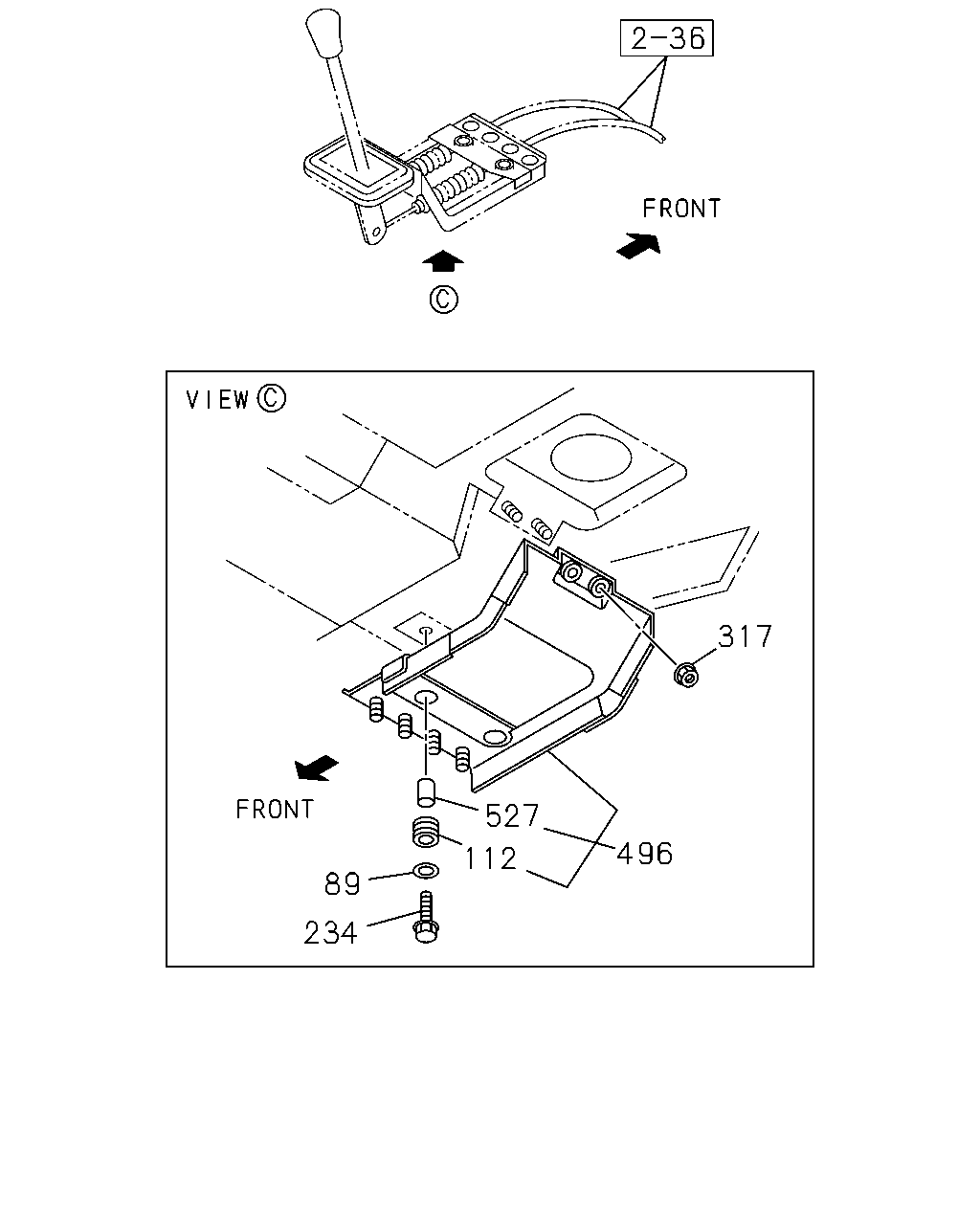

çizim 363036
527 112 496 317 89 234
BalonParca AdiParca NoAdetTipApplied Date
89 WASHER; PL,LWR SUPPORT BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=8.4 OD=22 		0-91610-708-0 02 1 1307-
112 RUBBER; CUSHION
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33619-442-0 04 1 1307-
234 BOLT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X25 FLANGE 		0-28650-825-0 02 1 1307-
317 NUT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1307-
496 BRACKET ASM; T/M CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98198-828-1 01 1 1307-
527 COLLAR; DIST,T/M CABLE BRACKET
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33619-443-0 04 1 1307-
