◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10723 - CVR LHD ▶ 3 - Brakes, Brake System ▶ 3-41 - REAR BRAKE POWER CHAMBER ▶
3-41 — REAR BRAKE POWER CHAMBER (#6316) — 46 parça

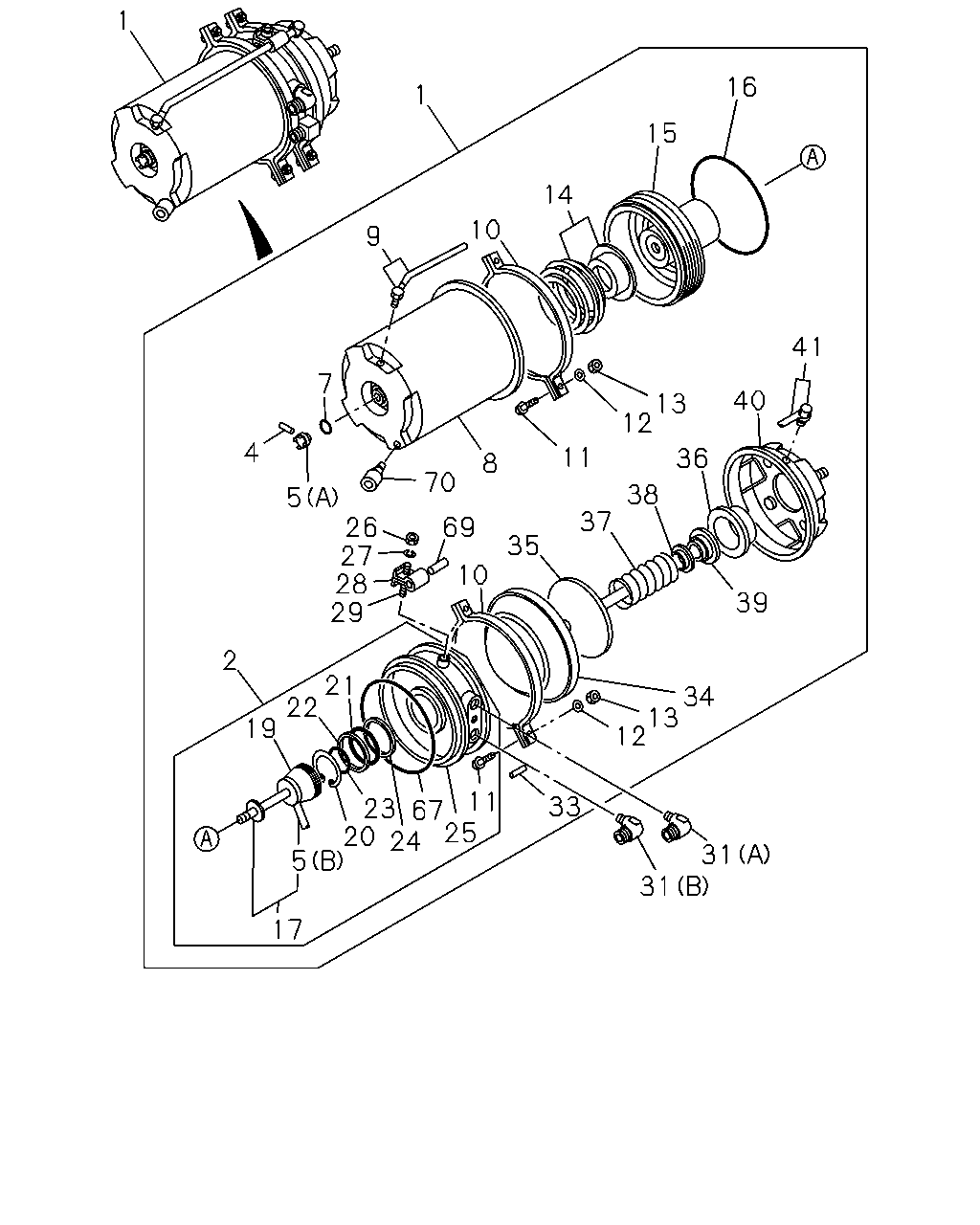

çizim 6131
1 16 1 15 14 10 9 41 7 40 13 12 4 11 36 8 70 38 5 26 27 28 29 37 69 35 10 39 2 21 22 19 34 13 12 11 20 25 24 5 33 31 31 17 23 67
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-181-2 01 1 9604-
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-180-2 01 1 9604-
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48252-019-0 01 1 9604-
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48252-018-0 01 1 9604-
4 PIN; STRAIGHT,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-056-0 04 1 9604-
5 NUT; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-054-0 02 1 9604-
5 NUT; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48259-074-0 02 1 9604-
7 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-055-0 02 1 9604-
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-070-1 01 1 9604-
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-069-1 01 1 9604-
9 PIPE ASM; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-076-0 02 1 9604-
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-016-0 08 1 9604-
11 BOLT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-035-0 08 1 9604-
12 WASHER; LK,CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-046-0 08 1 9604-
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 		9-09110-510-0 08 1 9604-
14 SPRING & SEAT SET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-037-0 02 1 9604-
15 PISTON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48262-005-0 02 1 9604-
16 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-048-0 02 1 9604-
17 BOLT ASM; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-073-0 02 1 9604-
19 COVER; PISTON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48269-011-0 02 1 9604-
20 RING; RET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-060-0 02 1 9604-
21 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-049-0 02 1 9604-
22 RING; BACKUP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-019-0 02 1 9604-
23 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-047-0 02 1 9604-
24 BEARING; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-020-0 02 1 9604-
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-086-0 01 1 9604-
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-085-0 01 1 9604-
26 NUT; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-058-0 04 1 9604-
27 WASHER; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-057-0 02 1 9604-
28 BRACKET; PRESSURE PLATE,HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-059-0 02 1 9604-
29 STUD; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-050-0 02 1 9604-
31 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9604-
31 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9604-
33 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-044-0 04 1 9604-
34 DIAPHRAGM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48252-010-0 02 1 9604-
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48253-010-0 02 1 9604-
36 RETAINER; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-043-0 02 1 9604-
37 SPRING; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48255-003-0 02 1 9604-
38 COVER; ROD & PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-066-0 02 1 9604-
39 COVER; ROD & PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-065-0 02 1 9604-
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-068-1 01 1 9604-
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-067-1 01 1 9604-
41 PIPE ASM; LWR COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-075-0 02 1 9604-
67 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-053-0 02 1 9604-
69 HOSE; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-051-0 02 1 9604-
70 COVER; EXH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-052-0 02 1 9604-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
