2-05 — CLUTCH PIPING (#63152) — 140 parça

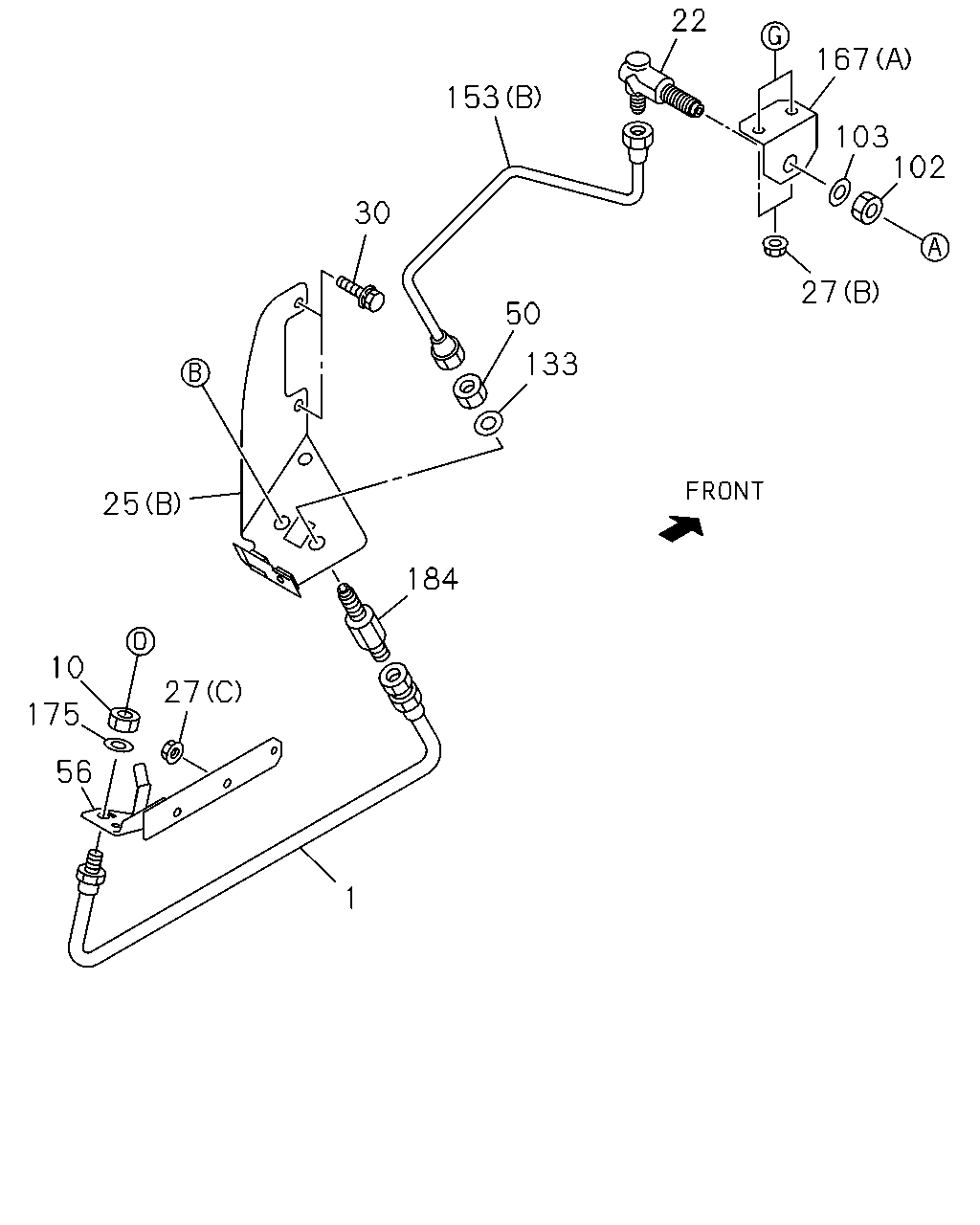

25 30 153 22 50 184 27 175 56 10 133 27 103 167 102 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	8-98072-340-0	01	1	1008-1306
1	HOSE; FLEX,CLU CONT L=620	8-98072-333-0	01	1	1307-
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1008-
22	UNION; CLU PIPE M14 ELBOW	0-92125-208-0	01	1	1008-
25	BRACKET; OIL PIPE (A) L=50	1-47475-299-2	02	1	1008-
25	BRACKET; OIL PIPE (B)	1-71907-726-0	01	1	1008-
27	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	02	1	1008-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	1008-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	1008-
30	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1008-
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1008-1306
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1307-
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1307-
50	NUT; UNION M14	0-91111-514-0	01	1	1008-
56	BRACKET; FLEX HOSE	8-98176-093-0	01	1	1008-1306
56	BRACKET; FLEX HOSE	8-98225-392-0	01	1	1307-
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1008-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1008-
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	1008-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=501 SERVICED BY L=550	1-47426-377-0	01	1	1008-1306
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) (A) L=2052 SERVICED BY L=2150	1-47428-770-0	01	1	1307-
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) (A) L=2052 SERVICED BY L=2150	1-47428-770-0	01	1	1008-1110
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) (A) L=2052 SERVICED BY L=2150	1-47428-770-0	01	1	1111-1306
153	PIPE ASM; CLU,UNION TO FLEX (B) L=501 SERVICED BY L=550	1-47426-377-0	01	1	1307-
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (A) L=2112 SERVICED BY L=2150	1-47428-770-0	01	1	1008-1110
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (A) L=2112 SERVICED BY L=2150	1-47428-770-0	01	1	1111-1306
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (A) L=1964 SERVICED BY L=2150	1-47428-770-0	01	1	1307-1309
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (A) L=2004 SERVICED BY L=2150	1-47428-770-0	01	1	1310-
167	BRACKET; UNION (B)	1-71117-207-1	01	1	1008-
167	BRACKET; UNION (A)	1-71907-376-1	01	1	1008-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1008-
184	UNION; FLEX HOSE STRAIGHT	1-09654-435-0	01	1	1008-

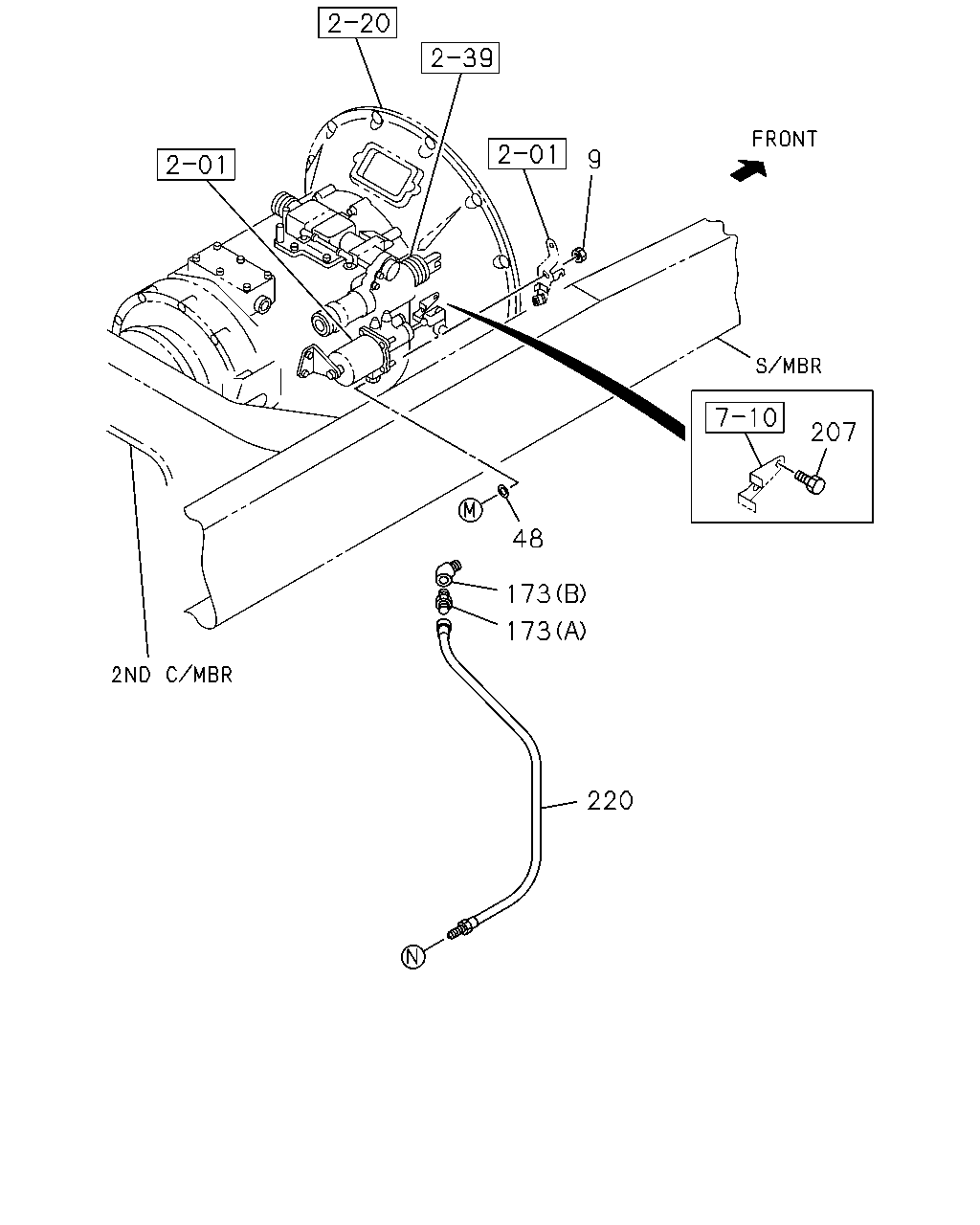

220 173 173 48 207 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE MJT7S M/T(Y3E) M10 FLANGE	0-91180-210-0	02	1	1008-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	1008-
173	CONNECTOR (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1008-1306
173	CONNECTOR MJT7S M/T(Y3E) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1307-
173	CONNECTOR (B) R1/4 & RC1/4	1-09664-211-0	01	1	1008-1306
173	CONNECTOR MJT7S M/T(Y3E) (B) R1/4 & RC1/4	1-09664-211-0	01	1	1307-
207	BOLT; CLIP MJX16P M/T(Y3Z) M10X16 FLANGE	0-28151-016-0	02	1	1008-
220	HOSE; FLEX,POWER ASSIST MJT7S M/T(Y3E) L=360	1-09363-823-0	01	1	1008-
220	HOSE; FLEX,POWER ASSIST MJX16P M/T(Y3Z) L=400	1-09363-606-0	01	1	1008-1306
220	HOSE; FLEX,POWER ASSIST MJX16P M/T(Y3Z) L=320	1-09363-625-0	01	1	1307-

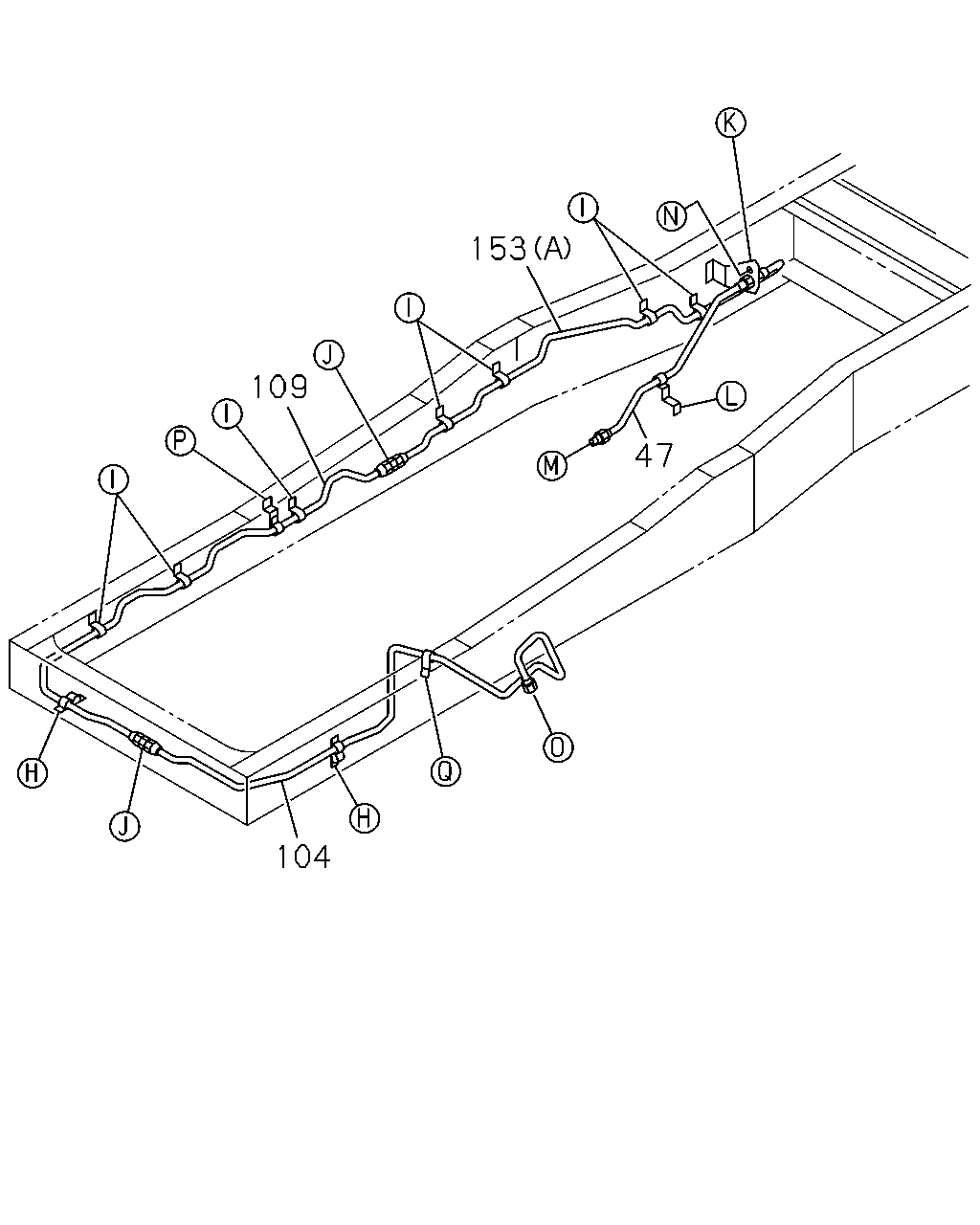

104 47 153 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) L=550	1-09364-434-0	01	1	1307-1309
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) L=600	1-09364-705-0	01	1	1310-
47	HOSE; FLEX,CLU CONT L=700	1-09364-456-0	01	1	1008-1306
47	HOSE; FLEX,CLU CONT MJT7S M/T(Y3E) L=700	1-09364-456-0	01	1	1307-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1240 SERVICED BY L=1250	1-47428-764-0	01	1	1008-1306
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1223	8-98239-924-0	01	1	1307-
109	PIPE; AIR,UNION TO UNION FRONT UNDER RUN PROTECTOR<EBE> L=1649 SERVICED BY L=1700	1-47428-767-0	01	1	1411-
109	PIPE; AIR,UNION TO UNION L=1693 SERVICED BY L=1700	1-47428-767-0	01	1	1008-1306
109	PIPE; AIR,UNION TO UNION L=1648 SERVICED BY L=1700	1-47428-767-0	01	1	1307-1410
109	PIPE; AIR,UNION TO UNION EXC. FRONT UNDER RUN PROTECTOR<EBE> L=1648 SERVICED BY L=1700	1-47428-767-0	01	1	1411-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=501 SERVICED BY L=550	1-47426-377-0	01	1	1008-1306
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) (A) L=2052 SERVICED BY L=2150	1-47428-770-0	01	1	1307-
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) (A) L=2052 SERVICED BY L=2150	1-47428-770-0	01	1	1008-1110
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) (A) L=2052 SERVICED BY L=2150	1-47428-770-0	01	1	1111-1306
153	PIPE ASM; CLU,UNION TO FLEX (B) L=501 SERVICED BY L=550	1-47426-377-0	01	1	1307-
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (A) L=2112 SERVICED BY L=2150	1-47428-770-0	01	1	1008-1110
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (A) L=2112 SERVICED BY L=2150	1-47428-770-0	01	1	1111-1306
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (A) L=1964 SERVICED BY L=2150	1-47428-770-0	01	1	1307-1309
153	PIPE ASM; CLU,UNION TO FLEX MJX16P M/T(Y3Z) (A) L=2004 SERVICED BY L=2150	1-47428-770-0	01	1	1310-

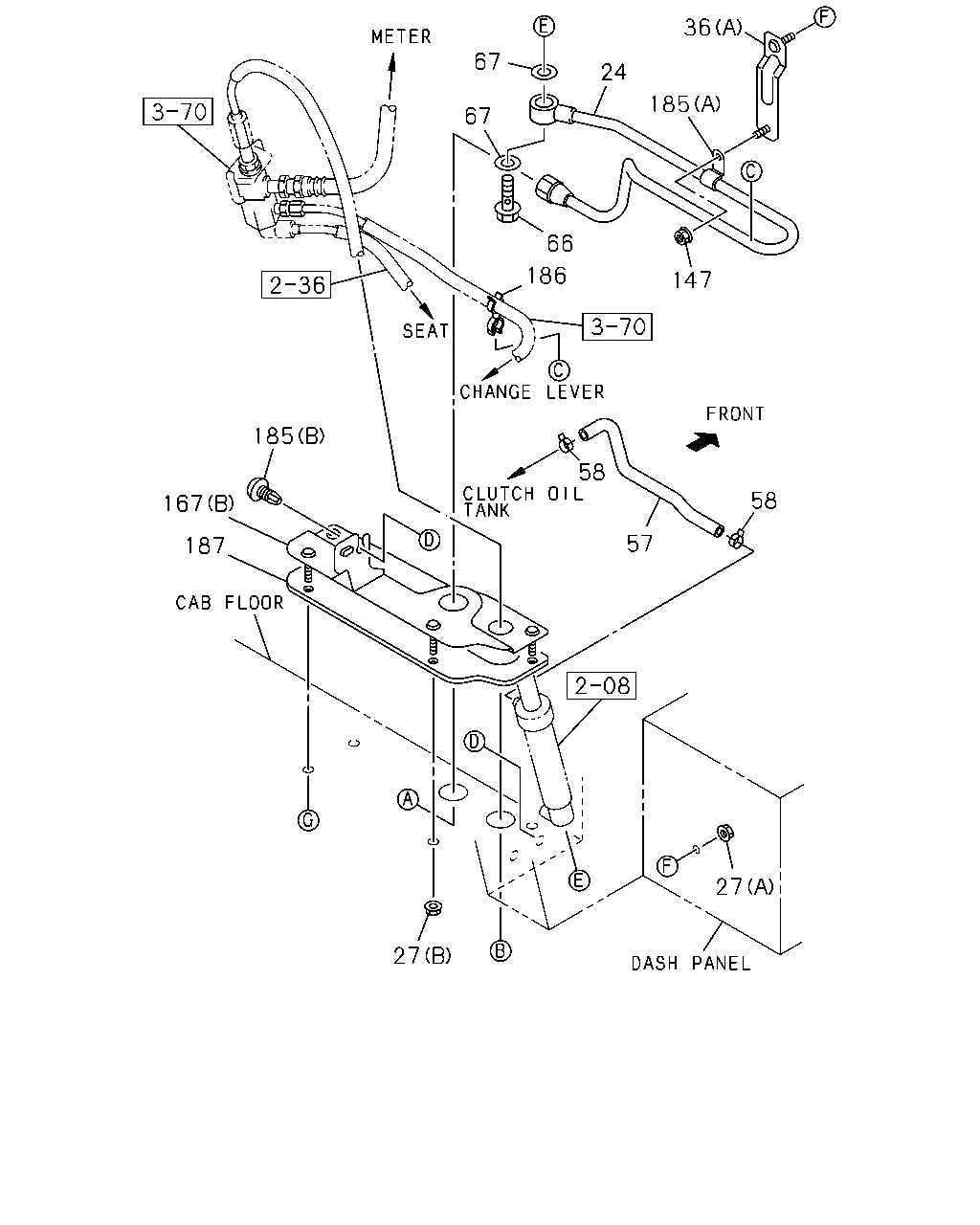

185 167 187 27 27 58 57 58 147 186 66 185 36 24 67 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION L=621	1-47428-362-1	01	1	1008-
27	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	02	1	1008-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	1008-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	1008-
36	BRACKET; CLIP (B)	1-47475-689-0	01	1	1008-1306
36	BRACKET; CLIP MJT7S M/T(Y3E) (B)	1-47475-689-0	01	1	1307-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	1008-
36	BRACKET; CLIP MJX16P M/T(Y3Z) (B) L=60	8-98162-941-0	01	1	1307-
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	1008-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	1008-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	1008-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	1008-1312
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	1008-
167	BRACKET; UNION (B)	1-71117-207-1	01	1	1008-
167	BRACKET; UNION (A)	1-71907-376-1	01	1	1008-
185	CLIP; BRKT (A) ID=11 L=16	0-95235-025-0	01	1	1008-
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	1008-
186	HOLDER; CLIP ID=8.3 & 8.3	8-94426-175-0	01	1	1008-1306
186	HOLDER; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	1307-
187	SEAL; BRKT	1-71117-209-2	01	1	1008-

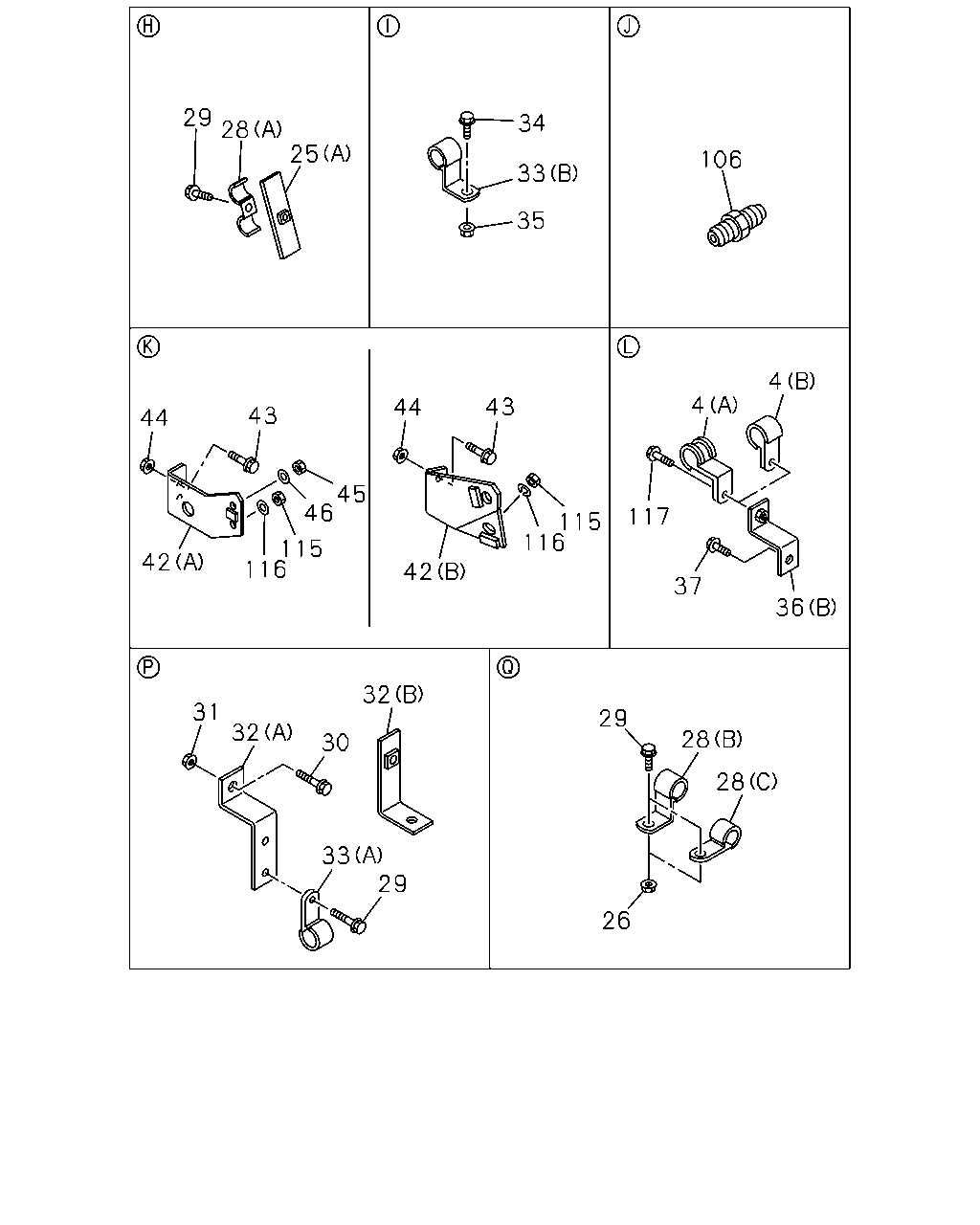

29 25 28 34 35 33 106 44 43 46 45 115 116 42 42 44 43 116 117 37 115 4 4 36 32 30 32 31 33 29 29 28 28 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; FLEX HOSE,CLU CONT (A) ID=16 H=25 L=25	1-09701-162-0	01	1	1008-1306
4	CLIP; FLEX HOSE,CLU CONT MJT7S M/T(Y3E) (A) ID=16 H=25 L=25	1-09701-162-0	01	1	1307-
4	CLIP; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) (B) ID=16 L=28	1-09700-872-0	01	1	1307-
25	BRACKET; OIL PIPE (A) L=50	1-47475-299-2	02	1	1008-
25	BRACKET; OIL PIPE (B)	1-71907-726-0	01	1	1008-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	1008-1306
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	1307-
28	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	1008-1306
28	CLIP; OIL PIPE (C) ID=9 L=20	0-95234-835-0	02	1	1307-
28	CLIP; OIL PIPE (A) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	1008-
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1008-
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	1008-1306
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1307-
30	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1008-
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1008-1306
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1307-
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1307-
31	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1008-1306
31	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1307-
32	BRACKET; CLIP OIL PIPE (A)	1-47479-482-0	01	1	1008-
32	BRACKET; CLIP OIL PIPE (B)	8-98217-564-0	01	1	1307-
33	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	01	1	1008-1306
33	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	02	1	1307-
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	06	1	1008-1306
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	1307-
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	04	1	1307-
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	03	1	1008-1306
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	01	1	1307-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	04	1	1008-1306
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	01	1	1307-
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1307-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	04	1	1307-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	06	1	1008-1306
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	1307-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	1307-
36	BRACKET; CLIP (B)	1-47475-689-0	01	1	1008-1306
36	BRACKET; CLIP MJT7S M/T(Y3E) (B)	1-47475-689-0	01	1	1307-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	1008-
36	BRACKET; CLIP MJX16P M/T(Y3Z) (B) L=60	8-98162-941-0	01	1	1307-
37	BOLT; CLIP BRKT M10X20 FLANGE	0-28151-020-0	01	1	1008-1306
37	BOLT; CLIP BRKT MJT7S M/T(Y3E) M10X20 FLANGE	0-28151-020-0	01	1	1307-
37	BOLT; CLIP BRKT MJX16P M/T(Y3Z) M8X16 FLANGE	0-28050-816-0	01	1	1307-
42	BRACKET; FLEX HOSE,CLU CONT MJT7S M/T(Y3E) (A)	1-47471-203-0	01	1	1008-
42	BRACKET; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) (A)	8-98045-539-0	01	1	1008-1306
42	BRACKET; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) (B)	1-47479-812-0	01	1	1307-1309
42	BRACKET; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) (B)	8-98251-782-0	01	1	1310-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28650-835-0	02	1	1008-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1008-
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	1008-1306
45	NUT; FLEX HOSE,CLU CONT MJT7S M/T(Y3E) M12	9-09840-280-0	01	1	1307-
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	1008-1306
46	WASHER; LK,FLEX HOSE,CLU CONT MJT7S M/T(Y3E) ID=12.2	0-91510-512-0	01	1	1307-
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	02	1	1008-1306
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	1307-
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	1307-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1008-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1008-
117	BOLT; CLIP,FLEX HOSE M8X16 FLANGE	0-28050-816-0	01	1	1008-
