◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11324 - EXR MIDDLE EAST WITH 3STEPS ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#63151) — 30 parça

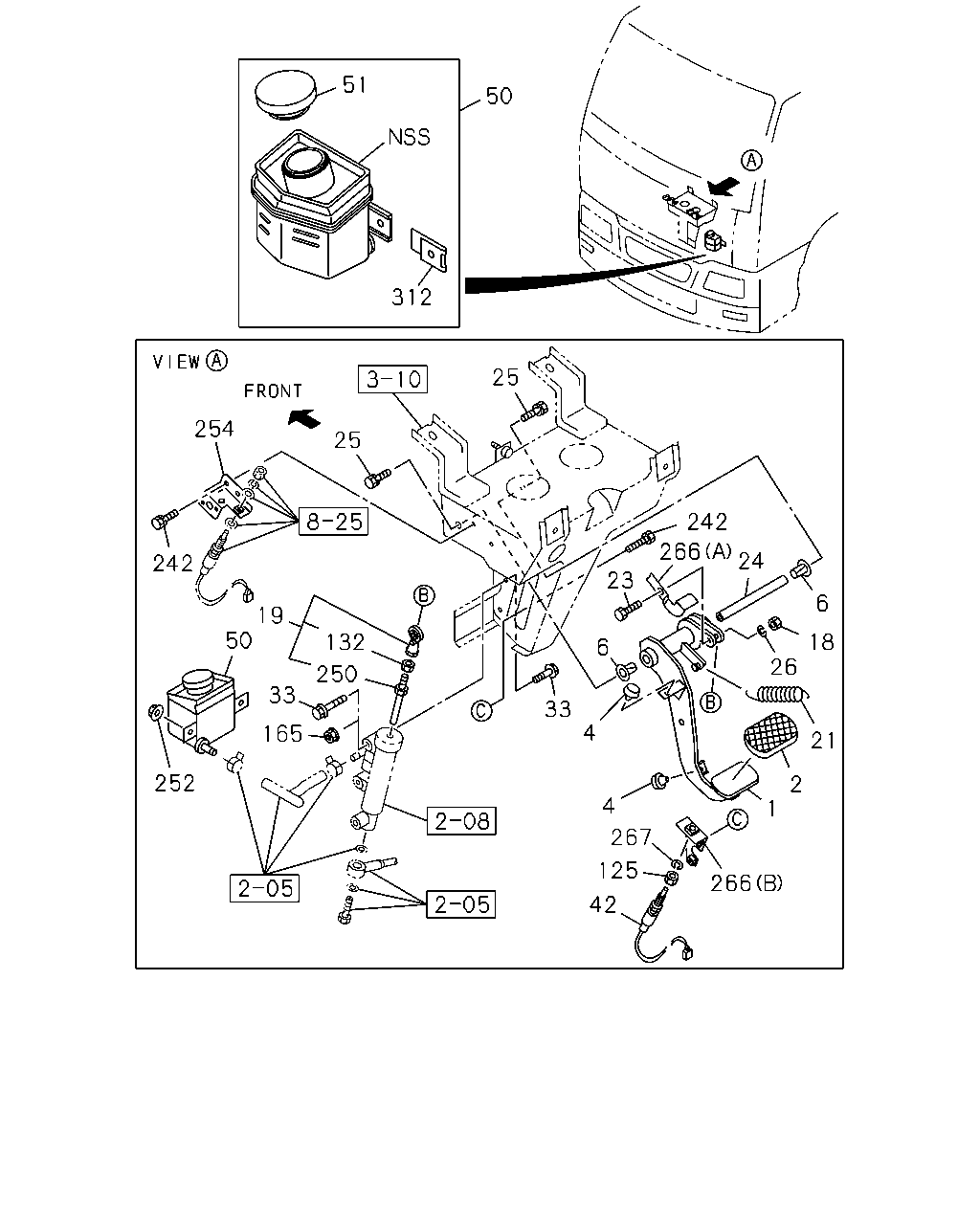

çizim 170642
42 1 266 2 21 26 6 18 125 4 267 4 24 242 266 23 6 33 25 25 254 242 19 132 250 50 33 165 252 312 51 50
BalonParca AdiParca NoAdetTipApplied Date
1 PEDAL; CLU
MJT7S M/T(Y3E) 		1-73907-440-2 01 1 1008-
1 PEDAL; CLU
MJX16P M/T(Y3Z) 		1-73907-472-2 01 1 1008-
2 COVER; CLU PEDAL 8-97893-618-1 01 1 1008-
4 STOPPER; CLU PEDAL 1-47319-014-1 04 1 1008-
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 1008-
18 NUT; PUSH ROD
M8 		0-91110-508-0 01 1 1008-
19 ROD ASM; PUSH,CLU 1-73907-320-1 01 1 1008-
21 SPRING; RETURN,CLU PEDAL
MJT7S M/T(Y3E) 		1-73908-265-0 01 1 1008-
21 SPRING; RETURN,CLU PEDAL
MJX16P M/T(Y3Z) 		1-73907-445-0 01 1 1008-
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 1008-
24 SHAFT; CLU PEDAL 1-73998-936-1 01 1 1008-
25 BOLT; PEDAL
M10X25 W/LK WASHER 		0-50051-025-0 02 1 1008-
26 WASHER; LK,PUSH ROD
ID=8.2 		0-91510-608-0 01 1 1008-
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 1008-1306
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 1307-
42 SWITCH; CLU
MJX16P M/T(Y3Z) 		1-82380-114-3 01 1 1008-
50 TANK; OIL,CLU 1-47530-182-0 01 1 1008-
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 1008-
125 NUT; CLU SWITCH
MJX16P M/T(Y3Z) M10 		0-91110-510-0 01 1 1008-
132 NUT; LK,PUSH ROD
M8 		0-91110-508-0 01 1 1008-
165 NUT; CLU M/CYL
MJX16P M/T(Y3Z) M10 FLANGE 		0-91180-210-0 02 1 1008-1306
242 BOLT; BRKT,CLUTCH
MJT7S M/T(Y3E) M6X16 W/LK WASHER 		0-50040-616-0 02 1 1008-
242 BOLT; BRKT,CLUTCH
MJX16P M/T(Y3Z) M6X16 W/LK WASHER 		0-50040-616-0 04 1 1008-
250 ROD; PUSH,CLU 1-73996-219-0 01 1 1008-
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 1008-
254 BRACKET; CLU SENSOR 1-73998-979-5 01 1 1008-
266 BRACKET; CLU SWITCH
MJX16P M/T(Y3Z) (A) 		1-73907-395-1 01 1 1008-
266 BRACKET; CLU SWITCH
MJX16P M/T(Y3Z) (B) 		1-73908-354-0 01 1 1008-
267 WASHER; LK,CLU SWITCH
MJX16P M/T(Y3Z) ID=10.2 		0-91510-510-0 01 1 1008-
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 1008-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
