Isuzu WW
▶
TRUCKS
▶
EXR
▶
11324 - EXR MIDDLE EAST WITH 3STEPS
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-35 - CHARGE AIR COOLER
▶
1-35 — CHARGE AIR COOLER
(#63144) — 28 parça
◀

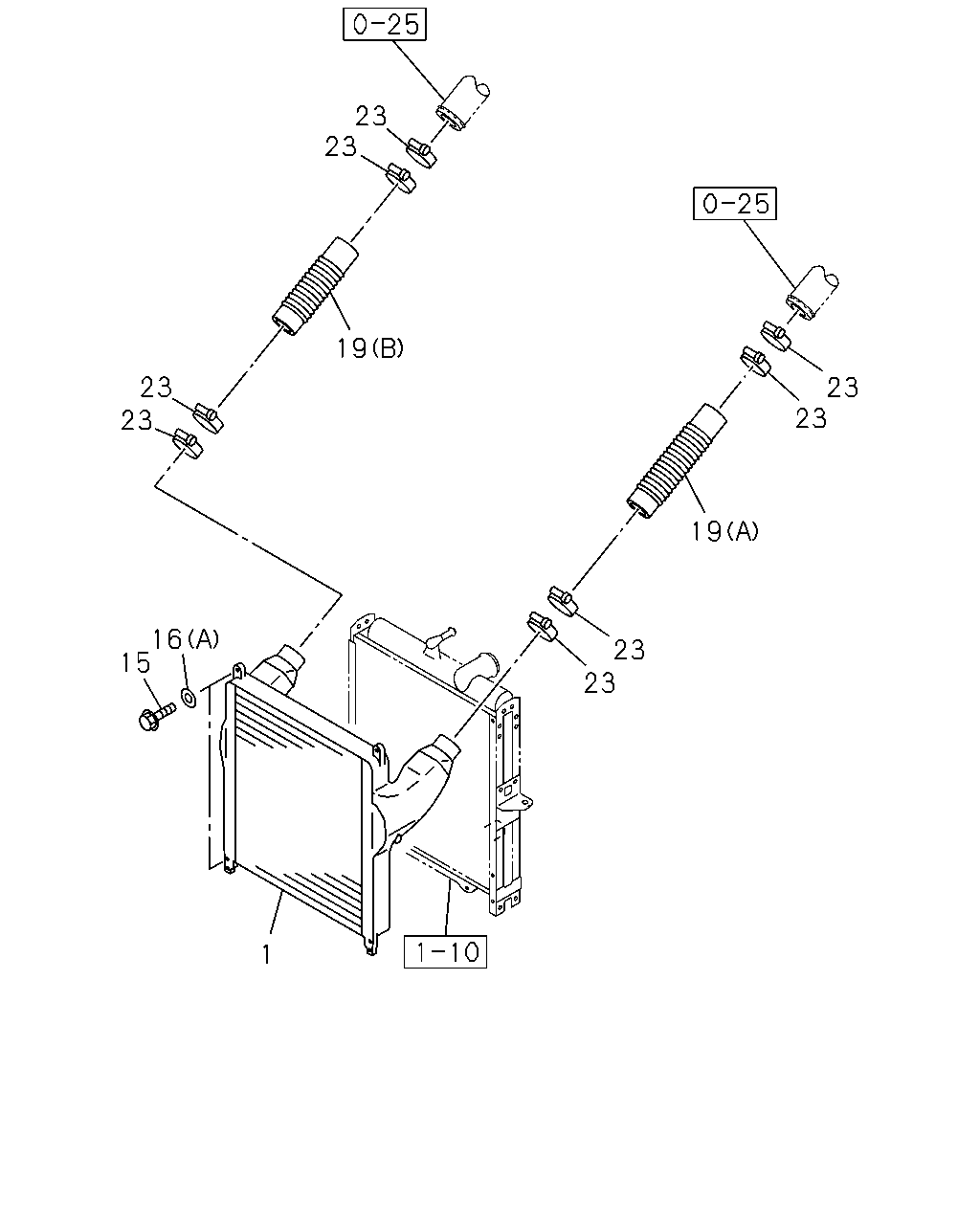

[135A] -'13/6 (14 parça)

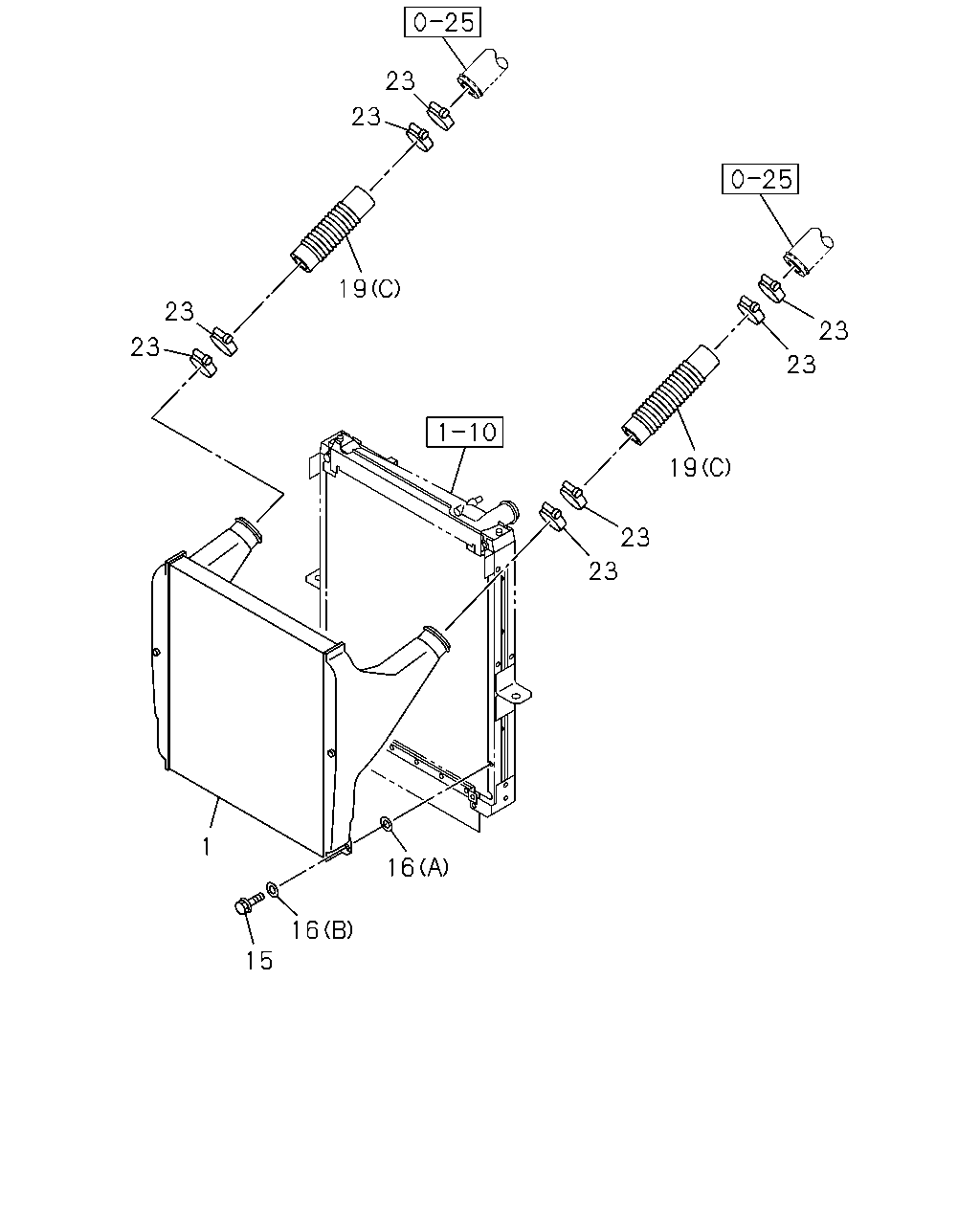

[135A] '13/7- (14 parça)
▶
23
23
23
23
19
16
15
23
19
23
23
23
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COOLER; CHARGE AIR
1-14431-055-5
01
1
1008-1306
1
COOLER; CHARGE AIR
8-98230-582-0
01
1
1307-1502
1
COOLER; CHARGE AIR
8-98297-975-0
01
1
1503-
15
BOLT; CHARGE AIR COOLER
M8X35 FLANGE
1-21469-151-0
04
1
1008-1306
15
BOLT; CHARGE AIR COOLER
M8X20 FLANGE
0-28050-820-0
04
1
1307-
16
WASHER; PL,CHARGE AIR COOLER
(A)
1-21469-132-0
02
1
1008-
16
WASHER; PL,CHARGE AIR COOLER
(B) ID=8.4 OD=18
0-91610-608-0
04
1
1307-
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(A)
1-09361-130-0
01
1
1008-1306
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(C)
8-98170-418-0
01
1
1307-1402
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(C)
8-98258-229-0
01
1
1403-
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B)
1-09361-131-0
01
1
1008-1306
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(C)
8-98170-419-0
01
1
1307-
23
CLIP; HOSE
ID=87-112
8-97375-040-0
08
1
1008-1010
23
CLIP; HOSE
ID=87-116
1-09707-138-0
08
1
1011-
23
23
19
23
23
1
15
16
16
23
23
19
23
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COOLER; CHARGE AIR
1-14431-055-5
01
1
1008-1306
1
COOLER; CHARGE AIR
8-98230-582-0
01
1
1307-1502
1
COOLER; CHARGE AIR
8-98297-975-0
01
1
1503-
15
BOLT; CHARGE AIR COOLER
M8X35 FLANGE
1-21469-151-0
04
1
1008-1306
15
BOLT; CHARGE AIR COOLER
M8X20 FLANGE
0-28050-820-0
04
1
1307-
16
WASHER; PL,CHARGE AIR COOLER
(A)
1-21469-132-0
02
1
1008-
16
WASHER; PL,CHARGE AIR COOLER
(B) ID=8.4 OD=18
0-91610-608-0
04
1
1307-
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(A)
1-09361-130-0
01
1
1008-1306
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(C)
8-98170-418-0
01
1
1307-1402
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(C)
8-98258-229-0
01
1
1403-
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B)
1-09361-131-0
01
1
1008-1306
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(C)
8-98170-419-0
01
1
1307-
23
CLIP; HOSE
ID=87-112
8-97375-040-0
08
1
1008-1010
23
CLIP; HOSE
ID=87-116
1-09707-138-0
08
1
1011-
