◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11324 - EXR MIDDLE EAST WITH 3STEPS ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#63142) — 30 parça

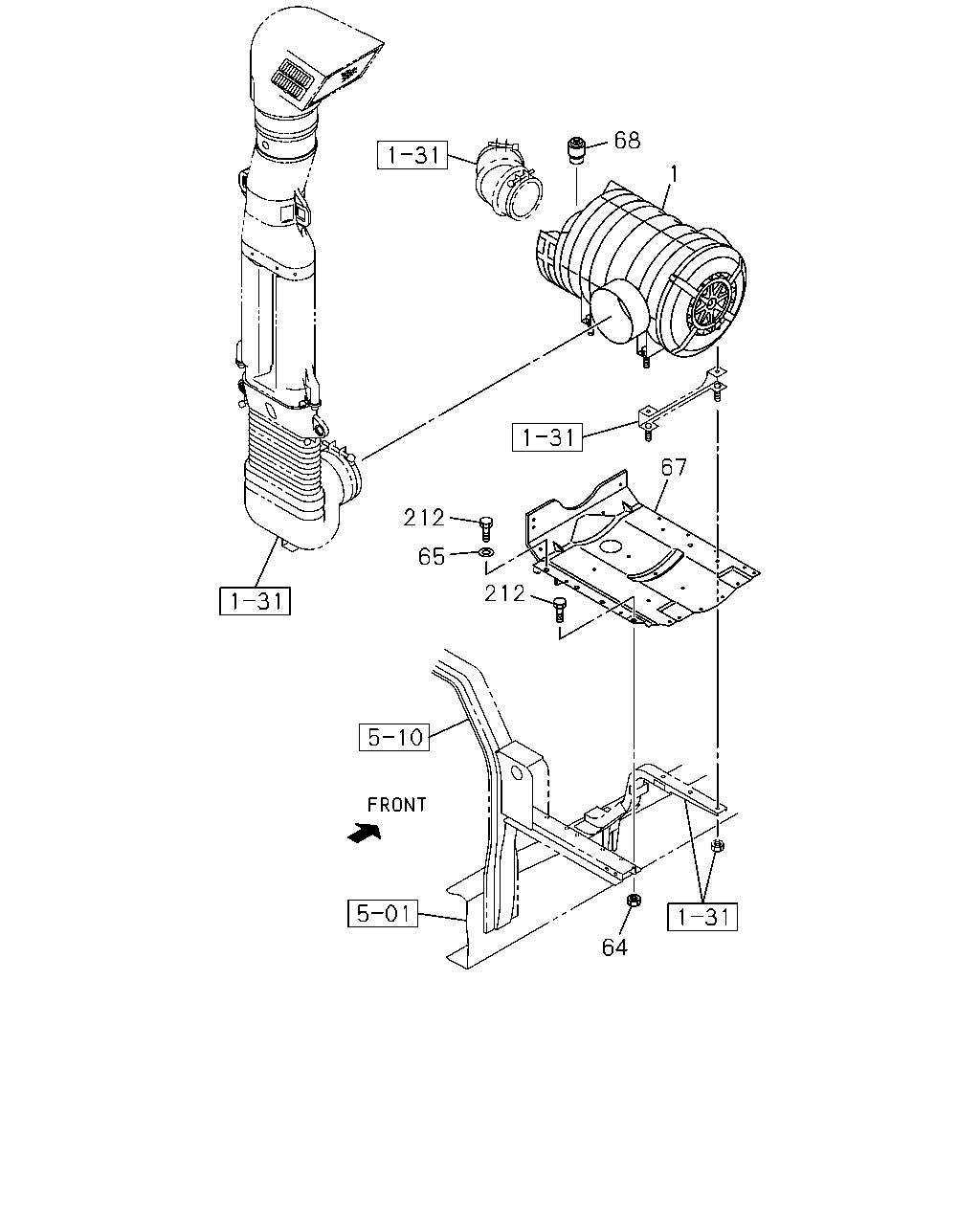

çizim 170901
68 1 212 67 65 212 64
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR 1-14210-832-0 01 1 1008-
64 NUT; BAND BRKT
M10 FLANGE 		0-91180-210-0 04 1 1008-
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 04 1 1008-1204
65 WASHER; PL
ID=10.5 		0-91610-710-0 04 1 1205-
67 COVER; ACL 1-53490-073-0 01 1 1008-1306
67 COVER; ACL 8-98227-155-0 01 1 1307-
68 INDICATOR; SERVICE 1-14219-212-0 01 1 1008-
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28651-025-0 04 1 1008-

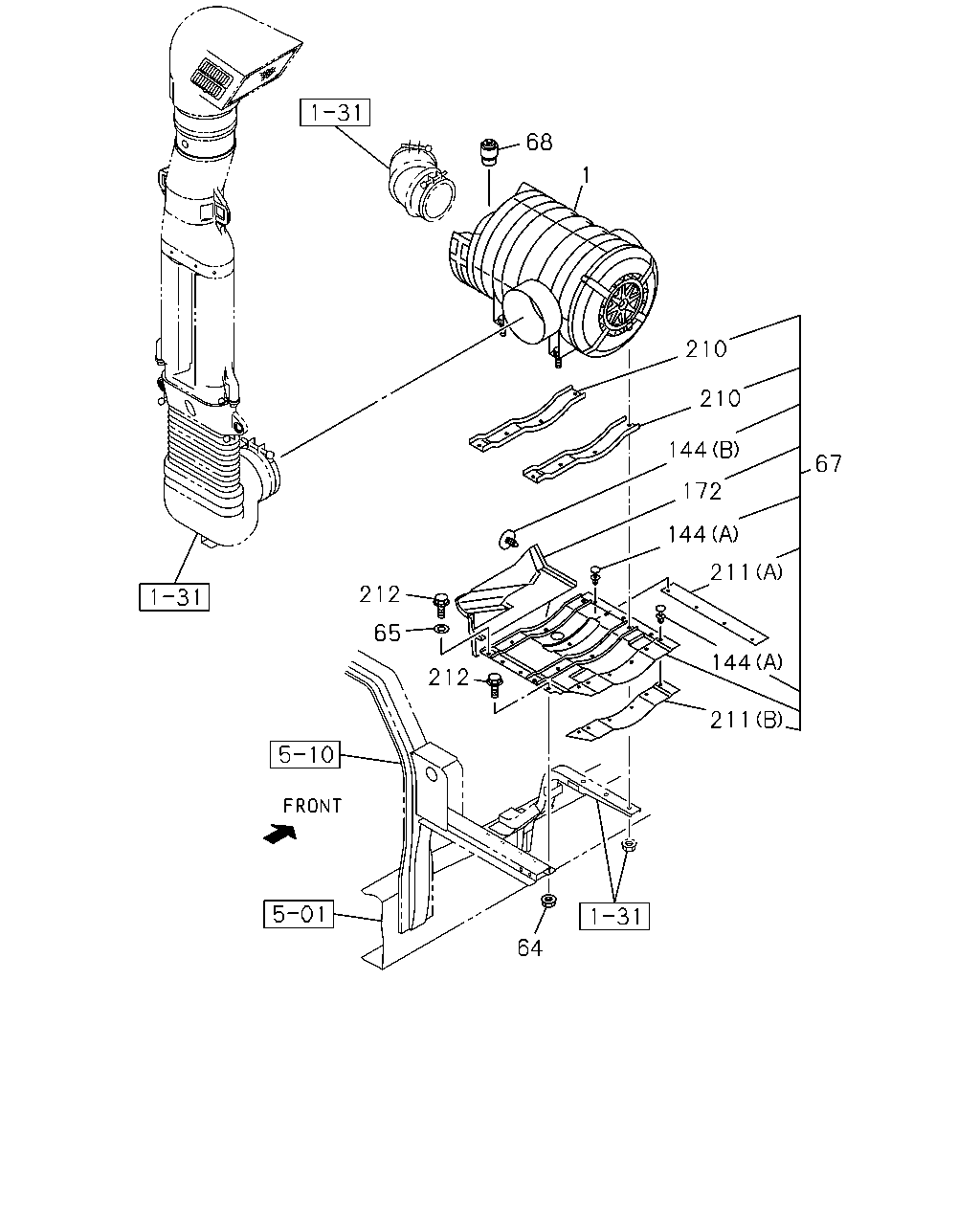

çizim 170913
68 210 210 144 67 172 144 211 144 211 212 65 212 64 1
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR 1-14210-832-0 01 1 1008-
64 NUT; BAND BRKT
M10 FLANGE 		0-91180-210-0 04 1 1008-
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 04 1 1008-1204
65 WASHER; PL
ID=10.5 		0-91610-710-0 04 1 1205-
67 COVER; ACL 1-53490-073-0 01 1 1008-1306
67 COVER; ACL 8-98227-155-0 01 1 1307-
68 INDICATOR; SERVICE 1-14219-212-0 01 1 1008-
144 CLIP; ACL
(A) 		5-09987-033-0 08 1 1307-
144 CLIP; ACL
(B) 		8-94279-048-0 03 1 1307-
172 INSULATOR; NOISE 8-98227-676-0 01 1 1307-
210 BRACKET; ACL MTG 1-53419-283-0 02 1 1307-
211 RUBBER; SEAL
(B) 		1-79931-008-2 01 1 1307-
211 RUBBER; SEAL
(A) 		8-98057-648-0 01 1 1307-
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28651-025-0 04 1 1008-

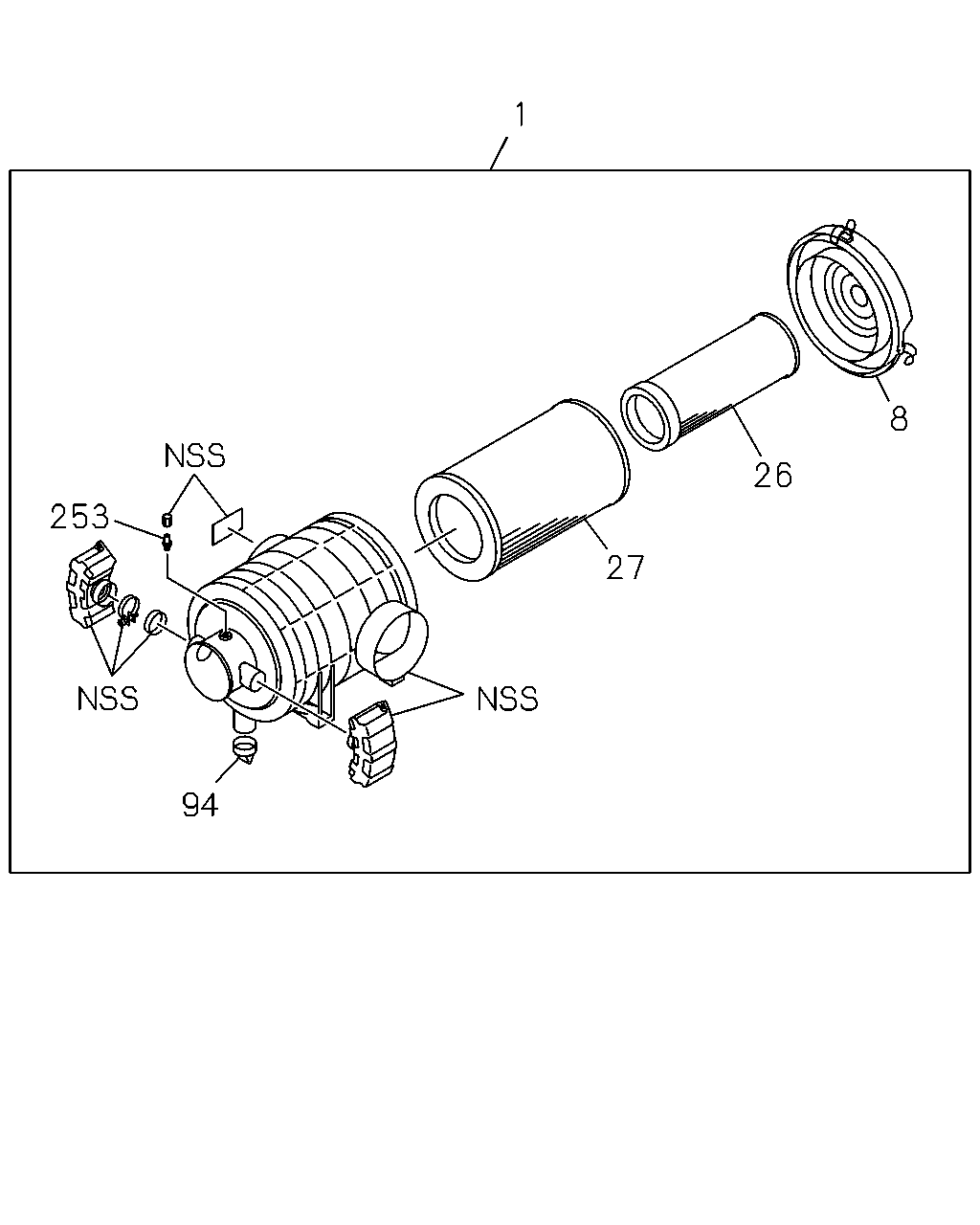

çizim 362573
253 94 27 26 8 1
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR 1-14210-832-0 01 1 1008-
8 COVER ASM; ACL 1-14212-129-0 01 1 1008-
26 FILTER; ACL,INNER 1-14215-217-0 01 1 1008-
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-112-1 01 1 1008-
27 FILTER; ACL,OUTER 1-14215-203-0 01 1 1008-
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-111-1 01 1 1008-
94 VALVE; VACUATOR 1-14219-251-0 01 1 1008-
253 NIPPLE 1-14219-252-0 01 1 1008-
